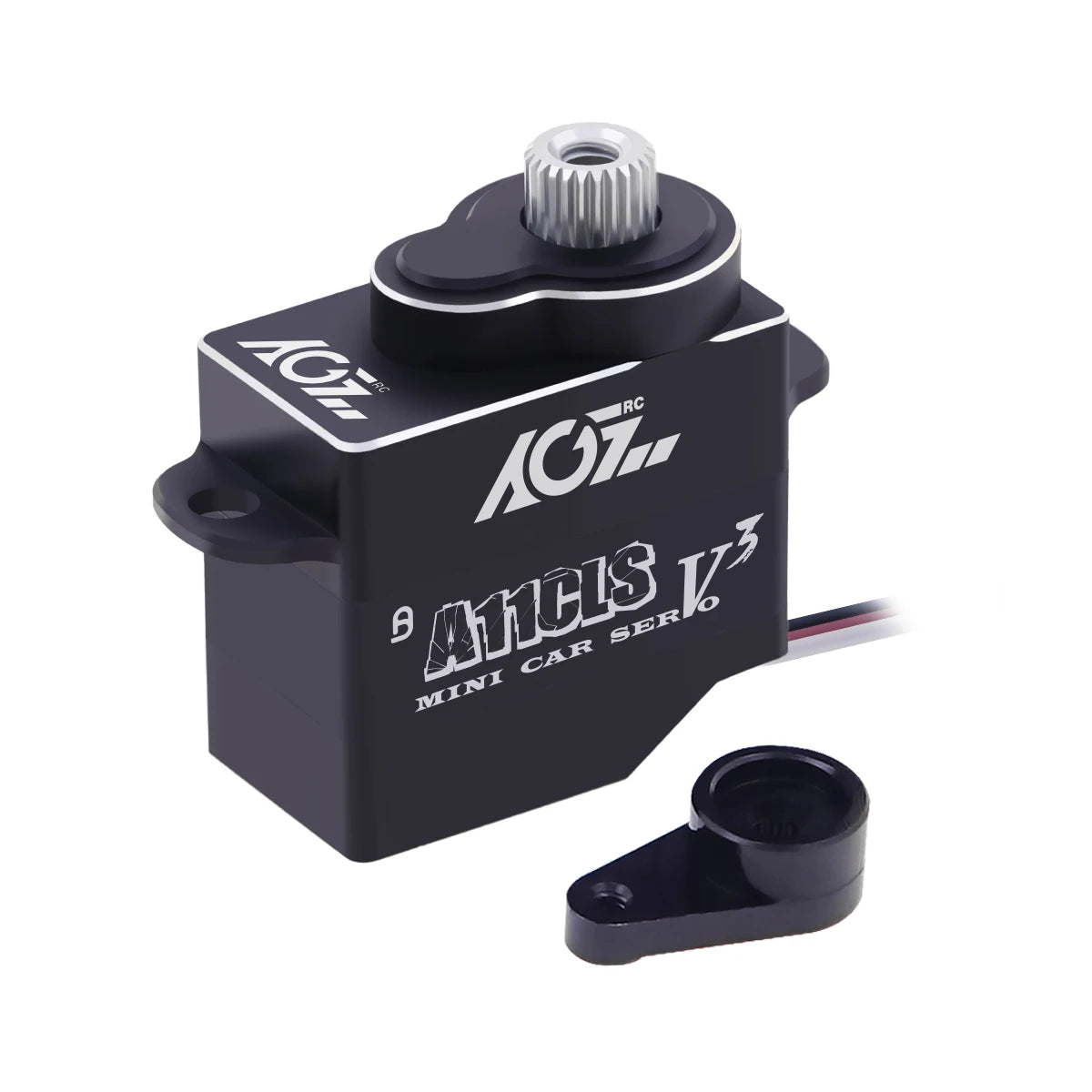

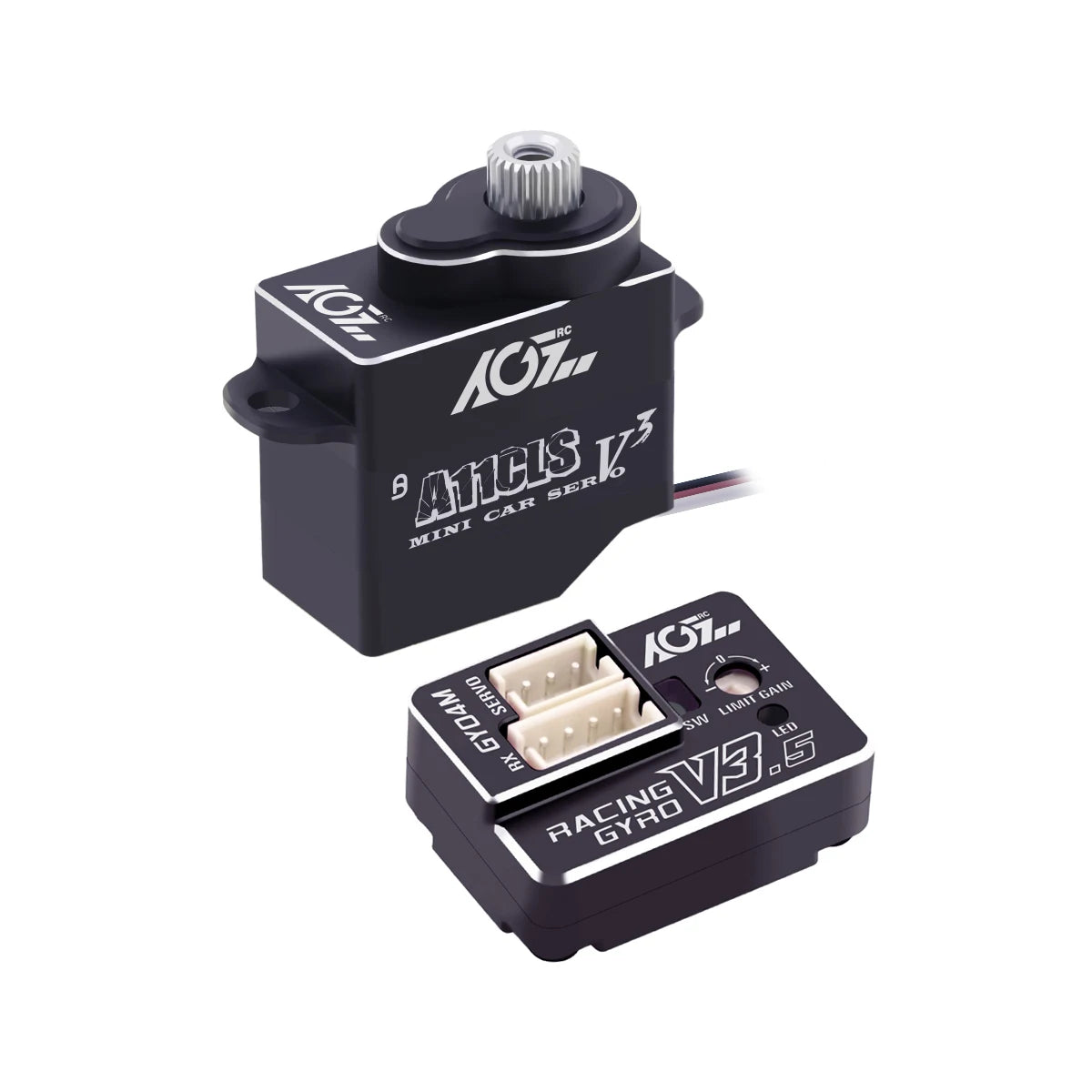

AGFRC A11CLS V3 Black Upgrade Programmable Reliable 0.05S Super Speed 1.4KG Micro Digital Coreless Servo For DRZ V2 BMR-X DriftArt WLtoys K989/969 Mini-Q 1/24 1/18 Mini Z Cars

9g Upgrade Metal Case 0.05sec Programmable High Speed High Torque Digital 1.4KG Servo JST Plug For Mini Z RC Track Car

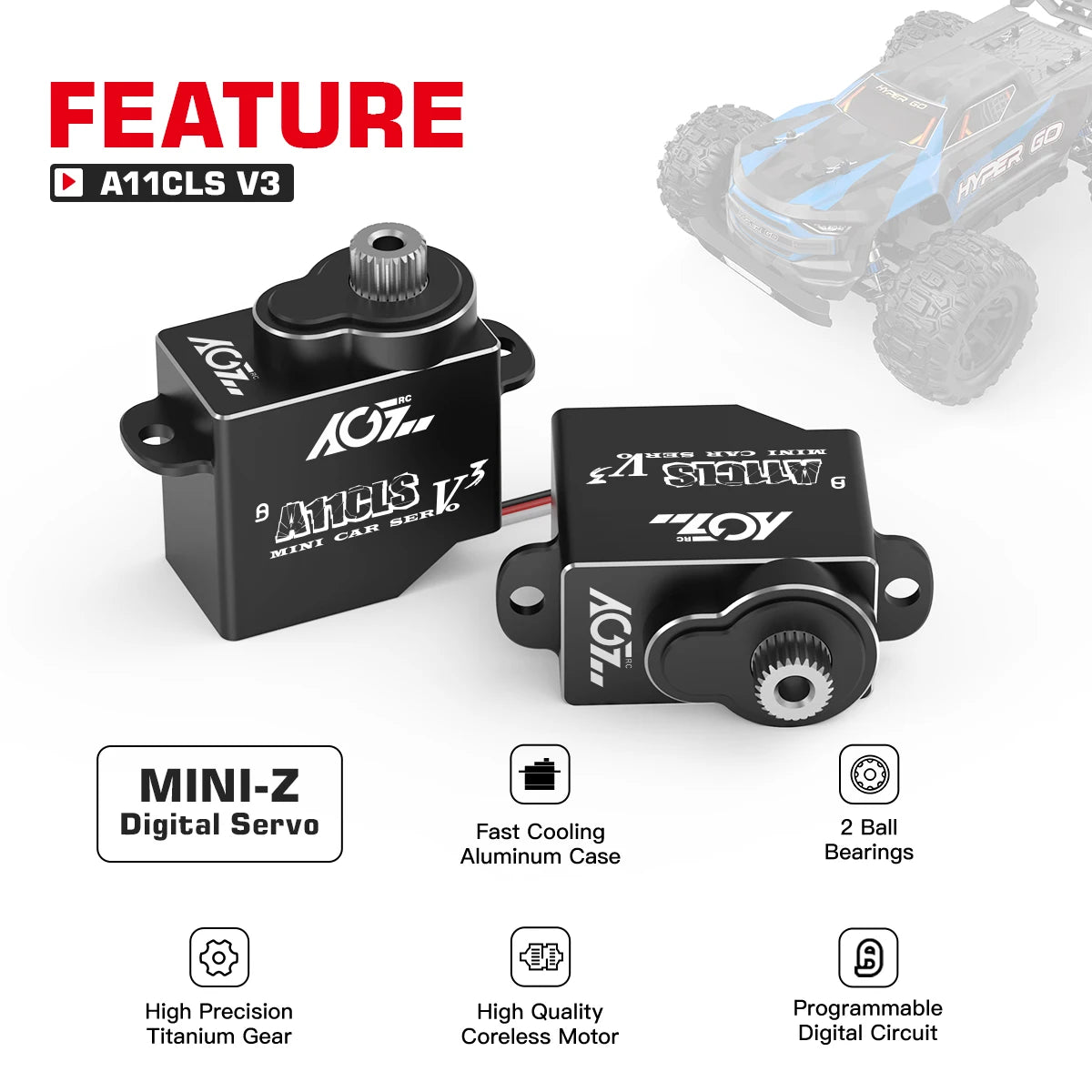

Характеристика

High Performance Mini-Z Digital Servo
High Precision Titanium Gear
High Quality Coreless Motor
Алюминиевый корпус с быстрым охлаждением
Programmable Digital Circuit For Parameter Adjustment

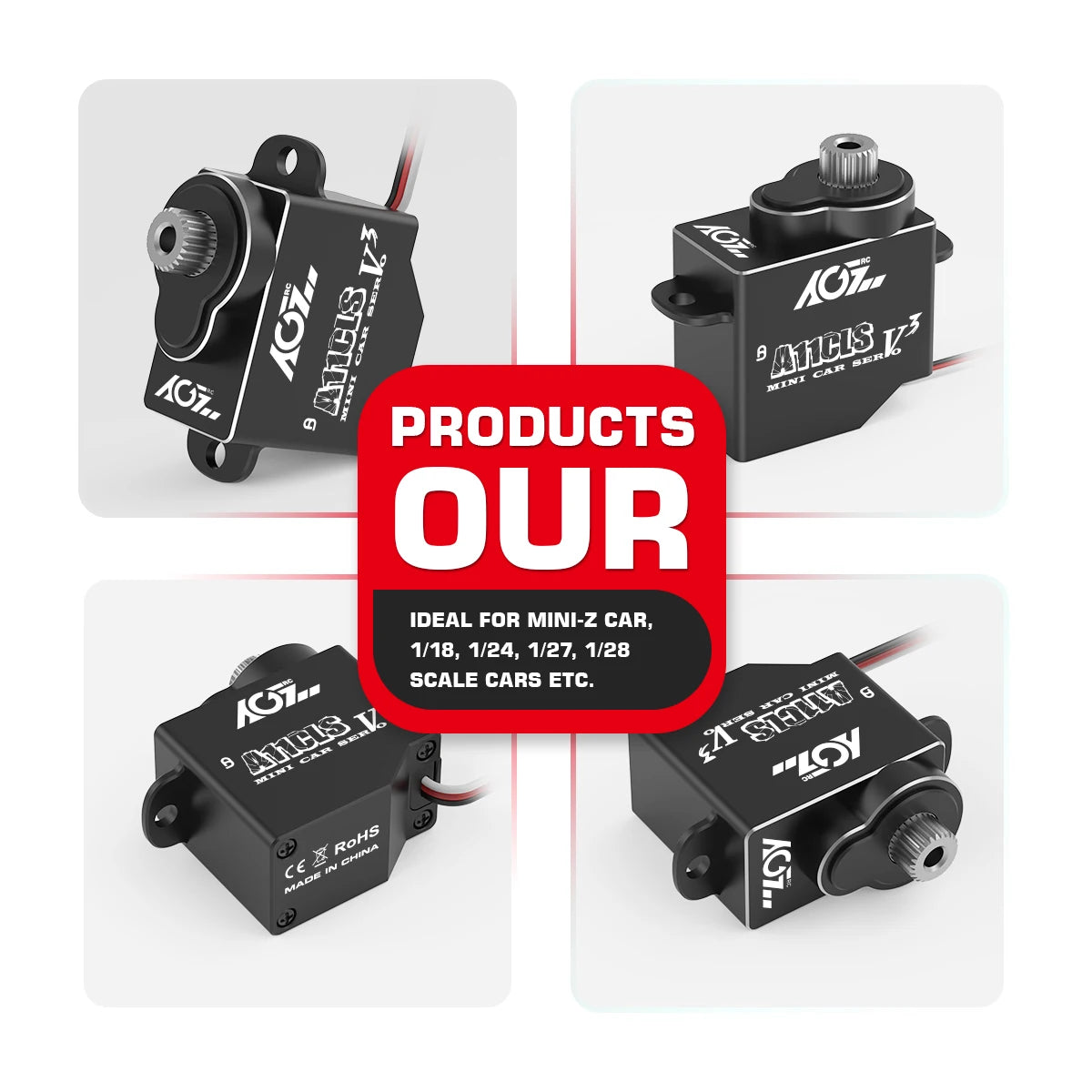

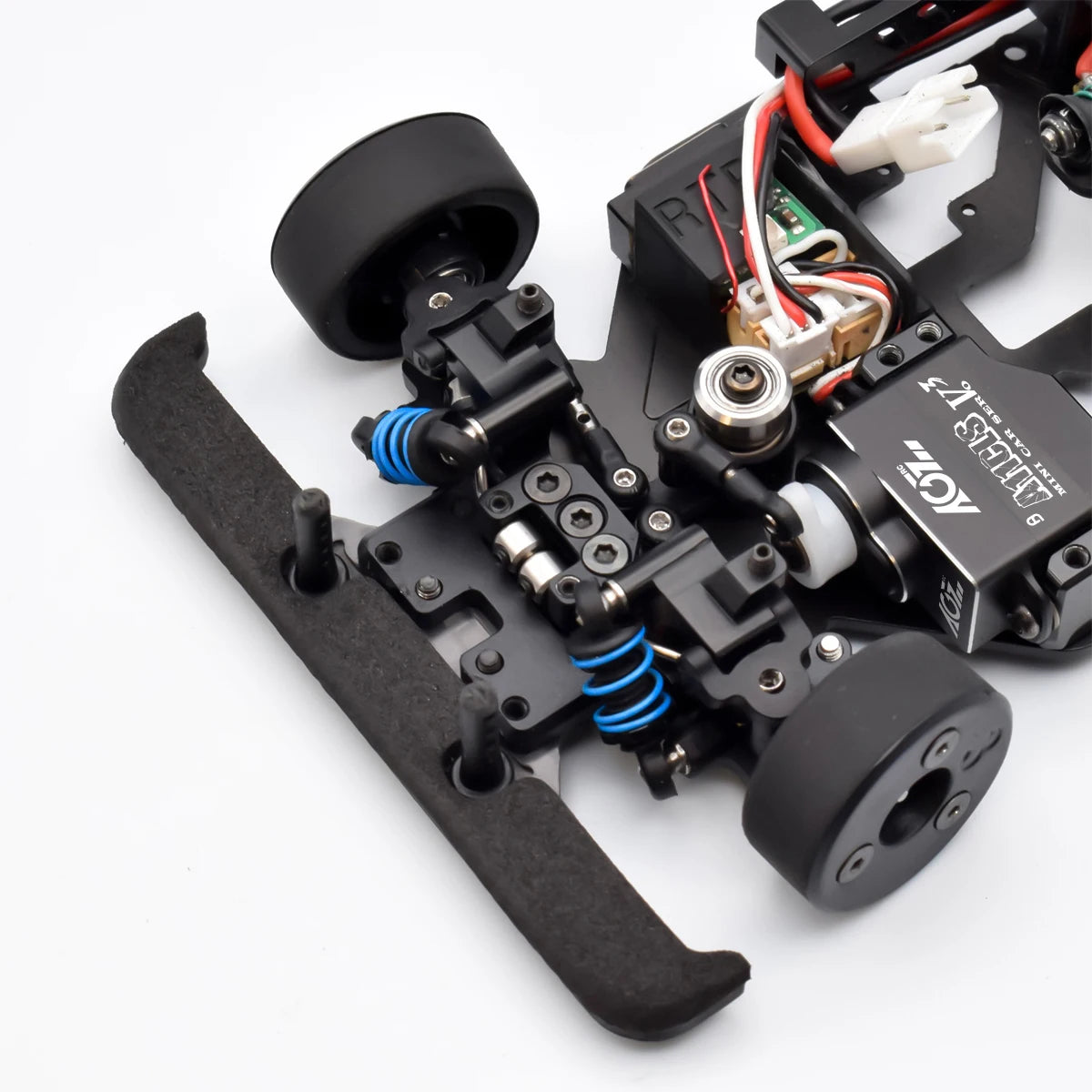

Ideal for Mini-Z Car, 1/18, 1/24, 1/27, 1/28 Scale Cars etc. (Such as DRZ V2, BMR-X, DriftArt 2 ,WLtoys K989/969, Mini-Q etc.)

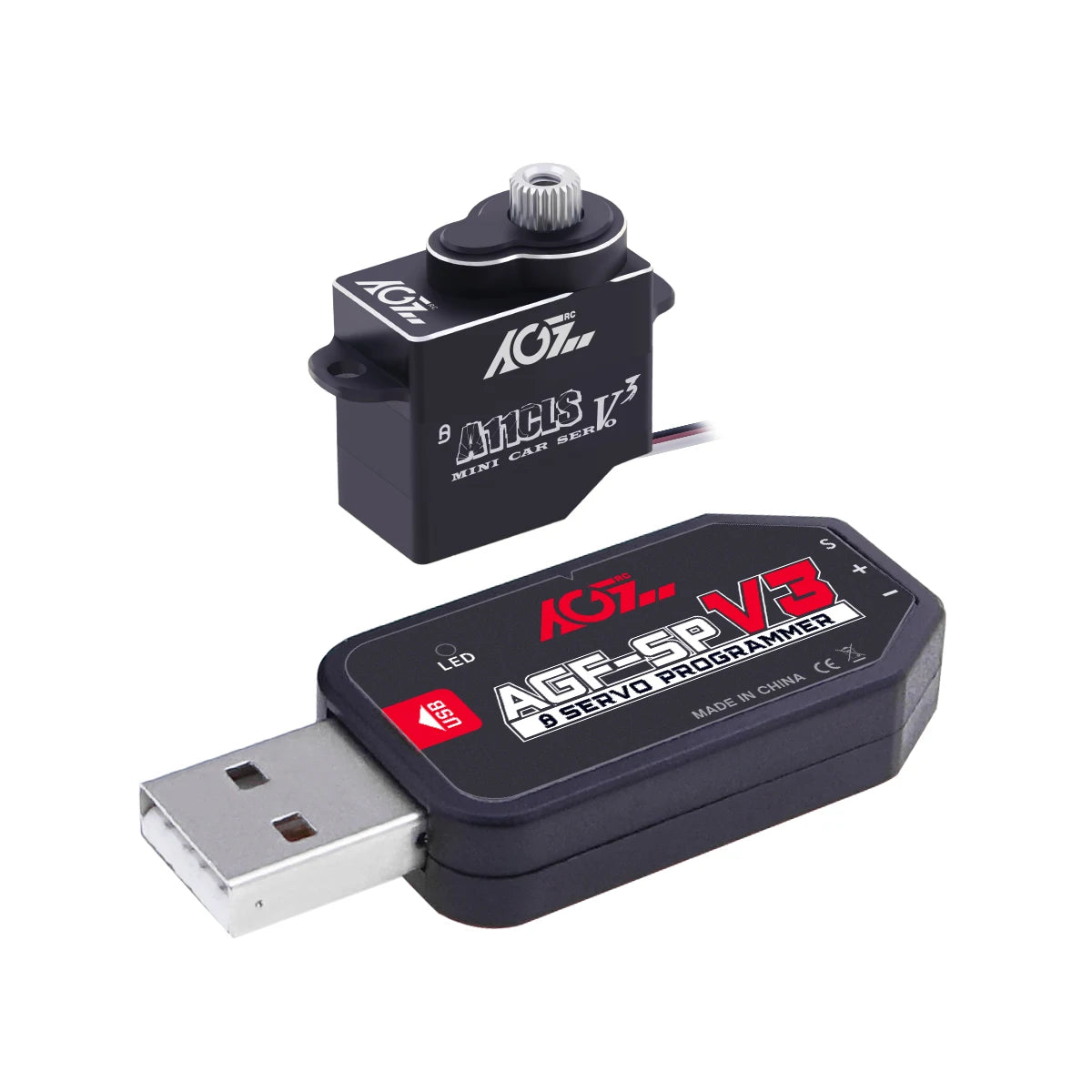

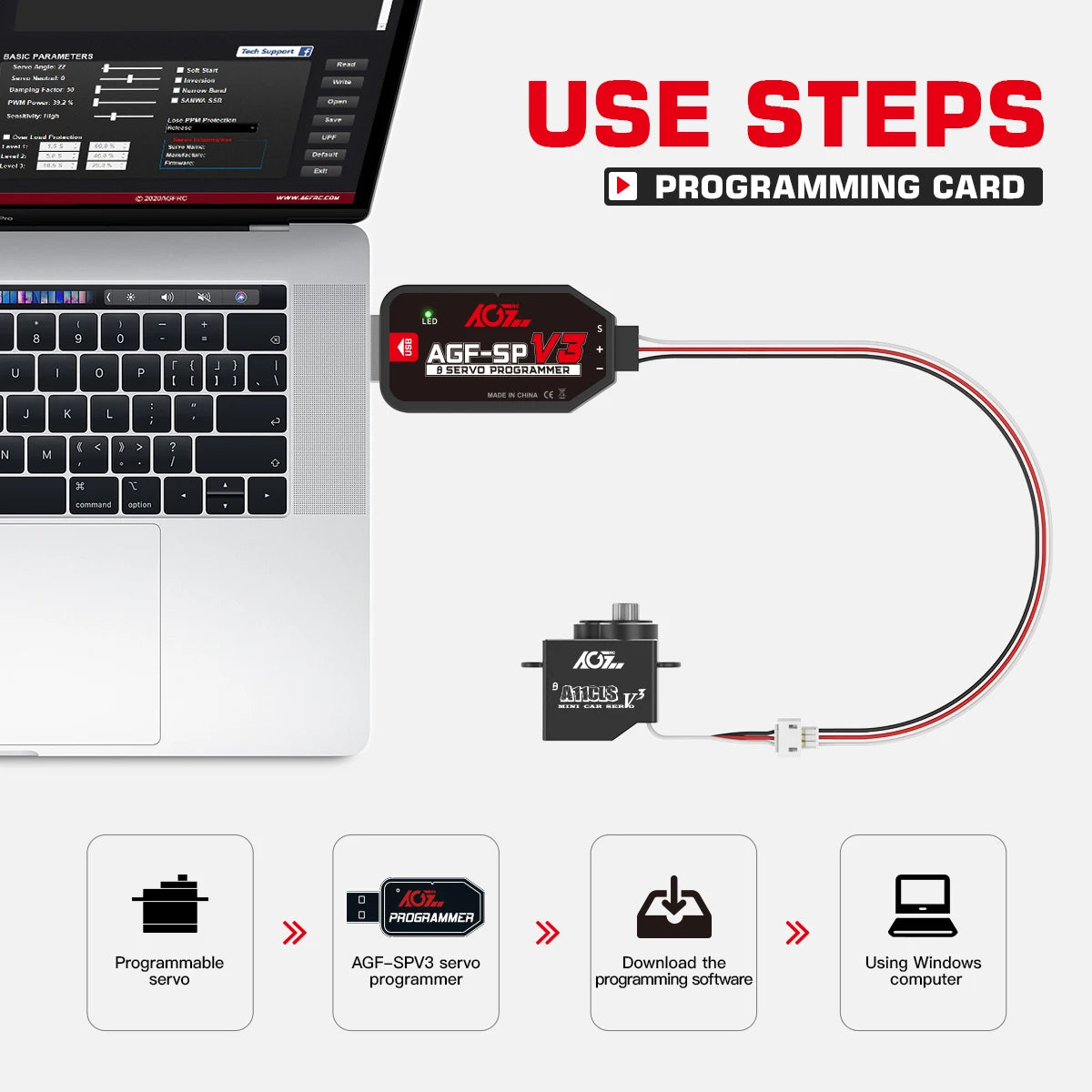

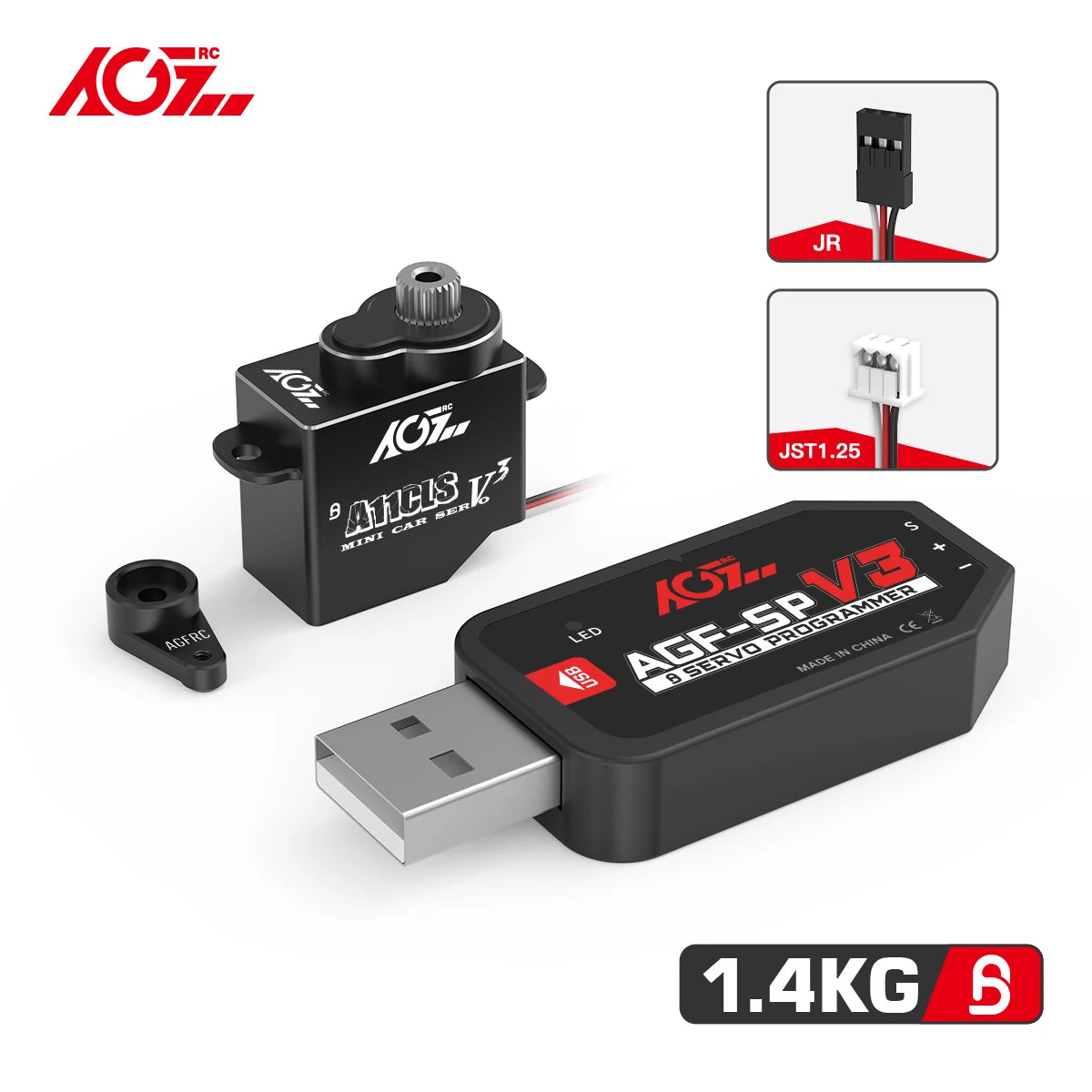

Note: Currently, USB programming cards are only applicable to Windows system.

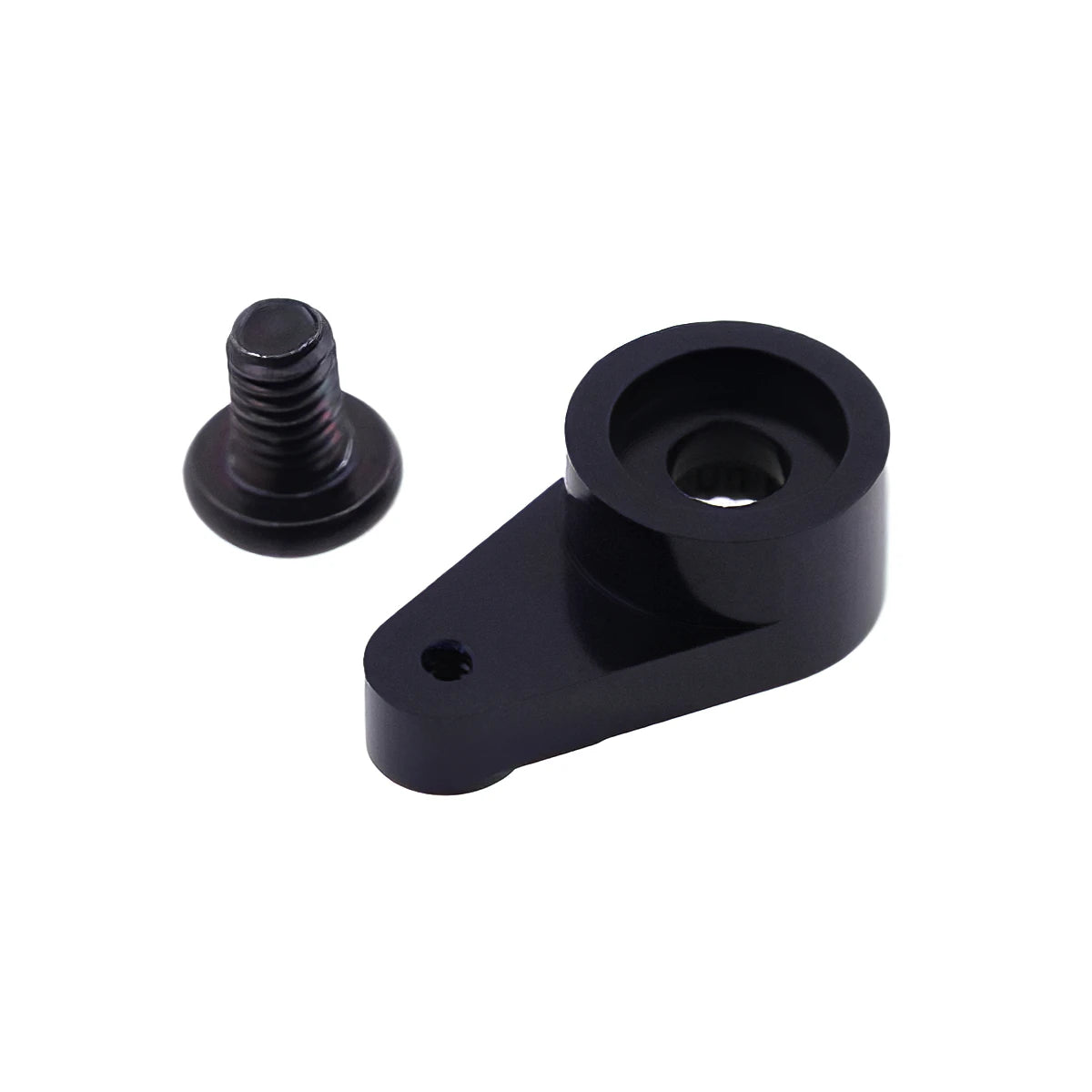

Kind Reminder: USB servo programmer and Horn is not included.

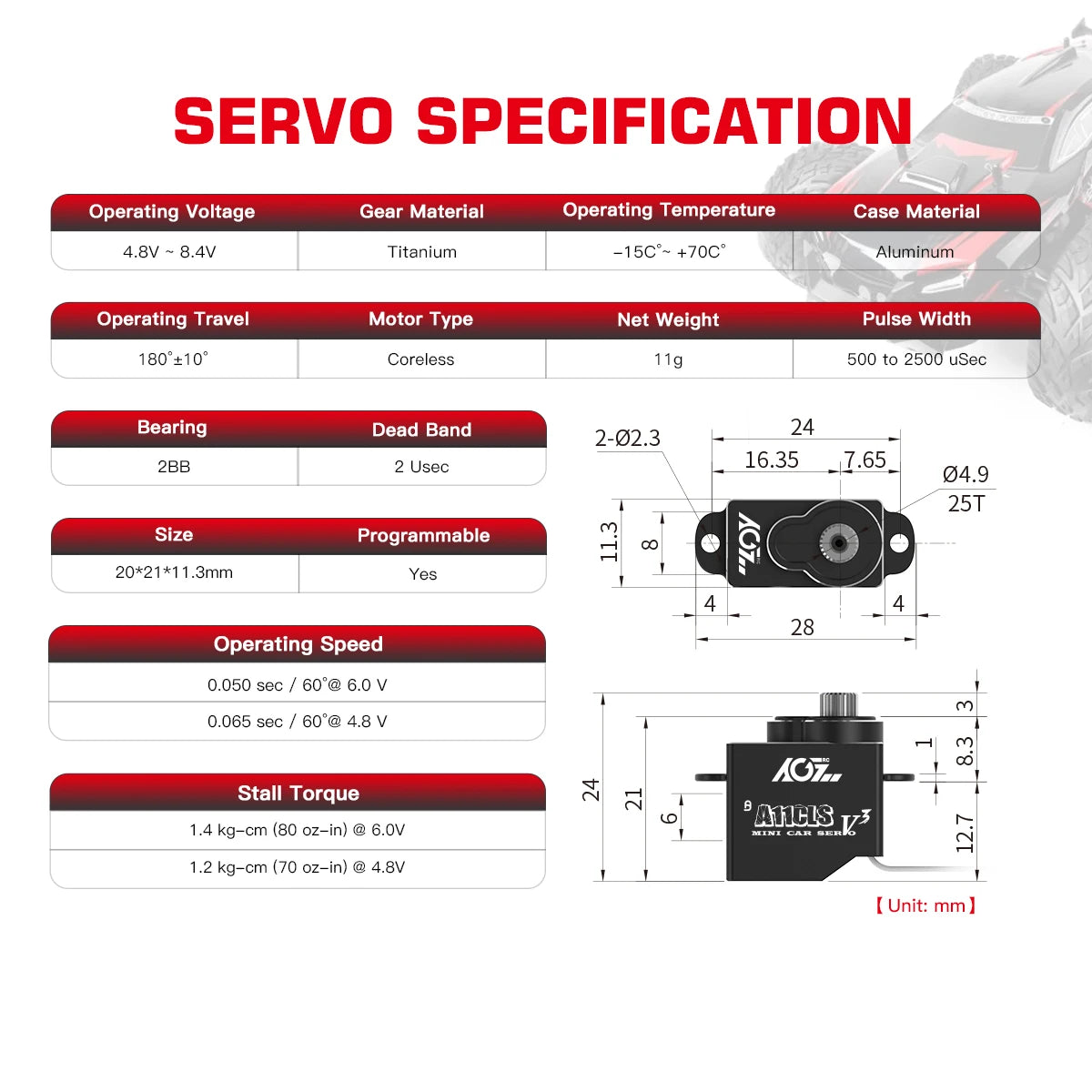

Технические характеристики

A11CLS V3 Black
Operating Voltage: 4.8-6.0V
Operating speed: 0.065sec/60°@4.8V
Operating speed: 0.050sec/60°@6.0V
Stall Torque: 1.2 kg-cm (16.66 oz-in) @4.8V
Stall Torque: 1.4 kg-cm (19.44 oz-in) @6.0V
Gear: Titanium
Motor: Coreless
Size: 20*21*11.3mm (0.78 x 0.82 x 0.44 in)
Weight: 12.2g

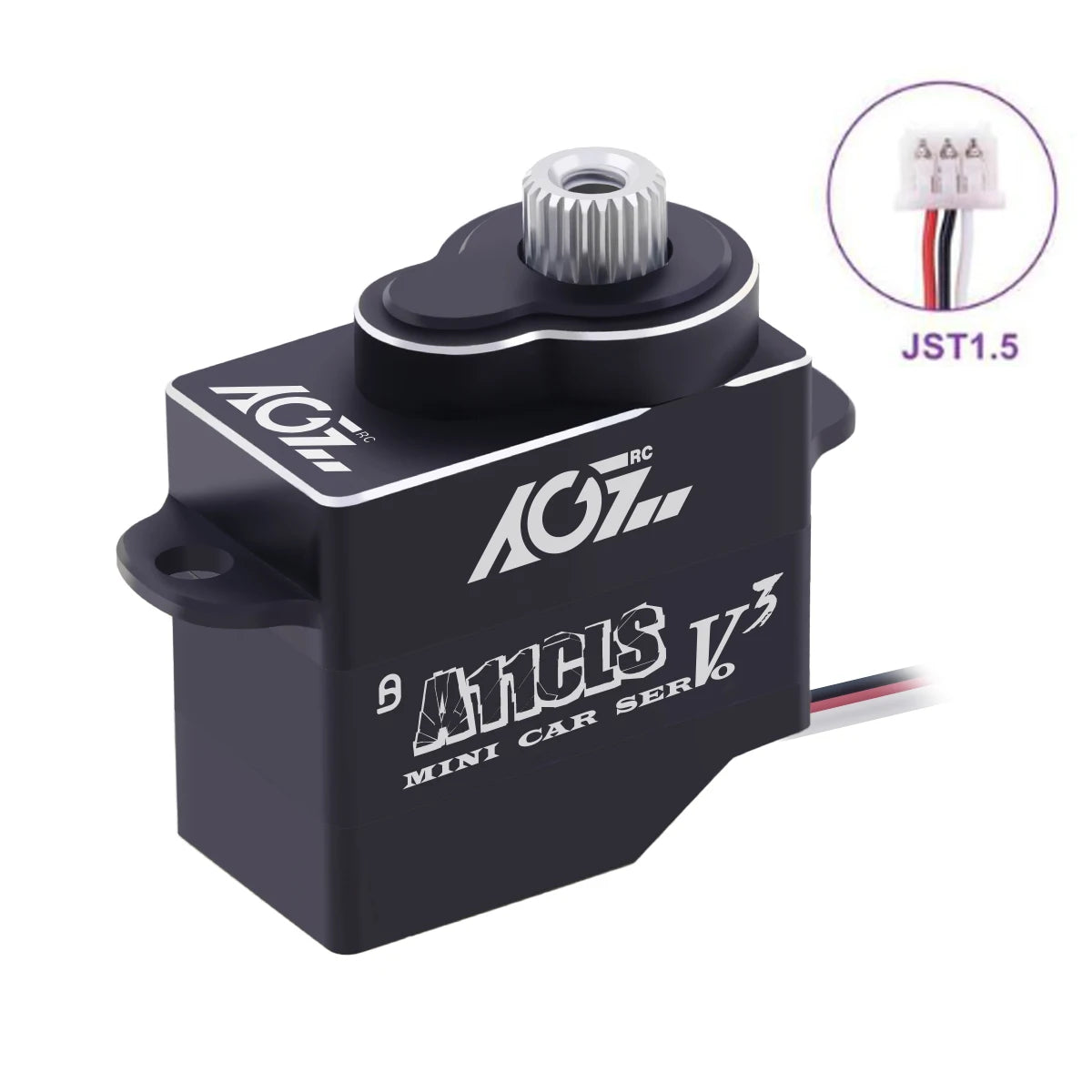

Connector Wire: JST1.5 80mm

A11CLS V3 Control System Pulse width modulation control Refresh Rate 333Hz 2-22,3 16.35_ 4765 04 25T Neutral Position 1520uS Signal Mode Digital Dead band 3 uSec 1435 5165 Operating Voltage 4.8V 6.0V Operating Temperature -15C’_ +70C8 Bearing Double Ball Bearings Mechanical Angle No Limit Size 20*11.3*21mm Net Weight 11g Wire JRI JST1.5 8Omm 30AWG Operating Travel 180

Product Specifications:
Operating Angle: 180° +100°
Voltage: 6.0V or 4.8V
Weight: 1.4 kg (without core) or 1.2 kg (with core)
Speed: 0.050 seconds/600 degrees or 0.065 seconds/660 degrees
This digital servo can be used with a USB programmer, but the KOIz AGE set does not include a BSBrVO programmer.
Net Weight: 11g
Motor Type: Coreless
Frequency: Mechanical Angle 1520μs (333Hz)
No Limit: Mini-sized

About Huizhou AGF-RC Electronic Technology Co., Ltd.: This high-tech enterprise boasts over 1,200 square meters of dust-free electronic manufacturing facilities. Since its establishment in 2009, AGF-RC has focused on developing a wide range of products, including RC servos, speed controllers (ESC), receiver modules, and car gyros. The company is certified with CE, RoHS, and FCC marks, ensuring the quality and safety of its products.
