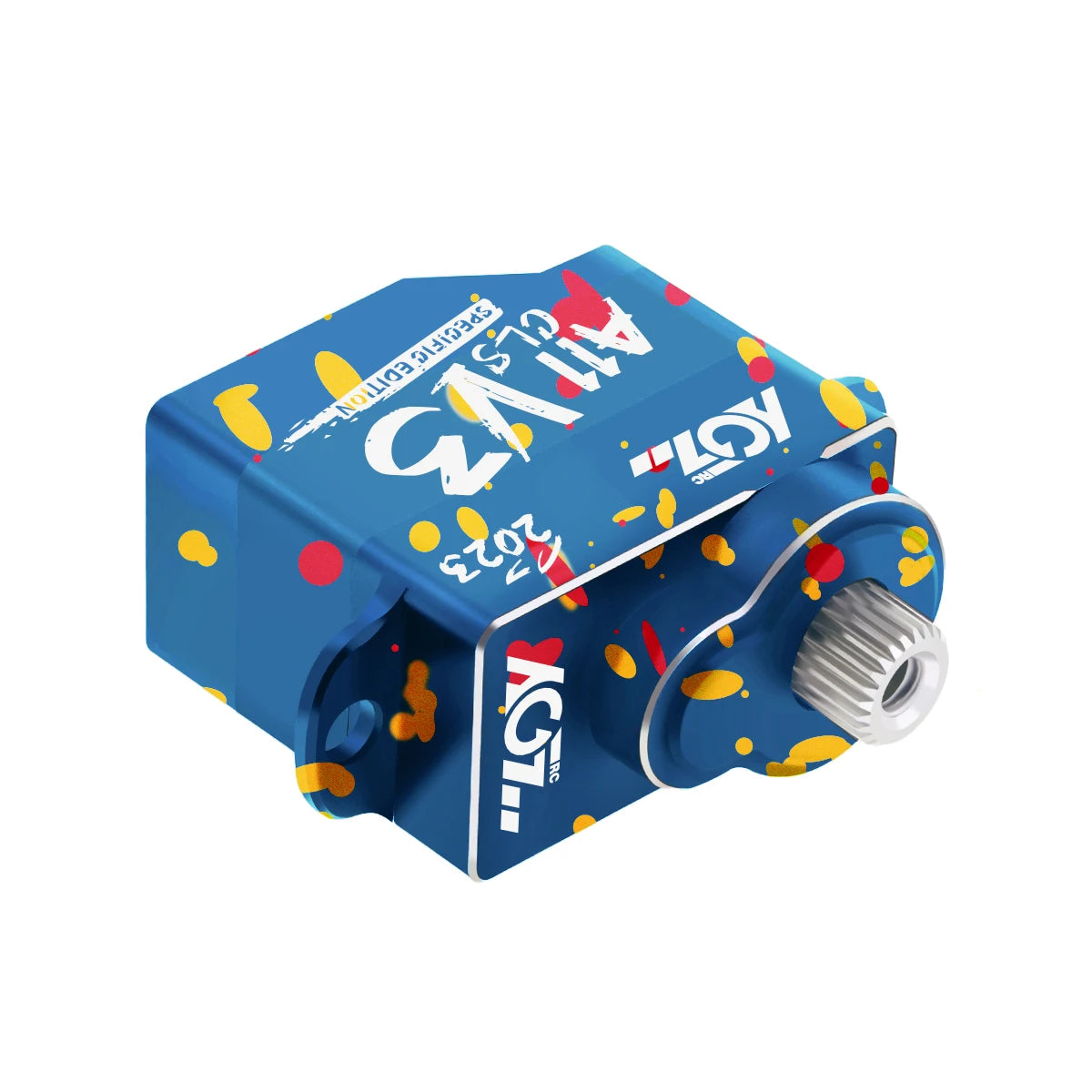

Shop Anniversary: Launch of Special Edition(Limited quantity)

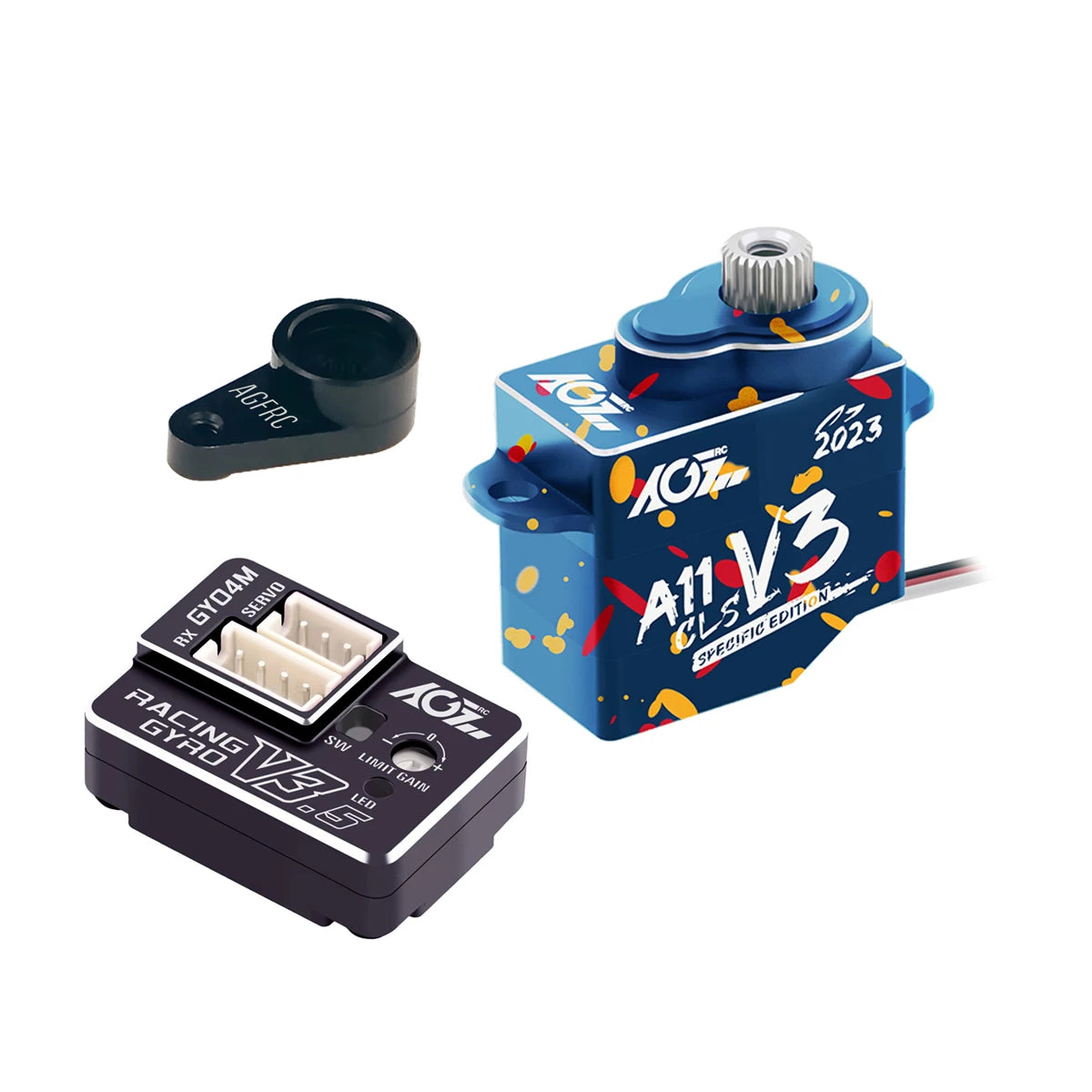

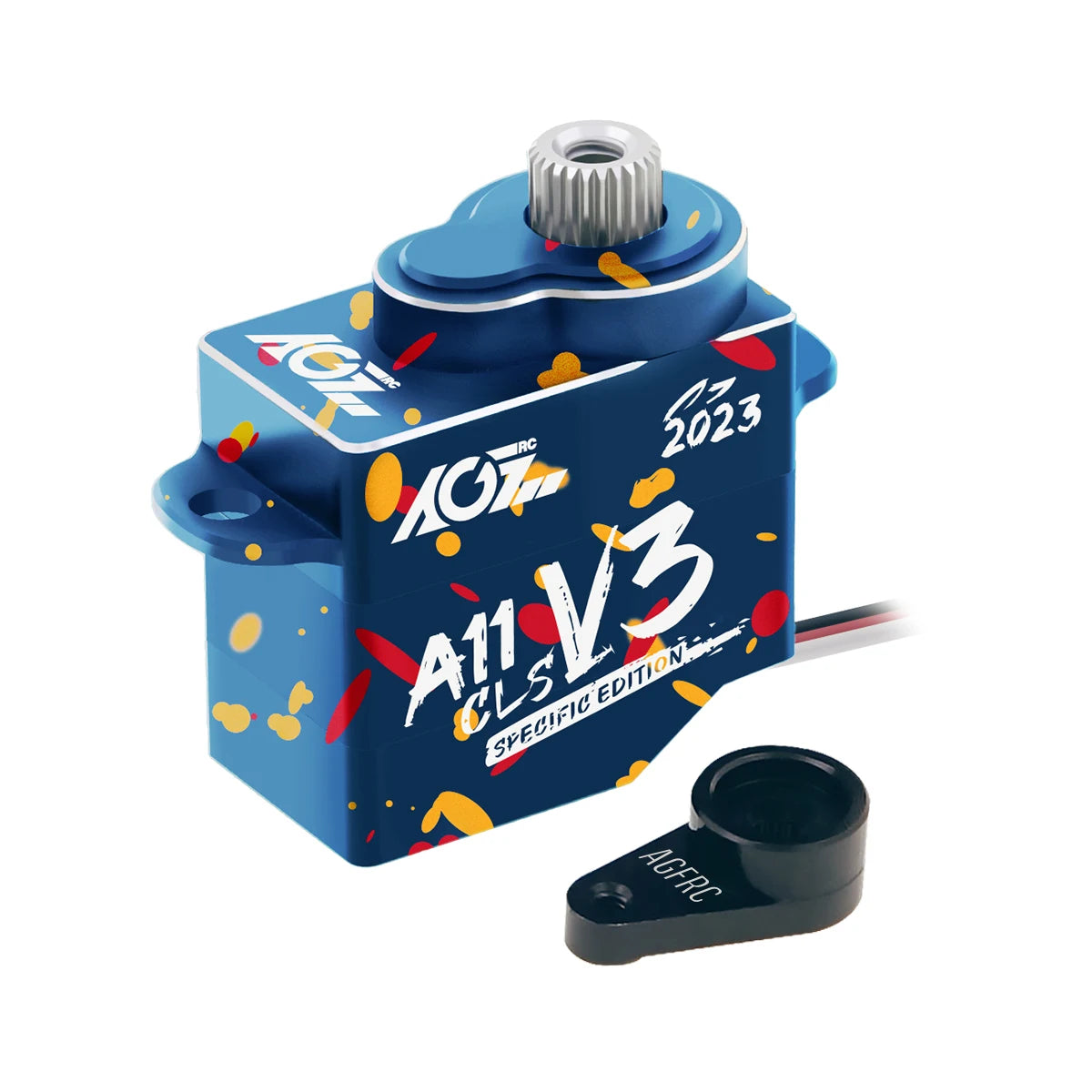

AGFRC A11CLS V3 Upgrade Programmable Reliable 0.05S Super Speed 1.4KG Micro Digital Coreless Servo For DRZ V2 BMR-X DriftArt WLtoys K989/969 Mini-Q 1/24 1/18 Mini Z Cars

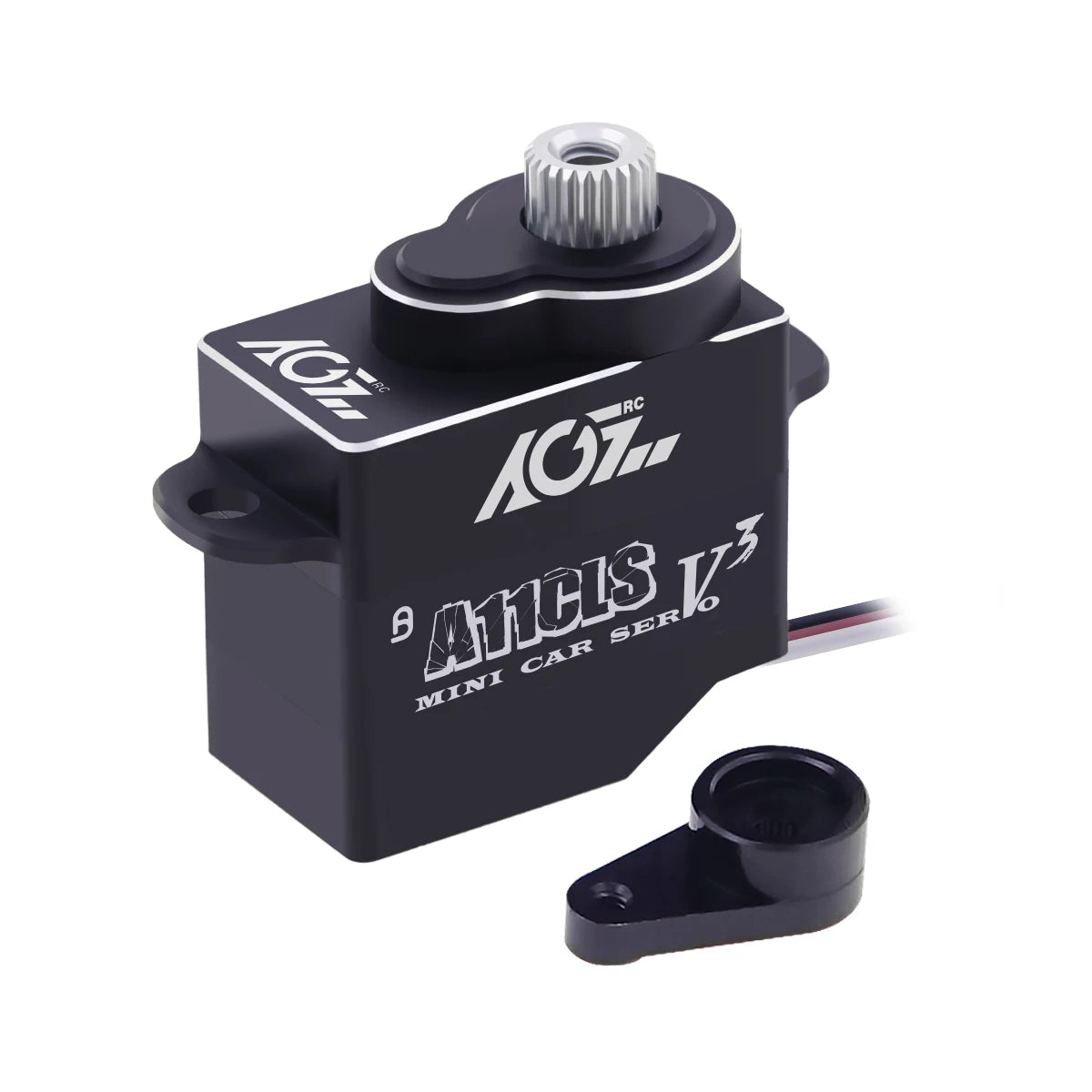

9g Upgrade Metal Case 0.05sec Programmable High Speed High Torque Digital 1.4KG Servo JST/JR Plug For Mini Z RC Track Car

Характеристика

High Performance Mini-Z Digital Servo
High Precision Titanium Gear
High Quality Coreless Motor
Алюминиевый корпус с быстрым охлаждением
Programmable Digital Circuit For Parameter Adjustment

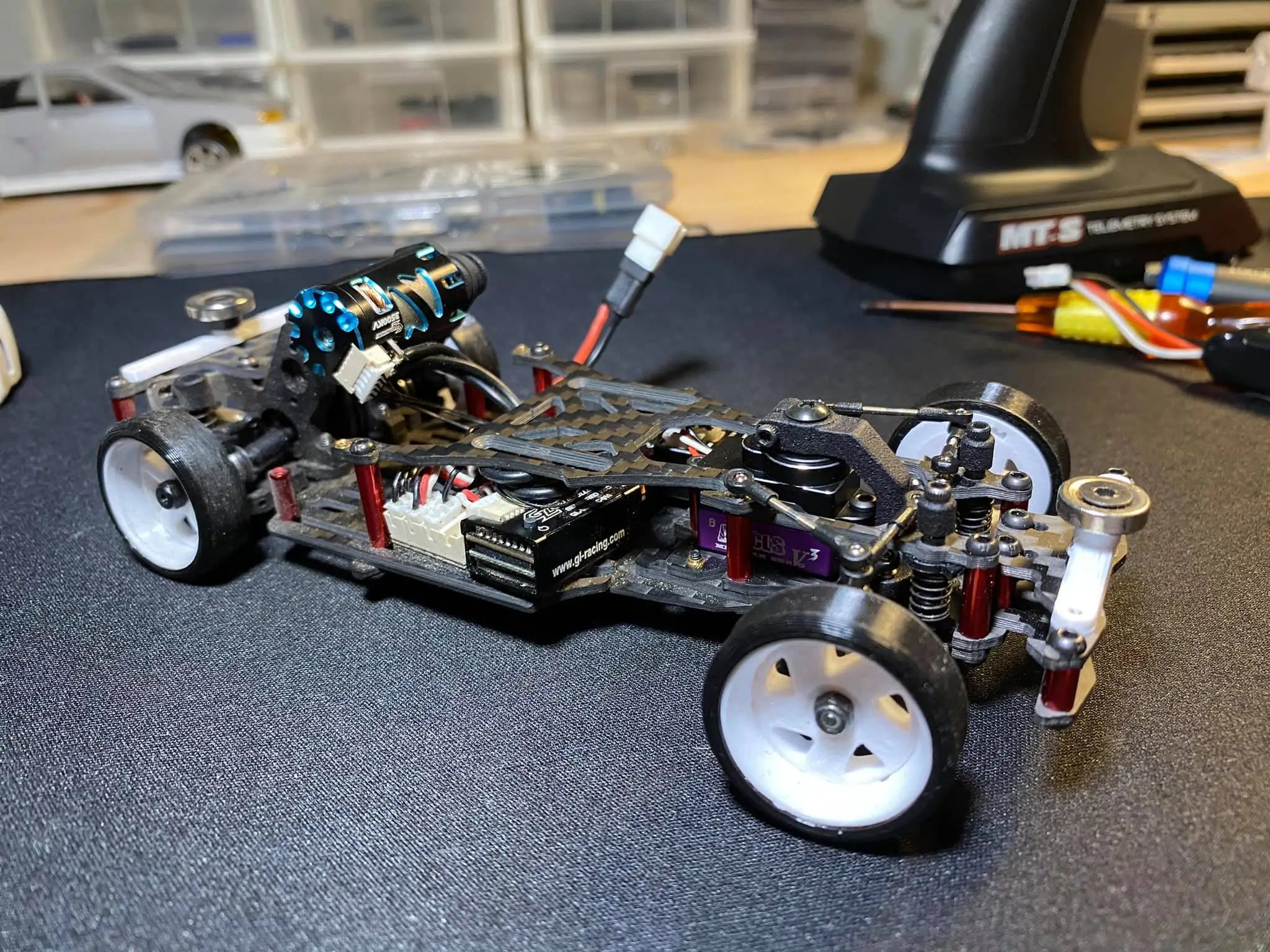

Ideal for Mini-Z Car, 1/18, 1/24, 1/27, 1/28 Scale Cars etc. (Such as DRZ V2, BMR-X, DriftArt 2 ,WLtoys K989/969, Mini-Q etc.)

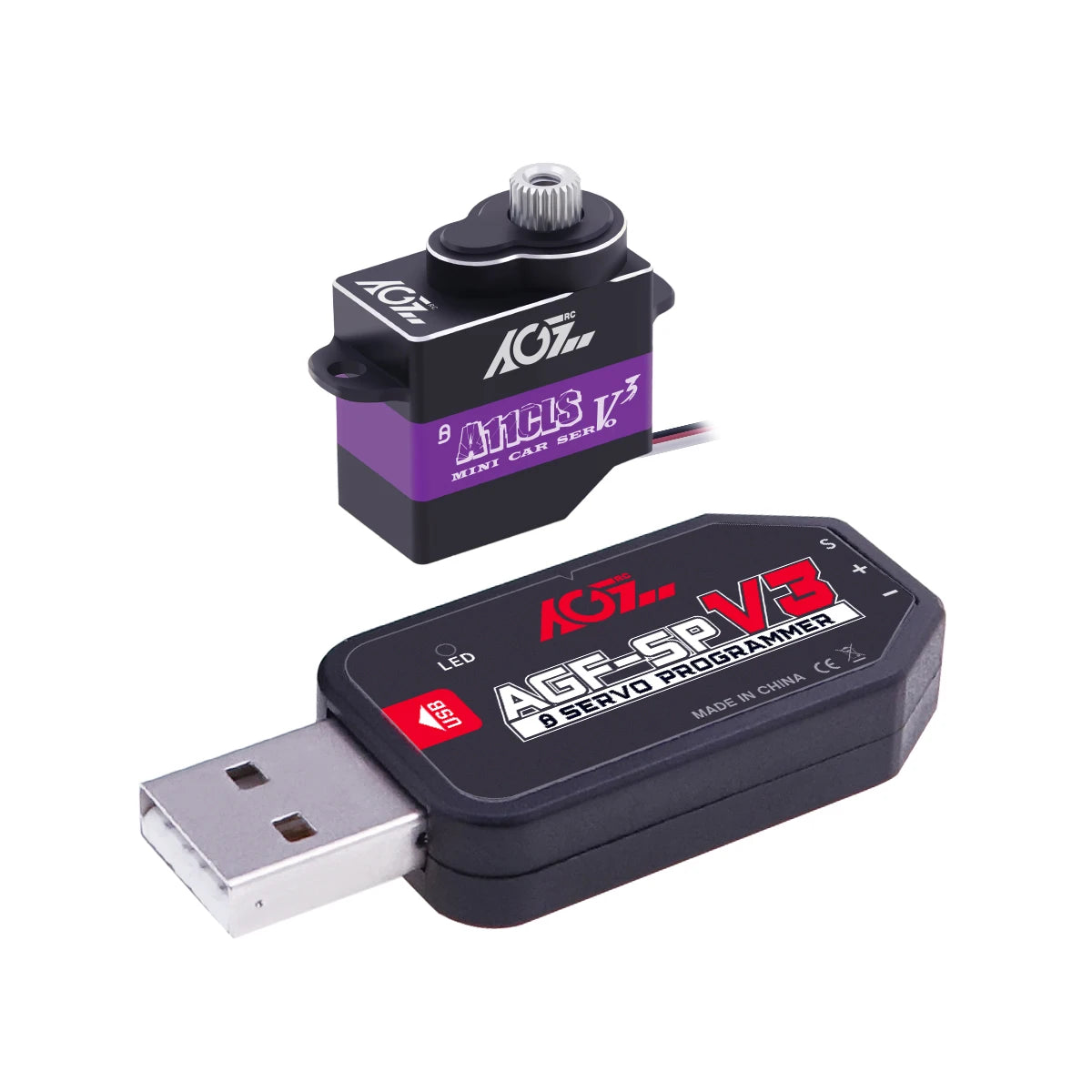

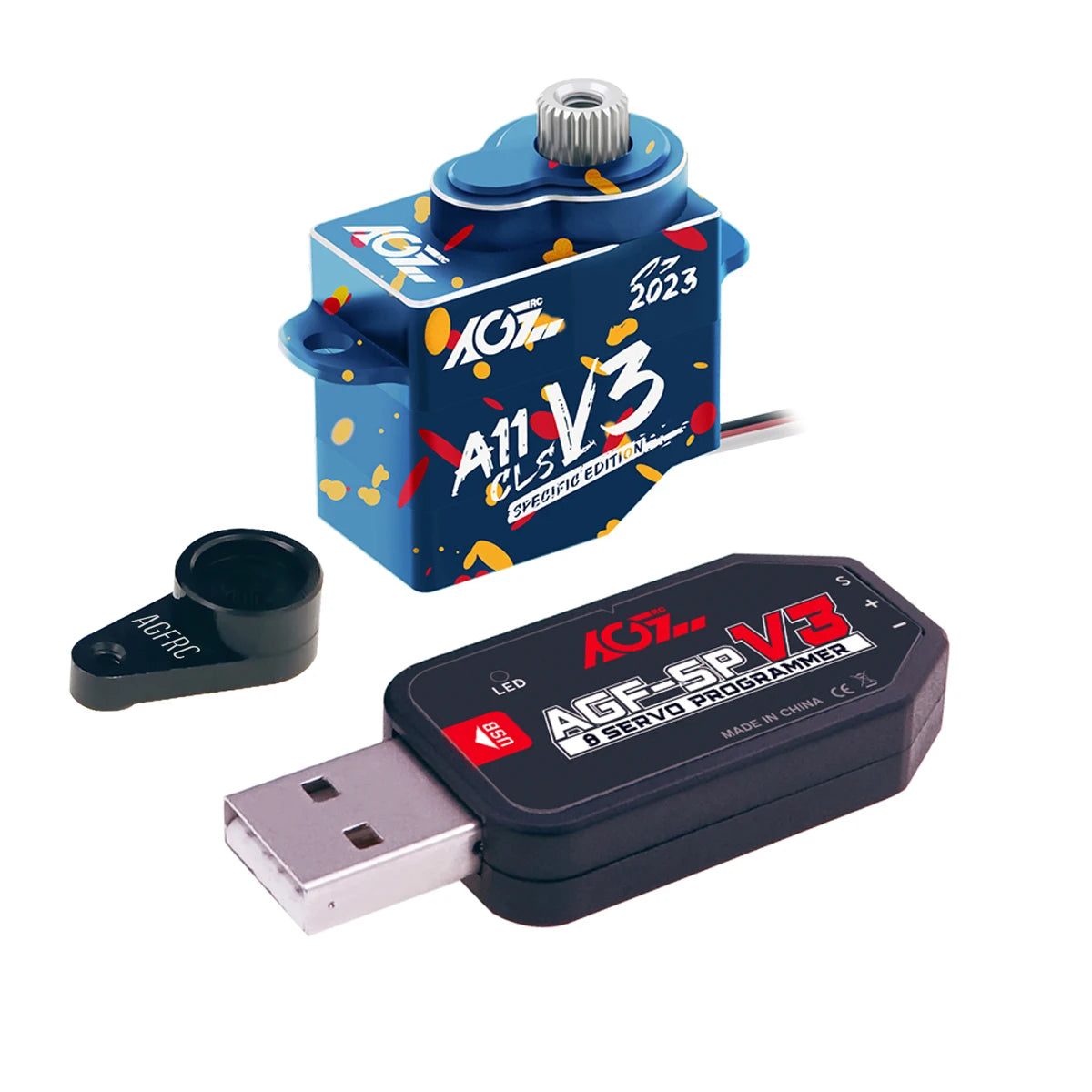

Note: Currently, USB programming cards are only applicable to Windows system.

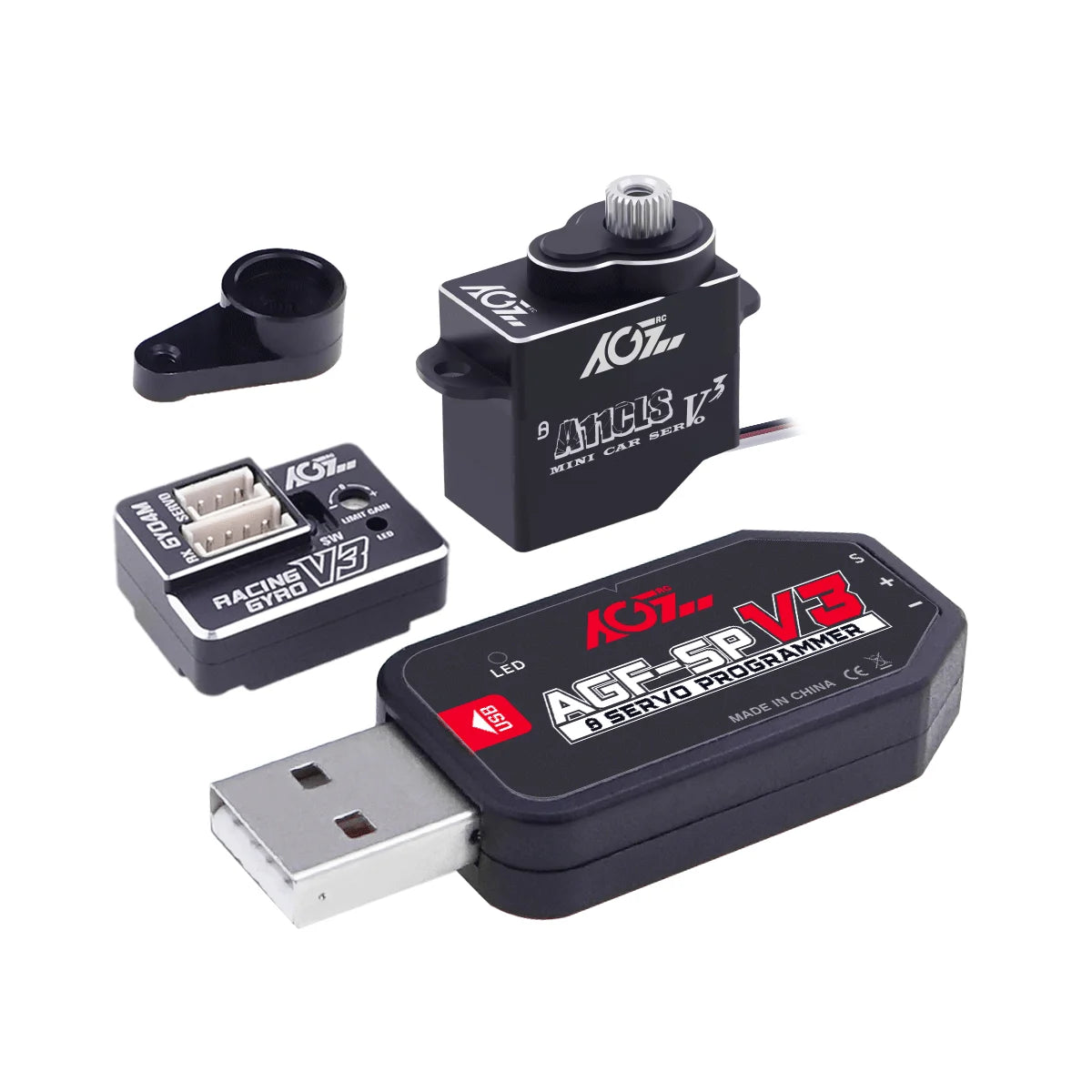

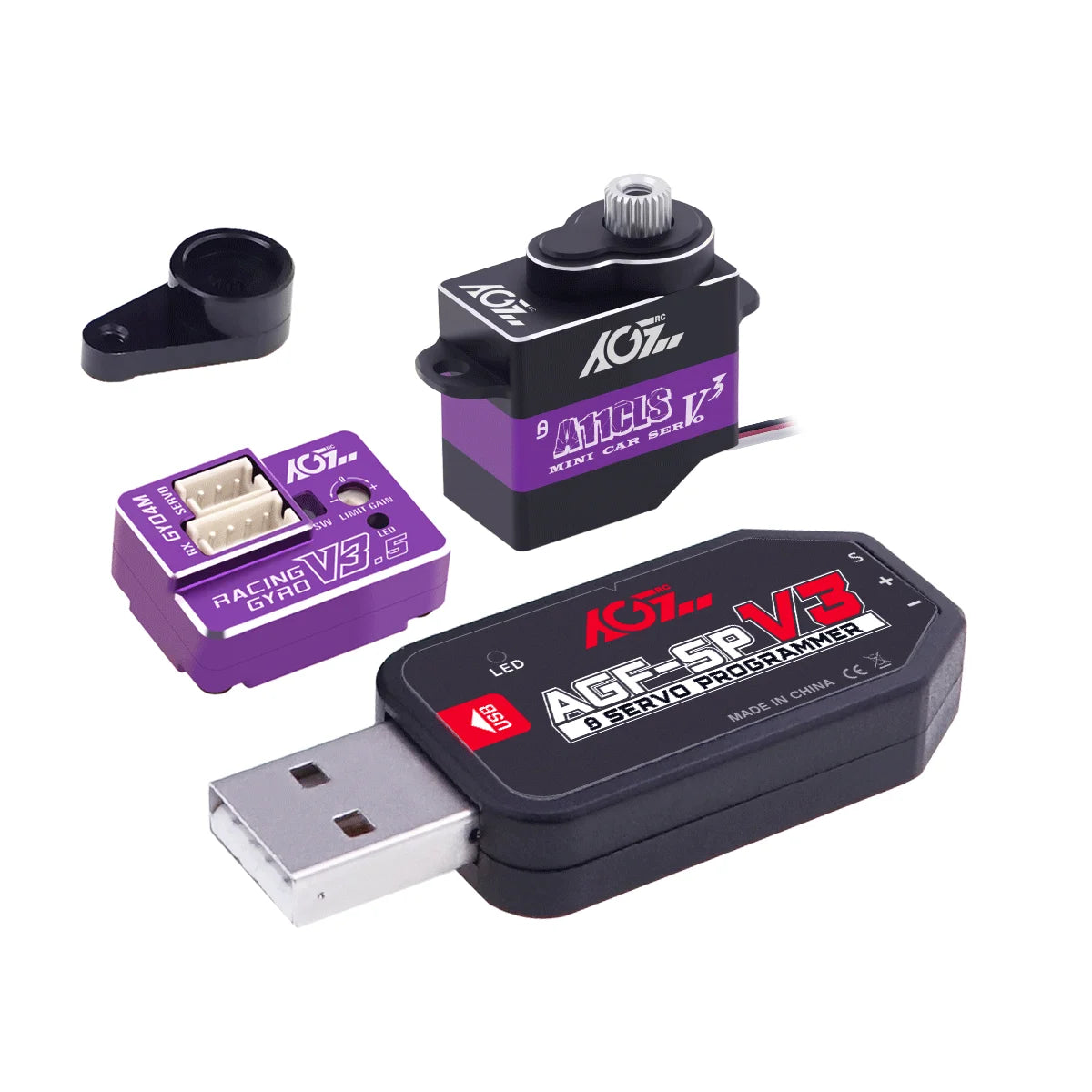

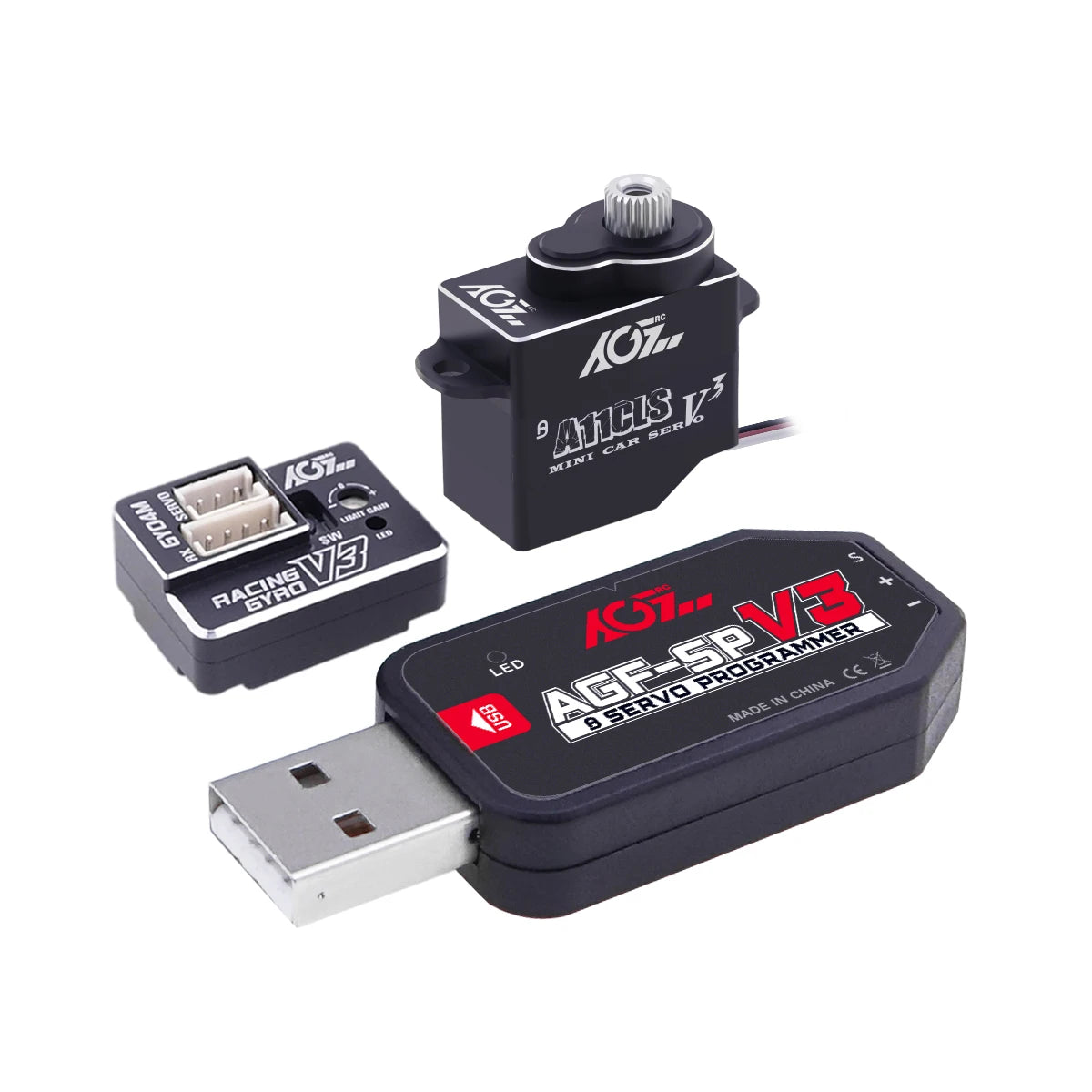

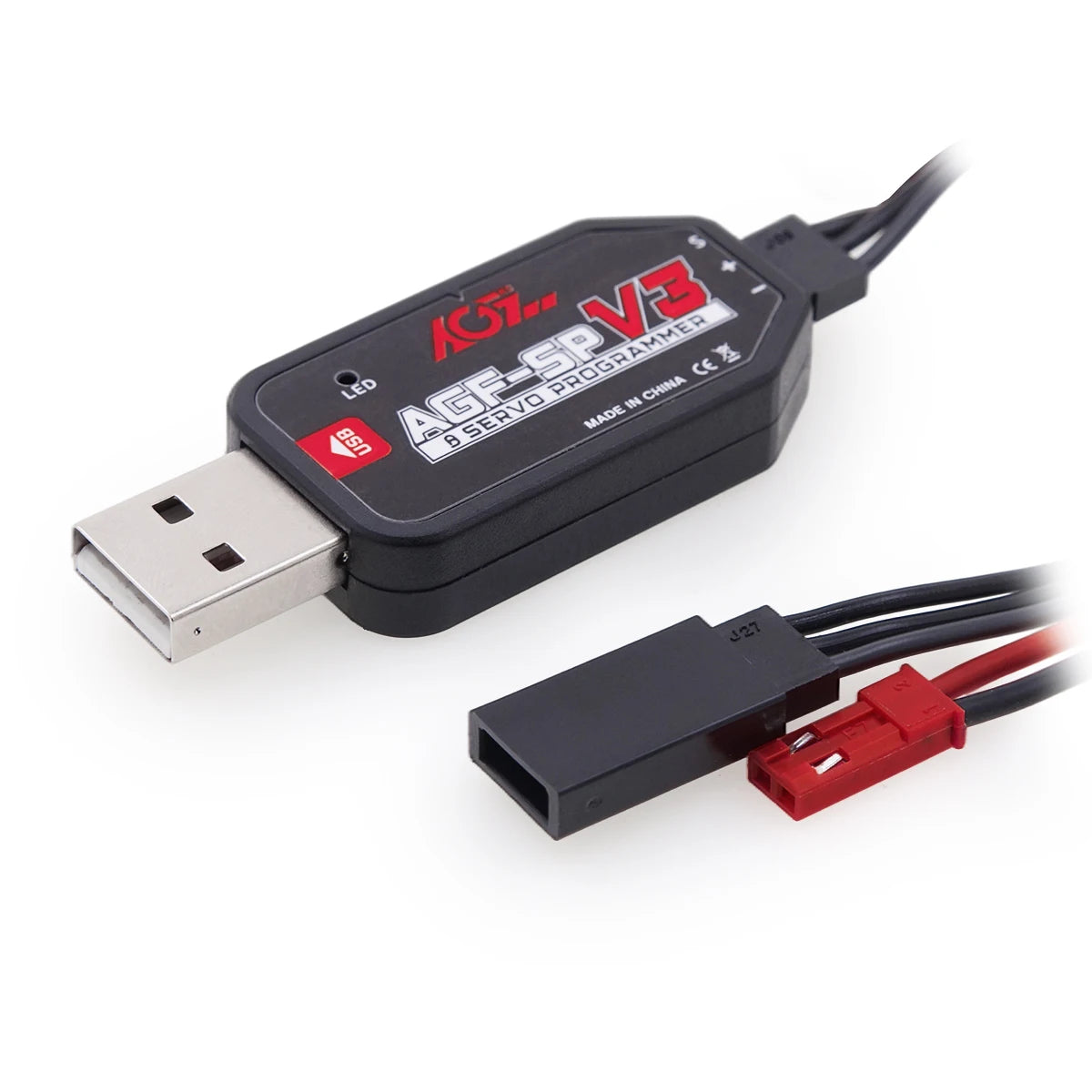

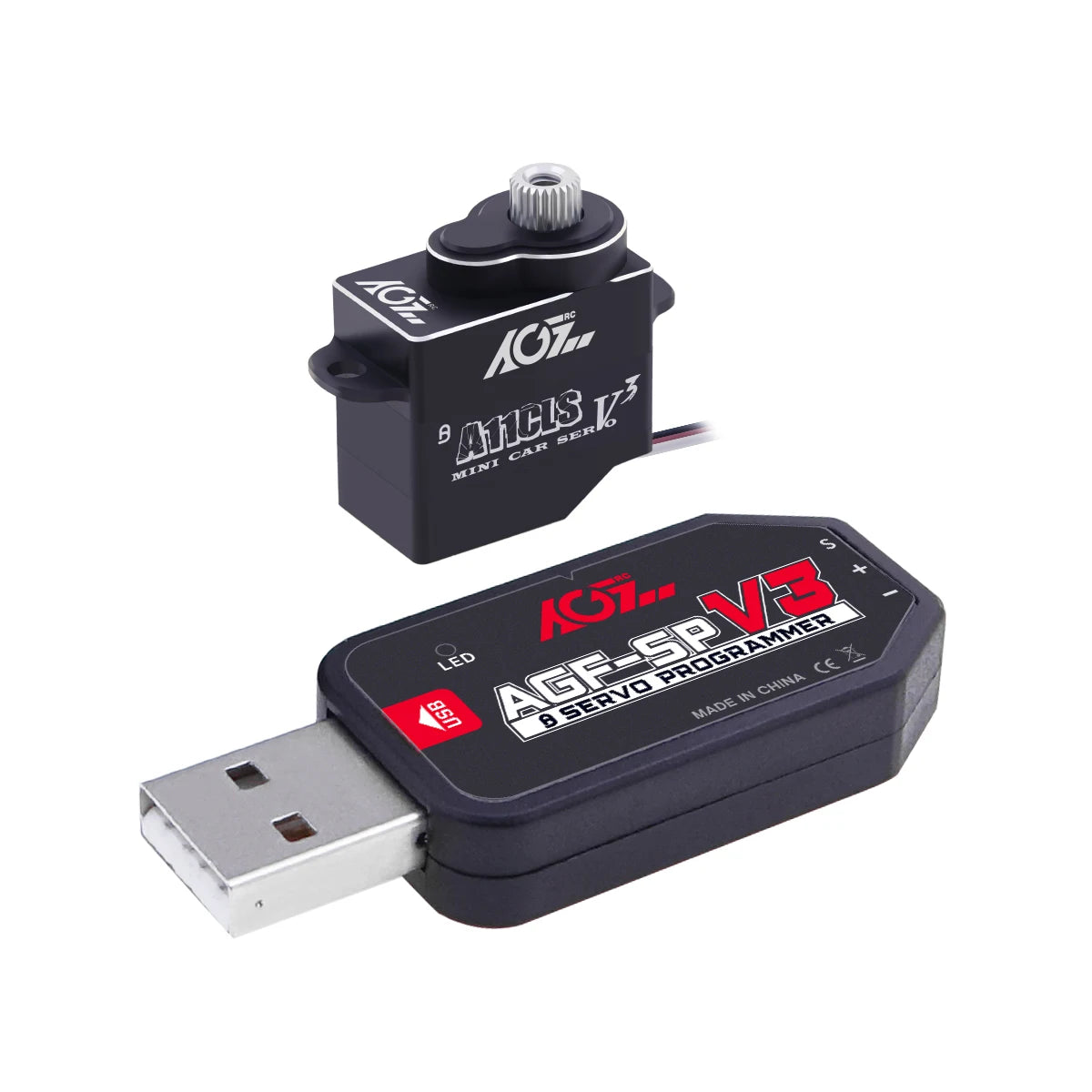

Kind Reminder: USB servo programmer and Horn is not included.

Технические характеристики

A11CLS V3
Operating Voltage: 4.8-6.0V
Operating speed: 0.065sec/60°@4.8V
Operating speed: 0.050sec/60°@6.0V
Stall Torque: 1.2 kg-cm (16.66 oz-in) @4.8V
Stall Torque: 1.4 kg-cm (19.44 oz-in) @6.0V
Gear: Titanium
Motor: Coreless

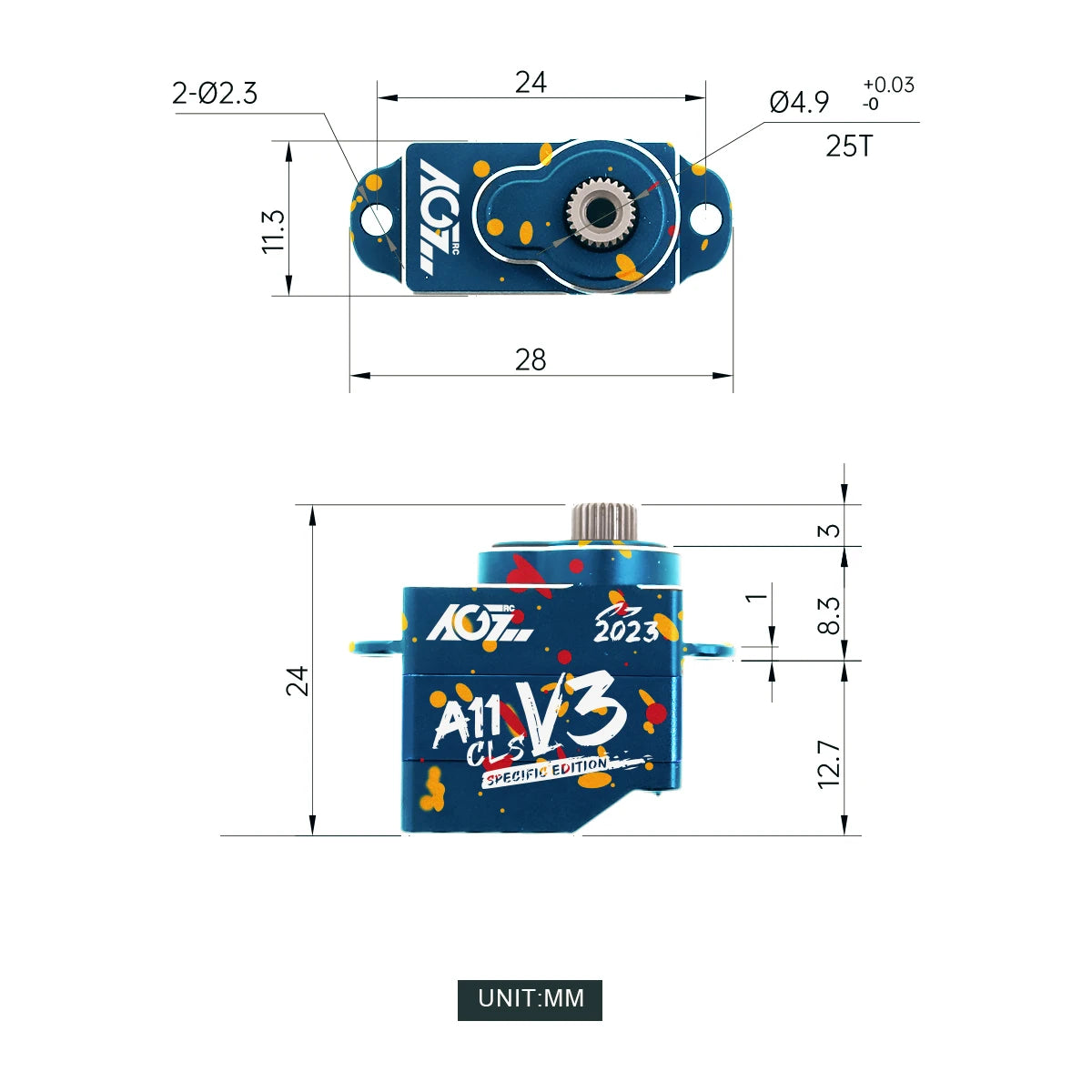

Size: 20*22*11.3mm (0.78 x 0.82 x 0.44 in)

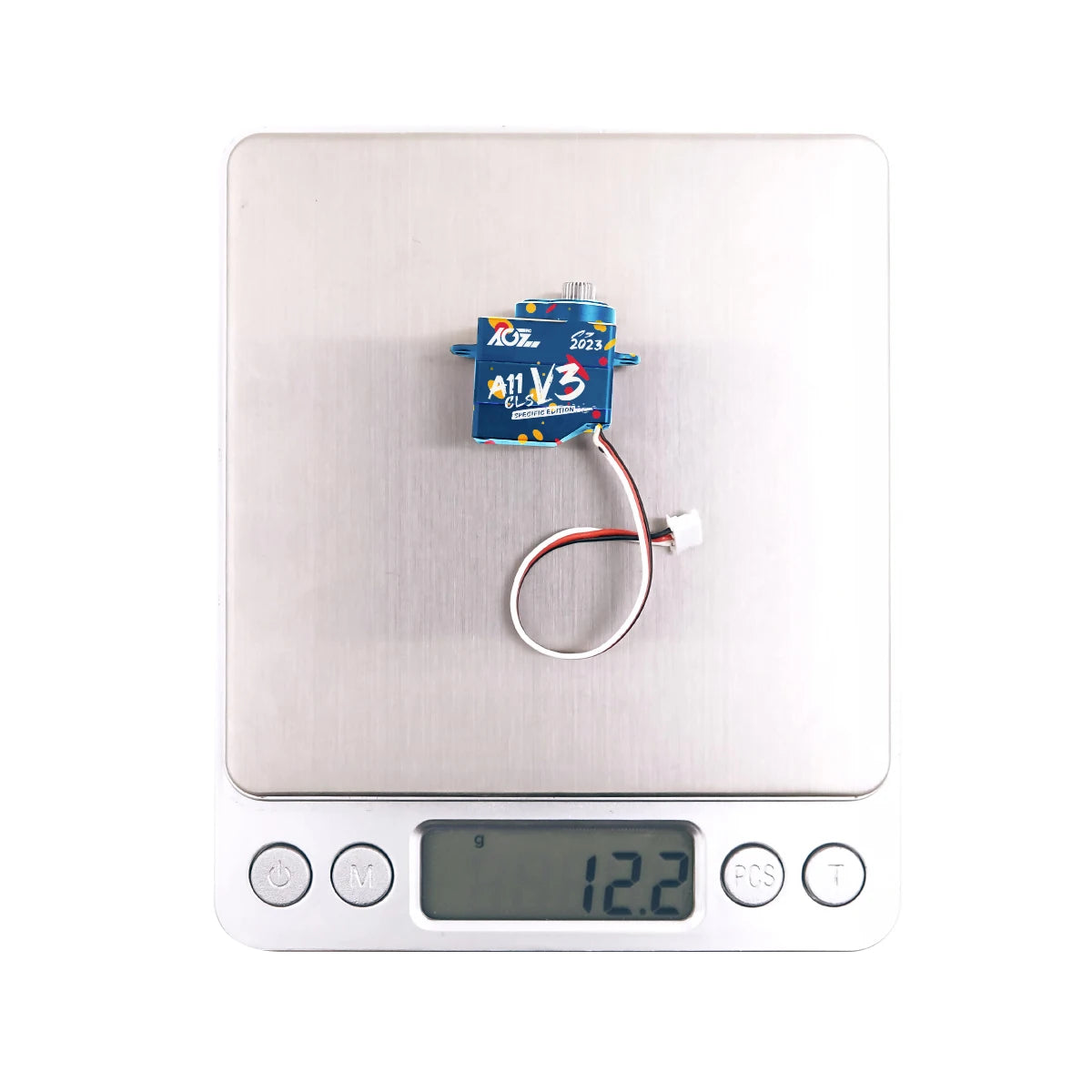

Weight: 12.2g

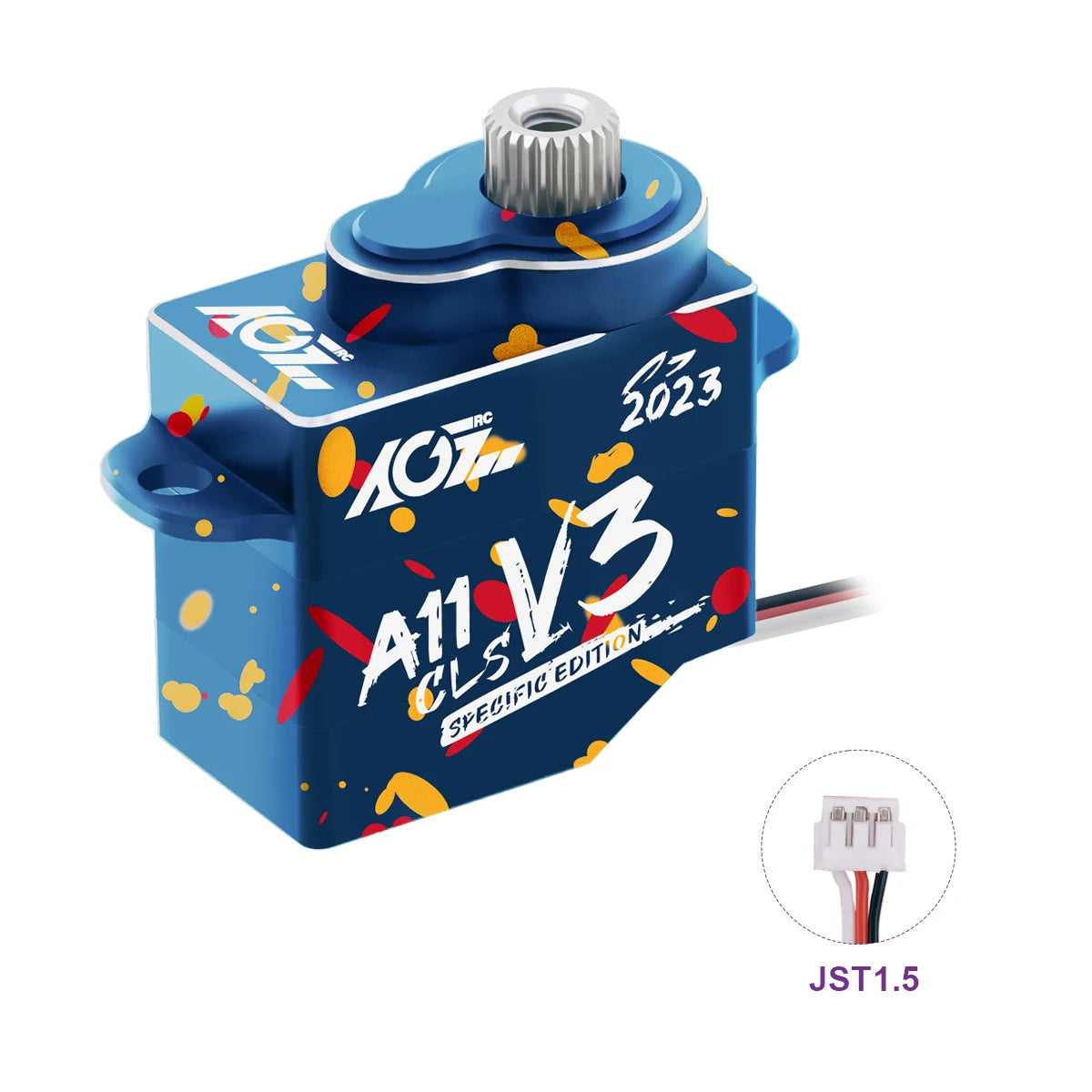

Connector Wire: JST1.5 80mm for selection

A11CLS V3 Control System Pulse width modulation control Refresh Rate 333Hz 2-22,3 16.35_ 4765 04 25T Neutral Position 1520uS Signal Mode Digital Dead band 3 uSec 1435 5165 Operating Voltage 4.8V 6.0V Operating Temperature -15C’_ +70C8 Bearing Double Ball Bearings Mechanical Angle No Limit Size 20*11.3*21mm Net Weight 11g Wire JRI JST1.5 8Omm 30AWG Operating Travel 180
