AGFRC A06CLS V2 SPECIFICATIONS
Название бренда: AGFrc
Происхождение: Материковый Китай
Материал: Металл
Рекомендуемый возраст: 14+y
Запчасти и принадлежности RC: Сервоприводы
Размер: 20.0*8.5*17.3mm (0.79 x 0.33 x 0.68 in)
Для типа автомобиля: Автомобили
Используйте: Транспортные средства и игрушки с дистанционным управлением
Сертификация: CE
Модернизация деталей/аксессуаров: Рама
Периферийные устройства/устройства дистанционного управления: Ресиверы
Поставки инструментов: Аккумулятор
Количество: 1 шт.
Номер модели: A06CLS V2
Цвет: Purple / Black

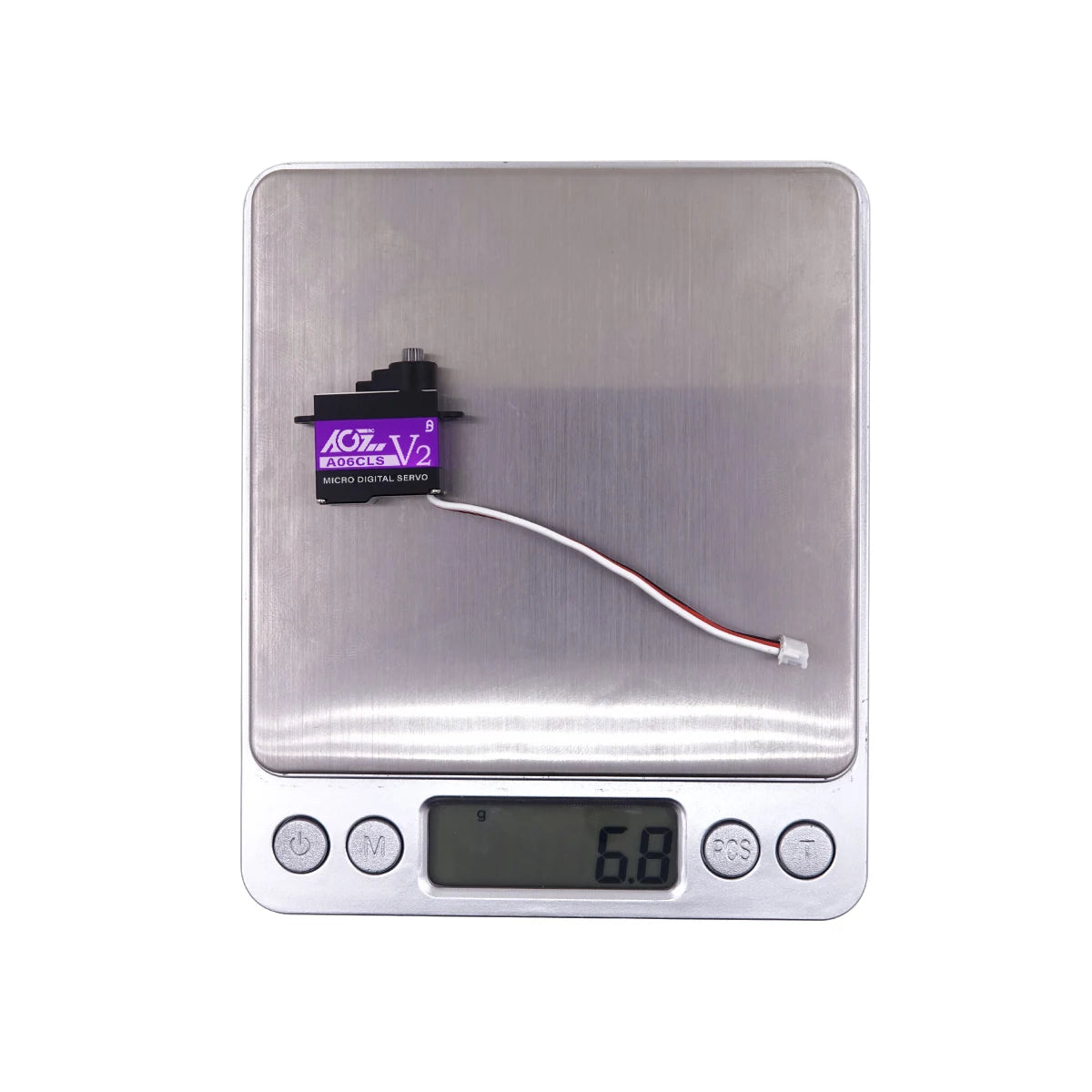

Вес: 7g
Шестерня: Titanium

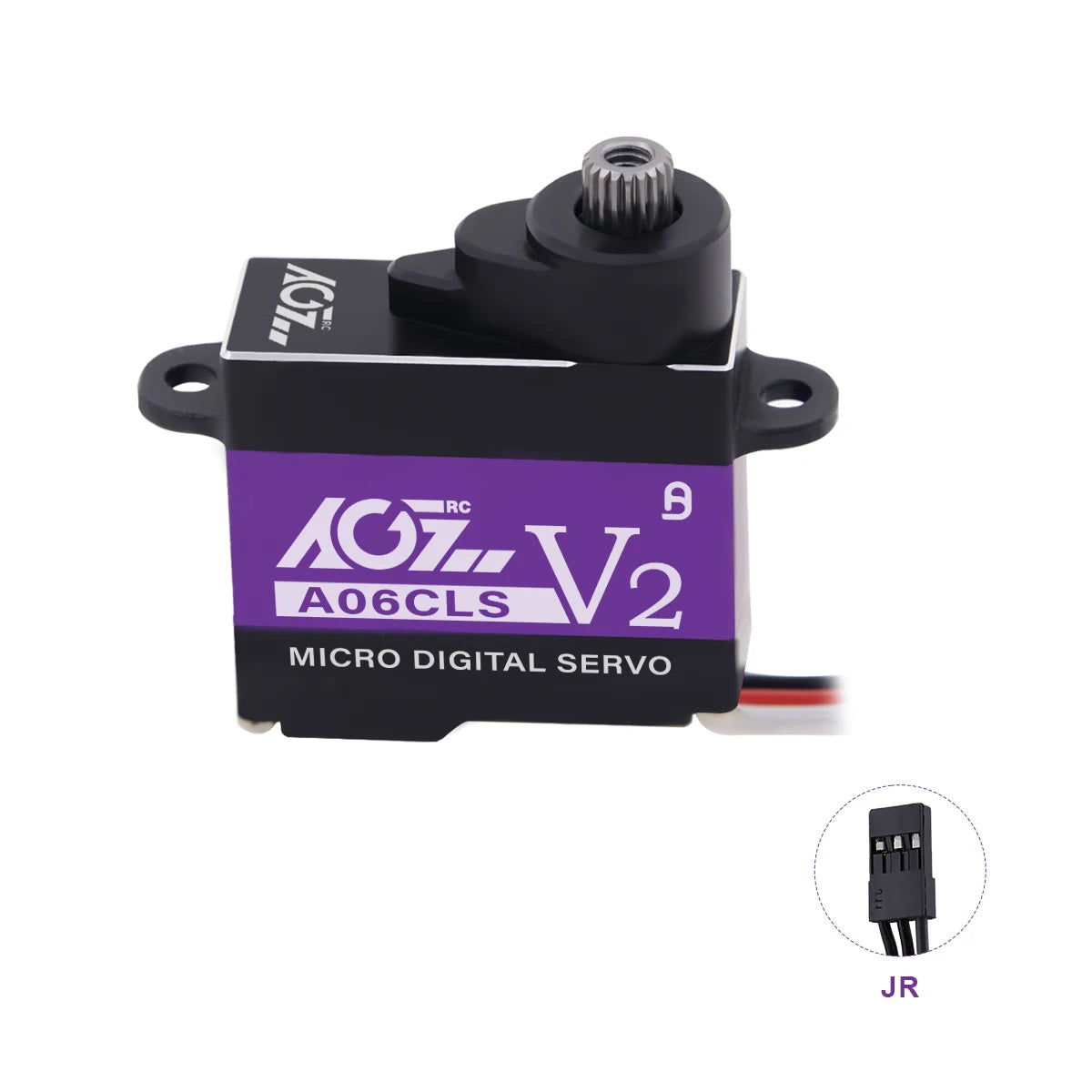

Разъем: JST or JR

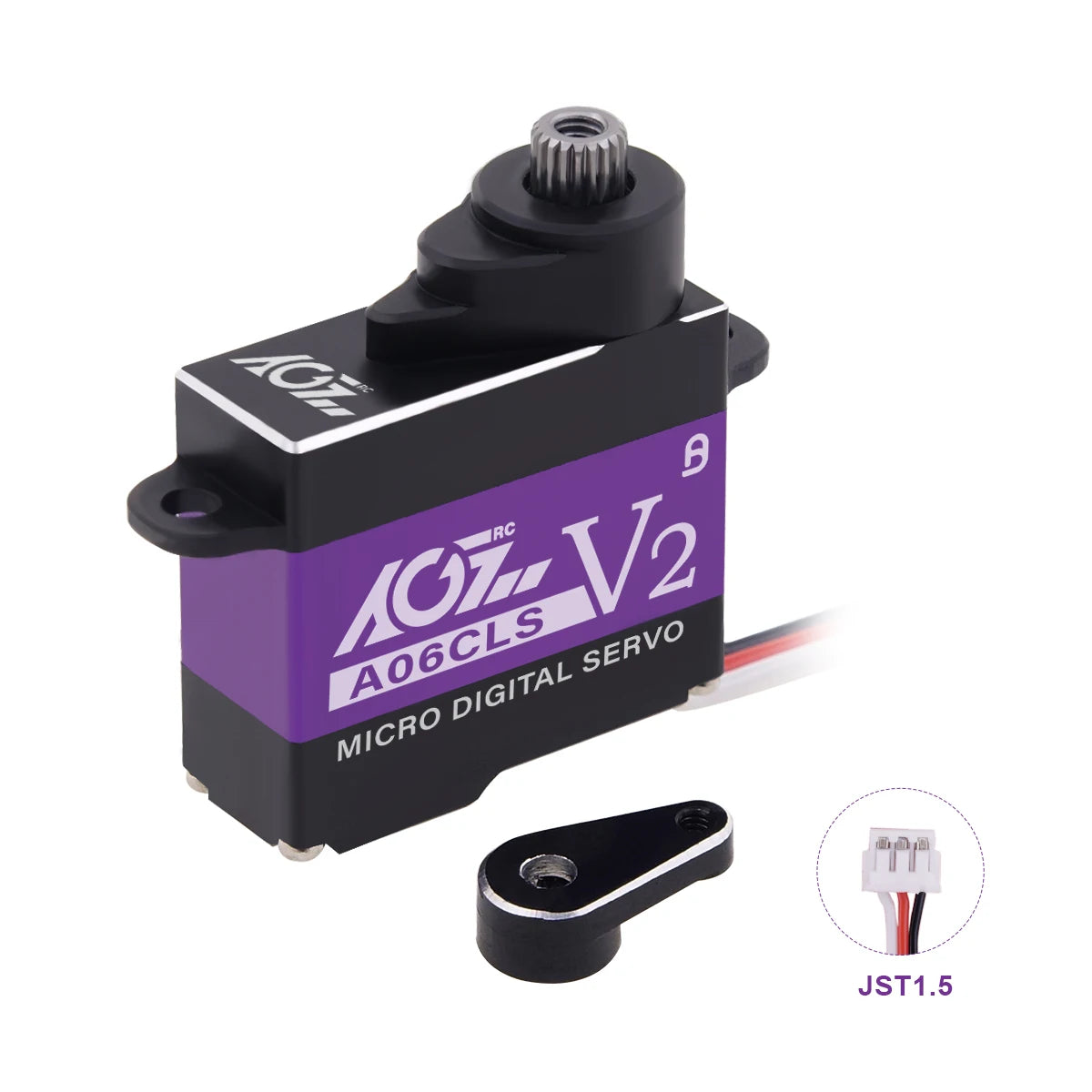

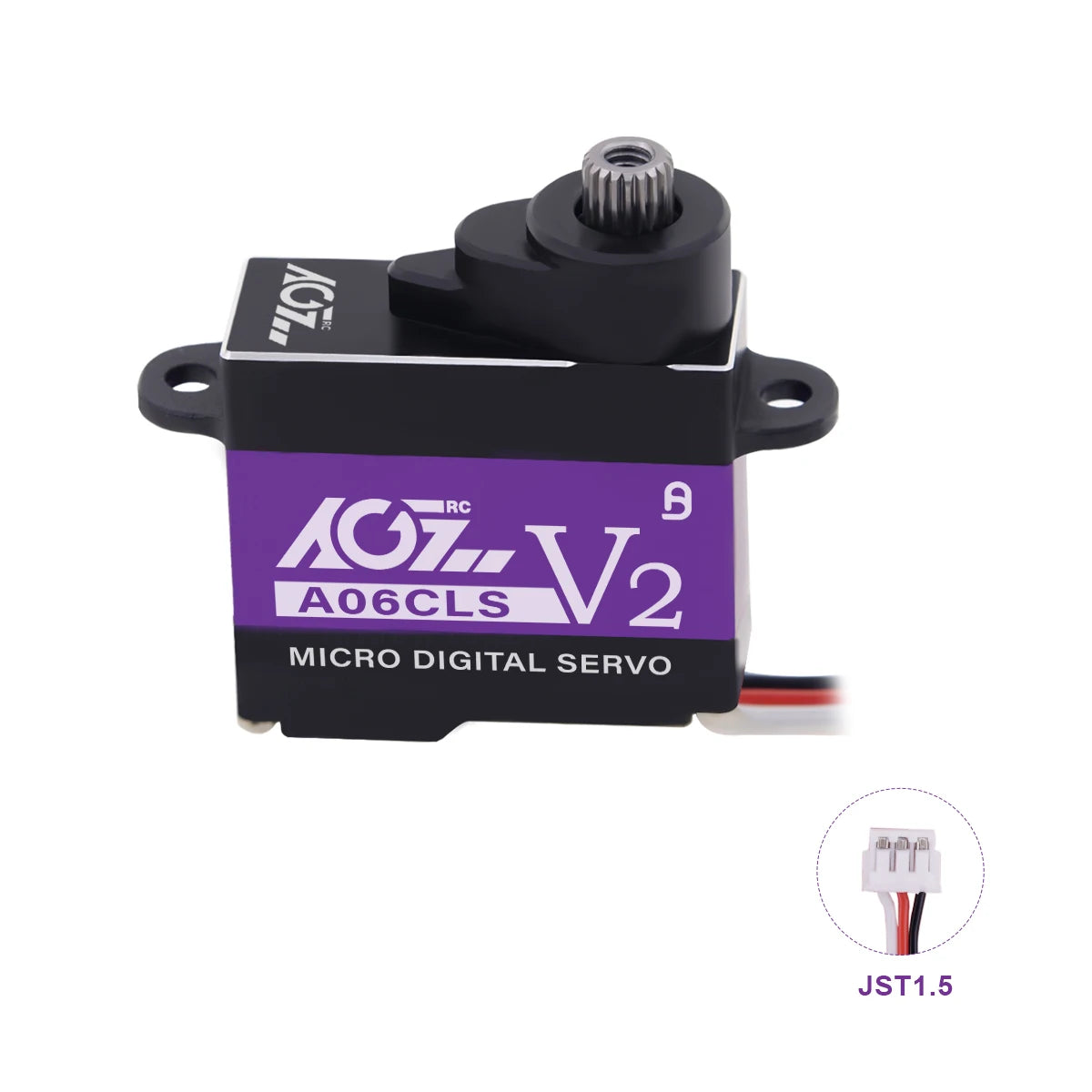

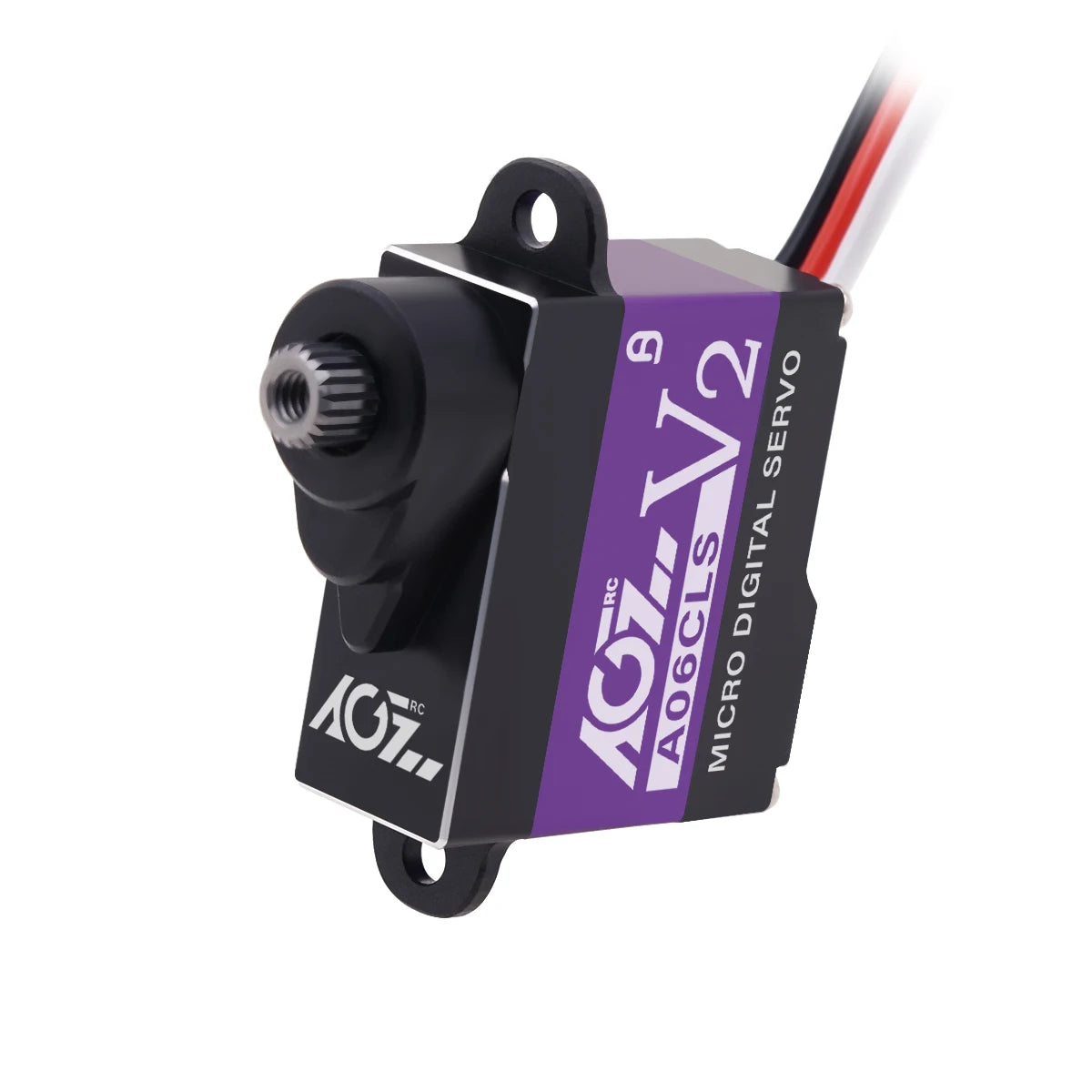

AGFRC A06CLS V2 Aluminum Case 20T HV 7g Titanium Gear 3.0KG 0.052Sec Super Fast Programmable Micro Servo for Mini Car GLR GLA MRZ Airplane

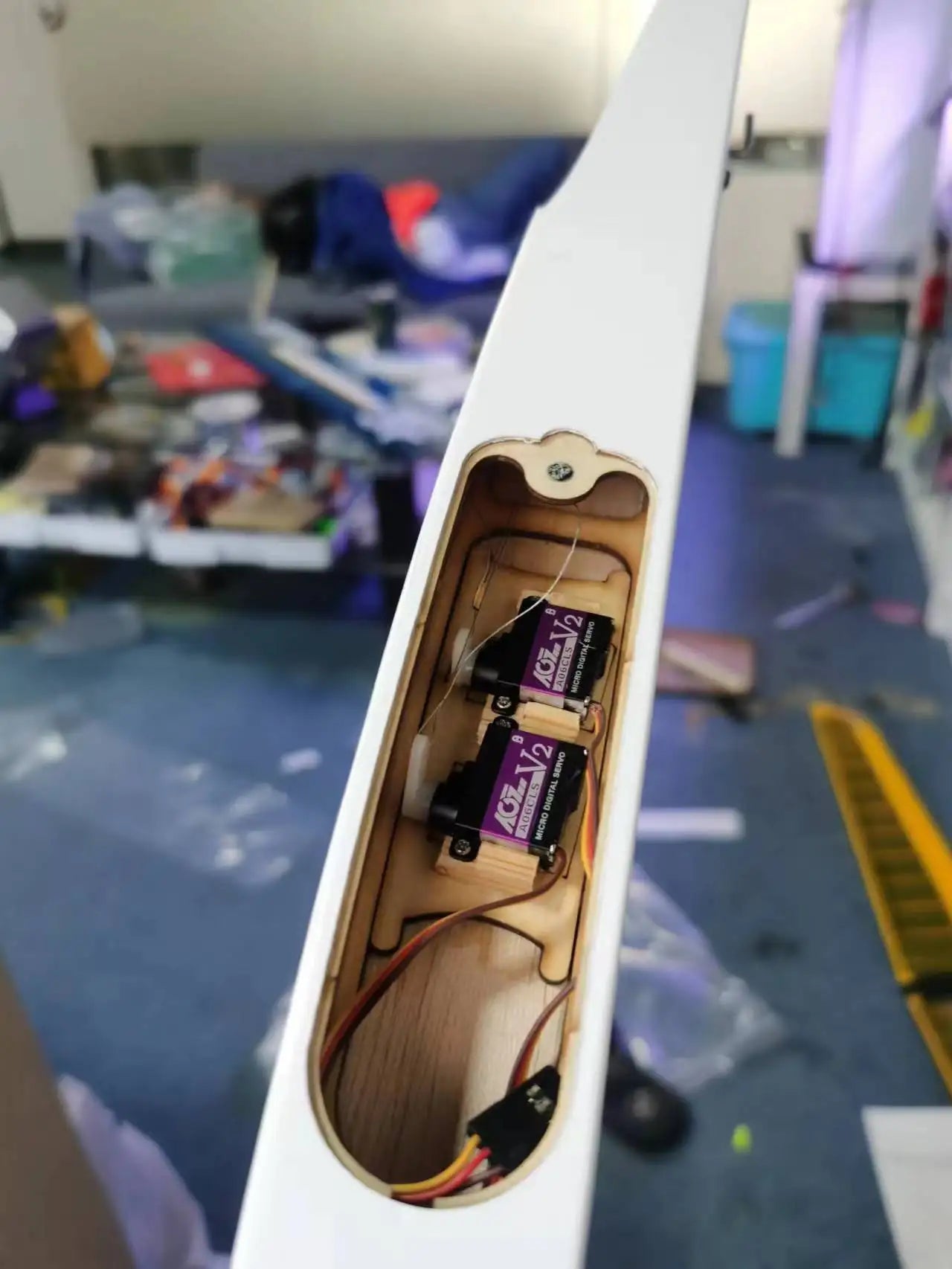

AGFrc A06CLS V2 is the upgrade version of A06CLS servo, with high voltage feature, this servo compatible to be used for small size airplanes and gliders. 7g super light weight with full CNC machining case, 8mm compact size allow to suit for more models with space and weight requirements. 2S wide voltage which produce 3KG high torque and 0.052Sec super spec at 8.4V. Bring different driving feel for the mini car with this tiny size servo. Durable titanium gear and 20T spline provide higher precision in operation. JST and JR plug option allow to be used for different models. Of course, the highlight “programmable” feature is still continuing for this lovely micro servo. Black edition and purple edition are available.
Характеристика
High Quality Coreless Motor
High Accuracy Titanium Gear
Ultra Light Weight Mini Z Servo
Fast Cooling Cnc Aluminum Case
2S 8.4V High Voltage Compatibility
Design for mini z cars, 1/18, 1/24, 1/27, 1/28 Scale Cars such as GL Racing GLD, GLA V2.1, GLR, GLF-1, GLR GT, Mini Airplane, Glider
Технические характеристики
A06CLS V2 (20T Version)
Рабочее напряжение: 4,8-8,4 В
Operating speed: 0.075sec/60°@4.8V
Operating speed: 0.066sec/60°@6.0V
Operating speed: 0.058sec /60° @ 7.4V
Operating speed: 0.052sec /60° @ 8.4V
Stall Torque: 1.8 kg-cm (25 oz-in) @4.8V
Stall Torque: 2.2 kg-cm (30 oz-in) @6.0V
Stall Torque: 2.6 kg-cm (36 oz-in) @ 7.4V
Stall Torque: 3.0 kg-cm (41 oz-in) @ 8.4V
Gear: Titanium
Motor: Coreless
Size: 20*8*17.8mm (0.78 x 0.31 x 0.70 in)
Вес: 7 г
Connector Wire: JST1.5 60mm / 28AWG

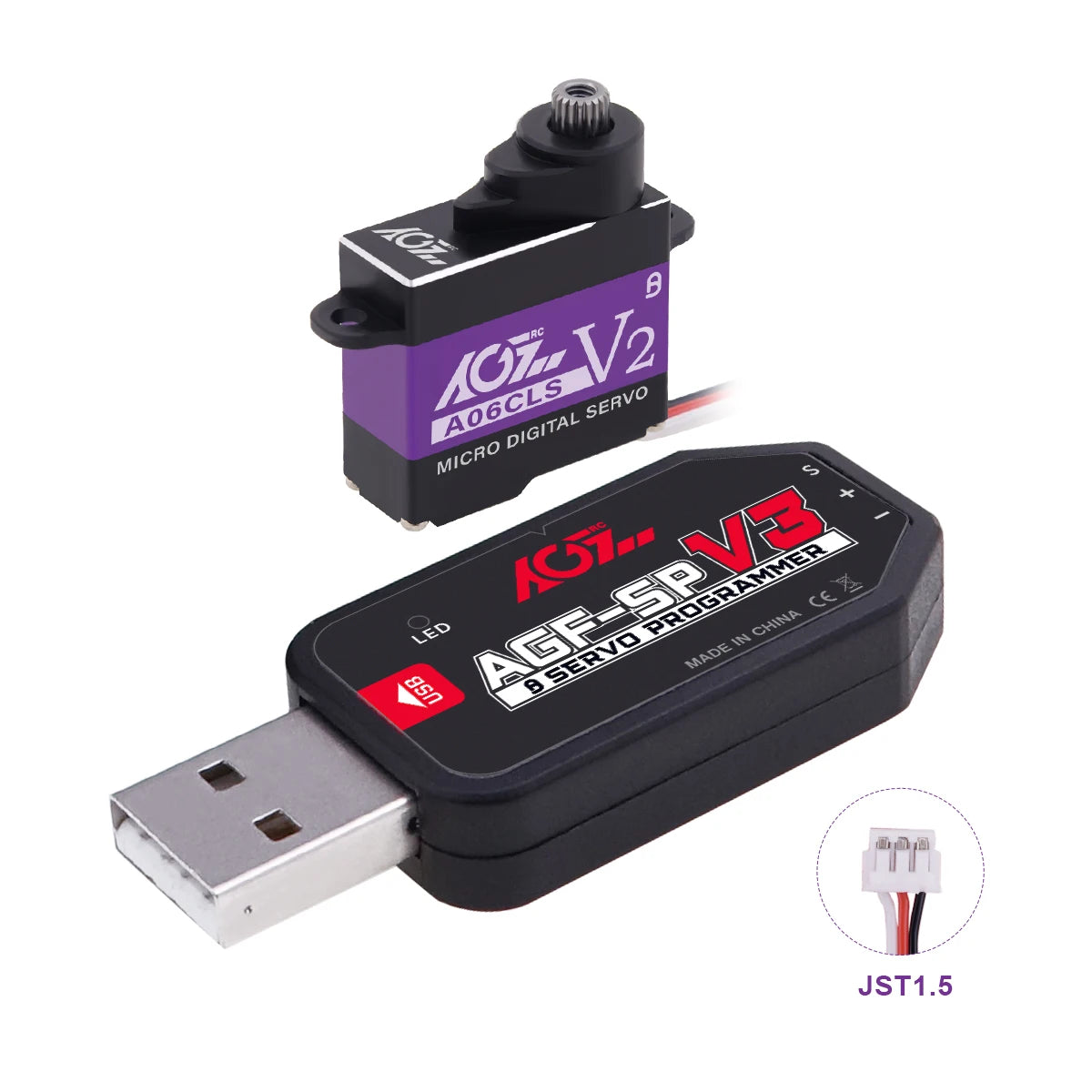

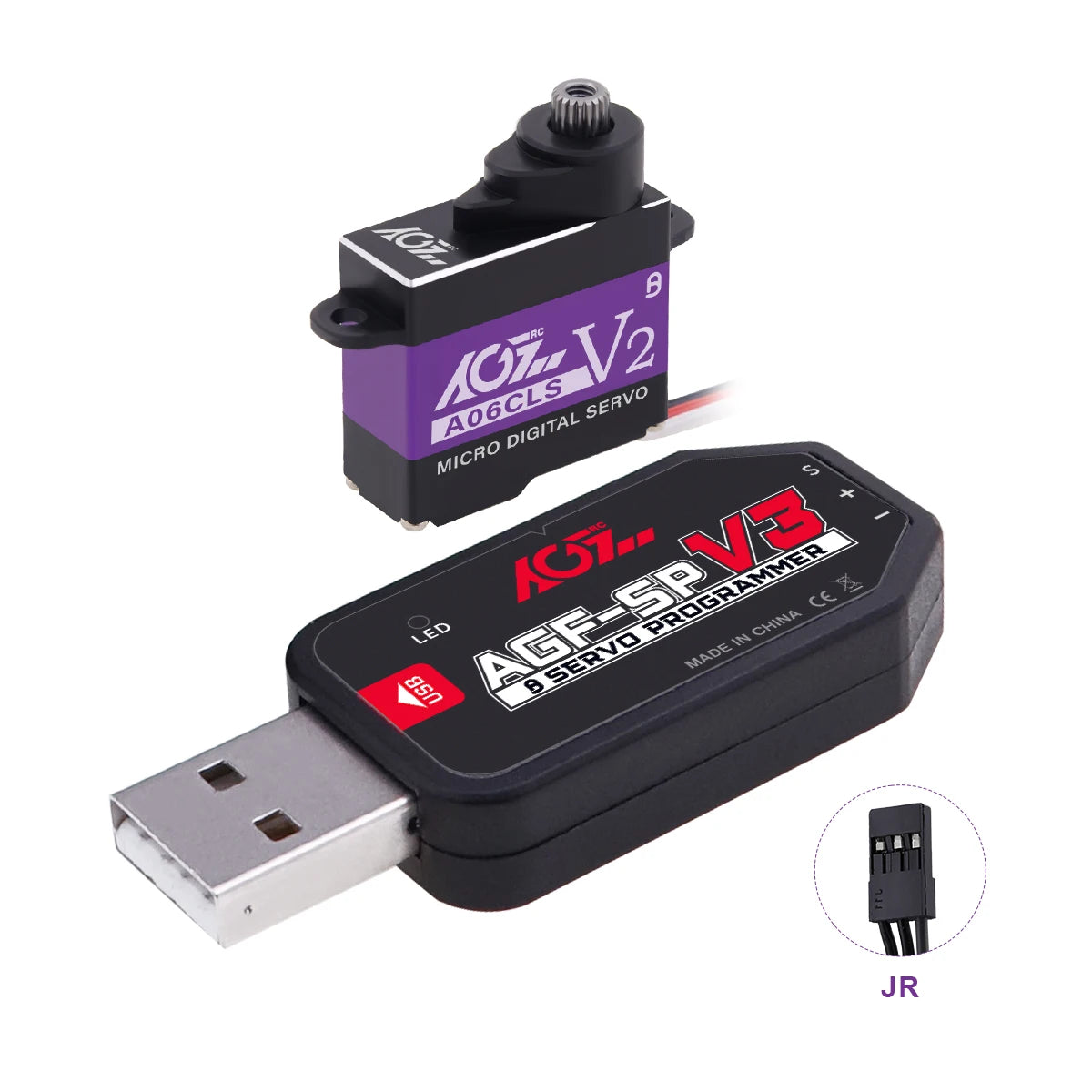

3.0kg, 0.052-second response time CNC micro servo with programmable via USB linker for basic parameter setting, including damping factor, T5 PWM port, and T84 option feedback; compatible with AGFRC A06CLS V2 models.
Operating Voltage: 4.5-6V, Frequency Response: 2.45Hz, Operating Current: 0.42A, Micro Servo with Digital Pulse Width Modulation (PWM) signal; compatible with AGFRC A06CLS V2 models.
Specifications for AGFRC A06CLS V2 Micro Servo: Control System – Pulse Width Modulation (PWM); Refresh Rate – 333 Hz; Neutral Position – 1520 μs; Signal Mode – Digital; Dead Band – 2 μs; Operating Voltage – 4.8V to 8.4V; Temperature Range – 15°C to +70°C; Mechanical Angle – No Limit; Size – 20mm x 8mm x 17.8mm; Net Weight – 7.0g; Wire – JST (JR) 80mm, 28AWG; Operating Travel – 180° ±100°.
Huizhou AGF-RC Electronic Technology Ltd. is a high-tech enterprise that owns over 1,200 square meters of dust-free electronic manufacturing workshops. Our technical team consists of experts from Taiwan’s GWS and Guangdong Audi Toy, both well-known brands in the RC industry.
We do not guarantee delivery times for international shipments, as customs clearing times vary by country. Buyers are responsible for paying any applicable customs duties. Additionally, we offer a one-month free replacement policy; buyers may request a replacement within 15 days of receiving the product.
