ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ

Колесная база: Винты

Используйте: Транспортные средства и игрушки с дистанционным управлением

Модернизация деталей/аксессуаров: Шестерня

Поставки инструментов: Измельченный

Технические параметры: Значение 4

Периферийные устройства/устройства дистанционного управления: Двигатель

Рекомендуемый возраст: 12+y

Запчасти и принадлежности RC: Моторы

Происхождение: Материковый Китай

Номер модели: 5010

Материал: Металл

Атрибуты полного привода: Моторы

Для типа автомобиля: Самолеты

Название бренда: Скайквист

5010 360kv /750kv Motor :

Описание:
These are really great outrunners. We’ve tested this line and they work extremely well.

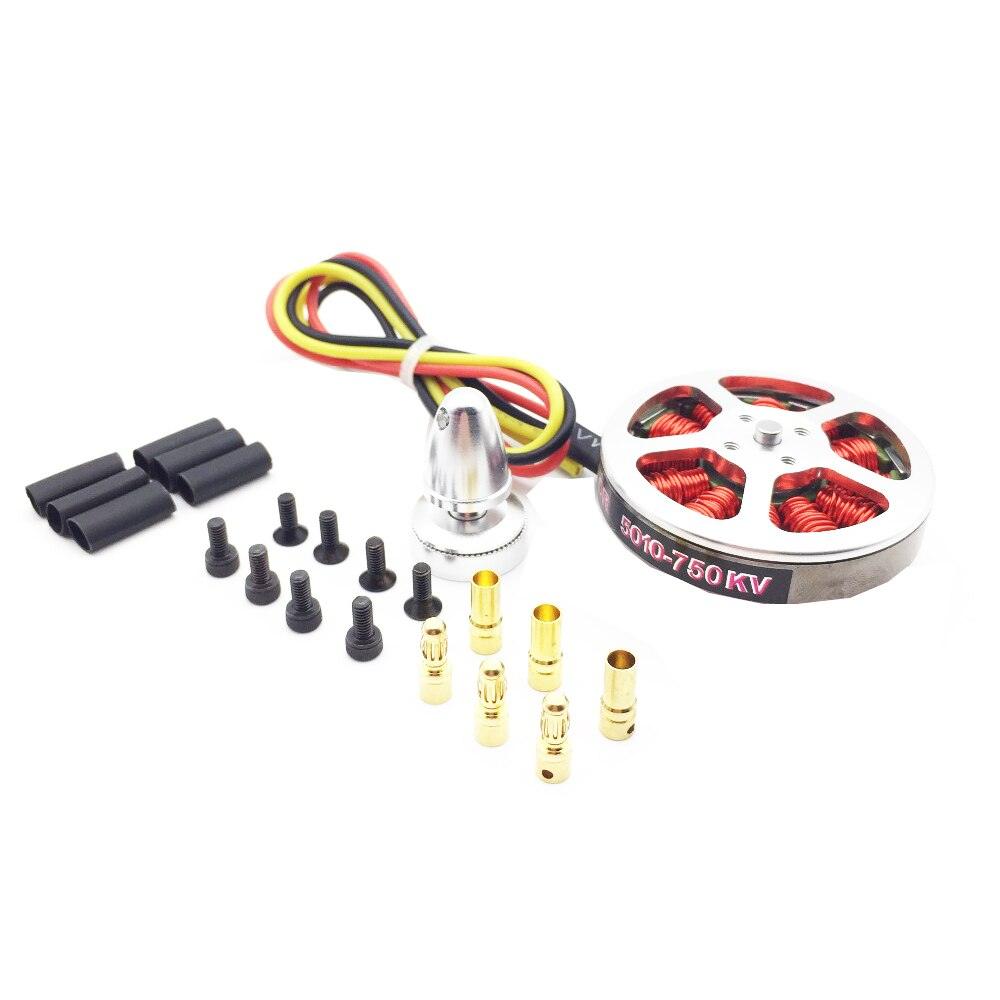

This is 5010-14 360KV /750kv  Brushless Motor
Особенности:
1.Machined aluminum front housing with four fan-style cooling holes that pump air through the motor while it runs.
2.Rear threaded mounting holes with both 16 mm and 19mm hole spacings fit a variety of applications.
3.Specially designed NdFeB magnets with high temperature rating for trouble-free operation.
4.High Temperature 140 C (356 F) rated wire is used for winding the motors to minimize the risk of burning up the motor.

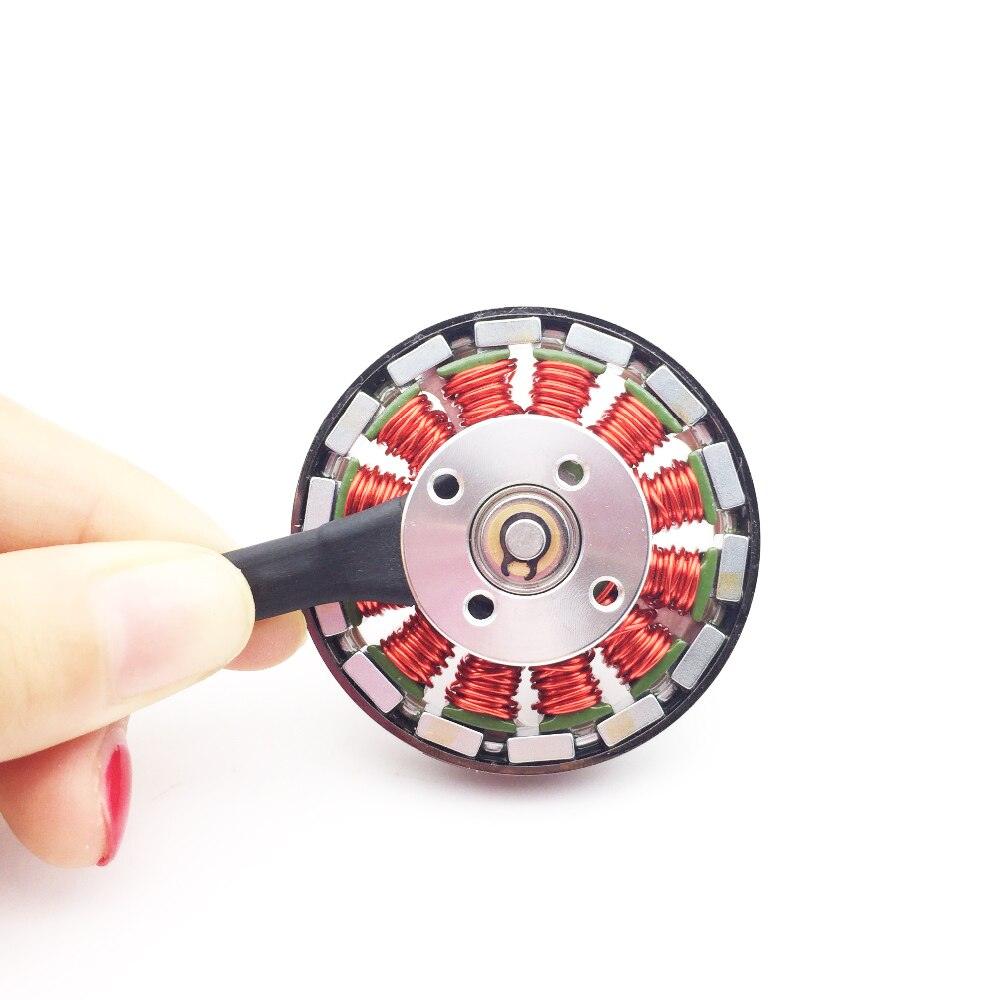

5.High quality stator plates are epoxy coated on the inner surface to prevent winding shorts. 0.20mm stator plate id used on this motor 5010.
6.High quality shielded and permanently lubricated ball bearings are used to support the motor shaft in all our motors.
7.High temperature adhesives are used to secure the stator windings and prevent them from shifting and getting pinched or shorting out .


Motor size: 50*10mm
Shaft size: 4mm
Weight: 80g
KV(rpm/v): 360/750
Battery: 2-6Li-Po
ESC: 20-40A(Best configuration 30A)
Best working with props of 12-16″

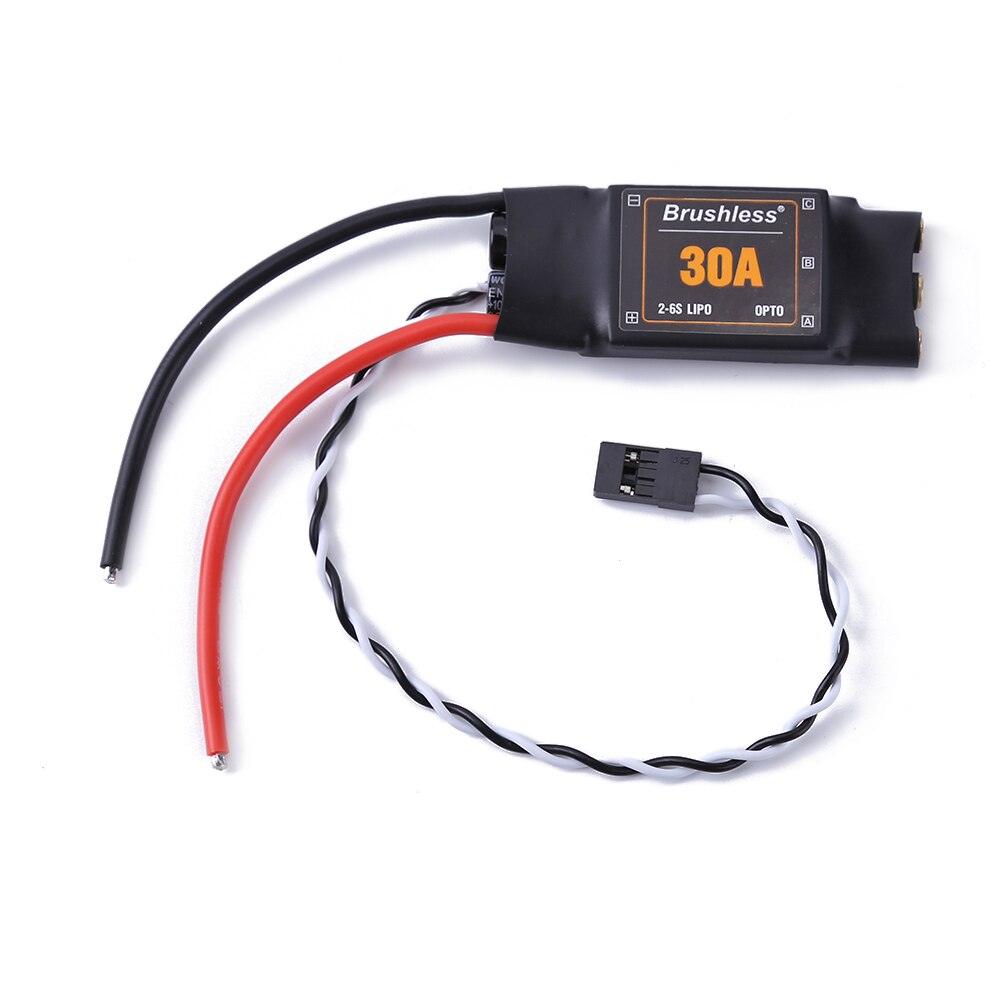

The newest Brushess 30A ESC brushless version, flight control and perfectly compatible engine
BEC: NO
Input: 2-6S lithium battery
Continuous current: 30A
Instantaneous current: 40A (10 seconds)
BEC output: none
Plug: 3.5mm banana plug

1 Product Features

1.1 Multi-rotor-specific program, the throttle response speed is extremely fast, surpassing all kinds of open source software;
1.2 Firmware optimized for disc motors with excellent motor compatibility;
1.3 Highly intelligent, self-adapting ability, only retaining the angle setting item (high advance/middle angle), the use is extremely simple;
1.4 The throttle signal line is a twisted pair cable, which effectively reduces the crosstalk caused by the transmission of signals in the copper wire, making the flight more stable;
1.5 Up to the throttle signal with a refresh rate up to 621Hz, compatible with various flight controls (Note: the throttle signals over 500Hz are non-standard throttle signals);
1.6 Using MOSFET-specific driver chips, the performance and stability far exceed the drive circuit built with discrete components;
1.7 Ultra-low internal resistance MOSFET with strong current resistance.

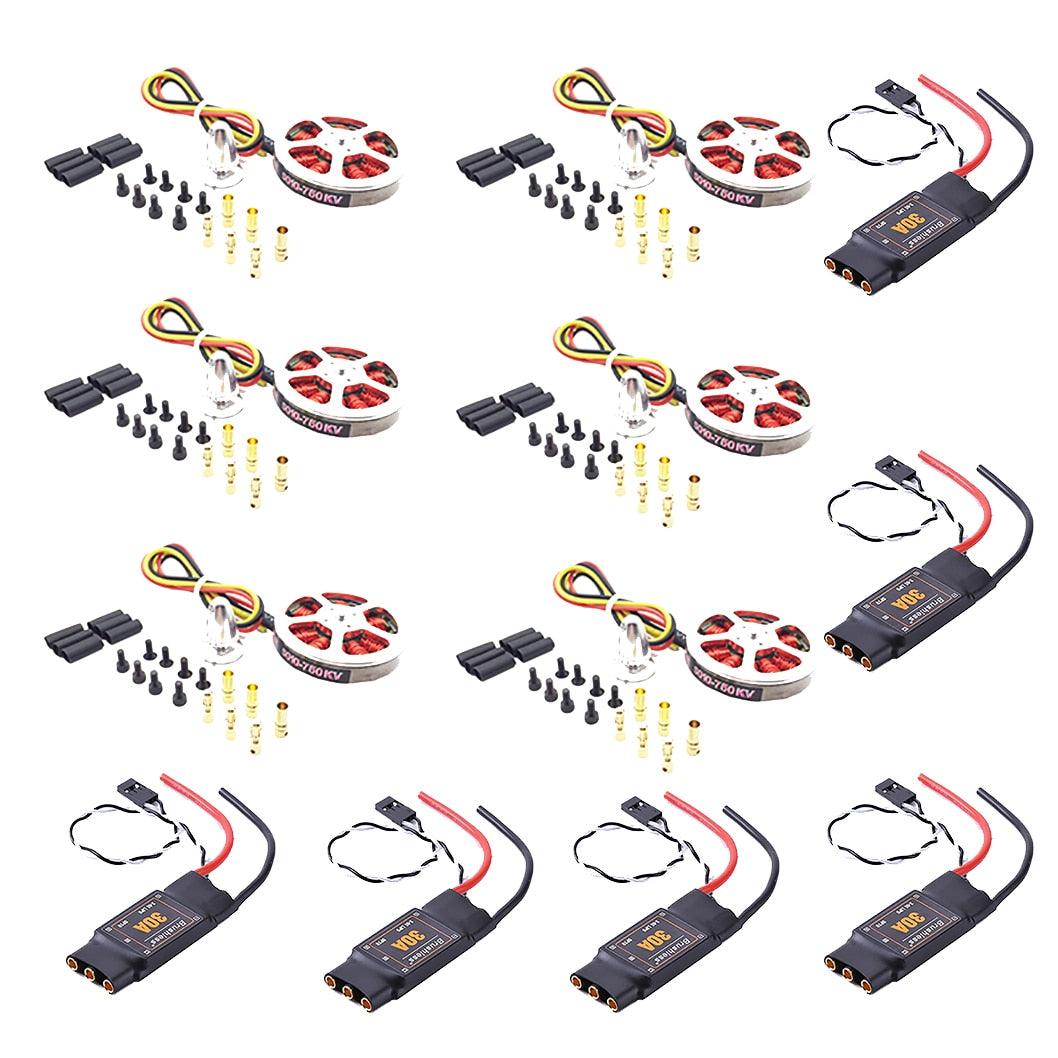

Package Includes: (as shown in the Main Photo)

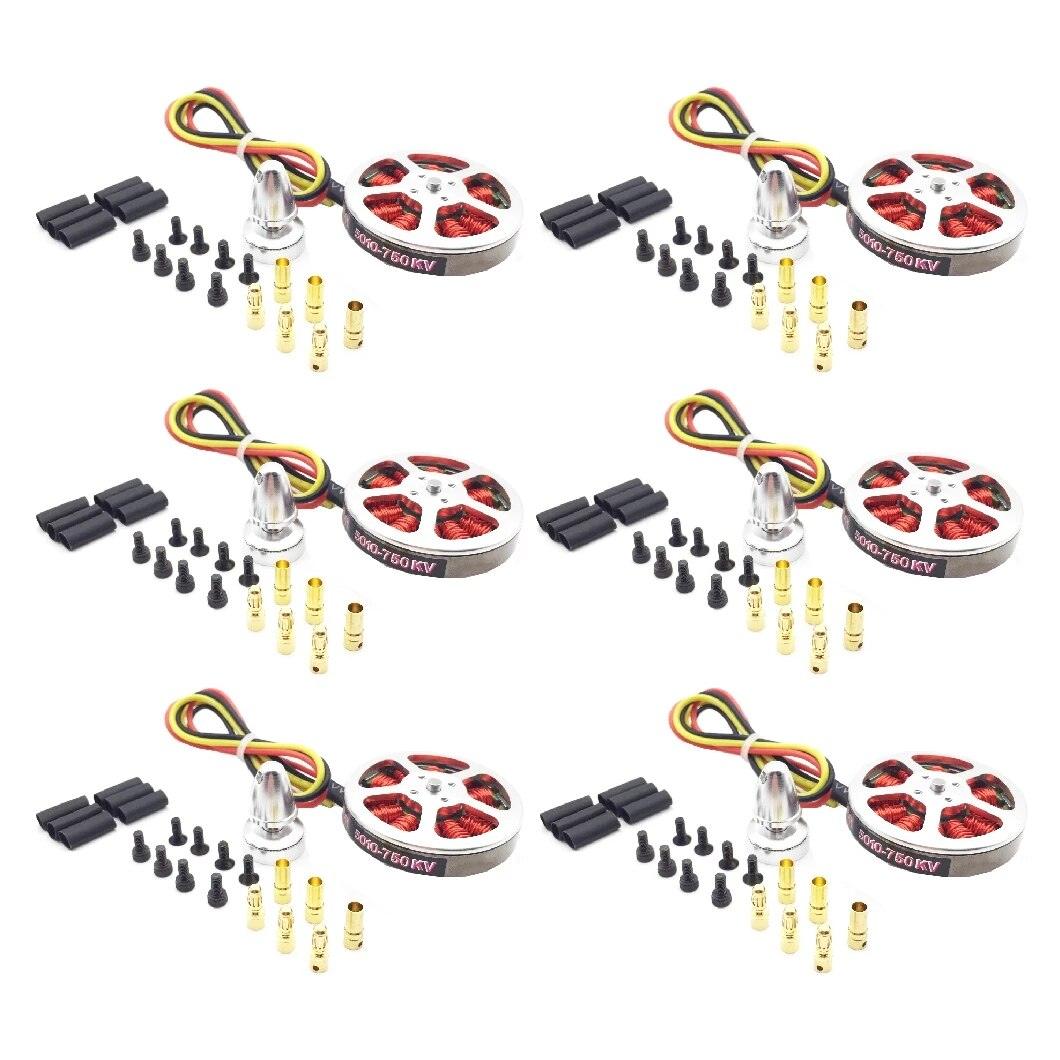

6 X 5010  Brushless Motor

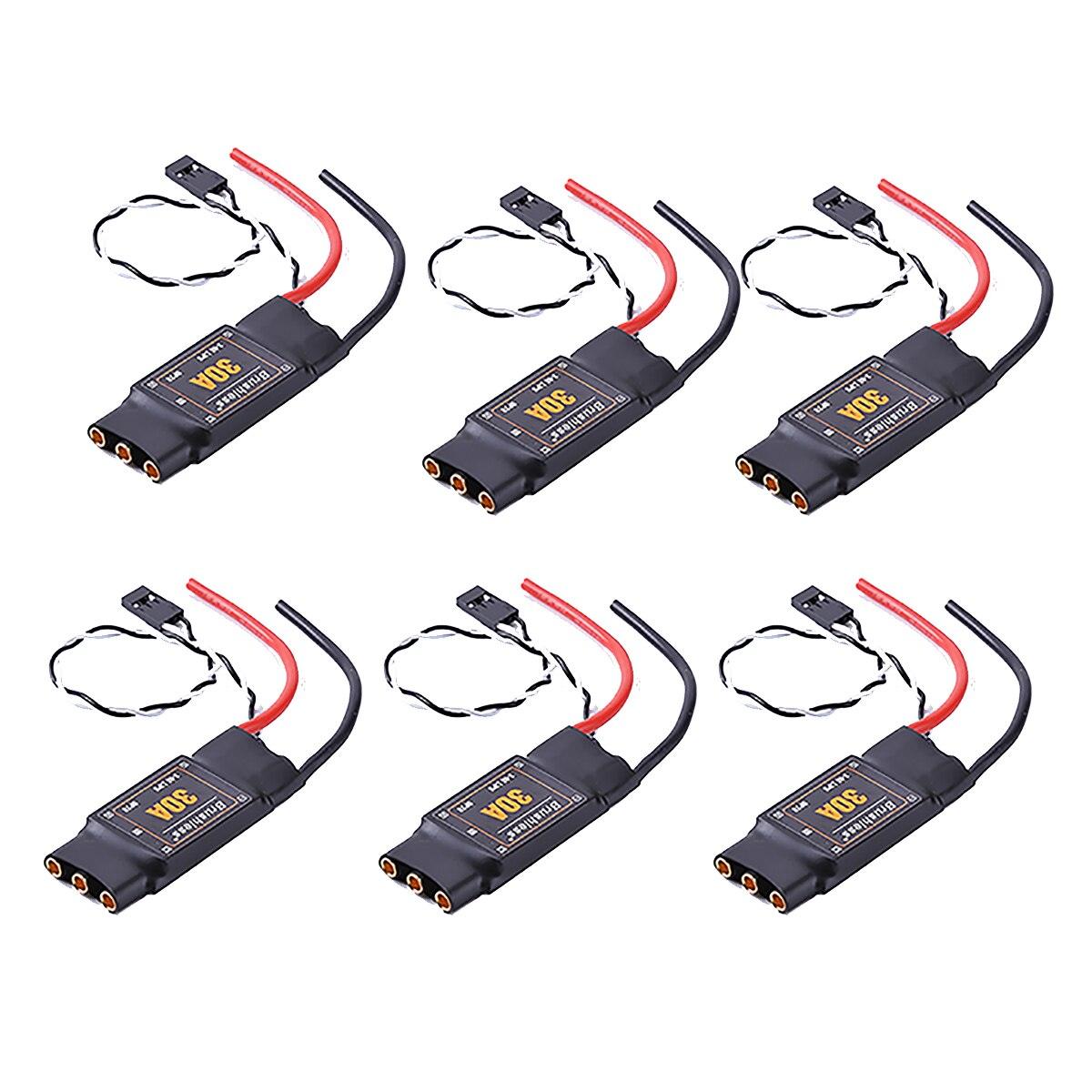

6 X  Brushless 2-6s ESC 30A
