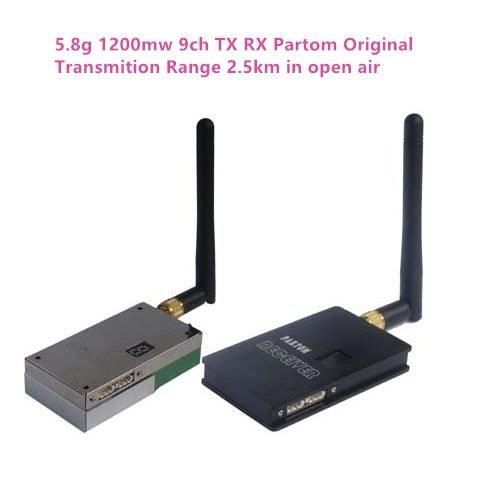

5.8GHz 1200mW FPV Transmitter and Receiver – with 2500M UAV/UGV Wireless Video Transmitter CCTV Transmission for FPV Drone

Описание:

5.8g 1200mw wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment.
Это не только профессиональный беспроводной передатчик и приемник CCTV для проектов CCTV безопасности, но также используется в линии FPV системы, UAV, RC самолеты / вертолеты, видео и данные сигналы в то же время в автомобилях беспилотного оборудования.


Технические характеристики:
Параметры передатчика:
Weight:65g
Dimension:70*38*18.5mm
Рабочее напряжение: DC12V
Working Current:700mA
Working Frequency:5.8G
Working Channels:9CH
Working Power:1200mW
Transmitting Range:1000~2500m (In Open Fields)

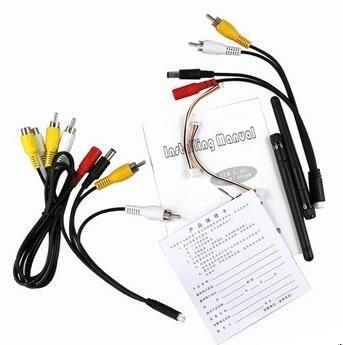

Transmitter accessories:transmitter,antenna,Tx cable( We don’t offer adatper for transmitter,please use DC 12V 3A adapter.)
Параметры приемника:
Weight:67g
Dimension:72*43*11mm
Рабочее напряжение: DC12V
Working Current:200mA
Working Frequency:5.8G
Working Channels:9CH
Receiver Accessories:Receiver,antenna,TX cable.(We don’t offer adatper for receiver,please use DC 12V 1A adapter.)
The whole set is about 395g.

Особенности:

• Wireless transmission: no need to set up communications cable
• Image, audio sync, color black and white compatible
• Small size, light weight, easy to carry, good installation
• Responsive, timely, send and receive real-time transmission
• Using FM mode, anti-interference ability, good image quality
• Highly integrated, stable and reliable transmission distance
• DC power supply, easy to use.

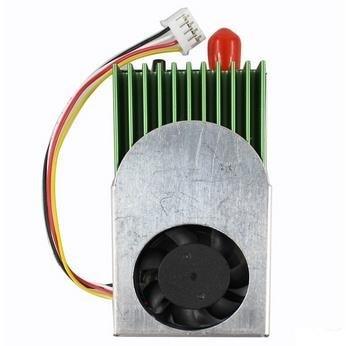

• Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.


Installing:
A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line’s points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera’s audio and video apart
And black one connects camera’s power input jack

B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation

C. Set the same channel with transmitter and receiver

‘
