WHAT’S INCLUDED
- 1x G300 Drone with RC
- 1x Charger
- 4x Batteries
- 1x Terrain Following Module
- 1x Front & Rear Obstacle Sensors
- 2x FPV
- 1x LEDs
- 12x Nozzles (3 color options)
- 1x Assembly & Maintenance Tools
- 1x 1 Year Manufacturer’s Warranty
HIGHLIGHTS
-
Great for Orchards
-
Great for Nurseries
-
2-in-1 Sprays & Seeds
24 Acres per Hour*
Capacity: 7.9 Gal (30L)
Swath: 13 – 29 ft
Max Flow: 2.11 GPM (7.9 LPM)
Droplet Size 170 – 265 microns
(depending on the actual operating environment, spray flow, and other factors)
TECHNICAL PARAMETERS |
|
Diagonal Distance |
76.7 inch (1950mm) |
Dimensions |
114 x 114 30.7 inch (2900×2900×780mm) (with unfolded arms and unfolded propellers ) |
80.7 x 63 x 30.7 inch (2050×1610×780mm) (with unfolded arms and folded propellers) |
|
41 x 24 x 30.7 inch (1050×620×780mm) (with folded arms) |
|
Spray System – Tank |
|
Quantity |
1pc |
Tank Volume |
7.9 gal (30L) |
Spray System- Pump |
|
Quantity |
2pcs |
Operating Flow Rate |
1.3 gal (5L) /min per pump |
Operating Voltage |
51.8-60.0V |
Spray System- Pressure Nozzles |
|
Quantity |
12pcs |
Max Flow Rate |
8L/min |
Droplet Size |
SX110015VS : 170 – 265 μm |
Max Effective Spray Width |
4M-9M (1.5-3.5M above crop) |
Flying Parameters |
|
Empty Weight(without batteries) |
61 lbs (27.8kg) |
Standard Takeoff Weight |
84 lbs (38.3 kg) |
Max Effective Takeoff Weight |
150 lbs (68.3 kg) (horizontal) |
Hover Accuracy(GNSS) |
With J-RTK Enabled:Horizontal ±10 cm, Vertical ±10 cm; With J-RTK Disabled:Horizontal ±0.6m,Vertical ±0.3 m (with radar function enabled:±0.1 m) |
RTK / GNSS Frequency Bands |
RTK: GPS L1/L2, GLONASS F1/F2,BeiDou B1/B2, Galileo E1/E5 |
Battery Capacity |
14S (28000mAh 51.8V) |
Max Power Consumption |
12000 W |
Flight Time |
20.10 min (@28000 mAh&takeoff weight of 38.3kg); 8.30 min (@28000 mAh&takeoff weight of 68.3kg); |
Max Pitch angle |
15° |
Max Operating Flight Speed |
7 m/s |
Max Flight Speed |
10m/s |
Max Tolerable Wind Speed |
8 m/s |
Max Flight Altitude |
6,561 ft (2000 m) |
Recommended Operating Ambient Temperature |
0°C to 40°C |
Front and Rear Dual Camera |
|
View Angle (FOV) |
FOV120° |
Resolution |
1280×960 30fps |
Front and Rear Dual Searchlights |
|
Power Consumption |
<8W |
Luminous Flux |
1W/120-140 lm |
Shine Angle |
120° |
IP Ratings |
IP67 |
Battery |
|
Model |
TATTU28A |
Capacity |
28000mAh-53.2V |
Weight |
20.5 lbs (9.3KG) |
Discharge Rate |
3C |
IP Ratings |
IP56 |
Power System – Motor |
|
Dimensions |
3.7 x 1 inch (96×26mm) |
KV Value |
100 rpm/V |
Max Pull |
12 lbs (15.5kg) /rotor |
Max Power |
2400 w/rotor |
Weight |
1.8 lbs (835 g) |
Power System – Propeller |
|
Diameter and Pitch |
36×12inch |
Material |
Carbon-Plastic |
Weight |
0.7 lbs (324 g) |
Power System – ESC |
|
Normal Operating Current (continuous) |
60A |
Max Operating Voltage |
58.8 V (14S LiPo) |
Max Operating Current(continuous) |
120A |
Remote Control |
|
Model |
H12 |
Max Valid Distance |
15KM (without blockage and interference) |
AG Drone Operating Range |
3.5KM (flight height>3m) |
Signal Output |
16 channels S.BUS; 5 channels PWM; |
Video Transmitter Resolution |
1080P |
Screen |
5.5inch High-brightness Touch LCD Screen |
Configuration |
2G RAM,16GB Internal Storage |
Weight |
1.1 lbs (530g) |
Battery |
10000mAh 3.7V Lithium-ion Battery |
Endurance |
13 hours |
Charger |
|
Model |
U6Q |
Input Voltage |
110V-220V |
Output Power |
2400W |
Charge Current Range |
15A-50A |
Support Battery Model |
Lithium Battery |
The TTA G300 Spraying, Seeding & Mapping Drone
OBSTACLE AVOIDANCE | EASIER FLYING |EASIER MAINTENANCE
HEAVY LIFT AGRICULTURAL DRONE
-
G300 7.9 GAL (30L) SPRAYING DRONE
-
AUTOMATIC SPRAY MODE – Find your crop field and set waypoint from the GCS Google Map, the route will automatically appear. The start point, the final point and the working direction can all be set.
-
ACCURATE RTK POSITIONING SYSTEM – Covers the whole field accurately, also to avoid damage and pollution to neighboring fields
-
24 ACRES PER HOUR
-
SPRAYING SYSTEM – Double water pumps generate bigger pressure, max 4L/min adjustable flow rate. Bigger inlet for you to fill in the chemical faster with no leak
Features of M6E-GSOO Agricultural UAV: Brand new operation system, integration with RLo Cloud service for real-time tracking, RTK (Real-Time Kinematic) accurate positioning, flight log playback, flow rate control, and 88 multiple operation modes. Additionally, the drone features obstacle avoidance, GPS, and CAN protocols for efficient communication.
The TTA G300 features a built-in 5.5-inch Android tablet powered by Qualcomm Snapdragon 625 processor, backed by a massive 10,000mAh battery that provides up to 20 hours of endurance. Additionally, the drone supports rapid charging for convenience. The advanced technology also enables higher video transmission resolution, reduced latency, and increased valid distance, while offering stronger anti-interference capabilities.
The TTA G300 drone features advanced obstacle detection, which enables automatic avoidance of unexpected collisions, thereby minimizing the risk of damage or loss. The Ground Control Station (GCS) simultaneously provides real-time distance feedback from detected obstacles, while the terrain-following module simplifies spraying operations.
Featuring dual water pumps that produce high-pressure output, this drone boasts an adjustable flow rate of up to 4 liters per minute. The larger inlet allows for quick and effortless filling of chemicals, minimizing leaks and ensuring a smooth operation.

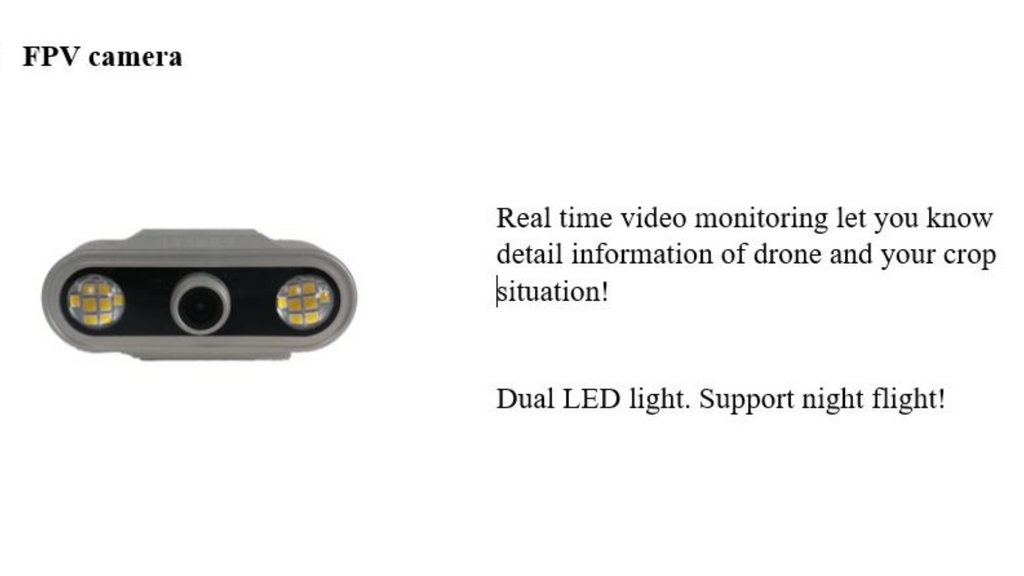

Equipped with an FPV (First-Person View) camera, the TTTA G300 offers real-time video monitoring, allowing you to remotely track and monitor the drone’s movements as well as your crop situation in precise detail.
