TOPOTEK RIP30S4K is a 4K resolution gimbal that integrates 30x optical zoom and 3-axis stabilization. This 4K IP output gimbal outputs RTSP code streams and supports PTZ control and zoom camera control via ground sending end software and App. Featuring a high-precision encoder FOC control scheme, the RIP30S4K offers high stability, compact size, lightweight, and low power consumption. Equipped with an 8MP HD sensor, it supports 4K resolution, 1080p local TF storage, and wireless transmission.

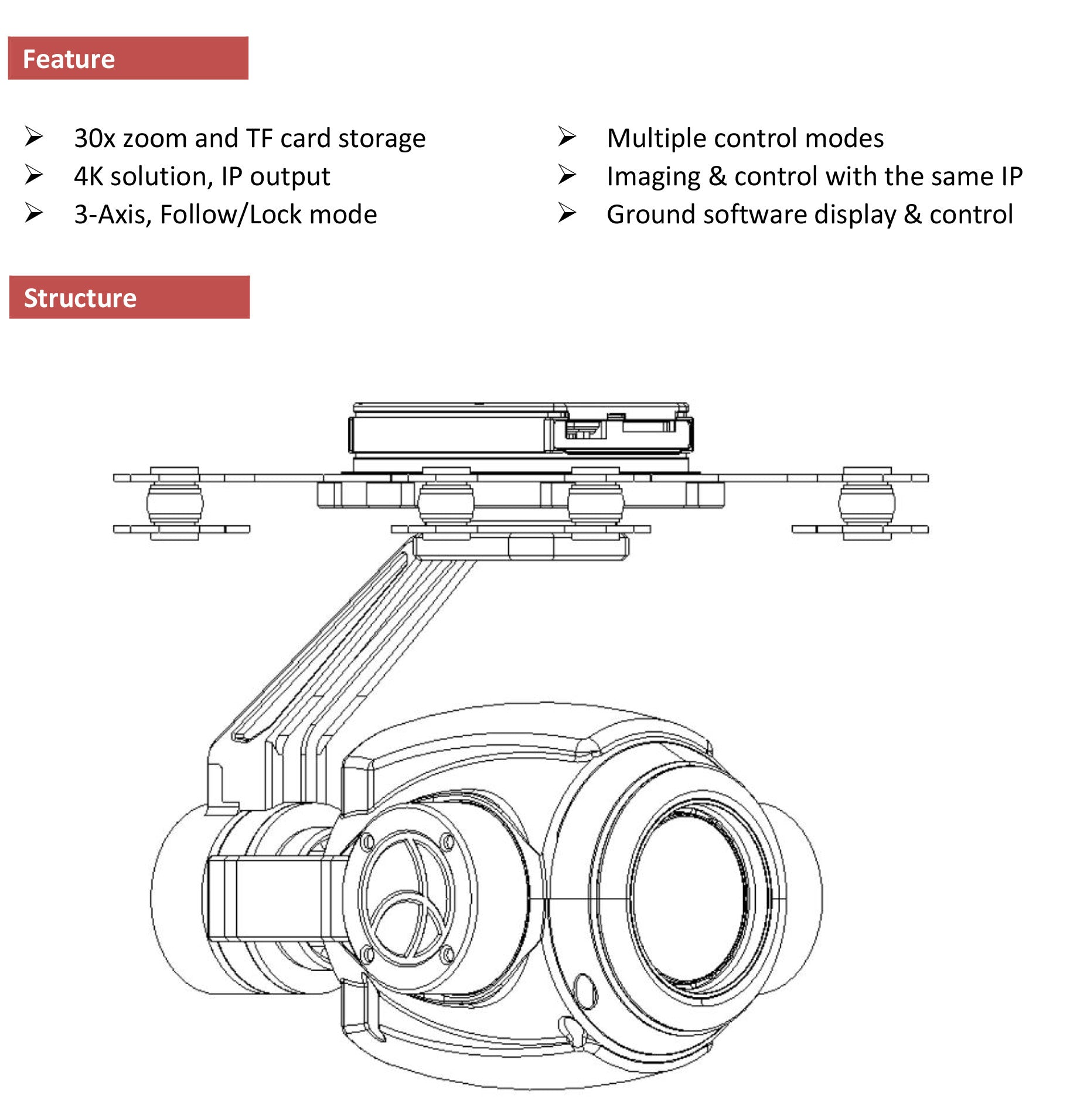

TOPOTEK RIP30S4K Features:
- 30x Zoom and TF Card Storage
- 4K Solution, IP Output
- 3-Axis Stabilization with Follow/Lock Mode
- Multiple Control Modes
- Imaging and Control via the Same IP
- Ground Software Display and Control

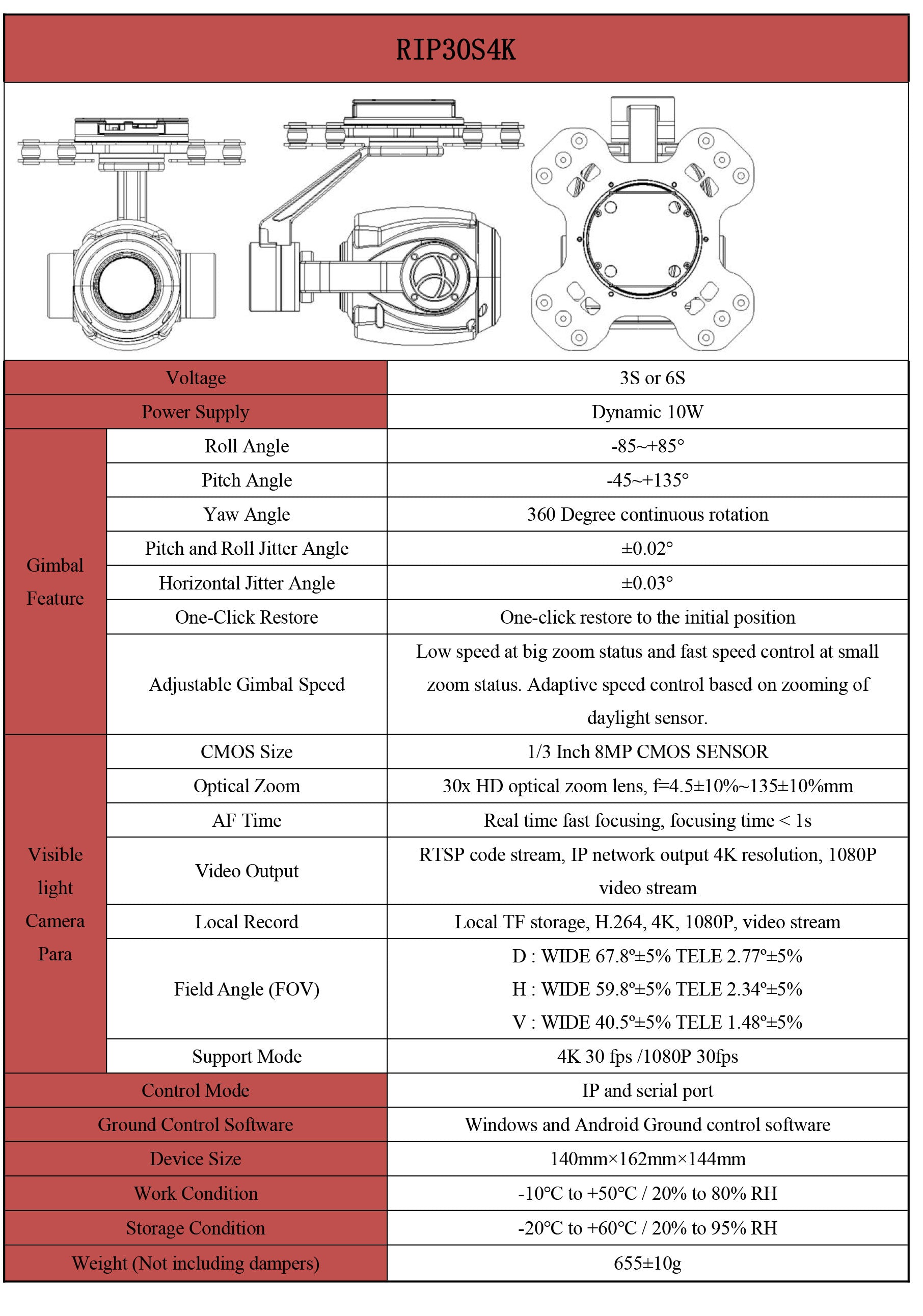

TOPOTEK RIP30S4K Specifications
| Parameter | Specification |
|---|---|
| Voltage | 3S or 6S |
| Power Supply | Dynamic 10W |
| Gimbal Feature | |
| Roll Angle | -85°~+85° |
| Pitch Angle | -45°~+135° |
| Yaw Angle | 360 Degree continuous rotation |
| Pitch and Roll Jitter Angle | ±0.02° |
| Horizontal Jitter Angle | ±0.03° |
| One-Click Restore | One-click restore to the initial position |
| Adjustable Gimbal Speed | Low speed at big zoom status and fast speed control at small zoom status. Adaptive speed control based on zooming of daylight sensor. |
| Visible Light Camera Parameters | |
| CMOS Size | 1/3 Inch 8MP CMOS SENSOR |
| Optical Zoom | 30x HD optical zoom lens, f=4.5±10%~135±10%mm |
| AF Time | Real time fast focusing, focusing time < 1s |
| Video Output | RTSP code stream, IP network output 4K resolution, 1080P video stream |
| Local Record | Local TF storage, H.264, 4K, 1080P, video stream |
| Field Angle (FOV) | D: WIDE 67.8°±5% TELE 2.77°±5% <br> H: WIDE 59.8°±5% TELE 2.34°±5% <br> V: WIDE 40.5°±5% TELE 1.48°±5% |
| Support Mode | 4K 30 fps / 1080P 30fps |
| Control Mode | IP and serial port |
| Ground Control Software | Windows and Android Ground control software |

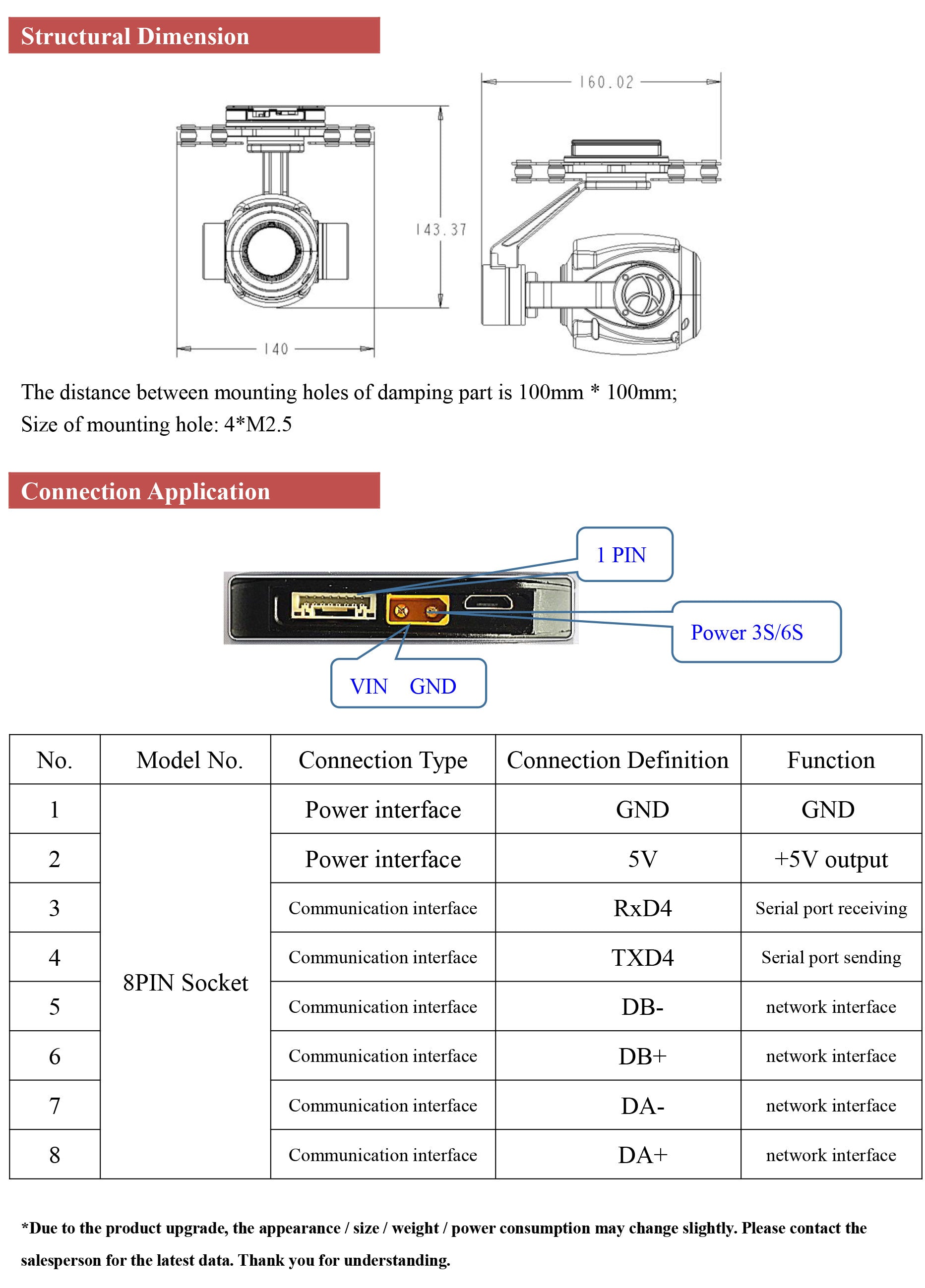

| Device Size | 140mm×162mm×144mm |
| Work Condition | -10°C to +50°C / 20% to 80% RH |
| Storage Condition | -20°C to +60°C / 20% to 95% RH |
| Weight (Not including dampers) | 655g±10g |
Enjoy high-quality imaging with our drone camera gimbal’s 30x optical zoom and TF card storage capabilities. Control your footage in multiple modes, including 4K resolution, with IP output for seamless imaging and control. The gimbal features 3-axis stabilization, follow/lock mode, and ground software display and control.
Note: The physical dimensions of the product have undergone minor updates due to recent upgrades. As a result, its size, weight, power consumption, and other specifications may have changed slightly. For the most up-to-date information, please consult with our sales team. Thank you for your understanding.
