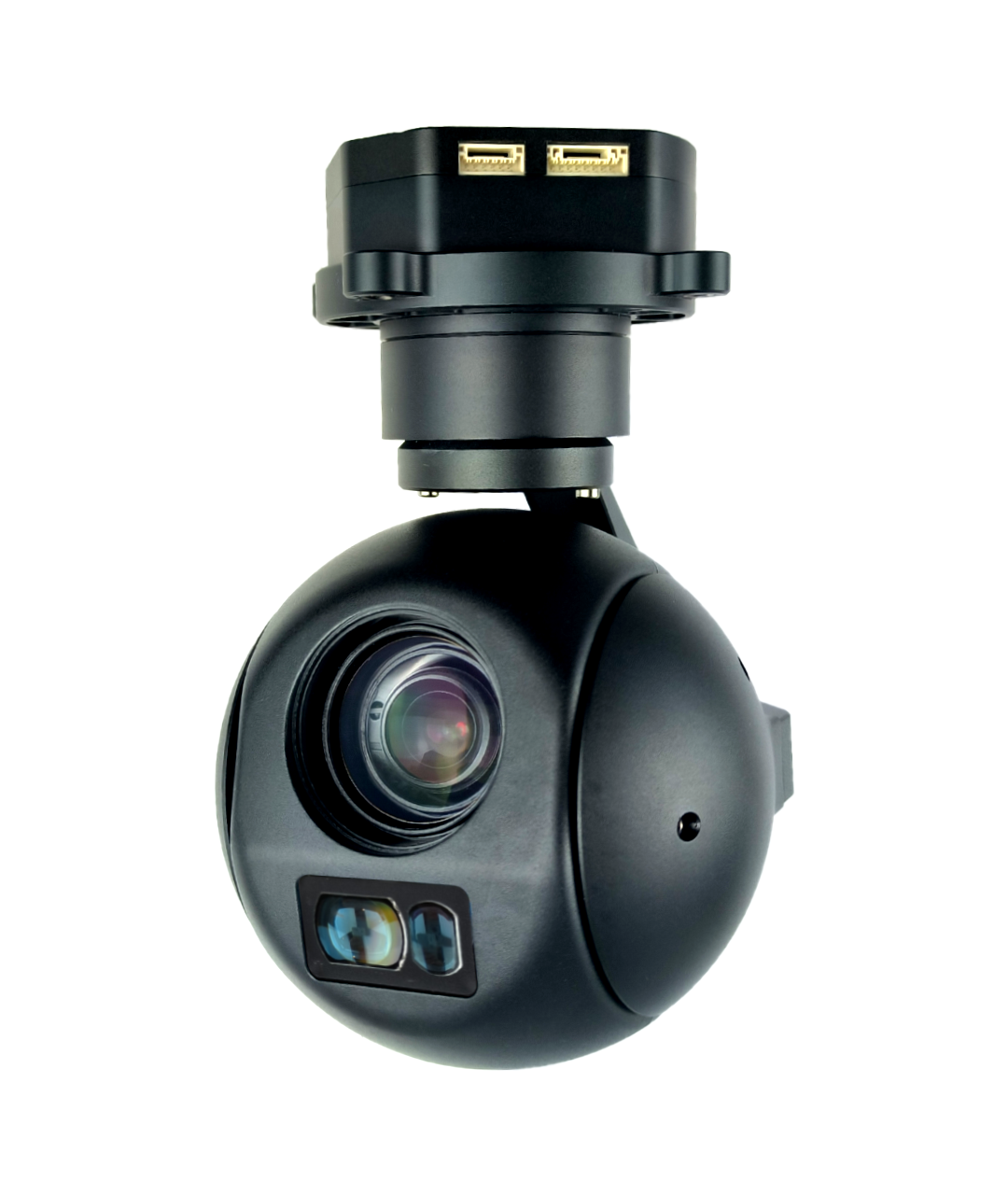

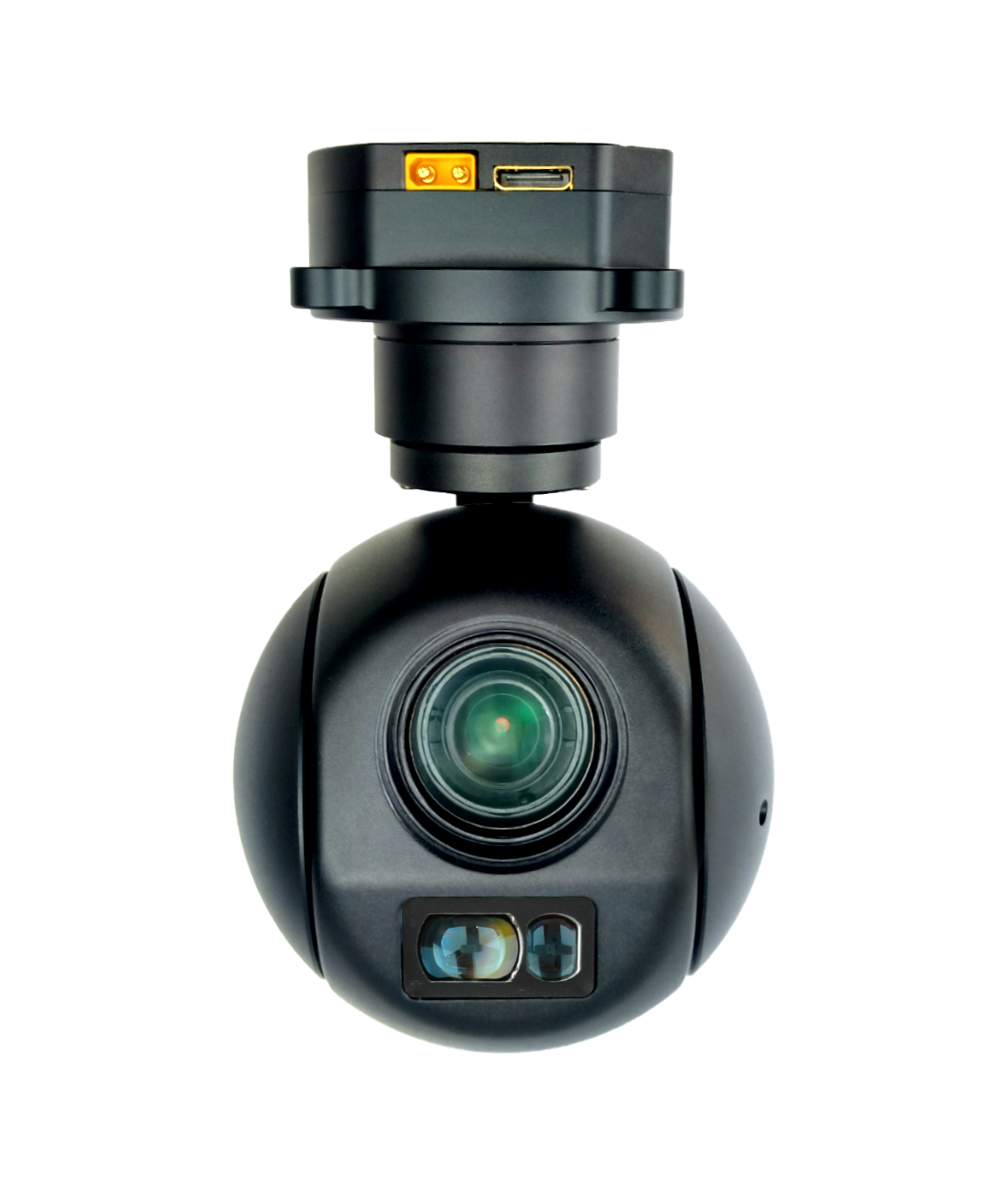

TOPOTEK KHY10L12 Dual Light Drone Gimbal Overview
The TOPOTEK KHY10L12 is a zoom dual-optical integrated system combining a 90x hybrid zoom, 1200-meter laser ranging module, and a high-precision professional three-axis stabilization pod. This system is designed for high stability, compact size, lightweight, and low power consumption. It features network IP, HDMI dual output, IP control, and a high-precision encoder FOC control scheme. The visible light camera uses a wide dynamic sensor with 2 million effective pixels, and the system supports both serial port and network control for the camera and PTZ, along with local TF dual-channel video and photo recording.
TOPOTEK KHY10L12 Features
- 10x visible light
- 1200 meters laser ranging
- High-precision, high-collaboration control algorithm
- Digital zoom
- Weight 460g
- Provide ground station software
TOPOTEK KHY10L12 Specifications
| Parameter | Details |
|---|---|
| Voltage and Power Supply | DC 12V-26.2V, Dynamic 6W |
| Features | |
| Roll Angle | -45° to +45° |
| Pitch Angle | -30° to +95° |
| Yaw Angle | -295° to +295° |
| Pitch and Roll Jitter Angle | ±0.02° |
| Horizontal Jitter Angle | ±0.03° |
| One-Click Return to Center | One-click to return to the initial position |
| PTZ Speed Adjustable | When the gimbal rotates, it performs speed adaptation based on the current speed mode and visible light camera multiple. |
| Control Mode | Support Network, IP, Network Sbus control (PWM optional) |
| Visible Light Camera | |
| CMOS Size | 1/2.8 inch 200MP Effective pixels CMOS SENSOR |
| Optical Zoom | 10x HD Optical zoom lens, f=5.15±5%~47.38±5%mm |
| Focus Time | Real-time fast focusing function, focusing time <1s |
| Video Output | Network HD RTSP output 1080P, Video stream local TF storage |
| Field of View (FOV) | D: WIDE 69.5°±5% TELE 7.95°±5%<br> H: WIDE 61.5°±5% TELE 7.00°±5%<br> V: WIDE 35.0°±5% TELE 3.97°±5% |
| Support Mode | 1080P 30fps |
| LRF | |
| Infrared Wavelength | 905nm (class 1 laser) |
| Measuring Range | 5~1200m |
| Accuracy | ±1m |
| Size | 143mm×148mm |
| Working Environment | -10°C to +45°C / 20% to 80% RH |
| Storage Environment | -20°C to +60°C / 20% to 95% RH |
| Application | Drone Aerial Photography |
| Weight | 460 ± 20g |
