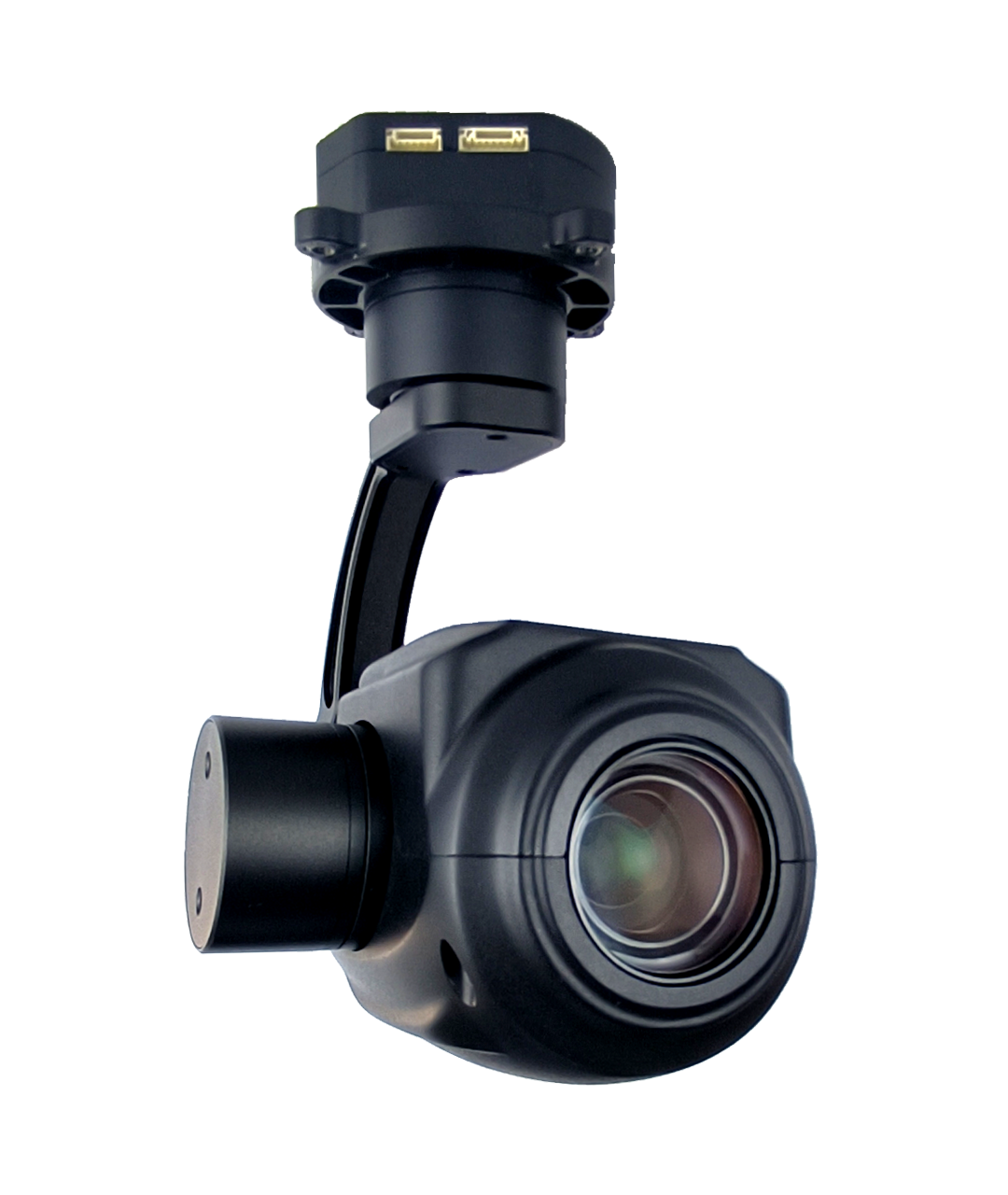

The KHP4KS585 is a drone gimbal system that integrates a 28x mixed zoom visible light camera with a high-precision 3-axis stabilized PTZ. It features network IP and HDMI dual output, as well as IP control. This gimbal system is characterized by its high stability, compact size, light weight, and low power consumption. The visible light camera uses an 8-megapixel wide dynamic CMOS sensor and supports 1080P network RTSP code stream output. Both UART and IP can control the camera and PTZ, and the system supports local TF storage.
Functional Features
- 28x Mixed Zoom: Offers a powerful zoom capability for detailed imaging.
- Follow/Lock Mode: Provides precise tracking and stabilization.
- Standard RTSP Stream Output: Supports standard RTSP code stream output for easy integration.
- TF Card Storage: Allows for local storage of footage.
- 170ms Low Latency: Ensures minimal delay in video streaming.
- HDMI/IP Dual Output: Offers versatile output options for different needs.
- Network, UART, and SBUS Control: Supports multiple control protocols for flexibility.
- 3-Axis Stabilized Gimbal: Provides smooth and stable imaging, with a total weight of 690g.

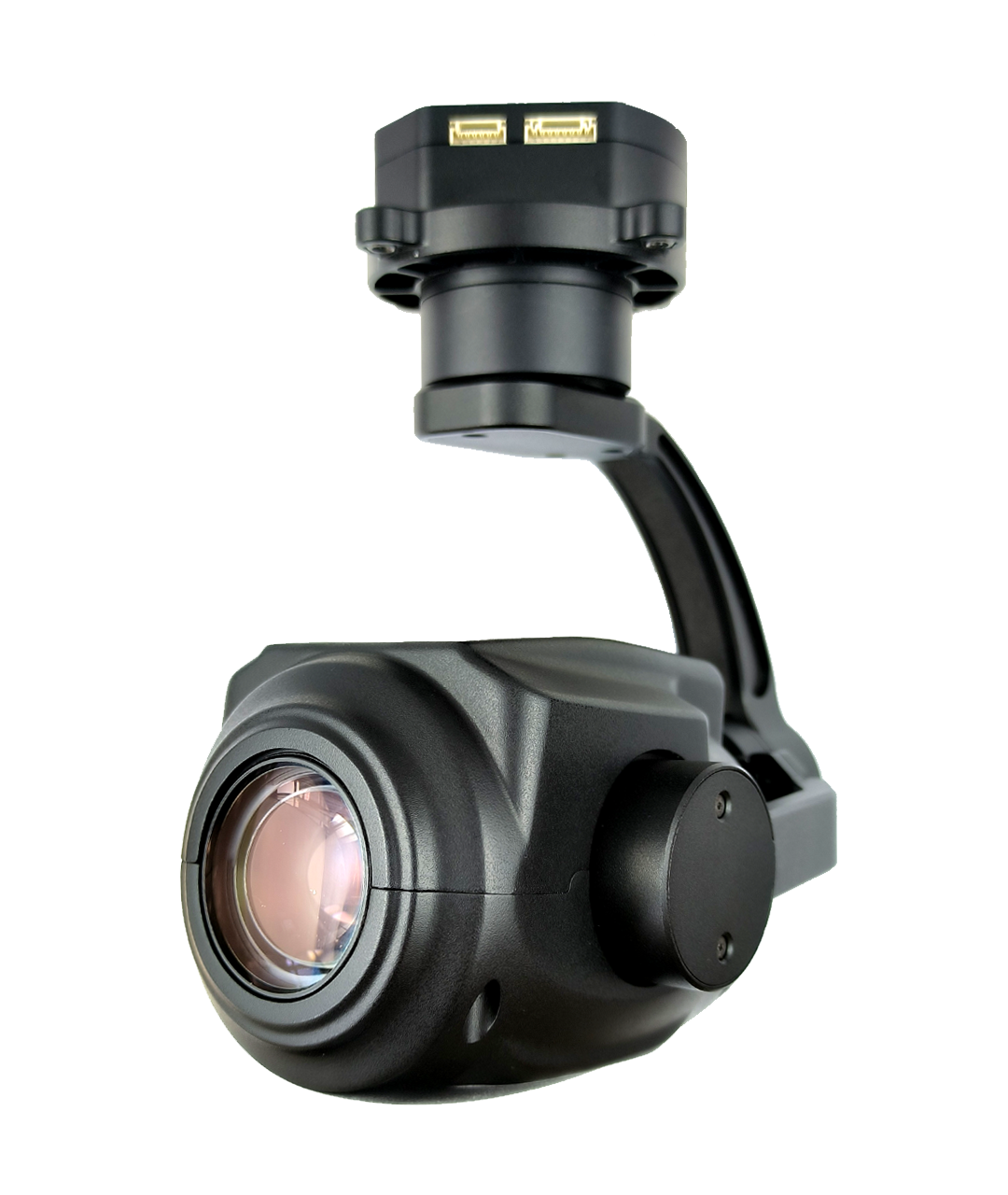

TOPOTEK KHP4KS585 Drone Gimbal Camera Specifications

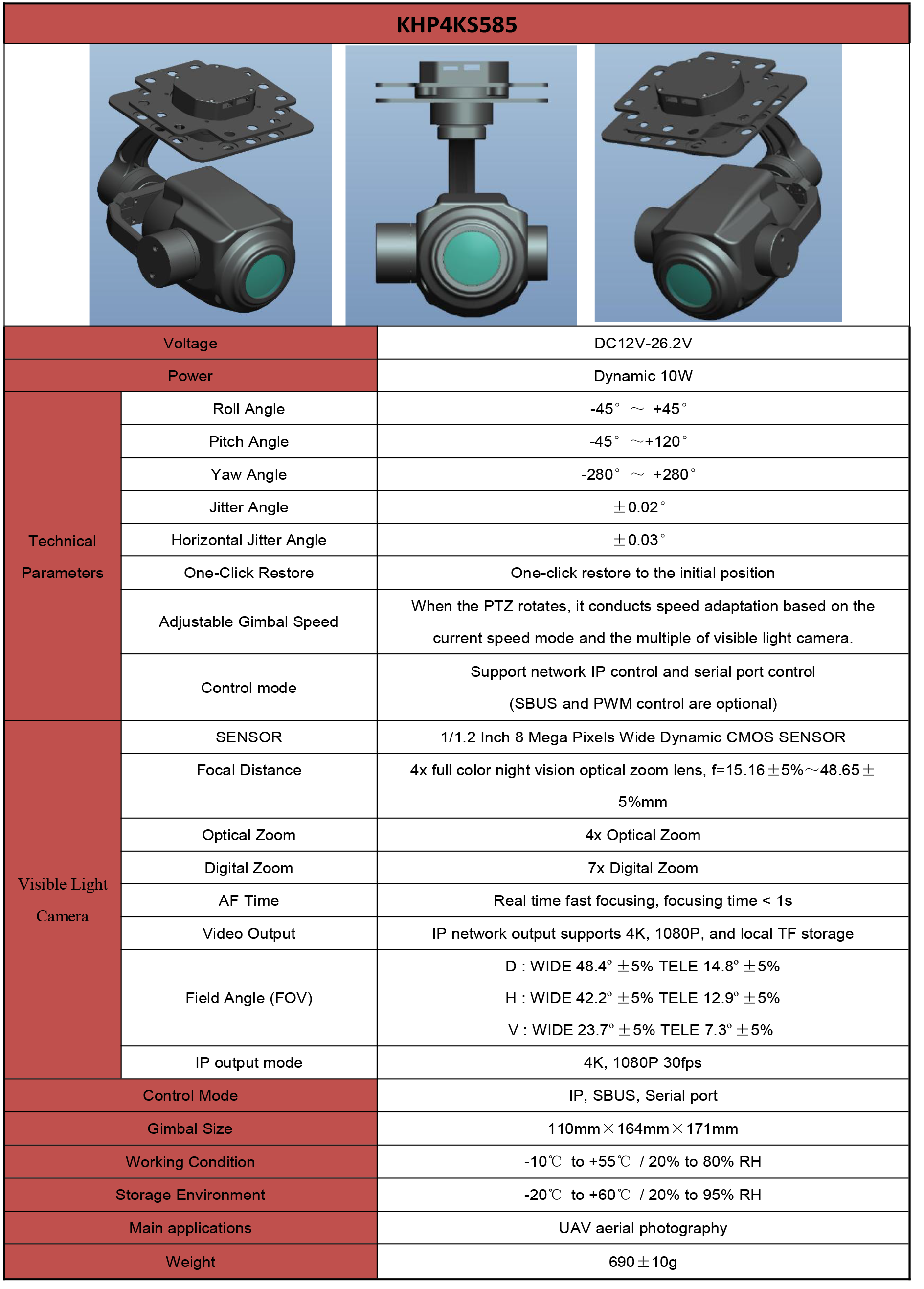

| Parameter | Value |
|---|---|
| Voltage | DC12V-26.2V |
| Power | Dynamic 10W |
| Roll Angle | -45° ~ +45° |
| Pitch Angle | -45° ~ +120° |
| Yaw Angle | -280° ~ +280° |
| Jitter Angle | ±0.02° |
| Horizontal Jitter Angle | ±0.03° |
| One-Click Restore | One-click restore to the initial position |
| Adjustable Gimbal Speed | Speed adaptation based on the current speed mode and visible light camera |
| Control Mode | Support network IP control and serial port control (SBUS and PWM optional) |
| SENSOR | 1/1.2 Inch 8 Mega Pixels Wide Dynamic CMOS SENSOR |
| Focal Distance | 4x full color night vision optical zoom lens, f=15.16 ±5%~48.65 ±5% mm |
| Optical Zoom | 4x Optical Zoom |
| Digital Zoom | 7x Digital Zoom |
| AF Time | Real-time fast focusing, focusing time < 1s |
| Video Output | IP network output supports 4K, 1080P, and local TF storage |
| Field Angle (FOV) | D: WIDE 48.4° ±5%, TELE 14.8° ±5% |
| H: WIDE 42.2° ±5%, TELE 12.9° ±5% | |
| V: WIDE 23.7° ±5%, TELE 7.3° ±5% | |
| IP Output Mode | 4K, 1080P 30fps |
| Control Mode | IP, SBUS, Serial port |
| Gimbal Size | 110mm x 164mm x 171mm |
| Working Condition | -10°C to +55°C / 20% to 80% RH |
| Storage Environment | -20°C to +60°C / 20% to 95% RH |
| Main Applications | UAV aerial photography |
| Weight | 690 ± 10g |
Future device structure features 110 x 57 x 2.8mm size with IP and HDMI output for seamless connectivity.
Viewing application diagram: Reserve IR output (31+ DM Tit) for EX 3BL3 TXd XT3O RED3.
