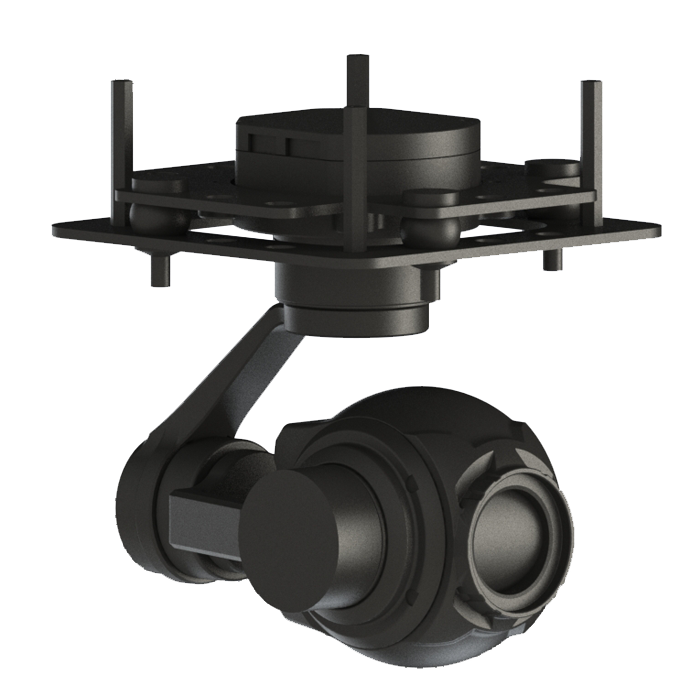

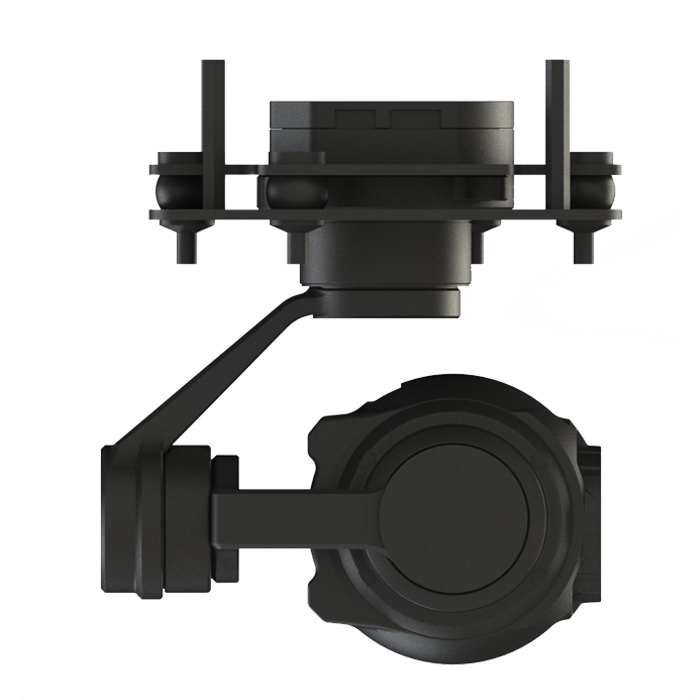

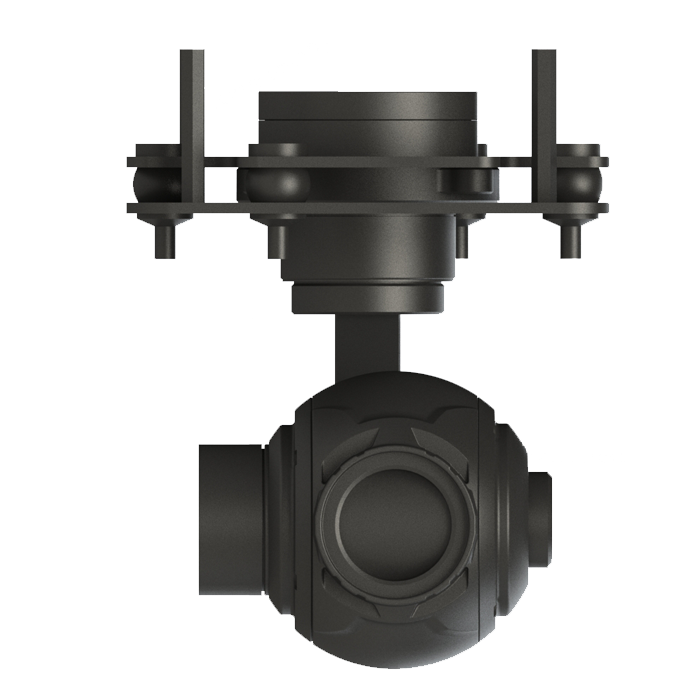

TOPOTEK KHP10S4K is a drone gimbal integrated with 10x optical zoom, 9x digital zoom, 4K solution, and 3-axis stabilized PTZ. It adopts IP/HDMI dual output. The PTZ adopts a high-precision encoder FOC control scheme, which has the characteristics of high stability, small volume, light weight, and low power consumption. The camera adopts a CMOS SENSOR with 8 mega effective pixels, supporting 4K and 1080P network RTSP code stream output. Both UART and IP can control the camera and PTZ, and support local TF storage.
TOPOTEK KHP10S4K Feature：
- 10x optical and 4K resolution
- 4K 1080P resolution, TF card storage
- HDMI/IP dual output
- 170ms low delay RTSP output
- TF card recording, IP reading & writing
- Multiple control modes
- Ground station display & control
- Lightweight gimbal, 378g
- 3-axis stabilizer

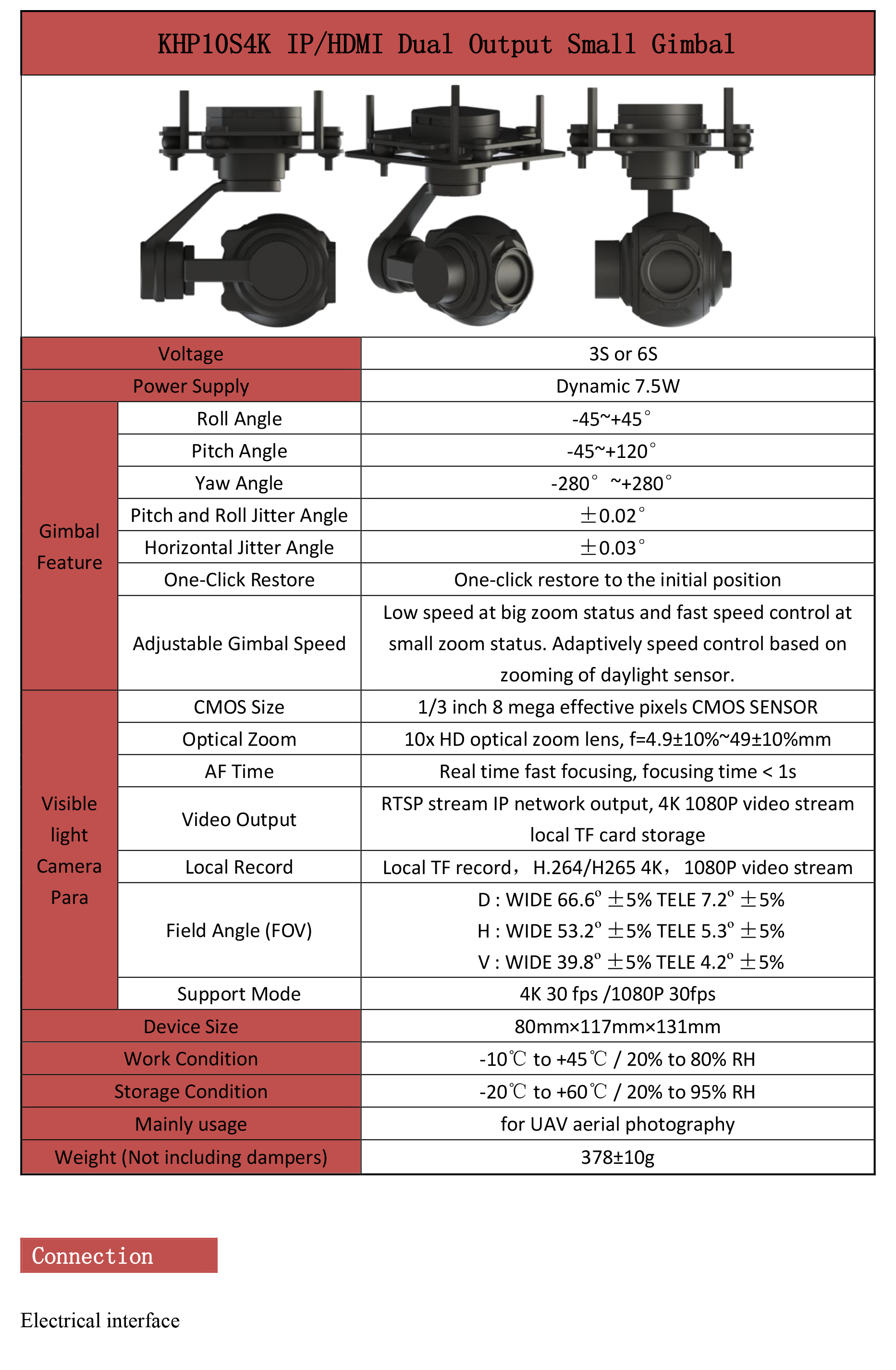

TOPOTEK KHP10S4K Specifications
| Voltage | 3S or 6S |
|---|---|
| Power Supply | Dynamic 7.5W |
| Gimbal Feature | |
| Roll Angle | -45° ~ +45° |
| Pitch Angle | -45° ~ +120° |
| Yaw Angle | -280° ~ +280° |
| Pitch and Roll Jitter Angle | ±0.02° |
| Horizontal Jitter Angle | ±0.03° |
| One-Click Restore | One-click restore to the initial position |
| Adjustable Gimbal Speed | Low speed at big zoom status and fast speed control at small zoom status. Adaptively speed control based on zooming of daylight sensor. |
| Visible light Camera Para | |
| CMOS Size | 1/3 inch 8 mega effective pixels CMOS SENSOR |
| Optical Zoom | 10x HD optical zoom lens, f=4.9±10%~49±10%mm |
| AF Time | Real time fast focusing, focusing time < 1s |
| Video Output | RTSP stream IP network output, 4K 1080P video stream local TF card storage |
| Local Record | Local TF record, H.264/H265 4K, 1080P video stream |
| Field Angle (FOV) | D : WIDE 66.6° ±5% TELE 7.2° ±5% |
| H : WIDE 53.2° ±5% TELE 5.3° ±5% | |
| V : WIDE 39.8° ±5% TELE 4.2° ±5% | |
| Support Mode | 4K 30 fps / 1080P 30fps |
| Device Size | 80mm x 117mm x 131mm |
| Work Condition | -10°C to +45°C / 20% to 80% RH |
| Storage Condition | -20°C to +60°C / 20% to 95% RH |
| Mainly usage | for UAV aerial photography |
| Weight (Not including dampers) | 378g ±10g |
Â
Equipped with a 3-axis gimbal system featuring yaw, roll, and pitch control, this camera offers a 10x optical zoom capability for enhanced video and photography performance.
