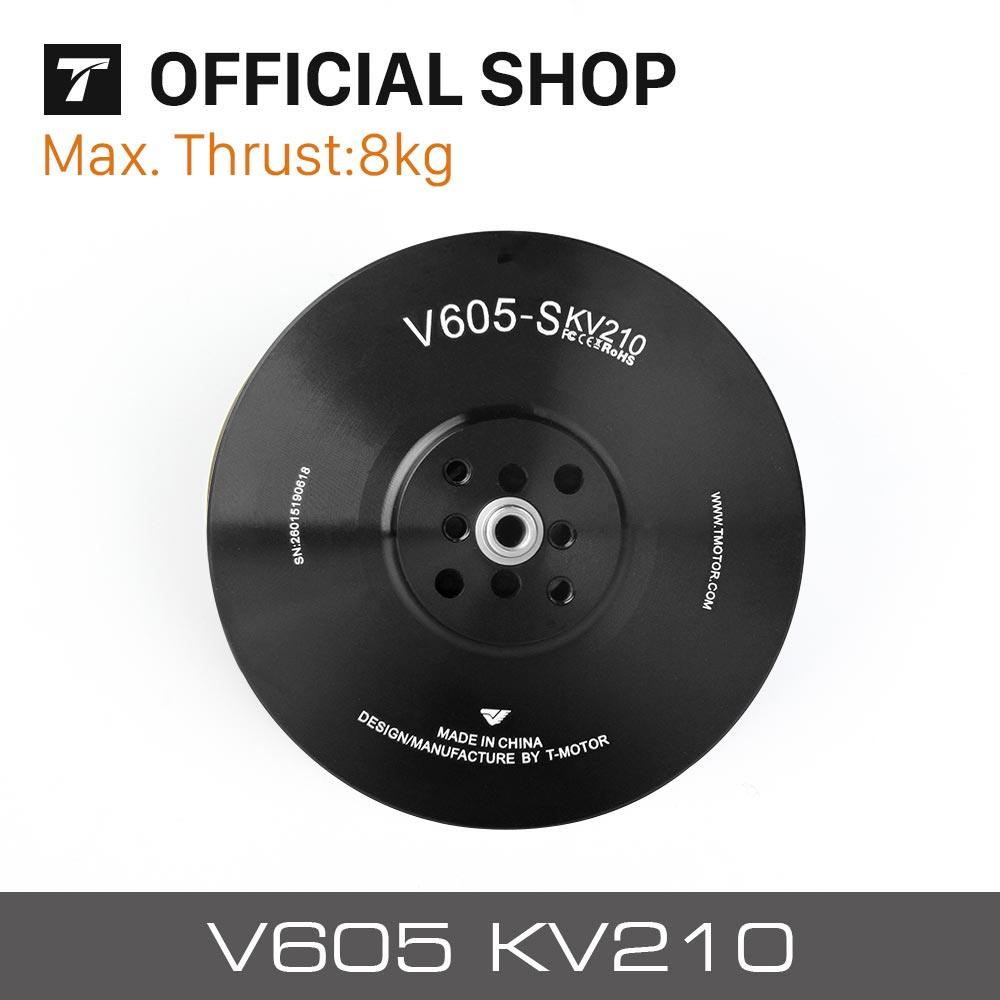

T-motor V605-S KV210 Motor - 12S 8KG Thrust V Type Outrunner Brushless Motor For Multirotor Drone VTOL Quadrotor

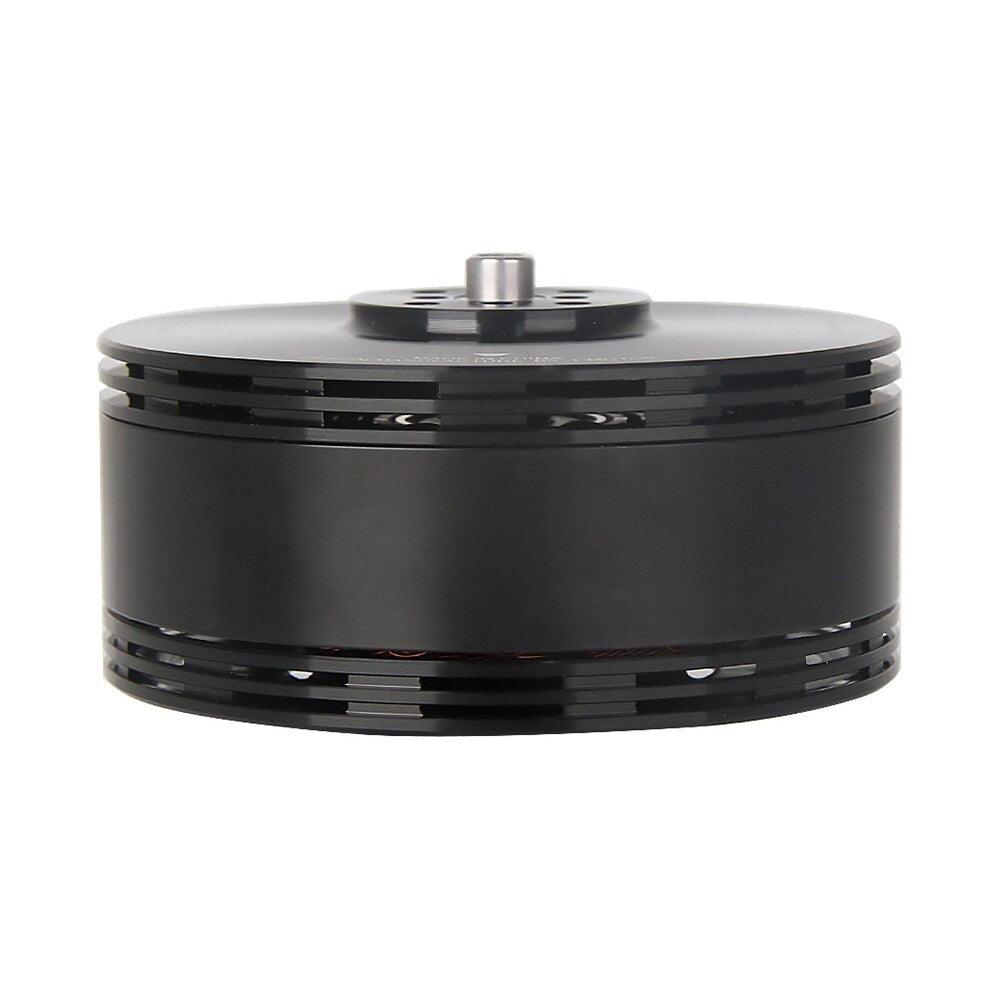

T-motor V605-S KV210 Motor - 12S 8KG Thrust V Type Outrunner Brushless Motor For Multirotor Drone VTOL Quadrotor - Image 2

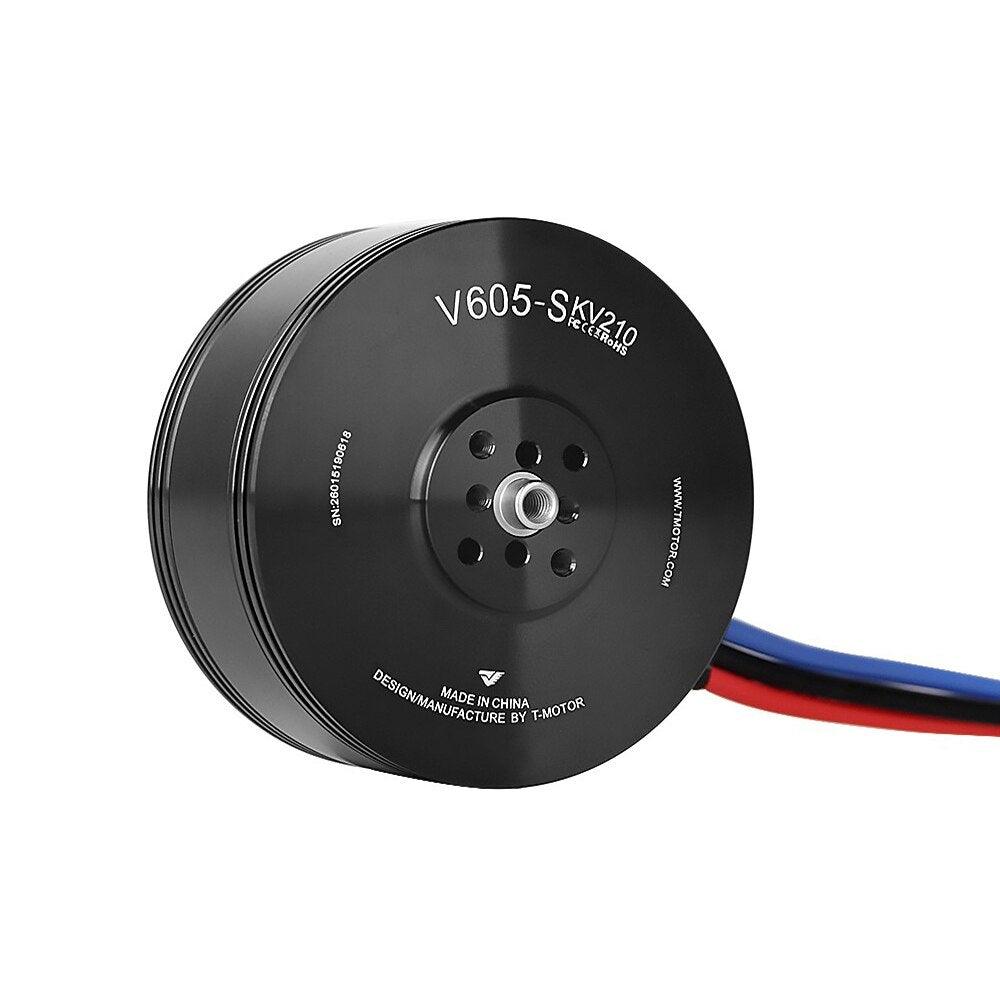

T-motor V605-S KV210 Motor - 12S 8KG Thrust V Type Outrunner Brushless Motor For Multirotor Drone VTOL Quadrotor - Image 3

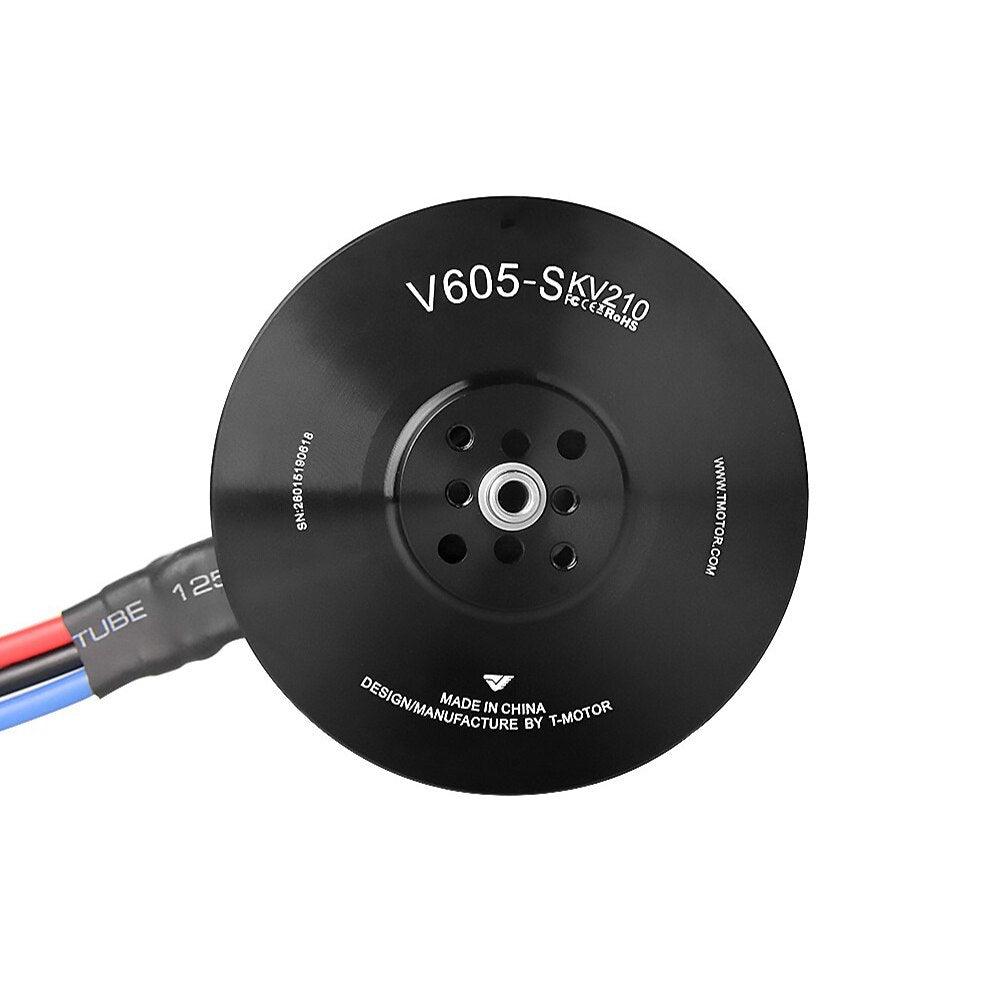

T-motor V605-S KV210 Motor - 12S 8KG Thrust V Type Outrunner Brushless Motor For Multirotor Drone VTOL Quadrotor - Image 4

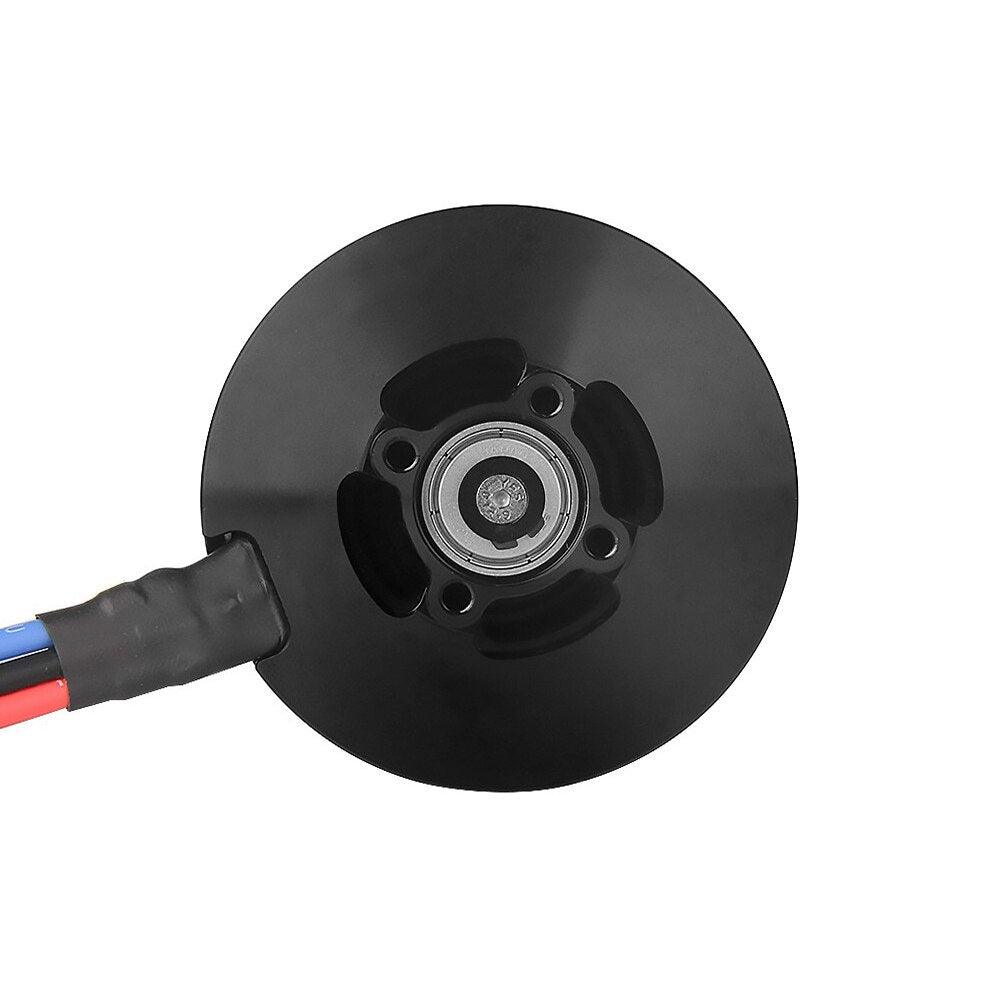

T-motor V605-S KV210 Motor - 12S 8KG Thrust V Type Outrunner Brushless Motor For Multirotor Drone VTOL Quadrotor - Image 5

T-motor V605-S KV210 Motor – 12S 8KG Thrust V Type Outrunner Brushless Motor For Multirotor Drone VTOL Quadrotor

$194.55

+ Free Shipping
- +
SKU: N/A Category:
Ask for more info

T-motor V605-S KV210 Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Remote Control Peripherals/Devices: ESC

Recommend Age: 18+

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: V605

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

T-motor, SHARP TAKEOFF V6o5kto STEADY LANDING V

SHARP TAKEOFF V6o5kto STEADY LANDING V series is the motors designed for VTOL power system . big pull-to-weight ratio, strong over- load ability & environment adaptiveness features .

T-motor, 4.5-6 18-24 Stern thrust propeller recommendation Stern thrust pull recommendation(kg) 19-20

Recommended specifications: Thrust propeller – 18-24 inches, pull (thrust) – 4.5-6 kg. Recommended ESC settings for VTOL motor: KV value range – 1154-125 or 5230, with a recommended battery configuration of 12S Lipo (4.2V per cell).

T-motor, performance loss of 25% should be considered for coaxial configuration . maximum thrust: 8700g

A performance loss of approximately 25% should be taken into account when using a coaxial configuration. The maximum thrust is rated at 8.7 kg, with an adequate power margin provided.

T-motor, high-temperature resistant enamelled wire curved magnets, strengthening the passive heat-resistant

Featuring special high-temperature resistant enamel-wrapped copper wire and curved neodymium magnets, this motor enhances its passive heat-resistant capabilities through a centrifugal fan structure.

T-motor V605-S K

The V605-KV210 motor has dimensions of 68.8mm x 39.9mm, features anti-rust treatment, and incorporates Stator Technology with high-temperature-resistant coatings. Its configuration includes 24N28P and a shaft diameter of 68.8mm.

T-motor, Bearing Imported 626ZZ Magnet Temperature Resistance Grade Class E 1508 Lead Mm

Features include:

* Imported bearing: 626ZZ
* Magnetic temperature resistance grade: Class E, 150°C (1508 Lead)
* Enamelled wires: 14AWG, 600mm length, temperature resistance grade: Class C, 220°C
* Coil winding style: Soviss Rotor Dynamic Balance Standard
* IP45 rating for protection against solid particles and water
* KV value: KV210
* Battery compatibility: Lipoly (LiPo), voltage range: 4.2V to 5.2V (12S)
* Recommended idle current: 1.64A at 18V
* ESC recommendation: FLAME 804 HV

T-motor V605-S KV210 Motor SPECIFICATIONS UseT-motor V605-S K

One package includes: T-Motor V605-S KV210 motor, one parts bag containing the following items: M3
