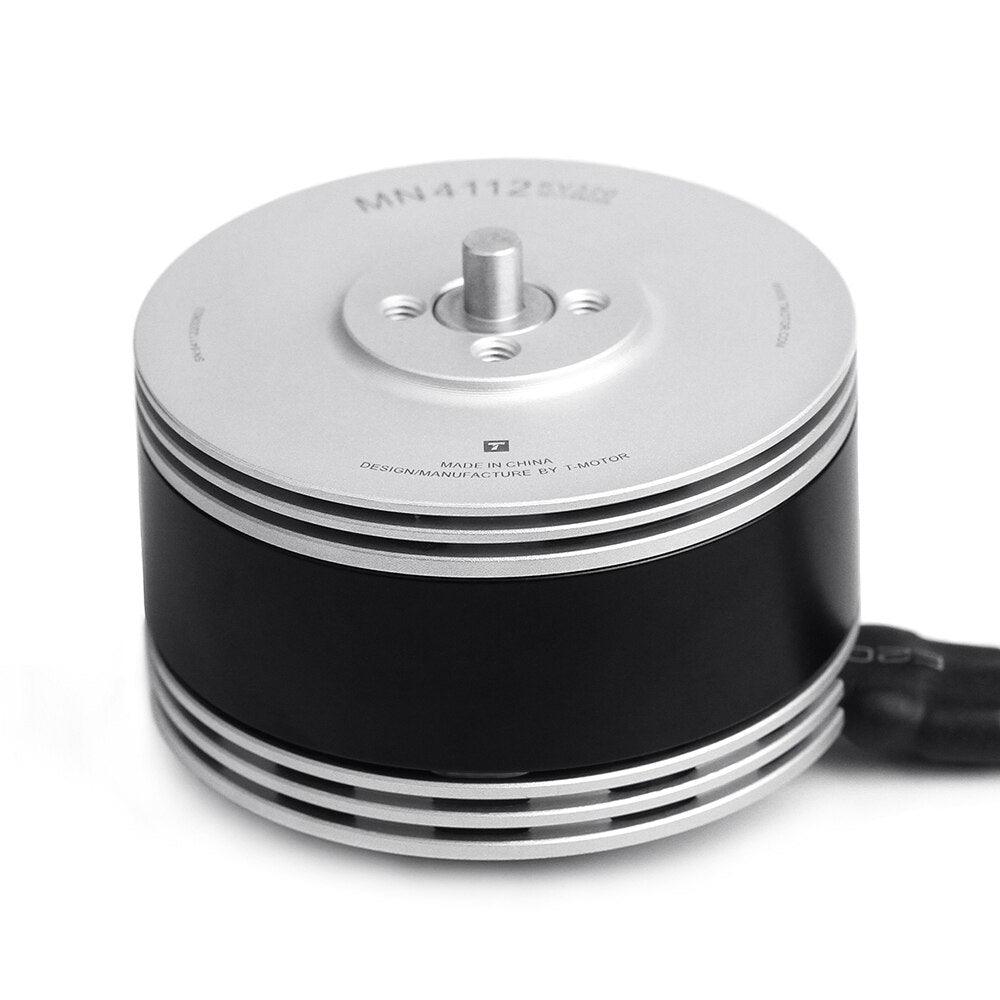

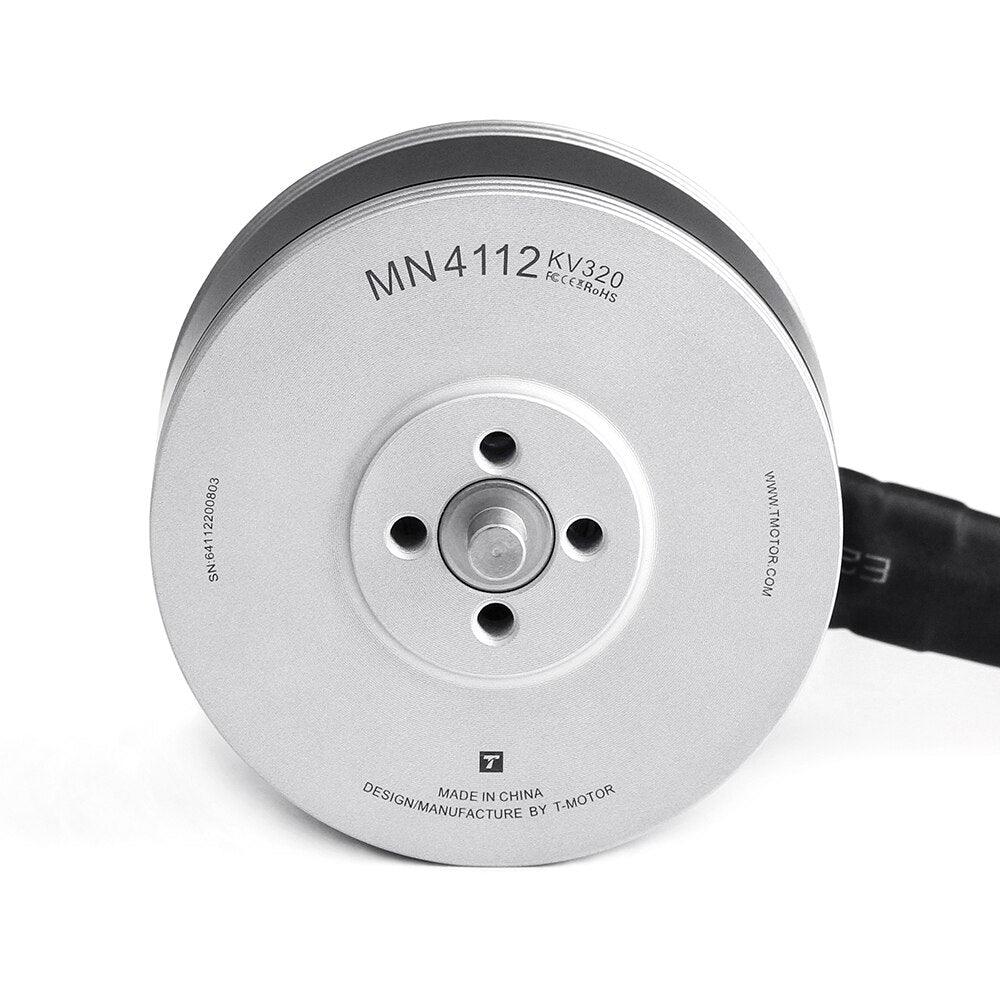

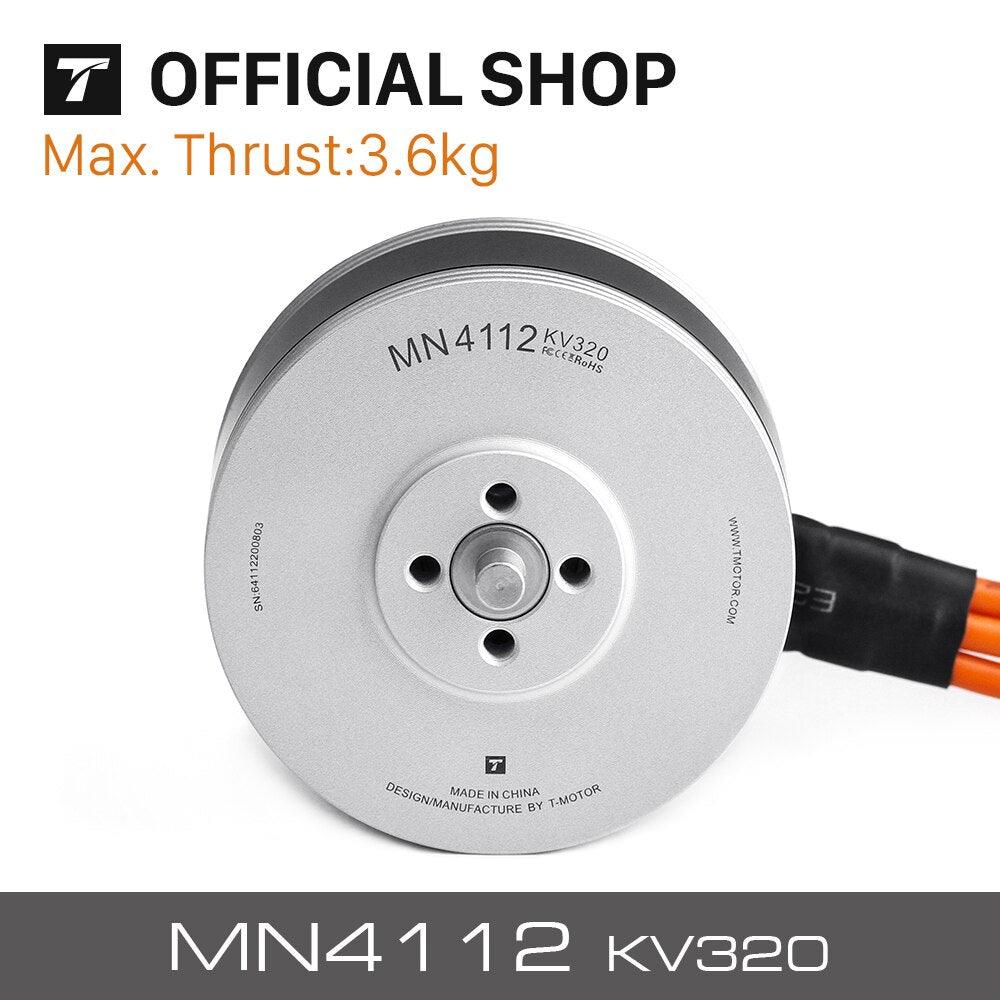

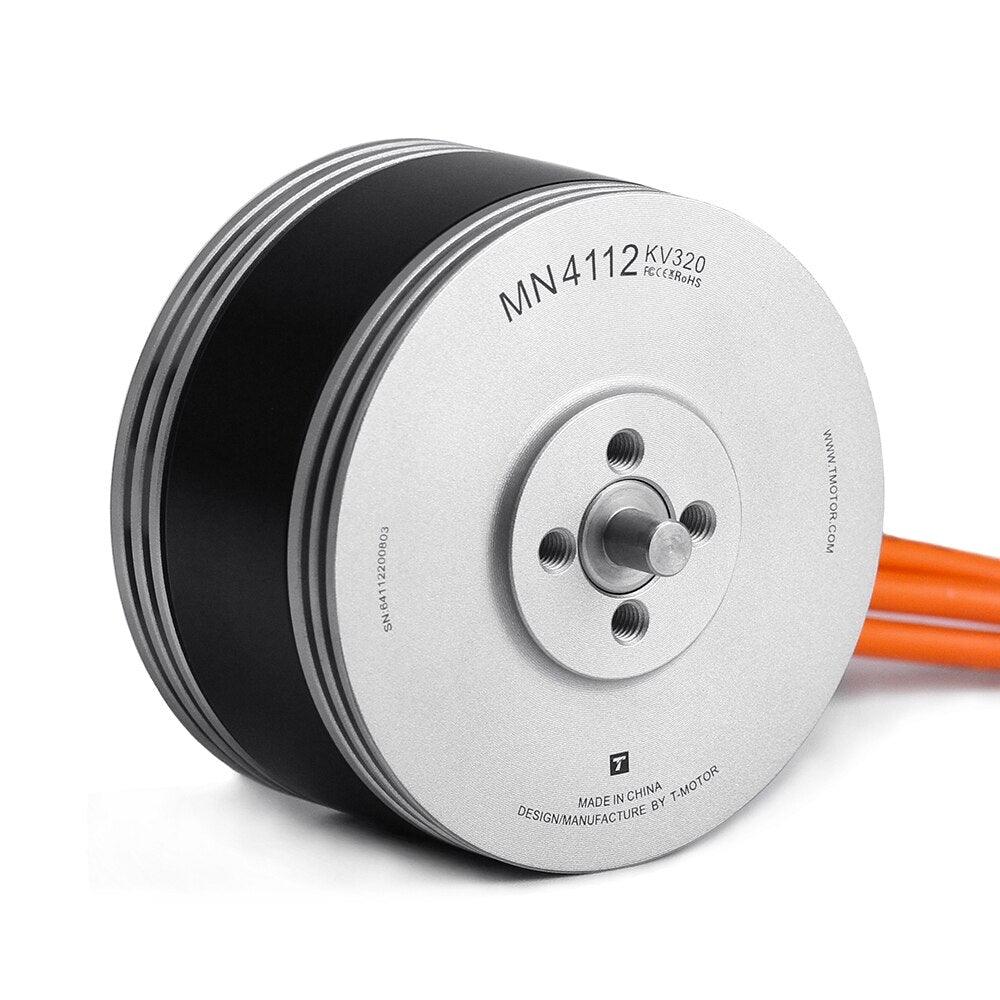

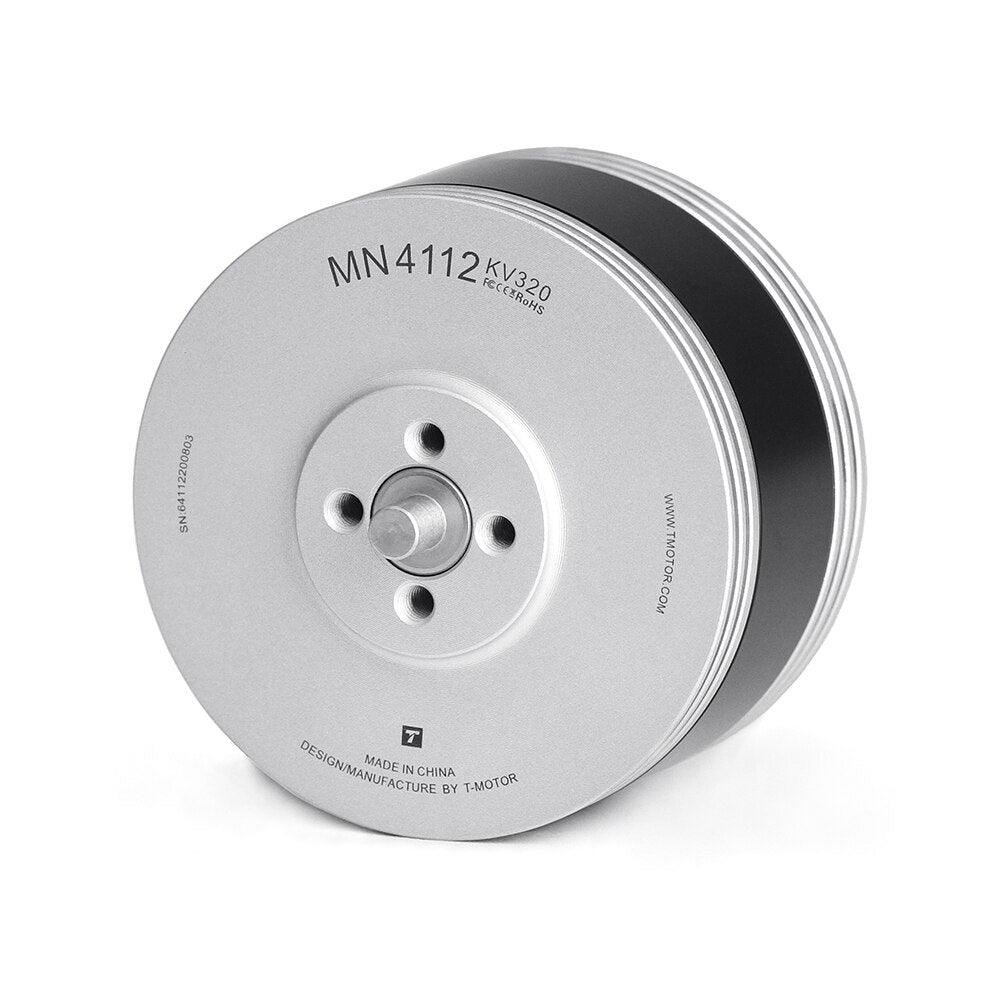

T-MOTOR MN4112 KV320 KV420 Brushless Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Remote Control Peripherals/Devices: ESC

Recommend Age: 14+y

RC Parts & Accs: Engines

Origin: Mainland China

Model Number: MN4112

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

Remarkable cooling long endurance With reasonable airflow channel design, heat flux increases by 18% . high-performance iron core material, high slot rate and reduced

Featuring an efficiency of 8g/W at 60% throttle, this motor provides fast and responsive flight performance with its 12N14P configuration.

Specifications:
Motor Size: 47.4mm x 38.7mm
Material: Imported silicon steel sheet with anti-rust treatment
Stator Configuration: 180 teeth, high-temperature resisting coatings
Rotor Design: 12N14P configuration
Shaft Diameter:
Inner: 6mm
Outer: Bearing 6867Z/696ZZ
Magnet Level: N45SH
Lead Cable: 16 AWG x 1S mm (220°C high temperature resistance)
Coil Insulation Test: 50 OV/A (centrifugal cooling design: YES)

The motor has a rated idle current of 1.4A (1V, Lipo battery), recommends a P15 propeller with a size of 5 inches, and reaches a peak current of 54A after 180 seconds of operation. The motor weighs approximately 172g including the cable, with a maximum power output of 1210W. The internal resistance is around 94mOhms, and the package weight is 275g.

MN4112 KV320 motor is compatible with a T16*8 propeller, ESC at 75A, and 6S Lipo battery capable of handling 4.2V per cell up to 65W. Please note that for coaxial configurations, a thrust loss of approximately 25% should be considered.
