SPECIFICATIONS

Wheelbase: Upper Shell

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Battery

Technical parameters: KV1100

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Antennas

Plastic Type: PC

Origin: Mainland China

Material: Plastic

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: RADIOMASTER

NOTE:

In Stock,

welcome to order it 🙂

LowpriceBro

2023.01.13

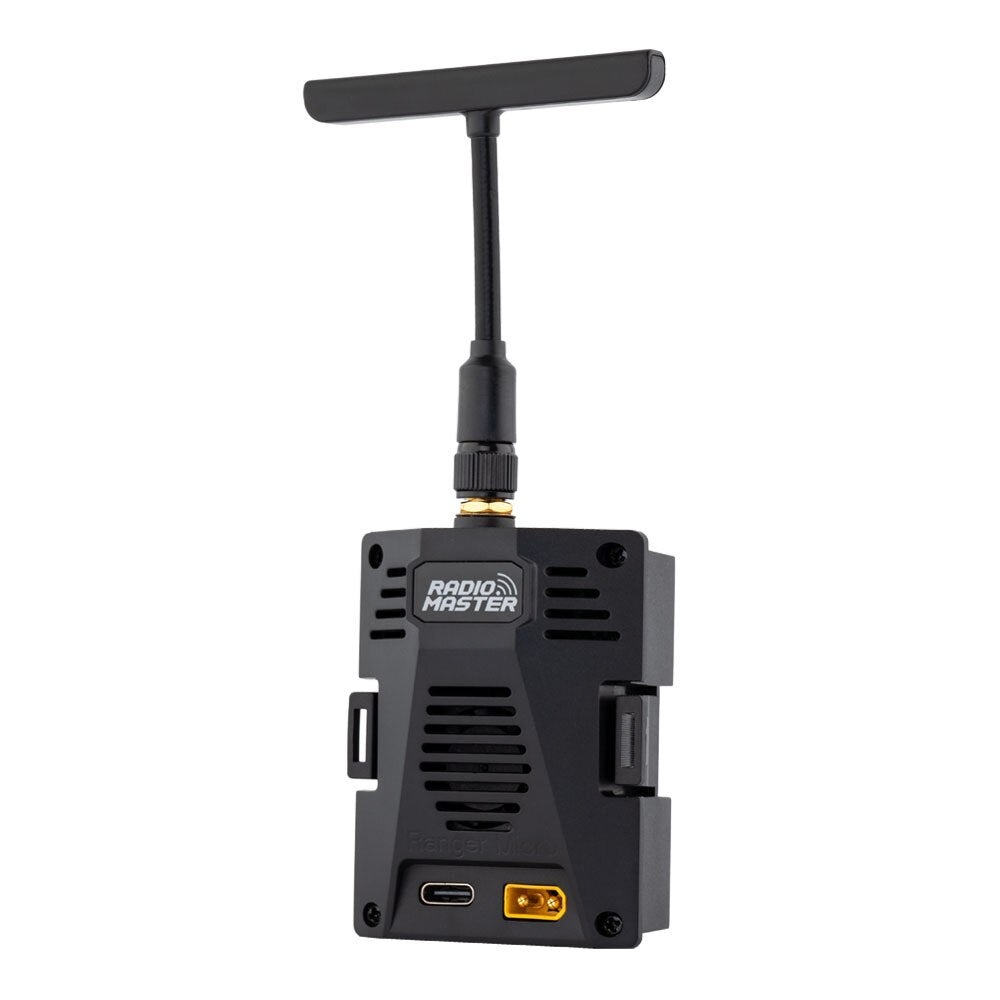

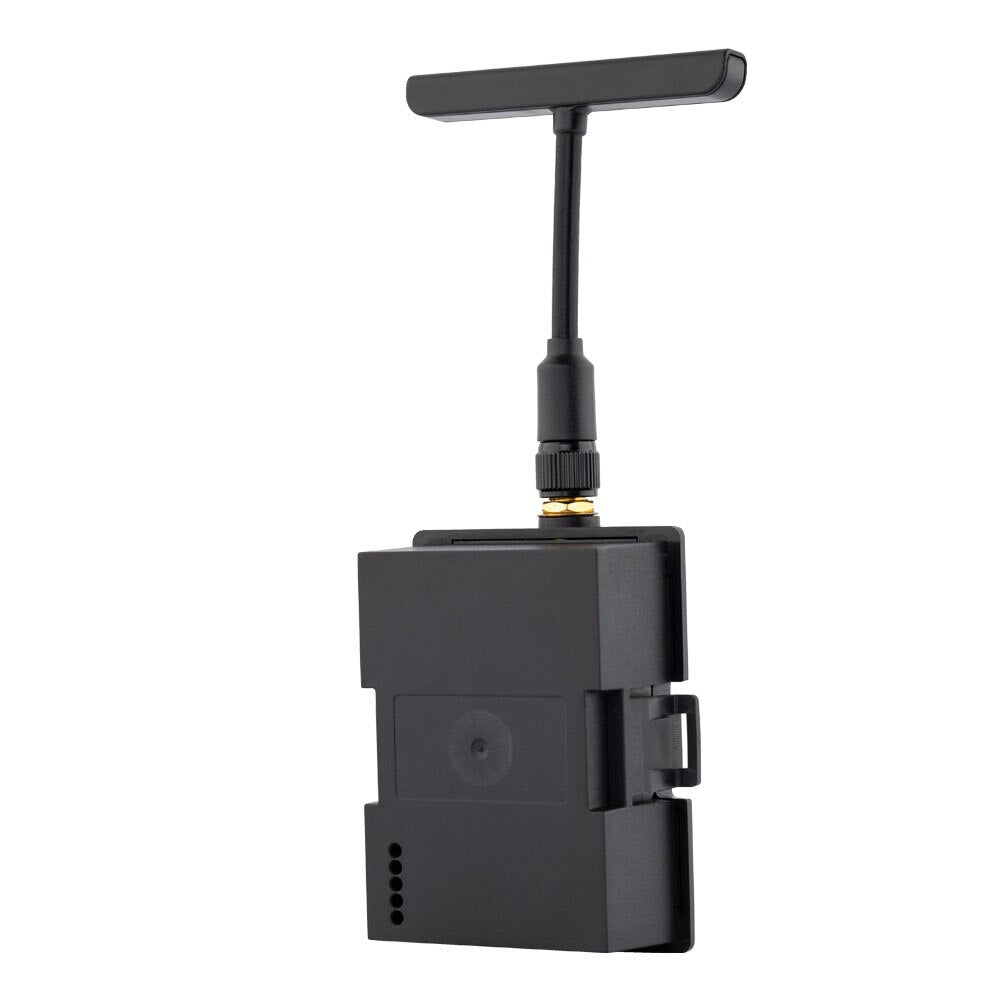

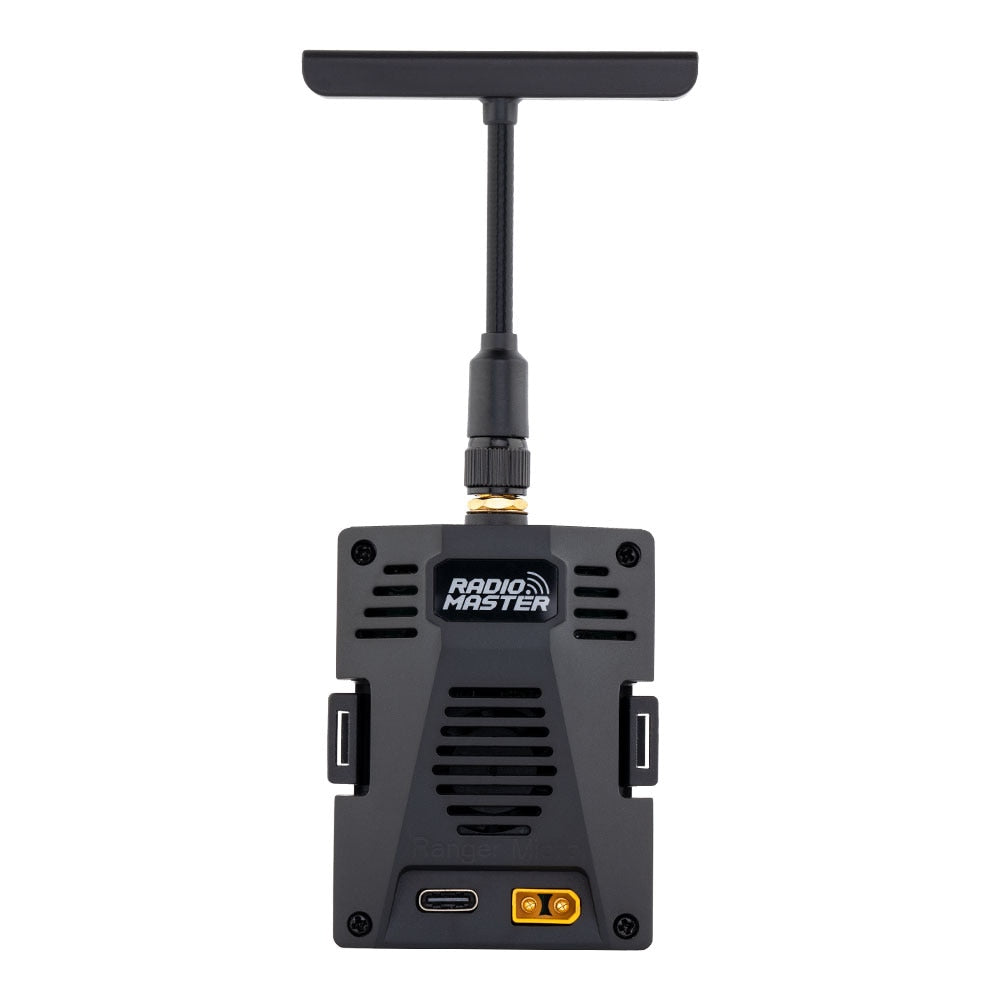

Want to experience the efficiency, long range and low latency of the ELRS protocol without purchasing a new radio? RadioMaster has you covered! Featuring up to 1W output, F-1000Hz refresh rates and a high efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.

The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.

*Note: The Ranger Micro 2.4GHz ELRS Module fits JR style micro module bays, for Nano connectors, please consider the Ranger and the Ranger Nano modules.  For more information on the Ranger series, please click here

Combo Package

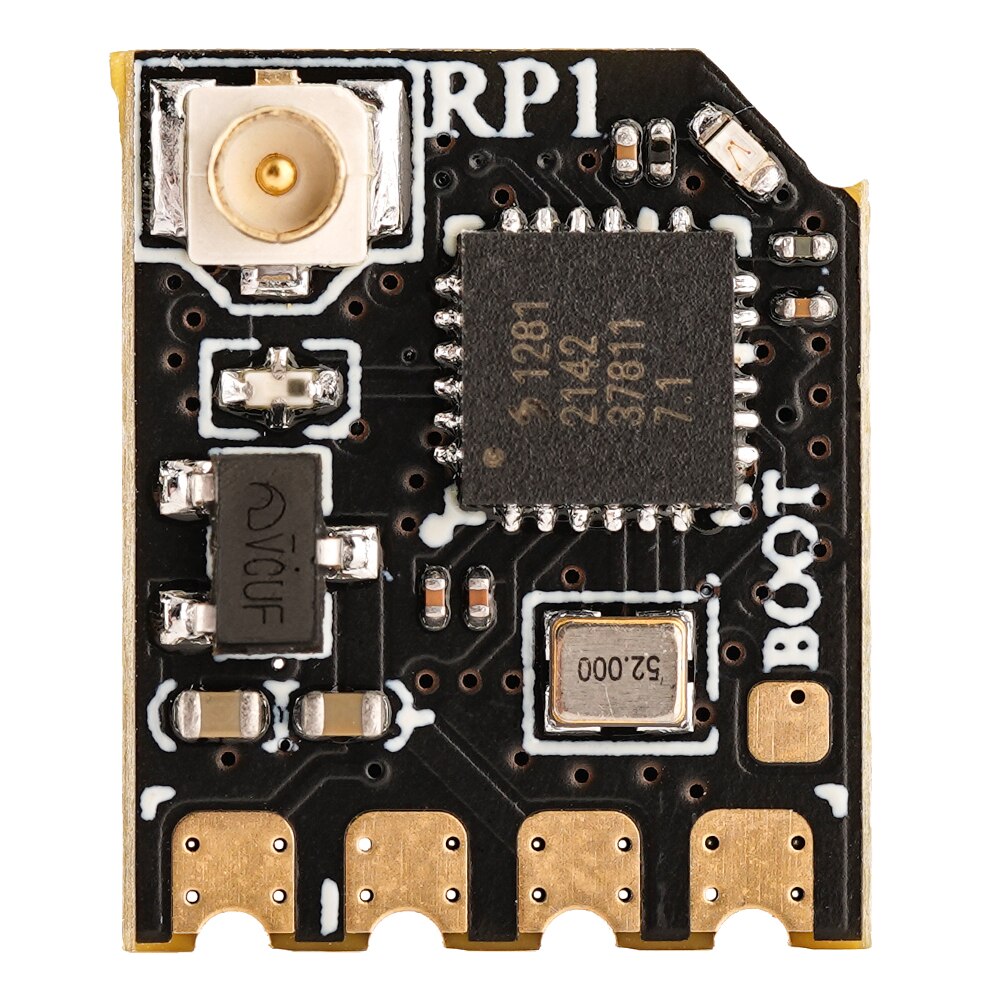

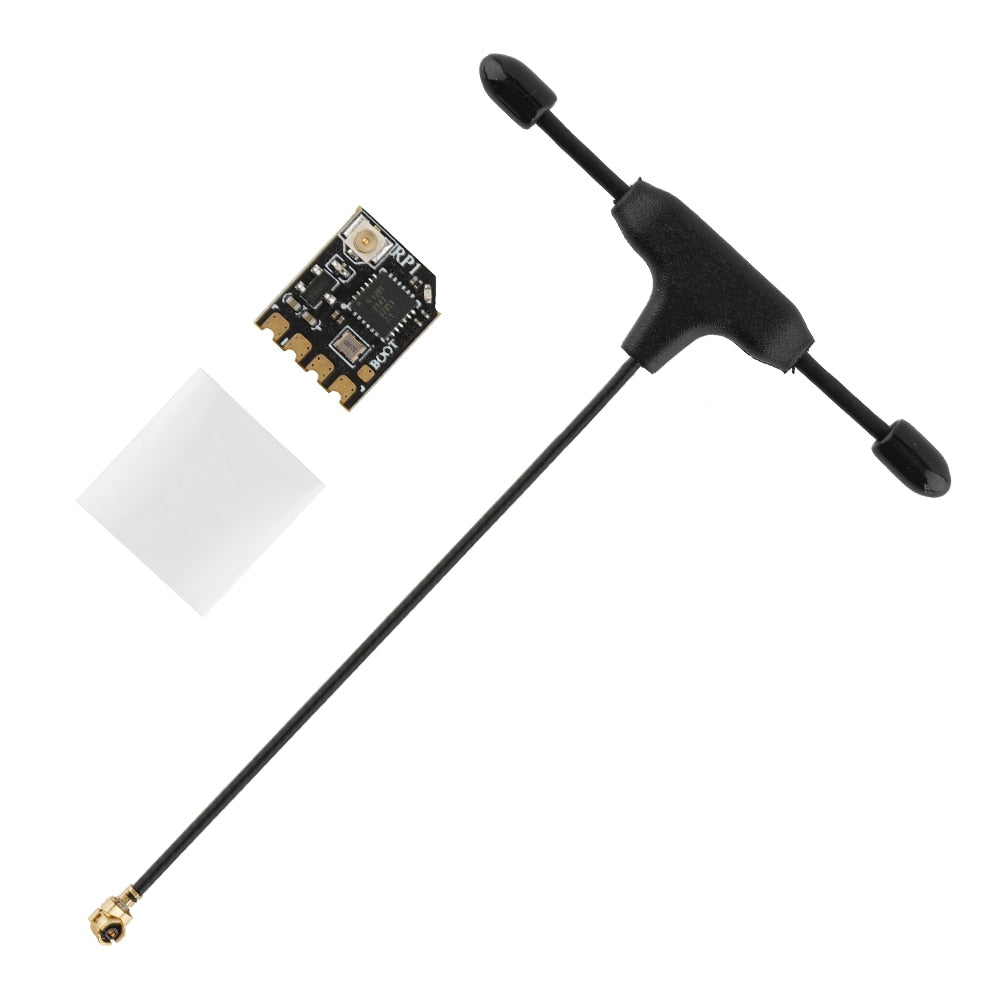

The Ranger Micro Combo package is the ideal way to get started in the world of ExpressLRS. A complete Ranger Micro module is provided along with two RP1 ExpressLRS receivers and one R

Features

★ High-efficiency cooling system

★ Up to 1Watt Power output

★ Wifi and Bluetooth support

★ Packet rates up to F-1000Hz

★ T-antenna included

★ With the Micro connector, support TX16S MKII and TX12 MKII radio

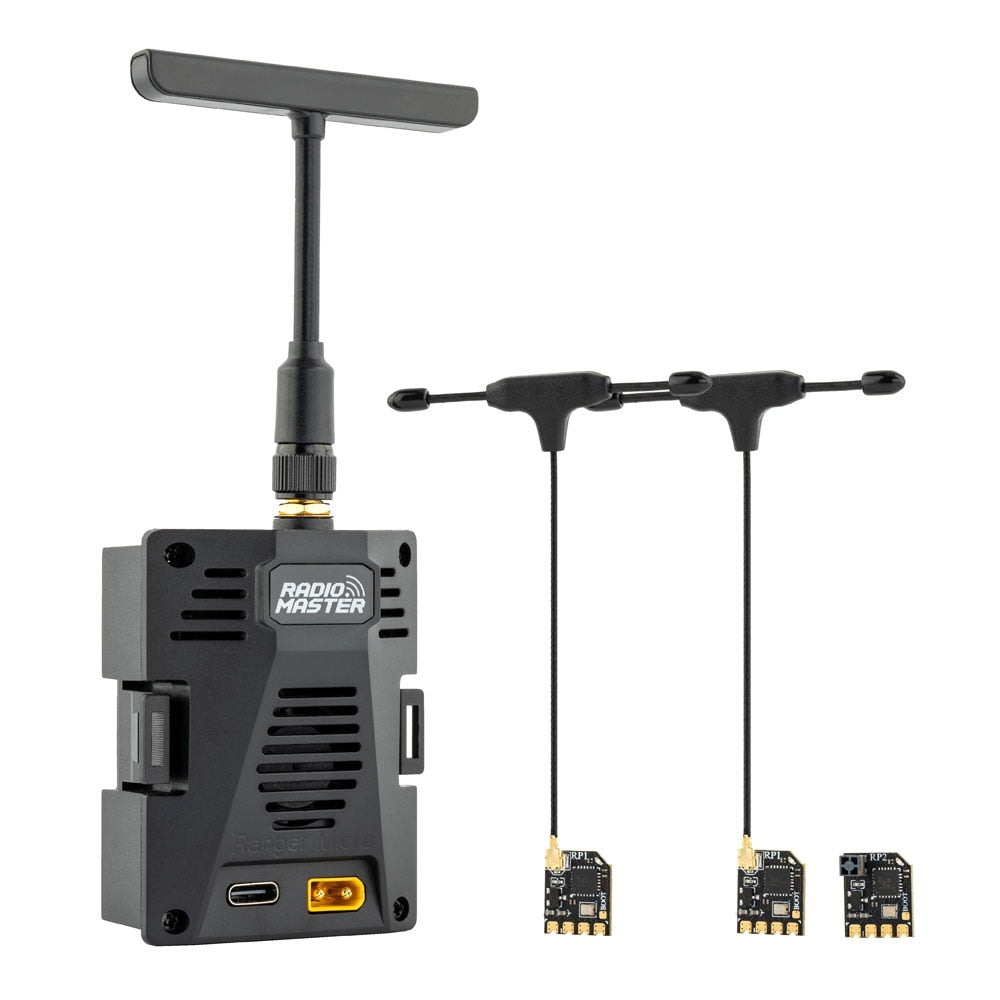

★ Combo Package includes 1 x Ranger Micro Module, 2 x RP1 Receiver, 1 x RP2 Receiver

Specification

Item: Ranger Micro Module

Regulatory Domain: ISM2400

MCU: ESP32(main), ESP8285(aux,as espbackpack)

RF chip: SX1281IMLTRT

Frequency Range: 2400 MHz to 2480 MHz

Maximum packet rate: 500Hz/F1000Hz (F1000 mode requires EdgeTX 2.7.1 or later)

Minimum receiver refresh rate: 25Hz

RF Output Power: 30dBm for FCC, 20dBm for CE (Adjustable by LUA)

Wifi Support: Yes

Bluetooth support: Yes

XT30 Power supply voltage: DC 6V – 16.8V

Weight:  50g (with antenna) / 40.5g (without antenna)

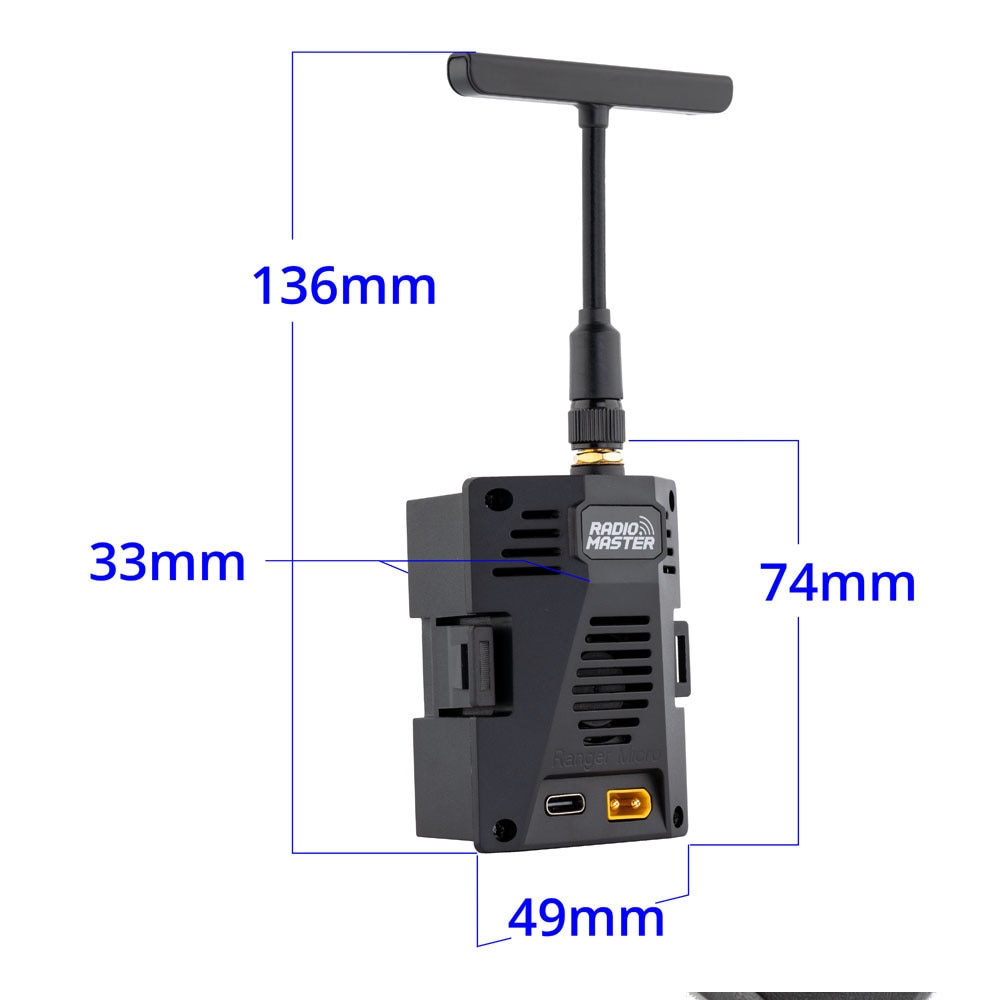

Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)

We wish to thank the ExpressLRS team for their support and testing during the development of the Ranger series. To learn more and support the ExpressLRS project visit https://www.expresslrs.org/

Featuring up to 1W output, F-1000Hz refresh rates and a high efficiency

RadioMASTER IExpressLRS RANGER MICRO 1000 EFFICIEN

RadioMASTER IExpressLRS RANGER MICRO 1000 EFFICIENCY COOLING SYSTEM AOOOHZ PACKET WIFI & BLUETOOT SUPPORT ‘OUTPUT JRADAPTER’

RF chip: SX1281IMLTRT #Frequency Range: 2

The module features an SX1281IMLTRT radio frequency (RF) chip, which operates within a frequency range of 2.4 GHz to 2.48 GHz. It supports a maximum packet rate of up to 500 Hz or 1000 Hz, with a minimum receiver refresh rate of 25 Hz. The RF output power is approximately 30 decibels milliwatts (dBm).

Color

Combo Set, Ranger Micro
