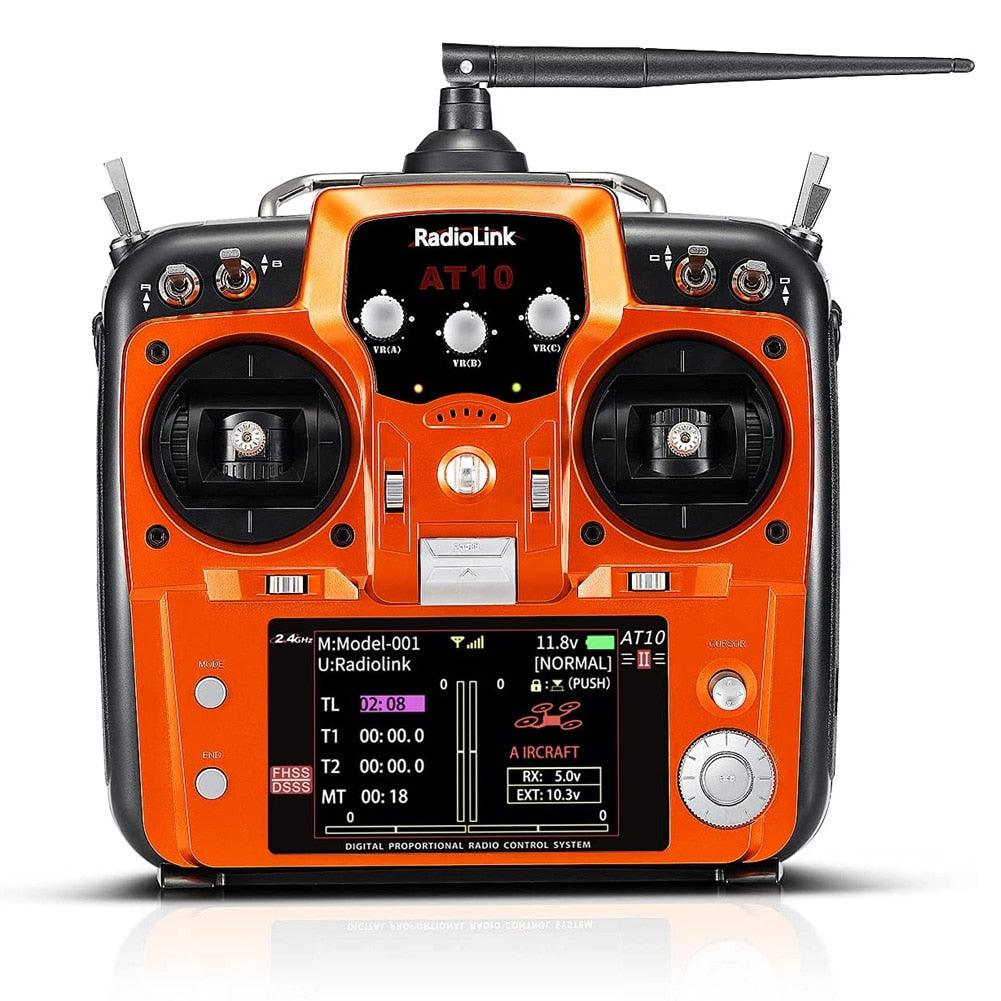

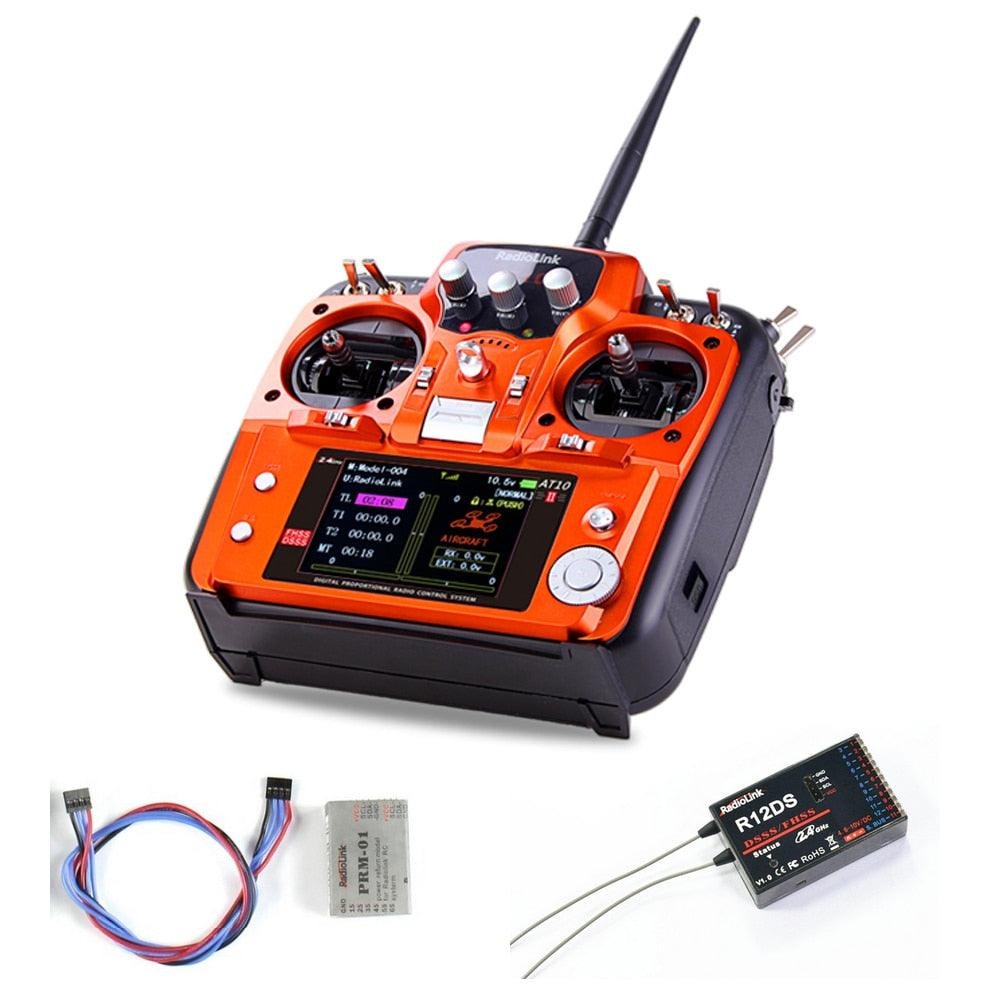

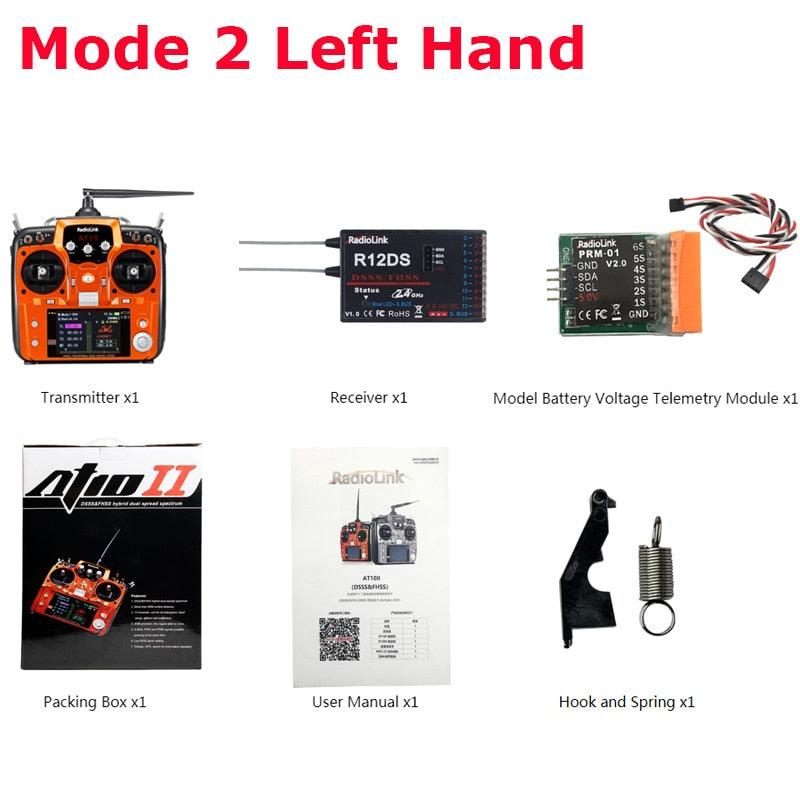

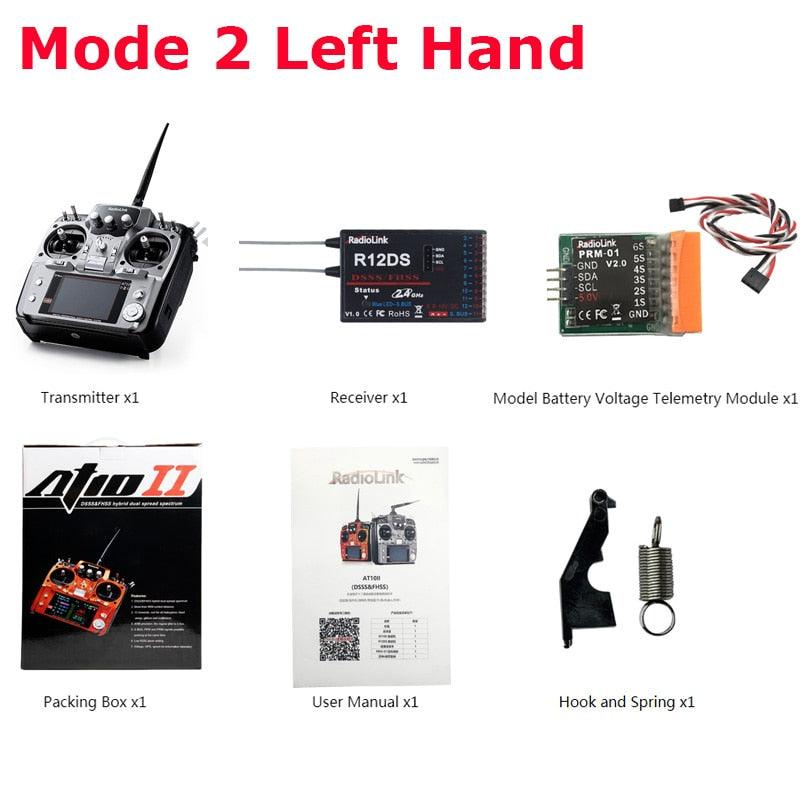

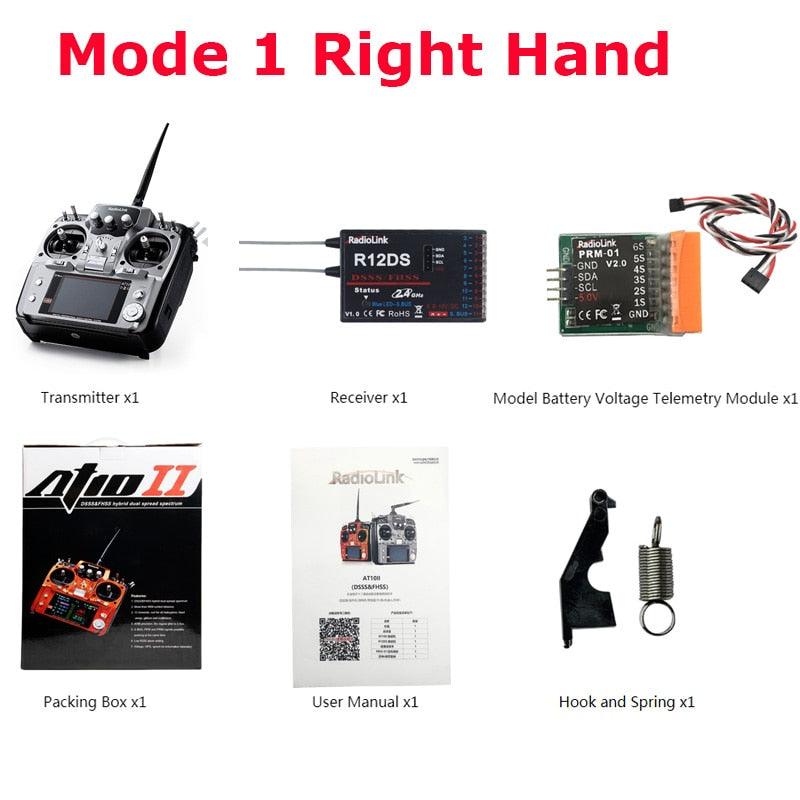

RadioLink AT10 II – 2.4Ghz 12CH RC Transmitter with R12DS Receiver PRM-01 Voltage Return Module Battery for RC Quadcopter

$38.21$172.38

SKU: N/A Category:

Description

RadioLink AT10 II Transmitter SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Other

Tool Supplies: Assembled class

Technical parameters: Value 2

Size: 33 * 26 * 12cm

Remote Control Peripherals/Devices: Receivers

Recommend Age: 12+y

RC Parts & Accs: Radio Systems

Quantity: 1 pcs

Origin: Mainland China

Model Number: VZJU5509

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: U-Angel-1988

RadioLink AT10 II Transmitter Description

RadioLink AT10 II, fast response time only 3ms to the operation,faster than the other transmitter 20m

Multiple function remote control system,including helicopter,airplane and slider three type flying machine and five models,cover almost every popular model,you can fly any model by this radio.

3.5 inch colorful screen 320×480 resolution,clear display menu and graphs.

Great control distance: 1.1km on the ground,2km in the sky.

Expansion feedback module,users can get plane details in real time.

Make very setting clear and exactly output result.

Fast response time only 3ms to the operation,faster then the other transmitter 20ms,even ten channels also let you feel it.

High channel resolution reaches 4096,0.25us per resolution let all the servos keep tranquil.

Strong anti-jumping,DSSS(Direct sequence spread spectrum) technology.

Unbelievable price, high quality as supper bland, and more exactly, faster response, higher resolution,one and the only one anti-jumping DSSS technology.really worthy to have it.

Technical Parameter:

1. Dimension:18×9.5×22cm;
2. Weight:0.95kg;
3. Frequency:2.4GHz ISM band(2400MHz~2485MHz);
4. Modulation mode:QSPK;
5. Channel bandwidth:5.0MHz;
6. Spread spectrum:DSSS;
7. Adjacent channel rejection:>38dBM;
8. Transmitter power: <100mW(PCB testing),
<20dBm(3 meter air testing);
9. Operating Voltage:8.6~15V;
10. Operating Current:<95mA;
11. Control distance:800 meters ground;
12. Channel:10 Channel,8~10 channel are customizable;
13. Compatible model: Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider,five flying model;
14. Simulator model:under the simulator model the transmitter action turn off,change to power saving model;
15. Screen:16 colorful screen,size 78×52mm,320*480 pixel.

RadioLink AT10 II, Strong anti-jumping,DSSS(Direct sequence spread spectrum) technology

RadioLink AT10 II, AT1o II DSSS&FHSS WORKING SYNCHRON

AT1o II DSSS&FHSS WORKING SYNCHRONOUSLY LESS NOISE, 7DBI HIGH-GAIN TRANSMITTER ANTENNA CONTROL DISTANCE UP TO 4KM DUAL ANTNNA RECEIVER ad Tora Aoo

RadioLink AT10 II, DSSS&FHSS Mix control (g4/x | Vibration alarm

DSSS&FHSS Mix control (g4/x | Vibration alarm 1 Antiplug Real-time telemetry 3ms response iods Diversity antenna 4KM control distance JUUUUL S,BUS&PPM&PWM Twelve channels USB upgrade 10SmA operate

RadioLink AT10 II, ATIOII solves the interference of equumt Prtki Switching

ATIOII solves the interference of equumt Prtki Switching Mode Power Supply . 0.5u5 quarter of ATIO and one-six of competing rcgular jittcr products, ensure servos anti-shake rudder.

RadioLink AT10 II, eAcidoi4a 16 channels Pseudo Tanidom

eAcidoi4a 16 channels Pseudo Tanidom Trequency DSSS AND FHSS hopping . QPSK modulation ensure excellent anti-interference performance even Can control stable i center .

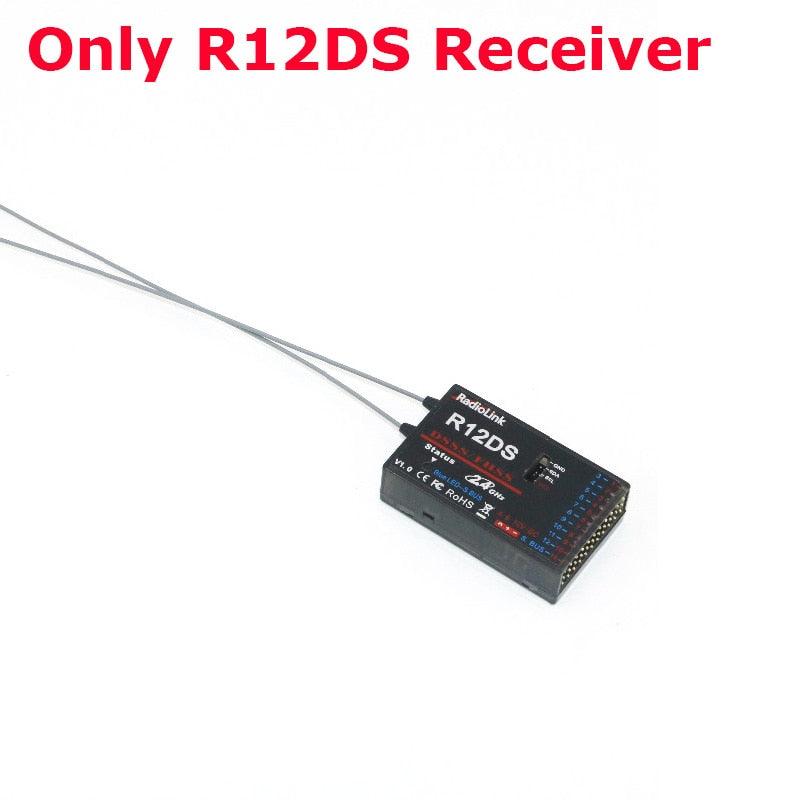

RadioLink AT10 II, 4KM CONTROL DISTANCE, BRAND NEW CHOICE Receiver R

4KM CONTROL DISTANCE, BRAND NEW CHOICE Receiver RIODS with diversity antenna . support SBUS and PWM signal output simultaneous signal coverage all around never afraid of hilly terrain .

RadioLink AT10 II, more stable, faster response synchronously . takes only 3ms for 12 channels response

more stable, faster response synchronously takes only 3ms for 12 channels . better ability at anti-interference more stable and faster than ATIO_1 .

RadioLink AT10 II, LOW CONSUMPTION OF BA TTERY PadioUnk a]

LOW CONSUMPTION OF BA TTERY PadioUnk a]n 105mA operating current Switching Mode Power Supply( SMPS) ensure the operating current keep t0 105 mA .

RadioLink AT10 II, TWO VE CHANNELS TRANSMITTER FULL TYPES AND FUNCT

TWEL VE CHANNELS TRANSMITTER FULL TYPES AND FUNCTIONS Suit for all airplanes including helicopters swash plate modes fixed wing airfoils rears gliders and multiroter .

RadioLink AT10 II, RadJiolink SBUS, PPM AND PWM SUPPORT RBDS R

RadJiolink SBUS, PPM AND PWM SUPPORT RBDS RIODS ATIOII sells ueGale with receiver RlODS SBUS and PWM signal output simultaneous . R9DS R12DS is the best choice for racing drones TFc A45 .

RadioLink AT10 II, radiounk REAL-TIME DATA TELEMETRY AT4o Ddn

radiounk REAL-TIME DATA TELEMETRY AT4o Ddn [RECEIVE] 00:00. 0 11. 8v AT1o Support signal strength; receiver voltage monitored and SPEED: 0.

RadioLink AT10 II, USB UPGRADE Upgrade by USB cable helps ATIOII always the most advanced systemRadioLink AT10 II, SPECIFICATIONS Size: ATIOII-180*95*220

SPECIFICATIONS Size: ATIOII-180*95*220mm, R1ODs-50+32+15mm Weight: 0.95kg Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz) Modulation mode: QPSK Channel bandwidth: 5.0 MHz Spread spectrum: DSSS&FHSS Adjacent channel rejection: >38dbm Transmitter power;: 1OOmW (2OdBm)

RadioLink AT10 II, FSK cypress CYRF6936 TICC2533 Micro Linear

FSK cypress CYRF6936 TICC2533 Micro Linear ML2724 2.46 main chip . cctc2533 micro linear ml2724.46 . main chip: fsk /DSSS / DSSS (qpsk/dss&fhss) .

RadioLink AT10 II, PPM Output signal SBUS DSM2 English Language Chinese Multilanguage Y(9

PPM Output signal SBUS DSM2 English Language Chinese Multilanguage Y(9 pcs) Operating voltage 9.6-12v 9.6- 12v 7.4-18v 7.2-12v 7.2v Operating current 20omA 20OmA@I2V 260mA Power supply Sustainable working 2.5 hours nours .

RadioLink AT10 II, USB upgrade Signal monitoring Vibration alarm Support signal strength receiver voltage monitored and extende engine voltage

USB upgrade Signal monitoring Vibration alarm Support signal strength receiver voltage monitored and extende engine voltage telemetry modele New technology PRM-OL,and OSD info Support engine voltage; voltage; RPM, GPS, temperature; GPS temperature .

RadioLink AT10 II, Oil needle curve points Tilting plate type Flying conditions throttle hold Mix Programmable Mix program

Oil needle curve points Tilting plate type Flying conditions throttle hold Mix Programmable Mix program Flap&uileron Flap finely tuned ailerson differential Air brake Lift Mix program Fiexd Flap &ailerone Double lift steering advenced gear menu Fast roll V-shaped tall Lift ailseron Support Gyro sensitivity airphane Throttle curve points points Throttling delay detail Oil needle point points Points .

RadioLink AT10 II, fine-tuning rod offset Take off Airfoil flaps Mix Butterfly Butterfly mixed

fine-tuning rod offset Take off Airfoil flaps Mix Butterfly Butterfly mixed up Glider and down advenced menu Mix Aileron Rudder Mix Lift flaps ” Nope Nope nope conditions Flight mode display Price Reatil price USS15O.00 USS142.00USS149.00 USS230.00 USS509.OC delay Nope.

RadioLink AT10 II, M:Model-001 F,ll 11.8v AT1o FURSu MQ

M:Model-001 F,ll 11.8v AT1o FURSu MQDE U:Radiolink . 0 RX: 50v DSSS MT OO: 18 EXHOv digital Proportional Radio (OntroL Systemt .G7.

RadioLink AT10 II, Suitable for Multiple Models Multirotor Helicopter RadioLink ATTO Fixed RC

Suitable for Multiple Models Multirotor Helicopter RadioLink ATTO Fixed RC Car M;Model-001 11.8v AT10 U:Radiolink (NORMAL) = I[= 024108 0:7, (Push) 00: 00.

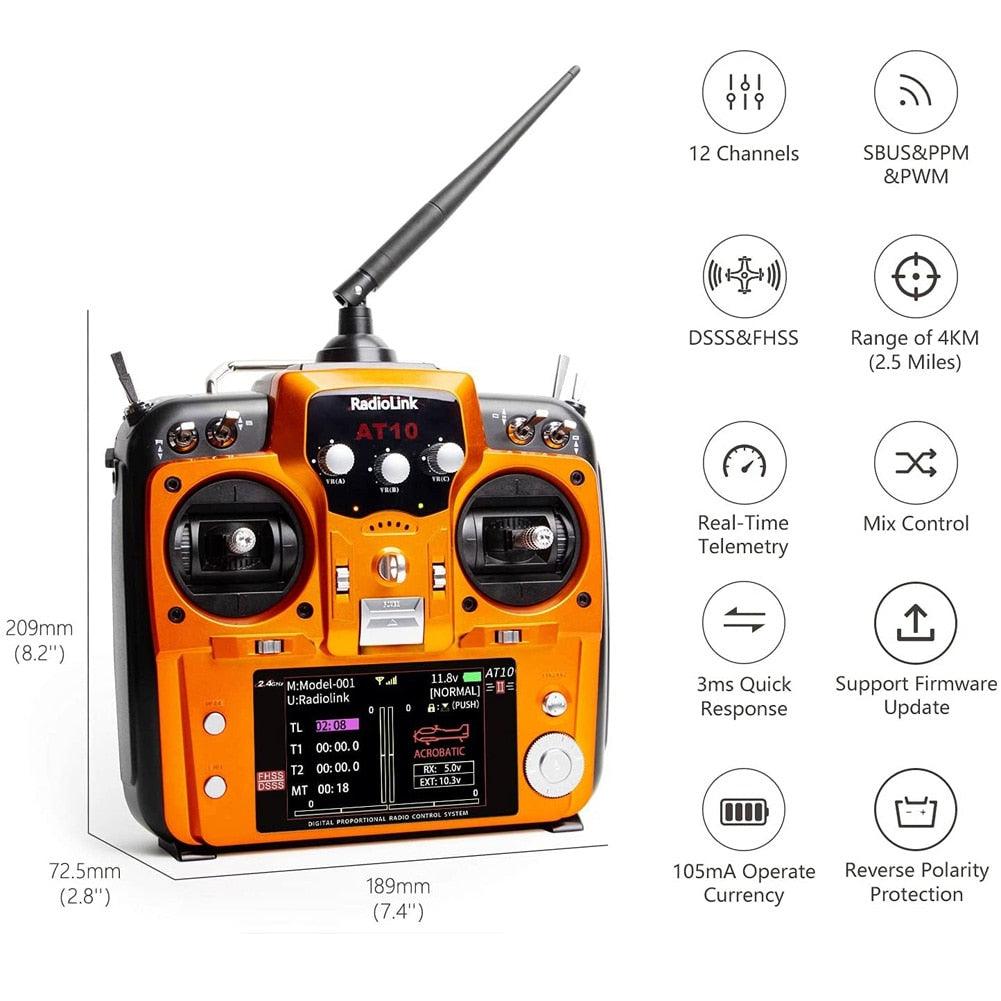

RadioLink AT10 II, RRRadiolink AT4O Real-Time Mix Control Telemetry 209mm (8.

RRRadiolink AT4O Real-Time Mix Control Telemetry 209mm (8.2″) ATIO Iae MModel-001 IL.8v #I= 3ms Quick Support Firmware U:Radiolink [NORMAL] (PUSH) Response Update 22108 0o: 00.0 ACROBATIC 00: O0.

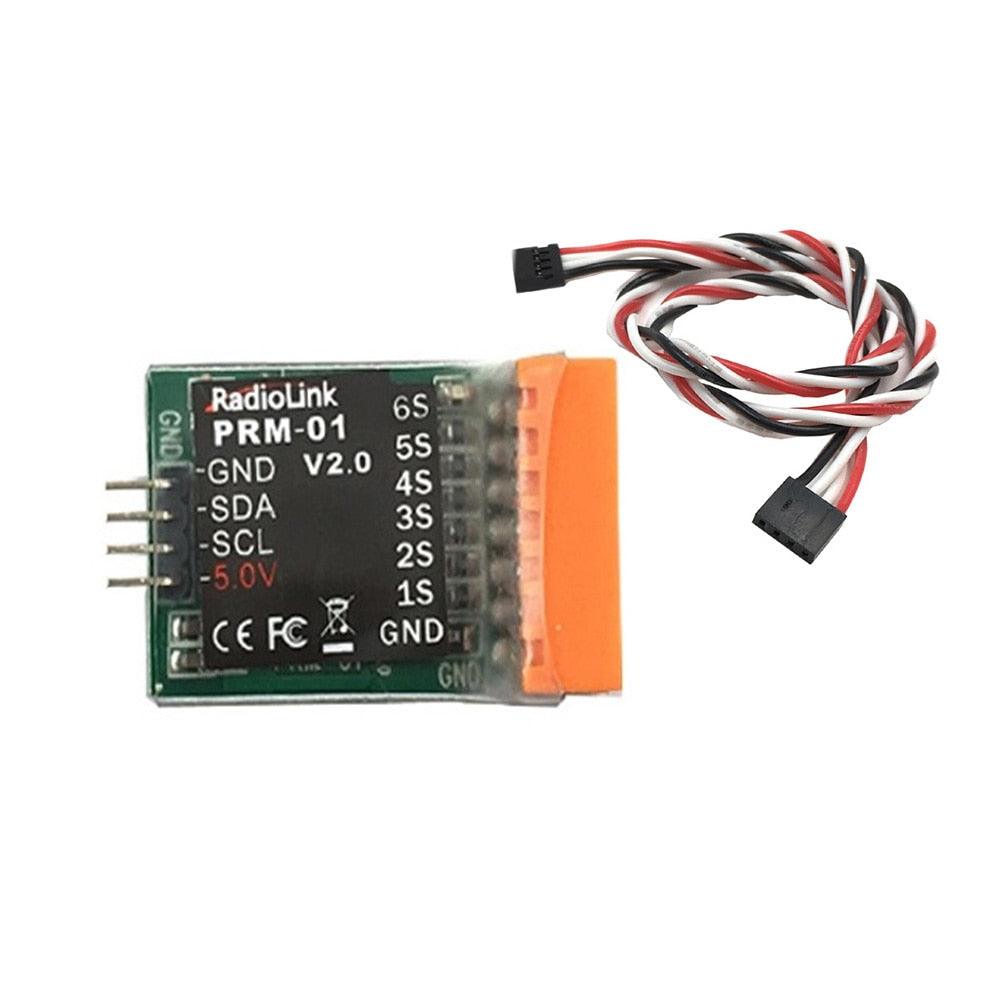

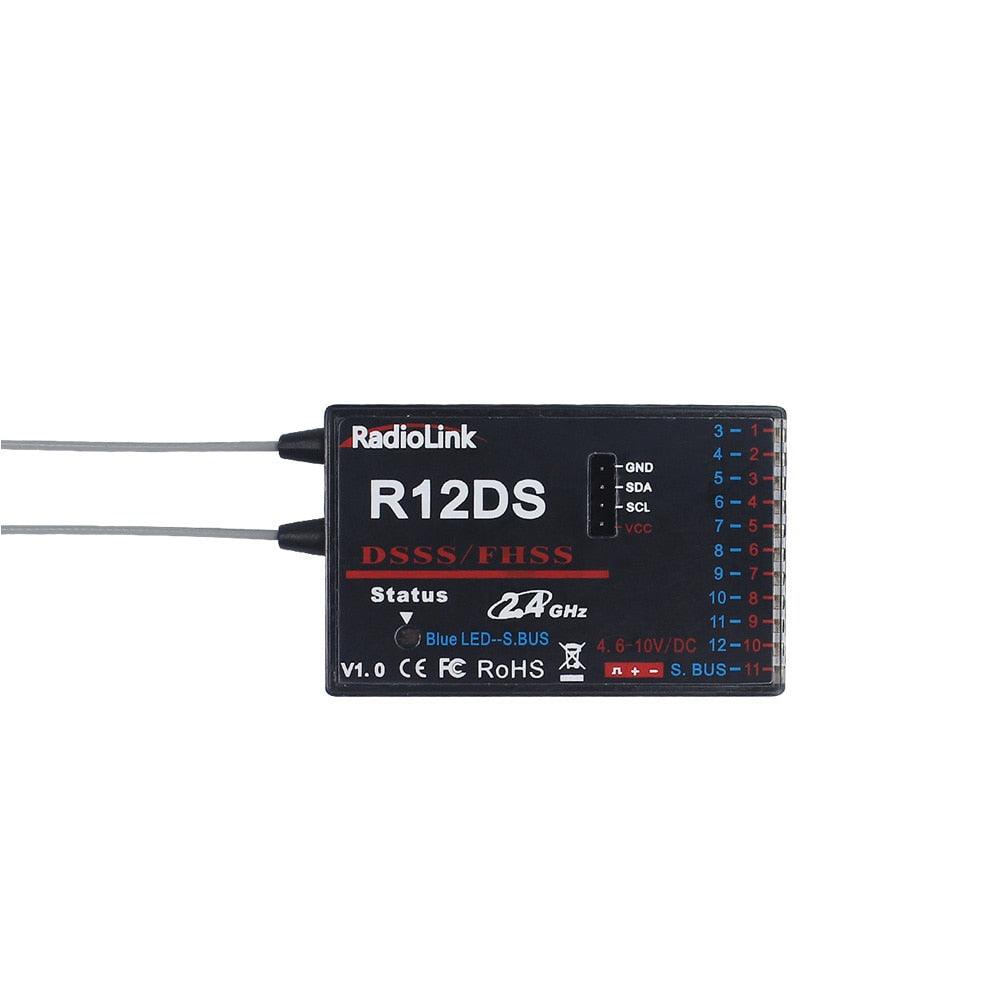

RadioLink AT10 II, RadioLink OND SDA R12DS SCL VCC DSSS; FHS

RadioLink OND SDA R12DS SCL VCC DSSS; FHSS Status 2AGHz Blue LED–SBUS 6-TOVZDC 12-10 V1.0 ( € FC RoHS S.BUS 4

RadioLink AT10 II, Expansion feedback module,users can get plane details in real timeRadioLink AT10 II, niuIL DSSSRFHSS hybrid dual spread spectrum Fcaturc

niuIL DSSSRFHSS hybrid dual spread spectrum Fcaturcs: sDond teocinim oretran eKucnirdlOrtaneo #clmnkuini hctcopnta turd Vnj9hnadmtcroor 4098 prcckion tha toguly pic605u3 5 $BUS PpmadpmMEignak prectd



Additional information

Color

Grey Mode 2, Orange Mode 2, R12DS RX, Grey Mode 1, Orange Mode 1
