SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Battery
Technical parameters: Value 2
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Model Number: XING-E Pro 2306
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: IFLIGHT
Description：
-
XING-E Pro series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance.focuses on quality, the XING-E series affordable motors that are strong and durable.
-

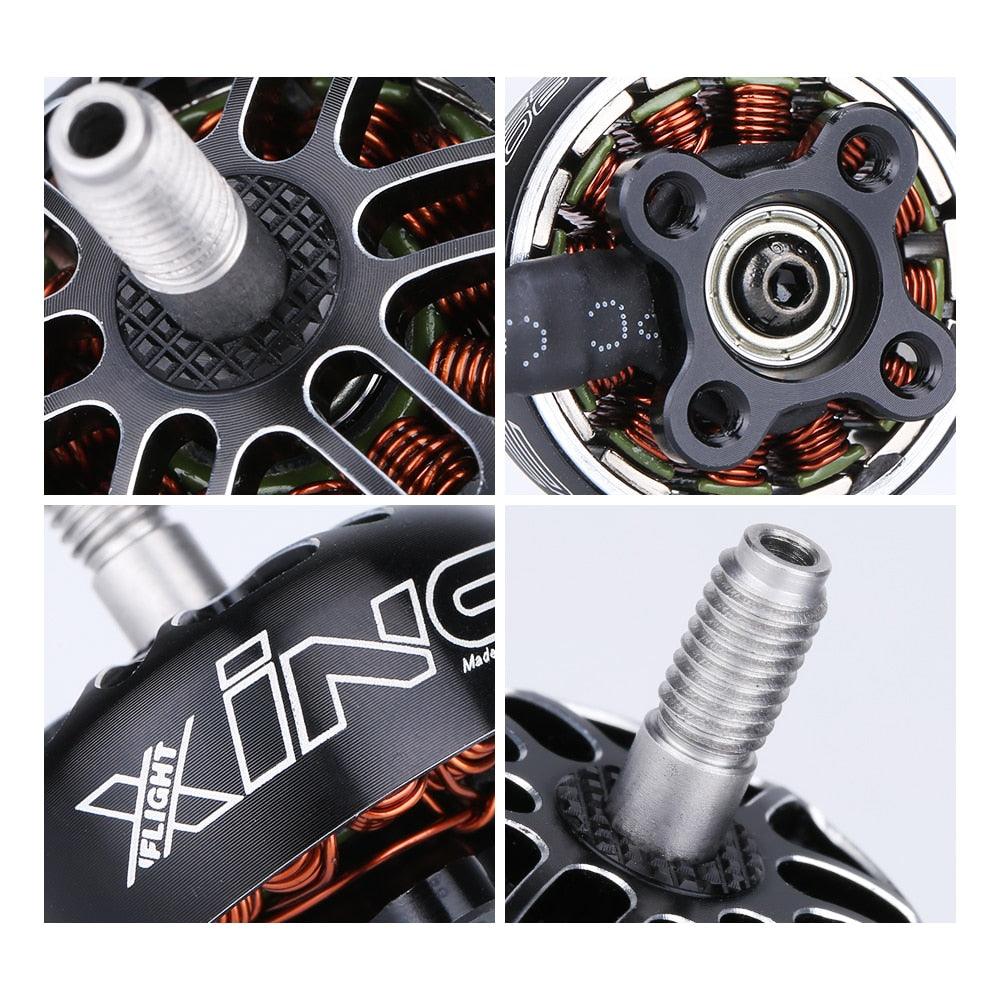

This 2306 sized motor features a high-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
Features:
-
High-strength 4mm Steel shaft
-
N52SH High-temperature magnets, NSK bearings
-
16x16mm hole pattern
-
Single strand copper winding
-
6061 CNC machined aluminum top and base parts
-
Hex bolt shaft set screw
Specifications:
-
Configuration: 12N14P
-
Stator Diameter:24mm
-
Magnets: N52SH Curved
-
Bearing Size: 9x4x4
-
Shaft Diameter: 4mm / Steel
-
Base Mounting Pattern: 16x16mm M3 Thread
-
Motor Dimension:29.5×18.7mm
-

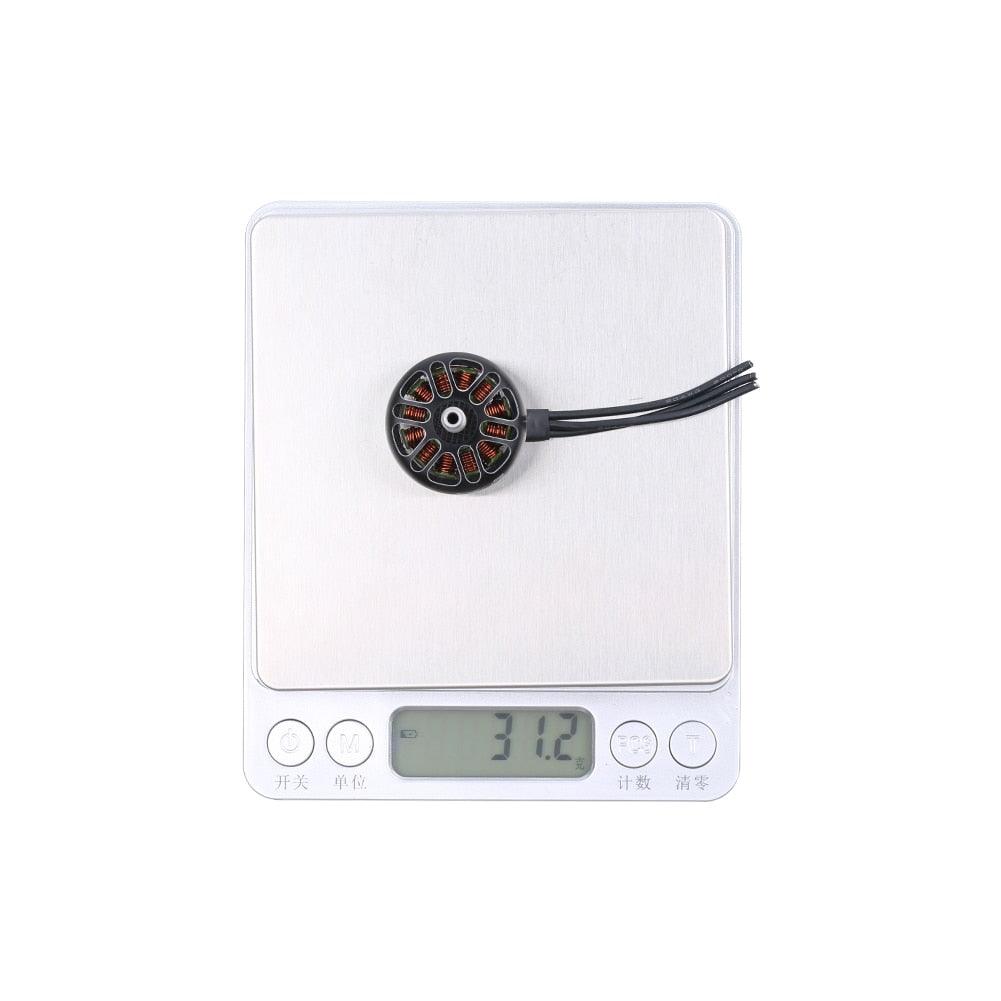

Weight:33.1g (150mm wires)
-
Idle Current @12.6v (Io):2.1A
-
Cells (LiPo): 2-6S
-
Max Burst Current <10s:55.22A
-
Max Power (W) 60s:885.4W
-
Internal Resistance (Rm):40.6mΩ
-
Motor Wire Length: 150mm / 20AWG
Package included:
-

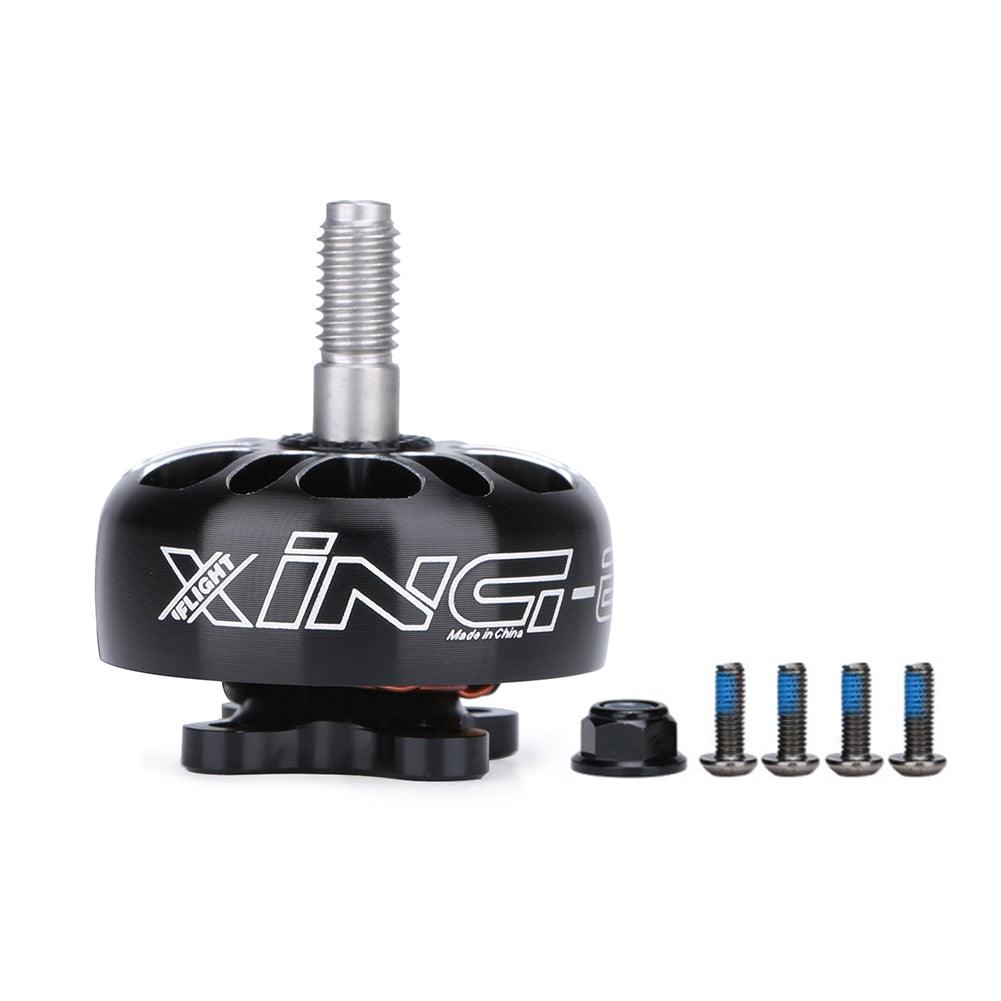

1pc x MOTOR XING-E Pro 2306 motor
