GEPRC Tern-LR40 HD Wasp Long Range FPV – Betaflight OSD W/AT7456E Link Wasp HD Quadcopter LongRange Freestyle Drone Rc Airplane

$382.09$416.83

+ Free Shipping
TBSNanoRX GPS
PNP GPS
ELRS 2.4G GPS
ELRS 915 GPS
TBSNanoRX GPSPNP GPSELRS 2.4G GPSELRS 915 GPS
CHINA
Russian Federation
CHINARussian Federation
Clear
SKU: N/A Categories: ,

SPECIFICATIONS

Brand Name: GEPRC

Remote Distance: 2000 meters

Remote Control: Yes

Package Includes: Original Box

Package Includes: Operating Instructions

Package Includes: Camera

Anti-wind Ability: NO

Video Capture Resolution: 1080p FHD

Video Capture Resolution: 2K QHD

Video Capture Resolution: 4K UHD

Controller Battery: Not include

Takeoff Weight: 100g

Aerial Photography: Yes

Control Channels: 8 CHANNELS

Material: Metal

Material: plastic

Material: Carbon Fiber

Flight Time: <5

Origin: Mainland China

Controller Mode: MODE1

Controller Mode: MODE2

Recommend Age: 14+y

Transit Time (Days): 1KM

Drone Weight: 180g

Dimensions: 4 inch

Motor: Brushless Motor

Plugs Type: XT30

Type: HELICOPTER

State of Assembly: Ready-to-Go

Features: App-Controlled

Features: FPV Capable

Features: Integrated Camera

Features: Other

Indoor/Outdoor Use: Indoor-Outdoor

Charging Voltage: 14.8V

Charging Time: 30 minutes

Camera Mount Type: Fixed Camera Mount

Camera Mount Type: Other

Warning: Minors please use under the supervision of an adult

Certification: CE

CE: Certificate

Model Number: GEPRC Tern-LR40 HD Wasp Long Range FPV

Power Source: Electric

Operator Skill Level: Beginner

Operator Skill Level: Intermediate

Operator Skill Level: expert

Summary

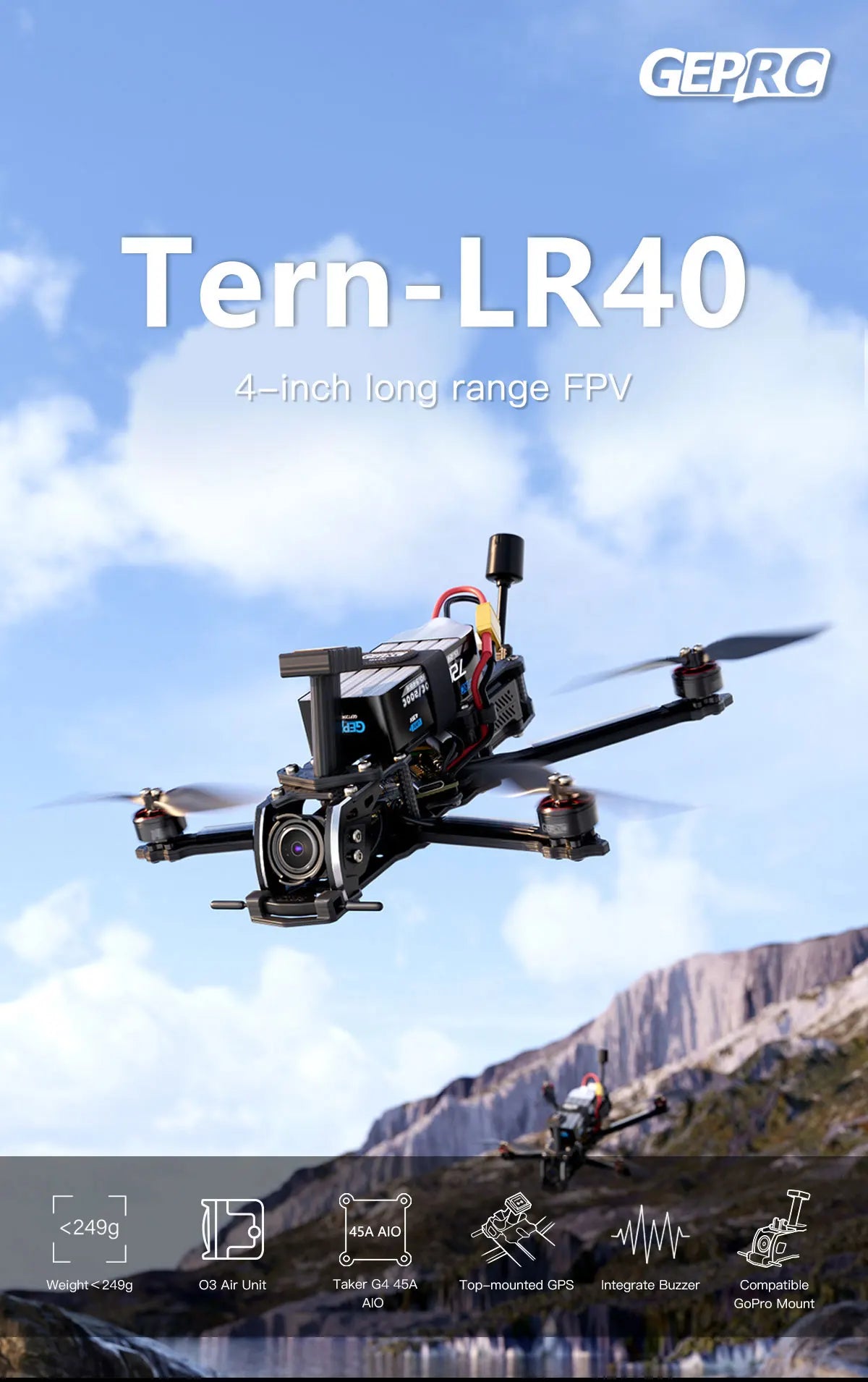

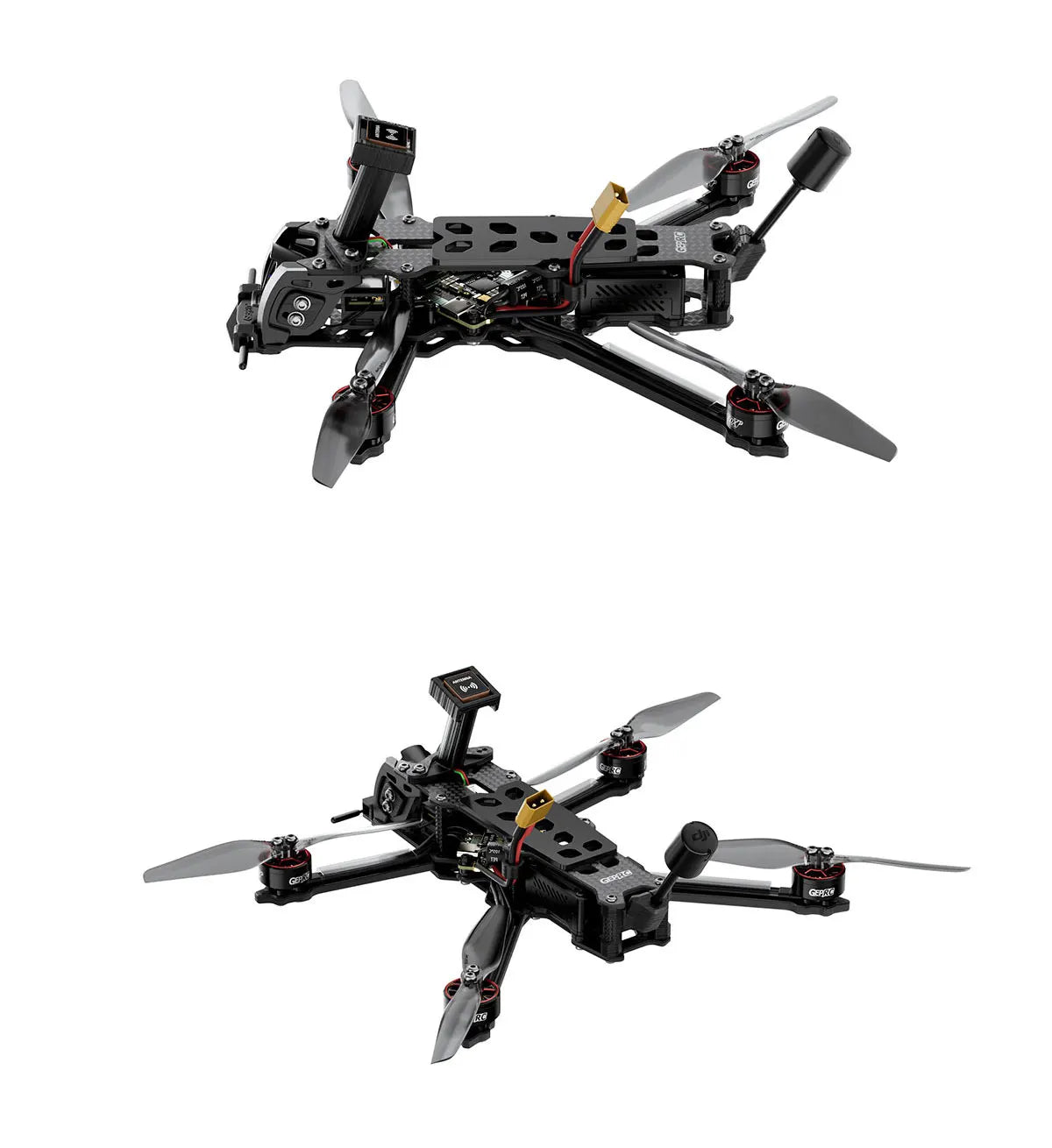

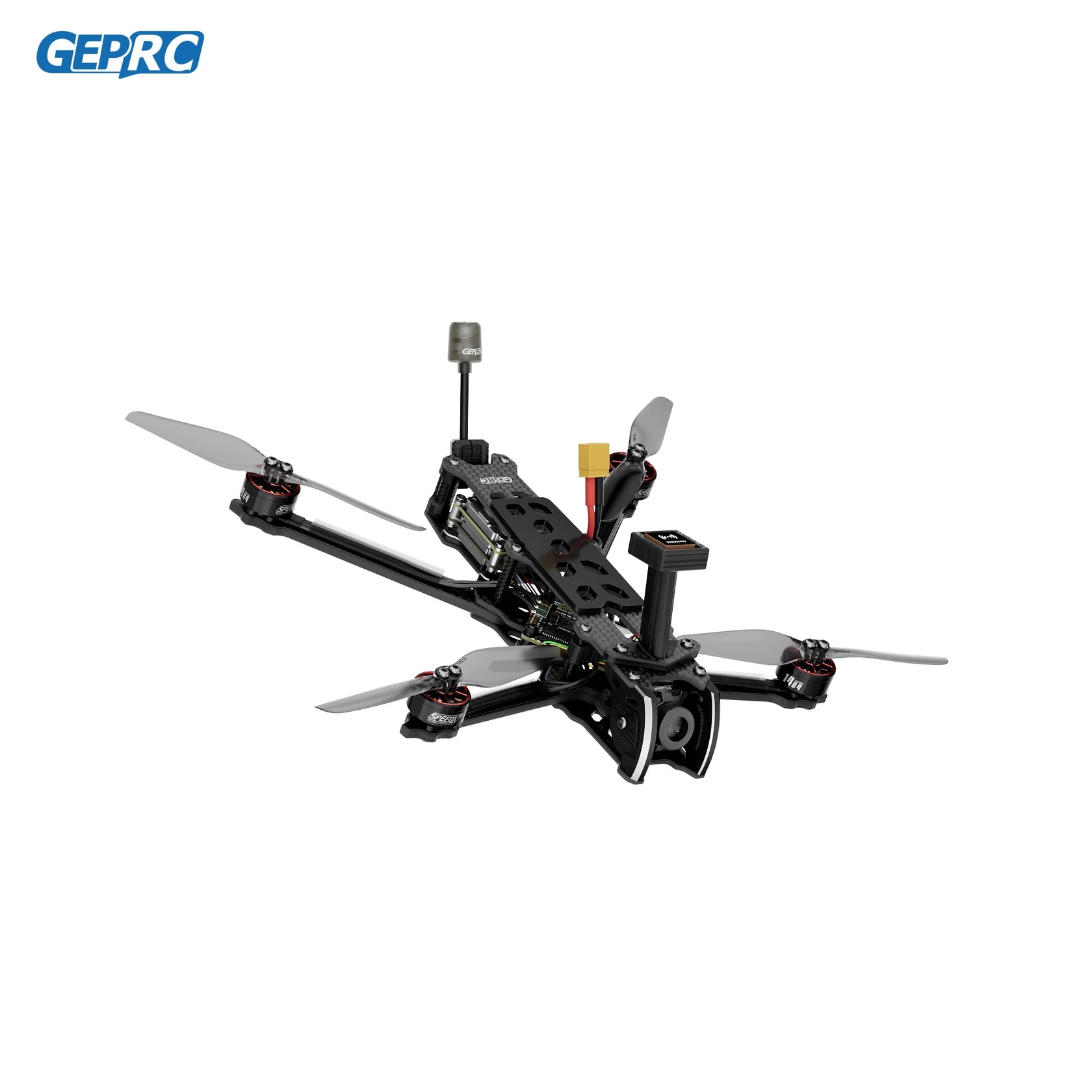

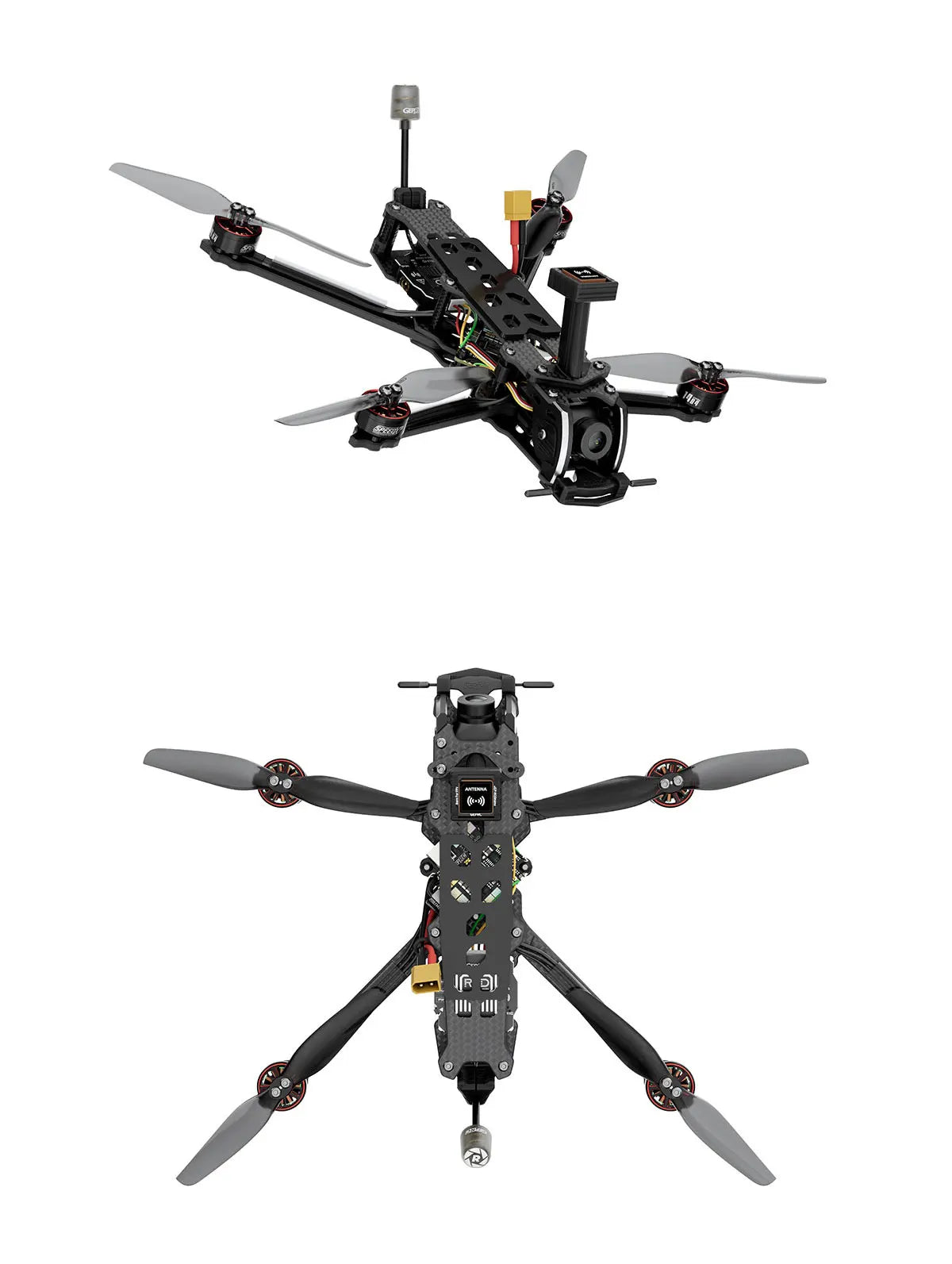

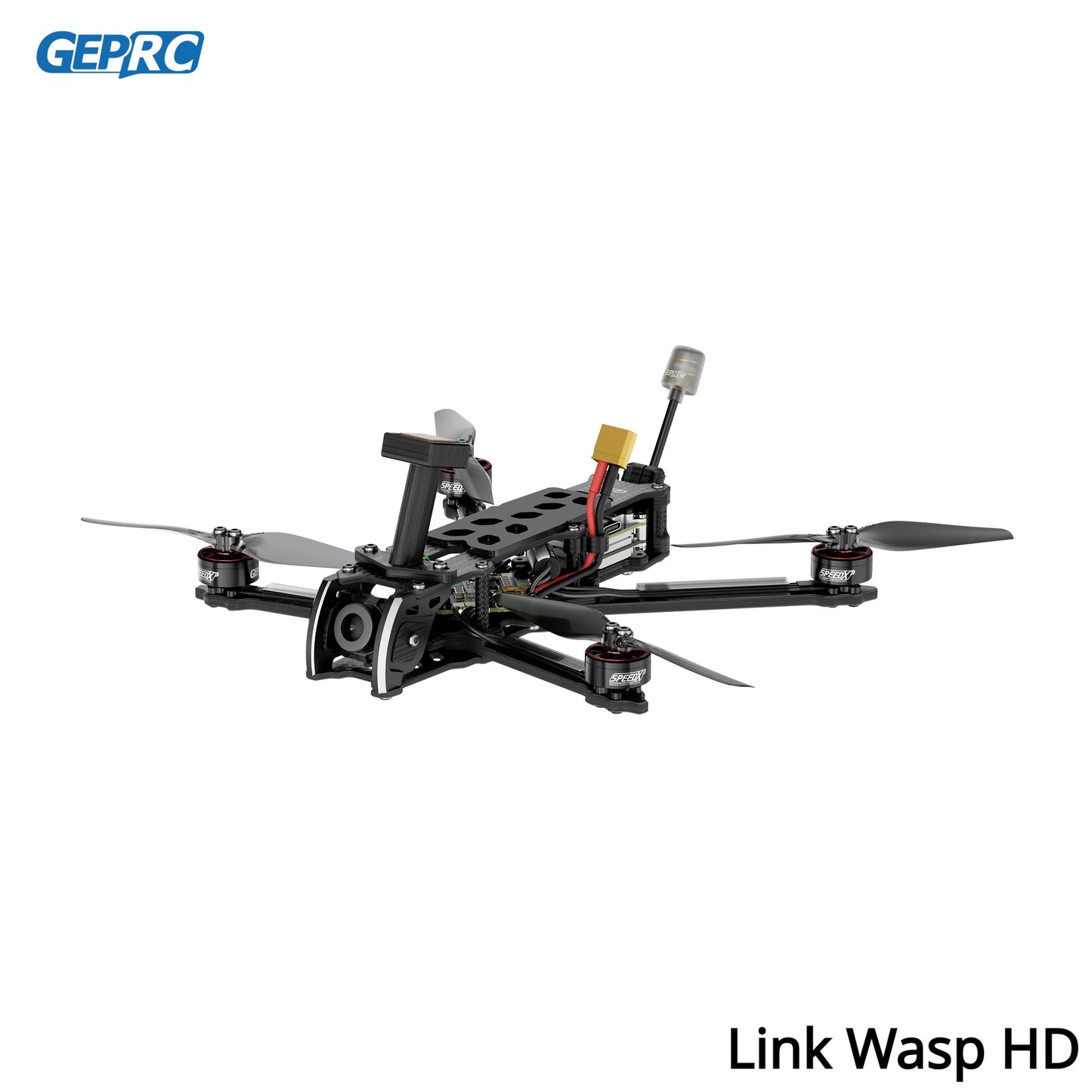

In the GEPRC family, we have welcomed a new member: Tern-LR40. This is a 4-inch long range FPV with excellent performance and reliability. It adopts a DC-type structure. Its careful lightweight design uses aviation-grade 7075 aluminum parts. Light and rigid.

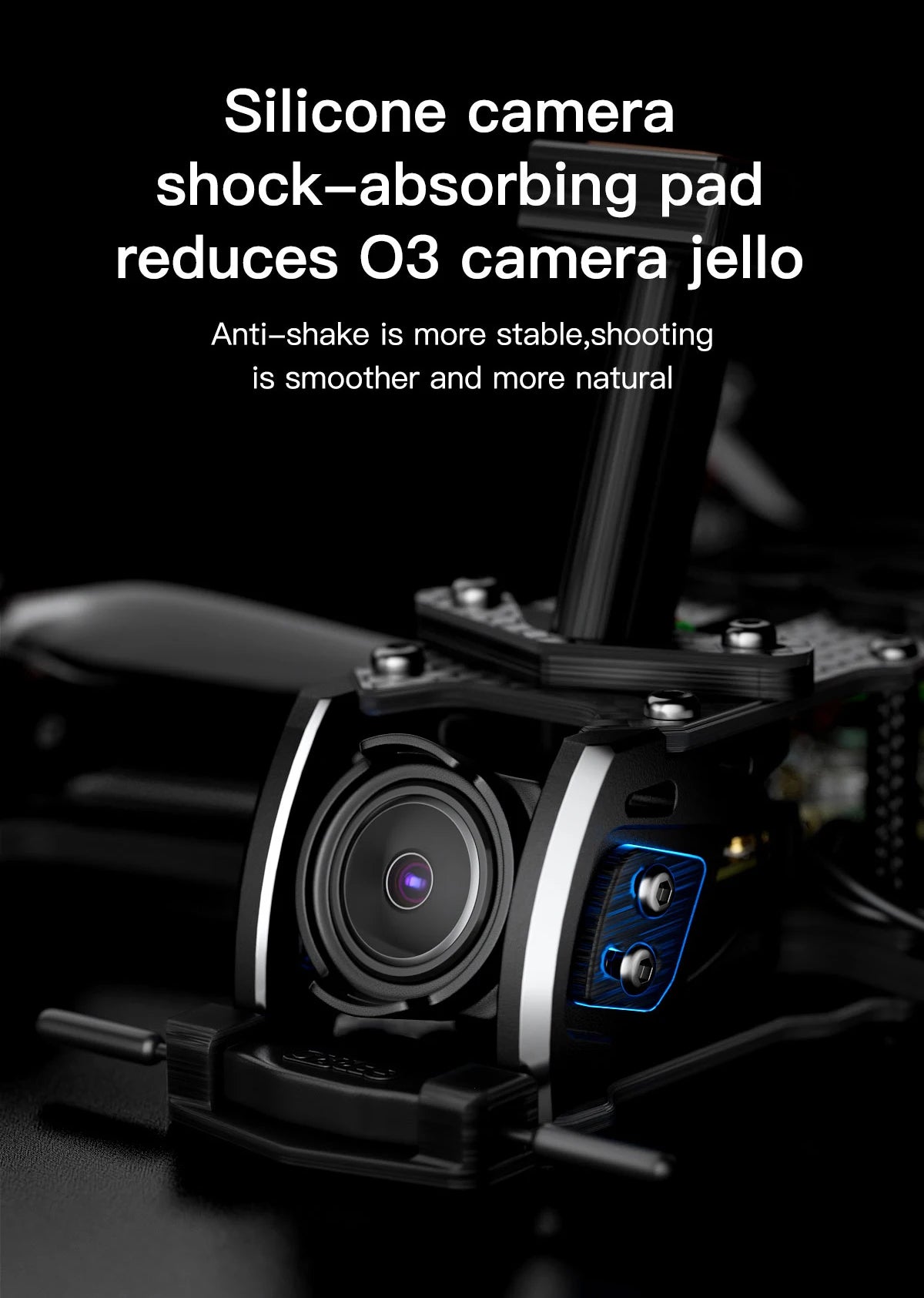

Equipped with Taker G4 45A AIO flight control, which has higher computing power redundancy. The use of a top-mounted fixed GPS can avoid the impact of its own electromagnetic interference on flight, and the rescue function is more stable.Silicone camera shock-absorbing pad prevents high-frequency jello from O3 camera.

The Tern-LR40 is like a bird with spread wings, flying freely through the blue sky without being restrained. Choosing it is not only a high-quality flight, but also an artistic journey.

Feature

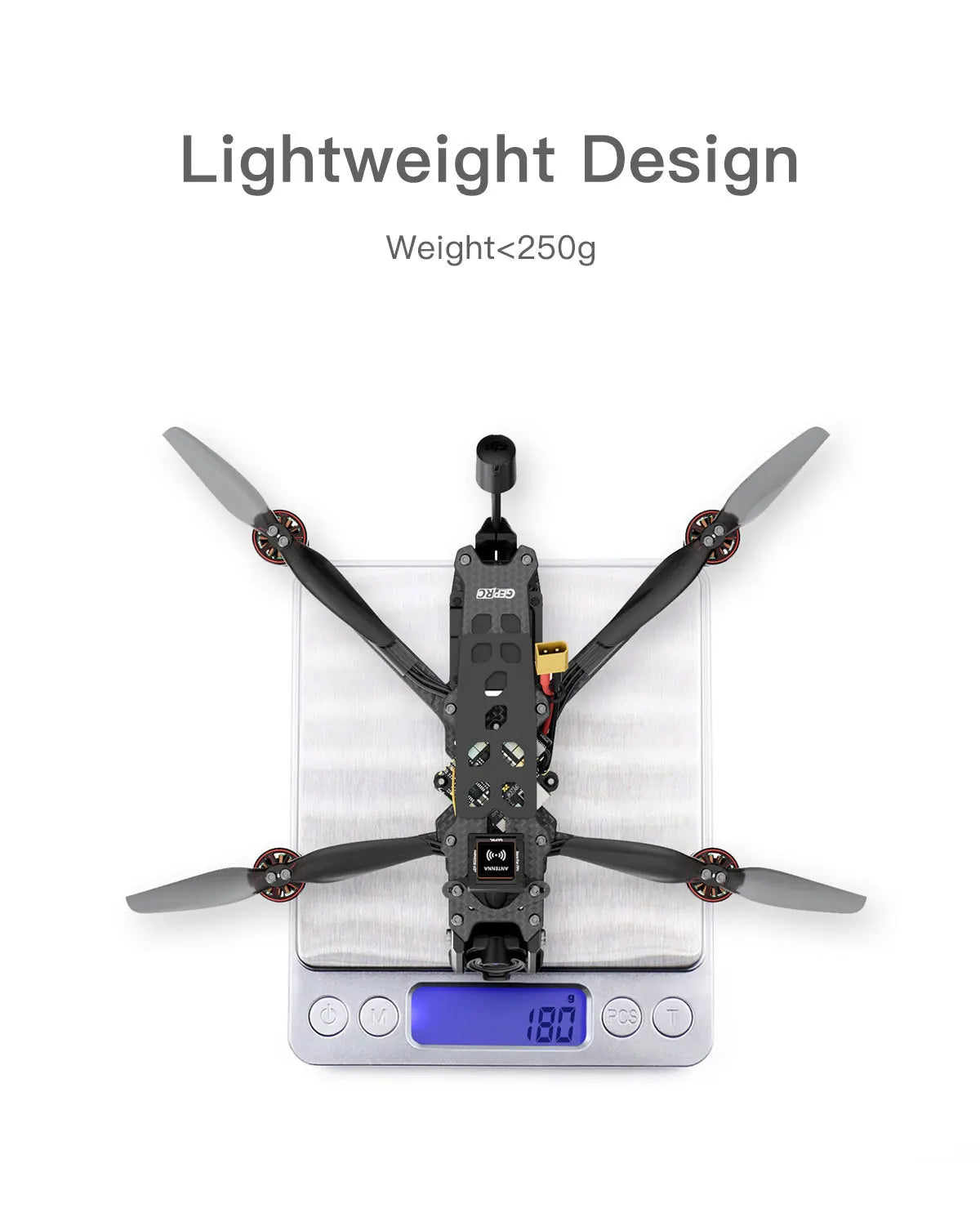

  1. New lightweight design, weight under 249g.

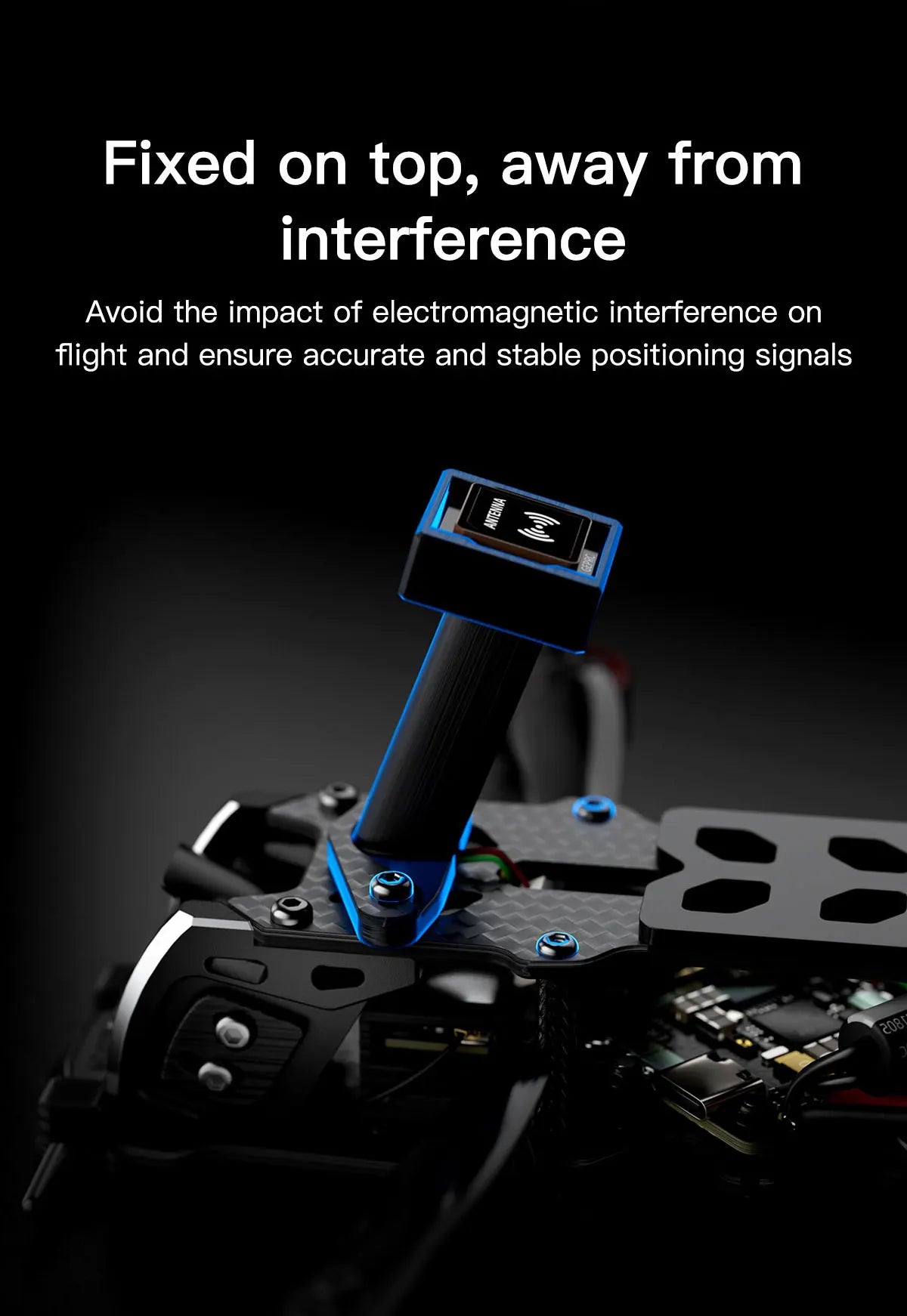

  2. Expand interference GPS fixation method and stay away from interference sources
  3. DC structure cannot see the propellers during flight, which is more suitable for straight-line aerial photography.
  4. Install BB ring to set the battery low voltage alarm

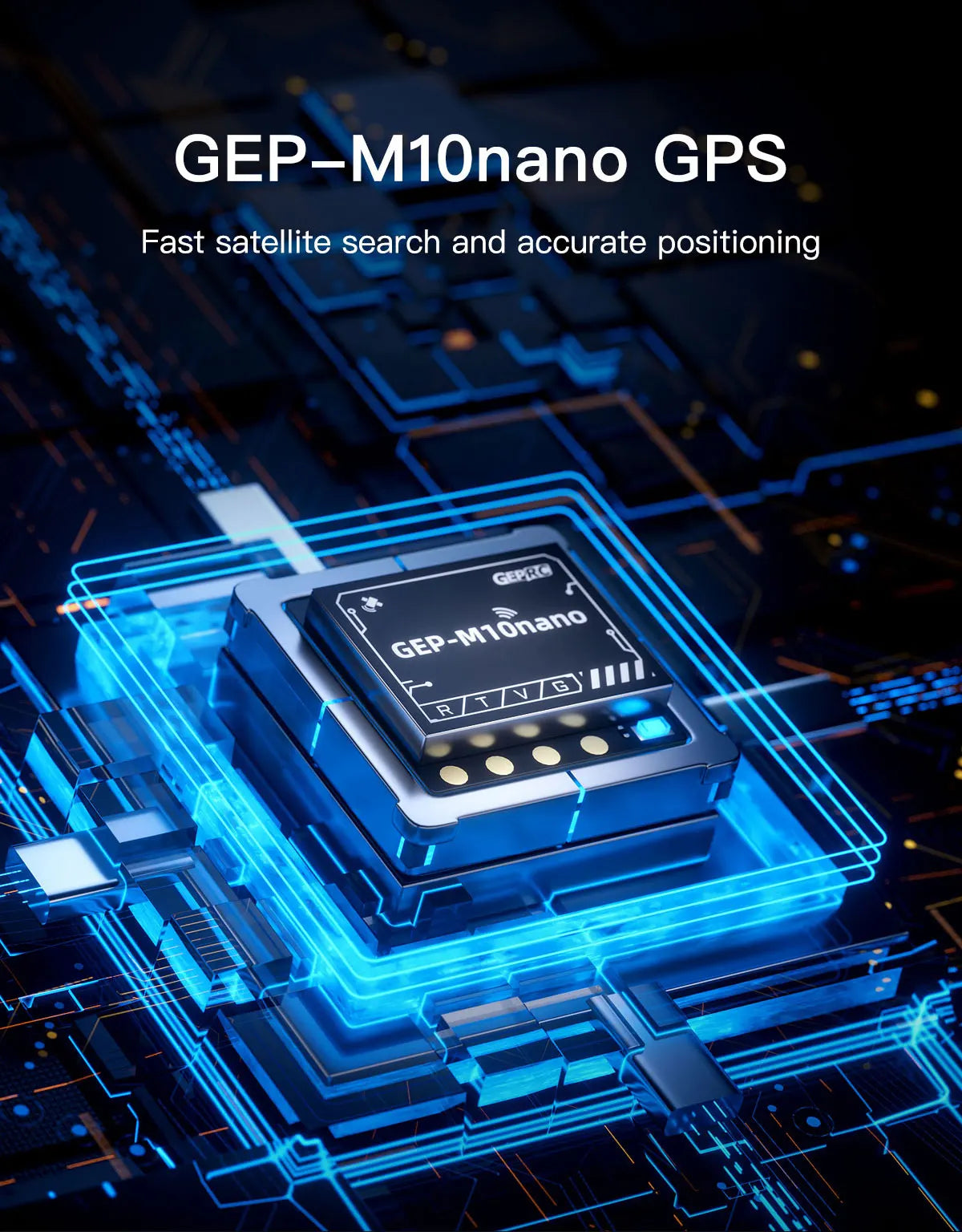

  5. Using GEP-M10nano GPS, the satellite search speed is faster and the rescue mode is more stable.

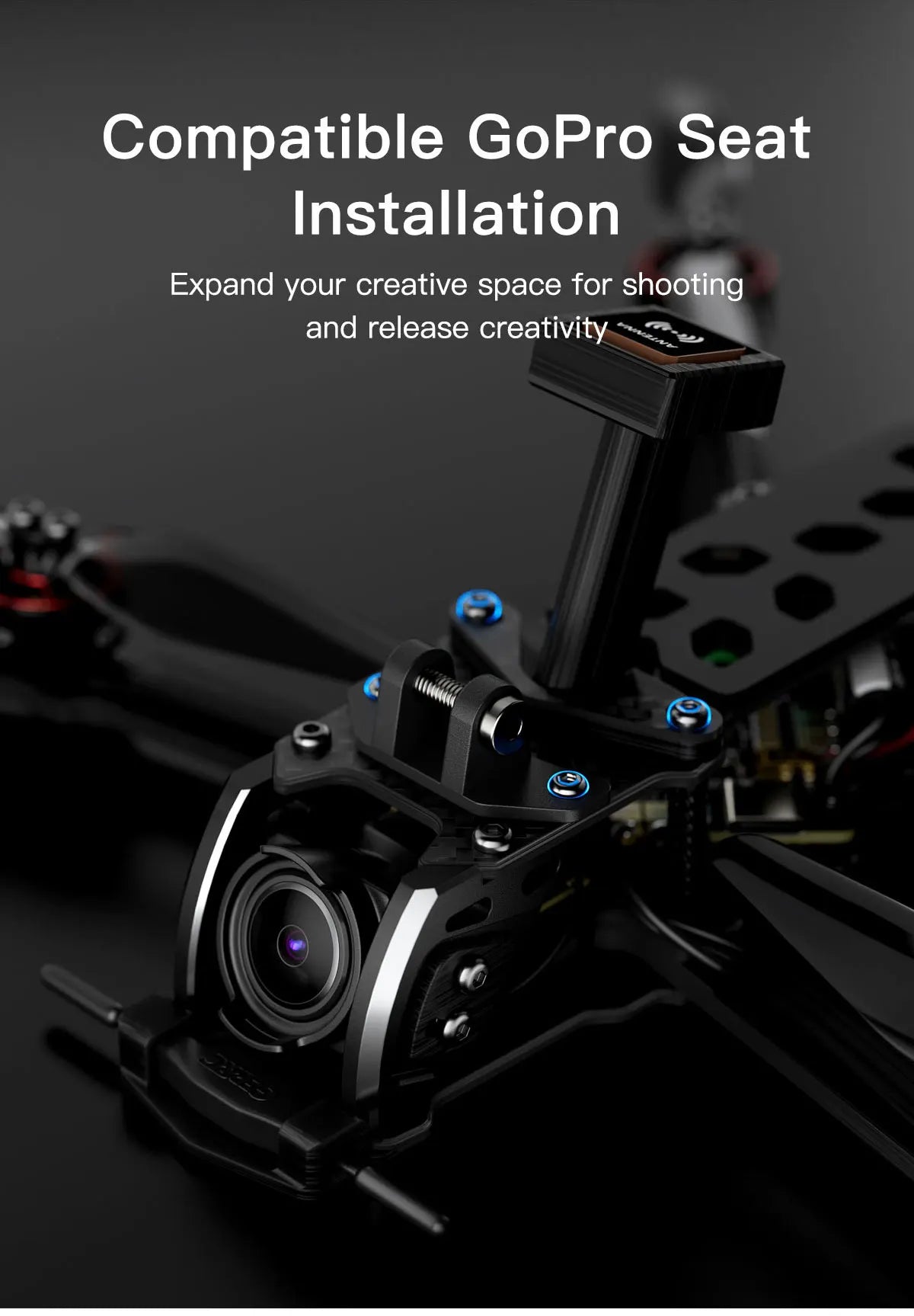

  6. Compatible go pro mount installation, expandable shooting creation.

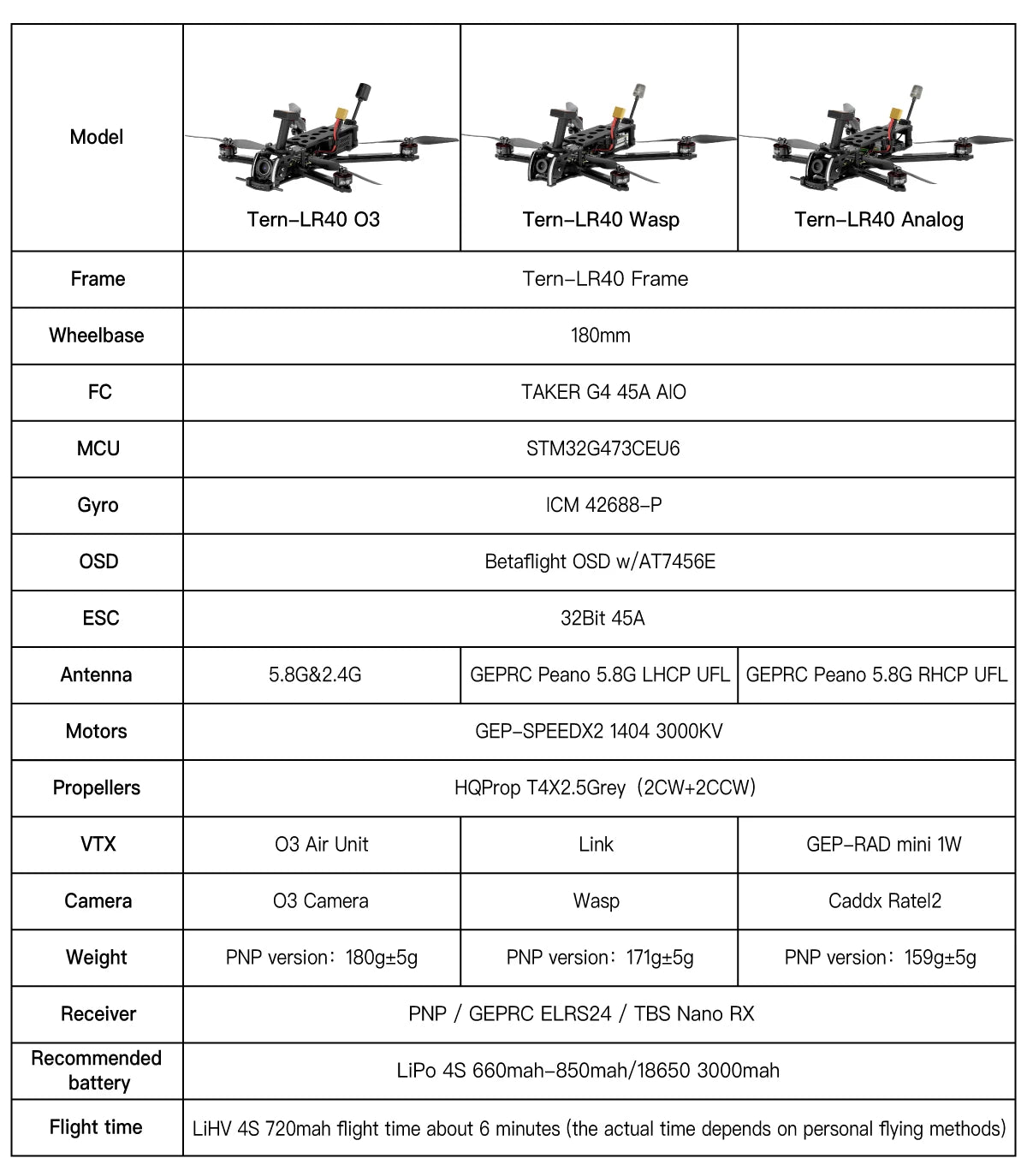

Specifications

  • Model: Tern-LR40
  • Frame: Tern-LR40 Frame
  • Wheelbase size: 180mm
  • Top plate: 1.5mm
  • Middle plate: 2.0mm
  • Bottom plate: 1.5mm
  • Arm thickness: 3.5mm

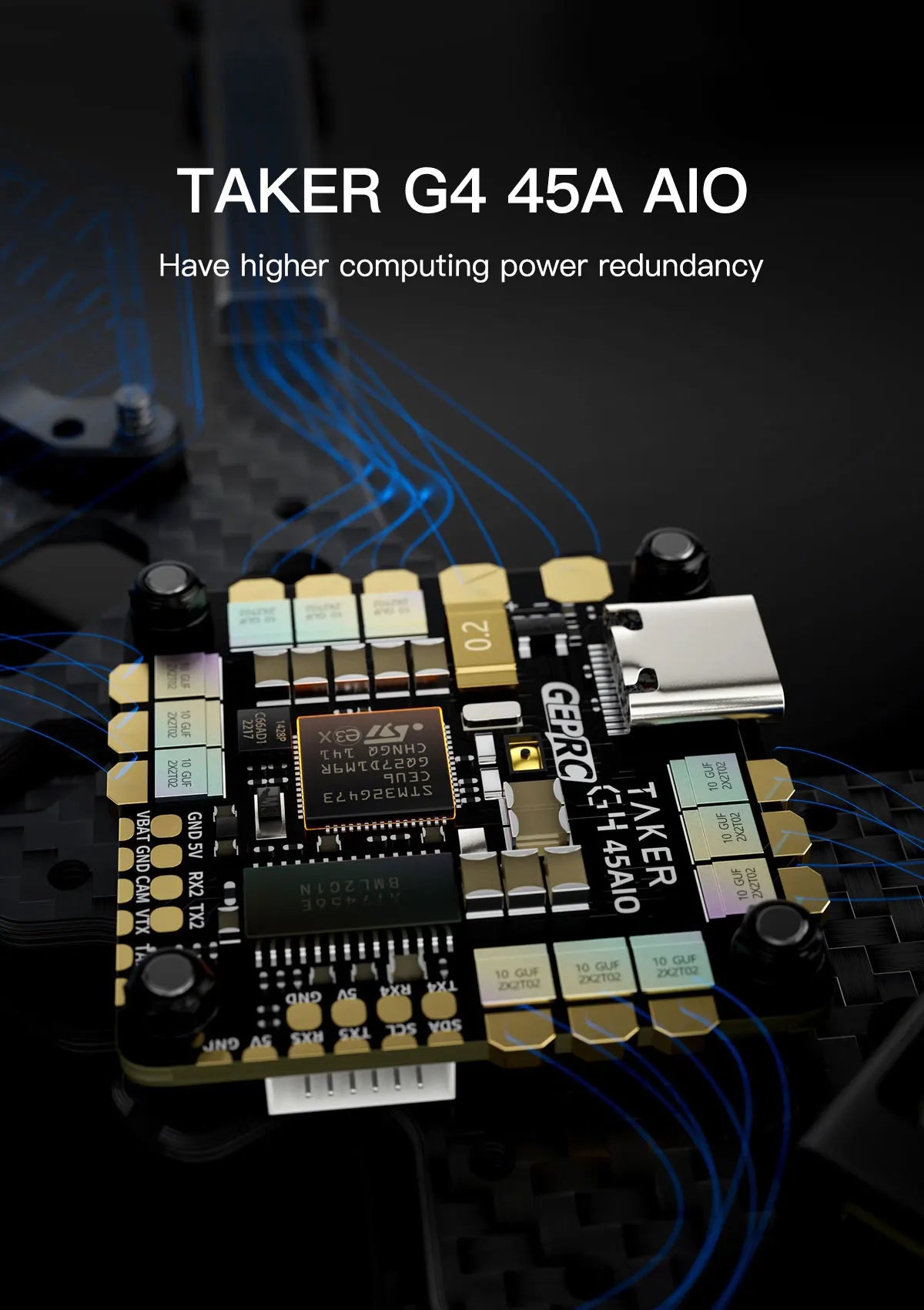

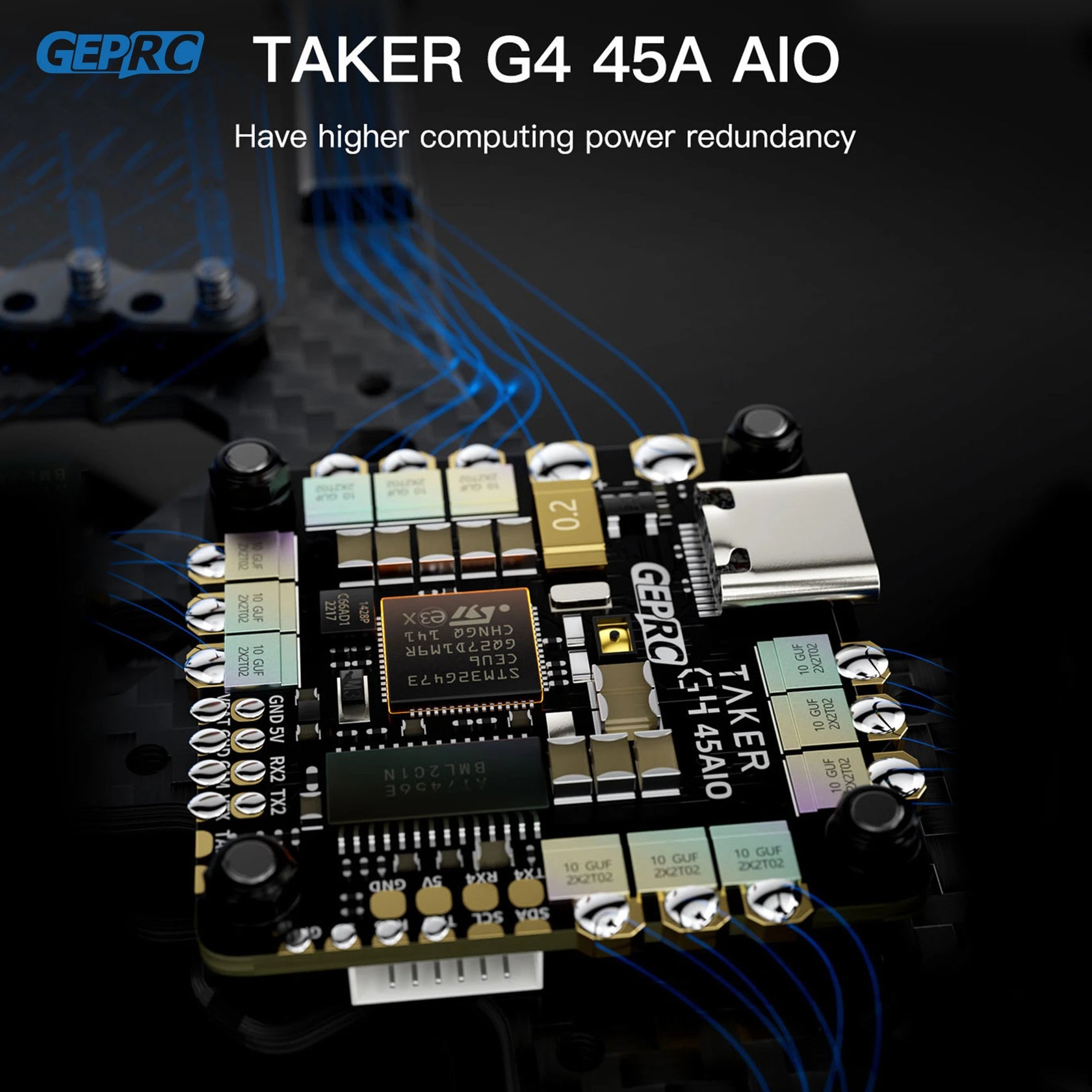

  • FC: Taker G4 45A AIO
  • MCU: STM32G473CEU6
  • Gyro: ICM 42688-P
  • OSD: Betaflight OSD w/AT7456E
  • ESC: 32Bit 45A
  • VTX: Link
  • Camera: Wasp
  • Antenna: GEPRC Peano 5.8G LHCP UFL
  • Connector:XT30
  • Motors: GEP-SPEEDX2 1404 3000KV
  • Propellers: HQProp T4X2.5Grey (2CW+2CCW)

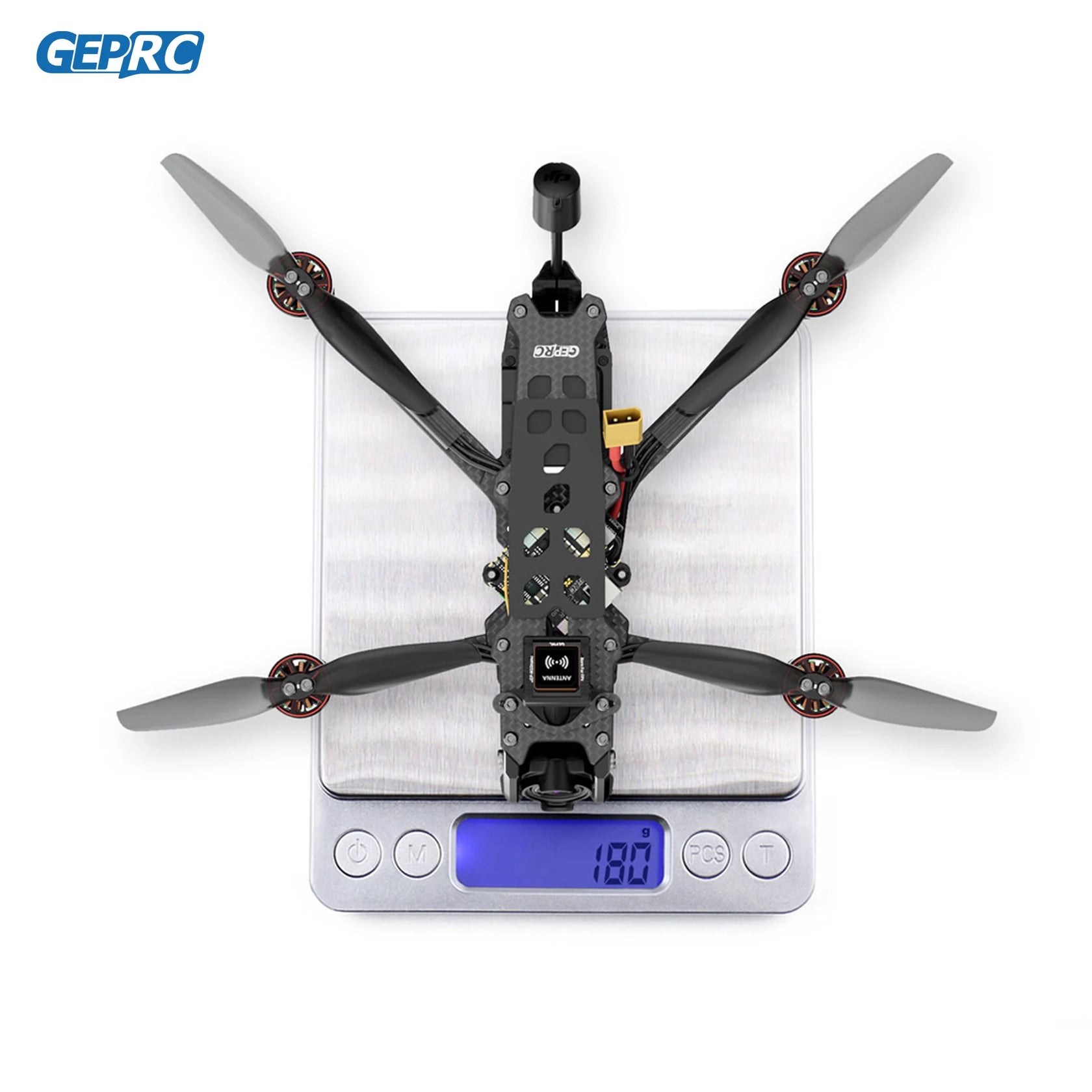

  • Tern-LR40 Wasp PNP version weight: 171g±5g
  • Receiver: PNP/GEPRC ELRS24/GEPRC ELRS915/TBS Nano RX
  • Recommended battery: LiPo 4S 660mah-850mah/18650 3000mah Flight time: 10-25min
  •   time: 10-25min

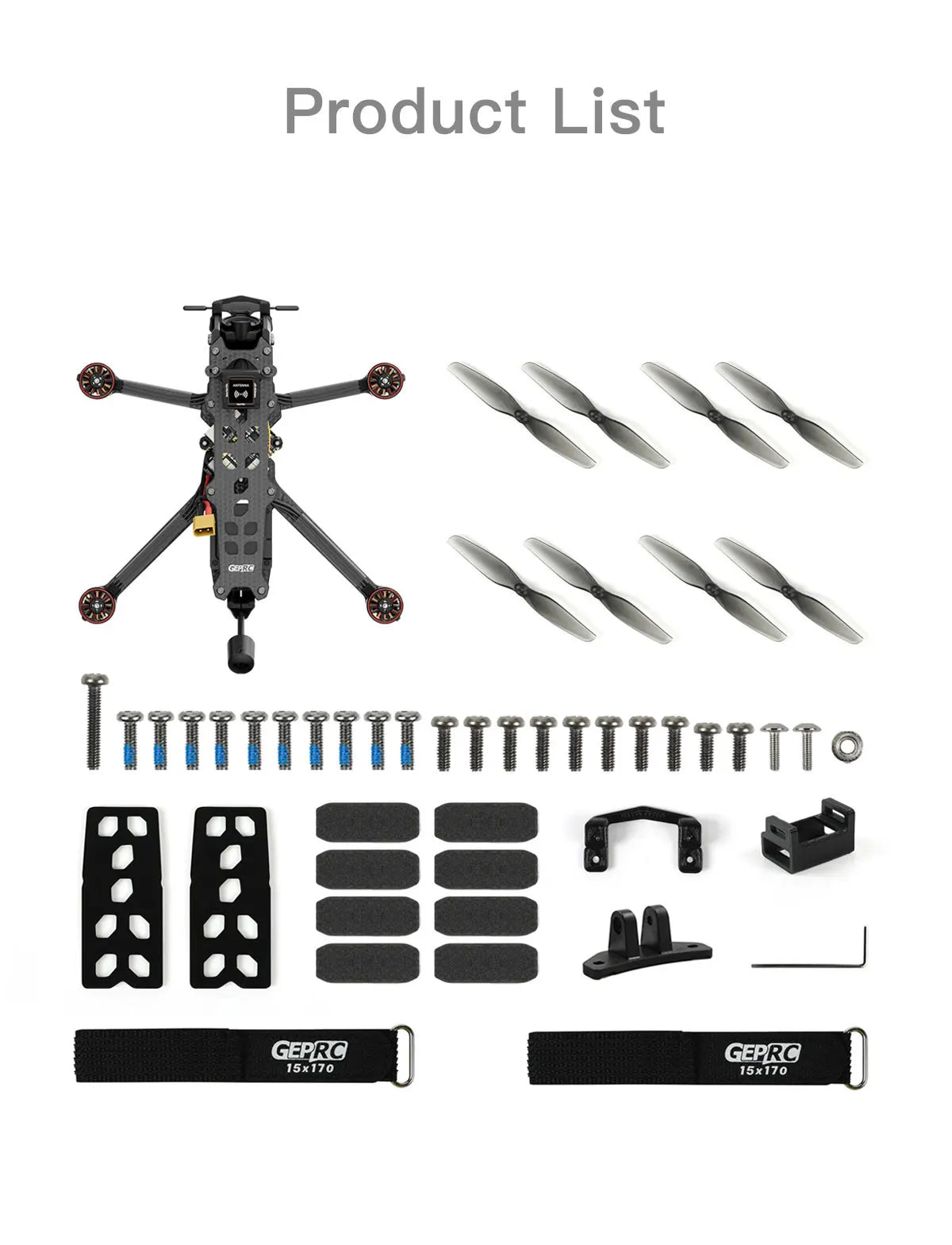

Includes

1 x Tern-LR40

2x HQProp T4X2.5Grey (2CW+2CCW)

2 x battery anti-slip mat

1 x screw pack

4 x  Battery strap M15*170mm

1 x L-shaped screwdriver 1.5mm

1 x camera mount holder

1 x T-type Antenna mount

1 x RC Printed

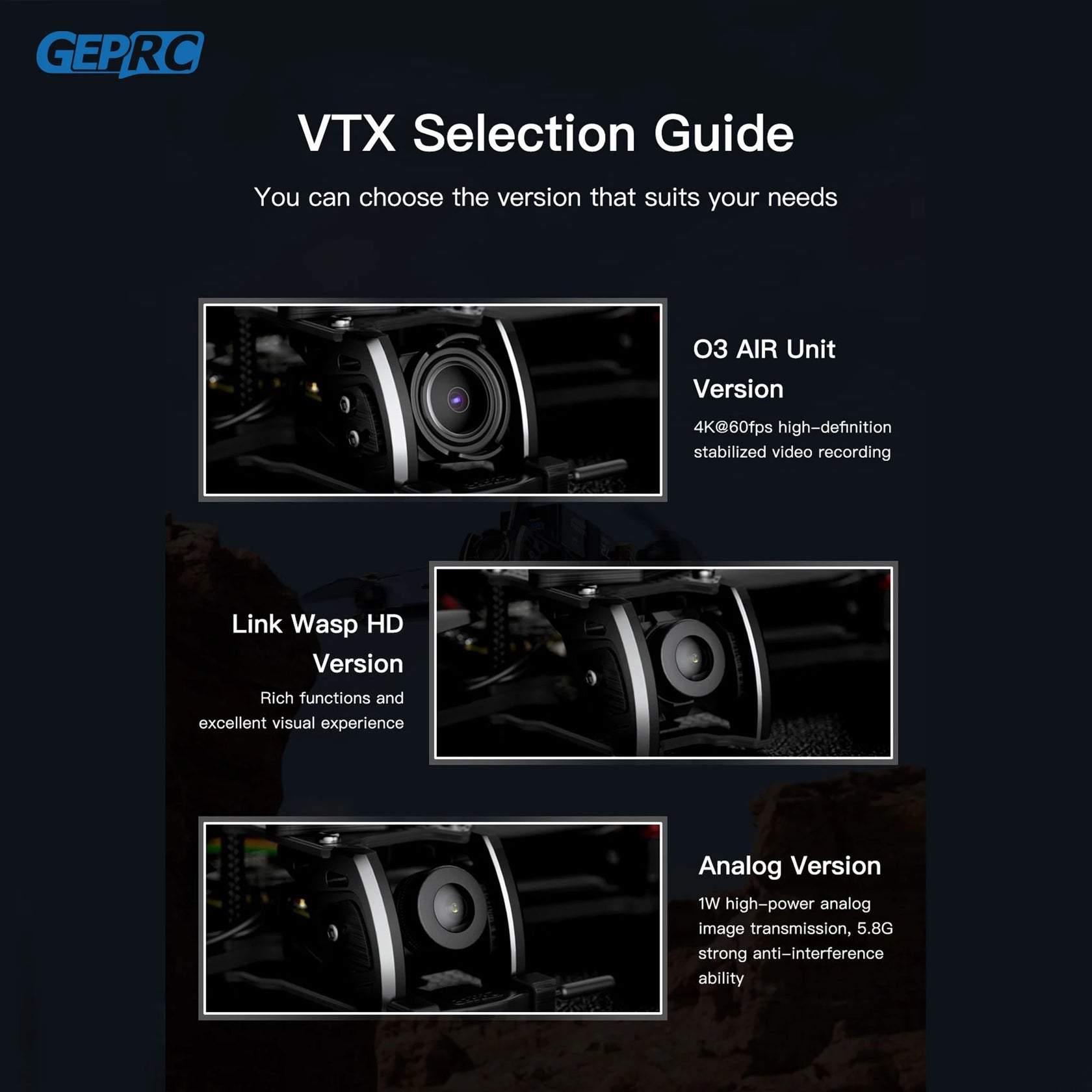

GEPRC Tern-LR40 HD Wasp Long Range FPV, GEPRC Tern-LR4O 4-inchi range FPV 835 45GEPRC Tern-LR40 HD Wasp Long Range FPV, Silicone camera shock-absorbing pad reduces 03 camera jello .GEPRC Tern-LR40 HD Wasp Long Range FPV, fixed on top, away from interference Avoid the impact of electromagnetic interference on flight . ensure accurateGEPRC Tern-LR40 HD Wasp Long Range FPV, GepeG Gep-Mionano GPS Fast satellite search and accurate positioning GeGEPRC Tern-LR40 HD Wasp Long Range FPV, a flight is not only a high-quality flight, but also an artistic journeyGEPRC Tern-LR40 HD Wasp Long Range FPV, VTX Selection Guide You can choose the version that suits your needs 03 AIR Unit VersionGEPRC Tern-LR40 HD Wasp Long Range FPV, Compatible GoPro Seat Installation Expand your creative space for shooting and release creativvity GEPRC Tern-LR40 HD Wasp Long Range FPV, Lightweight Design Weight250g 088GEPRC Tern-LR40 HD Wasp Long Range FPV, Wasp tern-LR4O wasp t4x2.5GreyGEPRC Tern-LR40 HD Wasp Long Range FPV, Caar SPEEnTt 5053, SPrED] CEM:GEPRC Tern-LR40 HD Wasp Long Range FPV, lfthe parcel is returned to us due to the buyer's refusal to pay theGEPRC Tern-LR40 HD Wasp Long Range FPV, damage caused by operation in bad weather (i.eGEPRC Tern-LR40 HD Wasp Long Range FPV, Product List GHRG GEPRC 15* 170 15*170

—————-Warranty Policy————–

Warranty Policy Does NOT Cover What?

Crashes or fire damage caused by non-manufacturing factors, including but not limited,to pilot errors.  Water damage or other damages caused by improper installation,incorrect use,or operation not in accordance with officialinstructions or manuals.
Damage caused by a non-authorized service provider.
Damage caused by unauthorized modification of circuits and Error weld mismatch or misuse of the battery and charger.

Damage caused by operation in bad weather (i.e.  strong winds,rain,snow,sand/dust storms,etc)

  • Damage caused by operating the product in an environment with electromagnetic interference
  • (i.e. in mining areas or closeto radio transmission towers,high-voltage wires,substations,etc.)
  •  Damage caused by operating the product in an environment suffering from interference from other wireless devices (i.etransmitter,  video-downlink,Wi-Fi signals,etc.)
  • Damage caused by a crashes when components have aged or been damaged.
  • Damage caused by operating the unit with a low charge or defective battery of any form.
  • Damage resulting from any non-GEPRC technical or other support(online community for example),such as assistance with”how-to” questions and or inaccurate product set-up and installation.
  • GEPRC is not responsible for issues involving 3rd party products and warranty.  For example with issues involing Caddx and D J l,the customer must get warranty support directly from the 3rd party company

Purchasing Matters needing attention

1.When players purchase model aircraft products,they need to understand the relevant basic operation knowledge

2.Model aircraft have certain dangers,children need to touch the model under the supervision of adults.  Make sure the flying environment is safe and away from people when flying the model

3.When flying in the outer field,you should pay attention to the relevant regulations of the local government or relevant management agencies to avoid unnecessary losses.

4.Before flying the model,please ensure that the model is securely connected,all equipment is working properly,and all control actions are responding normally to avoid accidents.

5.In the store to purchase model products abnormal situation can not be solved,please contact customer service technical support for help,such as do not consult technical support to solve their own or do not operate according to technical support guidance caused by the loss and accident the store does not assume responsibility for compensation.

6.The model aircraft model has a certain risk,please be sure to operate in a safe situation,your purchase behavior represents that you have recognized the above situation and bear the corresponding responsibility,the improper use of products,did not pay attention to safety caused by the loss and injury,the store does not b

About customs duties: We can declare a price of $20~$48 to help you

  • If you are an EU buyer and the payment amount is less than 150 Euros, AliExpress will charge customs duties and value-added
  • Tax when you pay. So your package does not need to pay customs duties again when it arrives
  • If the payment amount is greater than 150 euros, AiExpress will not charge any additional fees when you pay, but when the package arrives at the customs, TPay customs duties according to local national customs policy .you need to pay VAT and customs duties on the package.
  • We are NOT liable for ANY import tax, custom fee, Remote surcharge or customs delay.  lfthe parcel is return back to us due to the buyer’s refusal to pay the above fees, we wouldNOT resend the parcel until the buyer complete those fees and pay ALL the return andresend cost.
Color

TBSNanoRX GPS, PNP GPS, ELRS 2.4G GPS, ELRS 915 GPS

Ships From

CHINA, Russian Federation
