GEPRC SPEEDX2 2105.5 2650KV/3450KV MotorSPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Assembly Category
Size: 3.5 inch
Remote Control Peripherals/Devices: Motor
Recommend Age: 14+y
Recommend Age: 12+y
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Model Number: GEPRC SPEEDX2 2105.5 2650KV/3450KV Motor
Material: Metal
Four-wheel Drive Attributes: Motors
For Vehicle Type: Helicopters
Certification: FCC
Certification: WEEE
Certification: RoHS
Certification: CE
Brand Name: GEPRC
Summary:

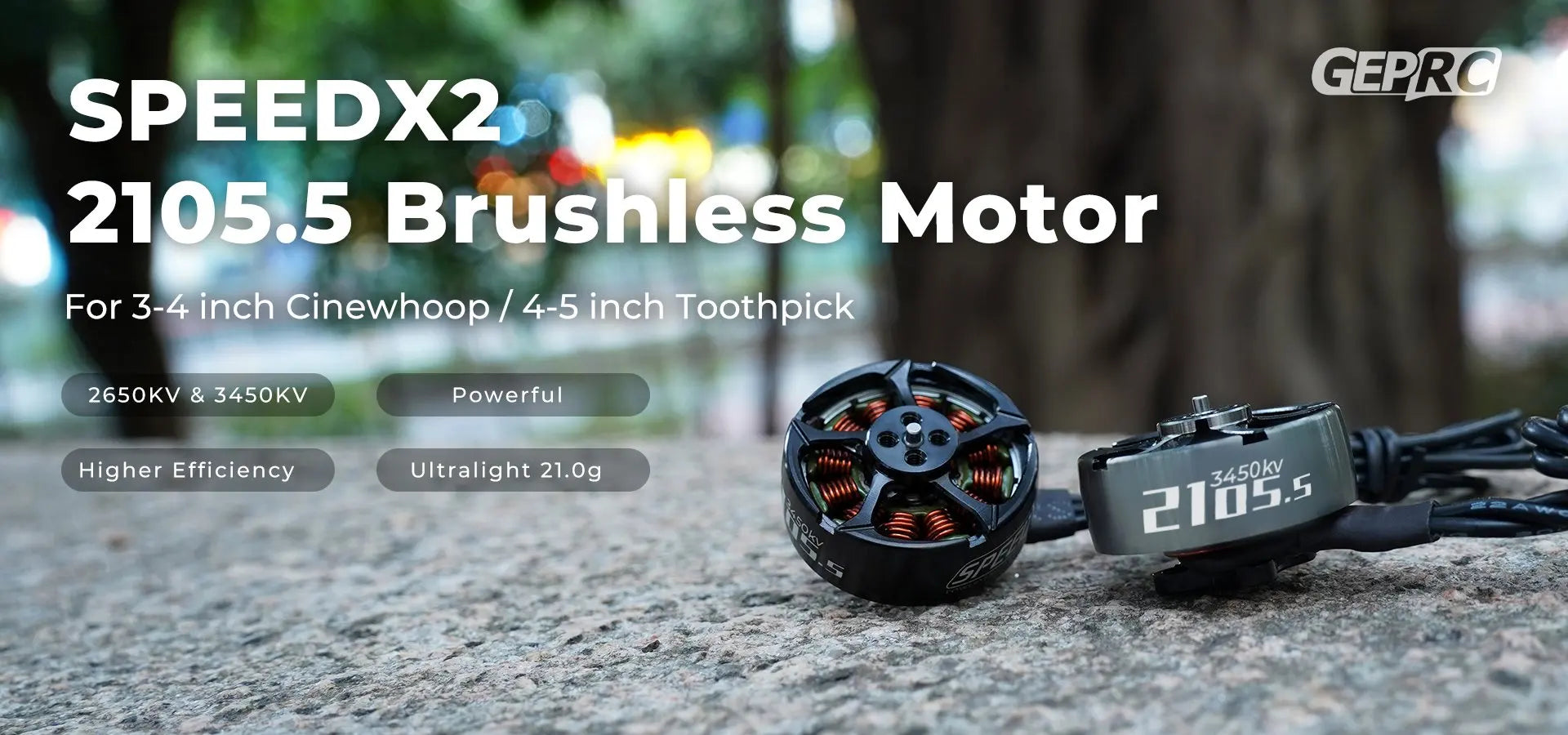

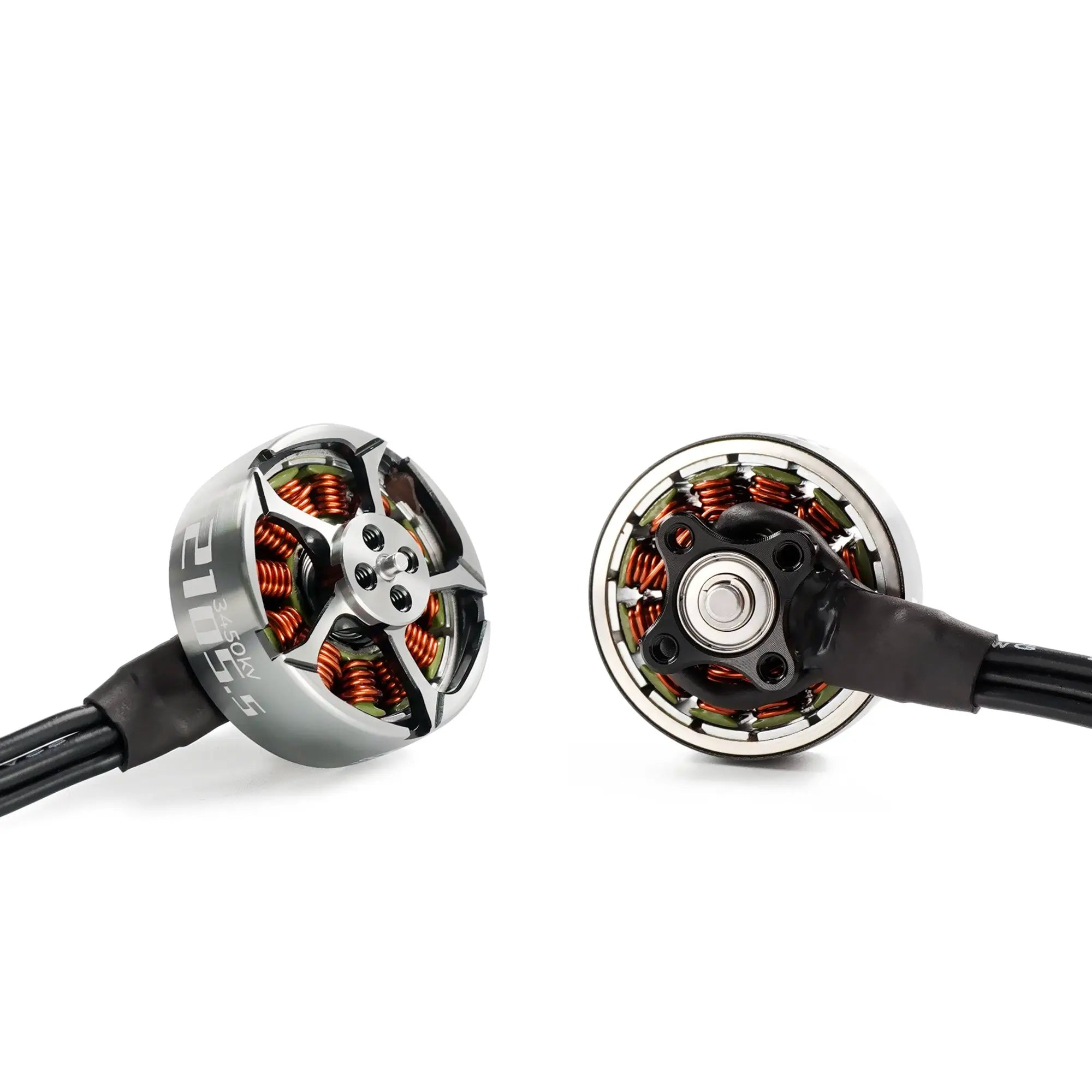

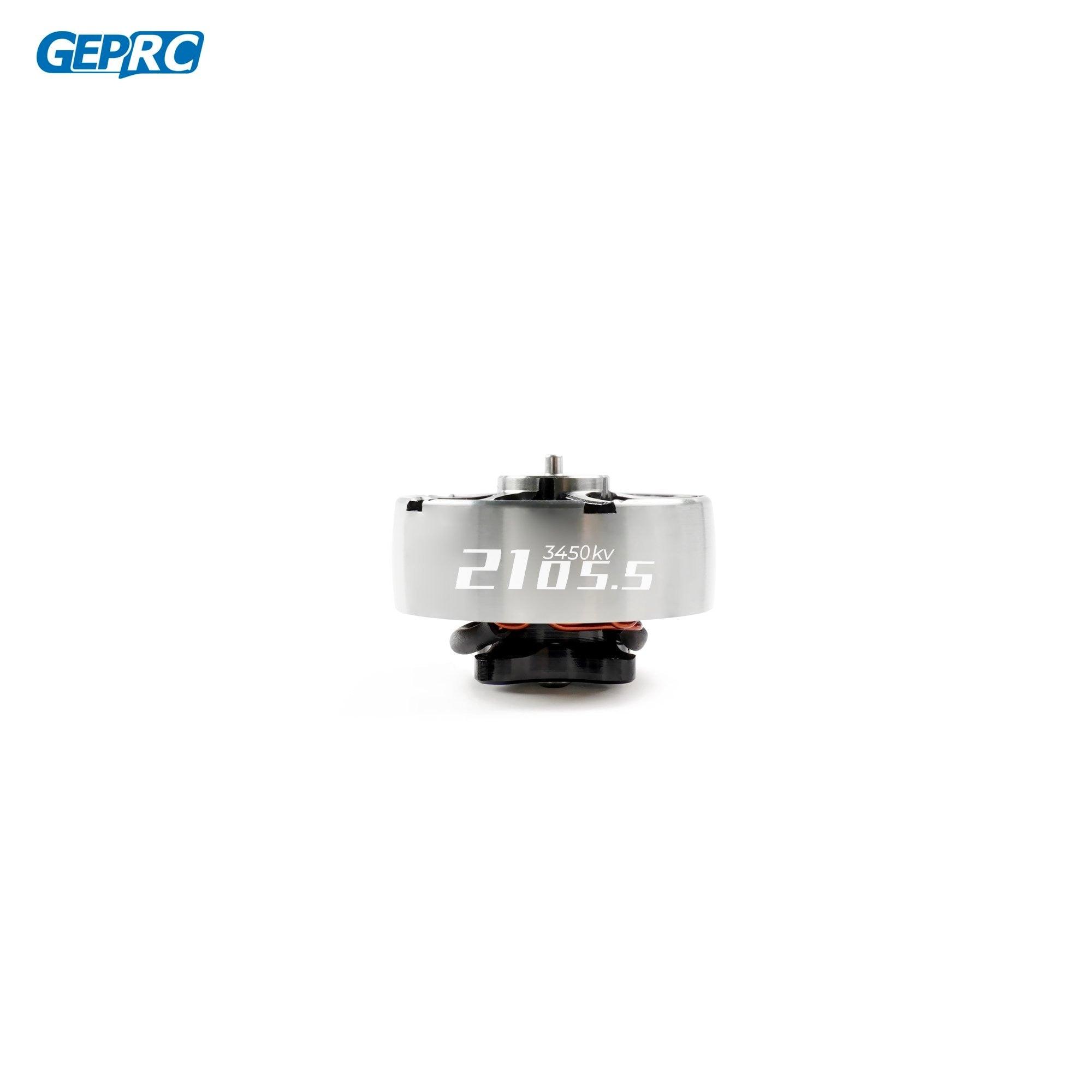

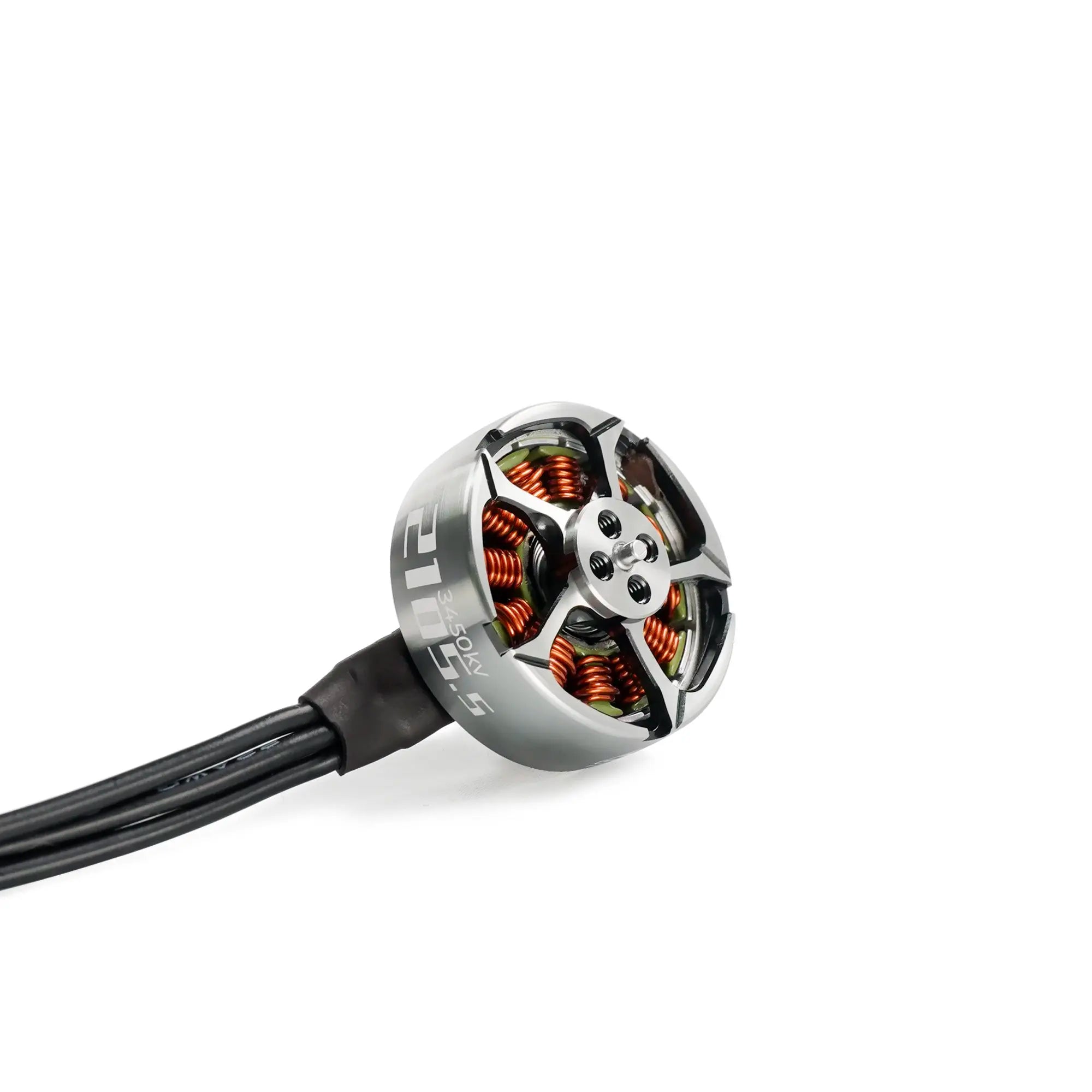

The GEPRC new generation brushless motor SPEEDX2 2105.5 is an exceedingly innovative brushless motor with an avant-garde style and unique design.
The lightweight design greatly reduces the weight, only 21.0g. The flat motor shape with the exquisite “Hollow out” design in the top of the rotor can be used in improving the efficiency of heat dissipation, the advantage is maintaining a lower temperature for the running motor.
Using customized high-quality materials and professional magnetic circuit design,the SPEEDX2 2105.5 motor with good handling and stably aggressive power. Bringing pilots a super smooth flying experience.
In term of high strength structure design, SPEEDX2 2105.5 also has good durability and crash resistance.It’s a ideal motor for every pilot building their own 3-4 inch FPV quads or 4-5 inch long range FPV quads.
We’ve been pursuing a lighter weight, more responsive, more efficient and more powerful brushless motor.
Feature:

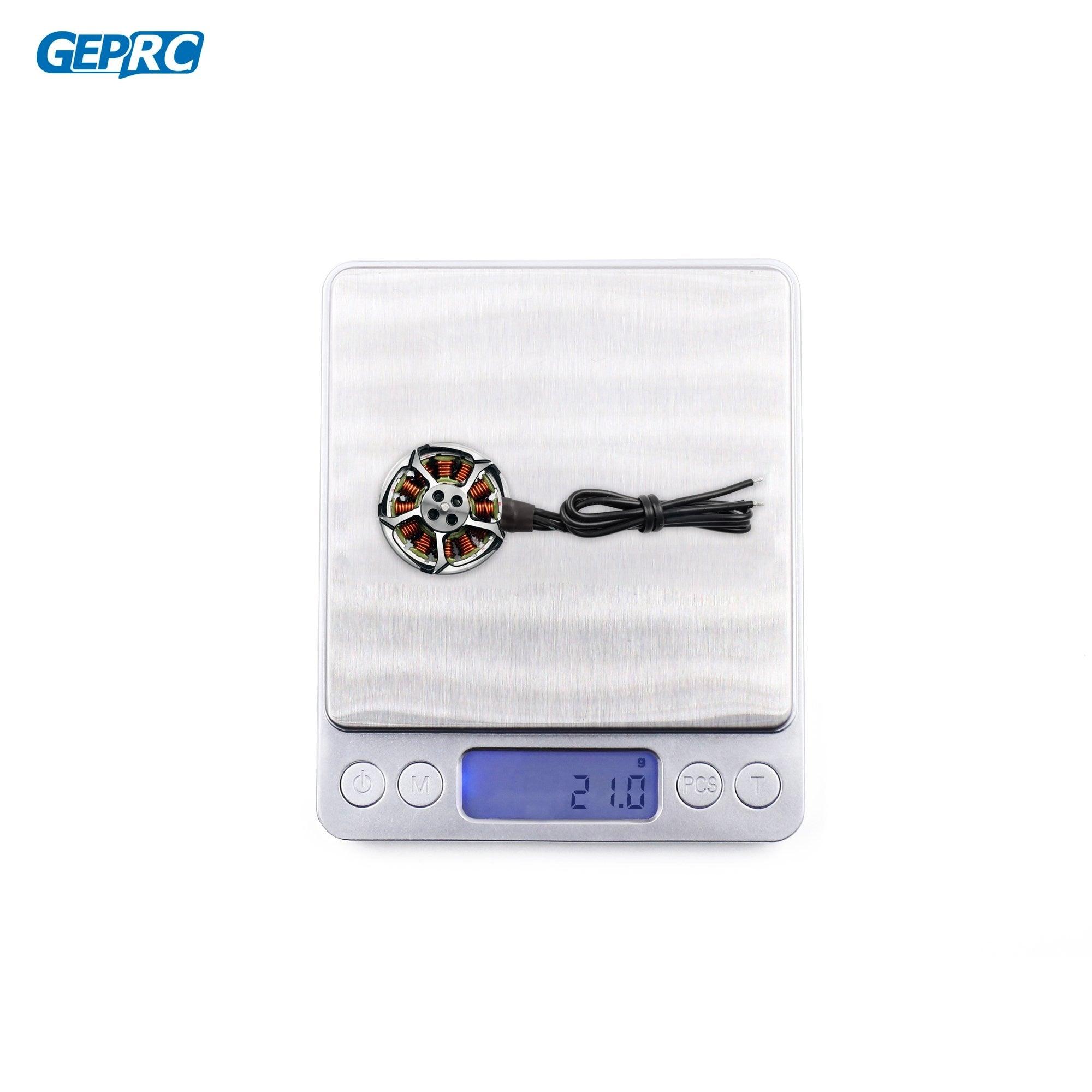

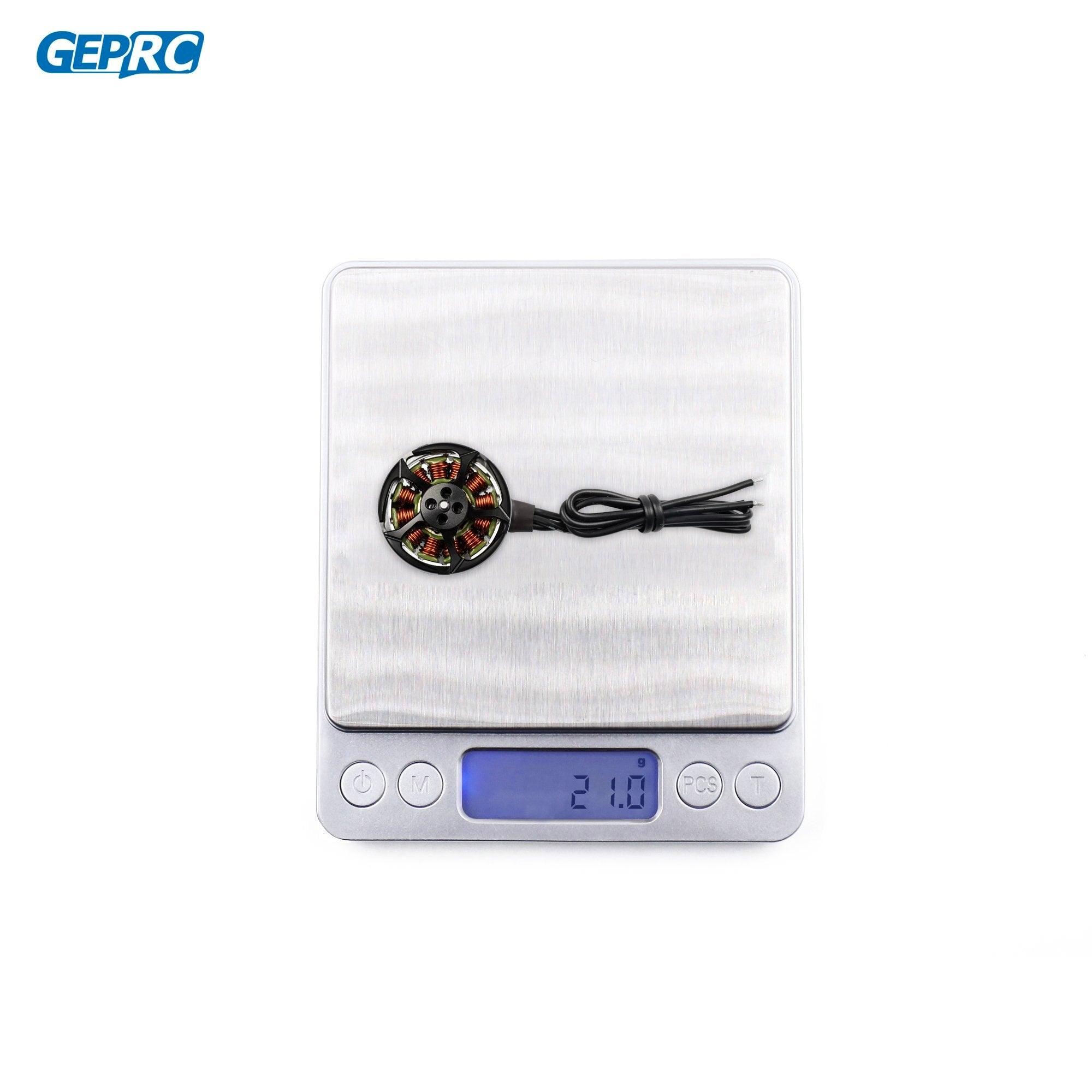

1. Lightweight design, only 21.0g.
2. High-quality arc magnetic steel, professional magnetic field design, strong magnetic force, stable motor power output.
3. The flat design motor is very prominent in Freestyle & Racing. Large motor torque, strong explosive force, and extremely fast response speed.
4. Good handling and stable power output bring a super smooth flying experience.
5.The Exquisite “Hollow out” design in the top of the rotor can be used in improving the efficiency of heat dissipation.
6. High-strength motor structure, good durability and crash resistance.
7.The 1.5mm shaft is quite suitable for most of the conventional 3-5 inch FPV quad propellers on the market.
8.Suitable for 3-4 inch FPV quads and 4-5 inch long range FPV quads.
Specification
Item: SPEEDX2 2105.5-2650KV
KV: 2650KV
Configuration: 12N14P
Magnet: N52H ARC
Stator Diameter: 21mm
Stator Height: 5.5mm
Shaft Diameter: Φ3.0mm(in)Φ1.5(out)

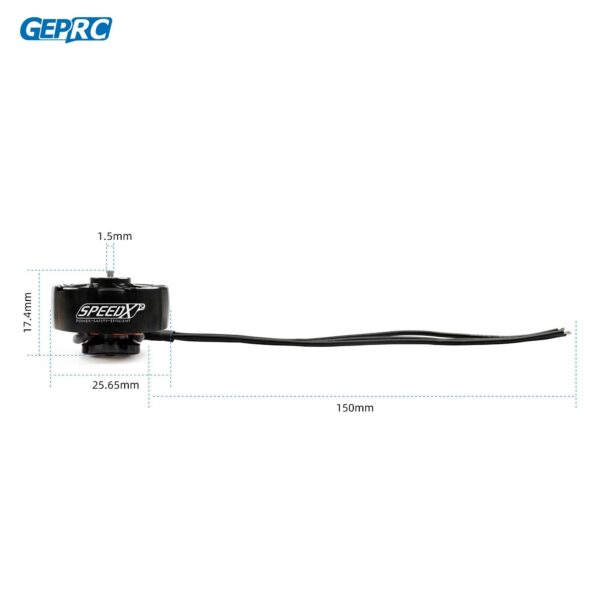

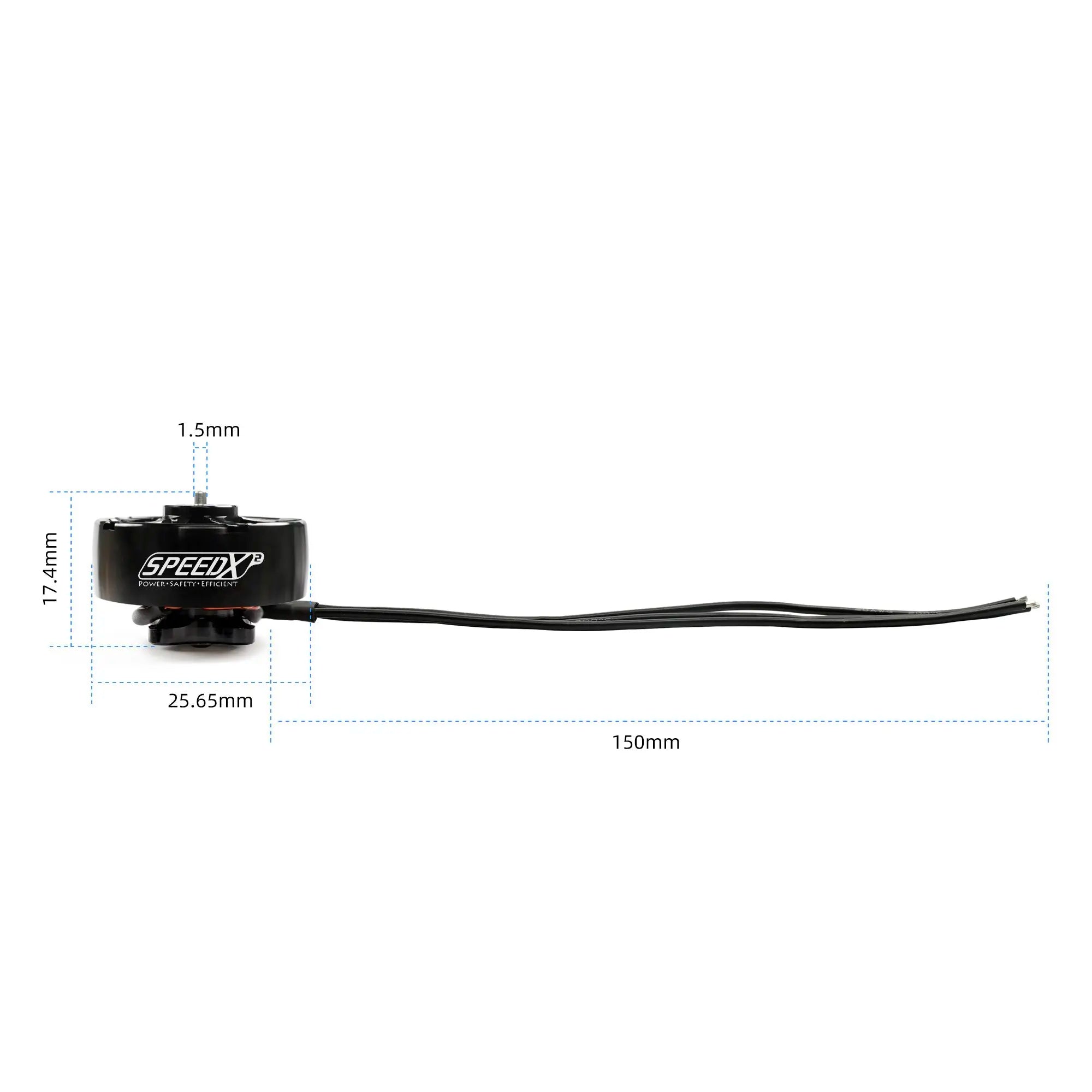

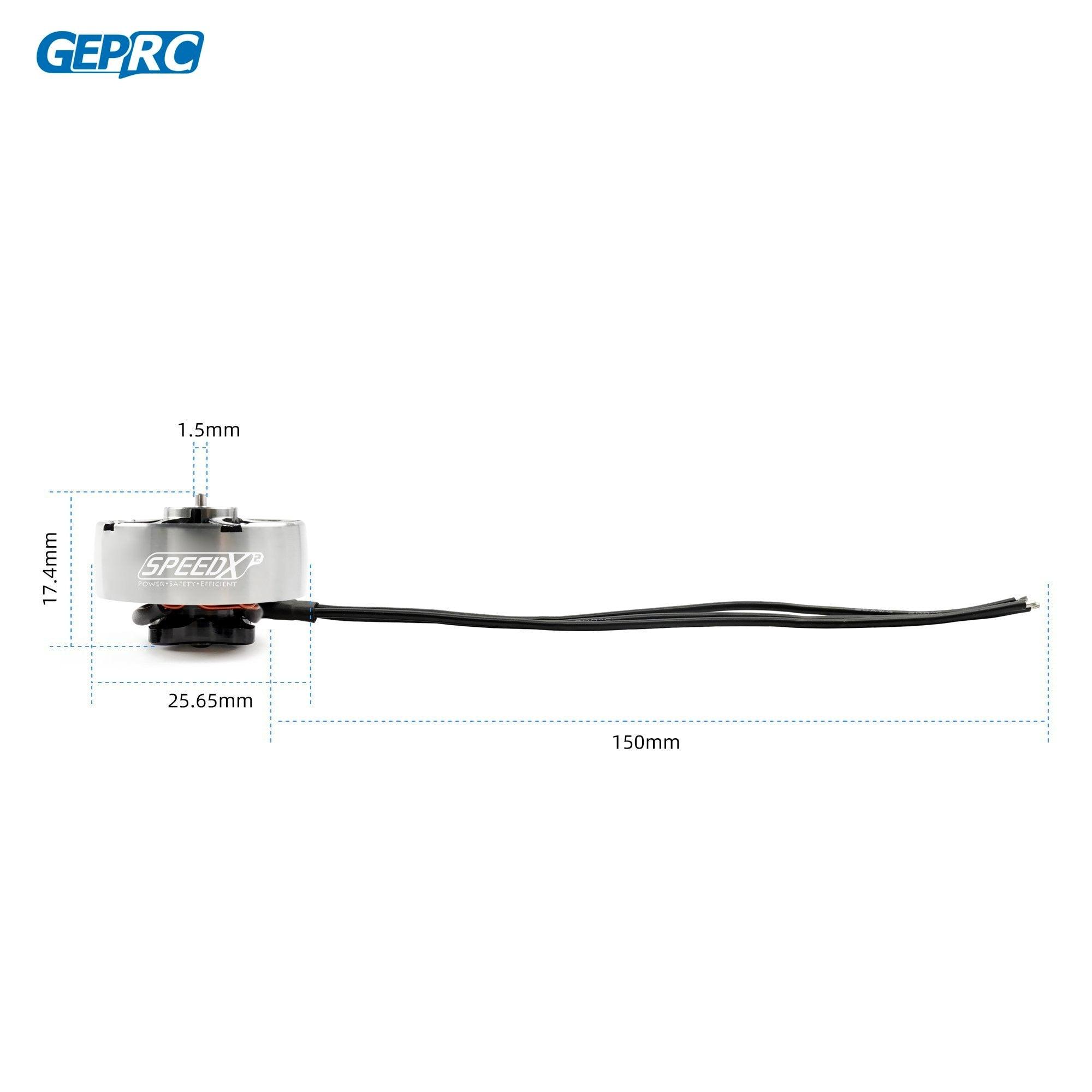

Size: Φ25.65mm*15.7mm
Lead Wires: 22#AWG 150mm
No. of Cells (LiPo) : 3-4S
Max Continuous Power(W) (5S): 559
Max Current (5S) : 34.9A
Mounting Holes:12mm x 12mm(M2 Screw)
Color: Titanium, black
Weight: 21.0 g

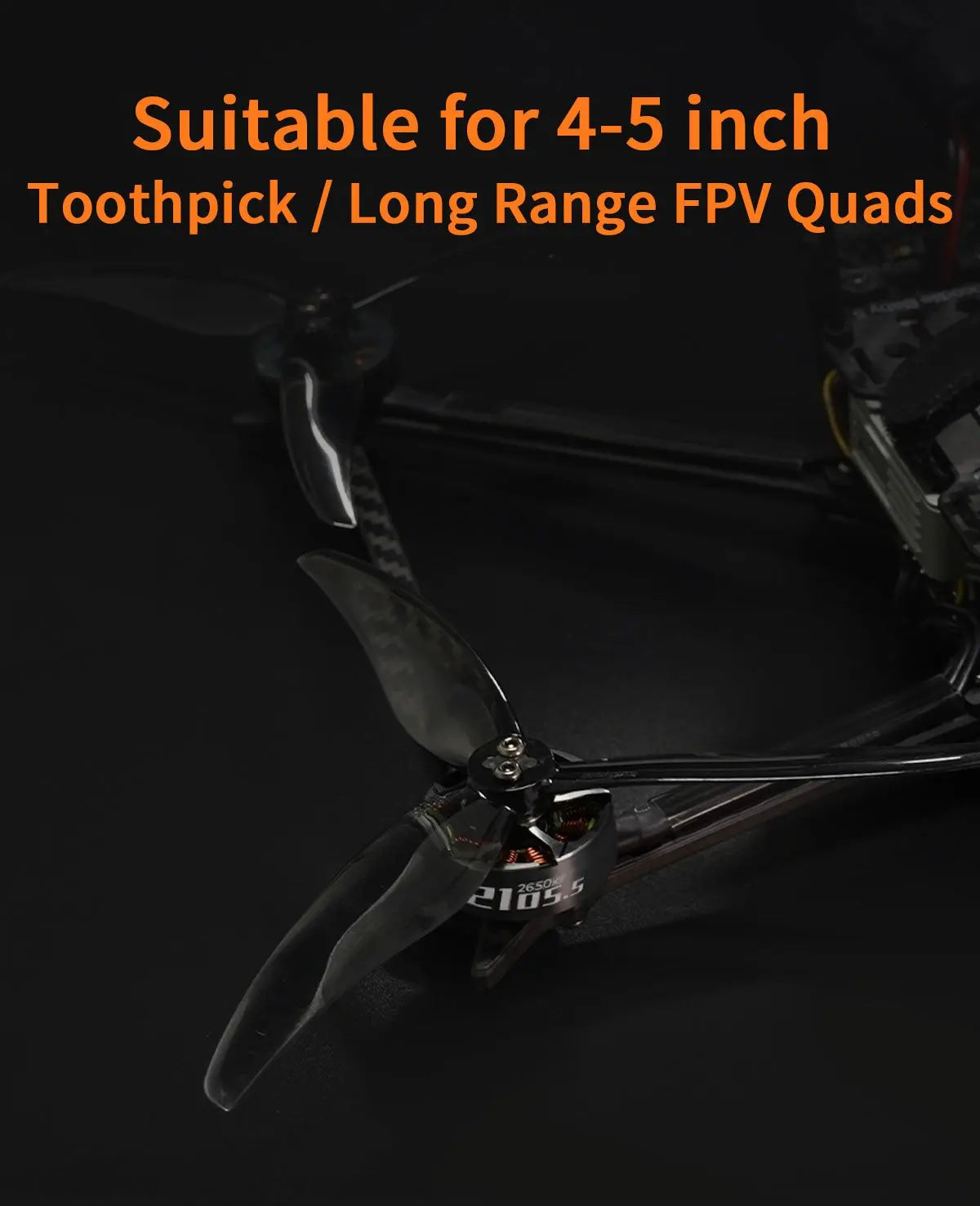

Suitable Quadcopter:3-4”whoop FPV, 4-5″Toothpick & Long Range FPV
Item: SPEEDX2 2105.5-3450KV

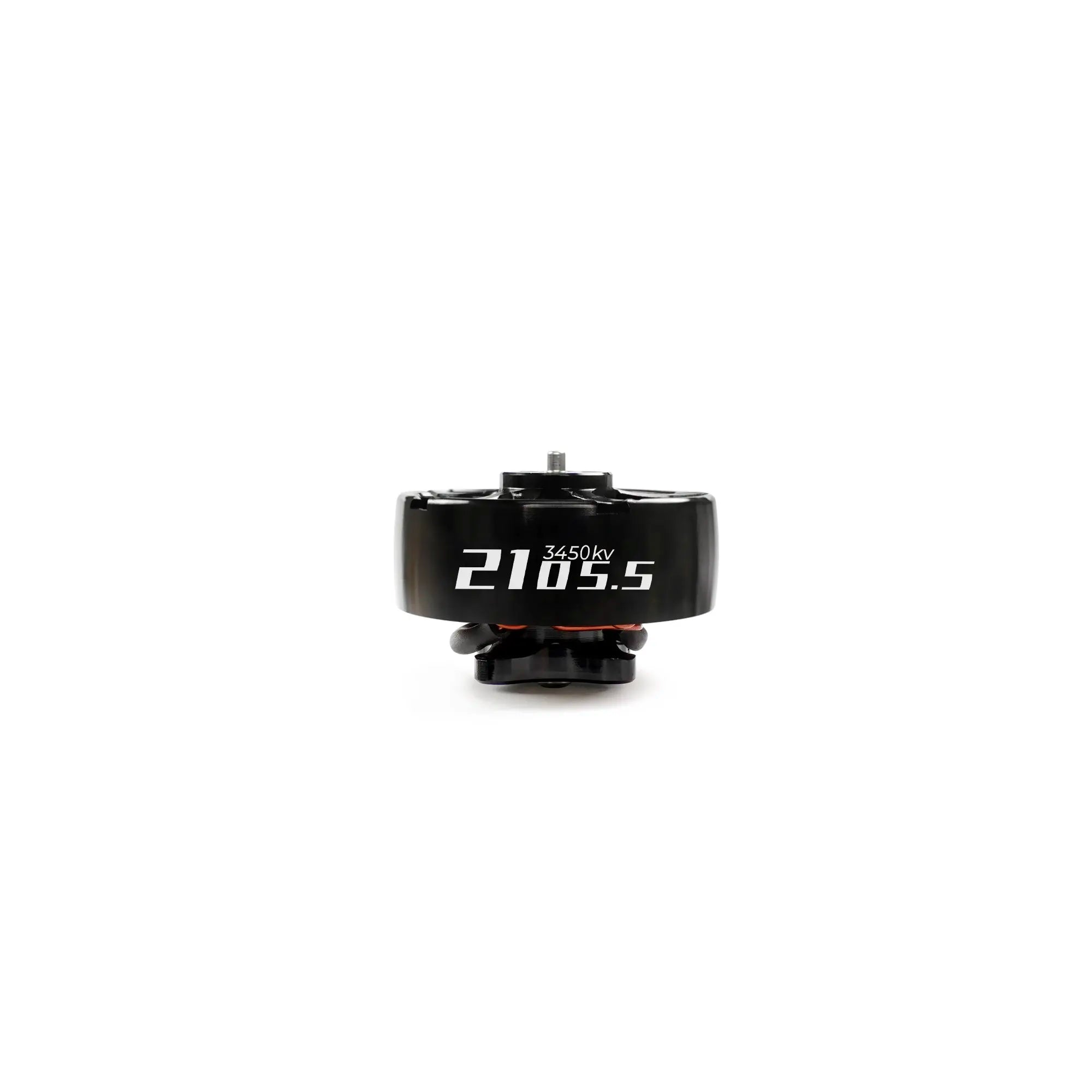

KV: 3450KV
Configuration: 12N14P
Magnet: N52H ARC
Stator Diameter: 21mm
Stator Height: 5.5mm
Shaft Diameter: Φ3.0mm(in)Φ1.5(out)
Size: Φ25.65mm*15.7mm
Lead Wires: 22#AWG 150mm
No. of Cells (LiPo) : 3-4S
Max Continuous Power(W) : 558
Max Current (A) : 34.9A
Mounting Holes:12mm x 12mm(M2 Screw)
Color: Titanium, black
Weight: 21.0 g
Suitable Quadcopter:3-4”whoop FPV, 4-5″Toothpick & Long Range FPV
Include:
1 x SPEEDX2 2105.5 Motor
5 x M2*6mm Screw
5 x M2*7mm Screw

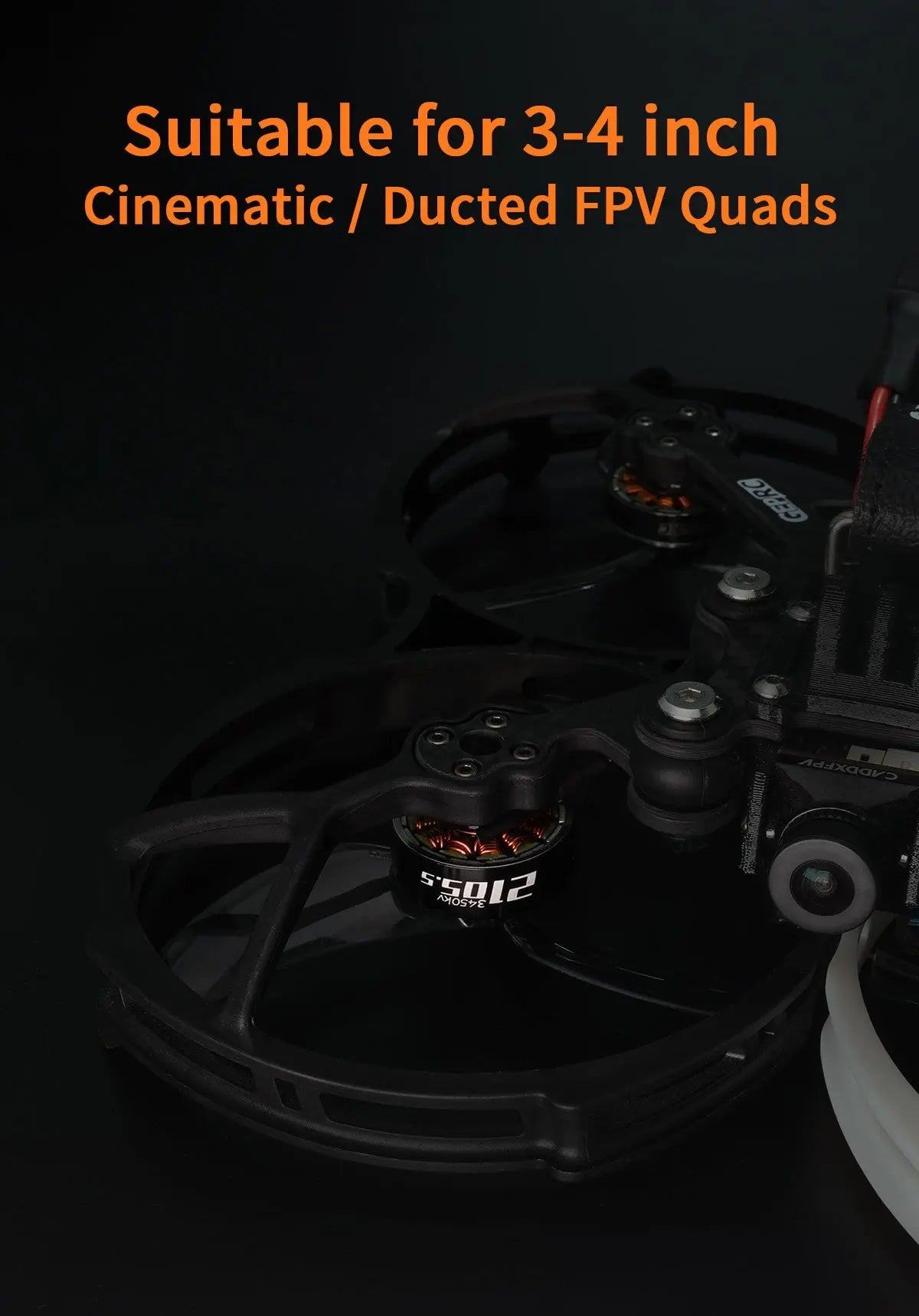

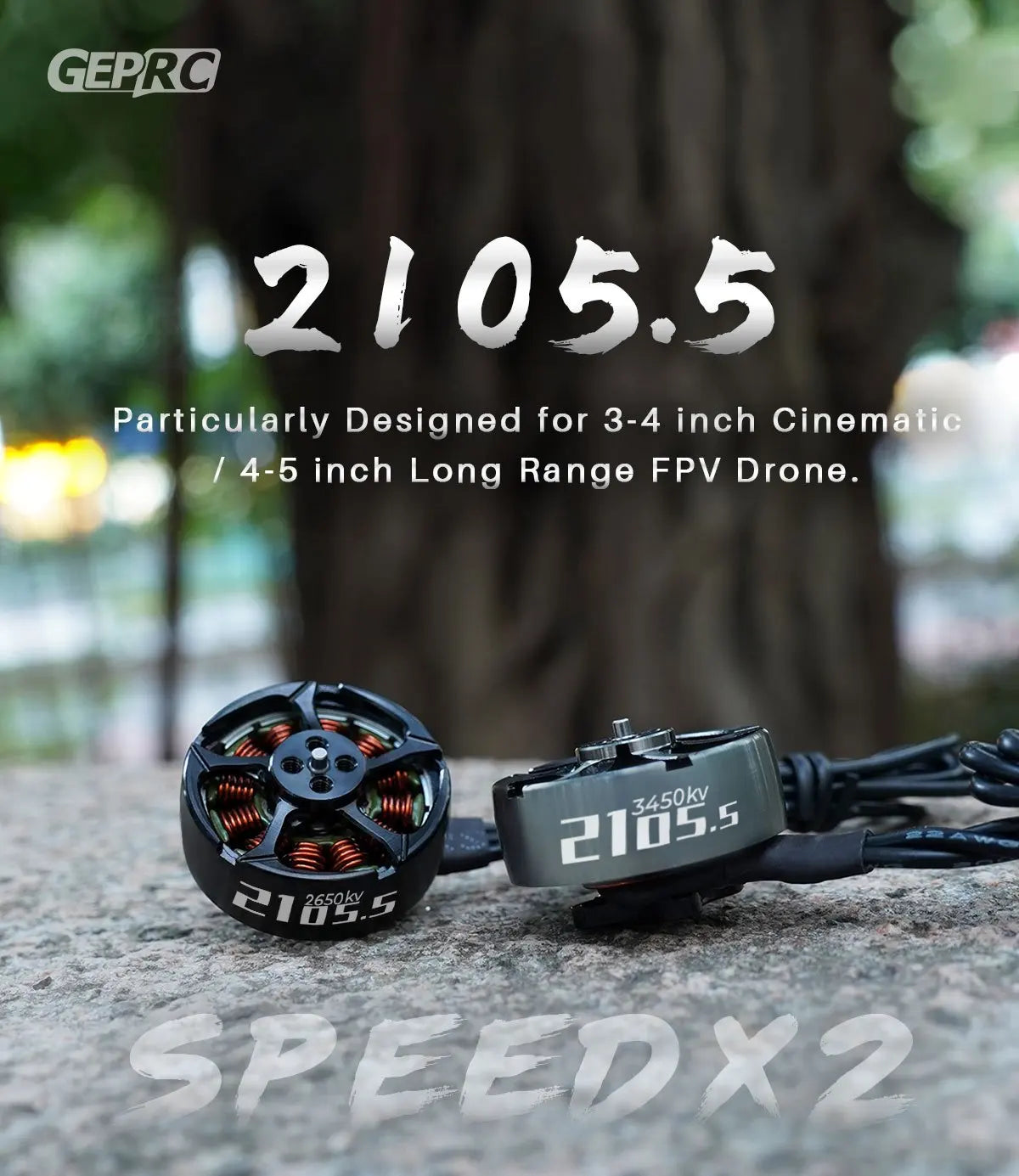

Particularly designed for 3-4 inch cinematic or 4-5 inch long-range drones.
Featuring an ultra-lightweight integrated 7075 rotor, hollow titanium alloy shaft, and weighing only 21 grams, this motor offers exceptional performance.

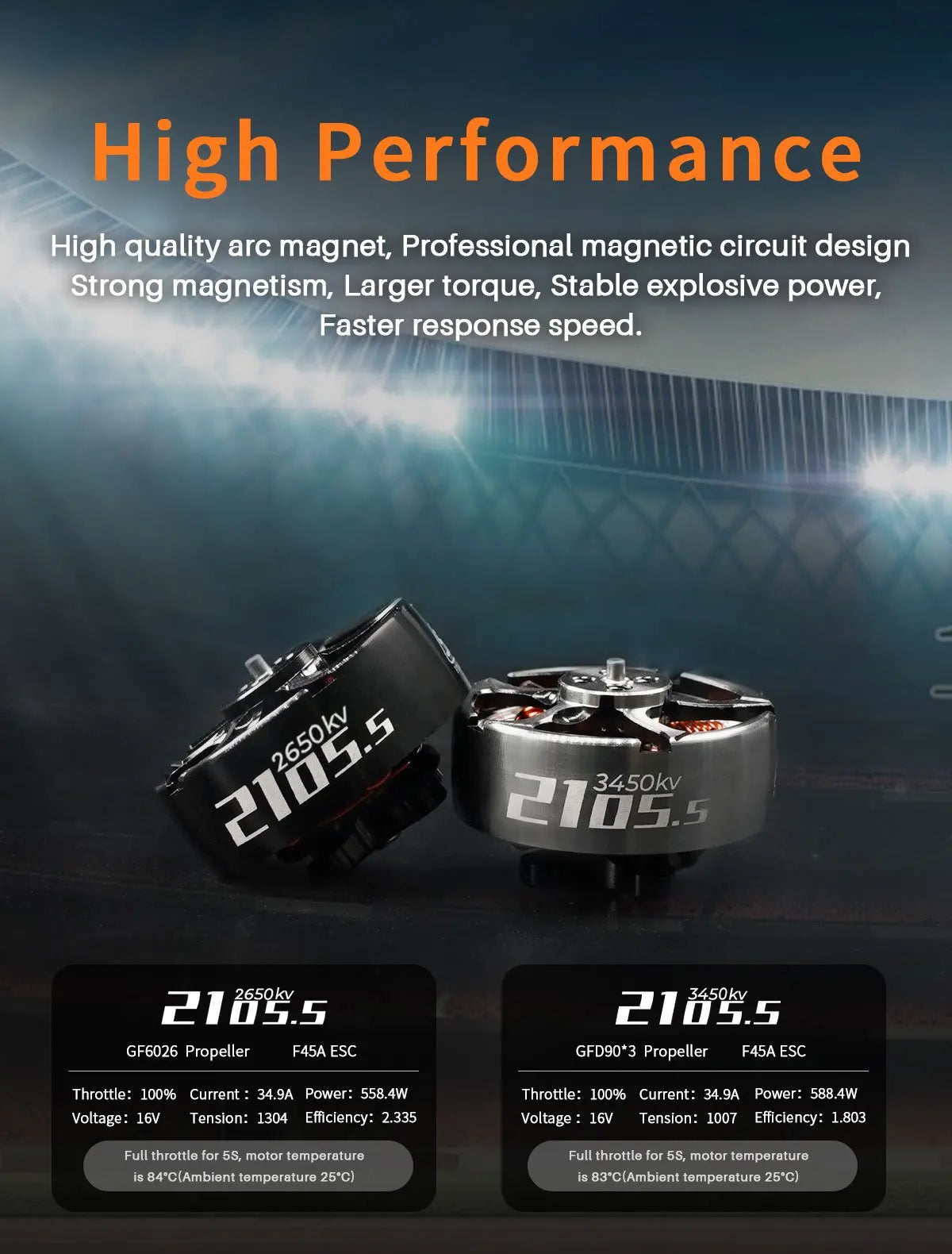

Boasting high-performance and high-quality arc magnets, this motor features a professional magnetic circuit design that provides strong magnetism, resulting in larger torque, stable explosive power, and faster response speed.

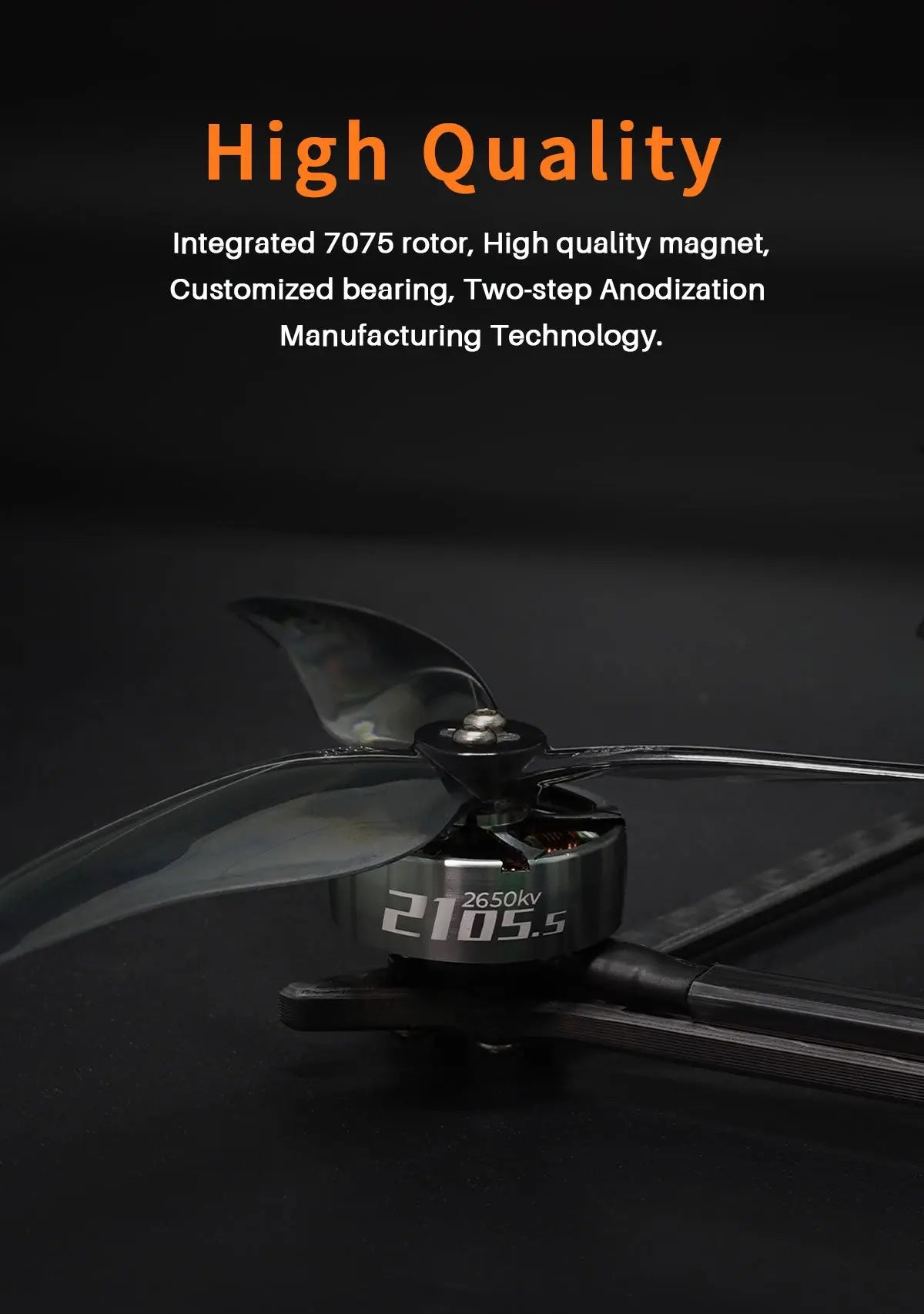

This motor features a high-quality integrated 7075 rotor, paired with a high-quality magnet and customized bearings. Additionally, it utilizes a two-step anodization manufacturing technology for exceptional performance.
Designed with high efficiency in mind, this motor features a flat-body design with a large-area hollow structure that enables excellent heat dissipation.

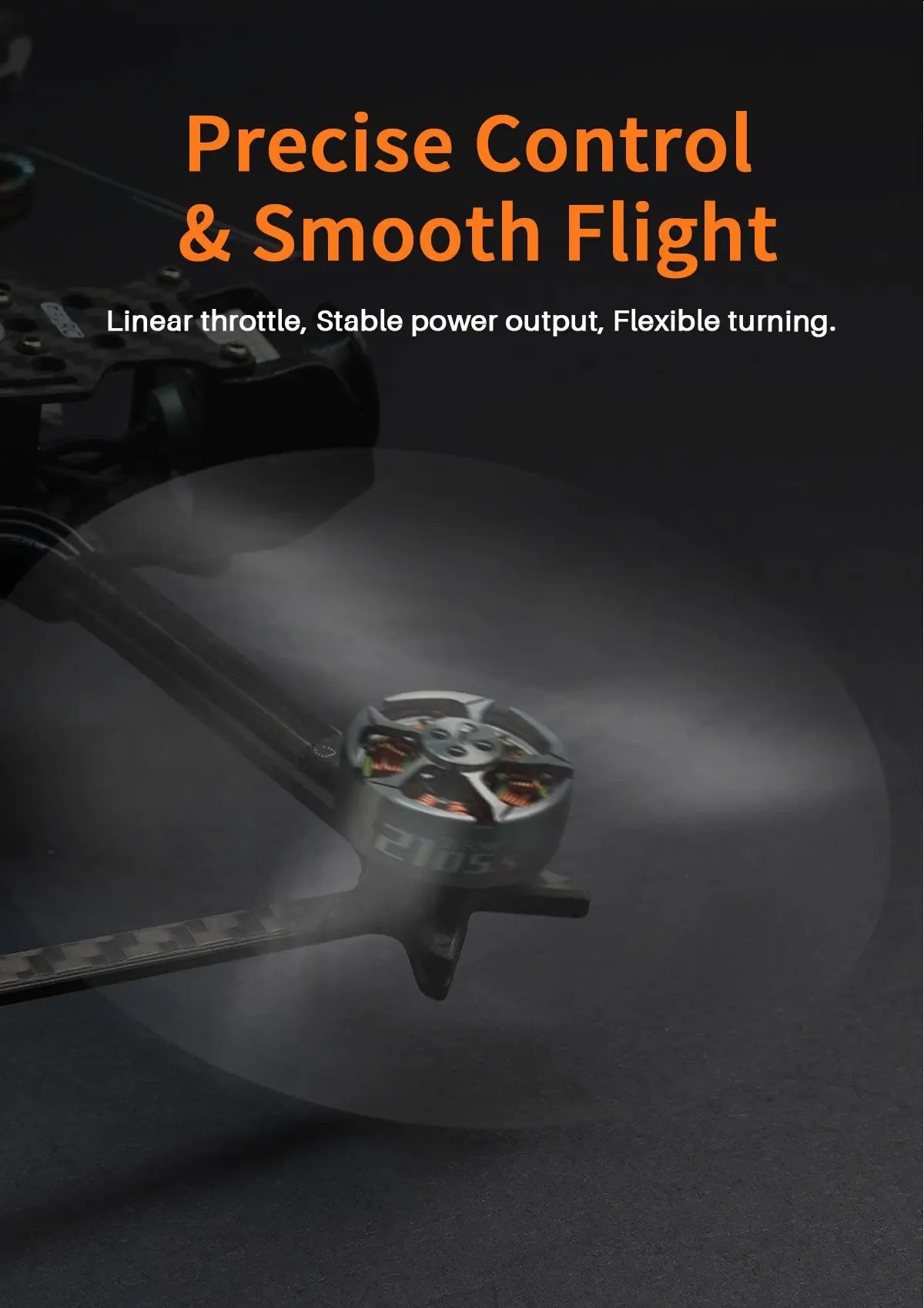

Offering precise control and smooth flight performance, this motor features a linear throttle response, stable power output, and flexible turning capabilities.

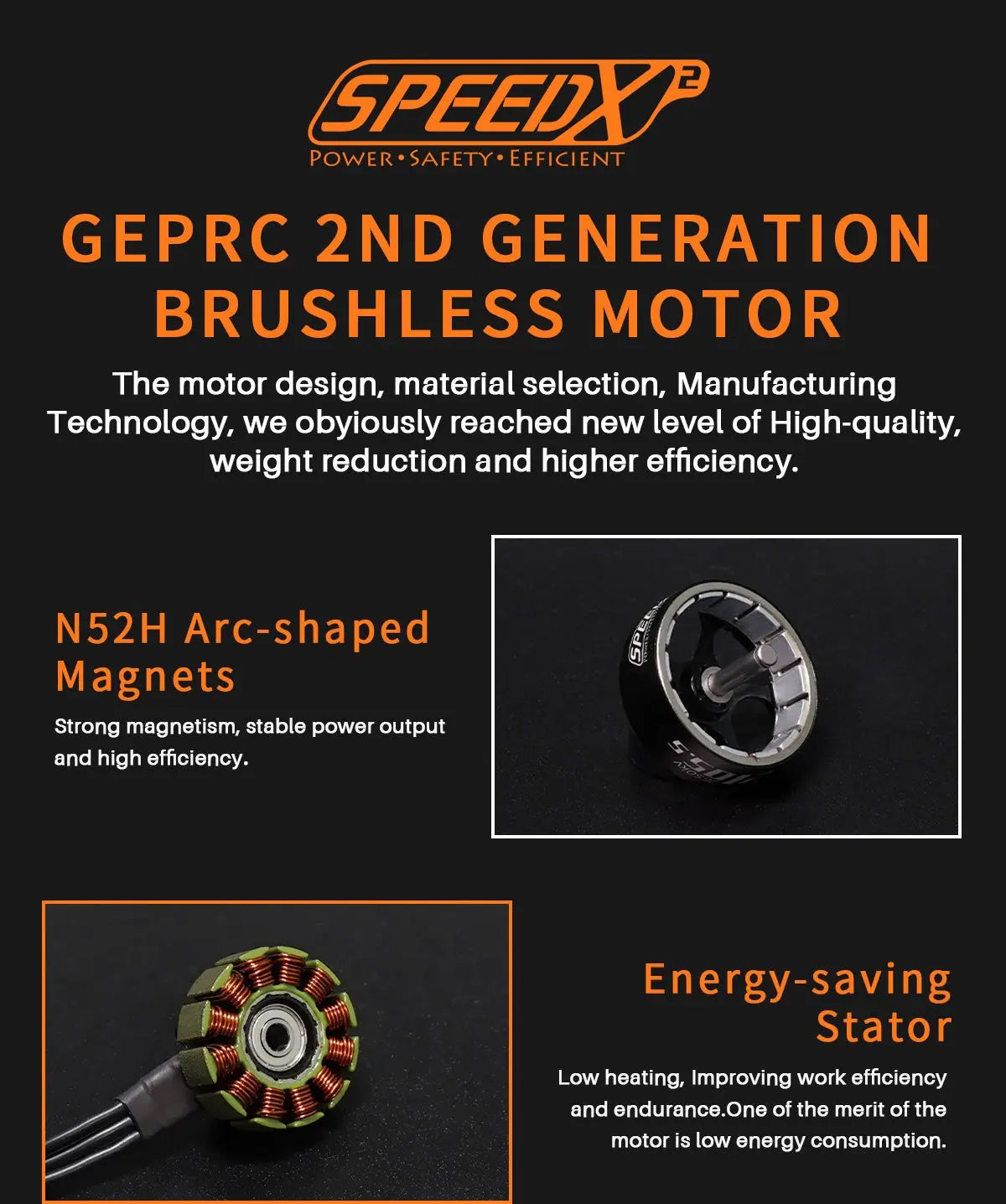

Introducing the 2nd generation brushless motor from GEPRC, designed for high-quality performance, weight reduction, and increased efficiency. This motor features N52H arc-shaped magnets that provide strong magnetism, stable power output, and high efficiency, resulting in energy-saving operation and low heating. Additionally, the stator design improves work efficiency and endurance.

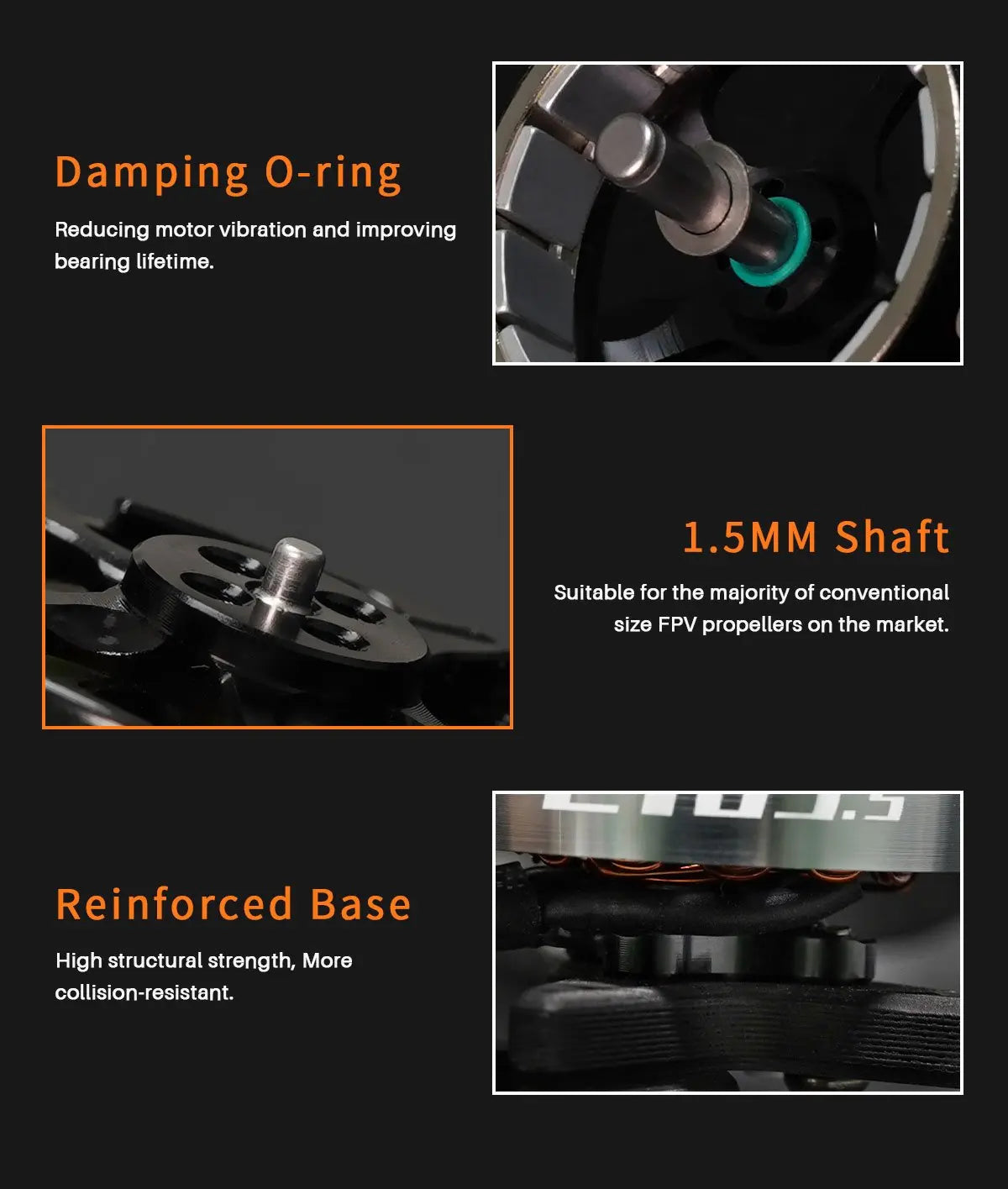

This motor features a robust 1.5mm shaft, suitable for the majority of conventional size FPV propellers. Additionally, the reinforced base provides high structural strength and increased resistance to collisions.

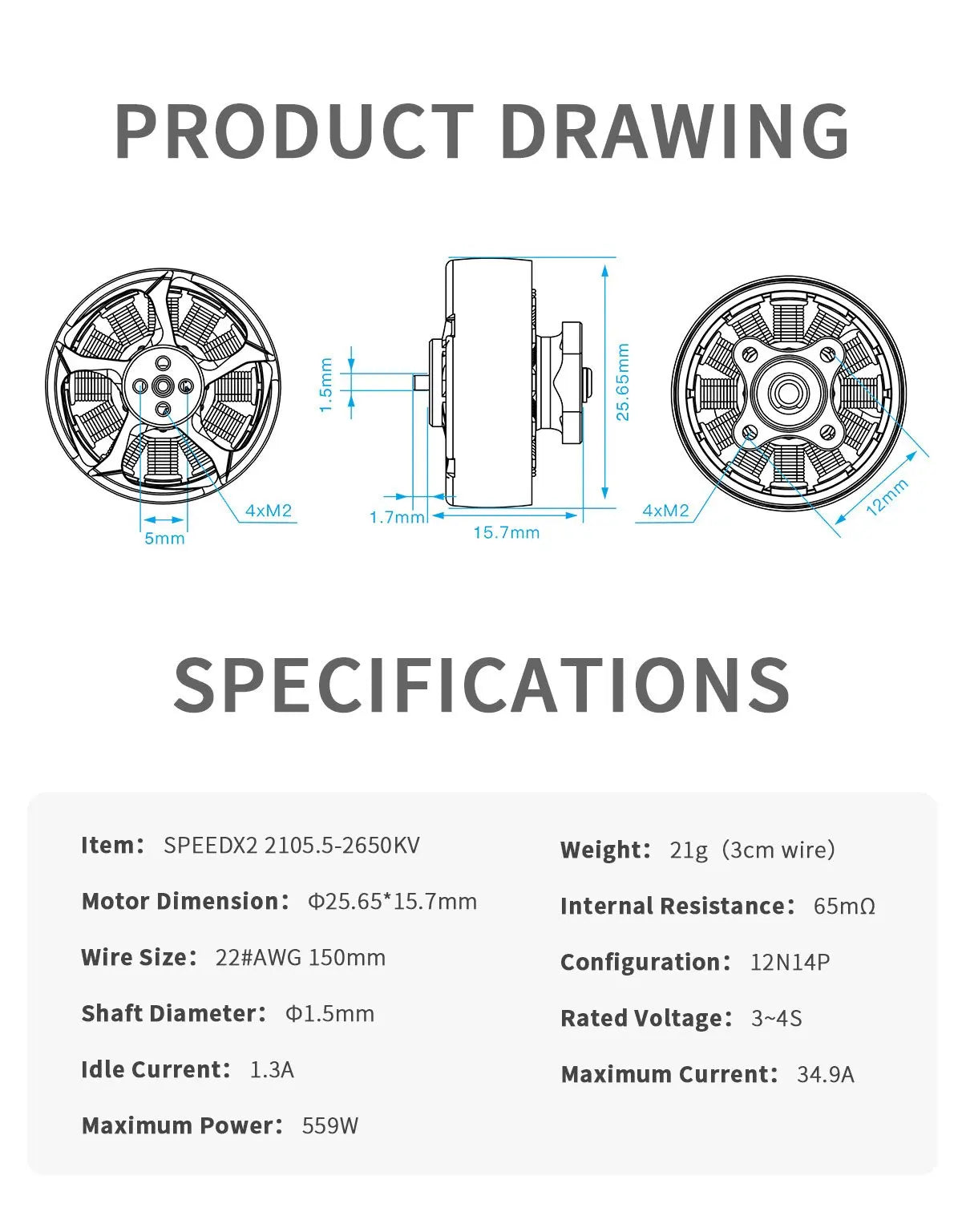

The GEPRC SPEEDX2 2105.5-2650KV motor specifications are as follows: weight, 21g (with a 3cm wire); internal resistance, 65mΩ; wire size, 22#AWG; and configuration, 12N14P. The shaft diameter is 1.5mm, with a rated voltage of 345V and an idle current of 1.3A. Maximum current is 34.9A, with a maximum power output of 5591 watts. The motor dimensions are approximately 25.65mm x 15.7mm.
