Futaba PS-10 Micro Digital Air Servo. Constructed using high quality components the PS-10 micro servo is ideal for elevator control on small electric powered aircraft. Weighing in at only 9g this is an excellent servo option for your next micro aircraft build.

Specifications:

• Dimensions: 21.5×11.5×26.5mm
• Weight: 9g
• Speed: 0.10s/60°
• Torque: 1.2 kg/cm @ 5v

Includes:

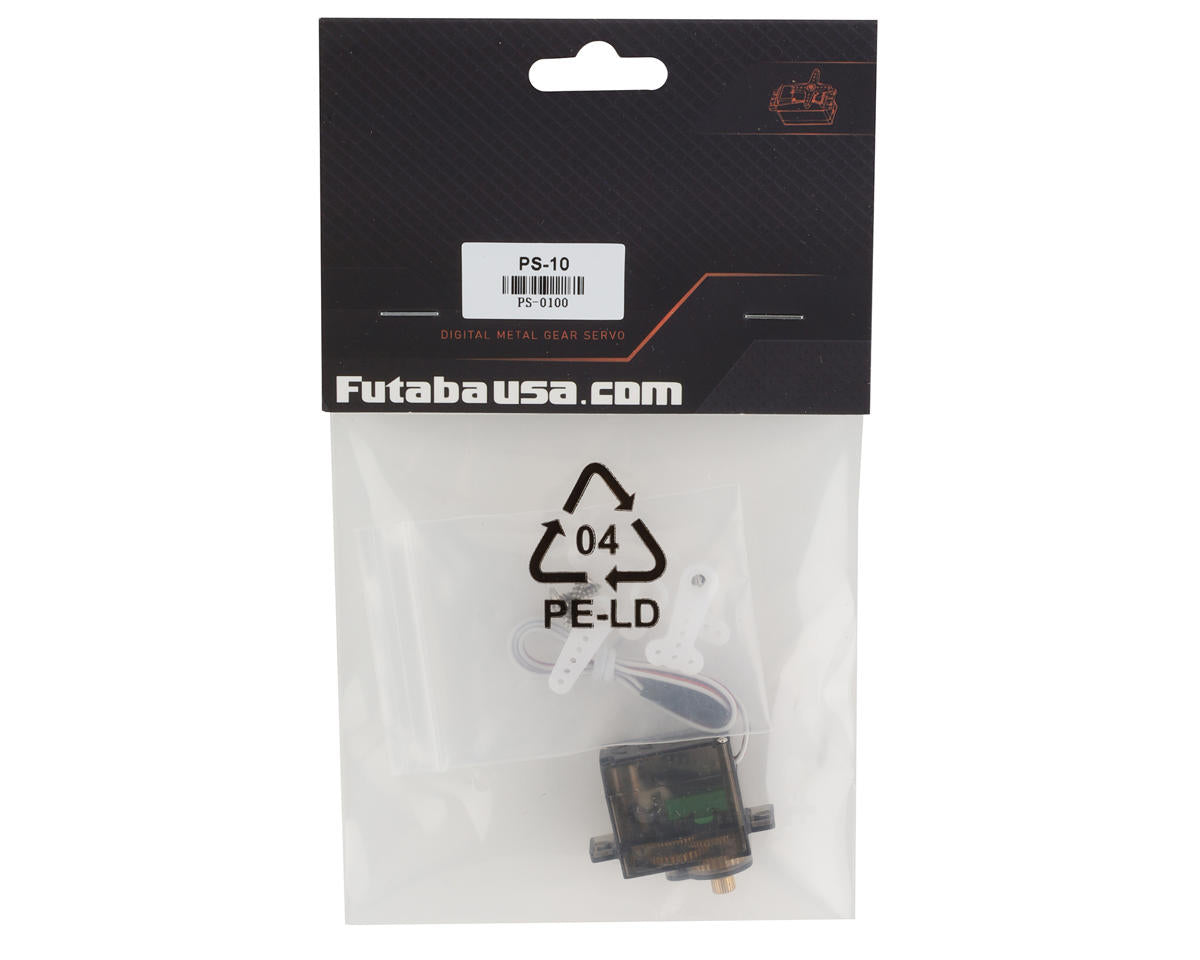

• (1) PS-10 Micro Digital Air Servo (Elevator)

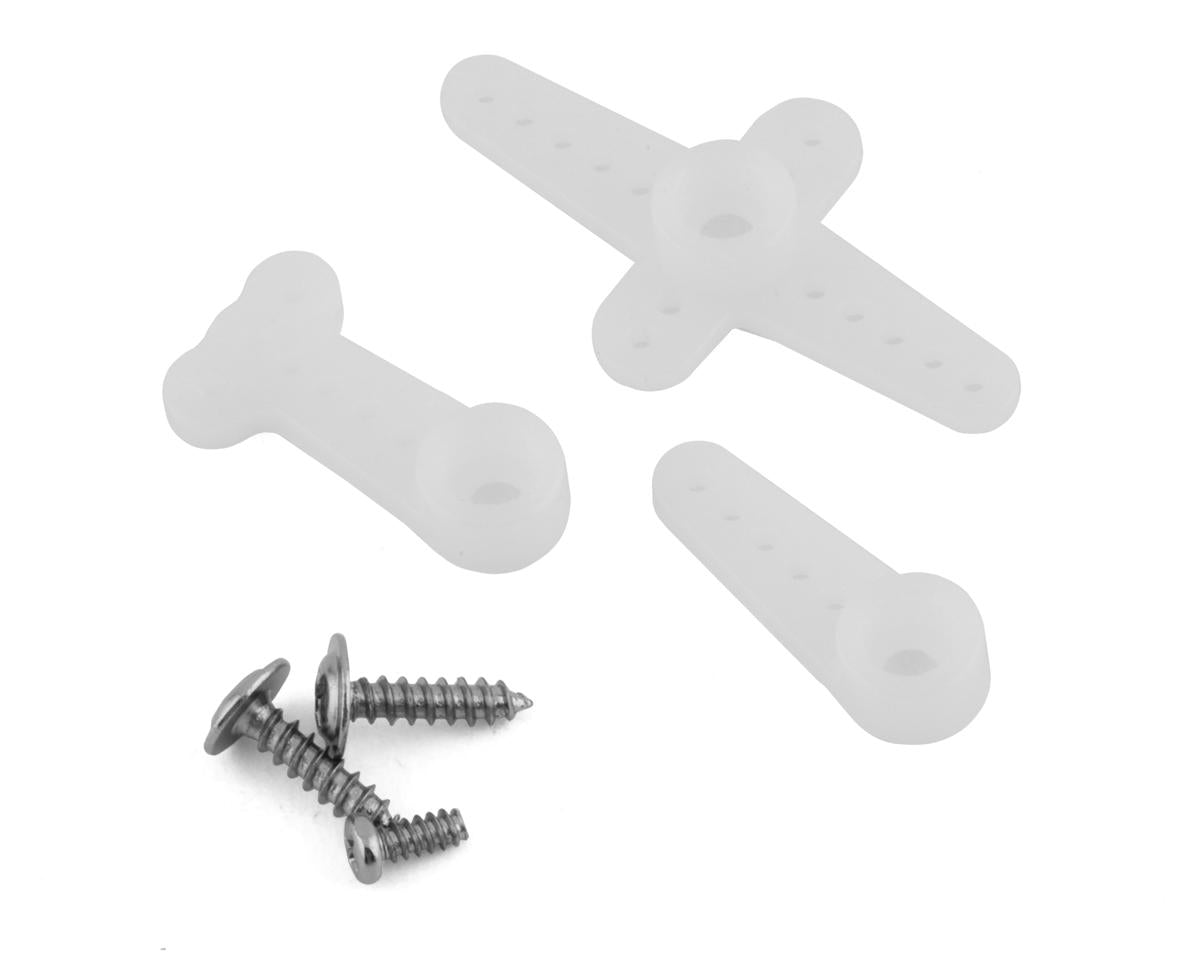

• Assorted Servo Horns
• Mounting Hardware

Description

PS-10 – Micro Digital Air Servo

For Small Electric Powered Models (PS-0100)

SPEED: 0.10s./60°

TORQUE: 1.2 kgf.cm at 5v

SIZE: 21.5× 11.5× 26.5mm

WEIGHT: 9g

Accessory pack w/included servo horns not shown.

The PS-10 servo is a micro servo for profile series models. Pay special attention to the following points:

• Do not use with gas powered engine models or other models that require high torque.
• Using supply voltage higher than 6.0V or applying high loads to the servo will shorten the life.
• Always use the servo horn specifically designed for this micro servo. Do not use conventional servo horns.
• Excessive force or shock to the servo horn may damage the ultra mini precision gears inside the servo.
