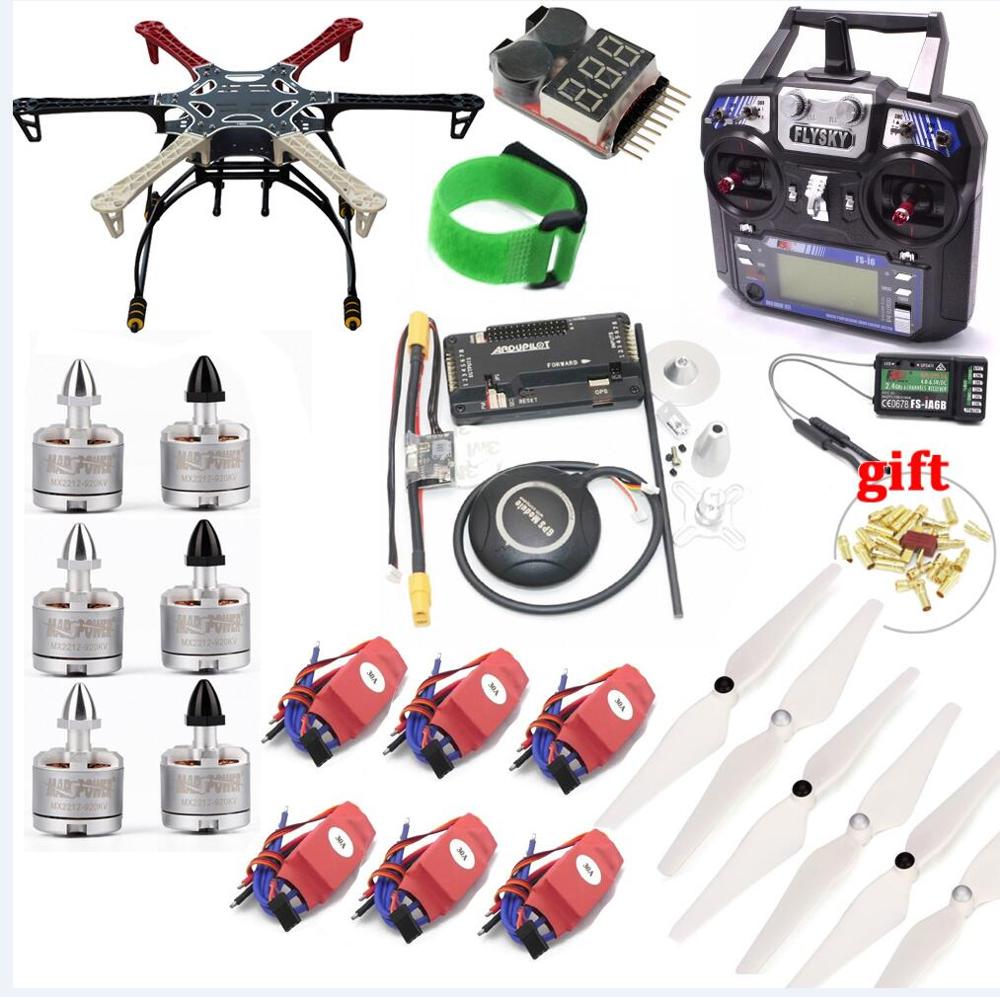

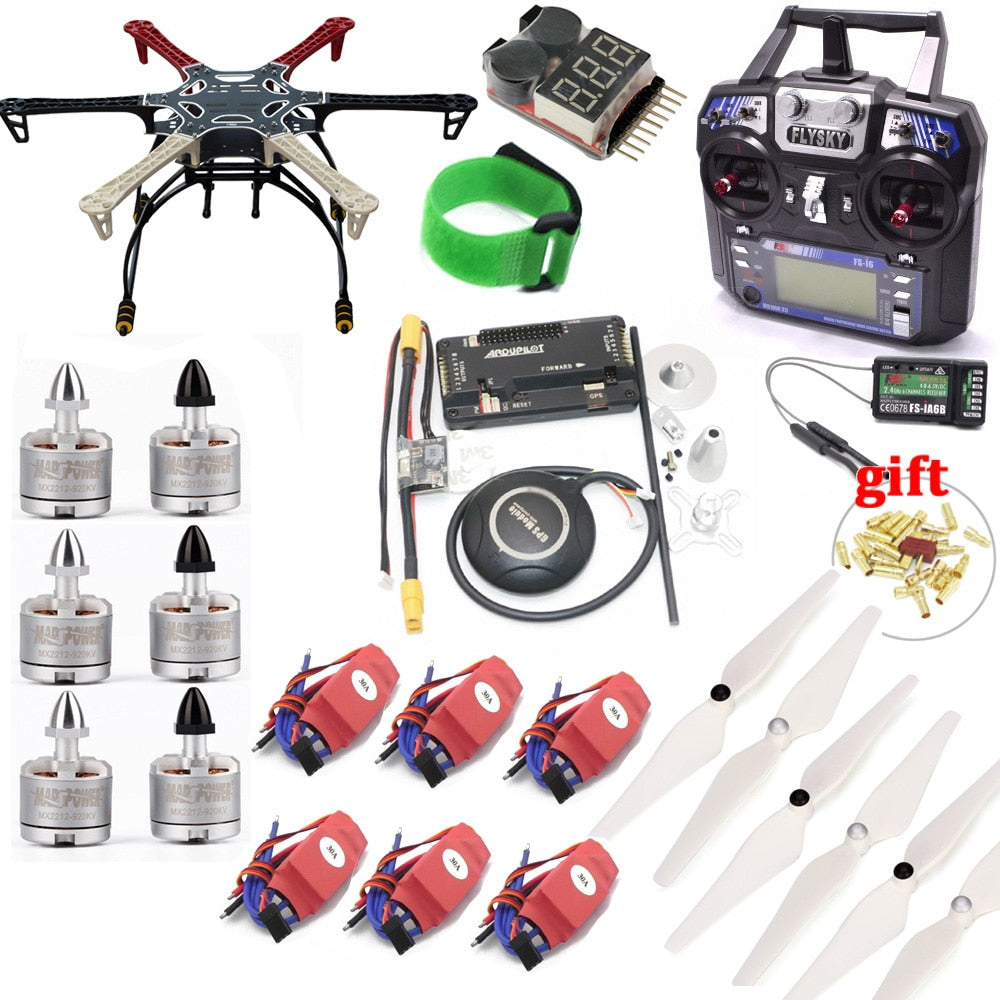

F550 Frame Kit Quadcopter with APM2.8 Controller board SPECIFICATIONS

Weight: F450 Frame

Size: KKComb012

Package: No

Origin: Mainland China

Model Number: THA005800+H363+I403+G597

Compatible Drone Model: other

Compatible Drone Brand: DJI

Brand Name: underrow

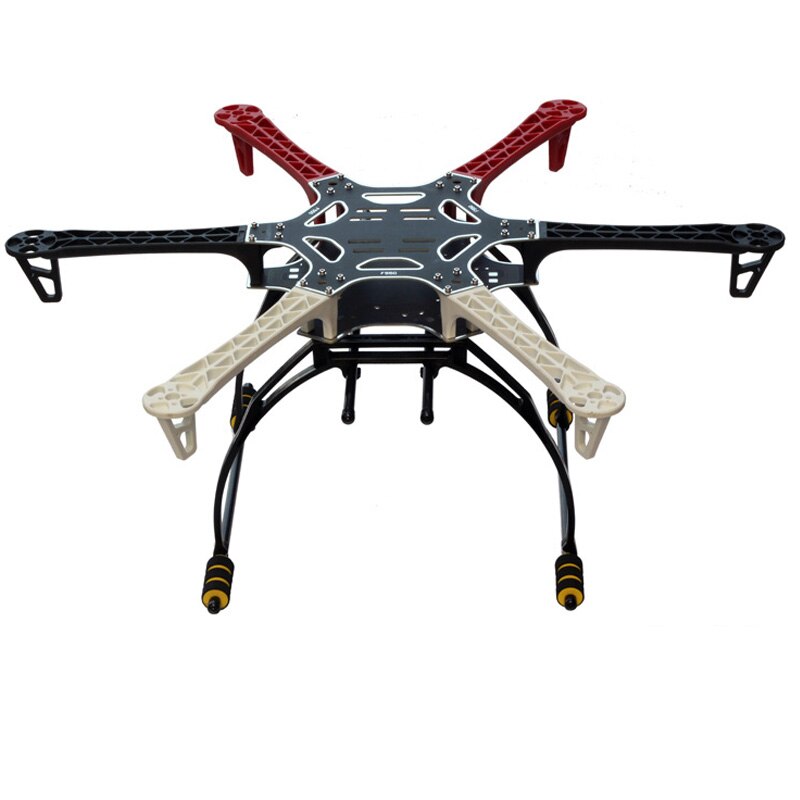

Built from quality glass fiber and polyamide nylon.
Integrated PCB connections for direct soldering of your ESCs
Pre-threaded brass sleeves for all of the frame bolts.
Colored arms for orientation to keep you flying in the right direction.
Large mounting tabs on main frame bottom plate for easy camera mounting.
Easy assembly.

Specs:
Width: 450mm
Height: 55mm
Weight: 280g (w/out electronics)
Motor Mount Bolt Holes: 16/19mm
G.Weight: 395g

Wheelbase: 17.7in/450mm
Net weight: 272g

APM V2.8.0 description:
– This version eliminates the 1.0mm 6P SM06B GPS interface of V2.52 old version, and change it into DF13-4P I2C external compass interface.
– Put DF13-5P GPS interface with external compass interface, convenient for the connection of GPS and externalcompass.
– V2.52 I2C interface changes to multifunctional MUX interface
– Modified version added isolation resistor, when the OSD interface used with telemetry, the interfaces is effectively avoided
– V2.52 version 3.5V power supply adopts IPS79133, 6V withstand voltage, output current 100mA, need to supply power for six IC, slightly inadequate power supply ability, easy to be burnt dwon. The new version adopts US LP2985-3.3, 16V withstand voltage, more reliable, redcucing the possibility of Bad Gyro health

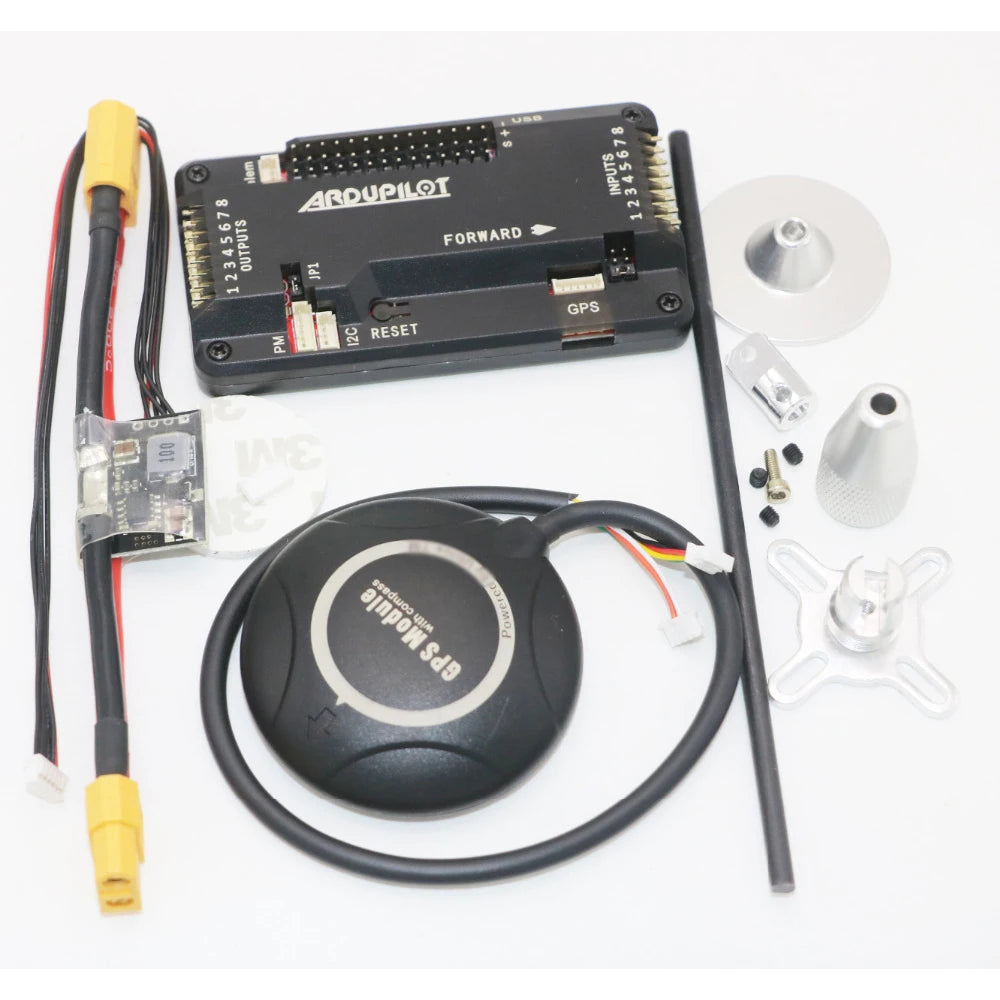

APM V2.8.0 Flight Controller
– Needle: staight
– Power supply: LP2985-3.3
– Max voltage: 16V
– Add a 47uF tantalum capacitor
– Port: MUX (UART0, UART2, mnnI2 and OSD are optional, OSD is the defaulted output)
Jumper cap choose:
– Built-in compass: plug the jumper cap in the MAG pin header.
– External compass: pull up the jumper cap from the MAG pin header.
