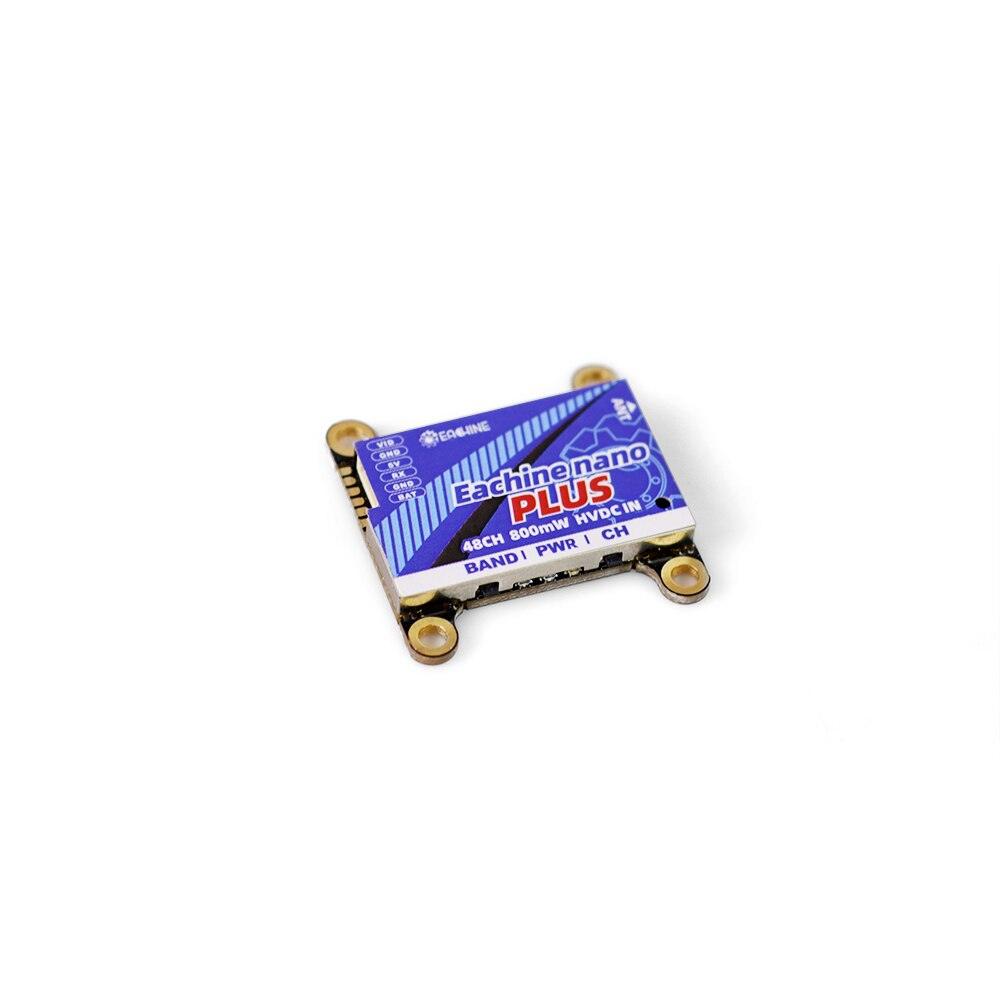

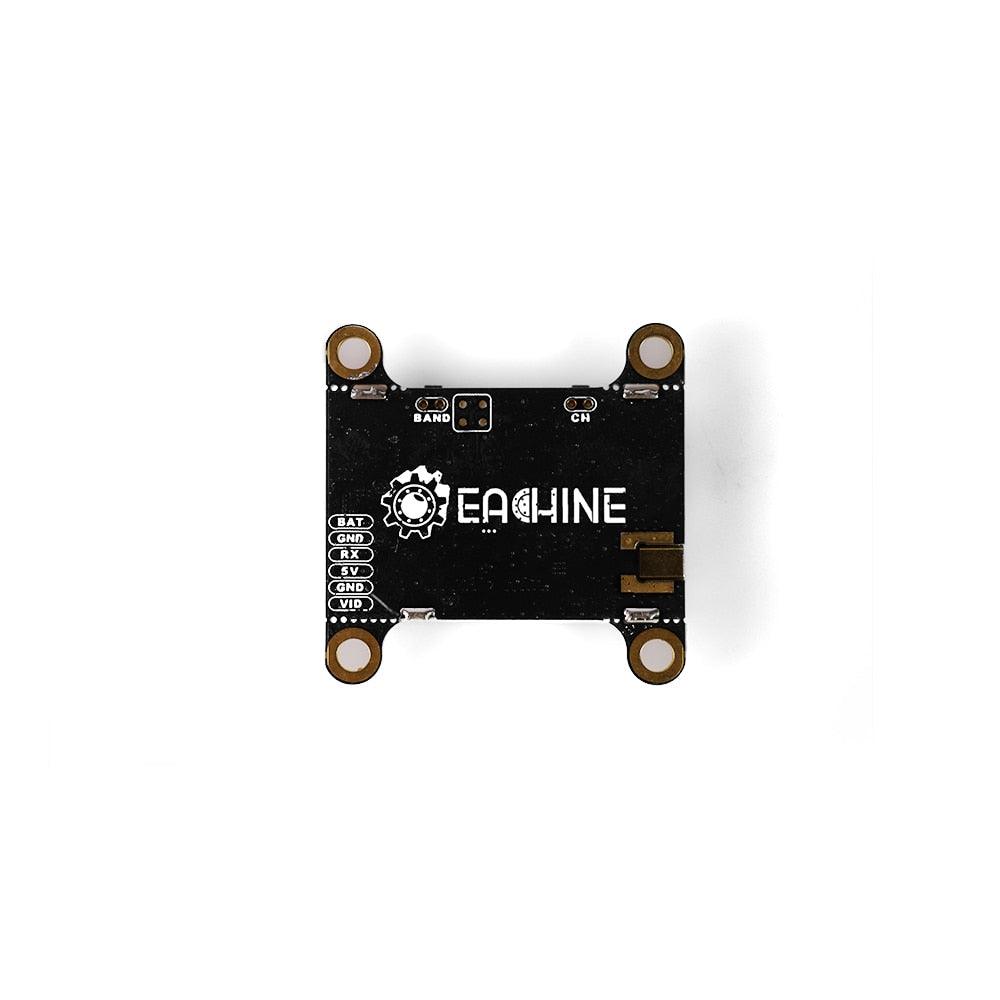

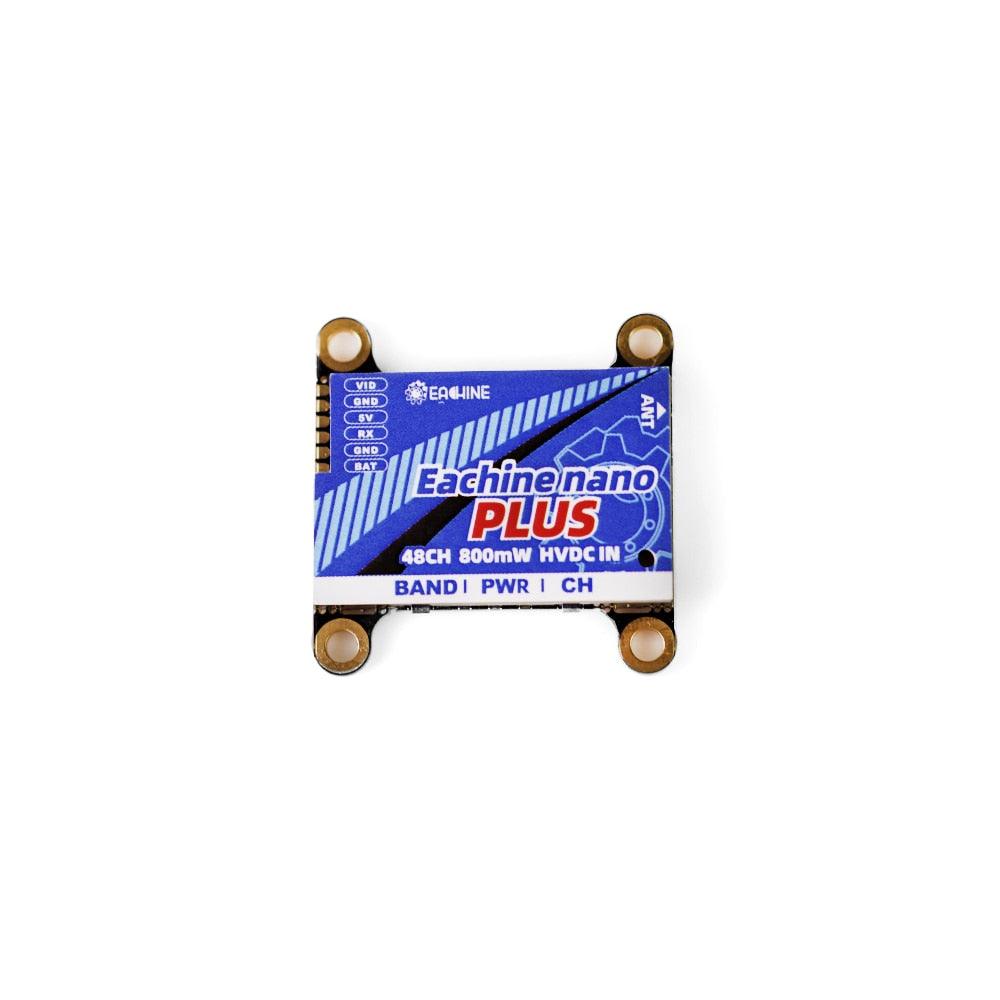

Eachine Nano Plus FPV Transmitter SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Recommend Age: 12+y
Origin: Mainland China
Material: Composite Material
Certification: CE
Brand Name: EACHINE
Features
– 5.8GHz 48CH FPV transmitter
– 6-36V HV DC input voltage
– PIT/25mW/200mW/400mW/800mW power switchable
– Built-in microphone,real time transmission of audio
– Ultra small size, reduce installation space.
– Compatible with 30.5mm * 30.5mm / 36.5mm * 36.5mm Mounting Size.
– 5.8G ISM band
– 1-2km long transmission distance
– Support OSD configuring via Betaflight flight controller
– Support 8 drones flying at the same time without interference
– It can ensure that the image has no snowflake,no stripes under the maximum throttle situation.
Parameter
Brand Name: Eachine
Item Name: Nano Plus 800mW VTX
Input Voltage: DC 6-36V
Output Voltage: 5V/1A
12V/PIT@30mA
12V/25mW@140mA/16dBm
12V/200mW@190mA/24.5dBm
12V/400mW@280mA/28dBm
12V/800mW@330mA/30dBm
Antenna Interface: MMCX
Output Power: PIT/25mW/200mW/400mW/800mW switchable
Frequency: 5.8GHz 6 bands, 48 channels
Size: 36.5mm x 36.5mm (30.5*30.5mm)

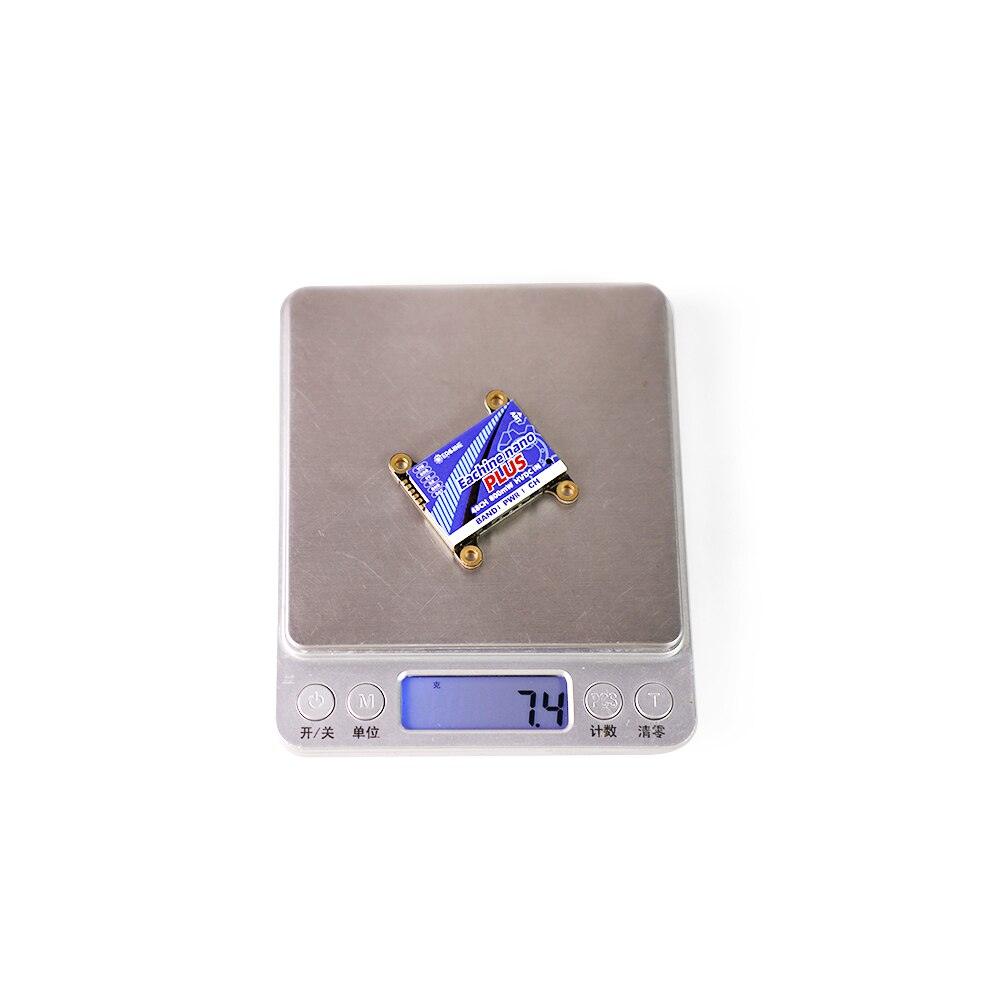

Weight: 7.4g (External expansion board included)
Frequency Table
Band A: 5865/5845/5825/5805/5785/5765/5745/5725
Band B: 5733/5752/5771/5790/5809/5828/5847/5866
Band E: 5705/5685/5665/5645/5885/5905/5925/5945
Band F: 5740/5760/5780/5800/5820/5840/5860/5880
Band R: 5658/5695/5732/5769/5806/5843/5880/5917
Band L: 5362/5399/5436/5473/5510/5547/5584/5621
Power Indicator Status
Indicator Light: Red ( Power )
Solid ( PIT )
Flash Once ( 25mW )
Flash Twice ( 200mW )
Flash Three Times ( 400mW )
Flash Four Times ( 800mW )

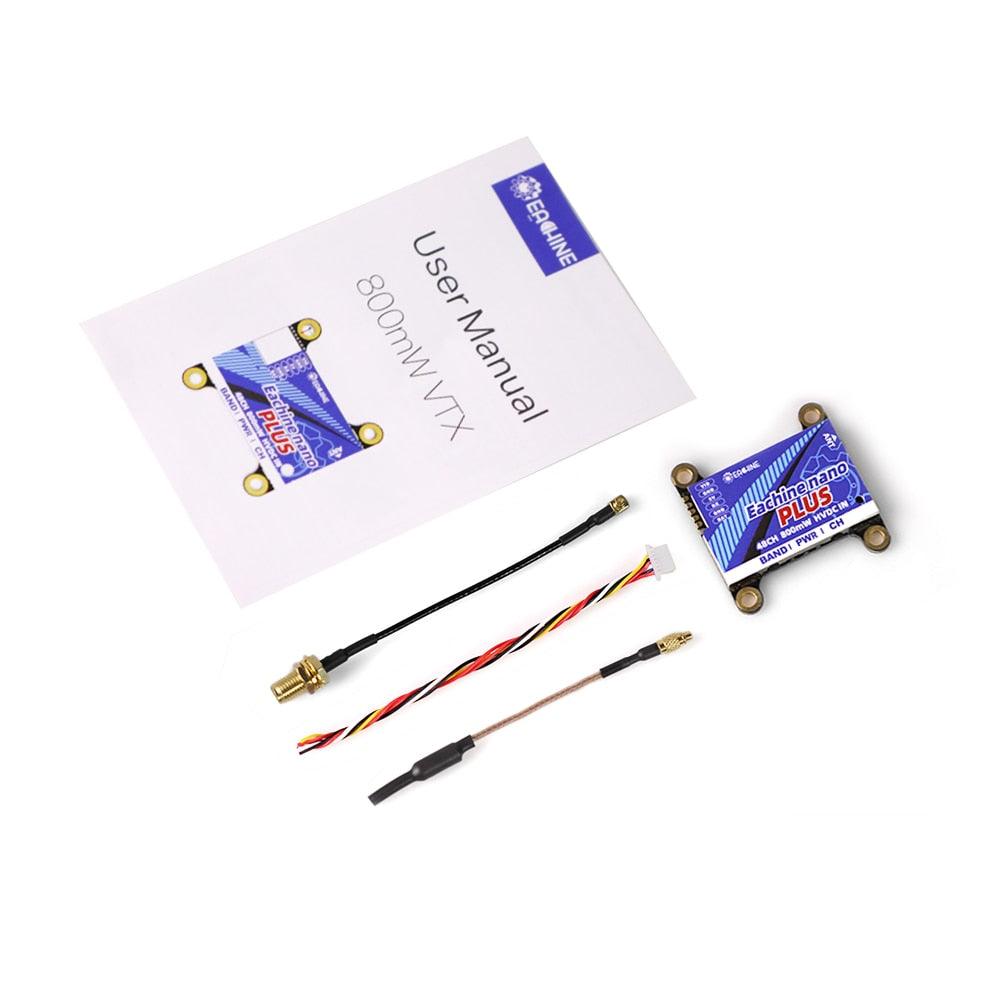

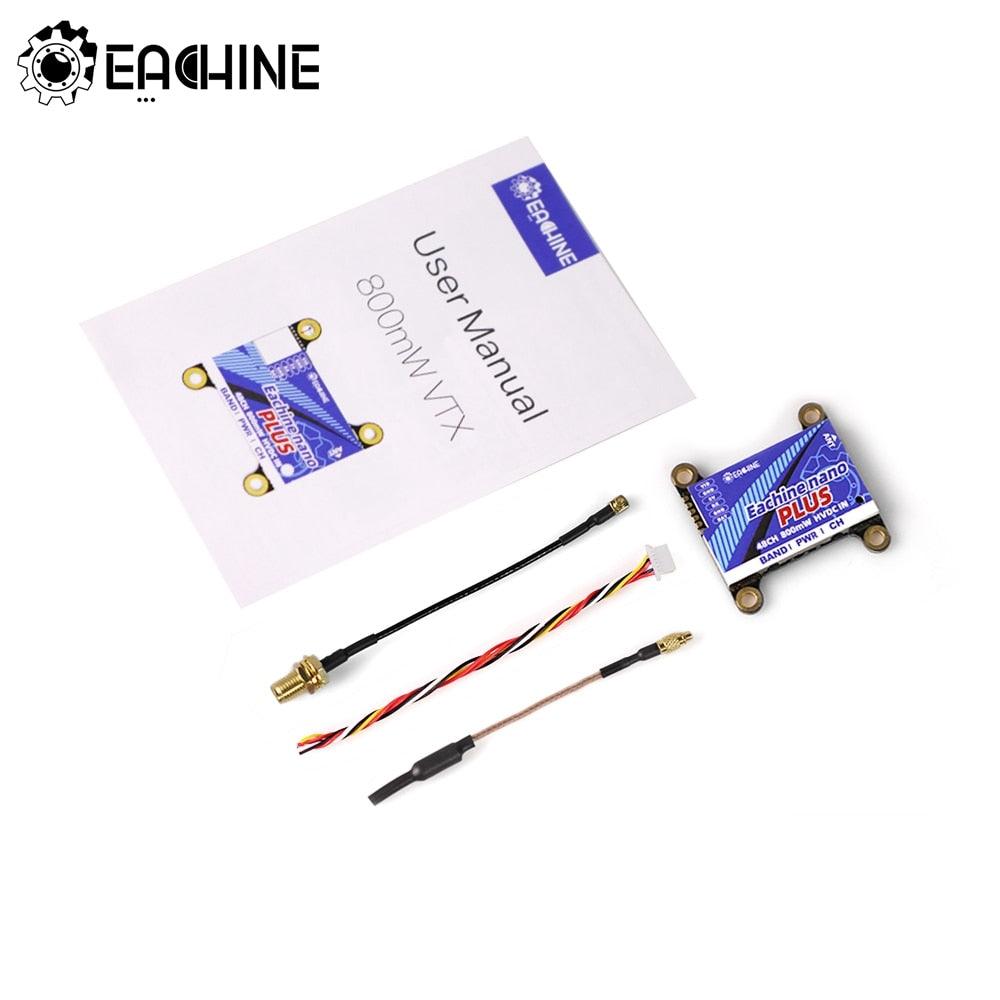

Packing List
Eachine Nano Plus 5.8GHz 48CH FPV Transmitter*1
Packing*1
Eachine Nano Plus VTX: A compact, high-power video transmitter designed for FPV racing drones, operating on the 5.8GHz frequency band with adjustable power output (25mW, 200mW, or 400mW) and 48 channels of transmission. Features include ultra-small size (30.5mm x 30.5mm), reduced installation space, and a compatible M3 mounting hole.
AFTER-SALES SERVICE If item DOA(Dead of Arrival) Buyers Can return it in 14 Days, Return: We will Replace it with New item after we receive DOA item .
