Eachine E200 RC Helicopter SPECIFICATIONS
Warning: as shown
Video Capture Resolution: Other
Type: HELICOPTER
State of Assembly: Almost Ready
Remote Distance: as shown
Remote Control: Yes
Recommend Age: 12+y
Power Source: Electric
Package Includes: Charger
Package Includes: USB Cable
Package Includes: Remote Controller
Package Includes: Batteries
Package Includes: Original Box
Package Includes: Operating Instructions
Origin: Mainland China
Operator Skill Level: Beginner
Operator Skill Level: Expert
Operator Skill Level: Intermediate
Motor: Brushless Motor
Model Number: E200
Material: Plastic
Material: Metal
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 9-12 minutes
Features: Wi-Fi
Features: Other
Dimensions: length420mm&Height120mm
Controller Mode: MODE2
Controller Battery: as shown
Control Channels: 6 Channel
Charging Time: about 75 minutes
Certification: CE
Camera Mount Type: Other
Brand Name: EACHINE
Barcode: No
Aerial Photography: No
Specification:
Brand: Eachine
Item: E200

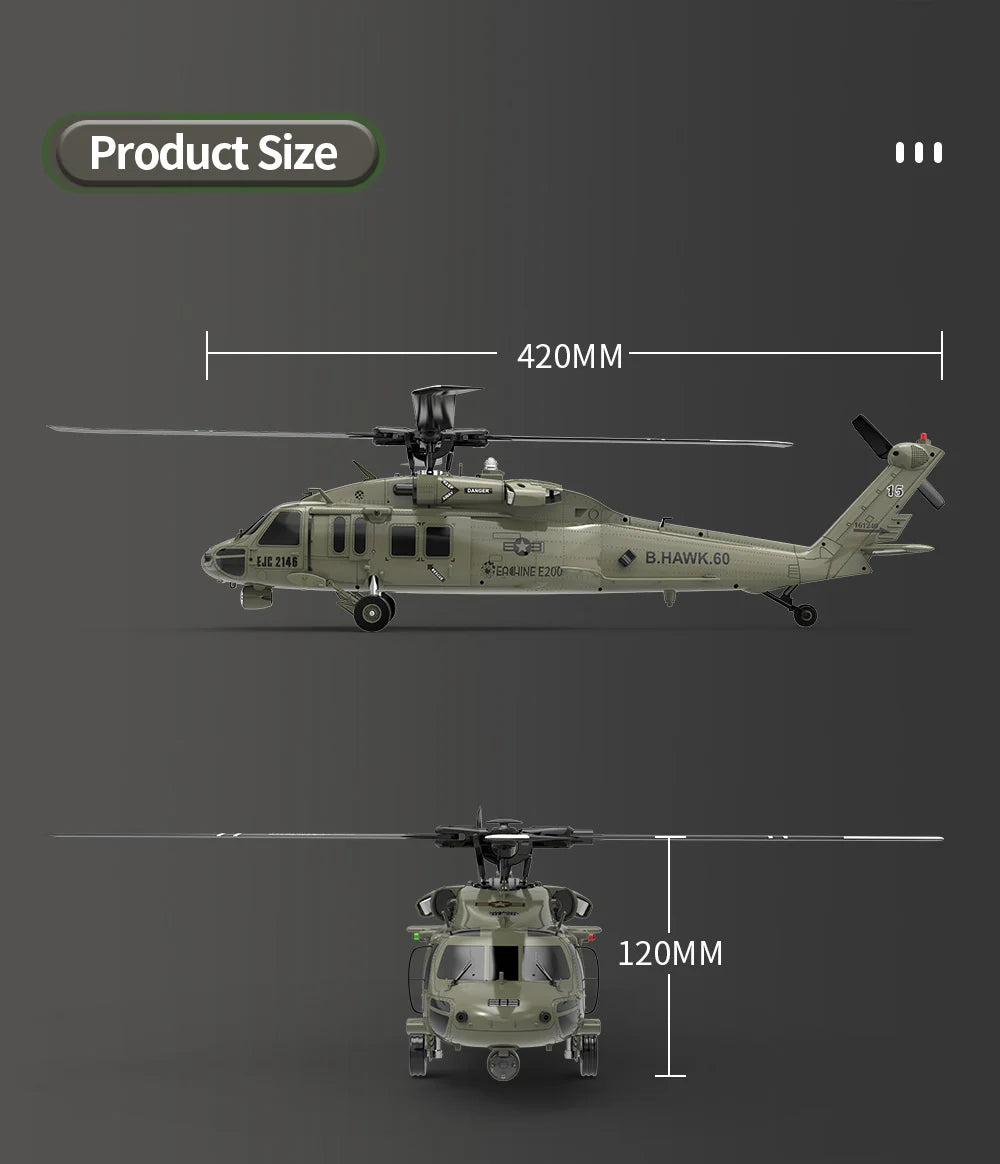

Product size (cm):
Rotor diameter :425mm
Body length :420mm
Height :120mm
Weight :430g
Radio Frequency Band: 2.4GHz
Body battery :11.1V (1450MAH) 30C Lipo Battery
Charging time: about 75 minutes
Use time: 9-12 minutes
Color: Army Green
Function Description:
1> According to the 47:1 scale reduction of the UH60-Blackhawks helicopter in the United States, it has high simulation appearance details, cool lights, left and right movable side doors, shock-absorbing landing gear.
2>It adopts flybarless design, adopts two-axis co-drive motor, and electronic stabilization system, which makes the hand feel more accurate, the flight is more stable, and the structure is optimized to reduce the probability of damage.
3>The propeller is designed based on the principle of aerodynamics, providing strong power and self-stability of the body. It has high efficiency, power saving and long flight time. The blade is made of nylon + carbon fiber composite material, which has high strength, good toughness, impact resistance, no deformation and durable.
4> Use 4006 630KV brushless motor for self-stable co-drive to reduce gear agitation, with low noise, large torque, sufficient power, and high efficiency.
5> The lock tail motor uses a special 1104 4200KV brushless motor, which has the characteristics of high temperature resistance, stable lock tail, and long-term work is not easy to damage.
6> Using the enlarged 4.3g metal digital servo, high torque, fast responses, high precision, and accurate return to the center, the response speed is 60°/0.05ms, which makes the aircraft fly accurately, feel good, and last longer.
7> Using a 6-axis gyroscope. It has a stable, fast and precise flight attitude, especially suitable for beginners to fly.
8> Adopt 2.4GHZ communication protocol, expandable satellite receiver Support many kind of standard.
9> Adopt high-precision CNC rotor head and swashplate to optimize the structure, reduce the weight, and greatly reduce the probability of aircraft damage.
10> The casing adopts the hot runner injection molding process, with high simulation details, good elasticity and toughness, and is not easy to be damaged.
11> Standard 6CH remote control, with LCD screen, battery prompt, digital parameter adjustment, simulator function, optimized joystick output, more precise operation.
12> Professional customized high rate lithium polymer 11.1V 1450mah 30C battery, high discharge rate, long service life, flight time of about 9-12 minutes, normal use can reach 500+ cycles. It has functions such as preventing overcharge and overdischarge, and low battery indication, which can effectively prolong the battery life.
13> Dedicated USB 11.1V lithium battery charger with charge balance and charge stability function.
RTF Version Package included:
1 x E200 RC Helicopter
1 x Transmitter
1 x USB Charger
1 x Special Charger
1 x Smart Battery(1,2 or 3 pcs, optional)
1 x Tail Blade
1 x Hexagon
2 x Main Blades
2 x User Manual
BNF Version Package included:
1 x E200 RC Helicopter
1 x USB Charger
1 x Special Charger
1 x Smart Battery(1,2 or 3 pcs, optional)
1 x Tail Blade
1 x Hexagon
2 x Main Blades
2 x User Manual
Eachine E200
Flybarless design
High simulation
Six-axis gyroscope
Smart battery
3D violent flight
Easy to maintain
Direct-Drive Brushless Motor
2.4GHZ remote control
6-axis gyroscope
It has a stable, fast and precise flight attitude especially suitable for beginners to fly
The 6-axis gyro system provides a stable, fast, and precise flight performance, making it an ideal choice for beginners to learn and enjoy flying.

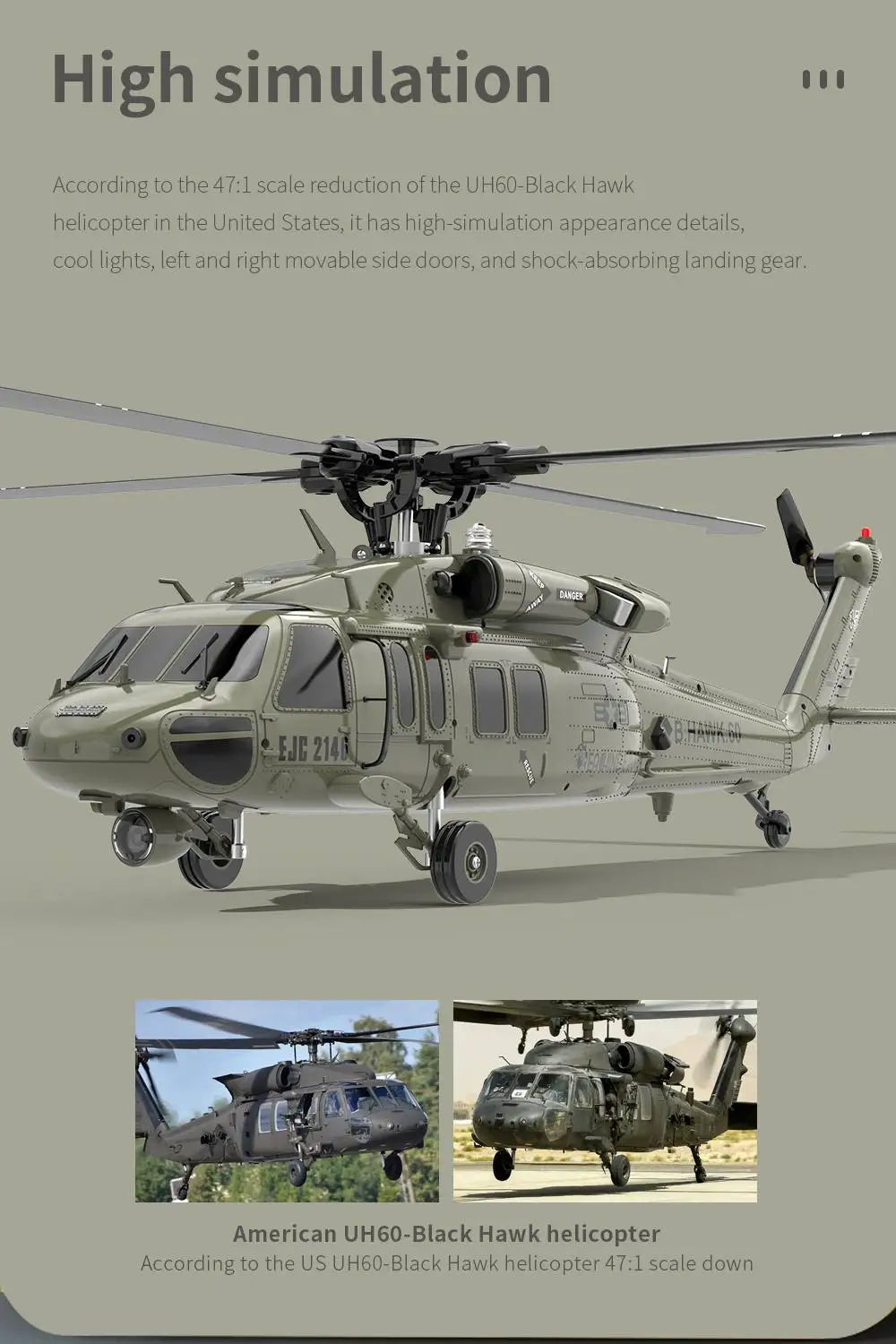

High simulation
According to the 47:1 scale reduction of the UH60-Black Hawkhelicopter in the United States, it has high-simulation appearance details, cool lights, left and right movable side doors, and shock-absorbing landing gear.
The Eachine E200 RC Helicopter features a highly detailed and realistic scale model design, with a 1:47 scale down from the UH-6 Black Hawk helicopter. Notable details include cool LED lights, movable side doors on both sides, and shock-absorbing landing gear.

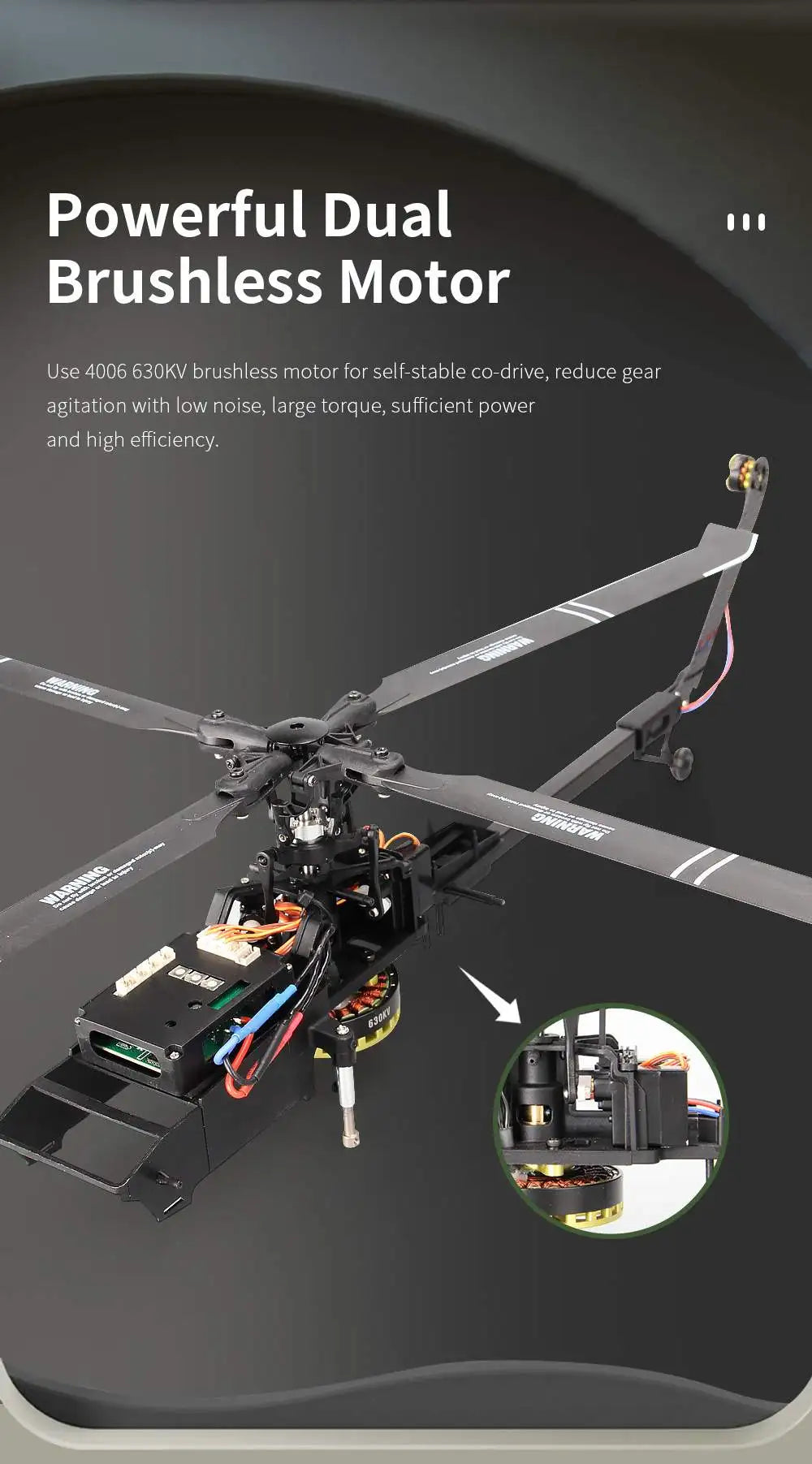

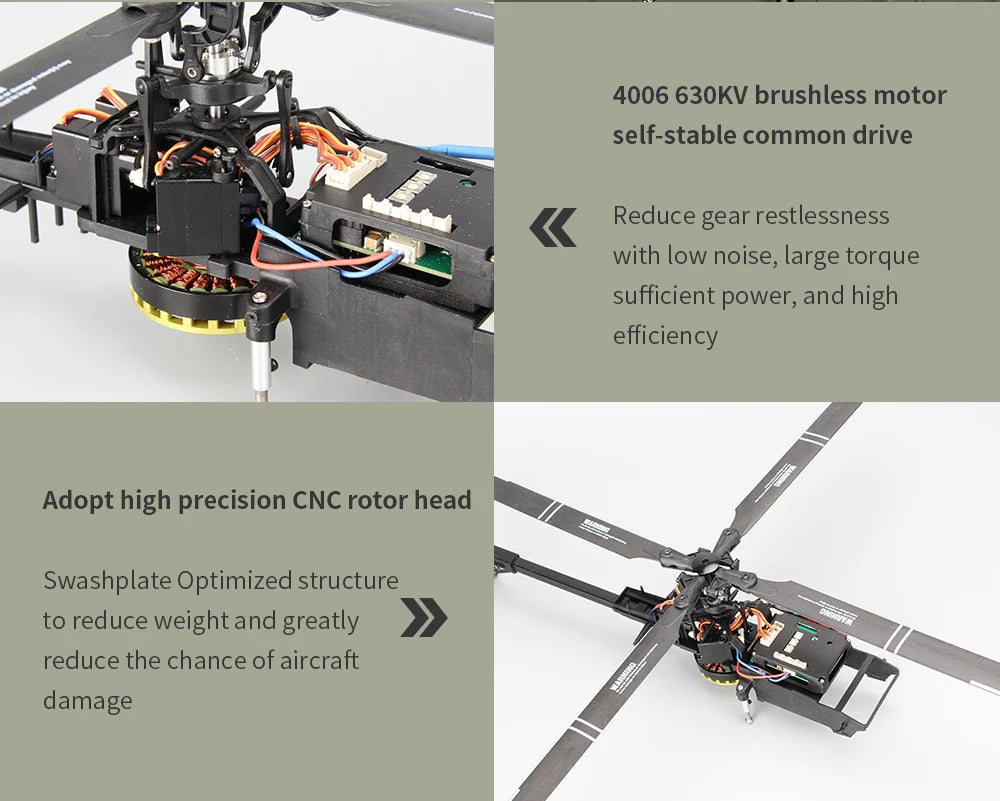

Powerful Dual Brushless Motor
Use 4006 630KV brushless motor for self-stable co-drive, reduce gear agitation with low noise, large torque, sufficient power and high efficiency.
The Eachine E200 RC Helicopter features a powerful 630KV brushless motor that provides self-stable co-drive, reducing gear agitation and operating with low noise. This motor also boasts large torque, sufficient power, and high efficiency.

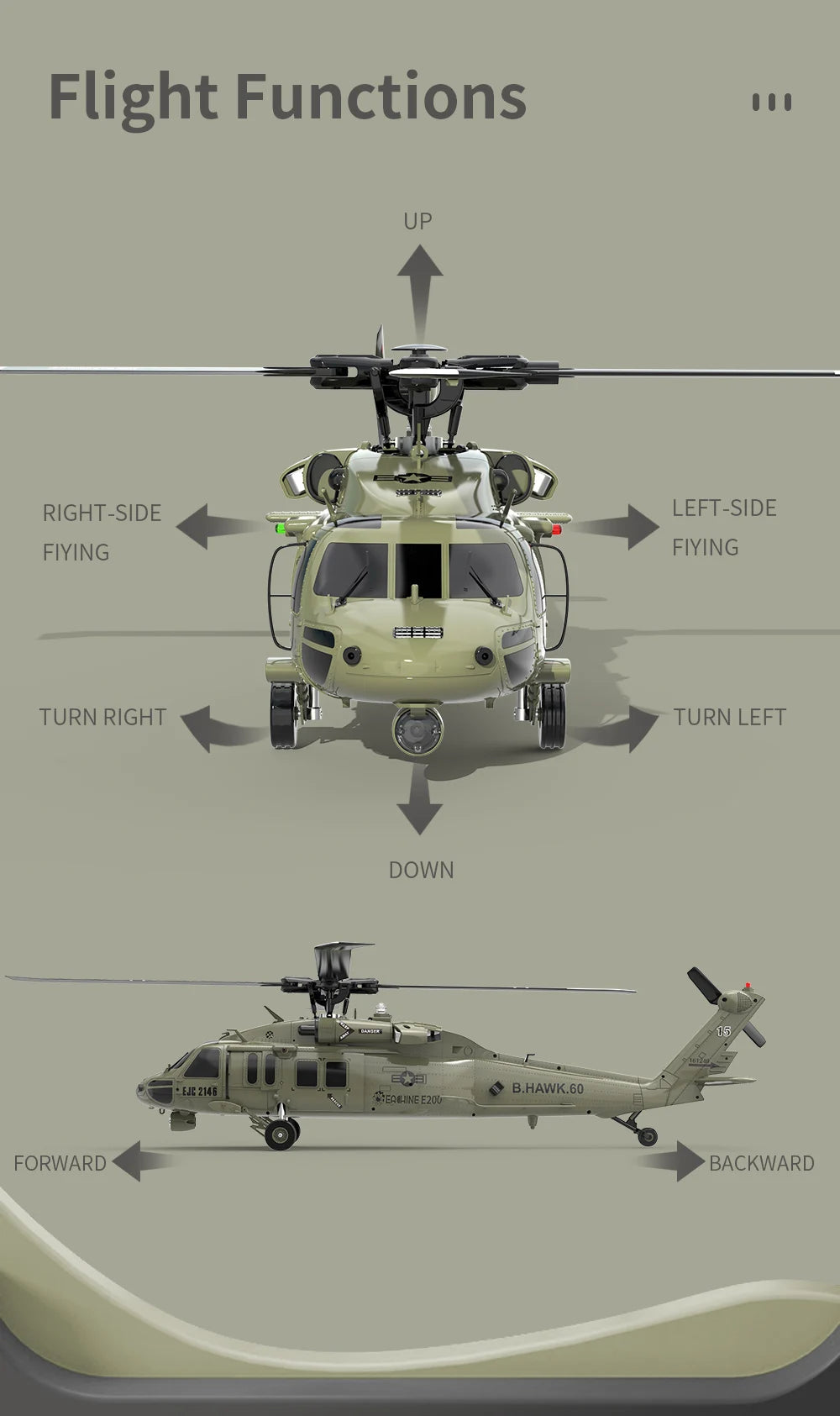

Flight Functions

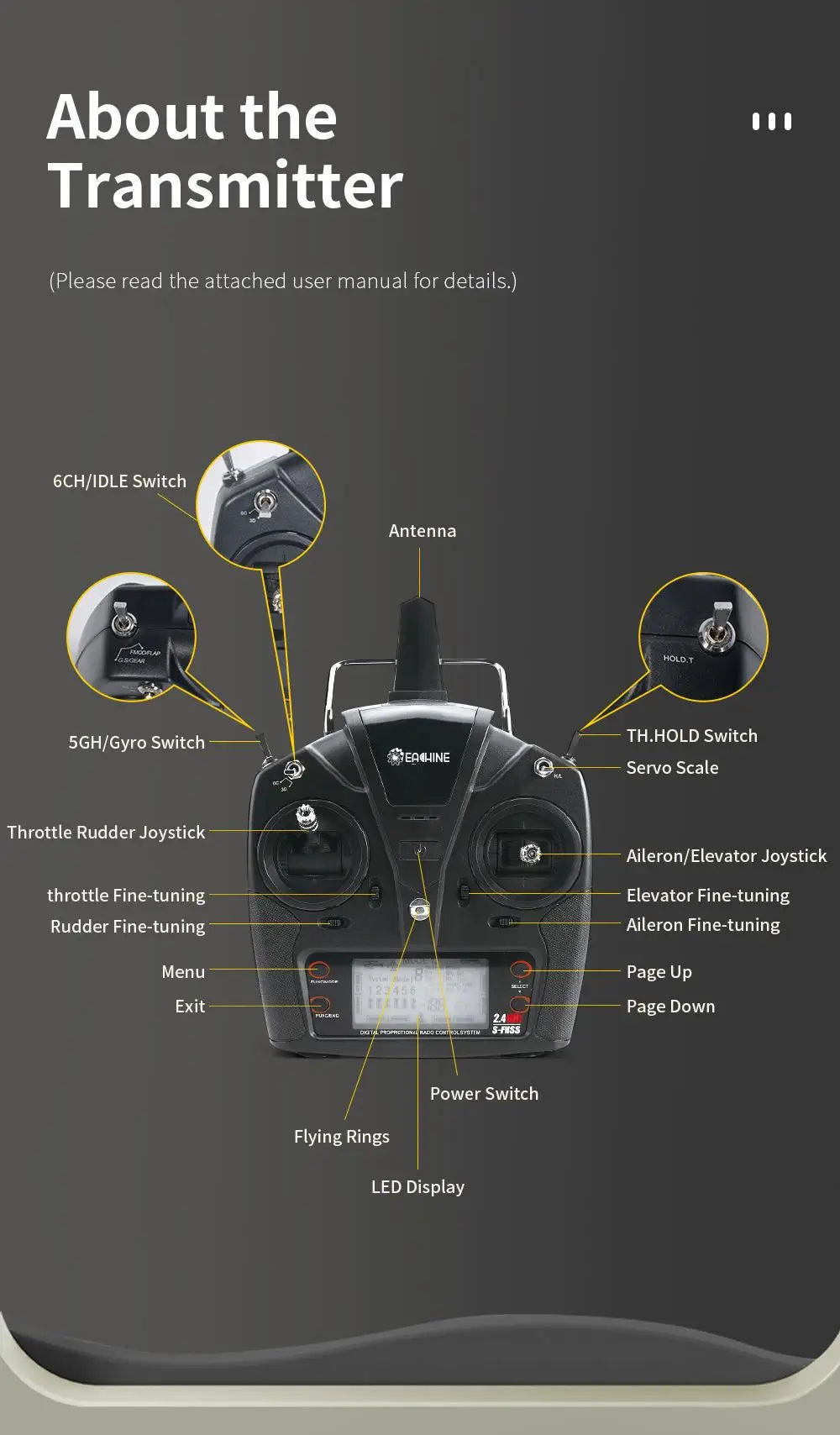

About the Transmitter
(Please read the attached user manual for details.)
The user manual includes detailed instructions and diagrams for operating the Eachine E200 RC Helicopter, including explanations of the following components: 6CH joystick, antenna holder, gyro switch, throttle hold, and Servo scale. The manual also covers usage of the throttle, rudder, aileron/elevator joysticks, and fine-tuning adjustments for elevator and rudder control. Additionally, it provides information on power switching, flying rings, and LED display settings.

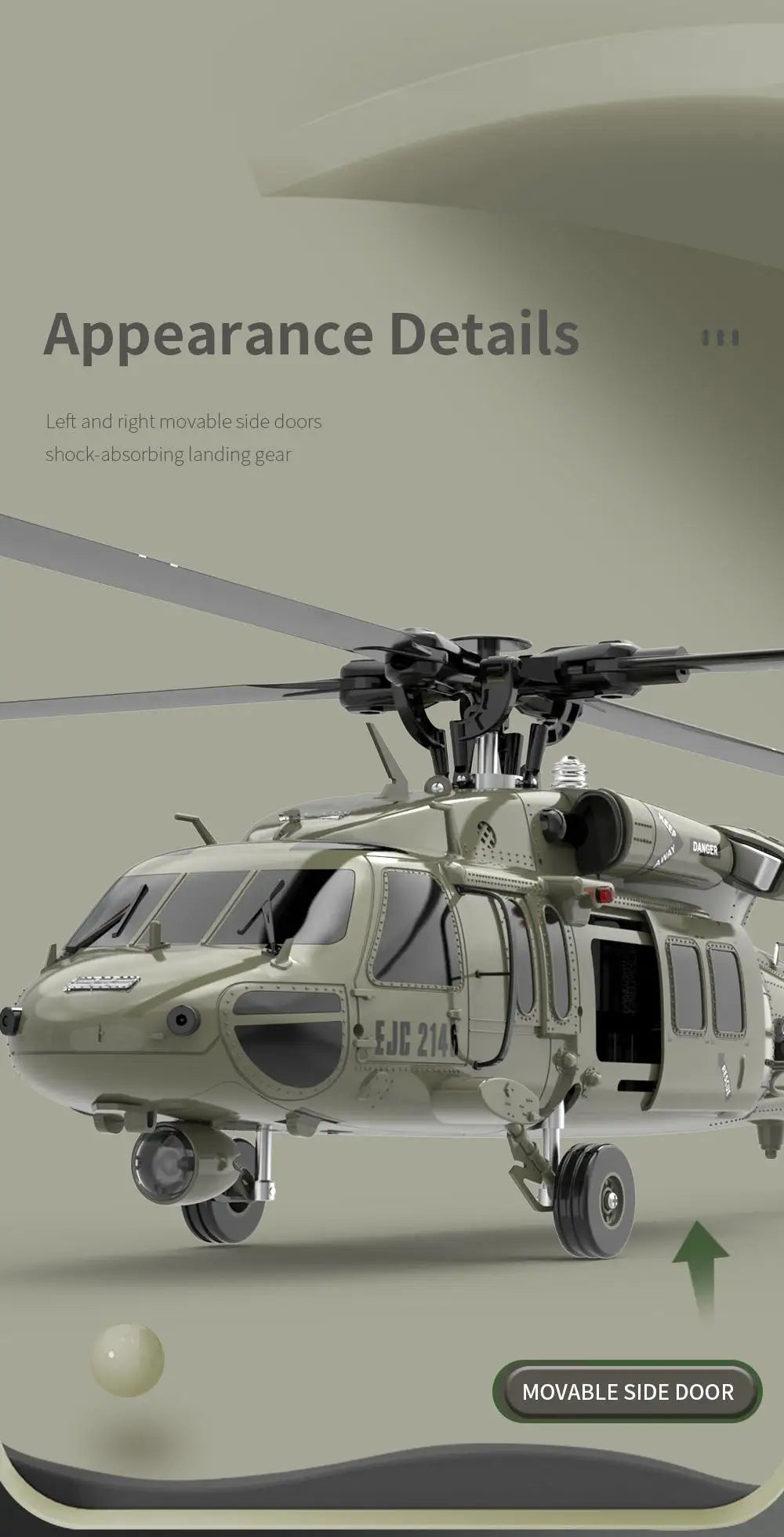

Appearance Details
The Eachine E200 RC Helicopter features detailed appearance elements, including left and right movable side doors that provide easy access for maintenance and adjustment. Additionally, the helicopter has a shock-absorbing landing gear to reduce vibrations and ensure a smooth landing.

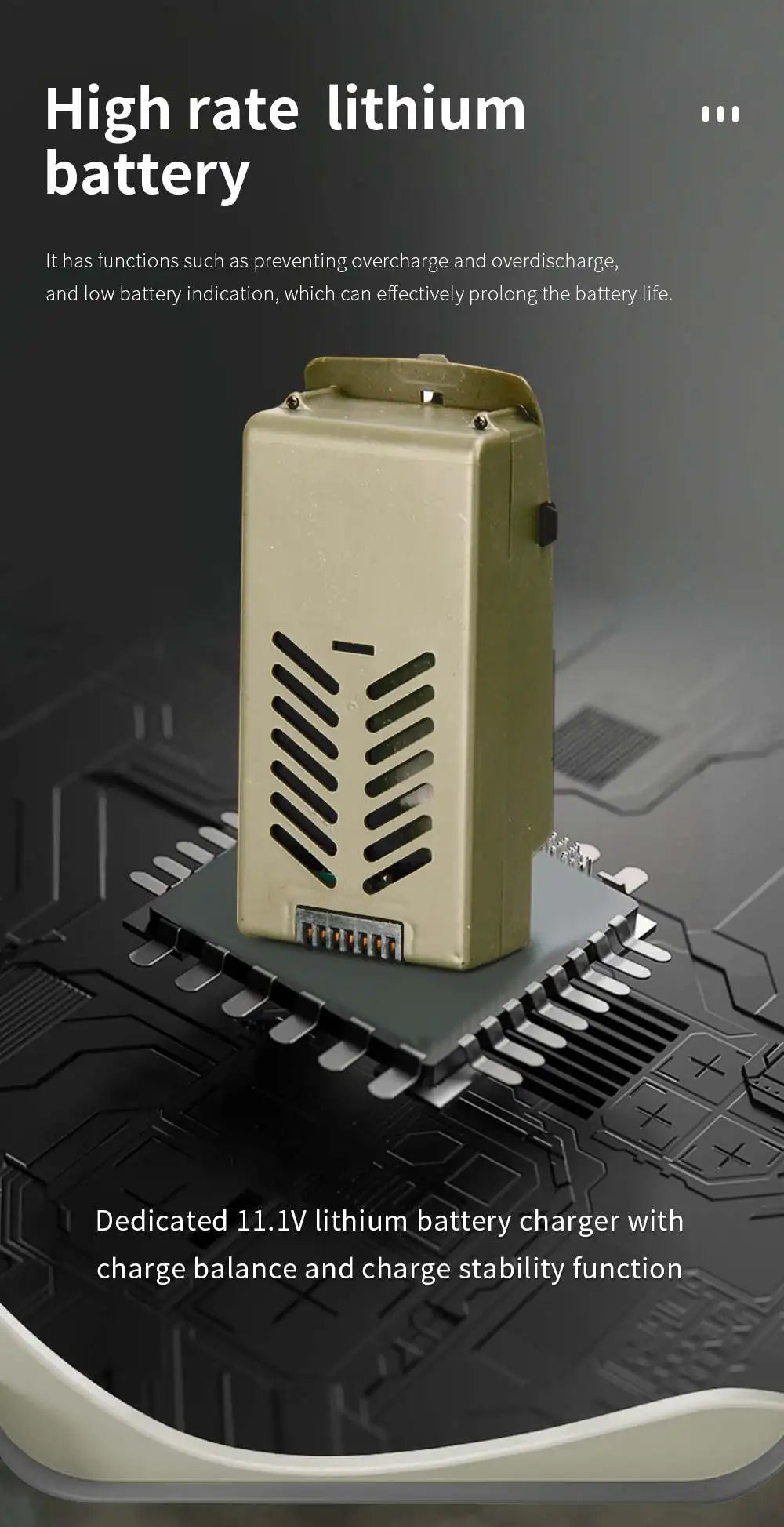

High rate lithium battery
It has functions such as preventing overcharge and overdischarge, and low battery indication, which can effectively prolong the battery life.
The Eachine E200 RC Helicopter features a high-rate lithium battery that includes advanced protection functions, such as overcharge and overdischarge prevention, as well as low battery indication, to help extend its lifespan. Additionally, the helicopter comes with a dedicated 11.1V lithium battery charger that provides charge balance and stability for efficient recharging.

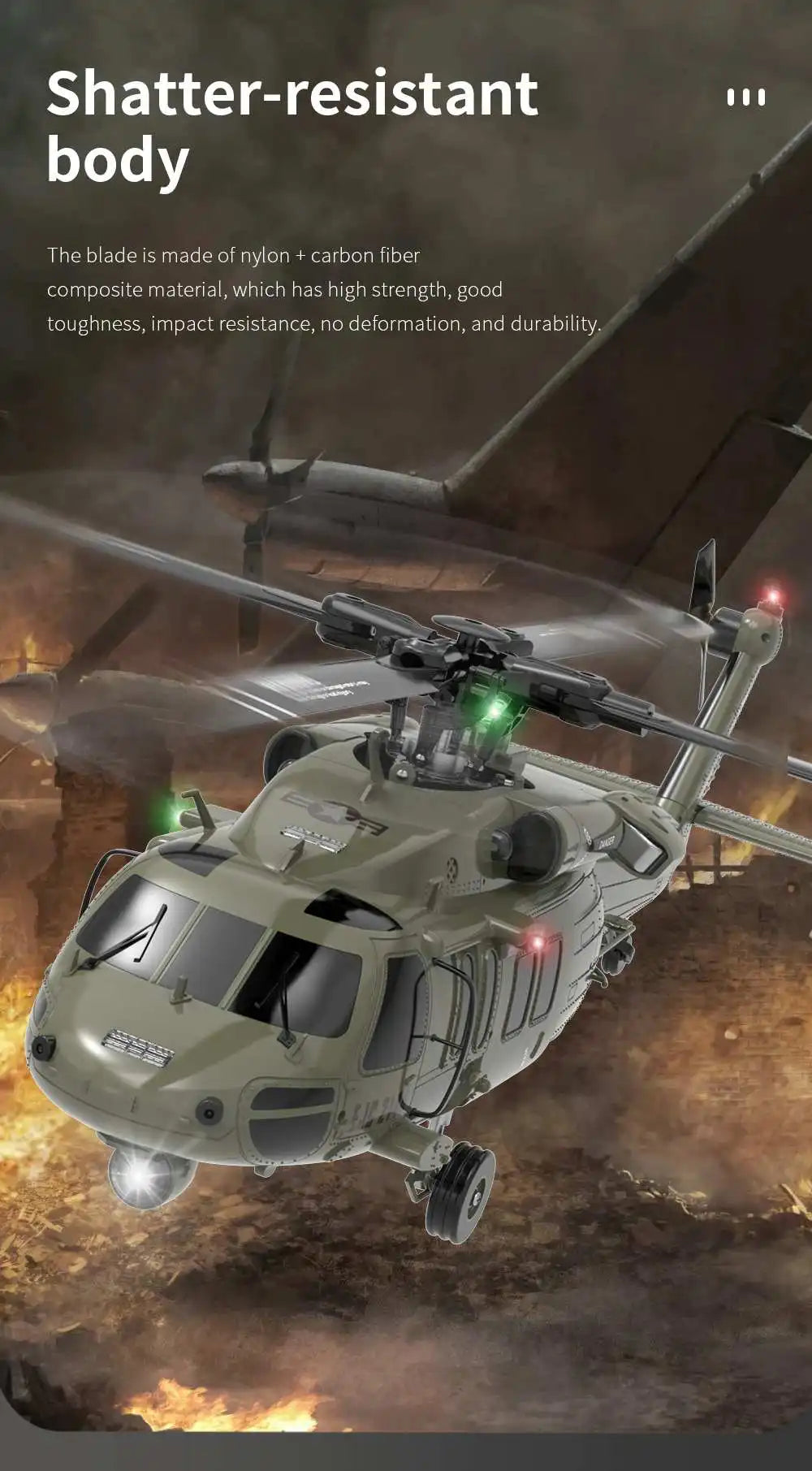

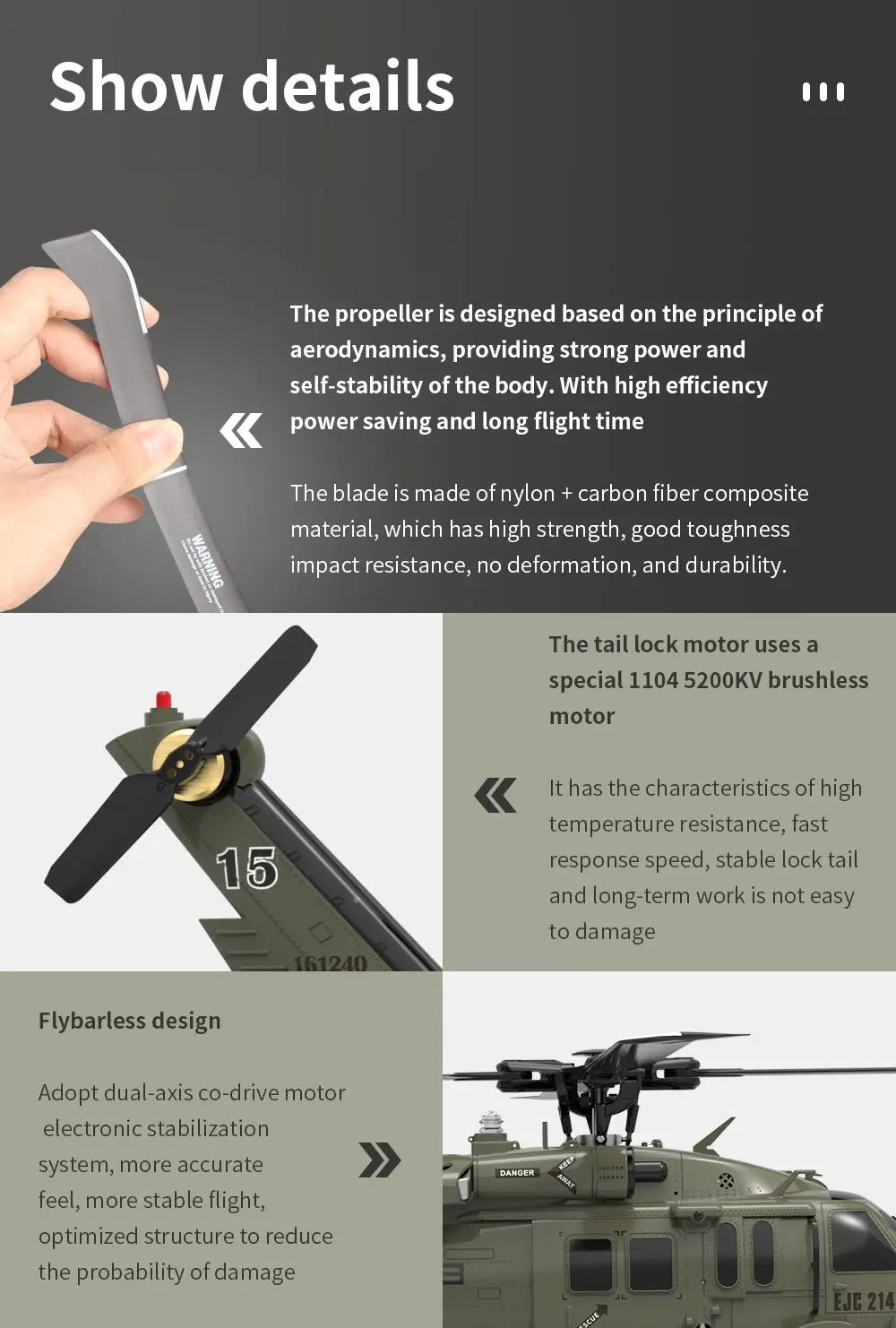

Shatter-resistant body
The blade is made of nylon + carbon fiber composite material, which has high strength, good toughness, impact resistance, no deformation, and durability.
The Eachine E200 RC Helicopter’s blades are constructed from a durable nylon-carbon fiber composite material that offers exceptional strength, resilience, and impact resistance, while maintaining its shape and resisting deformation.
The Eachine E200 RC Helicopter features a propeller designed according to aerodynamic principles, ensuring powerful propulsion and stable flight dynamics. Additionally, the propeller provides efficient power management, resulting in extended flight times. The blades are constructed from a durable nylon-carbon fiber composite material that offers exceptional strength, resilience, impact resistance, no deformation, and durability.
The Eachine E200 RC Helicopter features a high-precision CNC rotor head with an optimized swashplate structure, designed to minimize weight and significantly reduce the risk of aircraft damage.

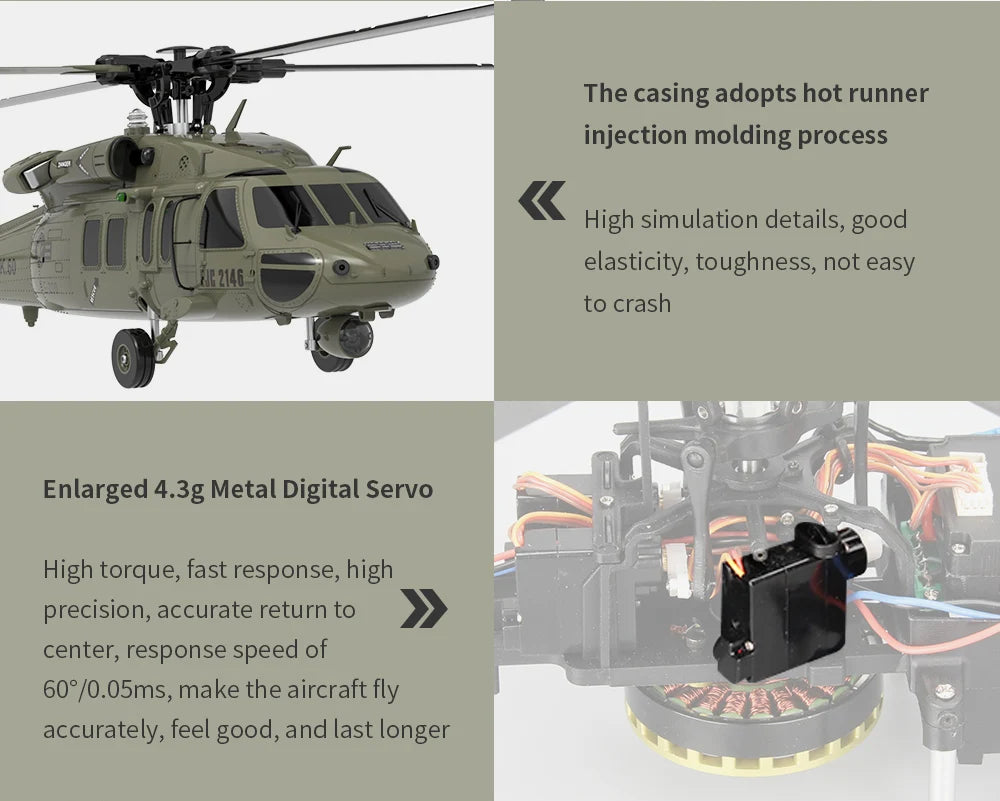

The Eachine E200 RC Helicopter features a 4.3g metal digital servo that offers exceptional torque, rapid response, and precise control, allowing for accurate centering and stable flight performance. With a response time of 0.05ms and 608°/s precision, this servo ensures precise and consistent aircraft movements, providing a smooth and enjoyable flying experience.

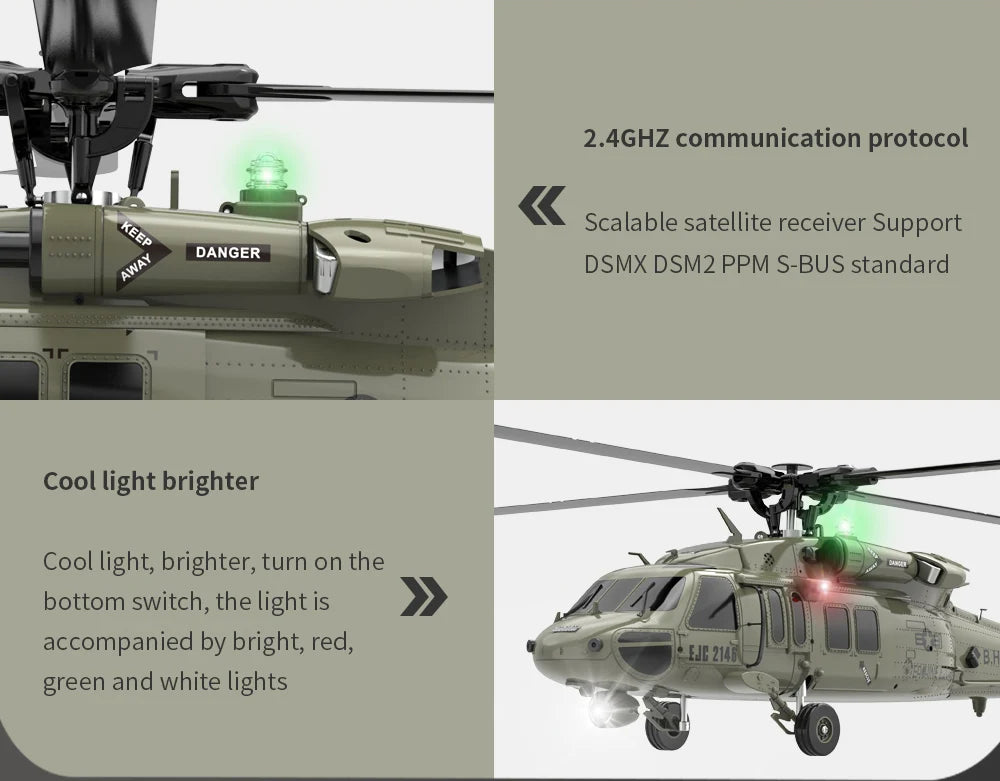

The Eachine E200 RC Helicopter features a 2.4GHz communication protocol that supports various wireless standards, including DSMX, DSM2, PPM, and S-BUS. The drone also boasts a cool LED light system with adjustable brightness, accessible via the bottom switch, which displays a range of colors, including red, green, and white.

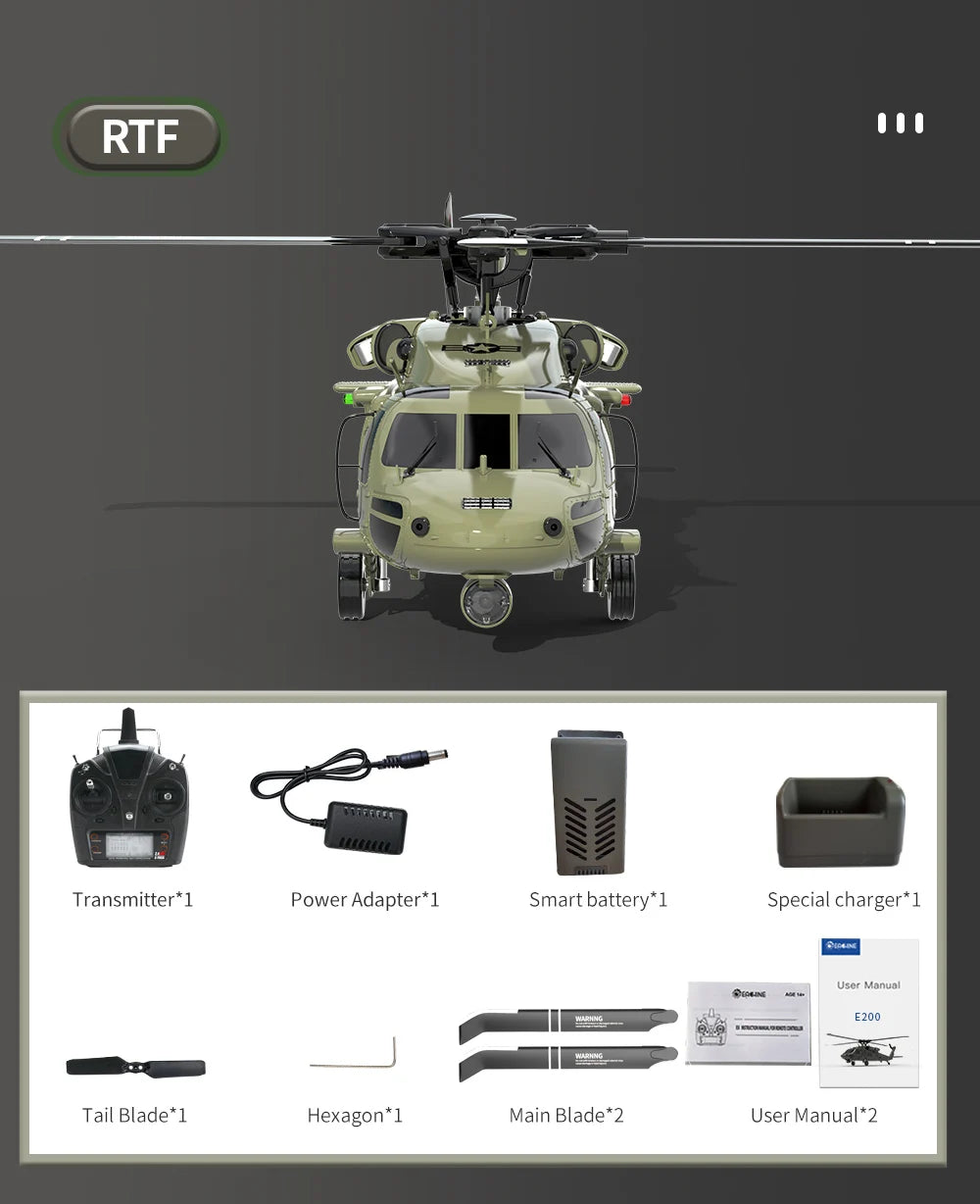

The Eachine E200 RC Helicopter includes a comprehensive package with the following items: RTF transmitter, power adapter, smart battery, special charger, user manual, and spare parts (EAEuen tail blade, hexagon main blade).

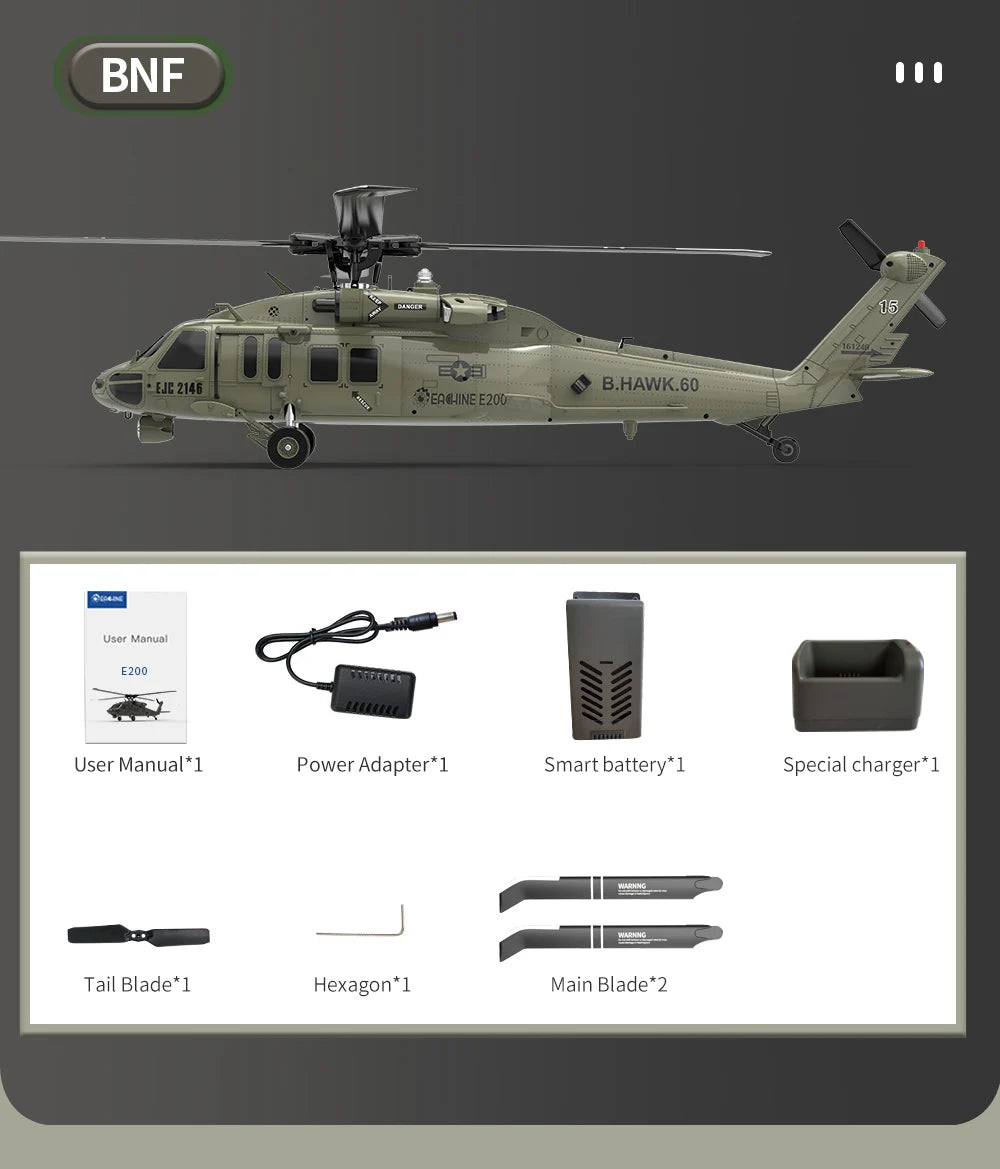

The Eachine E200 RC Helicopter package includes the following items: user manual, power adapter, smart battery, special charger, and spare parts (E20Q tail blade, hexagonal main blade).
After-sales service: In the event that an item arrives Dead on Arrival (DOA), buyers can return it within 14 days. Upon receipt of the DOA item, we will replace it with a new one.
