BETAFPV Pavo25 Frame Kit SPECIFICATIONS

Wheelbase: Upper Shell

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Other

Tool Supplies: Assembled class

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

RC Parts & Accs: Other

Quantity: 1 pcs

Origin: Mainland China

Model Number: PAV025

Material: Composite Material

Four-wheel Drive Attributes: Shell/Chassis/Wing/Head

For Vehicle Type: Airplanes

Certification: CE

Brand Name: BETAFPV

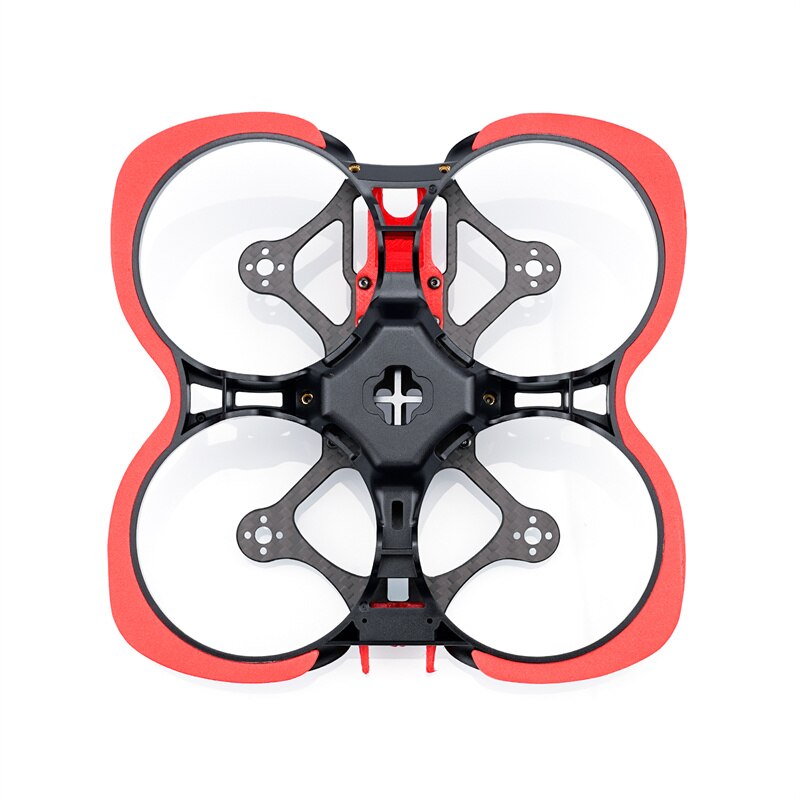

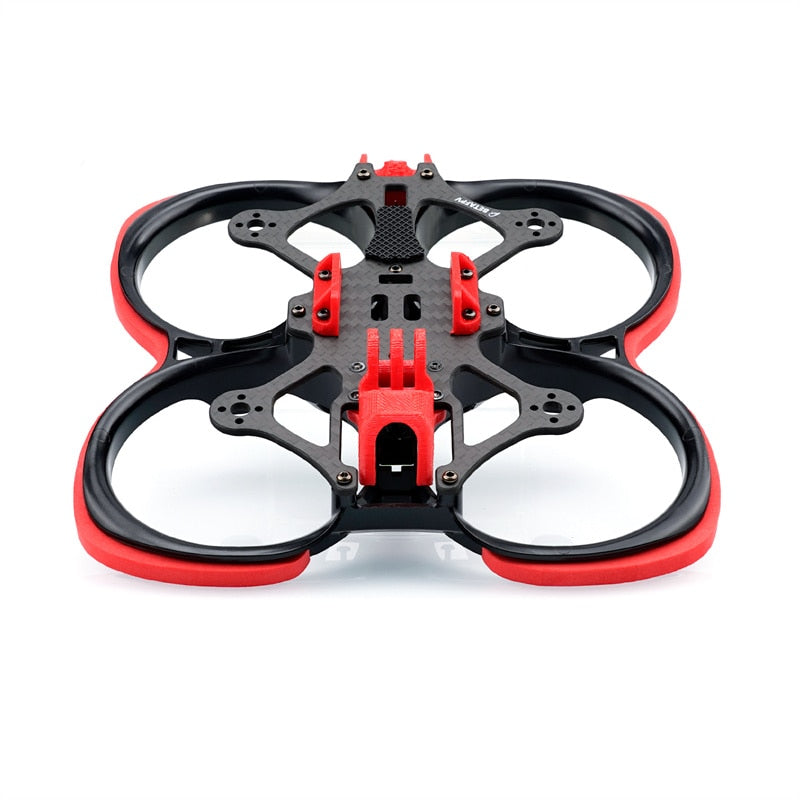

Pavo25 frame is made of high-quality PA12 material with strong and durable injected molding, which grants more stable flight and no fear of damage.

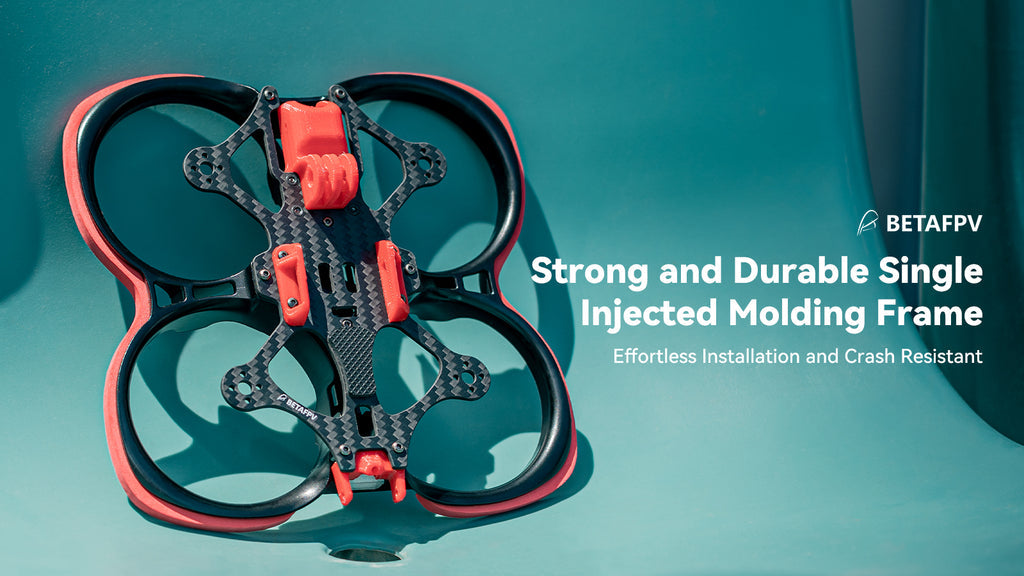

BETAFPV Strong and Durable Single Injected Molding Frame Effort

Bullet Point

  • With the insert copper nut design on the main screw holes, only 6 screws are enough to assemble the whoop duct and drone, which is convenient to build. The Pavo25 frame sports a reasonable structure assembly design that is optimized to decrease complex components, making the build easy.

  • Made of high-quality PA12 material and 2.5mm carbon fiber. With a strong and durable frame kit, the Pavo25 frame optimizes the vibration damping structure for the camera mount, allowing pilots to get an excellent experience.

  • An innovative pusher frame with a duct design. It generates more lift for the whole quadcopter, improving the ability of endurance and propulsion.

  • Equipped with a CNC Vista Adapter. It effectively provides the Caddx Vista HD Digital VTX with a good cool down by increasing the heat dissipation area, reducing the influence of heat on VTX.

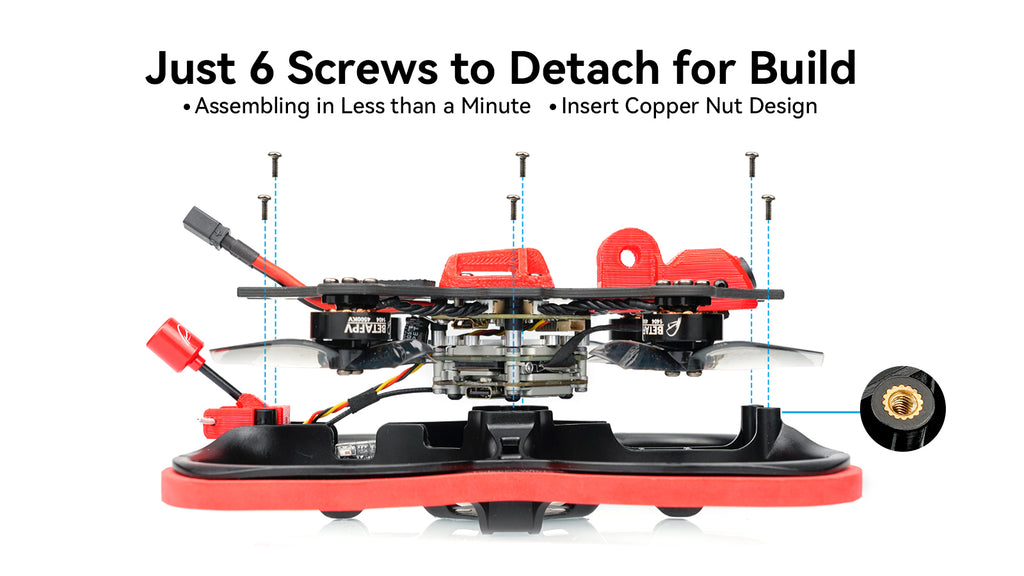

6 Screws to Detach for Build Assembling in Less Than a

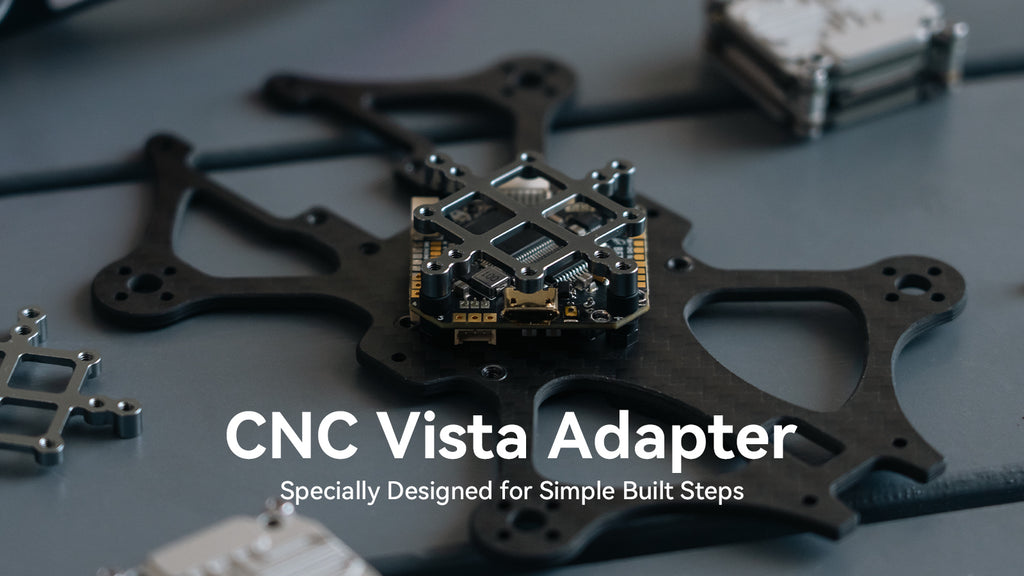

CNC Vista Adapter

CNC Vista Adapter effectively provides the Caddx Vista HD Digital VTX with a good cool down by increasing the heat dissipation area, reducing the influence of heat on VTX. It is easy to install and has two mounting angles, which can be mounted by the angle 0° or 45° depending on your needs.
CNC Vista Adapter Specially Designed for Simple Built Step
.

Specification

  • Item: Pavo25 Frame Kit

  • Wheelbase: 108mm

  • Color: Black/Transparent Grey/Yellow/Blue/Purple

  • Material: PA12

  • Frame Color: Black

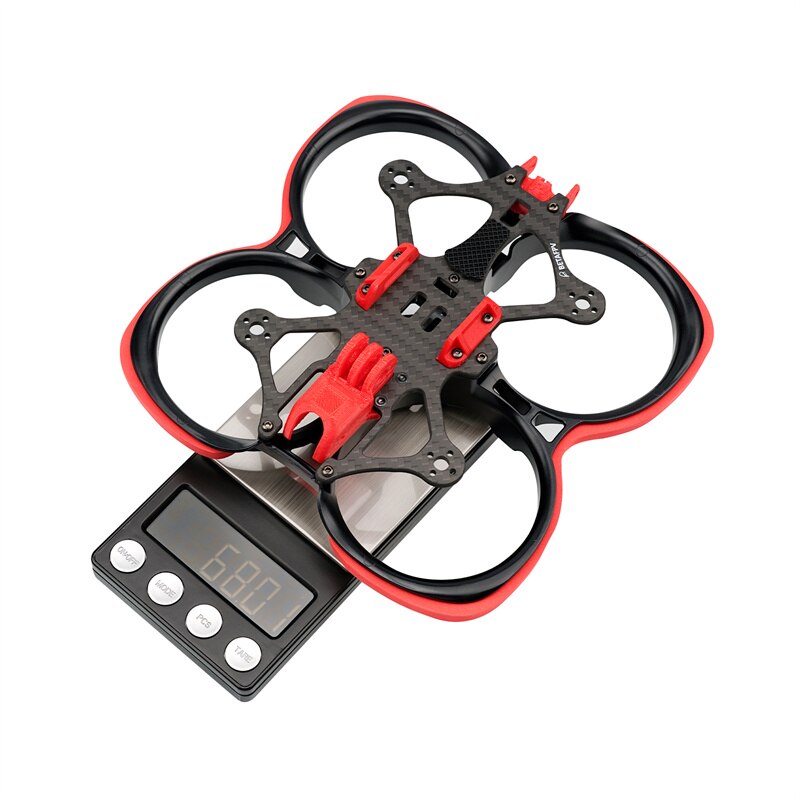

  • Weight: 68g (frame kit), 31.5g (without carbon fiber)

  • Body Size: 153.2*153.7mm (without EVA adhesive foam)

  • Top plate thickness: 2.5mm

  • Propeller size: 2.5-inch

  • FC pattern: 25.5*25.5mm

  • FPV cam spacing: 14mm

  • Recommend Motor: 1404 4500KV Brushless motor

  • Recommend Props: Gemfan D63-3B (Gray)

  • Recommend Battery: 4S 750mAh/4S 850mAh

  • Recommend FC: F405 AIO 20A Toothpick V4 BMI270

  • Recommend Camera: SMO 4K, DJI Action 2

  • Recommend VTX: Caddx Nebula Pro Nano Vista Kit/Caddx Baby Ratel2+A03 400mW 5.8G

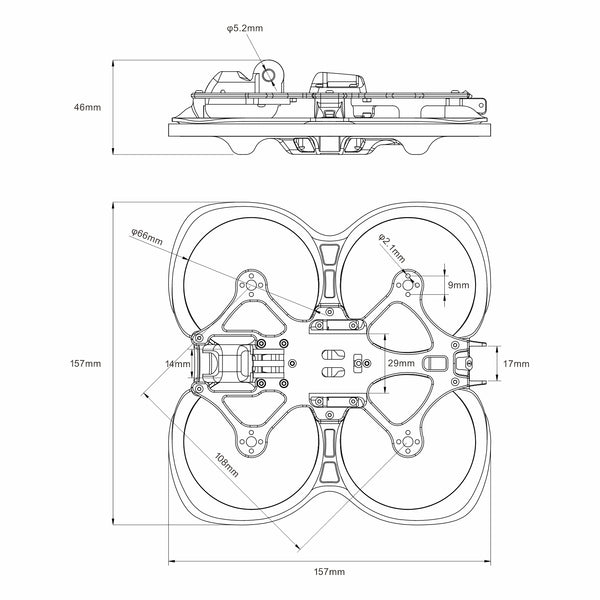

46IM(TI Dmm I52MM l4mm 29Mm I7mm

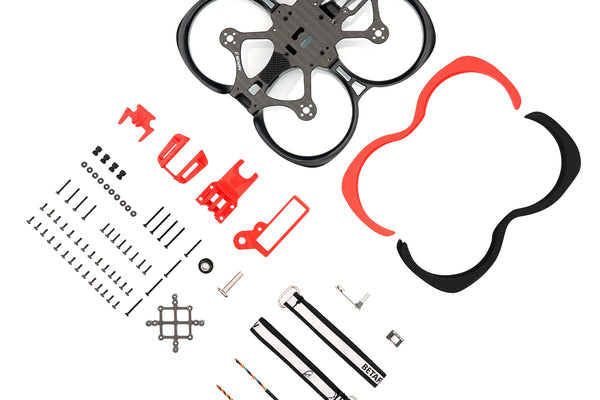

Package

Frame Kit

  • 1 * Pavo25 Frame Kit

  • 1 * SMO 4K Power Cable

  • 1 * Pavo25 Frame Assembling Guide

  • 1 * CNC Vista Adapter

  • 2 * Spare EVA foam tape (Black)

  • 2 * Spare EVA foam tape (Red)

  • 2 * 180mm Battery Strap

  • 1 * Pack of Screws

  • 1 * Pack of 3D Printed Parts

  • 1 * Rear LED Light

  • 4 * 3M Double-Sided Tapes

Frame (without carbon fiber)

  • 1 * Pavo25 Whoop Frame (without carbon fiber)

  • 2 * Spare EVA foam tape (Black)

  • 2 * Spare EVA foam tape (Red)

  • 4 * 3M Double-Sided Tapes

  • 6 * M2*5 Screws

  • 1 * Screwdriver

Pavo25 Frame Kit Wheelbase: 108mm Weight: 68g (frame kit
