APM / PIXHAWK / PX4 5 in 1 PDB SPECIFICATIONS

Recommend Age: 7-12y,12+y,18+

Origin: Mainland China

Material: Composite Material

Dear Russian customers and friends, due to the poor customs clearance in Russia in recent transactions, please choose “aliexpress standard shipping” when ordering

For Russian customers

Recommended use: AliExpress Standard Shipping

Not USE: AliExpress Standard Shipping (PUDO)
—————————————————————————————————————————————————————————————–

Main Features:
– Distribution panel, current and voltage sensors, 5V BEC, 12V BEC, damping plate, 5-in-1
– With thickened copper, the overcurrent can reach 90A
– Includes current and voltage sensors, and supports 3 – 6S input current
– The voltage is suitable for APM / Pixhawk flight controller, for example, PX4
– The 5V and 12V BEC improve LC filtering and greatly reduce the current ripple of power supply

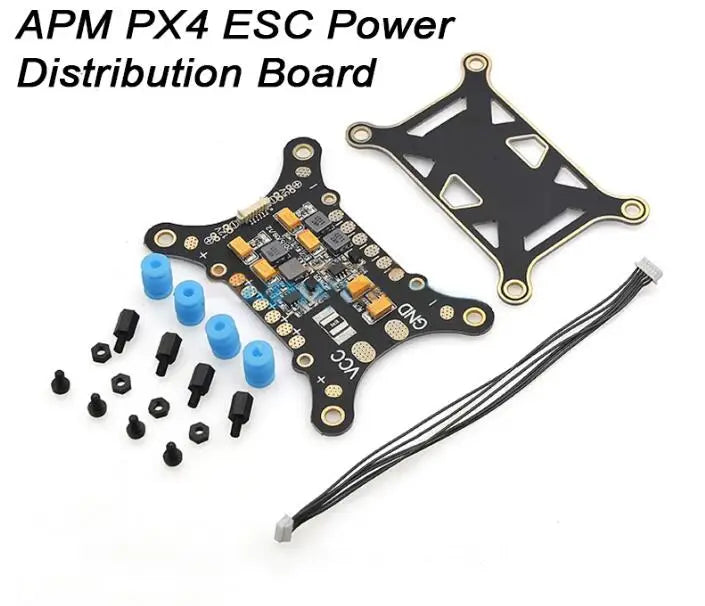

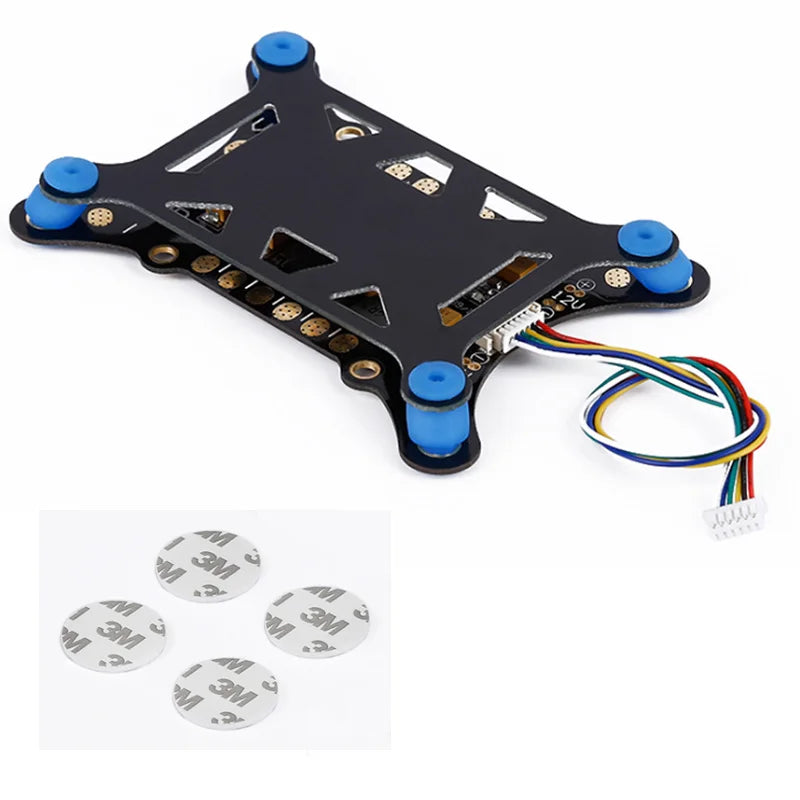

– Clever integration. The APM power module and ESC distribution board are integrated into the damping plate, which eliminates unnecessary wiring
– The plug of the power module can be directly connected to the official version of the APM 2.5 / 2.6 / 2.8 and Pixhawk flight controllers

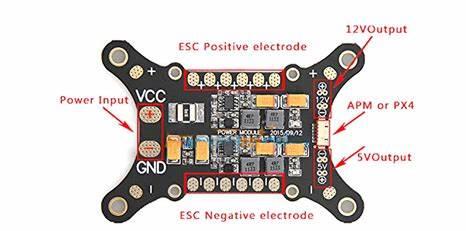

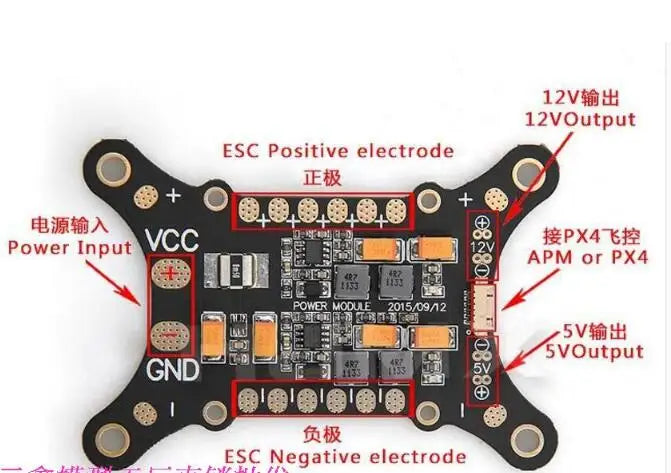

12voutput ESC Positive electrade Power Input VCC APM 01 PX4 Svoutpul GND 8 ESC Negative

12V Output ESC Negative Electrode: This power input features a voltage supply (VCC) of 12V, compatible with APM/PX4 platforms such as the PX4 PDB Module (2015-409).
