SpiroNET 5.8G video transmission 8db gain directional panel antenna

for DIY FPV cross racing mini drone

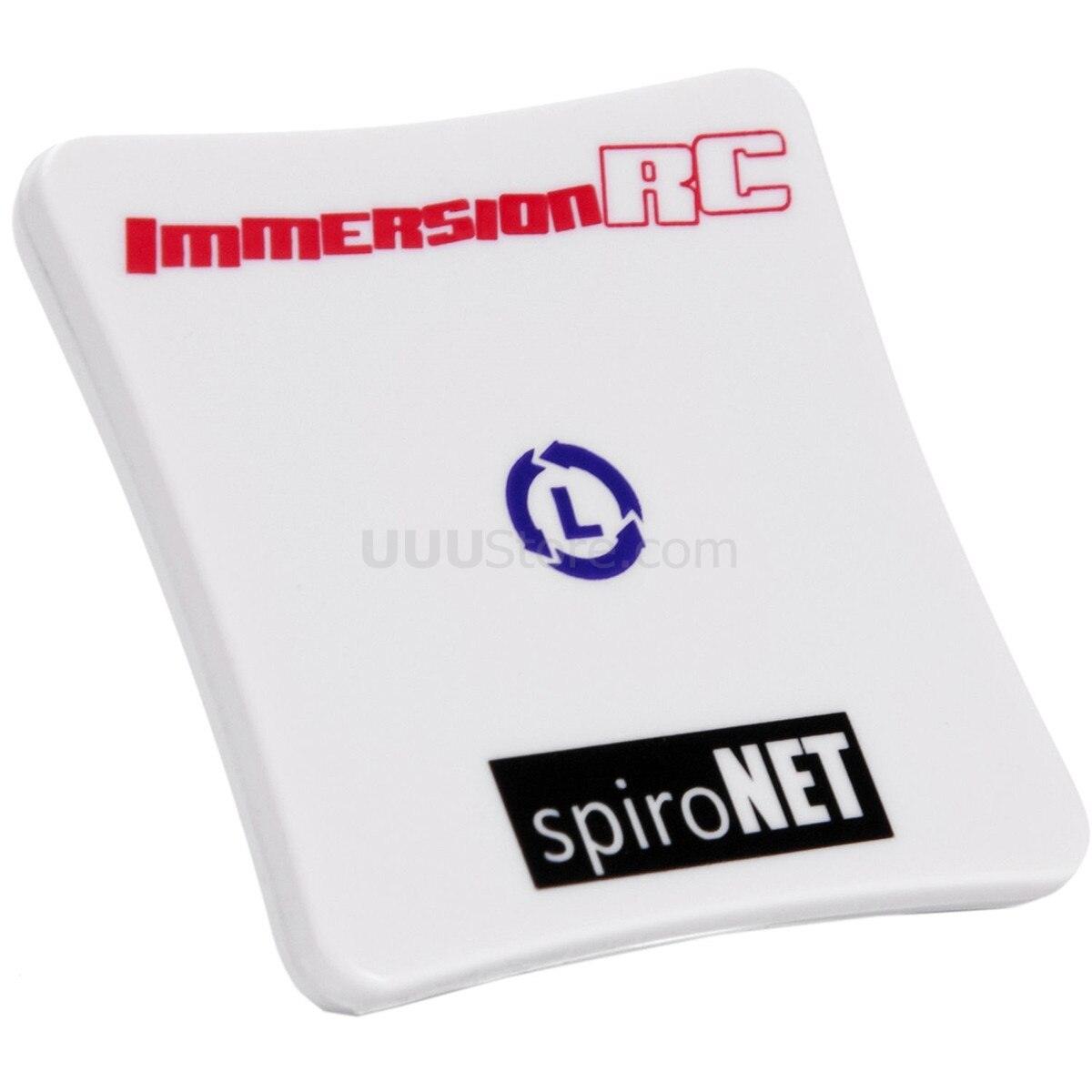

This 5.8GHz Left-Hand (LHCP) Circular Polarized patch antenna was custom-designed, with no expense spared, for the FPV market. Light enough to be mounted directly onto an LCD headset, or directly onto the front of one of our Uno, or Duo receivers.

• Precision manufactured with very tight tolerances, *each antenna* is 100% tested on a professional antenna tester (Rhode & Schwartz) to ensure maximum range and performance
• SMA male connector compatible with all FatShark/ImmersionRC 5.8GHz products sold to date
• Left-Hand circular polarization
• 5.8GHz ISM Band
• 8dBi gain
• Beam width -3dB at+/- 45degrees (H + V) (90 degree total)
• F/B Ratio >356dB
• VSWR < 1:1.35 at 5800MHz
• Impedance 50 ohms
• Weight 7g

Package list:

ImmersionRC 5.8G Mini 8db gain directional panel antenna * 1 piece

‘
