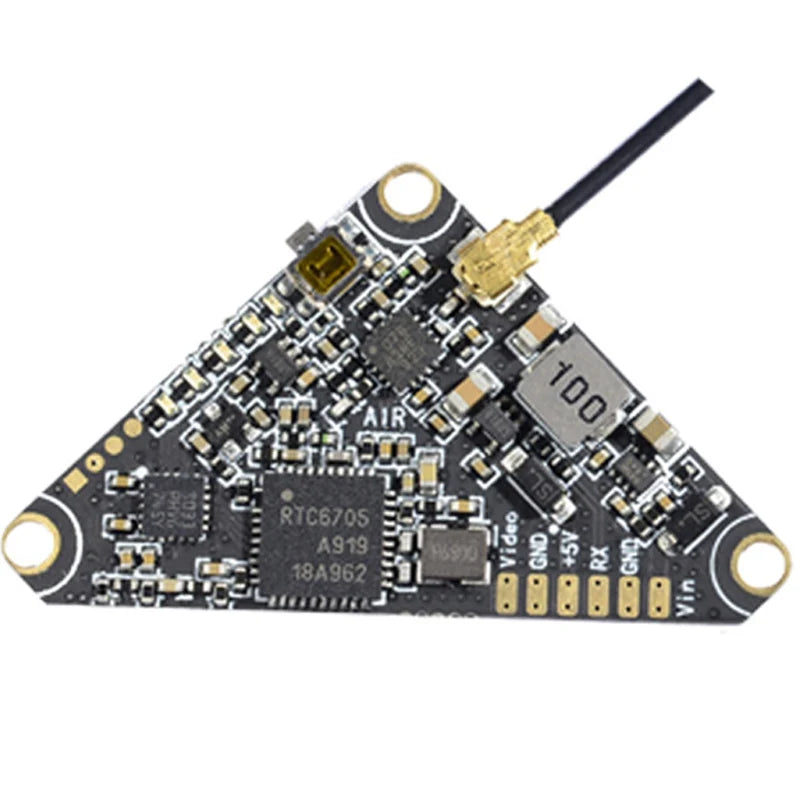

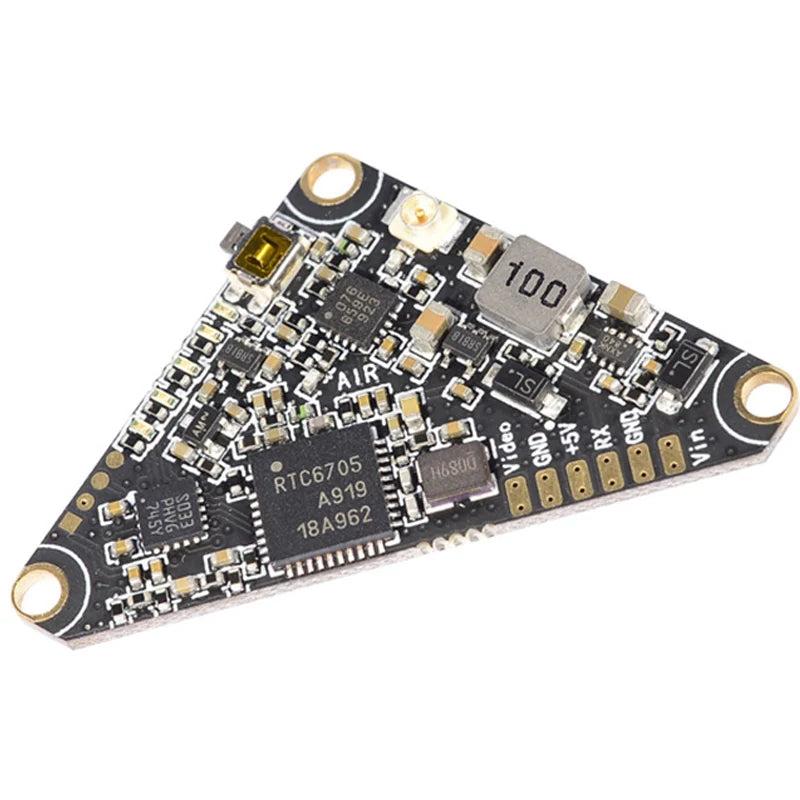

PandaRC VT5804 AIR VTX SPECIFICATIONS
Brand Name: PandaRC
Compatible Drone Brand: GoPro
Origin: Festland China
Compatible Drone Model: /
Size: /
Weight: /
Model Number: VT5804 AIR
Package: Nein
PandaRC VT5804_AIR 5.8GHz 40CH 0/25/50/100/200/400mW FPV Video Transmitter Triangle VTX Support OSD For RC Racer Drone
Description:
â—†Model : VT5804 AIR
â—†Output power : 25mW/50mW/100mW/200mW/400mW
â—†Input Voltage : 6~26V
â—†Output power: 25/50/100/200/400mW Switchable
â—†Frequency: 48Channels;
â—†Weight: 3g(not including antenna)
â—†Size: 28.5*28.5*3mm
â—†Mounting holes Dimension: 25.2mmx25.2mm
â—†Connector: IPX-E
â—†Video format: NISC/PAL
â—†Device configuration through OSD
â—†PIT Mode
Feature:
▲Stable output power and Long transmission distance:≧0.5@25mW,≧1km@200mW,≧5km@400mW(Original Antenna)
â–²Device configuration through OSD
â–²Frequency: 48Channels;
â–²Fast frequency lock,boot does not interfere with companion
â–²Self-contained output power self-test function
â–²Small Size and light weight

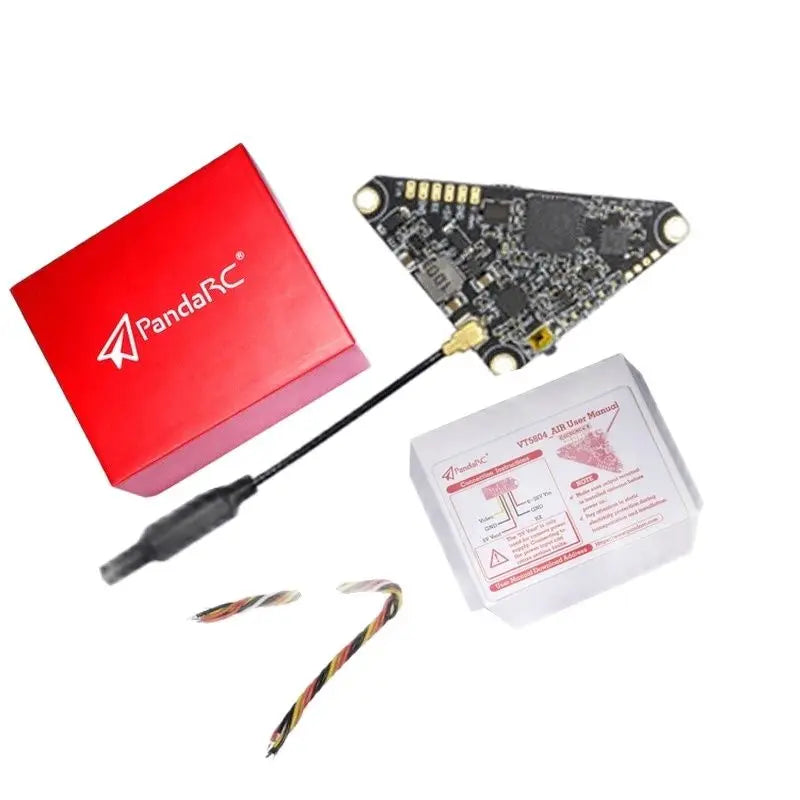

Paket enthalten:
1 x Antenna
1 x Instruction Manual
1 x VT5804 AIR
6 x cable
1 x Heat-Shrinkable T Bush
