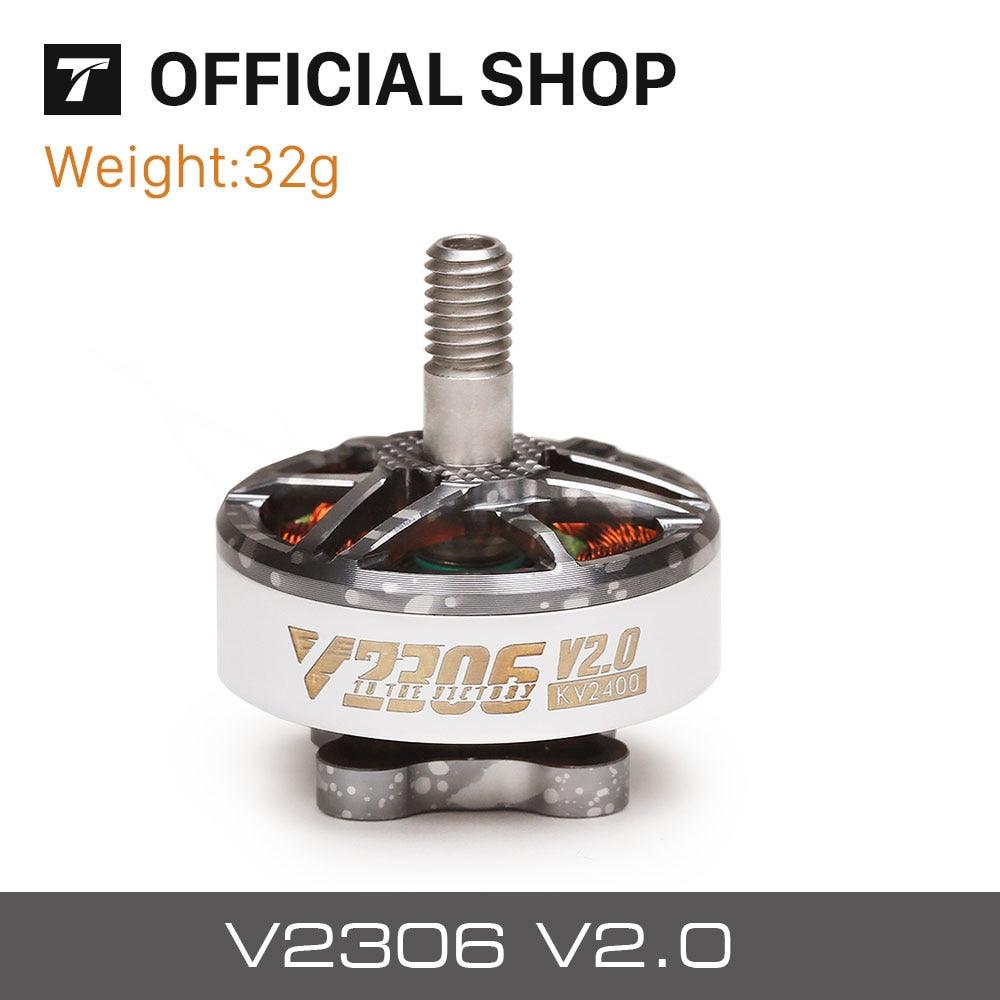

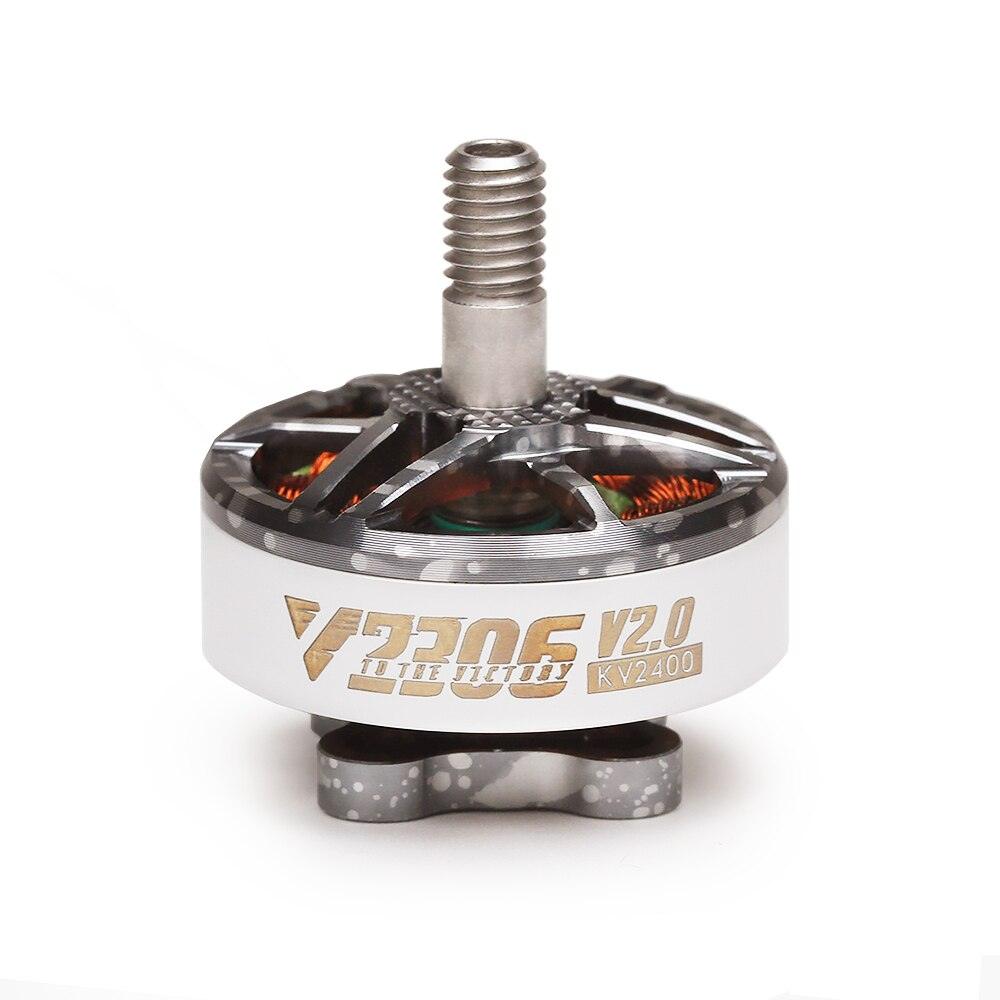

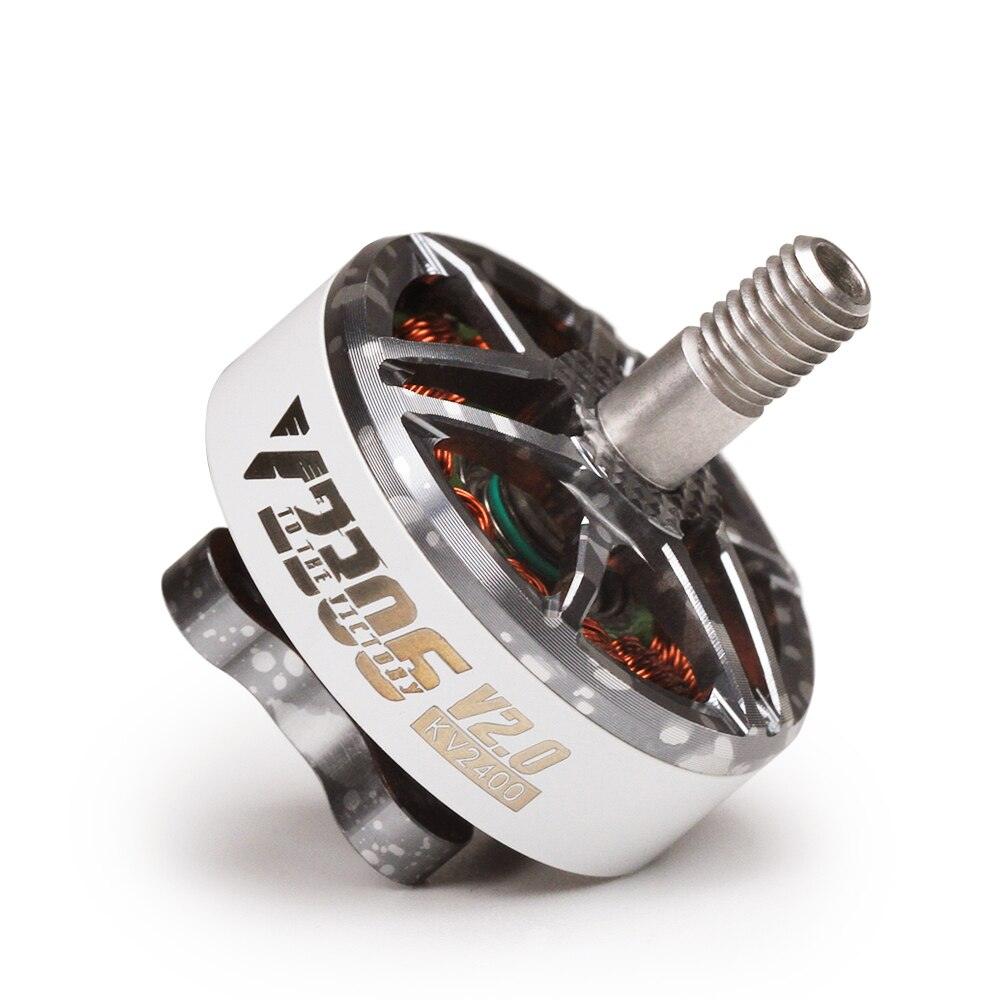

T-motor FPV V2306 V2.0 Brushless Motor SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Remote Control Peripherals/Devices: ESC

Recommend Age: 14+y

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Festland China

Model Number: V2306 V2.0

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: T-MOTOR

VELOX series is designed for pilots to challenge themselves constantly; SO can be free while flying; Feel the wind, free yourself and challenge your limits: Improved the durability of the motor; so that the pilot can easily deal with the extreme movements of freestyle .

Optimized Arc Magnet Design: With stronger magnetic fields, this motor ensures smoother operation and increased efficiency, allowing for more dynamic and thrilling FPV freestyle flights.

Introducing three new colors for your flight journey: Ice Blue, Camouflage, and Silver. The V2.0 motor features a KV rating of 1950/5-6S or 2400/4S, designed specifically for FPV freestyle enthusiasts.

Specifications 1950 Configuration 12N14P Internal Resistance 64mn Motor Dimension 027.9*30.3mm Shaft Diameter 4mm Lead 20# 150mm Weight (Incl. Cable) 32 g Weight (Excl Cable) 28.2g Rated Voltage(Lipo) 5-65 Idle Current(1 OV) 1.35A Max: Power(60s) 850w Peak Current(6os) 38.1A 2400 Configuration 12-N14R Internal Resistance 49mn
