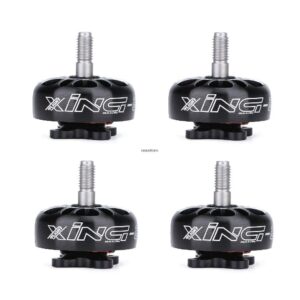

• XING-E series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance.focuses on quality, the XING-E series affordable motors that are strong and durable.

• This 2306 sized motor features a high-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.

Merkmale:

• High-strength 4mm Steel shaft

• N52SH High-temperature magnets, NSK bearings

• 16x16mm hole pattern

• Single strand copper winding

• 6061 CNC machined aluminum top and base parts

• Hex bolt shaft set screw

Spezifikationen:

• Configuration: 12N14P

• Stator Diameter:24mm

• Magnets: N52SH Curved

• Bearing Size: 9x4x4

• Shaft Diameter: 4mm / Steel

• Base Mounting Pattern: 16x16mm M3 Thread

• Motor Dimension:29.5×18.7mm

• Weight:33.1g (150mm wires)

• Idle Current @12.6v (Io):2.1A

• Cells (LiPo): 2-6S

• Max Burst Current <10s:55.22A

• Max Power (W) 60s:885.4W

• Internal Resistance (Rm):40.6mΩ

• Motor Wire Length: 150mm / 20AWG
