SMT10SQ3/SMT10SQ6 18x Zoom UAV Thermal Camera Gimbal Stabilizer Daylight Sensor for FPV Drone Aerial Cinematography Inspection Rescue Surveillance

+ Kostenloser Versand

SKU: K.A. Kategorie: FPV-Kamera

Fragen Sie nach weiteren Informationen

SPEZIFIKATIONEN

Name: SMT10SQ3/SMT10SQ6 18x Zoom UAV Thermal Camera Gimbal Stabilizer Daylight Sensor for FPV Drone Aerial Cinematography Inspection Rescue Surveillance - Drone
Availability: InStock

Radstand: Untere Platte

Verwenden Sie: Fahrzeuge und ferngesteuertes Spielzeug

Upgrade-Teile/Zubehör: Zoom Camera

Einheit Typ: Stück

Werkzeug-Zubehör: Zoom Camera

Technische Parameter: KV1100

Größe: Als Beschreibung

Fernsteuerung Peripheriegeräte/Geräte: Fernsteuerung

RC Teile & Zubehör: Zoom Camera

Paket Gewicht: 0.1kg (0.22lb.)

Packungsgröße: 5cm x 5cm x 5cm (1.97in x 1.97in x 1.97in)

Modellnummer: SMT10SQ3/SMT10SQ6

Material: EVA

Eigenschaften des Allradantriebs: Assemblage

Für Fahrzeugtyp: Flugzeuge

Markenname: uuustore

18x Zoom UAV Thermal Camera Gimbal Stabilizer Daylight Sensor for UAV Drone Aerial Cinematography Inspection Rescue Surveillance

18x daylight sensor with optical zoom function

Multiple thermal imaging pseudo color mode

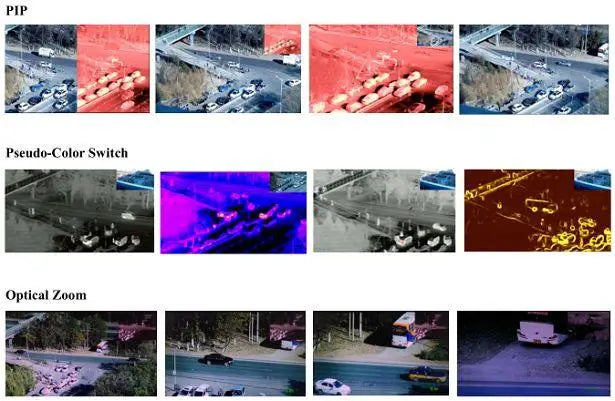

Multi picture-in-picture mode, single HDMI output Zero-second real-time switching

Three-axis stabilization gimbal

PWM or SBUS command control

OSD menu tuning

Single TF card, two-way simultaneous recording

SMT18SQ3/Q6 combines 18x optical zoom camera, 384 / 640 thermal imaging system, and a high-precision 3-axis stabilizing gimbal. The camera supports picture-in-picture display, HDMI output, OSD set up, PWM control, SBUS control, and allows storing their data in local TF card. The video recording under visible light and infrared light can work simultaneously with multiple picture-in-picutre displaying modes. By changing these modes, the zoom function will not be interrupted.

4M SENSOR 18x optical zooming, 1286 memory card, multiple-pseudo color modes, multiple picture-in-picture modes, mode switch in real time . axis stabilizing gimbal control, PWM/SBUS/Serial Port Control: Size: 120*155*175(mm), Weight: 785+10g .

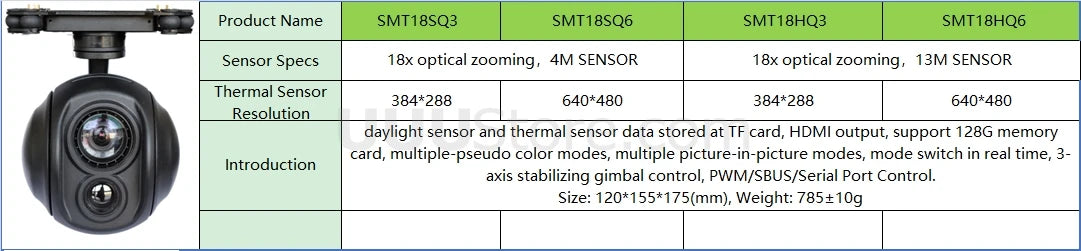

model		SMT18SQ3/Q6
Stromversorgung		3S(DC12V)
Stromverbrauch		Dynamic condition 7.5W
Arbeitsstatus	Jitter-Winkel	Pitch and Roll: ±0.02° Horizontal Direction: ±0.03°
	Work Range	Pitch range: -90°to +90° Roll range: -85°to +85° Yaw range: -150°to +150°
Visible Light Kamera	Sensor	1/3 4M Pixes CMOS sensor
	Zoom	18x HD optical zoom lens, f=4.7 to 84.6mm
	AF-Zeit	Support quick auto focus, timelapse < 1 sec
	Unterstützungsmodus	1080P 30fps, 720P 60fps
	Field Angle(FOV)	D : WIDE 68.5º±5% TELE 4.2º±5% H : WIDE 54.8º±5% TELE 3.4º±5% V : WIDE 41º±5% TELE 2.5º±5%
Infrared Light Kamera	Auflösung	384288/640480 pixels
	Pix-Abstand	17μm
	Measurement Option	Highest temperature, lowest temperature, and over temperature alarm
	Wellenlänge	8~14μm
	(NETD) Thermal Sensitivity	≤65mk@30°
	Feldwinkel	19mm Lens; Angle: 32.0×24.2
	Measurement(Optional)	Center point, highest temperature, lowest temperature, temperature display, over-temperature alert
	Typ	Uncooled Micro Bolometer IR FPA Fabrication
Gerät Größe		120mm×155mm×175mm
Arbeitsbedingungen		-10° to +45° / 20% to 80% RH
Gewicht		825g (with metal damping board)

‘

Farbe	SMT18HQ6, SMT18HQ3, SMT18SQ6, SMT18SQ3
