H200 Agricultural / Transport Drone Specifications
Basic Parameters
| Parameter | Description |
|---|---|

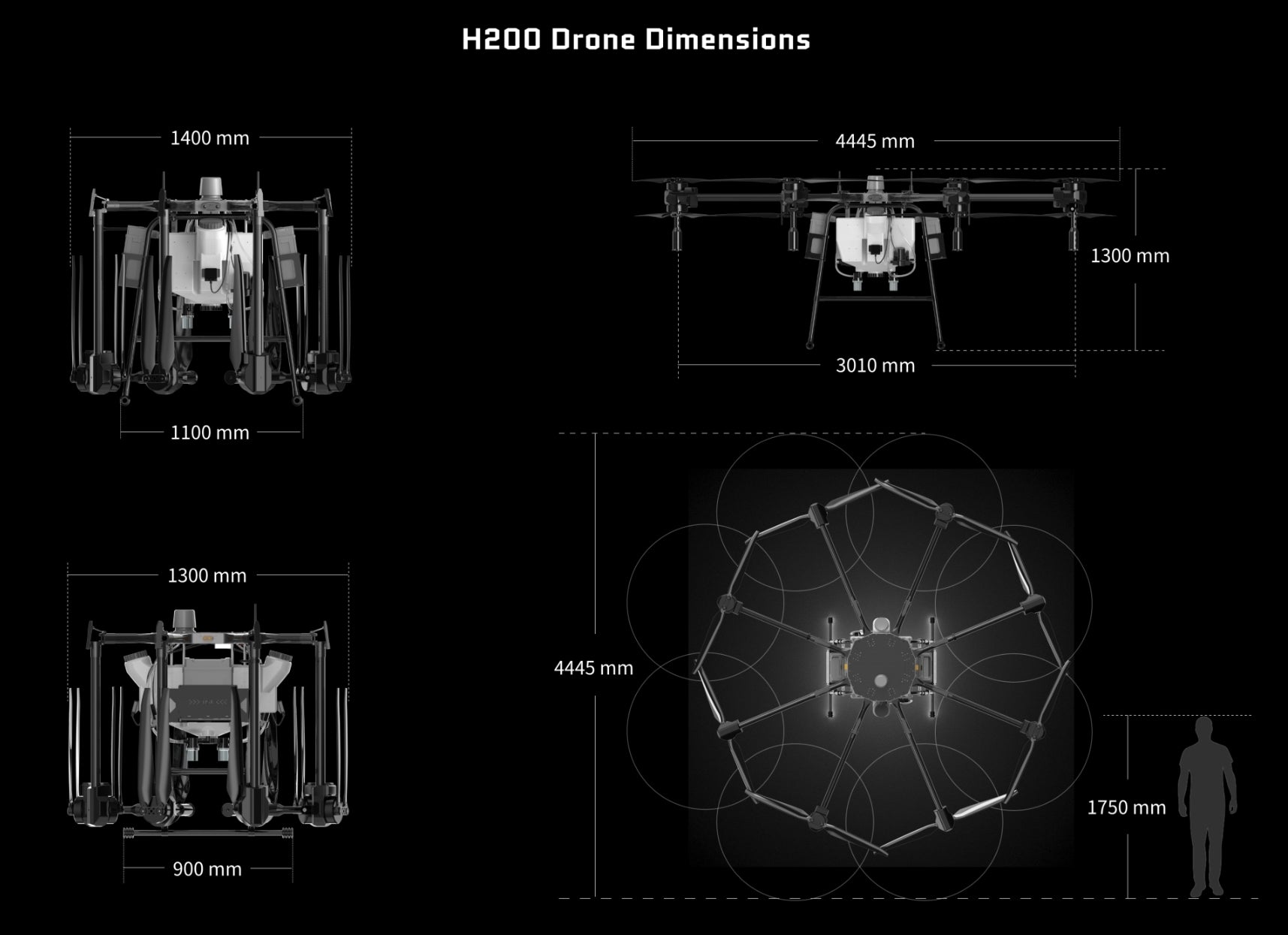

| Dimensions (unfolded) | 4445 x 4445 x 1300 mm |
| Dimensions (folded) | 1300 x 1300 x 1300 mm |
| Materials | Carbon Fiber + Aviation Aluminum |
| Structural Design | 8-Axis Octocopter |
| Weight | 71.6 kg |
| Rated Payload | 100 kg |
| Drone Frame Lifespan | ≥10 years |
| Powertrain Lifespan | ≥100,000 hours |
Flight Parameters
| Parameter | Description |
|---|---|
| Maximum Takeoff Weight | 190 kg |
| Flight Speed | 1-12 m/s |
| Flight Altitude | ≤ 20 m |
| Flight Radius | ≤ 5000 m |
| Flight Duration | 6-15 min |
Spray System
| Parameter | Description |
|---|---|
| Tank Capacity | 92 L |
| Sensor | Flow meter |
| Nozzles Quantity | 4 |
| Spray Width | 8-20 m |
| Nozzle Type | Centrifugal nozzles |
| Atomizing Size | 60-90 μm |
Water Pump
| Parameter | Description |
|---|---|
| Quantity | 2 |
| Max. System Flow Rate | 24 L/min |
Transport System
| Parameter | Description |
|---|---|
| Rated Payload | 100 kg |
| Safe Takeoff and Landing Wind Speed | ≤7 m/s |
| Mounting Methods | Drop Release or Cargo Box |
GNSS & Radar System
| Parameter | Description |
|---|---|
| Positioning System | Triple satellite: GPS, Beidou, GLONASS |
| Front and Rear Obstacle Avoidance Radar | Obstacle’s Position, Distance, Direction of Motion, Relative Velocity |
| Field of View (FOV) | Horizontal ±40°; Vertical ±45° |
| Relative Speed of Safe Obstacle Avoidance | ≤8 m/s |
| Sensing Range | 0.5~30 m |
| Terrain Following Radar Sensing Mode | Millimeter Wave Radar |
| Fixed Height Range | 1-10 m |
| Height Measurement Range | 10 m |
| Max. Gradient | 45° |
Camera System
| Parameter | Description |
|---|---|
| FPV Camera Video Resolution | 1920 x 1080 px |
| Focal Length | 120° |
| Gimbal Pod Type | 14x optical zoom three-axis gimbal pod |
| Rotation Angle | Horizontal 360°, Vertical 360° |
| Night Navigation Model | High Brightness Night Flight Lights |
Remote Control – Agriculture
| Parameter | Description |
|---|---|
| Model | H12 |
| Max Signal Range | 5 km |
| Dimensions | 190 x 152 x 94 mm |
| Duration | 6-20 hours |
| Display Screen | 5.5-inch, 1920×1080, 1,000 nits |
| Operating Frequency | 2.400～2.483 Ghz |
| Charging Port | TYPE-C |
| Ambient Temperature Range | -10~60 ℃ |
Remote Control – Transport
| Parameter | Description |
|---|---|
| Model | H16 |
| Max Signal Range | 30 km |
| Dimensions | 272 x 183 x 94 mm |
| Duration | 6-20 hours |
| Display Screen | 7-inch, 1280×800, 2,000 nits |
| Operating Frequency | 2.400～2.483 Ghz |
| Charging Port | TYPE-C |
| Ambient Temperature Range | -10~60 ℃ |
Power System
| Parameter | Description |
|---|---|
| Intelligent Battery Quantity | 2 – 4 units |
| Battery Type | High Capacity Lithium Polymer Battery |
Intelligent Charger
| Parameter | Description |
|---|---|
| Rated Charging Power | 9000 W |
H200 Agricultural / Transport Drone Details
Multifunctional High Efficiency Long Range Long Endurance Spray-Transport Integrated Drone Max. Flow Rate: 24 L/min Max Flight Time: 62 min 44.6 kph

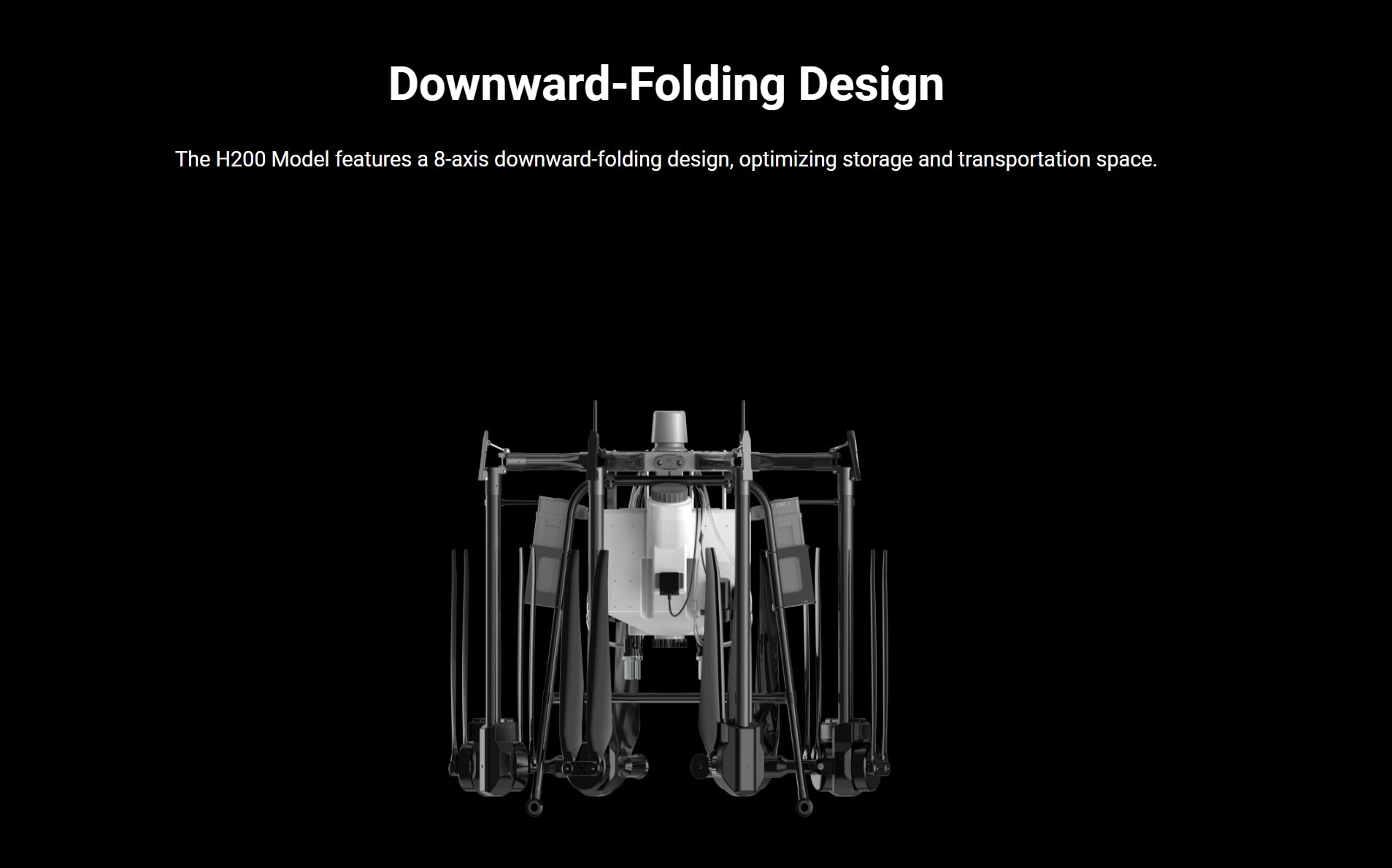

Downward-Folding Design The H2OO Model features a 8-axis downward-folding design; optimizing storage and transportation space

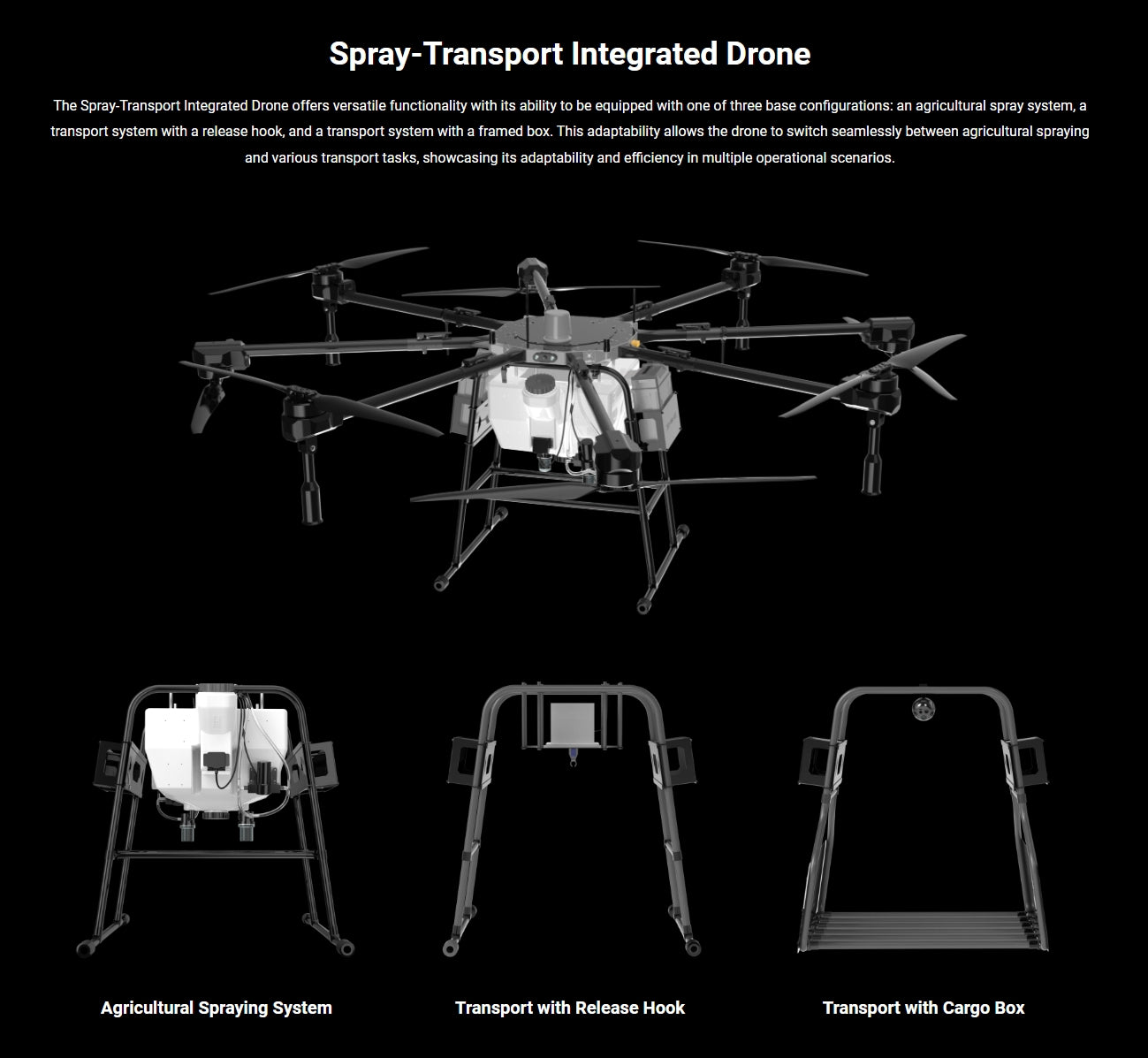

spray-transport Integrated Drone can switch between agricultural spraying and transport tasks . drone can be equipped with one of three configurations: an agricultural spray system; a transport system with a release hook, and transport system .

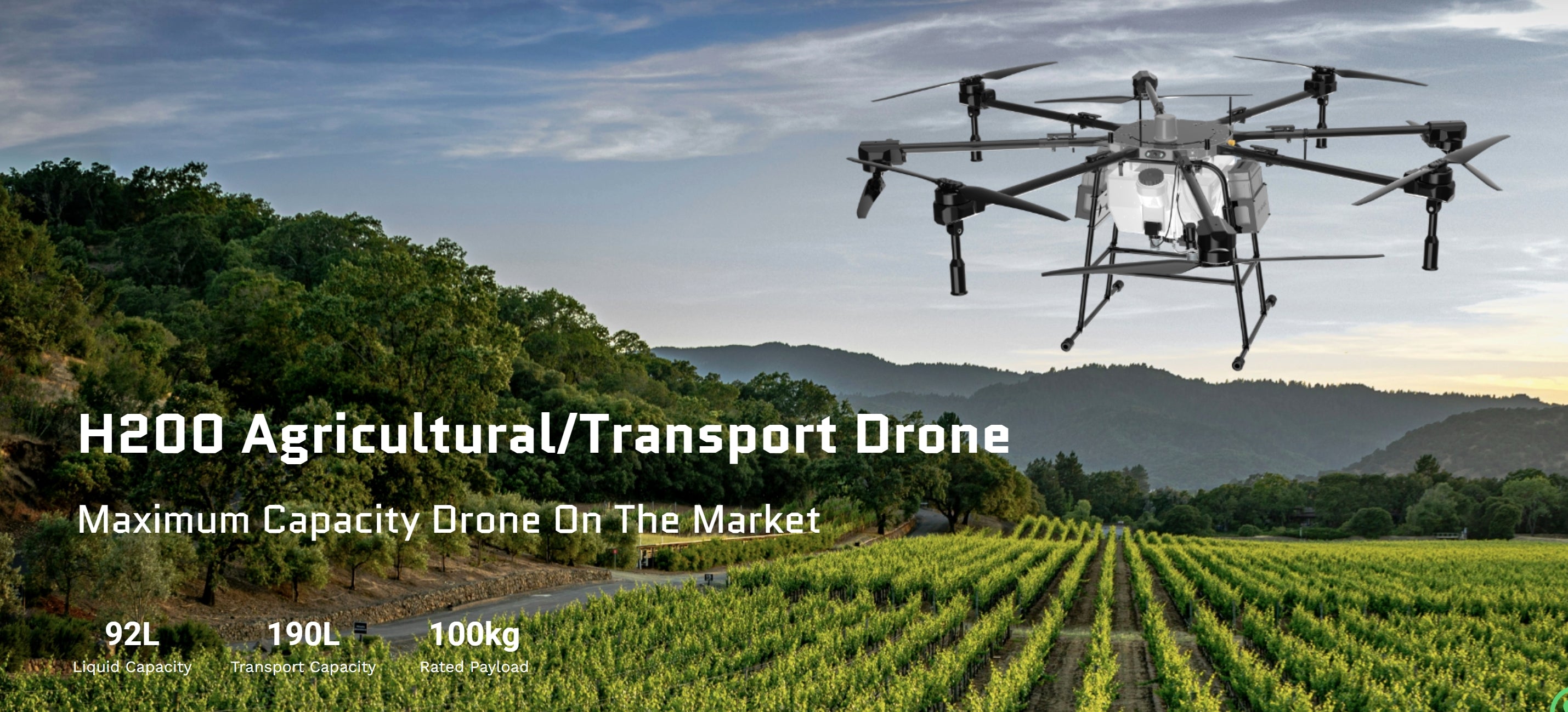

H2O0 Agricultural/Transport Drone Maximum Capacity Drone On The Market 92L 190L 100kg Liquid-Capacity Transport Capability Rated Pay

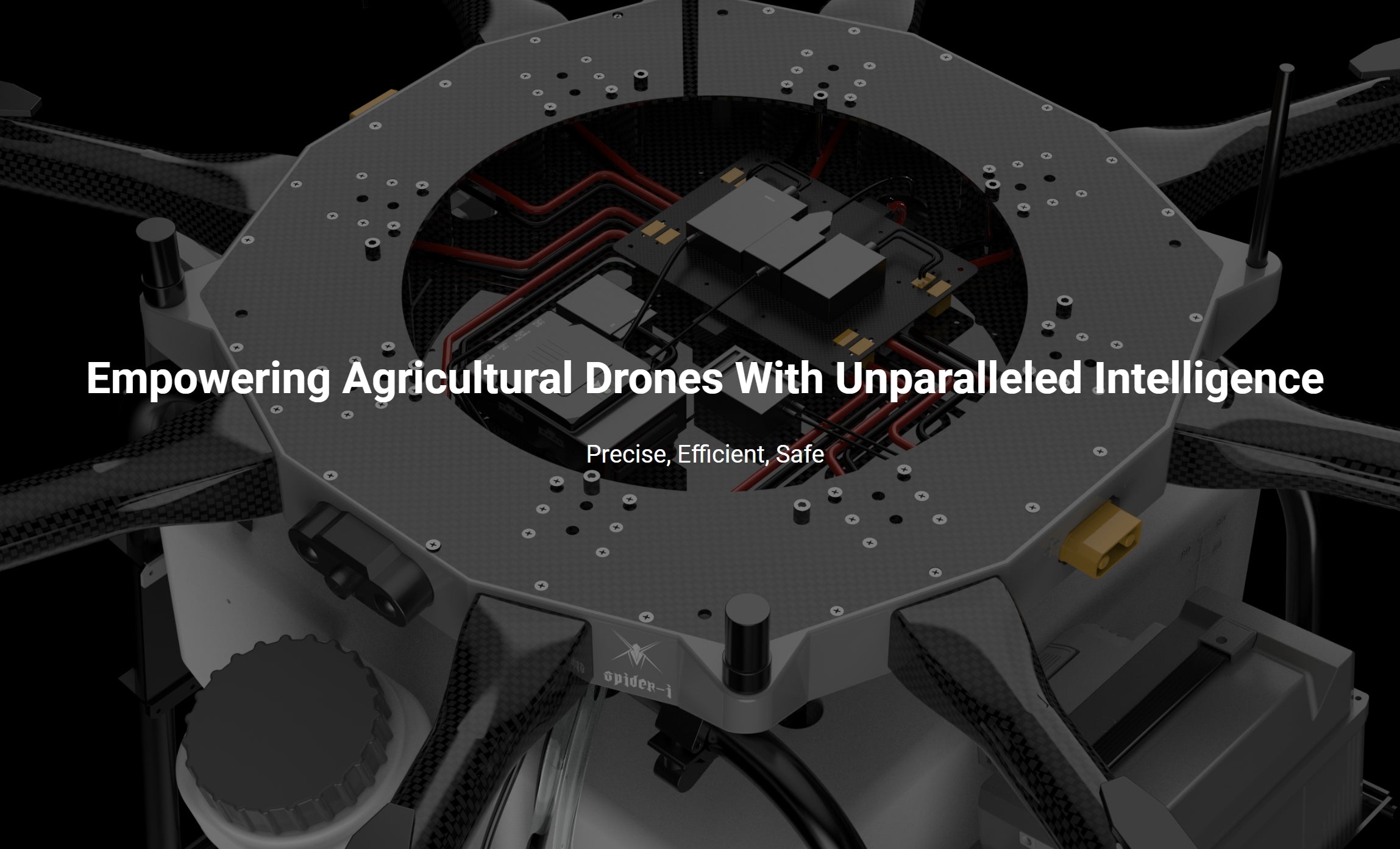

Empowering Agricultural Drones With Unparalleled Intelligence Precise, Efficient; Safe opider-

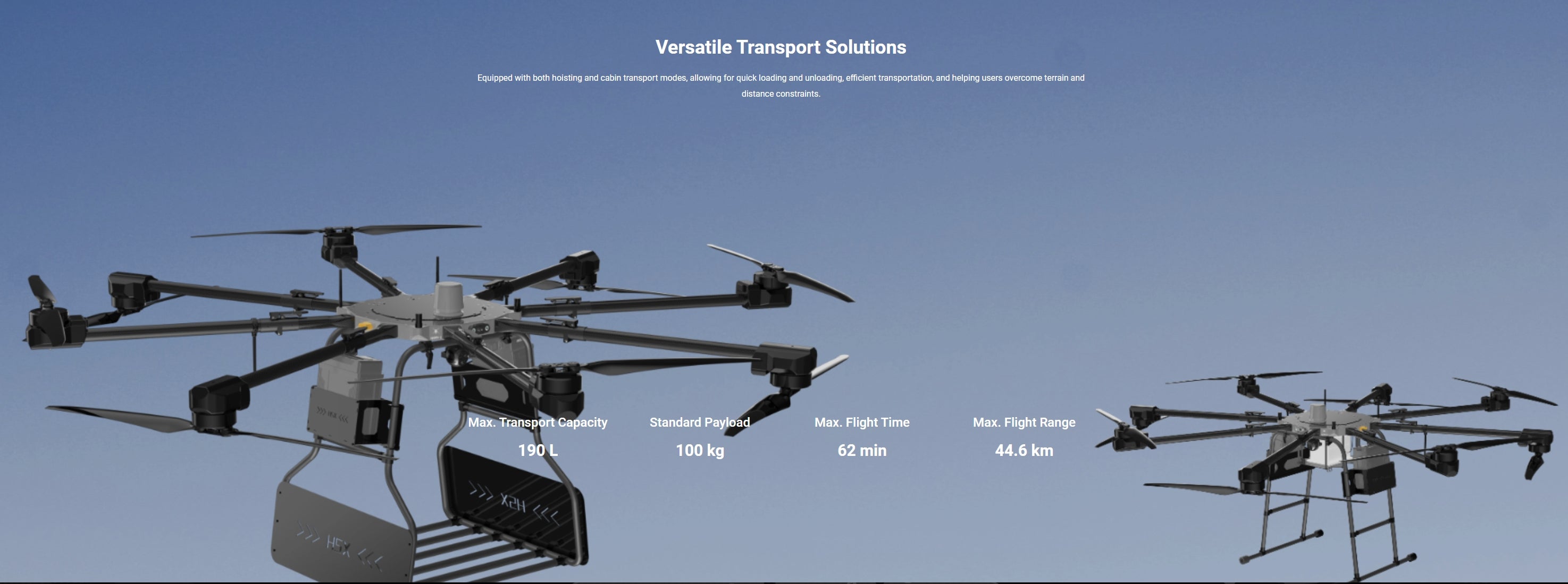

Transport Solutions Equipped with both hoisting and cabin transport modes, allowing for quick loading and unloading; efficient transportation; and helping users overcome terrain and distance constraints .

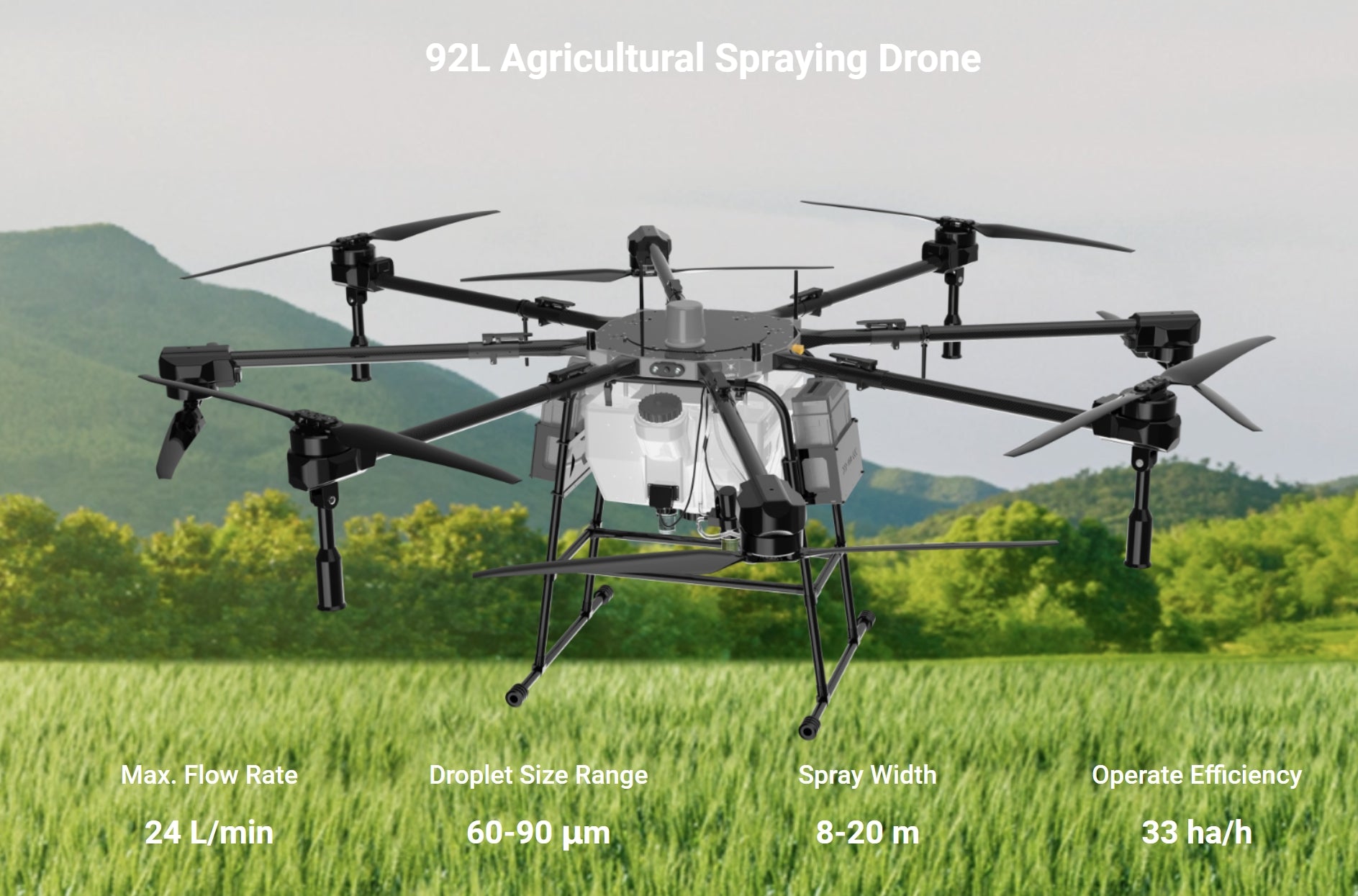

92L Agricultural Spraying Drone Max. Flow Rate Droplet Size Range Spray Width Operate Efficiency 24 Llmin 60-90 um 8-20 m 33 hal

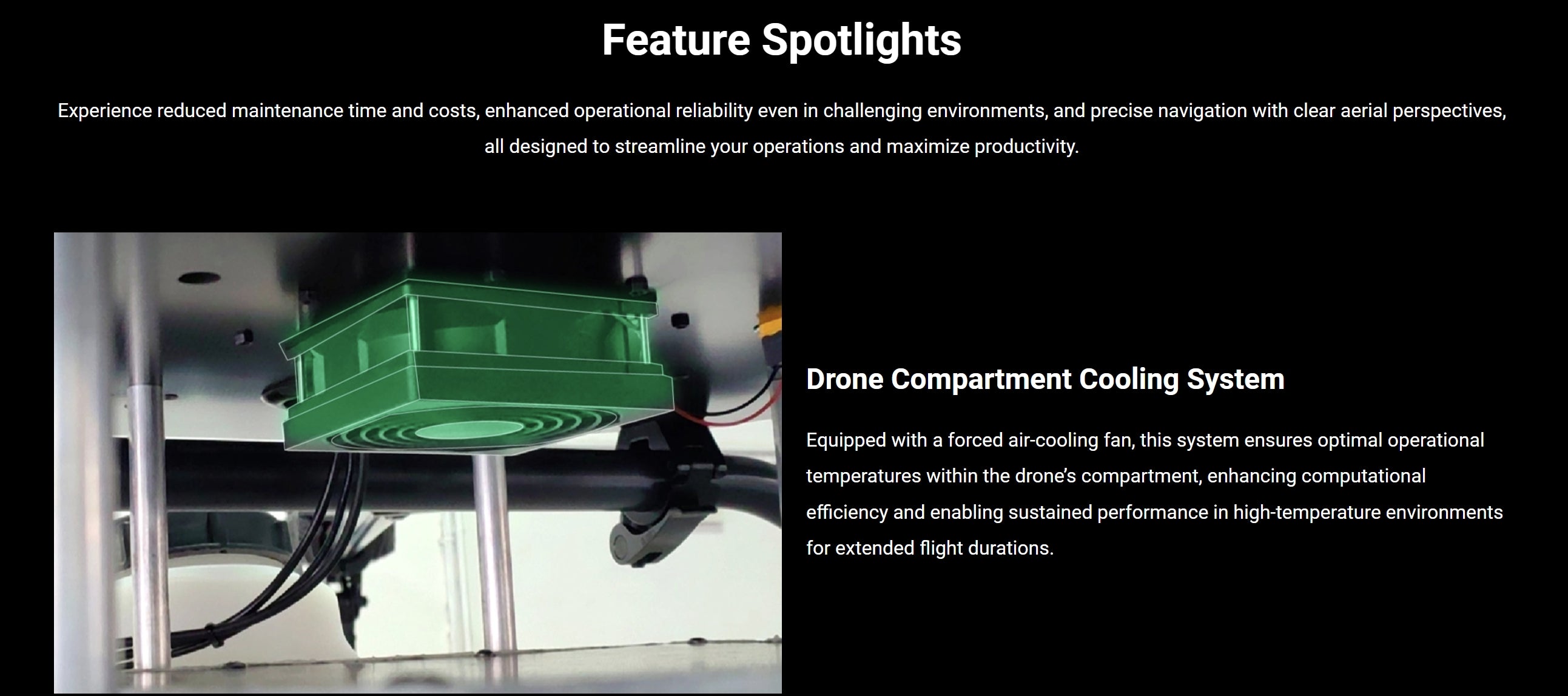

forced air-cooling ensures optimal operational temperatures within the drones compartment . system allows sustained performance in high-temperature environments for extended flight durations .

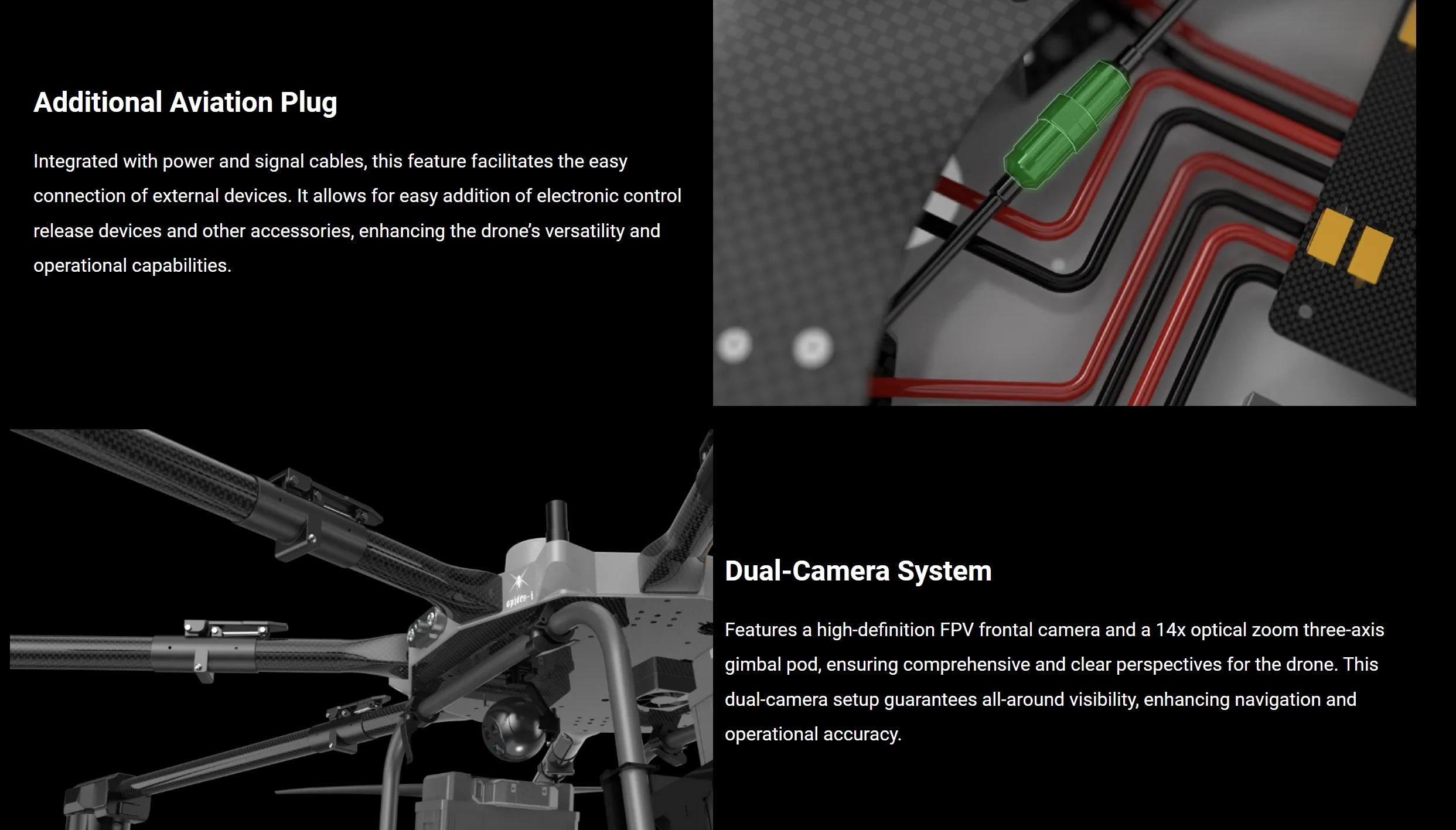

dual-camera system features a high-definition FPV frontal camera and a 14x zoom three-axis gimbal . opidcr- 1 optical pod ensures comprehensive and clear perspectives for the drone .

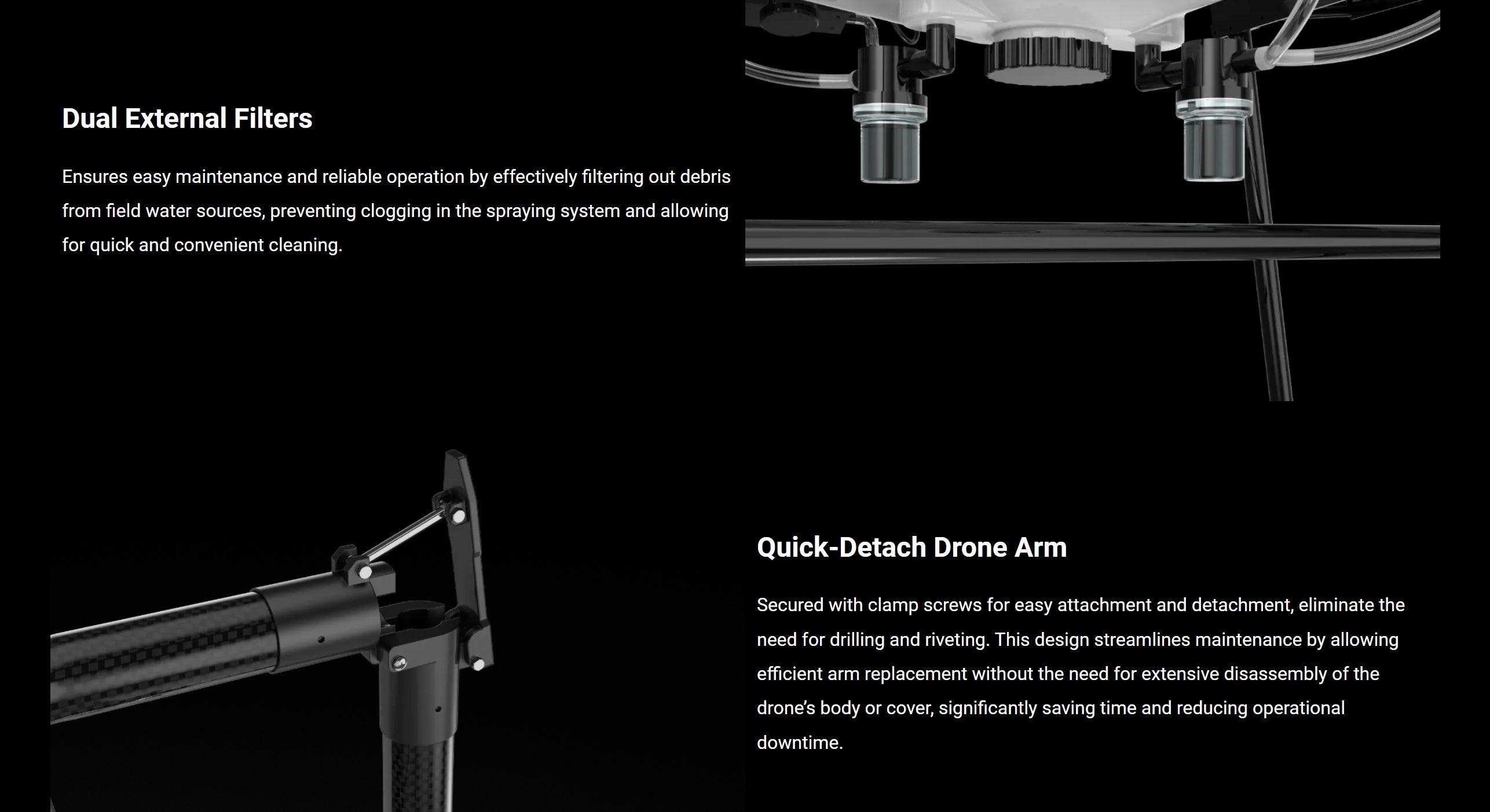

Dual External Filters Ensures easy maintenance and reliable operation by effectively filtering out debris from field water sources . quick-Detach Drone Arm Secured with clamp screws for easy attachment and detachment; eliminates the need for drilling and riveting .

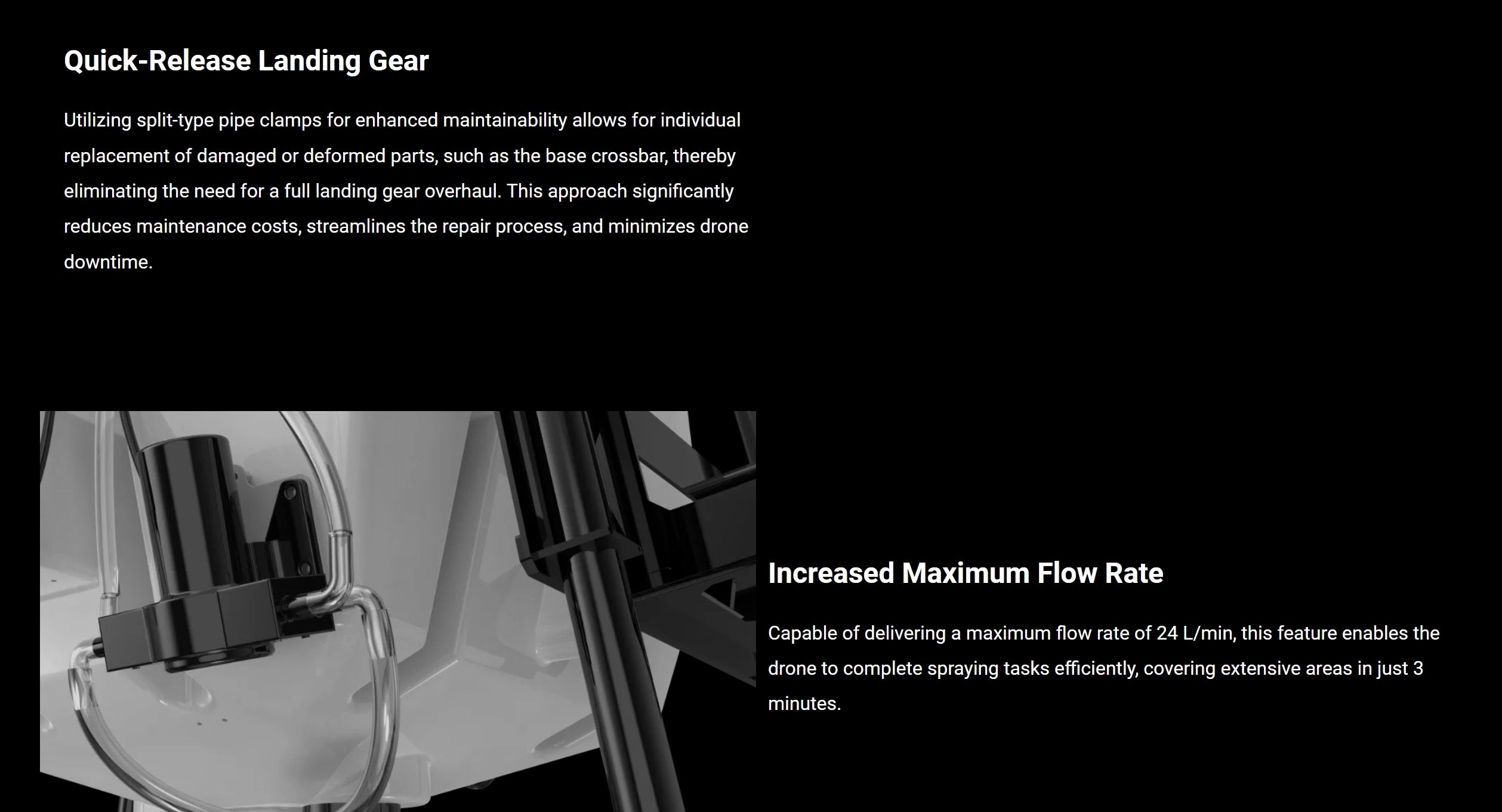

Quick-Release Landing Gear uses split-type pipe clamps for enhanced maintainability . this approach significantly reduces maintenance costs, streamlines the repair process, and minimizes drone downtime .

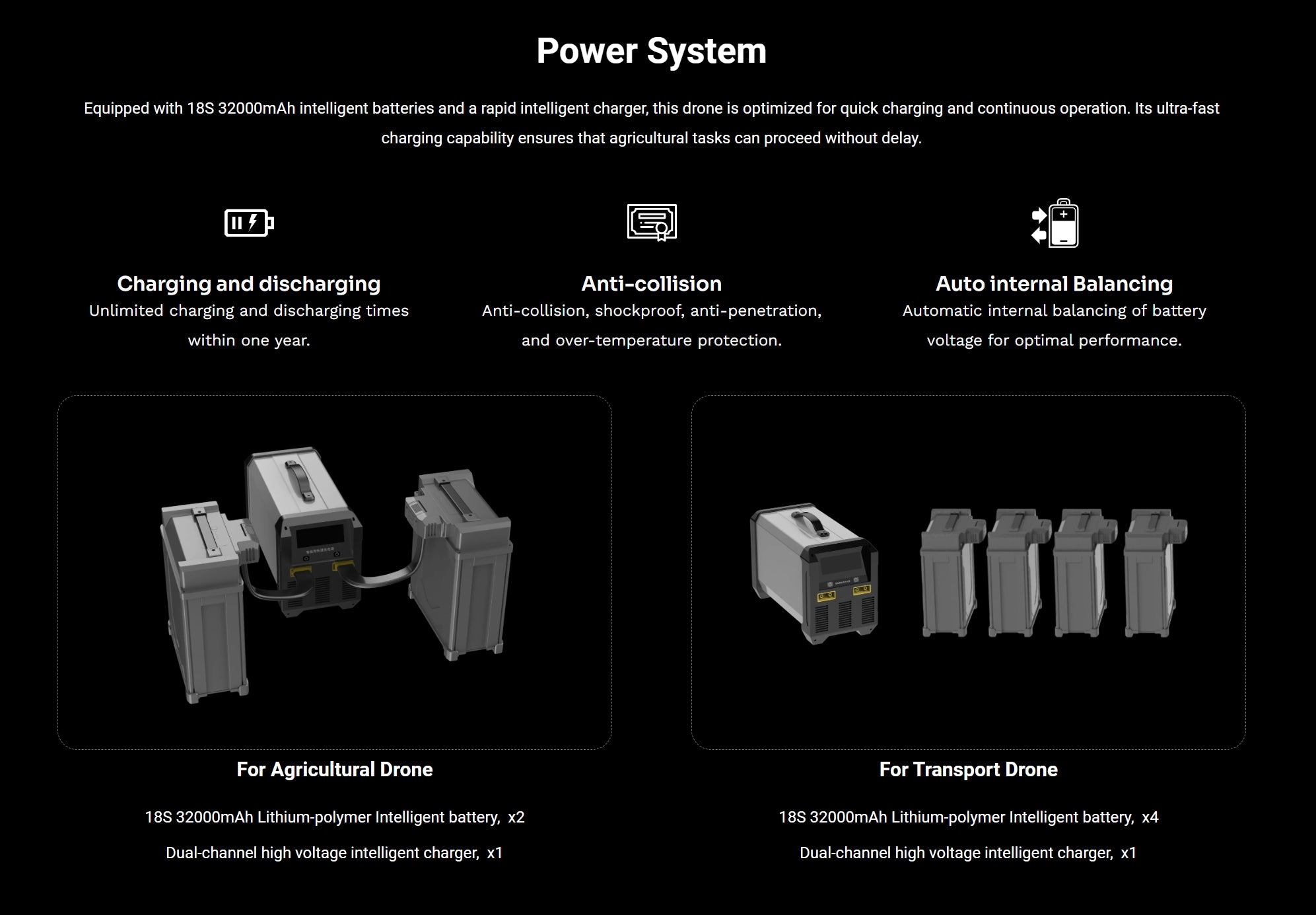

drone is optimized for quick charging and continuous operation . its ultra-fast charging capability ensures that agricultural tasks can proceed without delay . it comes with 18S 320OOmAh intelligent batteries and a rapid intelligent charger .

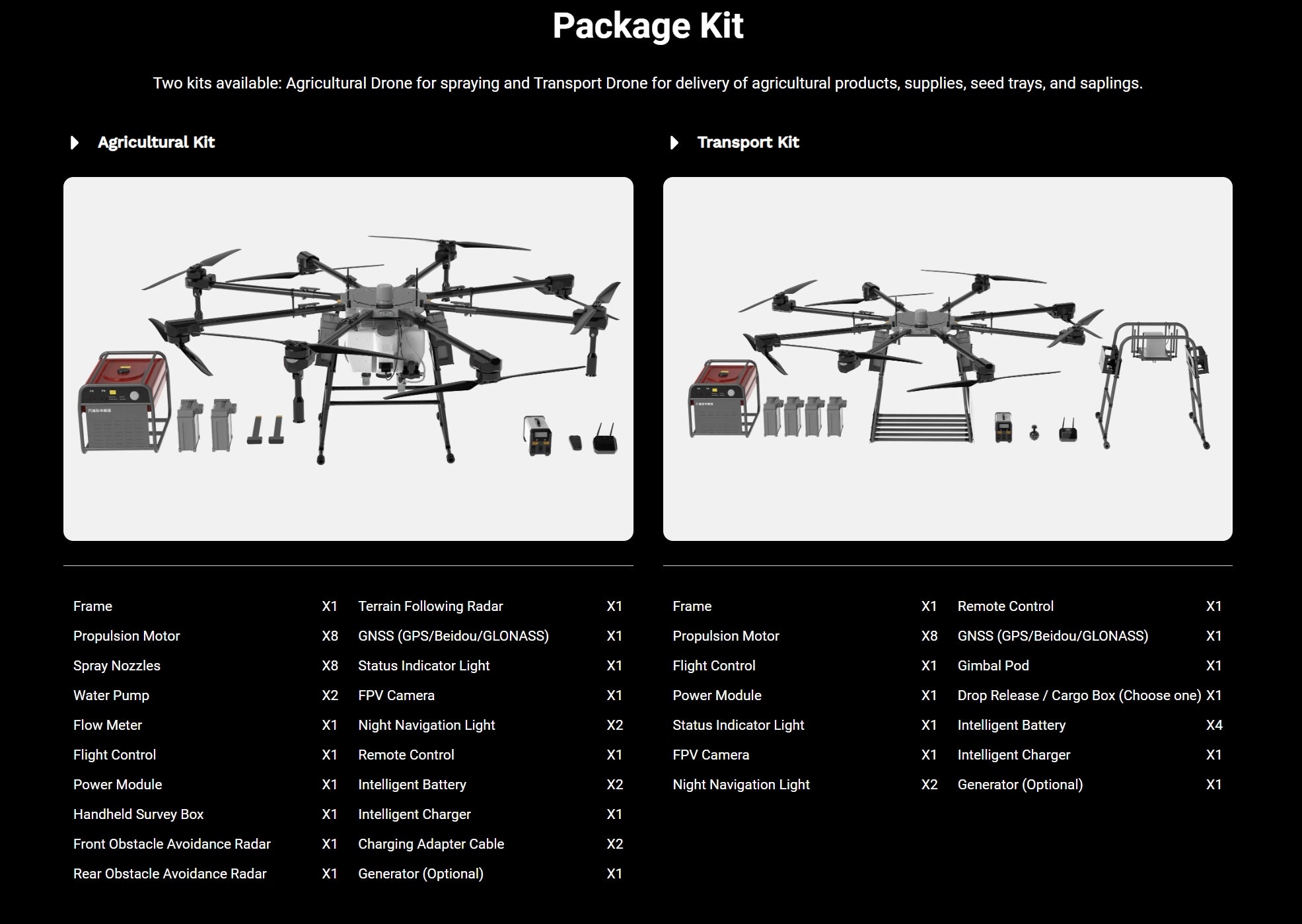

Package Kit Two kits available: Agricultural Kit for spraying and Transport Drone for delivery of agricultural products, supplies, seed trays, and saplings: X1 Spray Nozzles X8 Status Indicator Light X2 FPV Camera x1 Power Module X1. Drop Release Cargo Box (Choose one)
Comprehensive Services Our commitment doesn’t end with products; we’re here to offer comprehensive technical support and training . we equip our dealers and distributors that can handle orders of hundreds of products to be personalized .
