Details zum Produkt

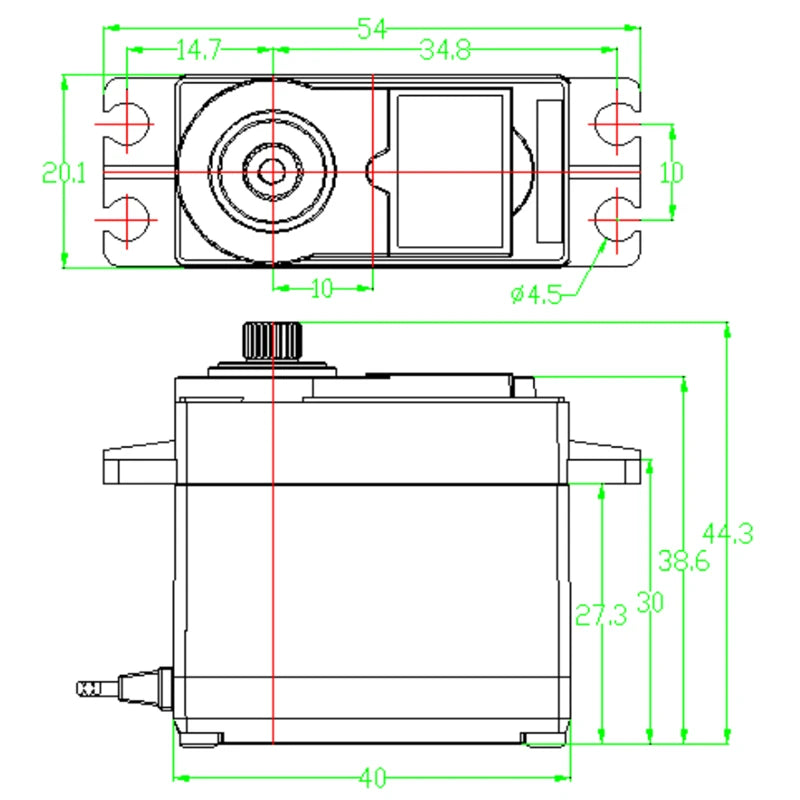

Model：FB5118M Storage Temperature Range：-30℃～80℃ Operating Temperature Range：-15℃～70℃ Size：A：40mm B：20.1mm C：38.3mm D：54mm Weight：65g Gear type：Steel Gear Limit angle：No limit Bearing：2 Ball bearings Horn gear spline：25T(5.9mm) Horn type：Plastic,POM Case：Nylon & Fiberglass Connector wire：300mm ±5 mm(Black ,Red,white and Orange) Motor：Metal brush motor Operating Voltage Range：6-7.4V Idle current(at stopped)：5mA No load speed：62RPM@6V Runnig current(at no load)：150 mA @6V Peak stall torque：17.5kg.cm@6V Rated torque：6kg.cm@6V Stall current：1800mA@6V Running degree：300°（±5°）(when 500～2500 µsec) Rotating direction：Cockwise (when 1000～2000 µsec) Feedback Voltage：900usec-2.60V/1500usec-1.66V/2100us-0.72V

Item Packing

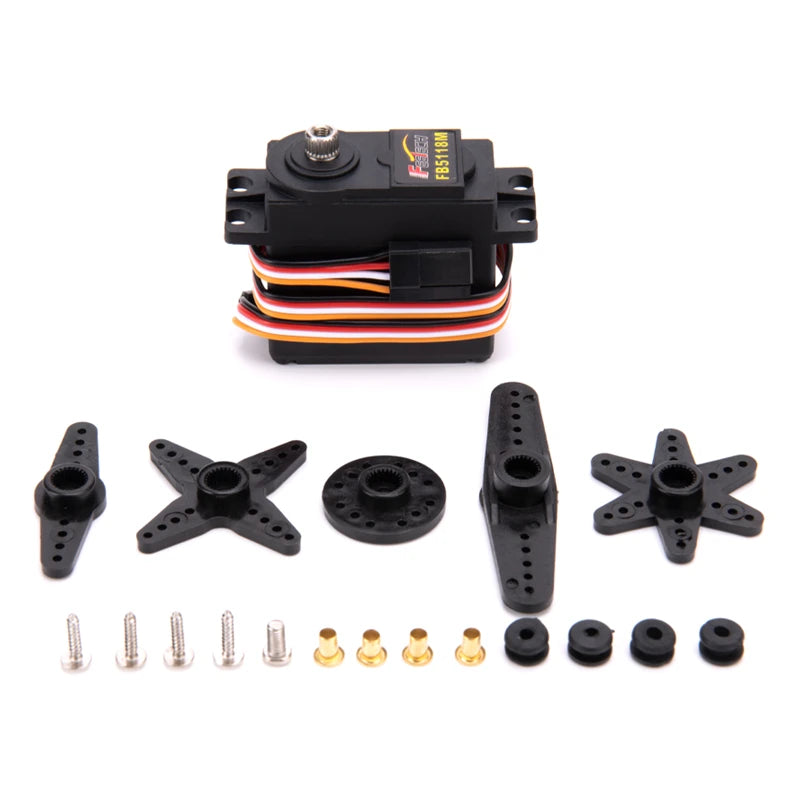

FB5118M Digital Servo x 1 Accessories x 1
