10 Inch FPV-Drohne SPEZIFIKATIONEN

Markenname: 100Drohne

Hign-concerned Chemical: Keine

Ist elektrisch: Keine Batterie

Herkunft: Festland China

Material: Zusammengesetztes Material

Empfehlen Alter: 14+y

Verwenden Sie: Fahrzeuge und ferngesteuertes Spielzeug

Spezifikationen:

Frame:10inch

FCESC:SpeedyBee F405 V3 50A Stapel

Motor: motor RC3115-900KV

VTX: 5.8G 1.6W

Propeller: GEMFAN 1050

Camera:RUNCAM PHOENIX 2 SP

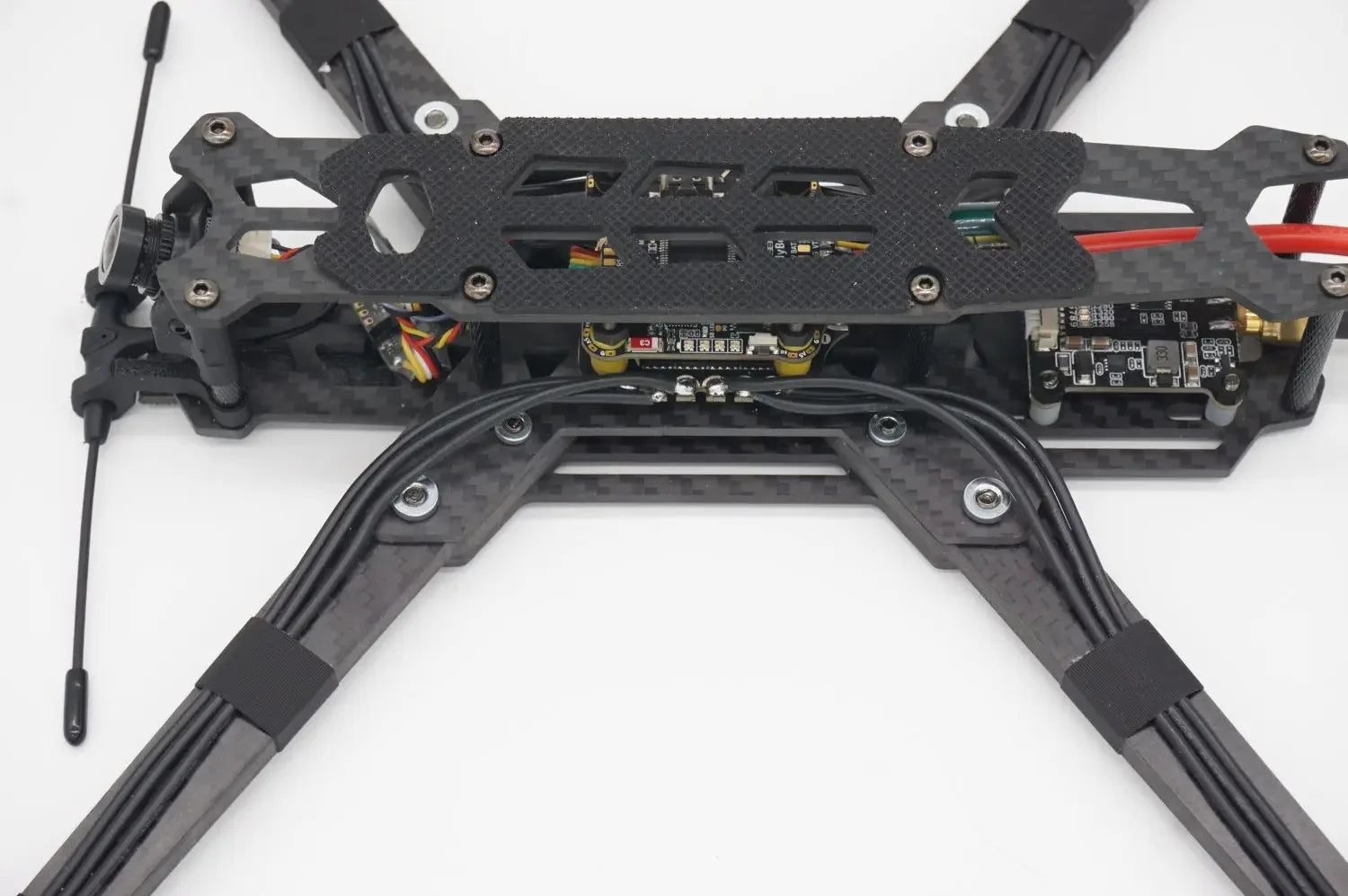

10inch Frame:

Wheelbase: 410mm

Arm Plate: 6mm

Top Plate: 2.5mm

Middle Plate: 2.5mm

Bottom Plate: 3mm

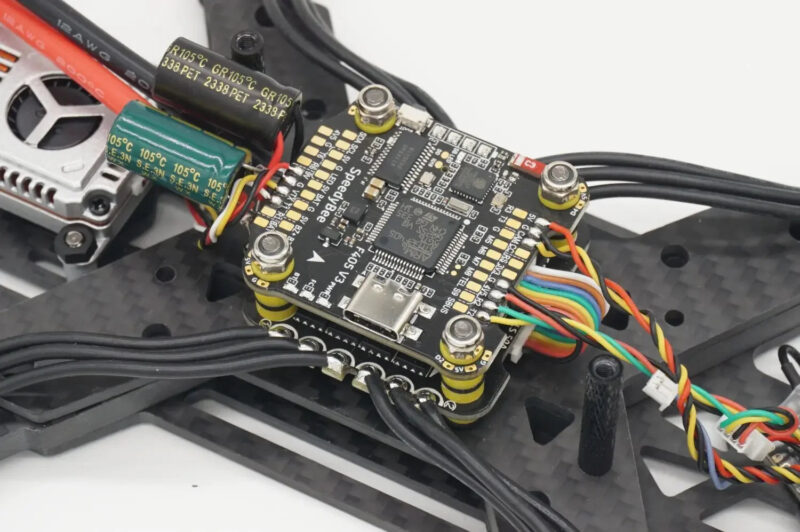

SpeedyBee F405 V3

Power: 3-6S

Sensor: BMI270

Barometer: YES

BEC: BEC 5V/2Aand 9V/2A

SpeedyBee 50A

Input voltage: 3-6S

Continue current:50A*4

Firmware: BLHELI__S JH50

3115-900KV-MOTOR

Configuratie: 12N 14P

Prop Adapter Schachtdraad: M5

Aantal cellen (Lipo): 5-8S

Boutpatroon: M3 (19X 19mm)

Lagers: Japanse NMB 11mm X 5mm X 5mm

Rotor: N52SH boogmagneten

Gewicht: 110g met 25cm SR-draad

5.8G 1.6W VTX

voltage:DC 7V-36V

power:25/400/800/1600mW

frequency:5362MHz-5945MHz

protocol: IRC

ELRS 3.0

RF Freq:915Mhz

IC:SX1276 + ESP8285

TX Vermogen: 100mW

Grootte: 11mm * 18mm

Firmware: BETAFPV 900 RX

RUNCAM PHOENIX 2 SP

Sensor: 1/2”COMS

Resolution:1000TVL

FOV:D:160° H:124° V:95°@F 2.4

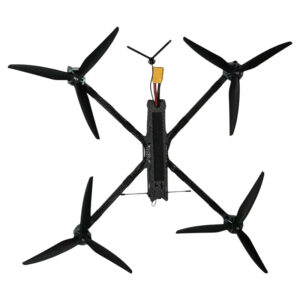

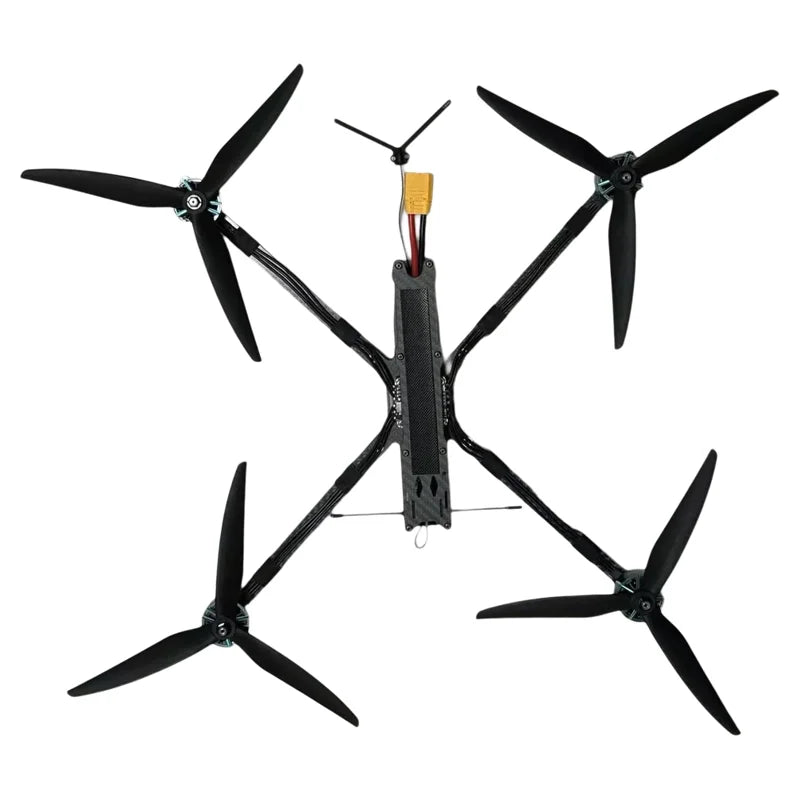

Introducing the 10 Inch FPV Drone, equipped with a 5.8G 1.6W transmitter and a flying range of 10-20 kilometers. The drone features a 1000TVL camera and is powered by an F405 FC motor. The lightweight design allows for agile flight and precise control. The drone camera captures crystal-clear video, ideal for freestyle long-range flights.
