Specification
| product name | Running Night Eagle 3 | ||
| Image Sensor | 1/2.8”2MP | ||
| horizontal resolution | 1500TVL | ||
| lens |
| ||
| screen format |
| ||
| signal system | NTSC/PAL switchable | ||
| Integrated OSD | Yes | ||
| Mirror/Flip | usable | ||
| signal-to-noise ratio | >50dB | ||
| electronic shutter speed | car | ||
| Sensitivity | 11390 millivolts/lux-second | ||
| sooner or later | black,white | ||
| Menu control | joystick control | ||
| strength | DC 5-24V | ||
| current | 90mA@12V / 250mA@5V | ||
| building materials | ABS | ||
| net weight | 8.5 grams | ||
| aspect | 19mm long*19mm wide*27mm high |
manual
English
RunCam NightEagle 3 Analog Camera features a 1/2.8-inch, 2MP sensor with a high sensitivity of 11390 mV/Lux-sec starlight night vision effect, allowing for powerful performance in low-light conditions.
Features an On-Screen Display (OSD) with adjustable settings, including pilot ID, power-on time, and detection of external VBAT+ voltage.

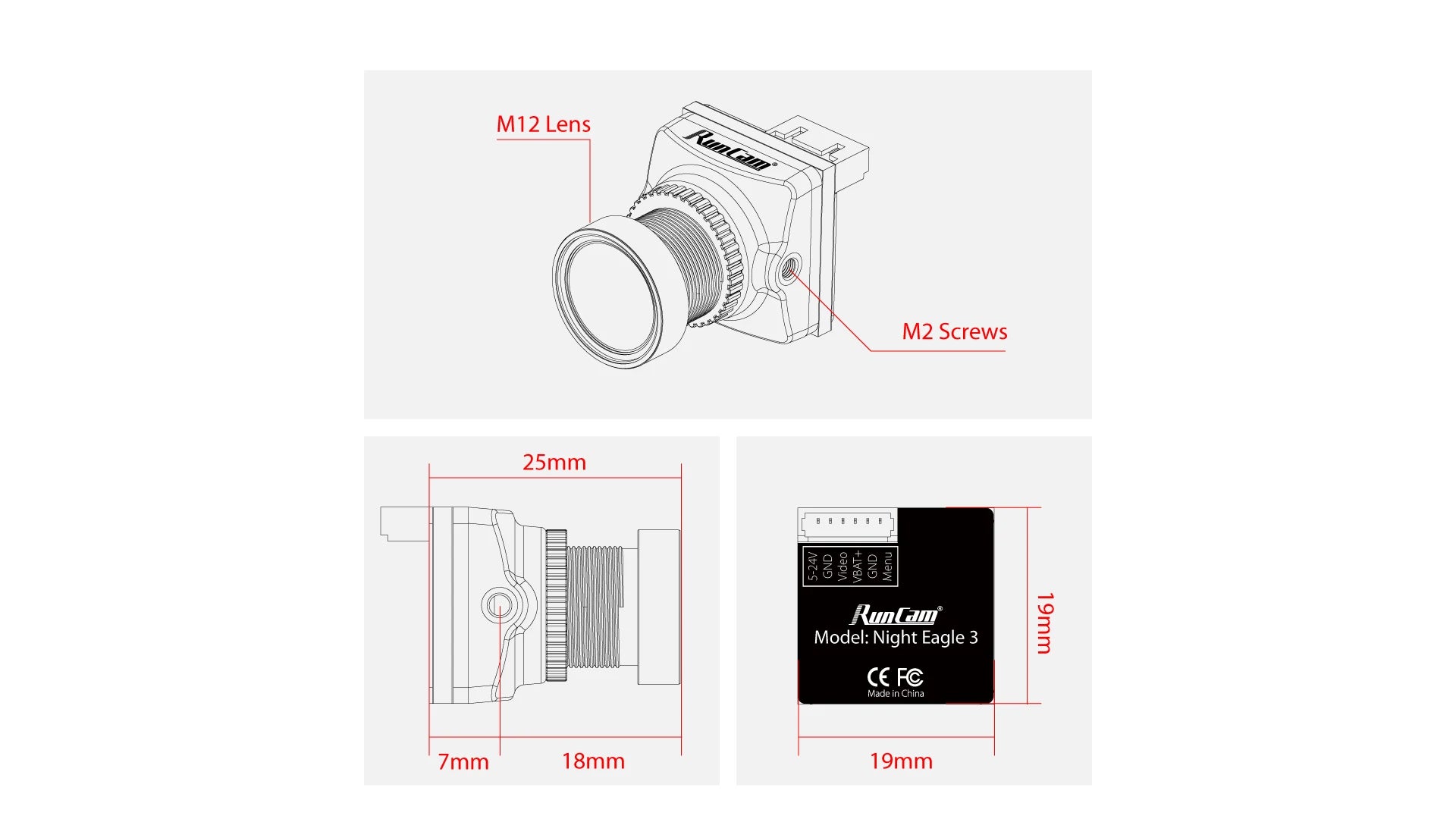

This product features a M12 lens, made in China, with M2 screws. The specifications include a 25mm diameter, as well as measurements of 18mm and 19mm.
