SPECIFICATIONS
Brand Name: JXServo
Origin: Mainland China
Material: Metal
RC Parts & Accs: Servos
Size: 41.5X20.2x38mm
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Car Shell Column
Remote Control Peripherals/Devices: Servos
Tool Supplies: Sticker
Technical parameters: Value 2
Model Number: JX-WP5318HV
Four-wheel Drive Attributes: Motors
Wheelbase: Screws
Working voltage: 6V-8.4V
Working temperature: -20C°~ +60C°
Testing voltage: At 6V – At 8.4V
Torque: 15.3kg.cm – 18.5kg.cm
Idle speed: 0.11sec/60 deg – 0.09sec/60 deg
JX WP5318HV 18kg 6V-8.4V hv Full Waterproof Metal Gear Digital Servo 15kg For Rc Racing Drone/Robot/Speed Racing Car/Kitchen
Features
– Full waterproof digital iron core steering gear
– High precision gear made in Taiwan
– Double ball bearing.
Product Details
Control system: PWM control ( 1500 usec is the central point )
Working voltage: 6V-8.4V
Working temperature: -20C°~ +60C°
Testing voltage: At 6V – At 8.4V
Torque: 15.3kg.cm – 18.5kg.cm
Idle speed: 0.11sec/60 deg – 0.09sec/60 deg
Idle current: 280mA – 370mA
Load current: 700mA – 900mA
Dead band: 2usec
Lifetime: >15000 times without load
Moving angle: 60° ± 10°
Drive type: MOS drive
Motor type: Cored motor
Potentiameter type: Direct drive
Signal booster type: Digital

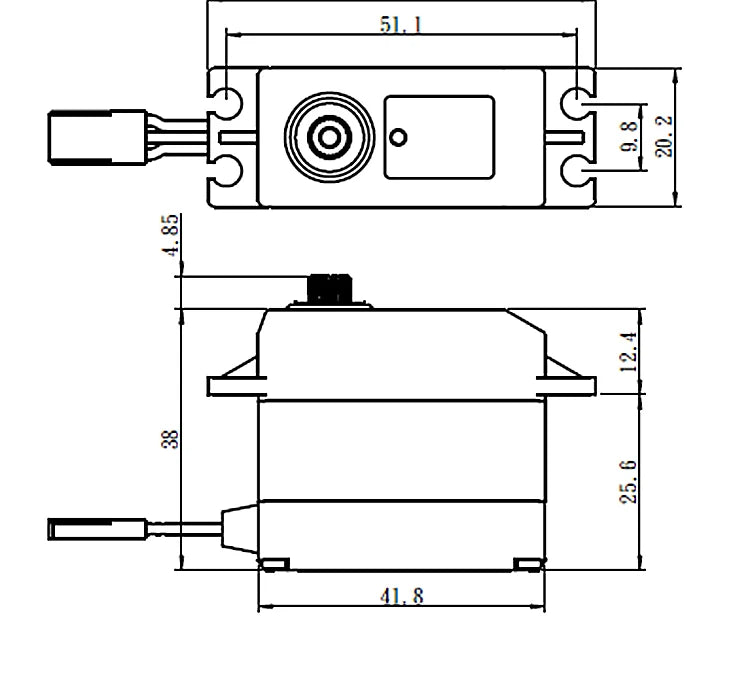

Size: 41.5X20.2x38mm
Weight: 53g (Excluding accessories)
Ball Bearing: 2BB
Gear material: Metal gear
Case material: PA66+fiber40%
Wire length: 220mm
Wire gauge No and plug type: 26AWG, JR 26AWG, JR plug
Black wire: Negative
Red wire: Positive
White wire: Singal
Application: RC Car

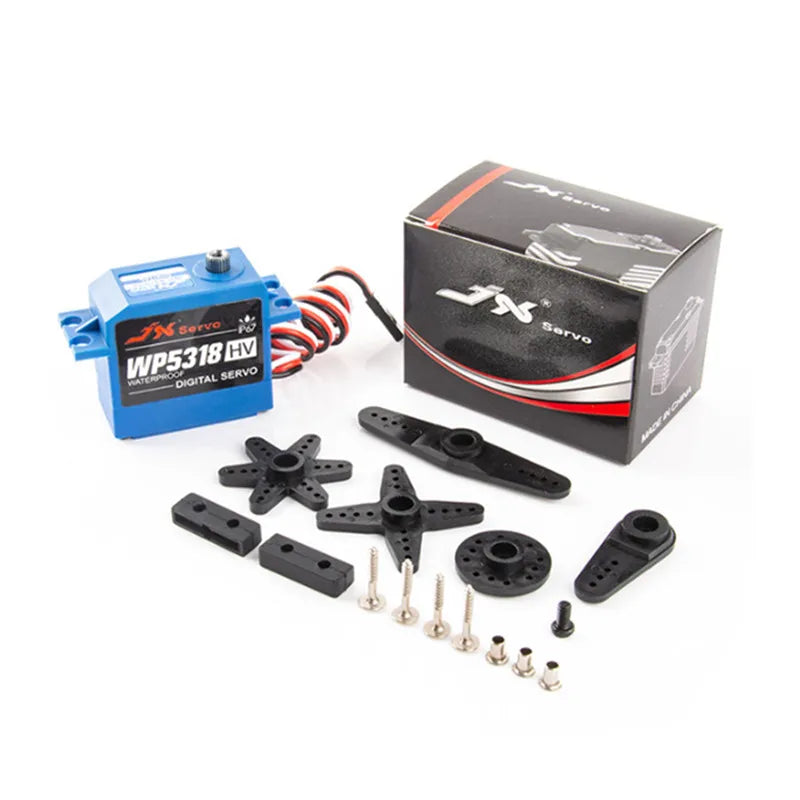

Item Packing
1 x WP5318HV 18kg Digital Servo
1 x Set of Accessories

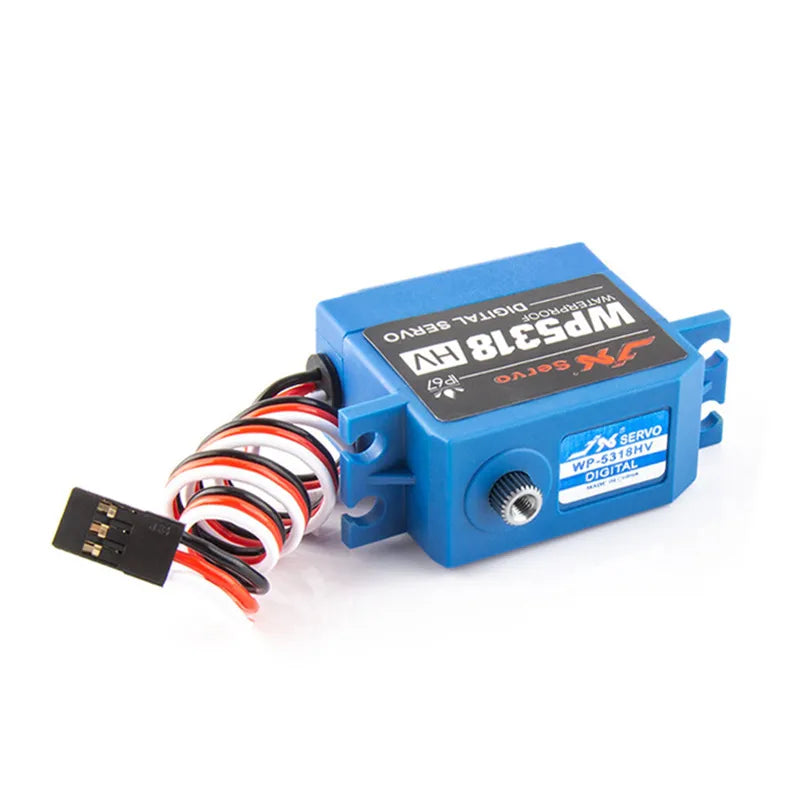

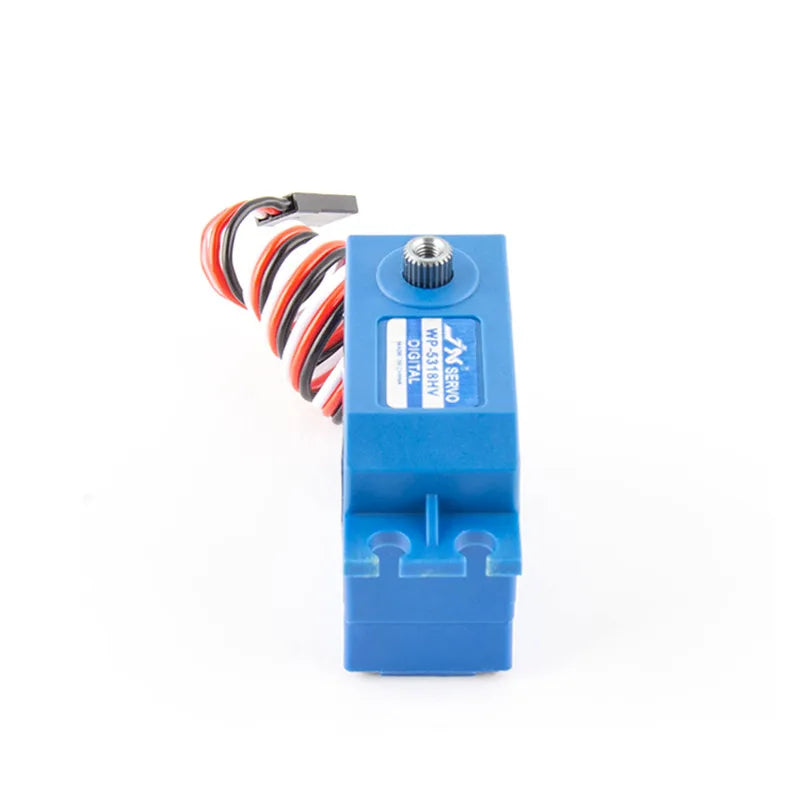

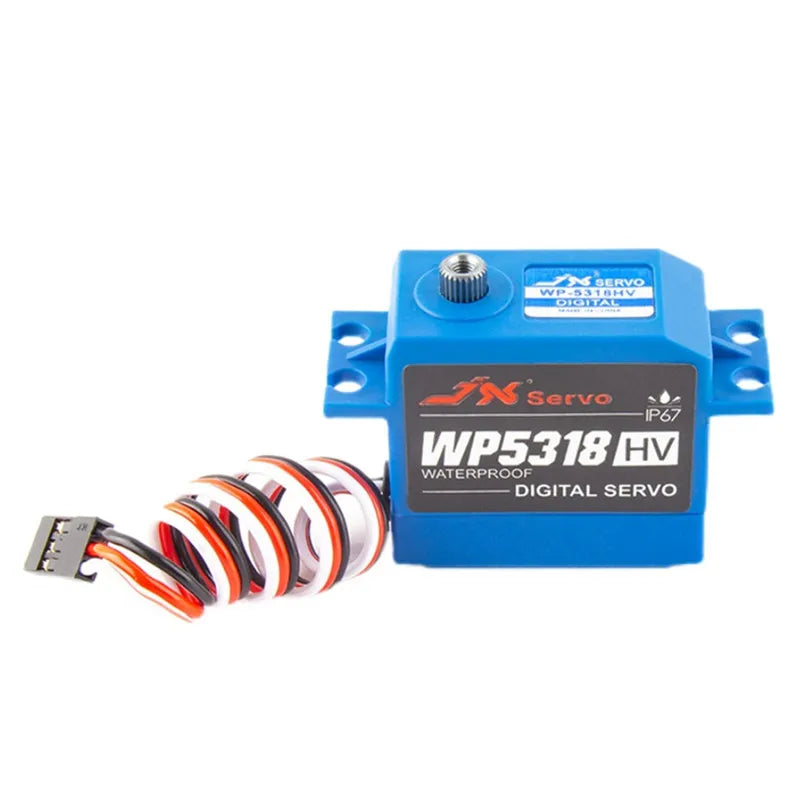

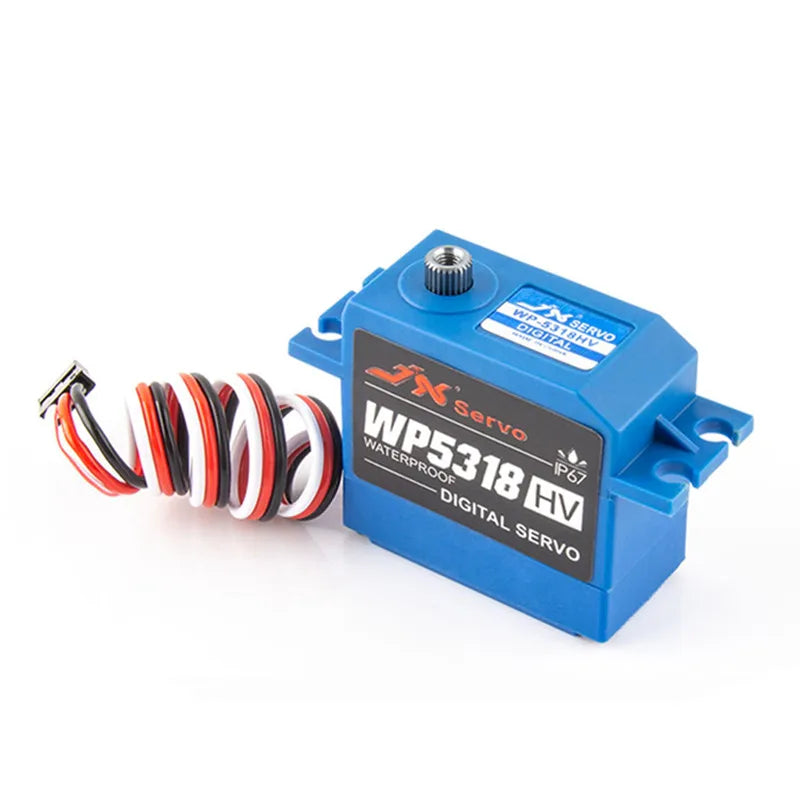

Detailed Images
