The JX Servo PDI-HV5212MG – 12 kg 8,4 V 0,07 Sek. Digitales kernloses kurzes wasserdichtes Servo Low Profile 1/10 RC Drift Car Yokomo HPI HSP Sakura is a drone product in the Drohnen category priced at $8.00, featuring 40.5X20.5X 26.8mm /1.59 X0.80X1.05 in.

Drohnen, Drohnen-Servos

JX Servo PDI-HV5212MG – 12 kg 8,4 V 0,07 Sek. Digitales kernloses kurzes wasserdichtes Servo Low Profile 1/10 RC Drift Car Yokomo HPI HSP Sakura - Drohnen

Name: JX Servo PDI-HV5212MG – 12 kg 8,4 V 0,07 Sek. Digitales kernloses kurzes wasserdichtes Servo Low Profile 1/10 RC Drift Car Yokomo HPI HSP Sakura
Brand: JX
Price: 8.00 USD
Availability: InStock

$8.00

+ Free Shipping

Farbe

Zurücksetzen

- +

Regional payment methods

Artikelnummer: n. v. Kategorien: Drohnen, Drohnen-Servos

Ask for more info

Beste Einsatzbereiche

Recommended for the Drohnen category.

Technische Daten

brand_name: JX
material: Metal
rc_parts_&_accs: Servos
size: 40.5X20.5X 26.8mm /1.59 X0.80X1.05 in
for_vehicle_type: Airplanes
use: Vehicles & Remote Control Toys
upgrade_parts/accessories: Gear
remote_control_peripherals/devices: Servos

Alternativen-Vergleich

Verglichen mit 3 Alternativen in der Kategorie Drohnen kostet JX Servo PDI-HV5212MG – 12 kg 8,4 V 0,07 Sek. Digitales kernloses kurzes wasserdichtes Servo Low Profile 1/10 RC Drift Car Yokomo HPI HSP Sakura $8.00.

Häufig gestellte Fragen

What are the key specifications of JX Servo PDI-HV5212MG – 12 kg 8,4 V 0,07 Sek. Digitales kernloses kurzes wasserdichtes Servo Low Profile 1/10 RC Drift Car Yokomo HPI HSP Sakura?
Brand Name: JX; Material: Metal; Rc Parts & Accs: Servos.
How much does JX Servo PDI-HV5212MG – 12 kg 8,4 V 0,07 Sek. Digitales kernloses kurzes wasserdichtes Servo Low Profile 1/10 RC Drift Car Yokomo HPI HSP Sakura cost in the Drohnen category?
JX Servo PDI-HV5212MG – 12 kg 8,4 V 0,07 Sek. Digitales kernloses kurzes wasserdichtes Servo Low Profile 1/10 RC Drift Car Yokomo HPI HSP Sakura is available at priced at $8.00 on 100drone.com.

Beschreibung
Zusätzliche Informationen

JX Servo PDI-HV5212MG SPECIFICATIONS

Brand Name: JX

Material: Metal

RC Parts & Accs: Servos

Size: 40.5X20.5X 26.8mm /1.59 X0.80X1.05 in

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Remote Control Peripherals/Devices: Servos

Tool Supplies: Assembled class

Technical parameters: KV1100

Model Number: PDI-HV5212MG

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws

JX Servo PDI-HV5212MG SPECIFICATION

FEATURE:
— High performance high voltage digital coreless Short body servo
— High-precision Taiwan-made aluminium gears with hard anodizing
— Full CNC aluminium Shell structure
— Dual ball bearings
— Waterproof

SPECIFICATIONS:

Dead band: 1μs
Control System: +Pulse Width Control
Working frequence: 1520μs / 330hz
Operating Voltage: DC6~8.4V
Motor: coreless motor
Operating Temperature Range: -10 to + 60°C
Operating Speed (6V): 0.09sec/60°
Operating Speed (8.4V): 0.07sec/60°
Stall Torque (6V): 9.4kg.cm (118.9oz/in)
Stall Torque (8.4V): 11.82kg.cm (164.14oz/in)
Potentiometer Drive: Direct Drive

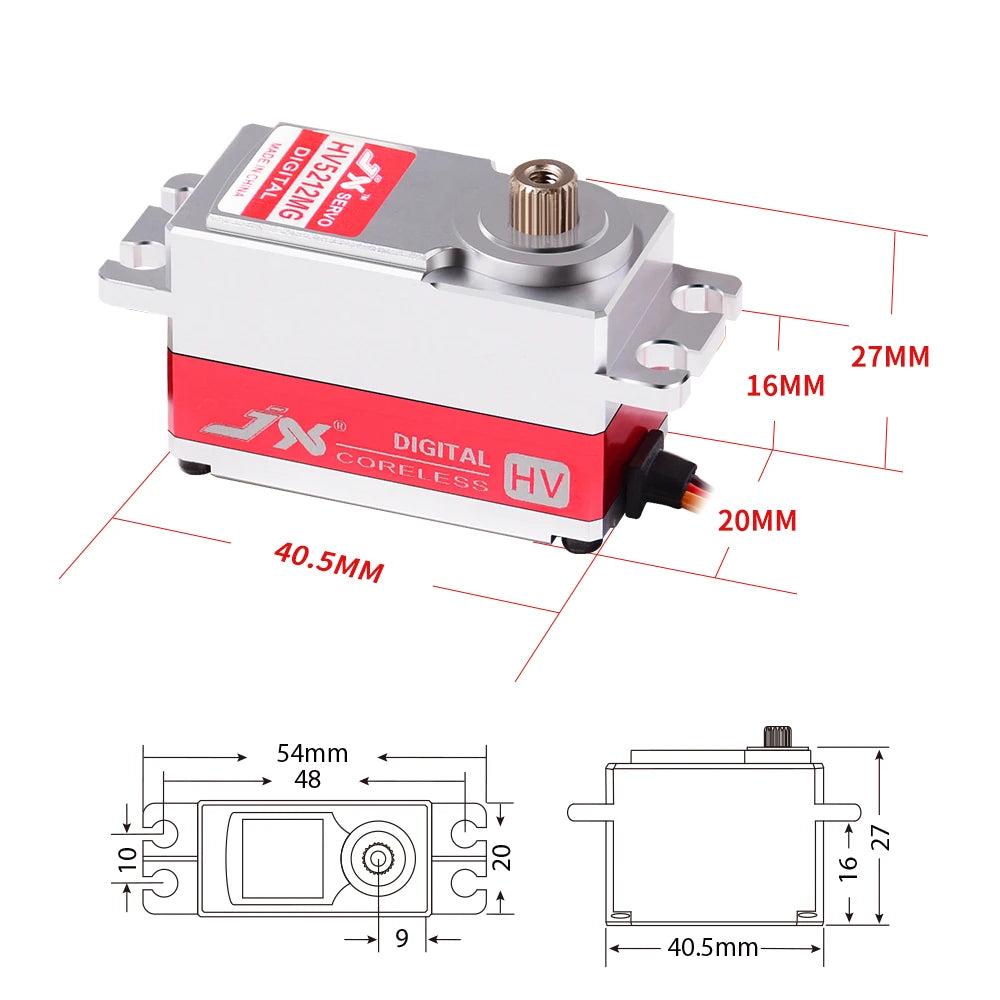

Dimensions: 40.5X20.5X 26.8mm /1.59 X0.80X1.05 in
Weight:52 g (1.67oz)
Connector Wire Length: JR 220 mm
Bearing: 2BB
Tooth Count：25

JX Servo PDI-HV5212MG SPECIFICATION
