SPECIFICATIONS
Brand Name: Feetech
Origin: Mainland China
Material: Metal
RC Parts & Accs: Servos
Size: 54.45X20X38.95mm
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Arm
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembled class
Technical parameters: Value 2
Model Number: FT810BL
Four-wheel Drive Attributes: Motors
Wheelbase: Screws
Features
– Control model is PWM
– Control system type: Digital comparator
– Operating angle: 180°
– Pulse width range: 500~2500μsec
– Electronic protection: locked rotor for 3 seconds (after the steering gear is locked, the output torque will exceed the overload torque and continue to protect the torque after 3 seconds, the overload torque and protection time can be modified)
Product Details

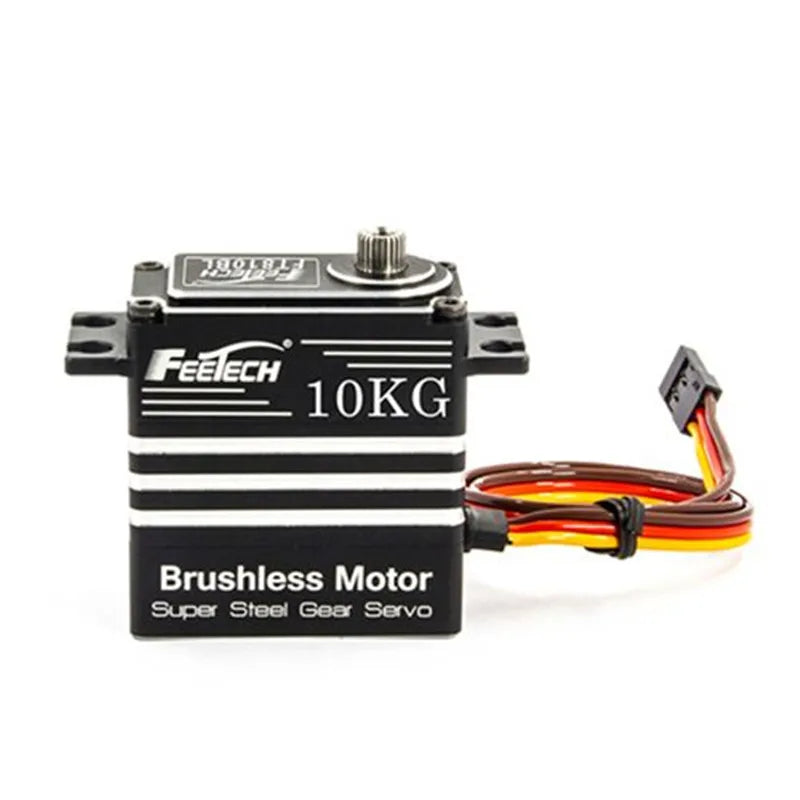

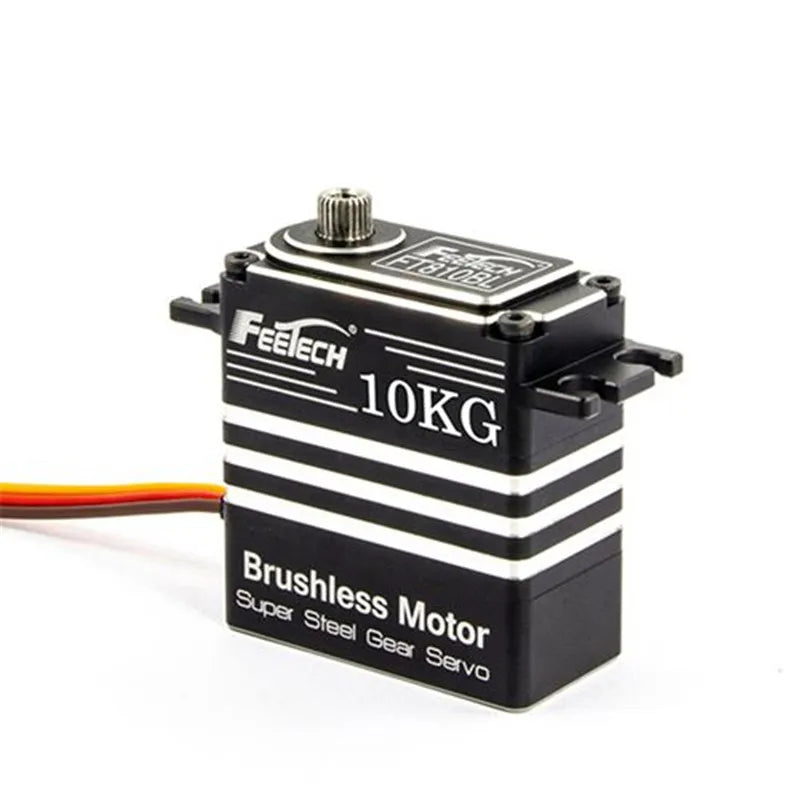

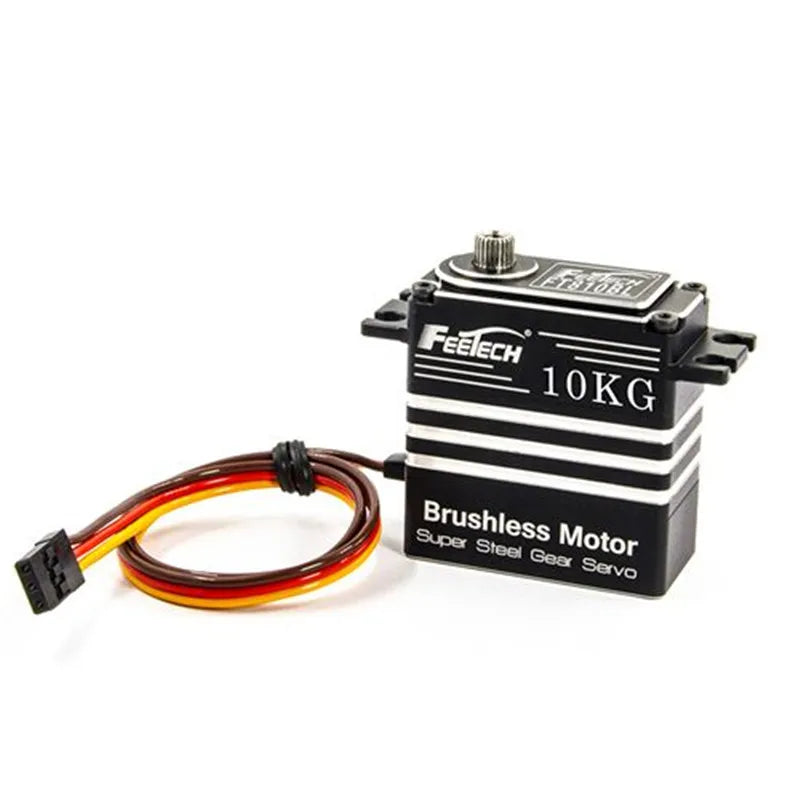

Brand: FEETECH
Model:FT810BL
Storage Temperature Range: -30℃～80℃
Operating Temperature Range: -20℃～60℃

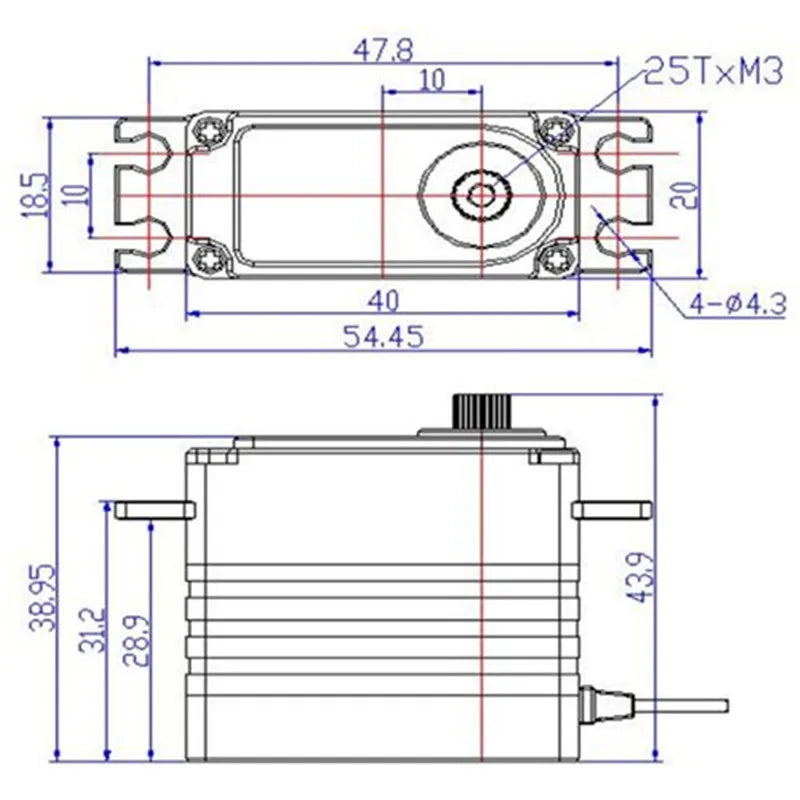

Size: A：54.45mm B：20mm C: 38.95mm
Weight: 84± 1g
Gear type: Steel
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Gear Ratio: 1/188
Case: Alumi num
Connector wire: 30CM
Motor: Brushless Motor
Operating Voltage Range: 6V-7.4V
Idle current (atstopped): [email protected]
No load speed: 0.07sec/60°@7.4V
Runnig current(at no load) : [email protected]
Peak stall torque: [email protected]
Rated torque: [email protected]
Stall current: [email protected]
Command si gnal: Pulse width modification
Amplifier type: Digital comparator
Pulse width range: 500~2500 μ sec
Stop position: 1500 μ sec
Running degree: 180°(at 500→2500μsec)
Dead band width: ≤4 μ sec
Rotating direction: Counterclockwi se (在1500→2000 μ)
Item Packing

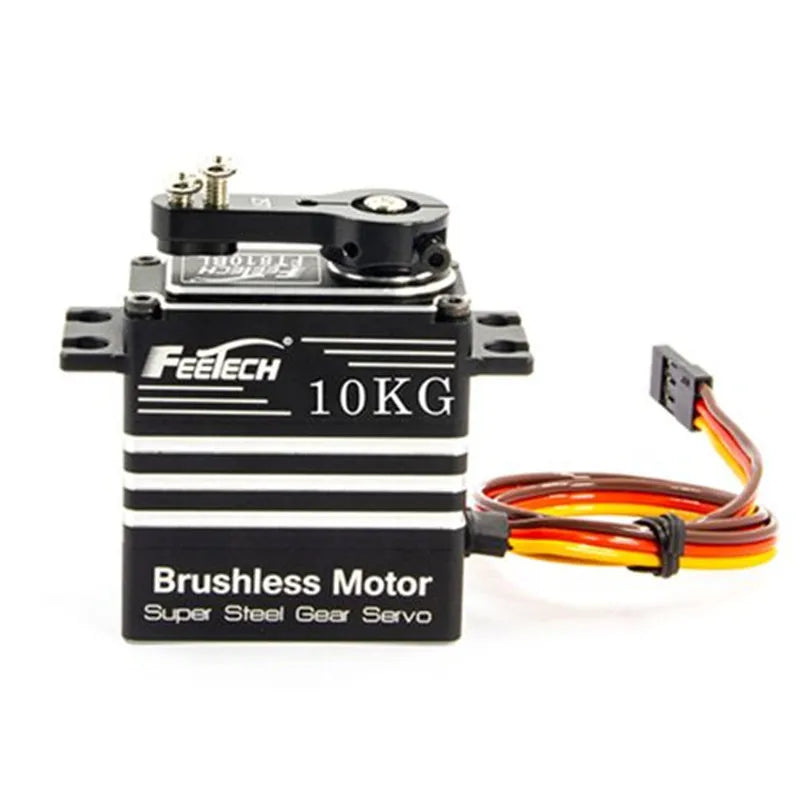

FEETECH FT810BL Servo x 1 25T Metal Servo Arm x 1 Accessories x 1
