3DR-Funktelemetriesender – 500 MW 915 MHz/433 MHz Luft- und Funktelemetriesender Bodendatenübertragungsmodul für FPV Droen APM Pixhawk Flight Control
3DR-Funktelemetriesender – 500 MW 915 MHz/433 MHz Luft- und Funktelemetriesender Bodendatenübertragungsmodul für FPV Droen APM Pixhawk Flight Control – Bild 2
3DR-Funktelemetriesender – 500 MW 915 MHz/433 MHz Luft- und Funktelemetriesender Bodendatenübertragungsmodul für FPV Droen APM Pixhawk Flight Control – Bild 3
3DR-Funktelemetriesender – 500 MW 915 MHz/433 MHz Luft- und Funktelemetriesender Bodendatenübertragungsmodul für FPV Droen APM Pixhawk Flight Control – Bild 4
3DR-Funktelemetriesender – 500 MW 915 MHz/433 MHz Luft- und Funktelemetriesender Bodendatenübertragungsmodul für FPV Droen APM Pixhawk Flight Control – Bild 5
3DR-Funktelemetriesender – 500 MW 915 MHz/433 MHz Luft- und Funktelemetriesender Bodendatenübertragungsmodul für FPV Droen APM Pixhawk Flight Control – Bild 6

The 3DR-Funktelemetriesender – 500 MW 915 MHz/433 MHz Luft- und Funktelemetriesender Bodendatenübertragungsmodul für FPV Droen APM Pixhawk Flight Control is a drone product in the Drohnen category priced at $112.62, featuring Remote Controller.

,

3DR-Funktelemetriesender – 500 MW 915 MHz/433 MHz Luft- und Funktelemetriesender Bodendatenübertragungsmodul für FPV Droen APM Pixhawk Flight Control - Drohnen

$112.62

+ Free Shipping
- +

Regional payment methods

Payssion regional payment methods
Artikelnummer: n. v. Kategorien: ,
Ask for more info

Beste Einsatzbereiche

  • Recommended for the Drohnen category.

Technische Daten

  • upgrade_parts/accessories: Adapter
  • tool_supplies: Battery
  • remote_control_peripherals/devices: Remote Controller
  • recommend_age: 12+y
  • rc_parts_&_accs: Radio Systems
  • origin: Mainland China
  • material: Metal
  • four-wheel_drive_attributes: Assemblage

Alternativen-Vergleich

Verglichen mit 3 Alternativen in der Kategorie Drohnen kostet 3DR-Funktelemetriesender – 500 MW 915 MHz/433 MHz Luft- und Funktelemetriesender Bodendatenübertragungsmodul für FPV Droen APM Pixhawk Flight Control $112.62.

Häufig gestellte Fragen

  • What are the key specifications of 3DR-Funktelemetriesender – 500 MW 915 MHz/433 MHz Luft- und Funktelemetriesender Bodendatenübertragungsmodul für FPV Droen APM Pixhawk Flight Control?
    Upgrade Parts/accessories: Adapter; Tool Supplies: Battery; Remote Control Peripherals/devices: Remote Controller.
  • How much does 3DR-Funktelemetriesender – 500 MW 915 MHz/433 MHz Luft- und Funktelemetriesender Bodendatenübertragungsmodul für FPV Droen APM Pixhawk Flight Control cost in the Drohnen category?
    3DR-Funktelemetriesender – 500 MW 915 MHz/433 MHz Luft- und Funktelemetriesender Bodendatenübertragungsmodul für FPV Droen APM Pixhawk Flight Control is available at priced at $112.62 on 100drone.com.

3DR Radio Telemetry Transmitter SPECIFICATIONS

Upgrade Parts/Accessories: Adapter

Tool Supplies: Battery

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Radio Systems

Origin: Mainland China

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: uuustore

RC 3DR 500MW Radio Telemetry 915Mhz/433Mhz Air & Ground Data Transmit Module for FPV APM Pixhawk Flight Control

  Features:
Very small size,light weight
915Mhz frequency band
Receiver sensitivity to -117 dBm
Transmit power up to 20dBm (100mW)
Transparent serial link
Air data rates up to 250kbps
Range of approx 1 mile with supplied antennas
Demonstrated range of several kilometers with a small omni antenna
Can be used with a bi-directional amplifier for even more range
MAVLink protocol framing and status reporting
Frequency hopping spread spectrum (FHSS)
Adaptive time division multiplexing (TDM)
Support for LBT and AFA
Configurable duty cycle
Built in error correcting code (can correct up to 25% data bit errors)
Open source firmware
AT commands for radio configuration
RT commands for remote radio configuration
Adaptive flow control when used with APM

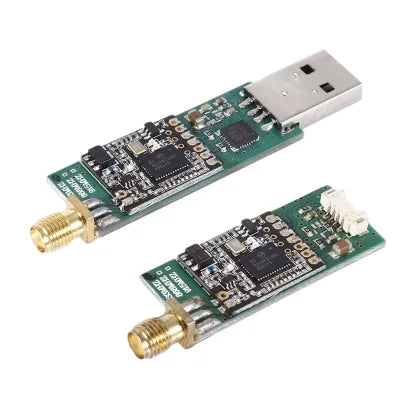

Based on the HopeRF HM-TRP radio module, featuring an SiLabs Si1000 RF microcontroller.

Specification:
Item Name: 3DR Radio Telemetry Module
Band: 915MHz
Antenna connectors: RP-SMA connector
Power: 500mw
Sensitivity: -117dBm sensitivity
Interface: Standard TTL UART
Connection status: LED indicators
Net weight: 63g

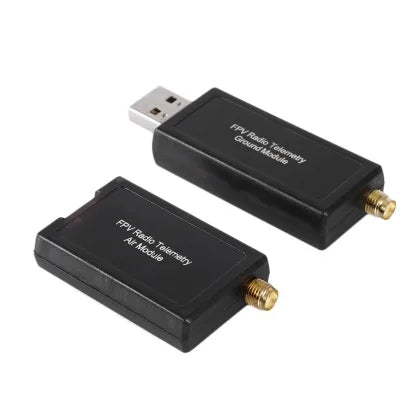

RadioTelemetry Air Module Dimension: 51*30*10mm/12g
RadioTelemetry Ground Module Dimension: 70*25*12mm/15g

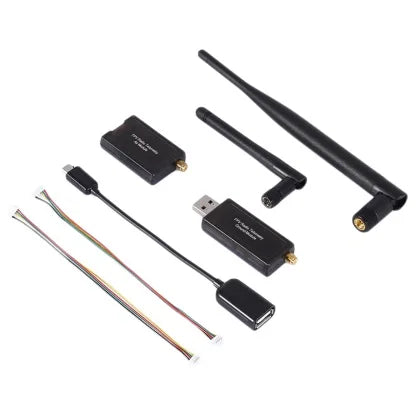

Package Included:
1 X Radio Telemetry base station (USB Connection)
2 X 500mw Radio Telemetry
1 X lead set
2 X Antenna

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()


Color

433 MHz 500 MW, 915 MHz 500 MW
