المواصفات

not: not fit for beginner

الضمان: 15 days

تحذير: Not suit for age 14 years old

دقة التقاط الفيديو: أخرى

النوع: طائرة هليكوبتر

حالة التجمع: جاهز للذهاب

المسافة البعيدة: 150M

جهاز التحكم عن بُعد: نعم

العمر الموصى به: 12+y

مصدر الطاقة: كهربائي

نوع المقابس: كابل USB

تتضمن العبوة: Batteries,Operating Instructions,USB Cable,Remote Controller,Original Box

المنشأ: البر الرئيسي للصين

مستوى مهارة المشغل: Intermediate,Expert

المحرك: محرك بدون فرشاة

رقم الموديل: K123

المواد: Plastic,Metal,Rubber

استخدام داخلي/خارجي: داخلي-خارجي

وقت الرحلة: about 5-7 minutes

الميزات: التحكم في التطبيق

الأبعاد: 238mm * 77mm

وضع وحدة التحكم: الوضع 1، الوضع 2

بطارية وحدة التحكم: Not Included

قنوات التحكم: 6 قنوات

جهد الشحن: 3.7V

وقت الشحن: 30-60min

التصديق: 3C

Barcode number: as picture

الرمز الشريطي: نعم

التصوير الجوي: لا يوجد

3C: الشهادة

WLtoys XK K123 6CH Brushless AS350 Scale 3D6G System RC Helicopter RTF Upgrade WLtoys V931

الوصف:

Brand: XK

Height: 77mm

Length: 238mm

Rotor diameter: 244mm

Flying weirht: 79.5g

Flying time: About 5min

Charging time: 30-60min

Control Distance: 150m

Battery: 3.7V 500mAh 25C li-po

Package size: 52.5*24.8*10.3cm

Remote distance: About 150 meters

Motor: 1106 11000KV brushless main motor

8502 coreless tail motor

Compatible with FUTABA S-FHSS

الميزات:

1) According to AS350 (the little squirrel) prototype ratio, high simulation, fine appearance design.

The details of the products, unique in the market three rotor blades flybarless design.

2) Quote aerodynamic blade provides strong power and body self stability.

3) 1106 rotor brushless motor power is stronger, the 3.7V 500mah 25C high rate battery

4) 3D and 6G (also compatible with electronic 3 gyroscopes and 6 axis gyroscope) mode one remote controller can be switched freely

5) 3D mode using 3 axis gyro, sensitive reaction. To do the stunt flying, can easily make rolling inverted pendulum movement

6) 6G mode using 6 axis gyro, flight stability, especially suitable for beginners to flight.

7) 6 channel remote control, a 3D special IDLE switch throttle hold TH.HOLD switch large screen liquid crystal display, low voltage alarm function.

Especially with aircraft hovering point setting, enter the setting mode to set the hover plane according to their needs.

8) With a dedicated USB charger, can also charge 2 batteries.

9) Communication protocol compatible with FUTABA S-FHSS

10) Flying weight 79.5g

11) Transmitter can switch from Mode 1 to Mode 2, vise versa.



العبوة متضمنة:

1 x K123 rc helicopter

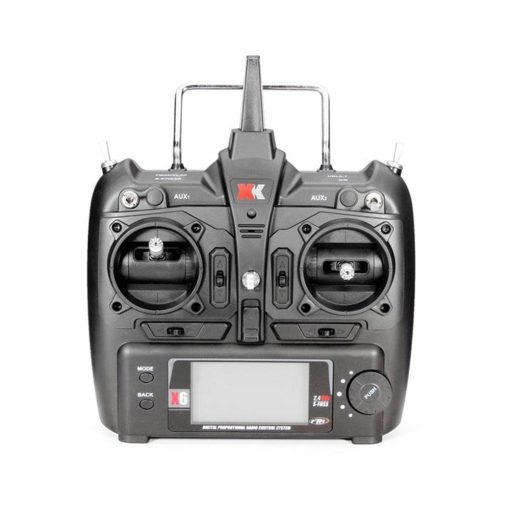

1 × جهاز إرسال 1 × جهاز إرسال

3 x Main blade

1 x Tail blad

1 x Main gear

1 x USB charger

2 x battery

1 × مفك براغي 1 × مفك براغي

1 x Hex wrench





If you need model 1 (right throttle) , please leave us a message .



if the XK K123 helicopter is good , but it can not fly properly ,

Folow the Solutions :
1. Please do ‘Gyroscope calibration’
2. Please do ‘6G aircraft hovering mode settings’
3. Please take off the canopy and fly the helicopter , if the helicopter can fly properly without canopy , it show that the canopy press the receiver .
4. Make sure the propellers don’t be too tight or too loose
5. The battery power is low , please charge

If the helicopter fails to hover or fly well, please follow these steps: 1) Charge the helicopter first. 2) Once the gyro has finished self-checking, place the throttle rocker and lifting rocker at their lowest positions. This should cause the red lamp on the TX to flash slowly, indicating that the helicopter is in 6G hover flight debugging mode.

AR AS350K123 6CHBRUSHLESS MOTOR 8065 SYSIEM HELCORIER 30 6G BRAUSHLESC Powerful Wuutua MOTOR

6D mode 6G mode is with 6-axis gyro, super stable, especially suitable for beginners . it can do many aerobatics such as rolling; inverted flying; side and hurricane flying .

K123 6 CH BRUSHLESS MOTOR 3D6G SYSTEM HELICOPTER 30 6G KK FR 2.4GHZ S-FHSS agreement Brushless motor; super power; 3-axis gyro Is compatible with Especially for beginners of 6-axis flight WWWXK-INNOVATIONS.COM
