AVATAR MINI 1S KIT
الميزات
1080P/60fps, 22ms low latency, 3.1V-13V, Power 500mW,
1080P/60fps, 22ms low latency, 3.1V-13V, Power 500mW,
مساحة تخزين مدمجة 32G, 6.8g light weight
1080P/60FPS,720P/120FPS
The Avatar HD system uses H.265 code,an industry-leading technology,
to provide 1080p FPV image quality with ultra-low latency.

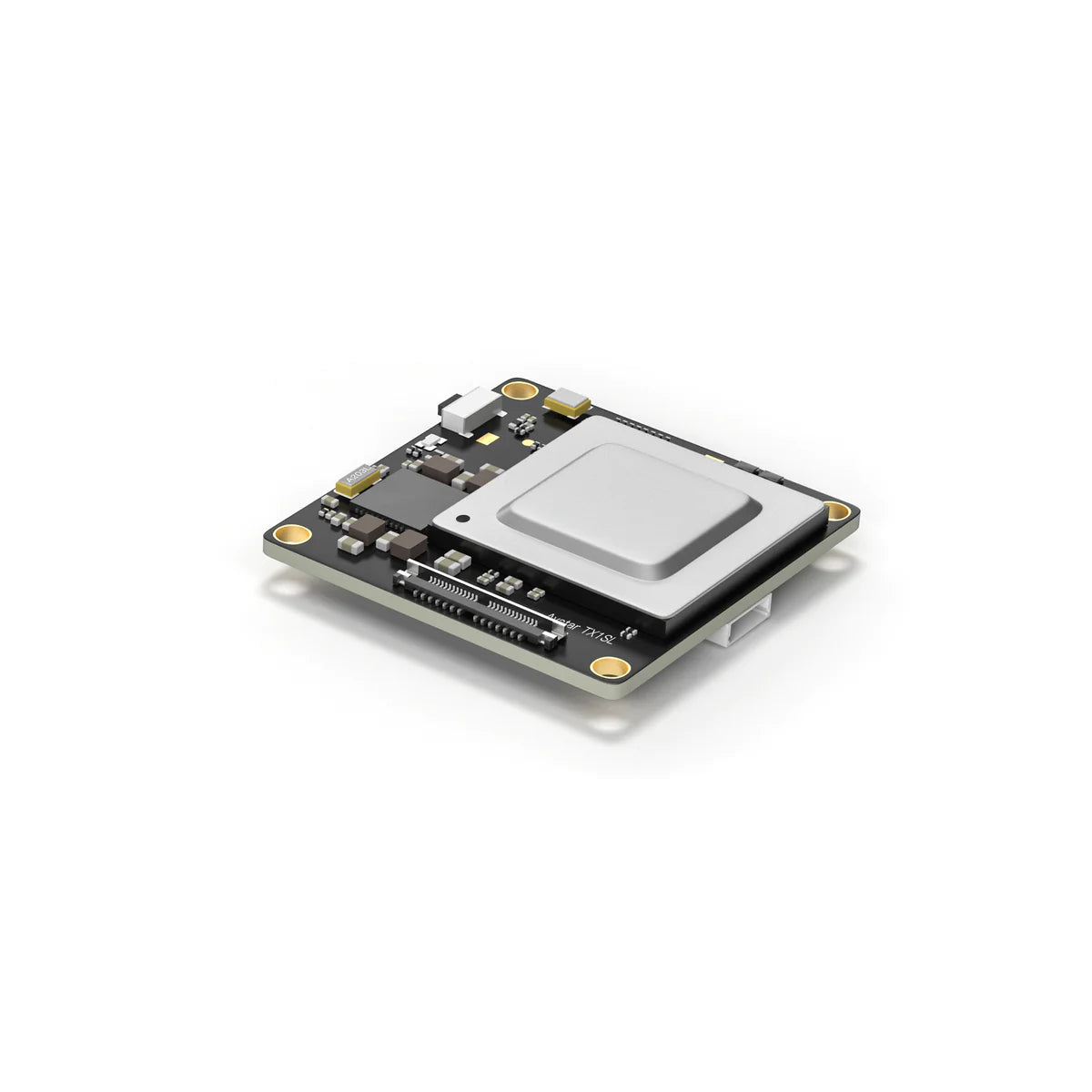

6.8g light weight board
The Avatar mini 1S VTX weights only 6.8g and fits perfectly with the 75X quad.
22ms Low Latency
Supports both high frame rate and standard frame rate,
in high frame rate,it has an average latency of 22ms.
32G Built-in Storage
The Avatar mini 1s vtx comes with 8g built-in storage,it can record 1080p
with 60fps or 720pwith 100fps/60fps HD flight videos without interference.
July update: VTX (V2) changed to Mini VTX V3 (the parameters are the same)
المواصفات | |
| كاميرا | |
| الطراز | Avatar nano |
| مستشعر الصور | 1/2.7”1nch |
| القرار | 1080P/60fps,720P/120fps,720P/60fps |
| Ratio | 16/9 4/3 |
| العدسة | 2.1mm |
| FOV | 170° |
| Aperture | F2.0 |
| Shutter Rolling | shutter |
| Min.Illumination | 0.001Lux |
| الوزن | 3.5g |
| الأبعاد | 14*14*17mm |
| Coaxial Cable | 55mm（default）/90mm |
| VTX | |
| الطراز | Avatar mini 1s module |
| Communication Frequency | 5.725-5.850GHz |
| طاقة جهاز الإرسال (EIRP) | FCC:<25.5dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | JST1.0*6(Power in)JST0.8*4(USB) |

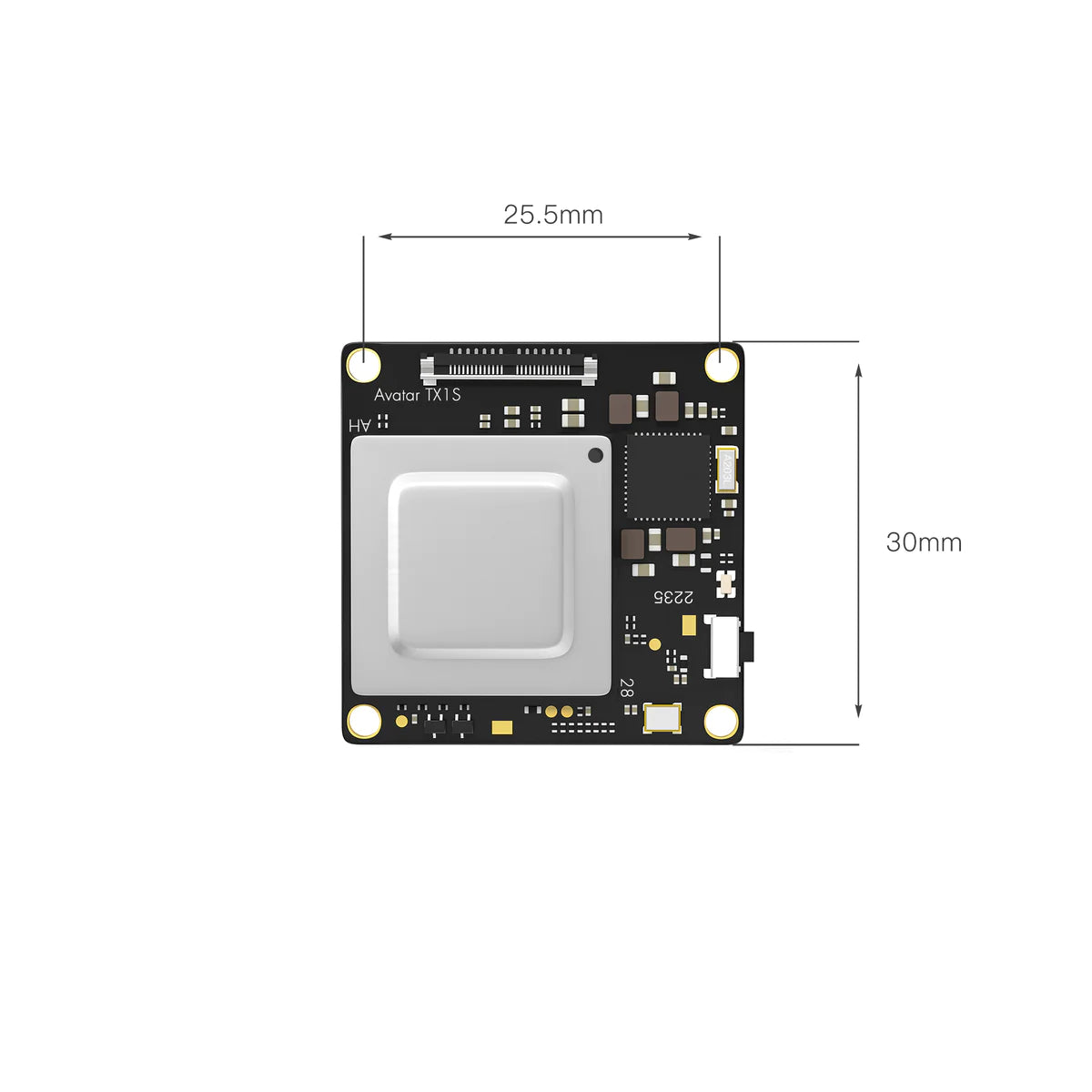

| Mounting Holes | 25.5*25.5mm |
| الأبعاد | 30*30*6.5mm |
| Storage | 8G(v2) / 32G(v3) |
| Recording | 1080p/720p |
| الوزن | 6.8g |
| درجة حرارة التشغيل | -20-40℃ |
| القنوات | 8 |
| Wide Power Input | 3.1V-5V(V2) / 3.1V-13V(V3) |
| Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPliot |
| OSD | Canvas mode |
| Bitrate | 25mbps 50mbps |
| Latency | Average latency 22ms |
| الهوائي | IPEX |
| VTX Antenna | |
| الطراز | Polar antenna |
| Polarization | LHCP |
| Bandwidth | 5.6GHz-5.9GHz |
| Average Gain | 2dBi |
| Radiation Efficiency | ≥98% |
| VSWR | ≤1.4 |
| الموصل | U.FL |
| Line Length | 90mm |
| البُعد | H105mm*R11.2mm |
| الوزن | 1.5g |
| قائمة التعبئة | |

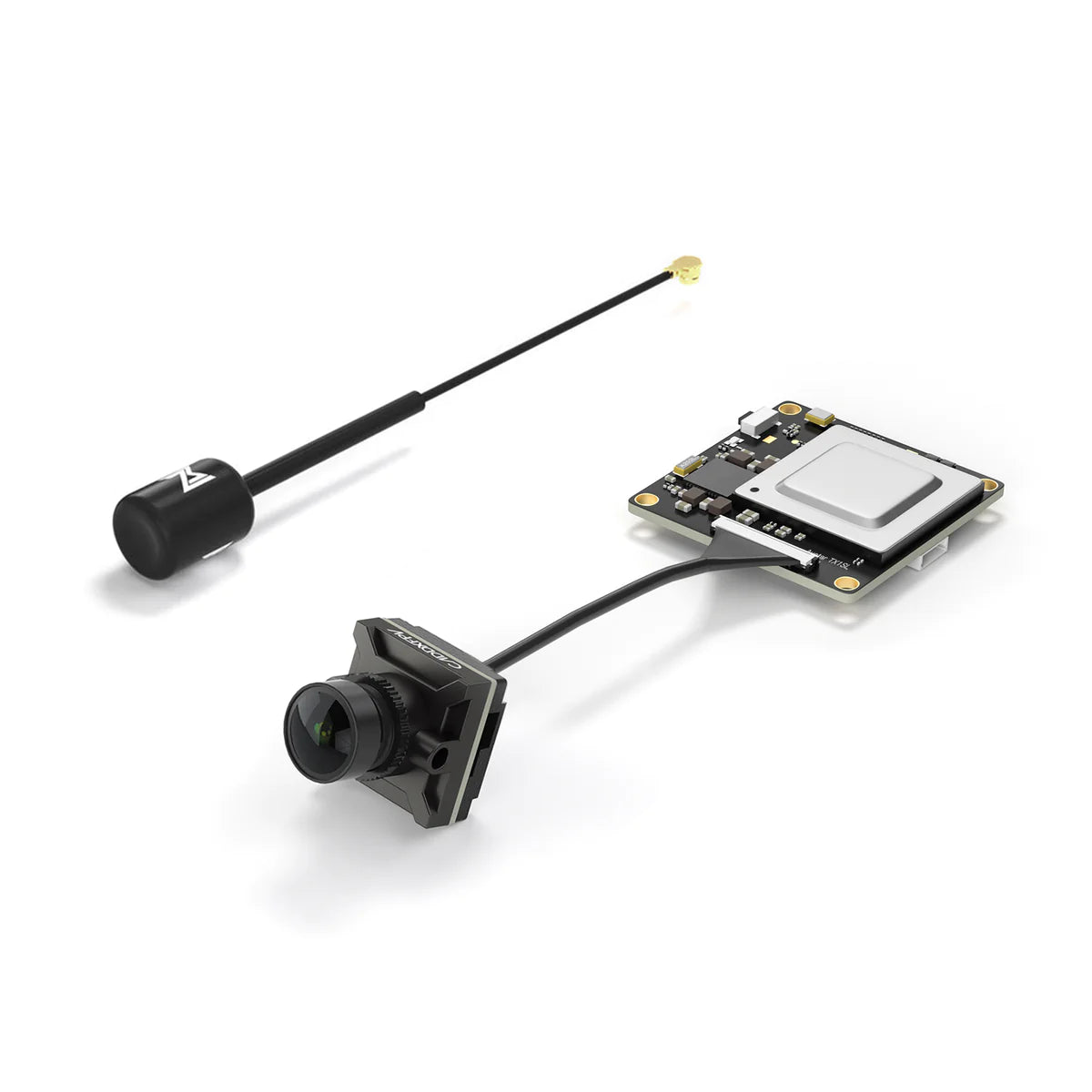

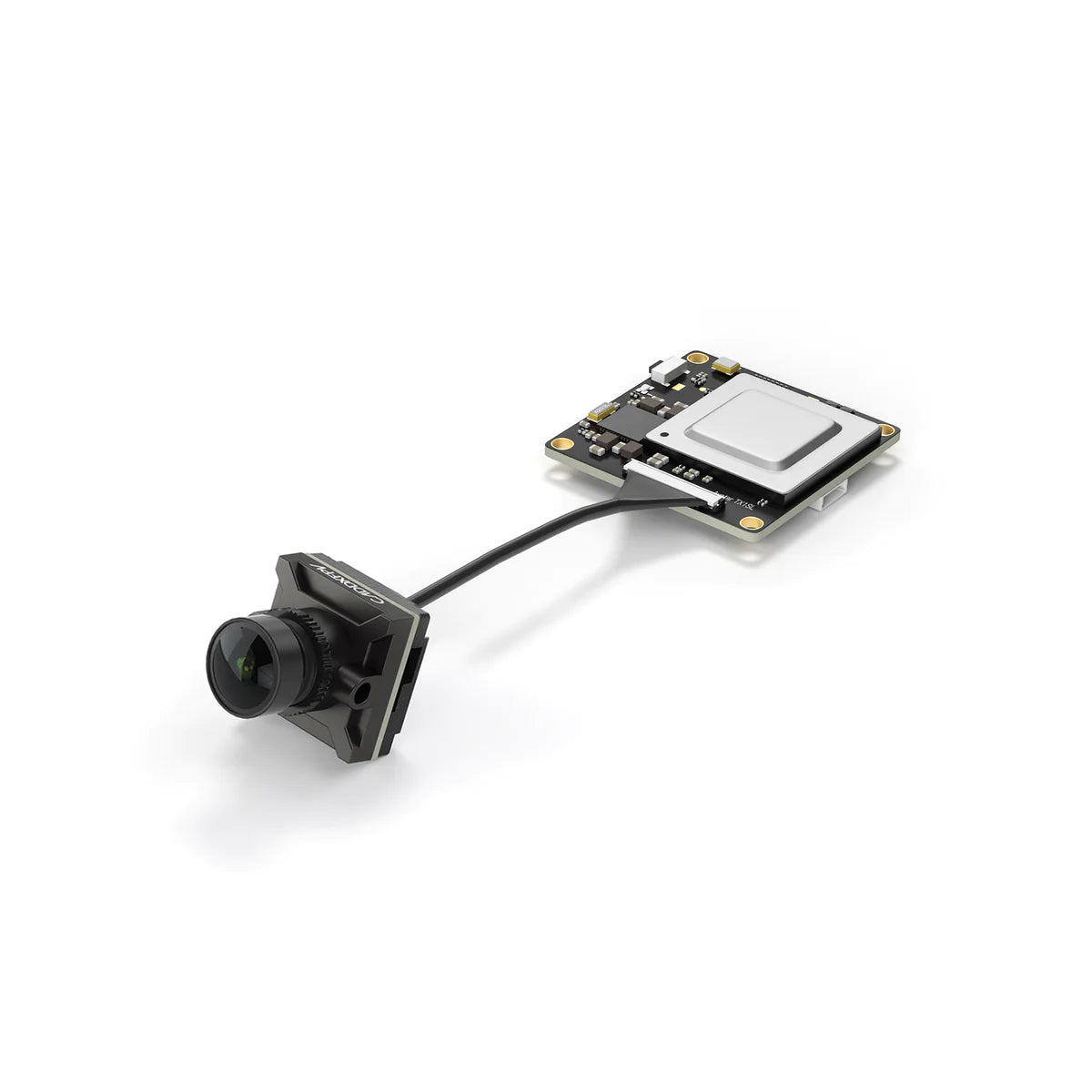

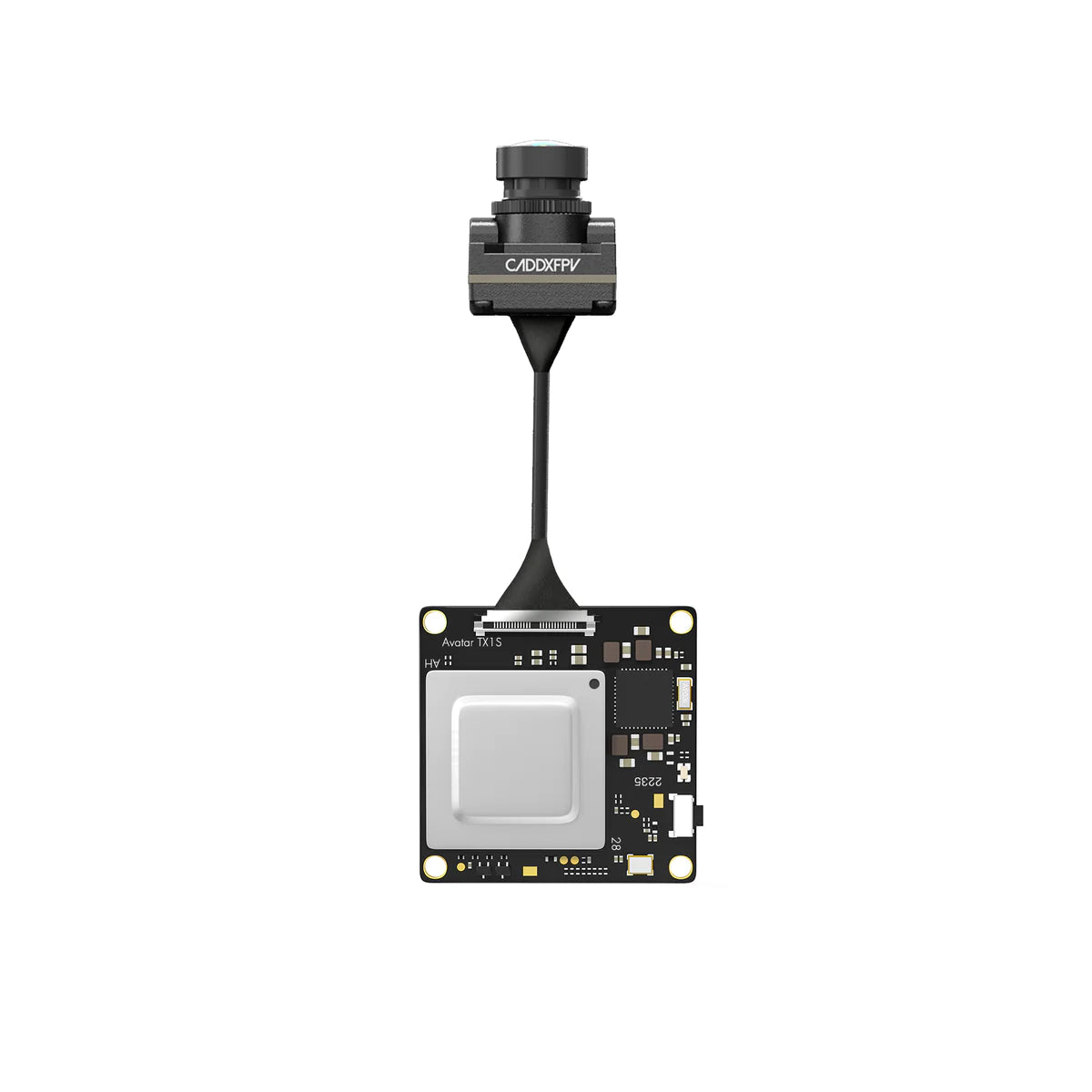

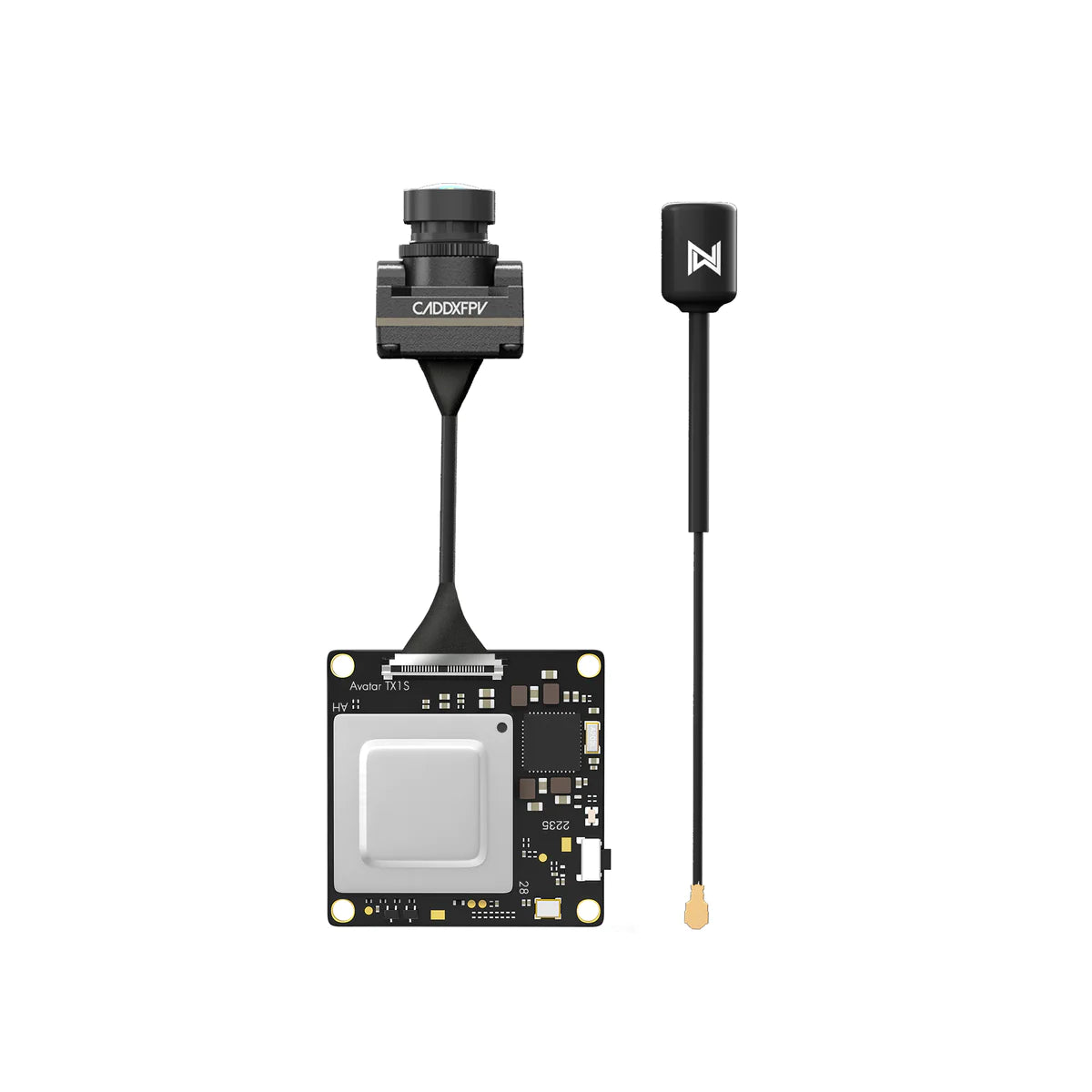

| Avatar Mini 1S KIT | X1 |
| 4 Pin USB Cable | X1 |
| 6 Pin Power Cable | X1 |
| M2x3/4mm Screws | X2 |
| M2x16mm Screws | X4 |
| M2 Screw nut | X4 |
| 2.1×3.4x1mm Gasket | X5 |
