Walksnail Avatar HD Mini 1s وMini 1s Lite Module
⁦Walksnail Avatar HD Mini 1s وMini 1s Lite Module⁩ - الصورة ⁦2⁩
⁦Walksnail Avatar HD Mini 1s وMini 1s Lite Module⁩ - الصورة ⁦3⁩

Walksnail Avatar HD Mini 1s وMini 1s Lite Module

$96.00

+ Free Shipping
- +

Regional payment methods

Payssion regional payment methods
رمز المنتج: غير محدد التصنيف:
Ask for more info

July update: VTX (V2) changed to Mini VTX V3 (the parameters are the same)

USB Cable needs to be purchased separately

USB Cable needs to be purchased separately Specification VTX For Walksnail A

Specification


VTX
ModelVTX For Walksnail Avatar HD Mini 1s And Mini 1s Lite
Communication Frequency5.725-5.850GHz
Transmitter Power (EIRP)FCC:<27dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm
I/O InterfaceJST1.0*4(Power in)JST0.8*4(USB)

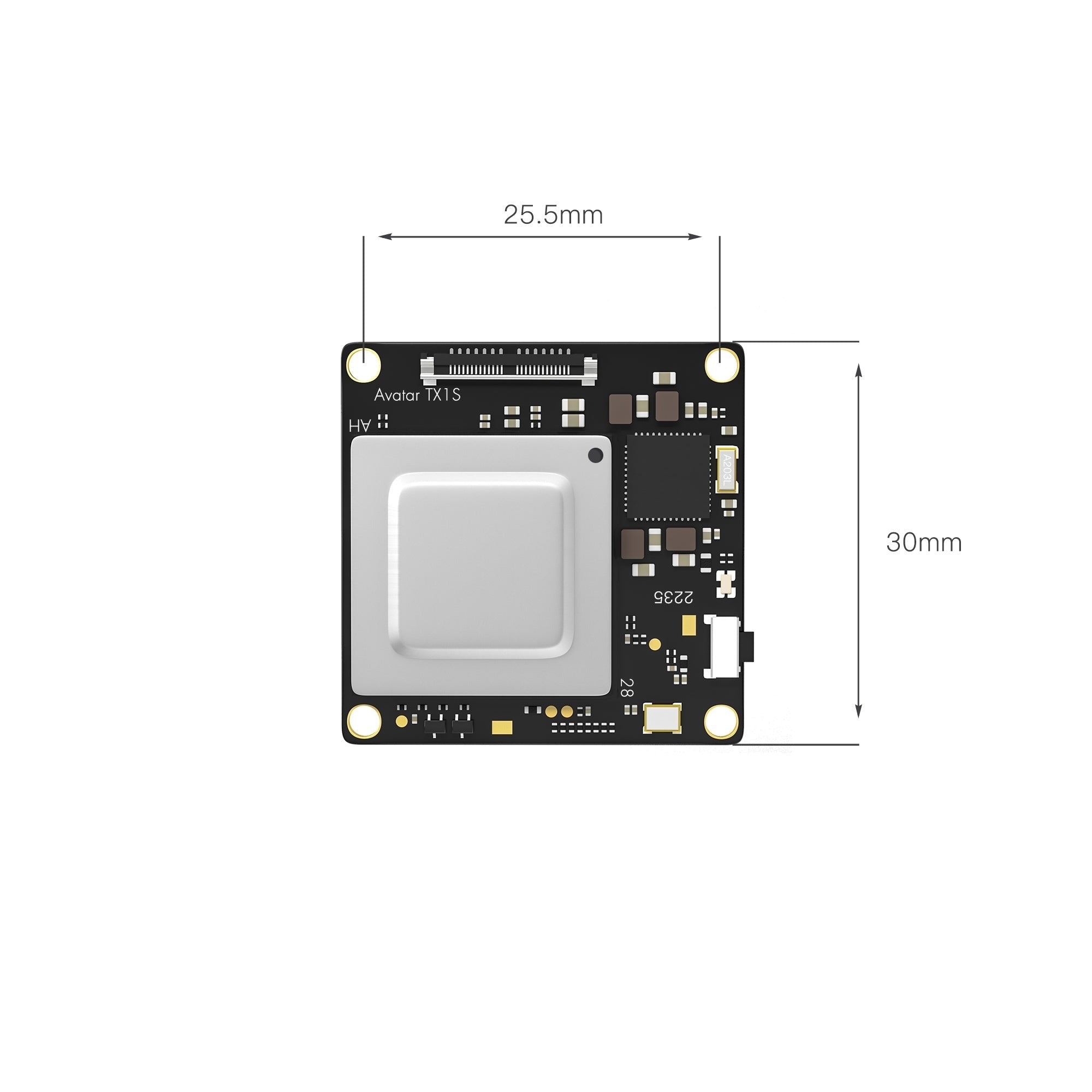

Mounting Holes25.5*25.5mm(M2 hole);20*20mm(M3 hole)
Dimensions31.5*31.5*9.4mm
Storage32G
Recording1080p/720p
Weight6.8g
Operating Temperature-20-40℃
Channels8
Wide Power Input3.1V-13V
Supported FC SystemBetaflight; Inav; Fettec; Kiss; ArduPliot
OSDCanvas mode
LatencyAverage latency 22ms
Antenna1(IPEX)
Style

VTX only, VTX and USB cable
