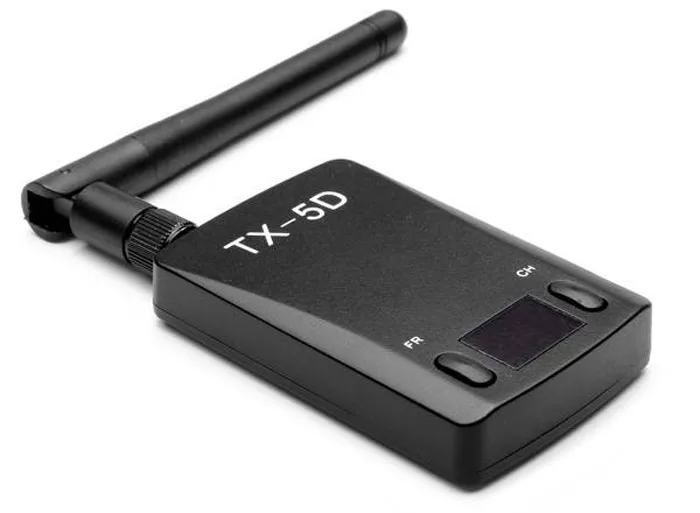

TX-5D Transmitter SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Cutting
Technical parameters: Value 2
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Transmitters
Origin: Mainland China
Model Number: TX-5D
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Item No.: TX – 5D
Working Frequency: 5.8Ghz
Frequency Point: 32
Power Input: 7.4 – 16V ( 3S Lipo suggested )
Working Current: 220mA at 12V
Video Band width: 8MHz
Audio Coding: 6.5MHz
Antenna Gain: 2dbm
Dimension: 63 x 42 x 12mm ( not included antenna )
Support Input: HDMI AV Audio
Frequency Range:
FR1 5865, 5845, 5825, 5805, 5785, 5765, 5745, 5725
FR2 5733, 5752, 5771, 5790, 5809, 5828, 5847, 5866
FR3 5707, 5685, 5665, 5645, 5885, 5905, 5925, 5945
FR4 5740, 5760, 5780, 5800, 5820, 5840, 5860, 5880
Application examples:
1. When video input switch turns to HDMI, the gear is in HDMI input function. Can connect HDMI output device, and turn the HDMI signal into CVBS before sending.
2. When video input switch turns to CAM, the gear is in CVBS input function. Can send the output CVBS signal from camera directly.
3. When video input switch turns to MCU, HDMI and CVBS two-way video signal input at same time. The default is HDMI input, by connected with aircraft remote control receiver with PPM line, provides video input channel to remote control for air channel switch.
4. When gear is connected with aircraft remote control by PPM line, it can switch channel in the air.
5. When work with RC800, you can connect RC800 with remote control to achieve channel sync adjustment.
Note: Functions 3-5 can work on FUTABA remote control
Features:
When turning the video input switch to HDMI, the module is in HDMI input function. User can connect the module to HDMI output device, and turn the HDMI signal into CVBS signal.
When turning the video input switch to CAM, the module is in CVBS input function. User can send out the CVBS signal from camera directly.
When turning the video input switch to MCU, the module is in HDMI and CVBS input at same time function. The default is HDMI input. User can select signal input by radio transmitter through PPM wire.
User can select different output channels by radio transmitter through PPM wire.
When using the module with RC800, user can connect RC800 with radio transmitter to adjust sync channel.
Can use for the HD device which with mini HIMD interface directly.
Specifications
General | Brand: Skyzone FPV Equipments: AV Receiver,AV Transmitter Camera Gimbals: Brushless Gimbals |
|---|---|
Dimension and Weight | Package weight: 0.075 kg Package size (L x W x H): 8.5 x 6.5 x 3.2 cm / 3.34 x 2.55 x 1.26 inches |

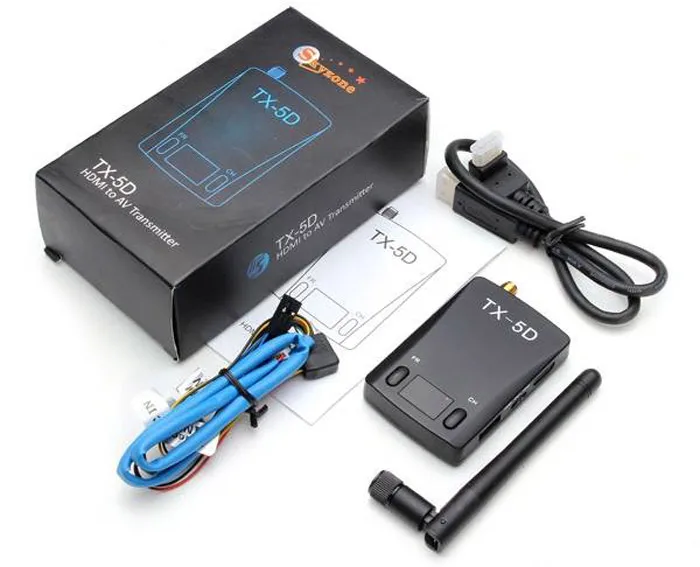

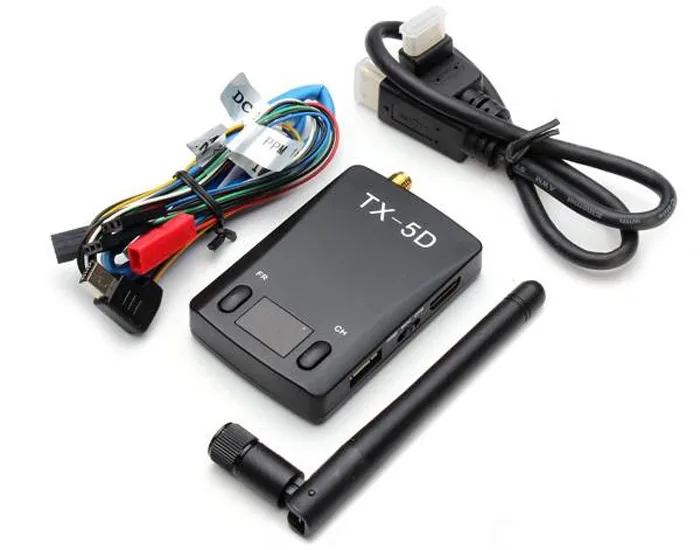

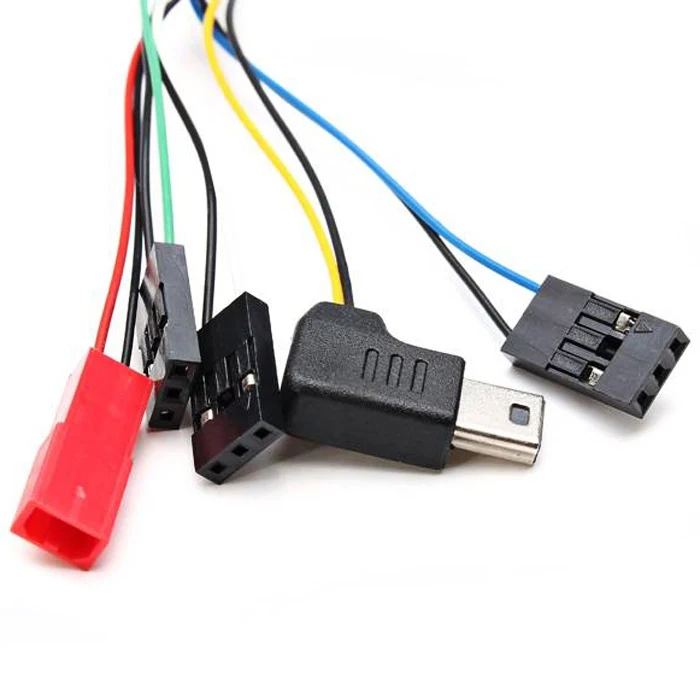

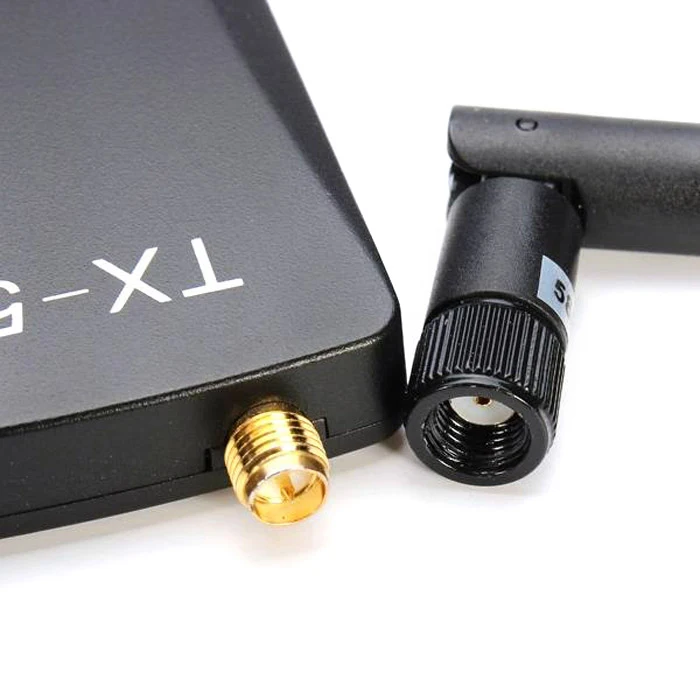

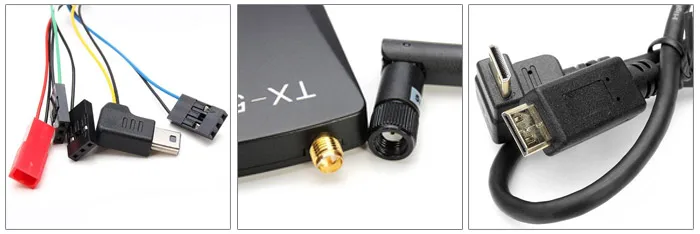

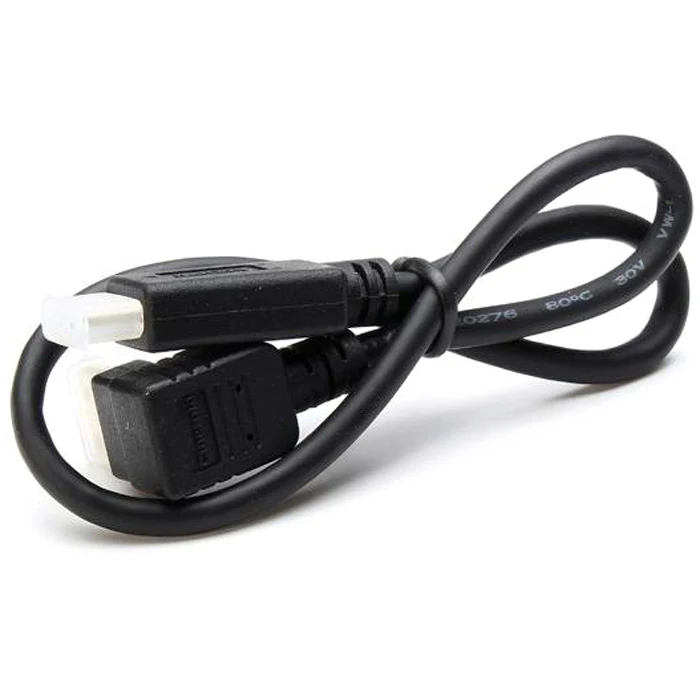

Package Contents | Package Contents: 1 x Transmitter, 1 x 2db Cable, 1 x Mini HDMI Input Cable, 1 x Signal Input Cable |
