Top-Motor T8 T10 Power Motor SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: MOTOR
Tool Supplies: MOTOR
Technical parameters: Value 2
Size: T8 T10
Remote Control Peripherals/Devices: Motor
Recommend Age: 12+y
RC Parts & Accs: Engines
Quantity: 1 pcs
Origin: Mainland China
Model Number: T8 T10
Material: Composite Material
Four-wheel Drive Attributes: Motors
For Vehicle Type: Airplanes
T8 (12-14S)
4 AXIS 10L/KG drone (Max. take off weight 30KG)
6 AXIS 16L/KG drone (Max. take off weight 38-40KG)
6 AXIS 22L/KG drone (Max. take off weight 43-45KG)
T10 (12-14S)
4 AXIS 16L/KG drone (Max. take off weight 34-36KG)
6 AXIS 22L/KG drone (Max. take off weight 48-50KG)
6 AXIS 25L/KG drone (Max. take off weight 50-55KG)

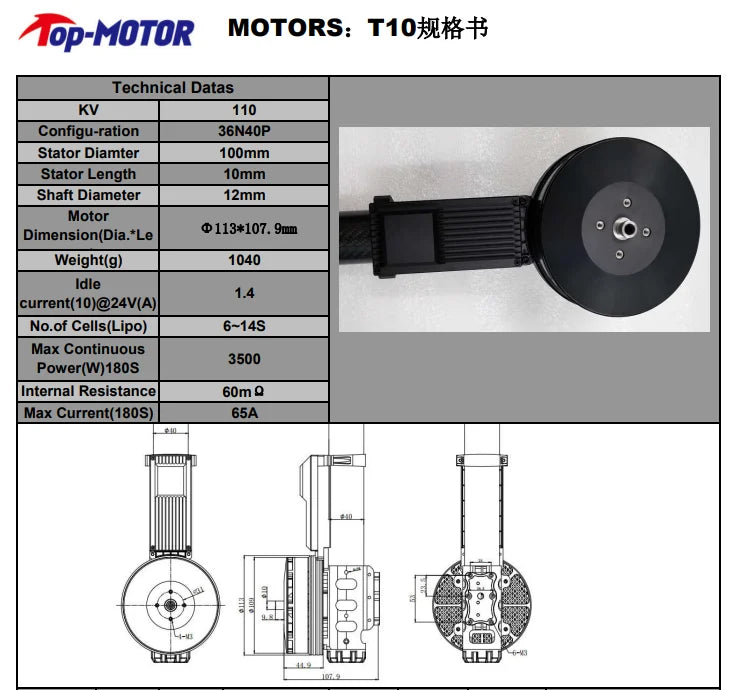

op-MOTOR MOTORS: T1OMW# # Technical Datas KV 110 Configu-ration 36N4OP Stator Diamter 100mm Stator Length 10mm Shaft Diameter 12mm Motor Dimension(Dia:*Le 0113*107. 9nm Weightlg) 1040 Idle 1.4 current(101@24V(A) No.of Cells(Lipo) 6-14S Max Continuous 3500 Power(W)180S Internal Resistance 60
