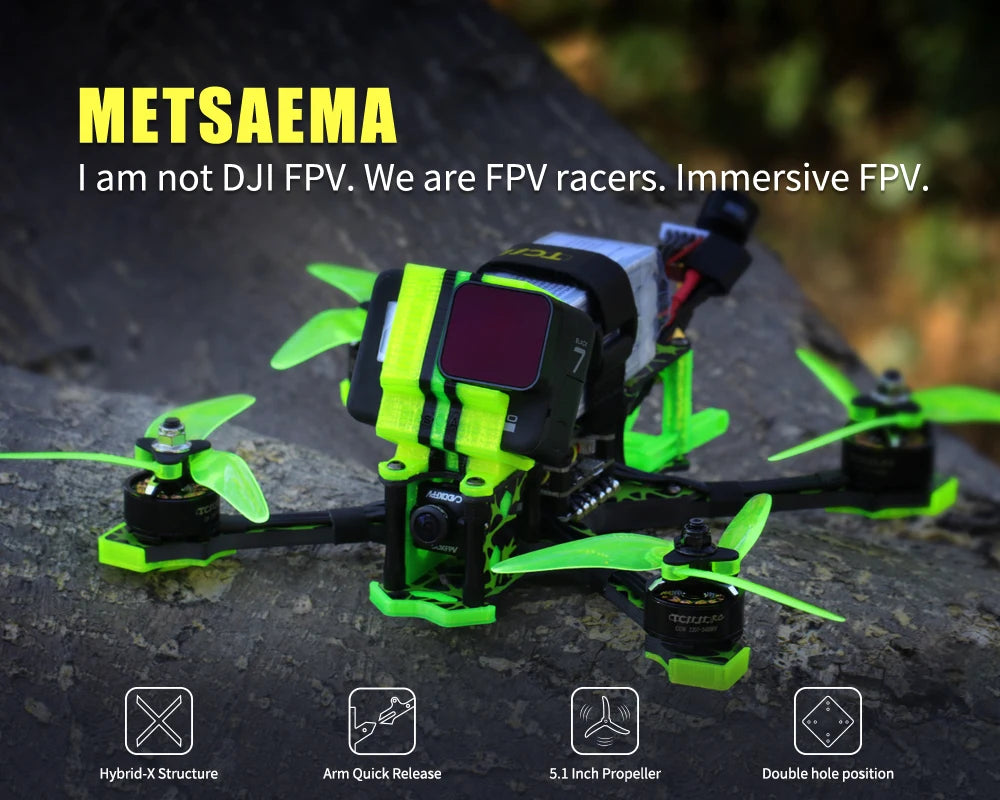

Jungle Warrior: Eyes in the jungle

1. Full camouflage painting, glasses in the jungle
2. The center of gravity of the whole machine is stable, and the fancy shuttle is stress-free
3. The arm supports quick release
4. The camera can be adjusted in multiple angles
5. With a full range of prints, super compatibility
6. Lightweight, flexible, and highly maneuverable. 360 aerial photography without dead ends

Note: Since the battery is a dangerous item, this link does not include the battery and 3s camera. Buyers are advised to buy 4S1500-2000mAh batteries

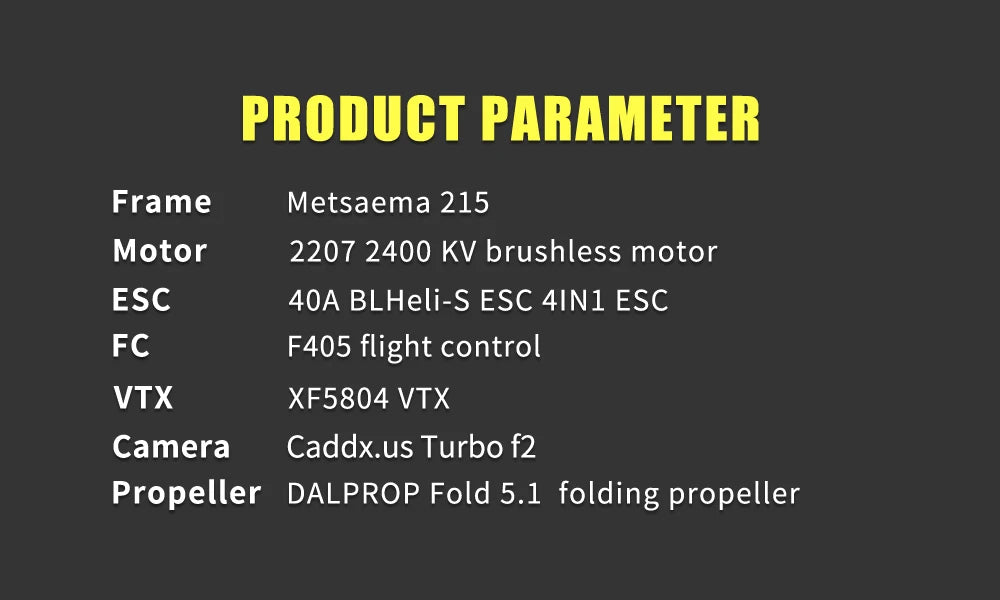

Frame：Metsaema 215

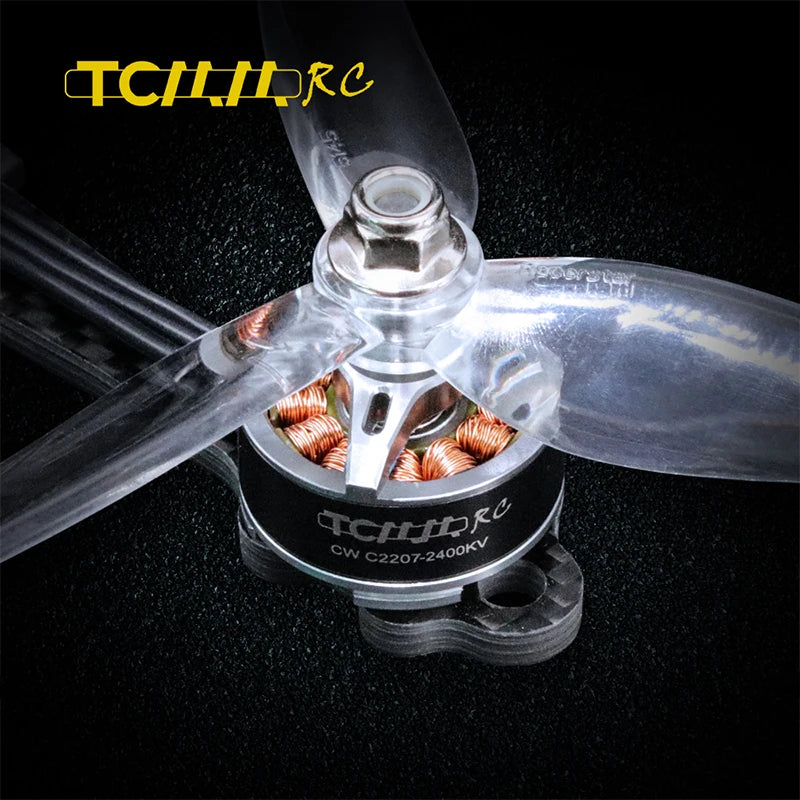

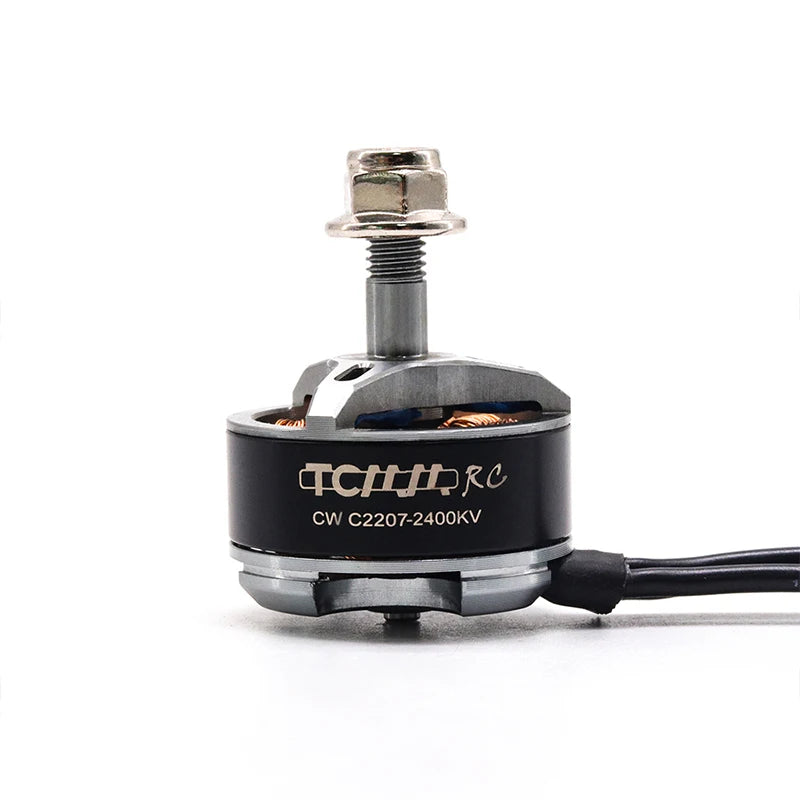

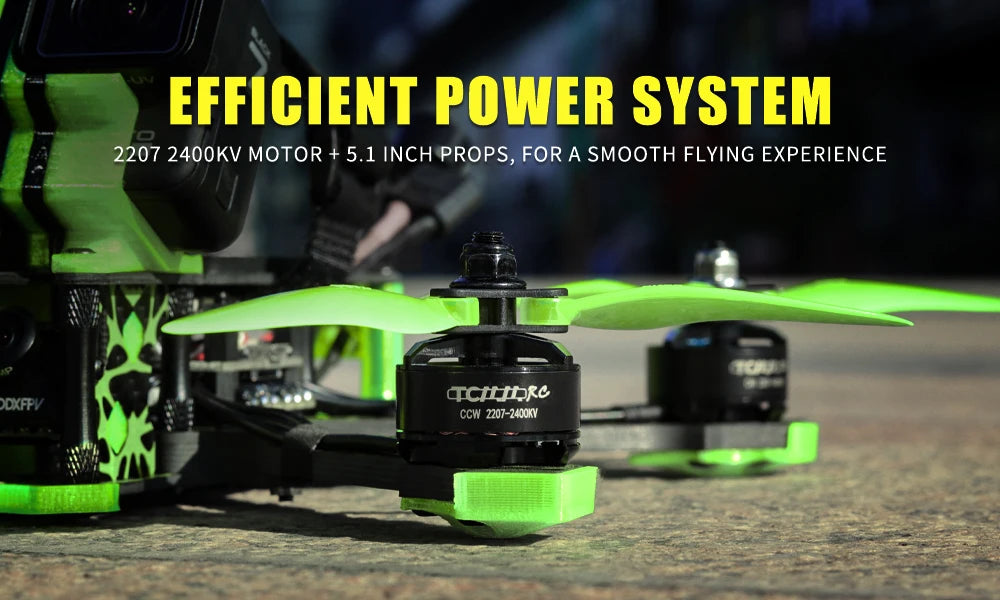

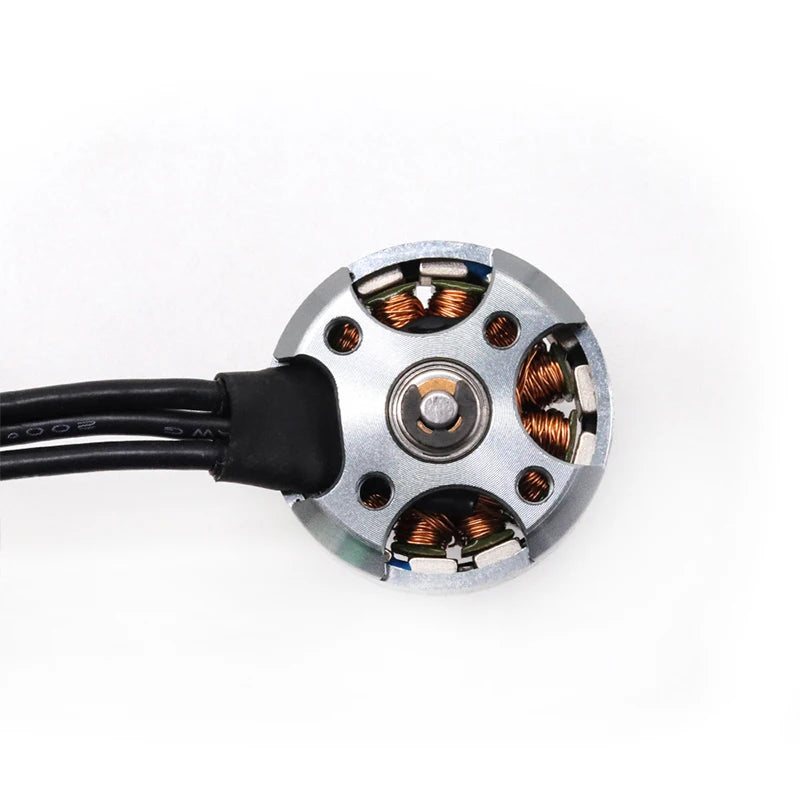

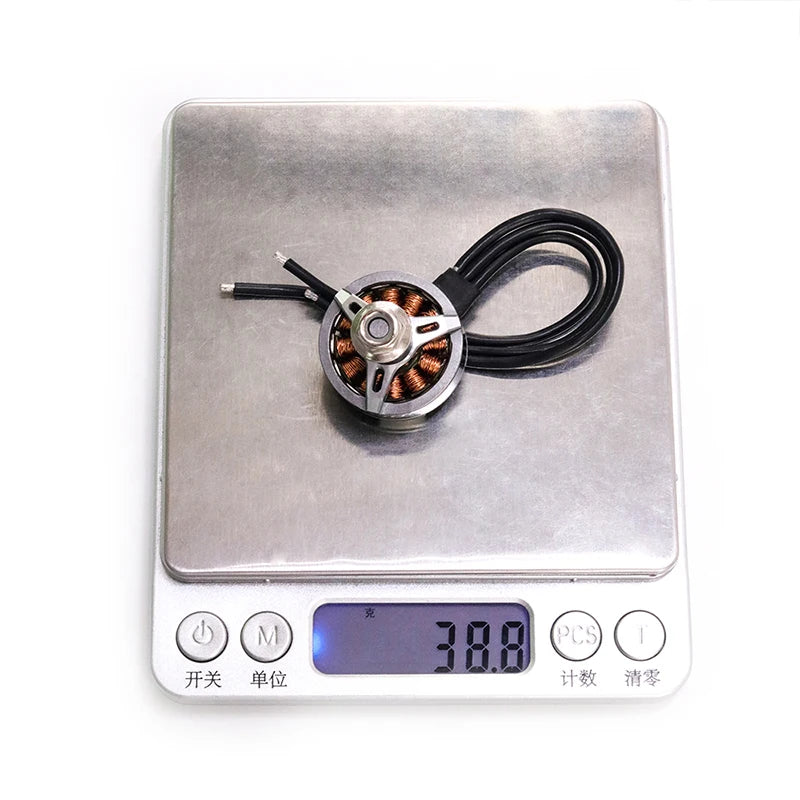

Motor：22072400 KV brushless motor
ESC：40A BLHeli-S ESC 4IN1 ESC
FC：F405 flight control
VTX：XF5804 VTX
Camera：Caddx.us Turbo f2
Propeller：DALPROP Fold 5.1 folding propeller

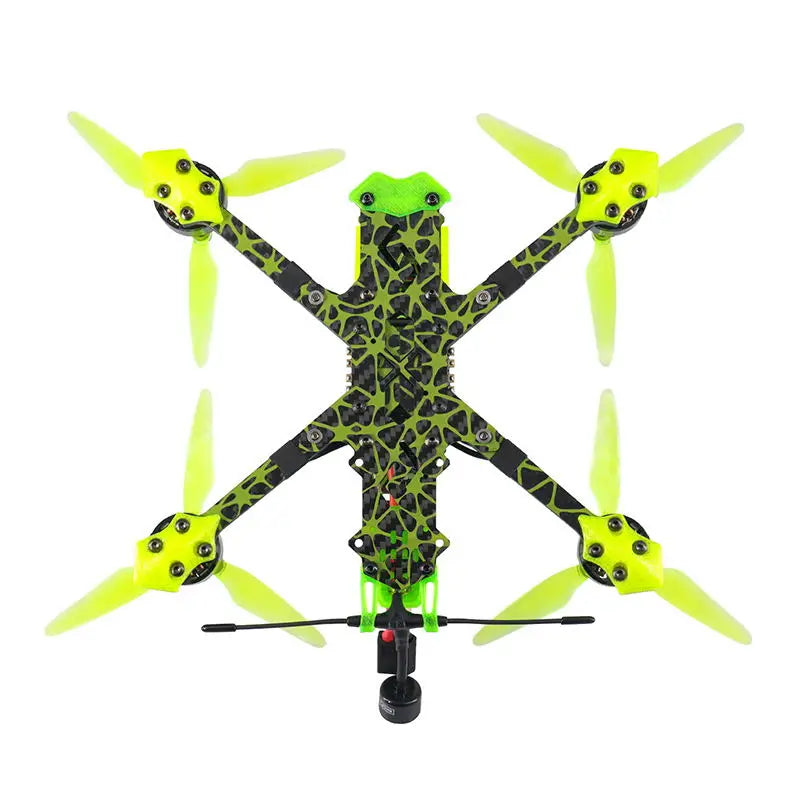

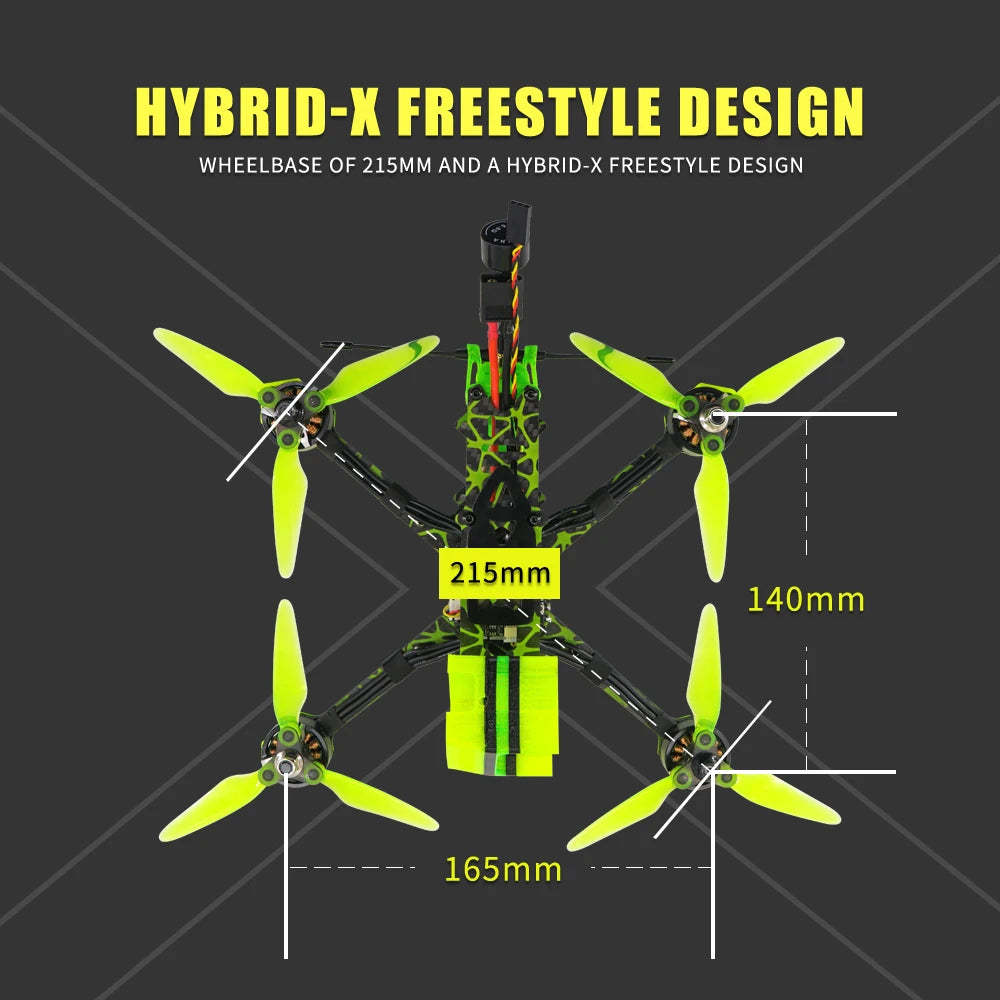

1. Split board outdoor traversing machine, wheelbase 215mm, support up to 5.1 inch blades;

2. Frame Hybrid-X flat X structure design, the whole machine center of gravity is balanced, suitable for fancy flying;

3. Exclusive 3D printing design: a. Support Gopro Hero 7 installation and fixed printing, b. Antenna printing support 915 antenna and 2.4G antenna and receiver fixing, c. Side plate printing is 22mm to 19mm camera Conversion accessories, d. All racks are equipped with arm protection foot pad prints and bottom plate protection prints;

4. Adopting the design of flight control hole position, double hole position and double tower position, compatible with M2*20*20/M3*30.5*30.5

Frequency Range: 2.4G (2403MHz-2447MHz)
2.4G System: NRF24L01 and CC2500

Channel: 8

System: Bayang Protocol / Frsky Protocol

Power: ≤80mw

Model Type: Multi-rotor

Support USB Charging

Support FPV Simulator Connected

Output: PPM, support Student Radio Mode

LED Light: Green-Power On / Red-Warning /
Blue-Normal

Battery: 1 * 350mAh 2S Battery（Removable）

Weight: 227.4g (with battery)

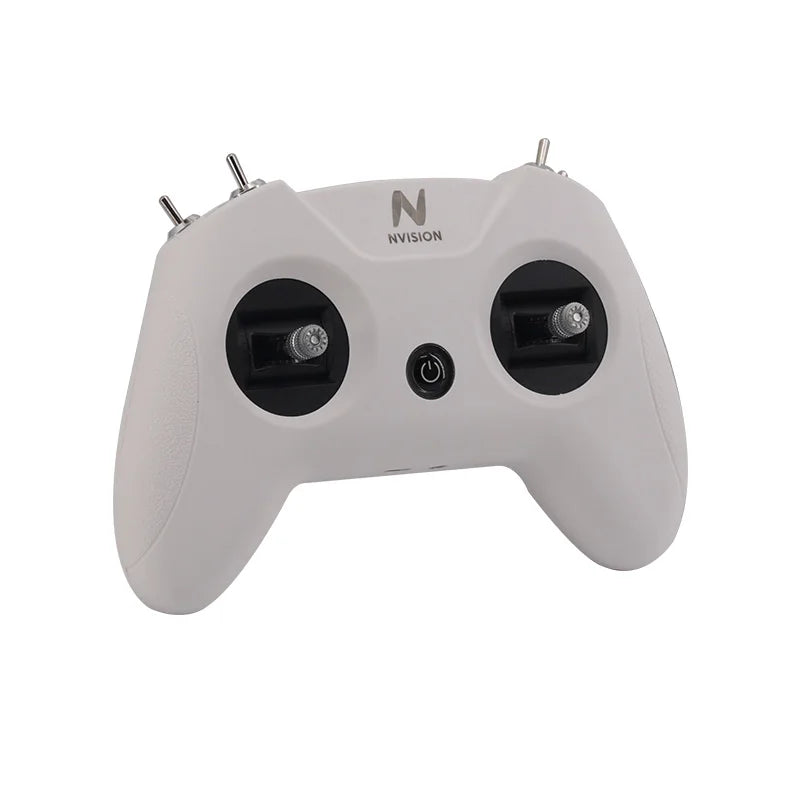

How to switch the protocol (D16/D8 Version)

Press and hold the bind button, then press the
power button until the purple light is flashing.
The flashing LED indicates different protocol the
LiteRadio works on.
LED Status Protocol Version
Flash Once Frsky D16 FCC
Flash Twice Frsky D16 LBT
Flash Three Times Frsky D8

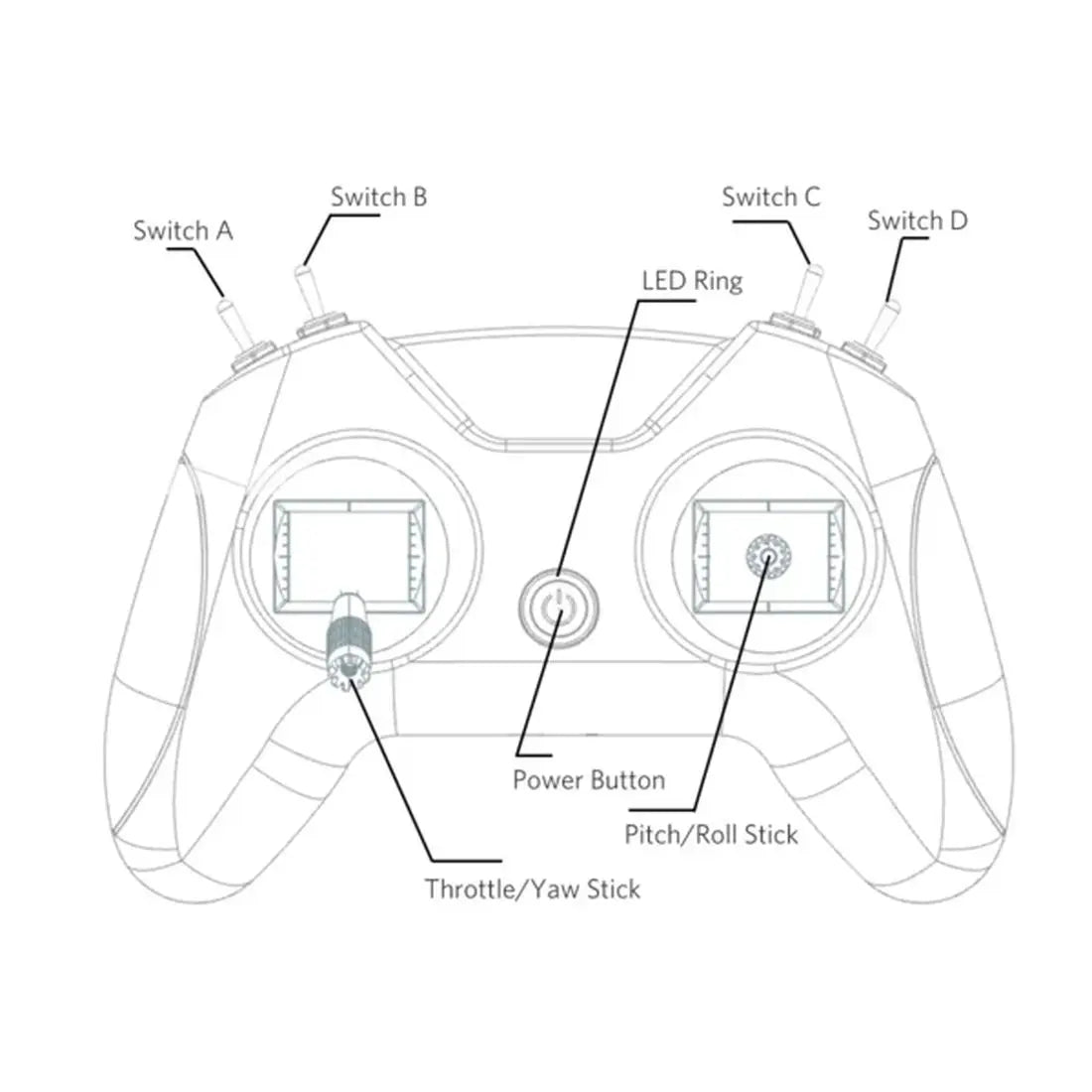

Control Panel: Switch A, Switch B, Switch D; LED Button; Pitch/Roll Stick; Throttle/Yaw Stick; and Ring Control.

SteadyView Receiver,merge 2 signal into 1, make image more stable and clear in challenging condition

Intuitive interface, colorful UI with 2 languages

640*400 OLED screen, high contrast ratio

Support 4 preset screem settings and 3 customized settings for different condition of flight

Easy to access, with IO port on the bottom

Compatible with Fatshark diopter lens

المواصفات

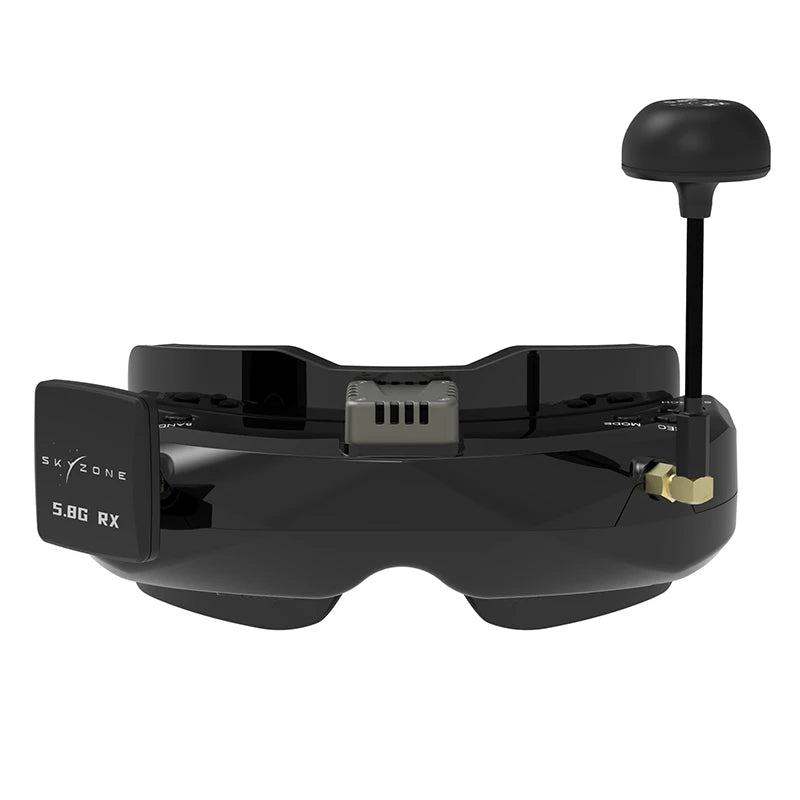

Model : SKY02O

Screen: OLED

Resolution : 640*400

FOV: 29°

IPD: 59-69mm

Aspect Ratio : 16:10

Receiver : 5.8Ghz 48CH SteadyView Receiver Built-in

DVR: MJPEG 30FPS

Head Tracker : 3-axis Accelerometer, 3-axis gyroscop

Voltage Input Range : 2-6S LiPo

Language : Chinese/English

Dimentions : 167*70*79mm

Weight : 210g

تتضمن العبوة

1 x SKY02O FPV Goggles Set

1 x Patch antenna

1x Ommi antenna

المواصفات:：المواصفات

Functions: Video

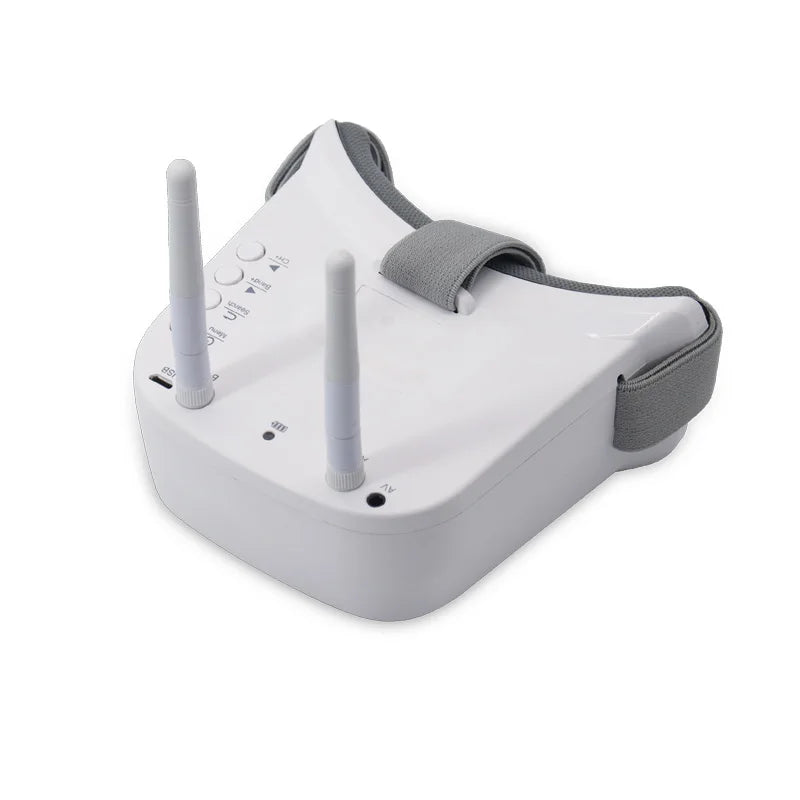

نظارات FPV Goggles
Resolution: 480 x 320
TV System: NTSC / PAL Switchable
Screen size: 3 inch
Battery: 3.7V 1200mAh Li-ion polymer battery
Working Time: 2.5 hours
Charge time: 2 hours
الميزات الرئيسية:
● Portable, small size and light weight
● Low power consumption, working current: 300 – 330mA
● Double antenna reception to make the signal more stable
● One key auto-searching function, fast and accurate
● 3 inch 480 x 320 high brightness LCD screen
● Built-in super sensitiveness 5.8GHz 40CH receiver, especially with RaceBand
● Built-in 3.7V 1200mAh high-capacity Li-ion polymer battery for long time using
● Universal USB charging interface
● Very low time-delay real-time video return ( 10 – 20ms )
● Bilingual menu, support Chinese and English
● Support external Audio video signal input
● Support AV signal output ( connect external DVR )
