Product Description

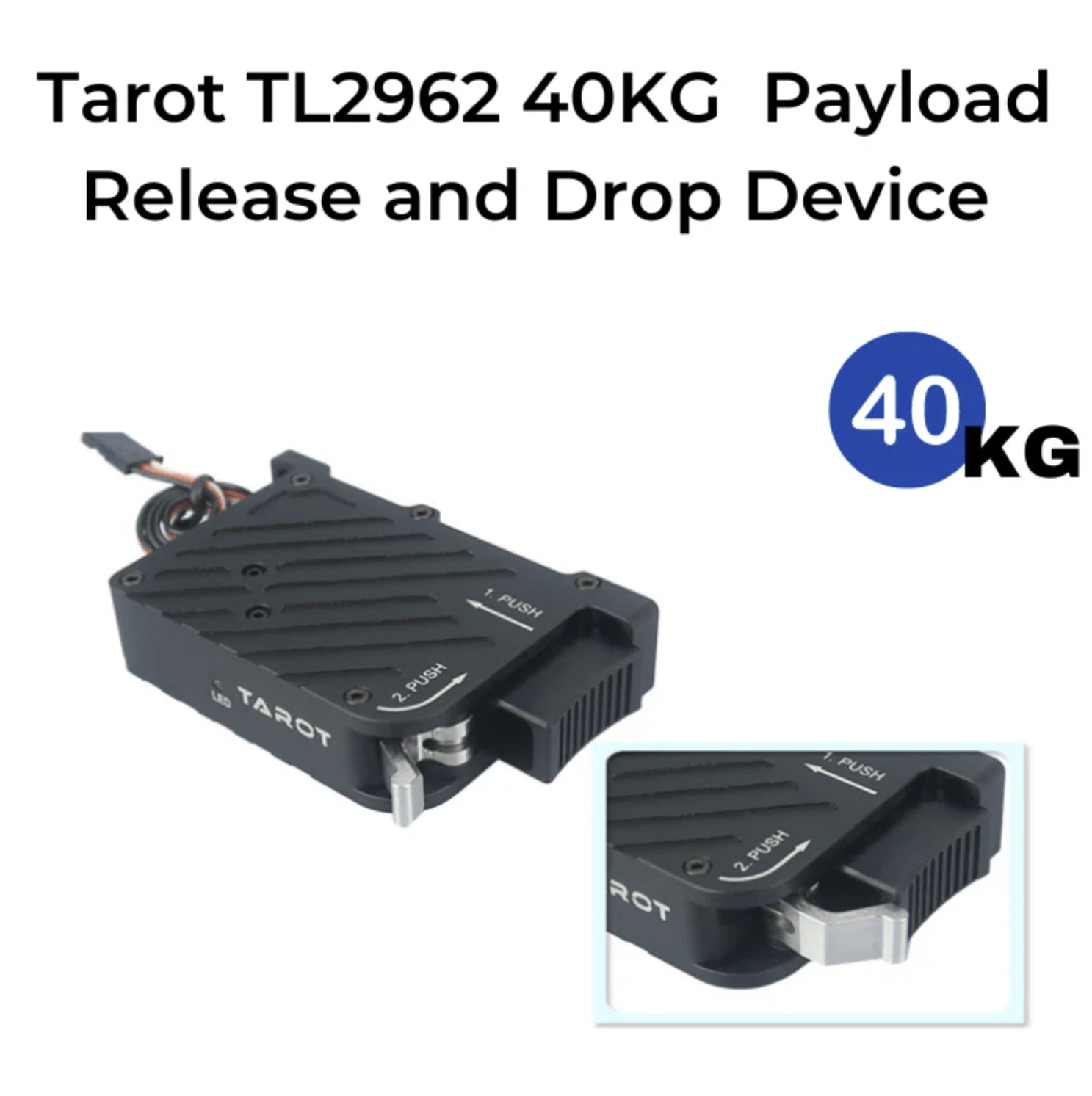

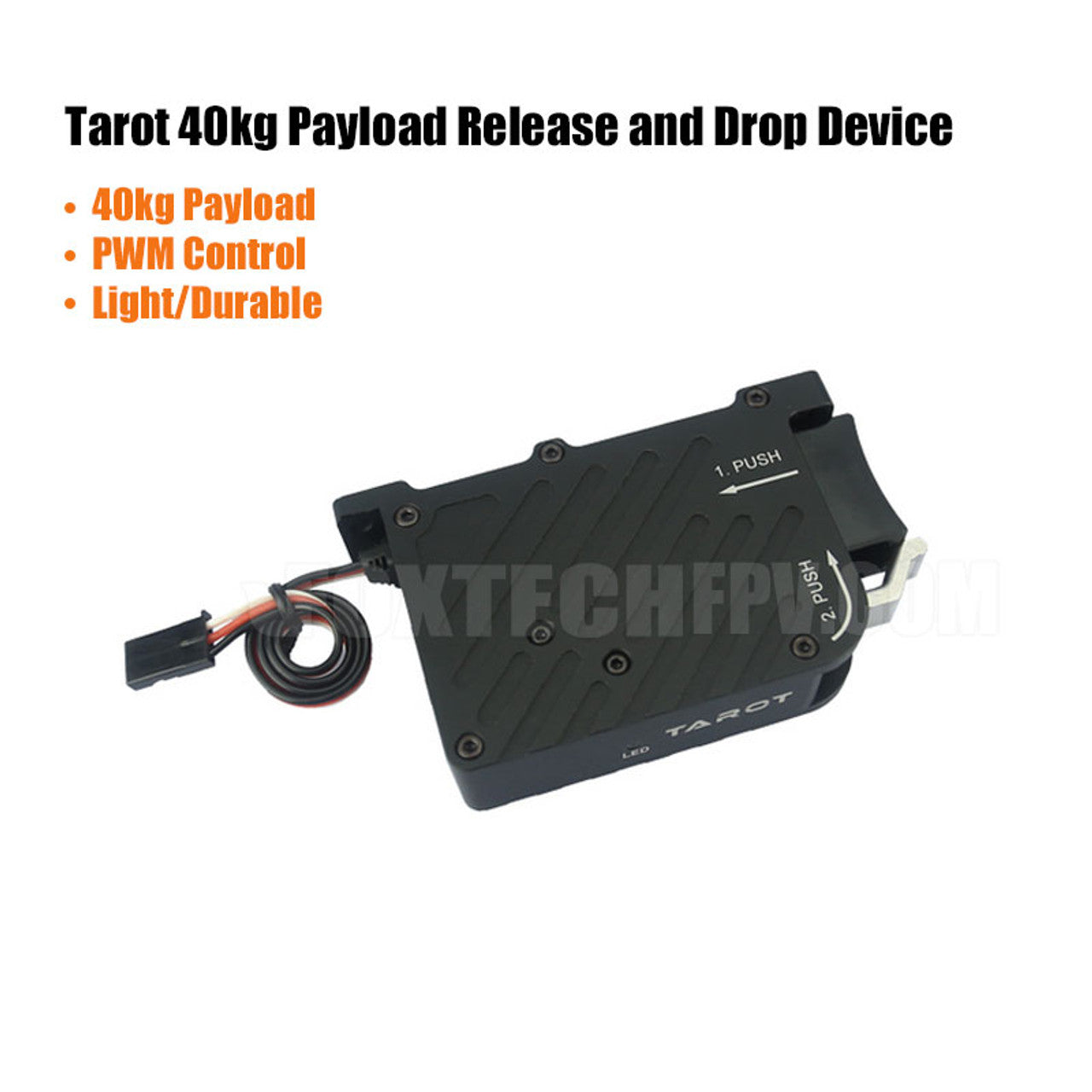

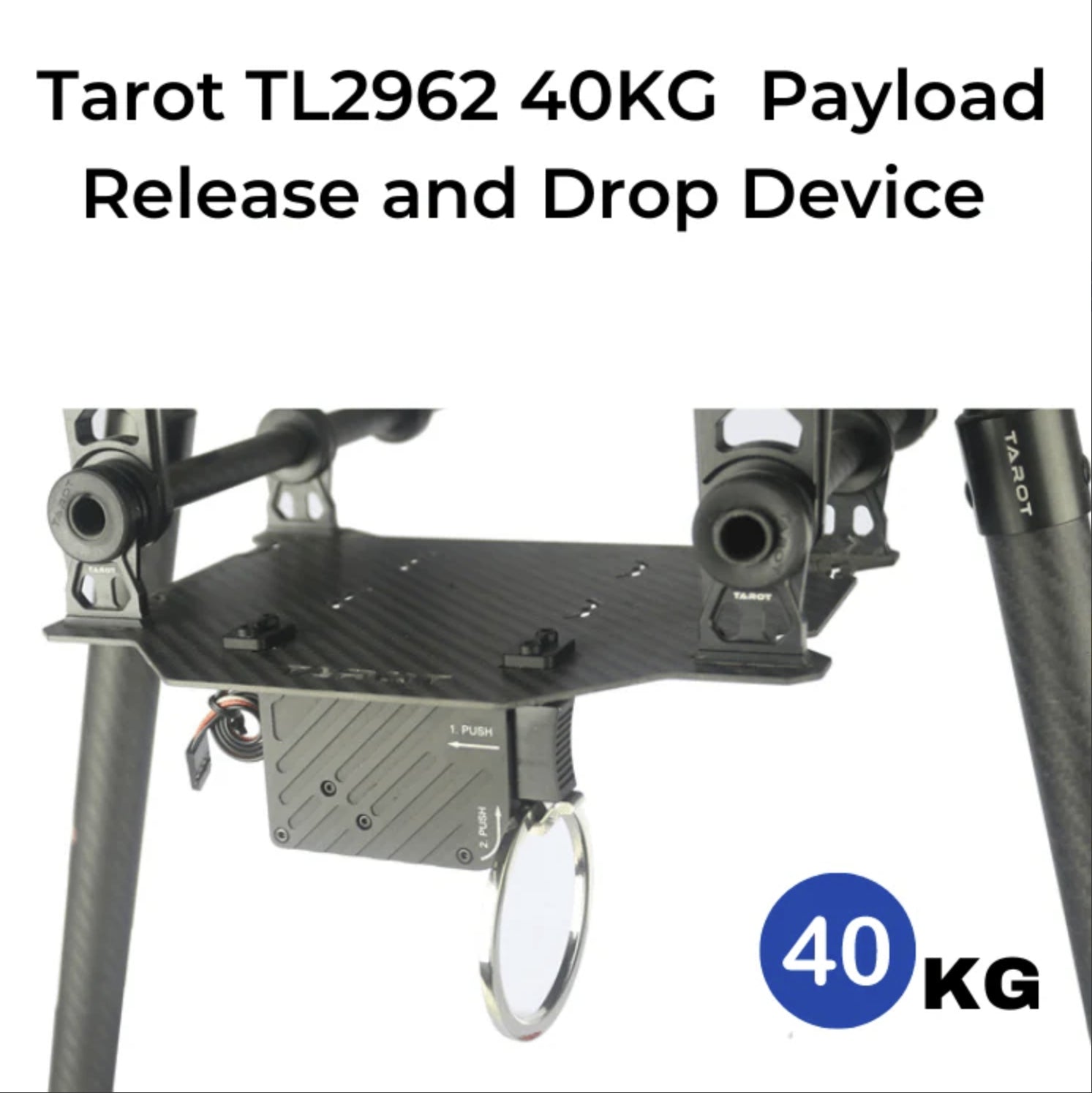

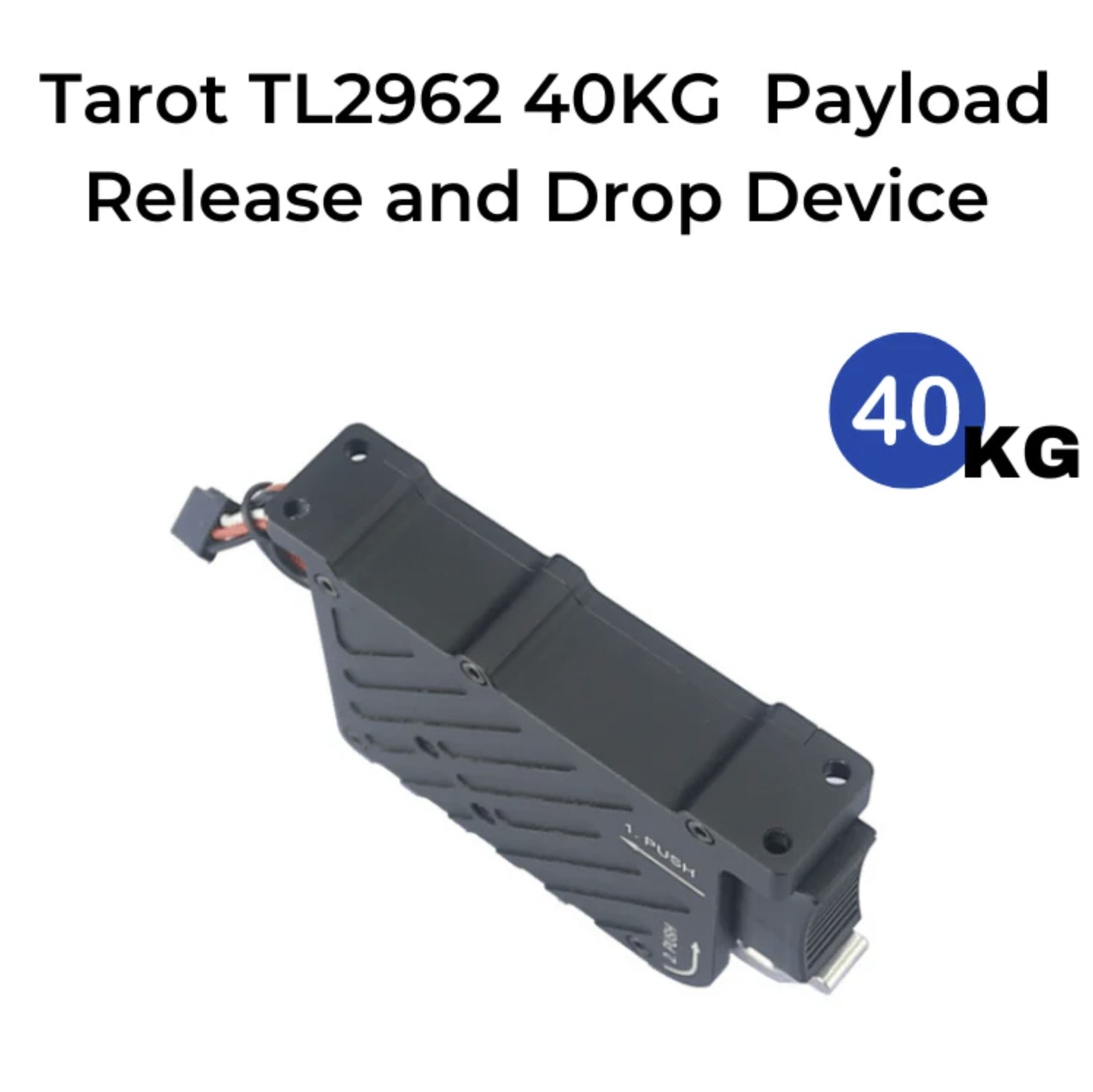

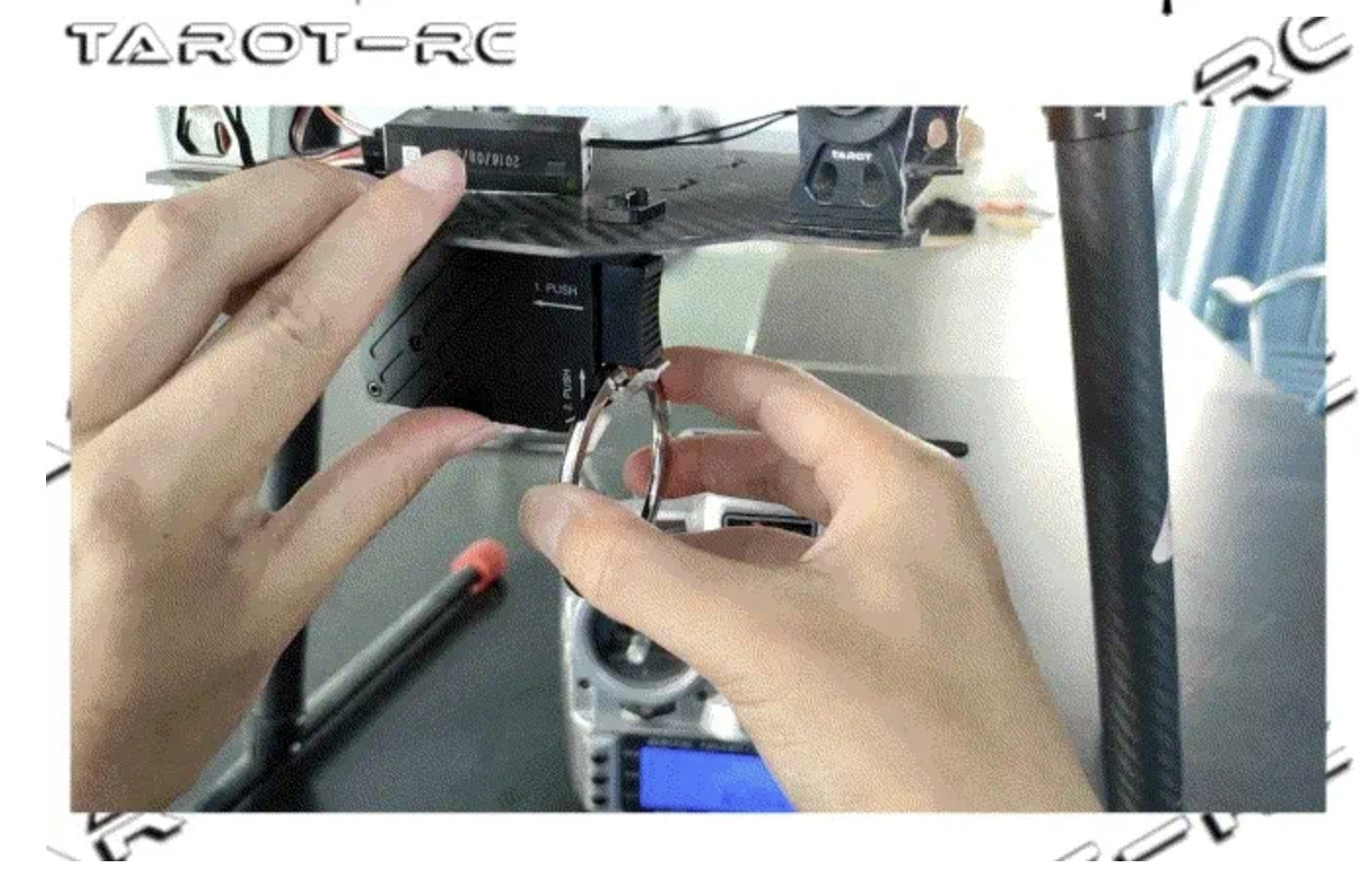

Introducing the Tarot TL2962 40kg Payload Release and Drop Device, expertly crafted from 6063 aircraft aluminum and 304 stainless steel through CNC machining. This innovative device features a mechanical lever design principle that minimizes the power required to drive the mechanism, ensuring a compact and efficient operation. Its robust lever articulation structure prevents jamming due to the weight of the payload, successfully tested with a load capacity of up to 43 kg. Designed for versatile use, multiple units can be mounted and independently controlled to suit various environmental needs.
Operating Instructions and LED Status Light Description

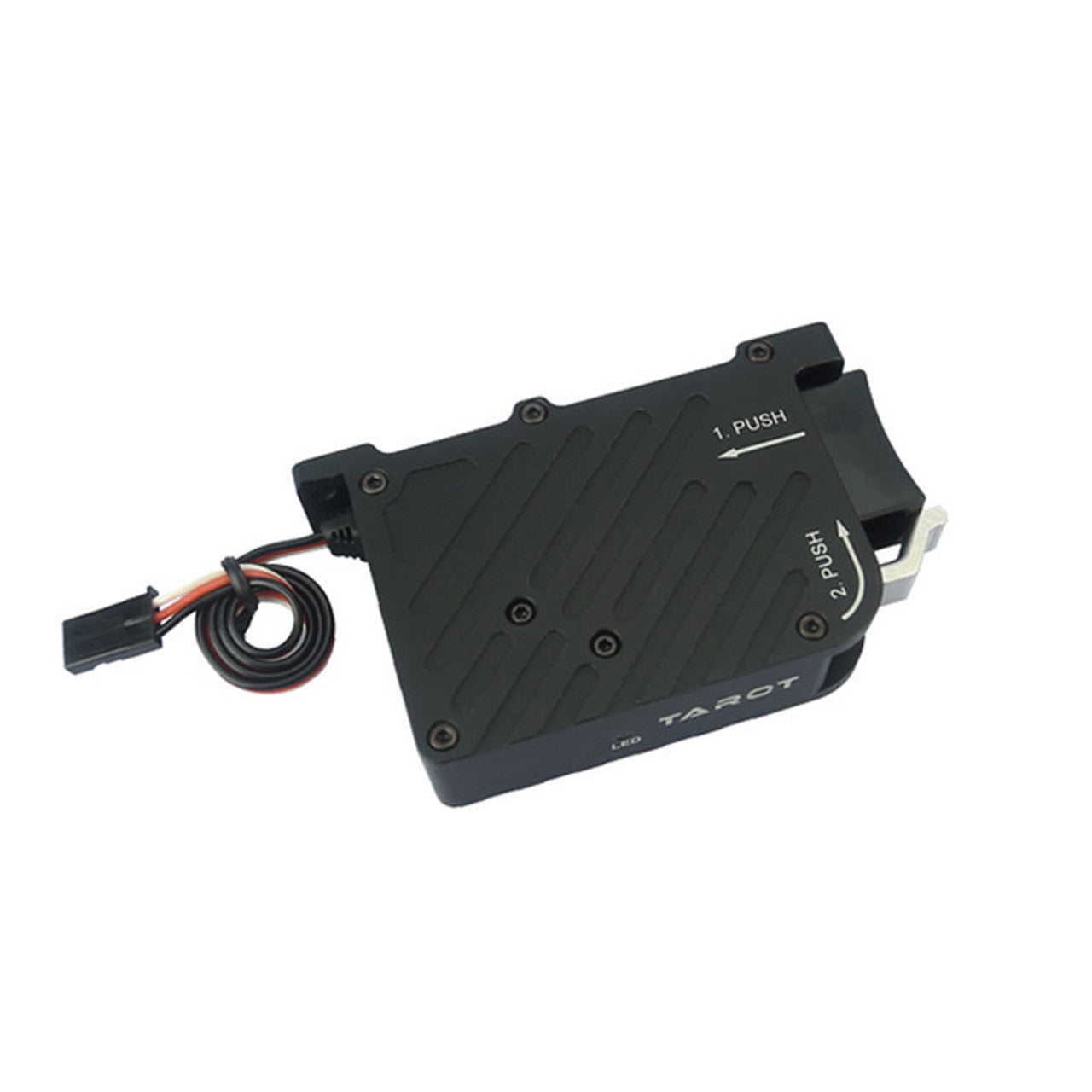

Note: This product utilizes a standard PWM remote control servo signal resolution. The following instructions assume a travel range of 0-100%.
PWM Signal Input (0-59% Travel):
- LED Status: Red light always on
- Device Action: No action
PWM Signal Input (60-100% Travel):
- LED Status: Green light flashes once
- Device Action: Drop switch opens once, LED remains green after the drop
No PWM Signal Input Detected:
- LED Status: Red light flashes twice per second
Power On Initialization:
- LED Status: Green light flashes twice per second if PWM signal input is 60-100% travel
- Device Action: Continues until PWM signal input is adjusted to 0-59% travel, triggering the action described in point 1
Included in the Package

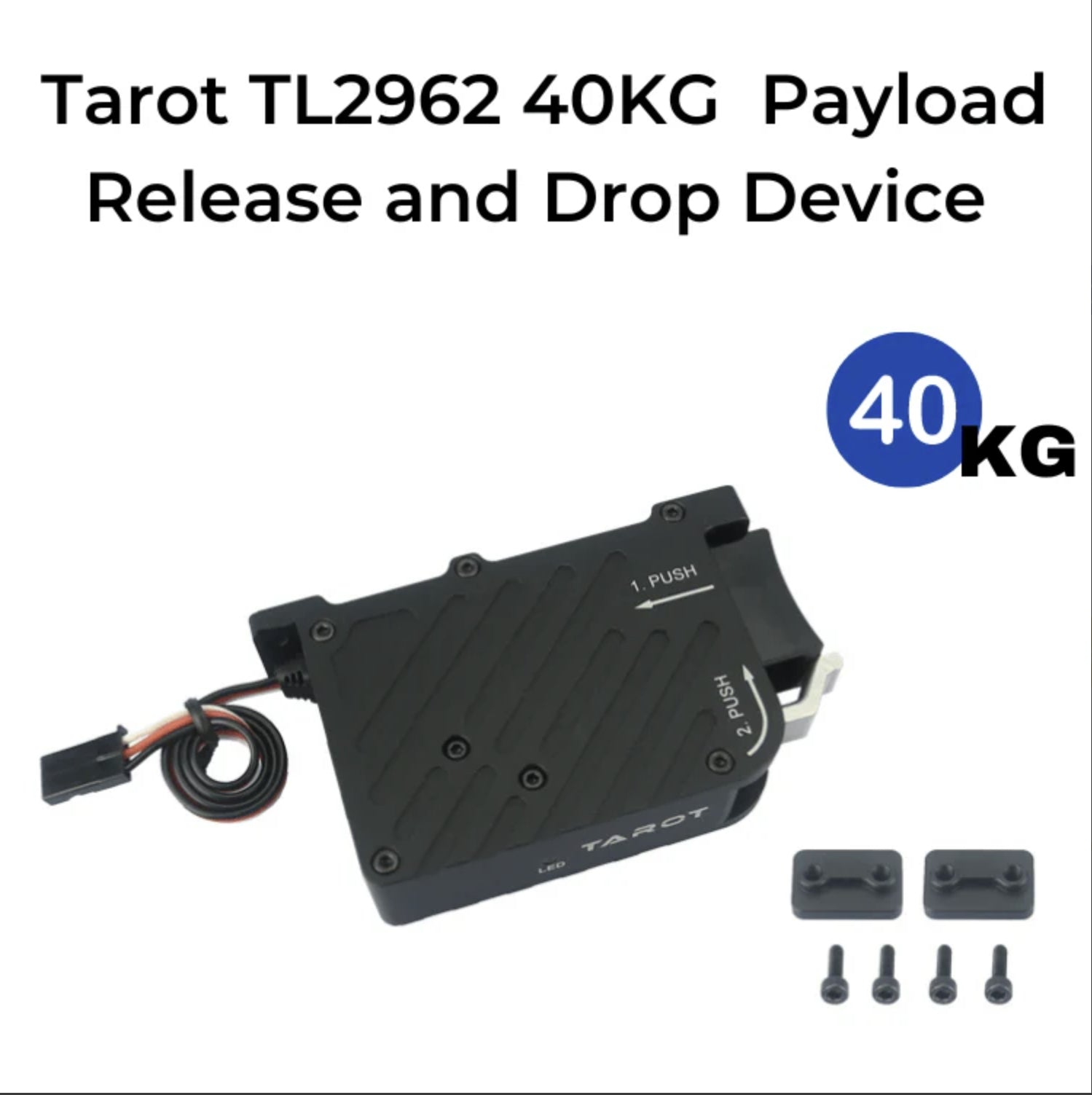

- 1x Tarot TL2962 40kg Payload Release and Drop Device
Tarot TL2962 is a release and drop device designed for payloads up to 40kg, featuring a control light and durable construction.
Tarot TL2962 40kg Payload Release and Drop Device: A device that can hold up to 40 kilograms and release or drop its payload upon demand, suitable for testing and evaluation purposes.
The Tarot TL2962 is a payload release and drop device designed for payloads up to 40kg.
Introducing Tarot TL2962, a reliable 40kg payload release and drop device that simplifies operations with its easy-to-use push actuation mechanism.
The Tarot TL2962 is a payload release and drop device designed for loads up to 40kg.

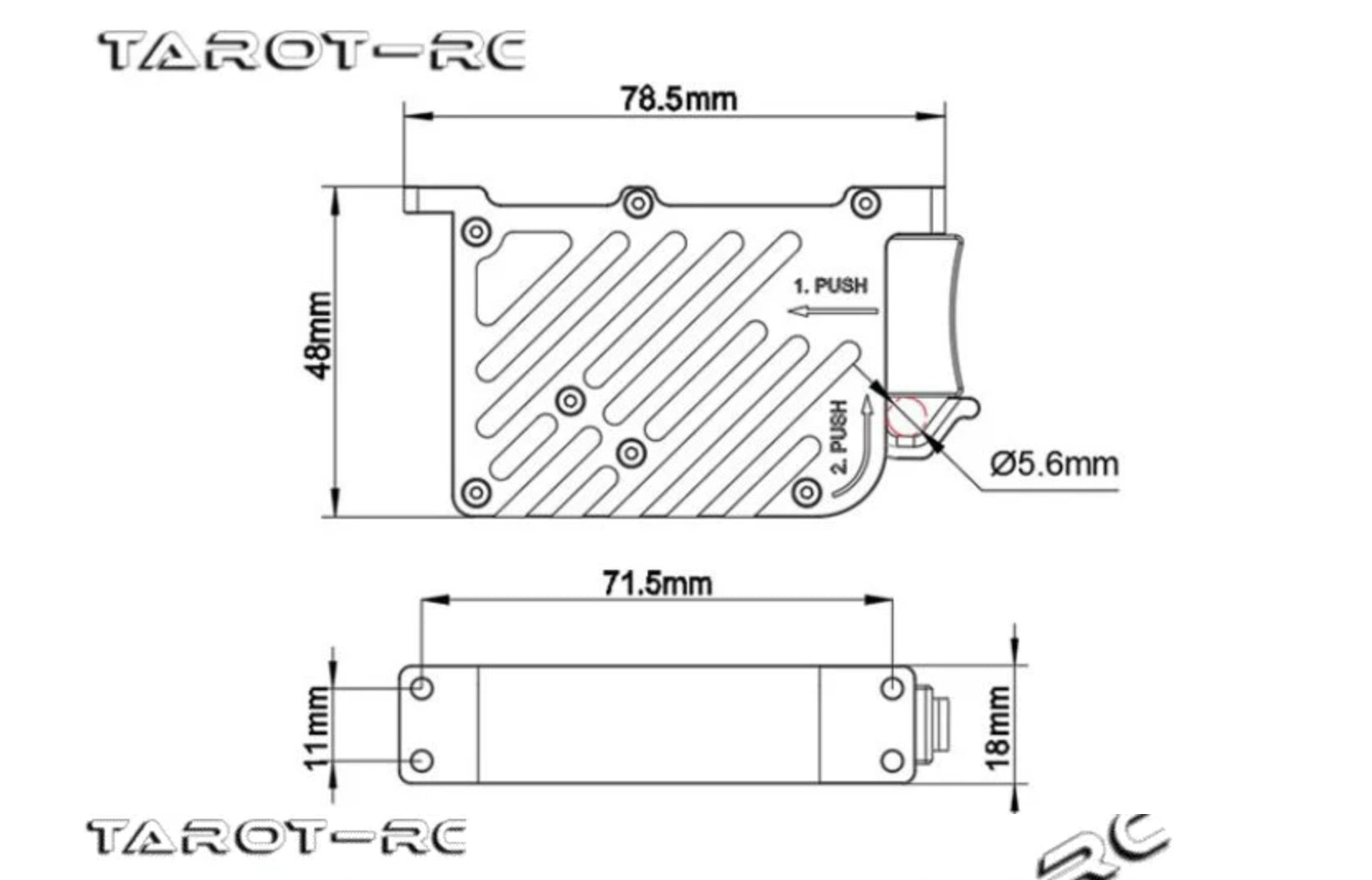

Tarot TL2962 release and drop device features a 78.5mm stroke length, with a maximum payload capacity of 40kg, suitable for applications requiring precise control.
