T-motor F0802 KV25000 Micro Motor SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Technical parameters: Value 2
Remote Control Peripherals/Devices: ESC
Recommend Age: 12+y,18+
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Model Number: F0802
Material: Metal
Four-wheel Drive Attributes: Motors
Brand Name: T-MOTOR

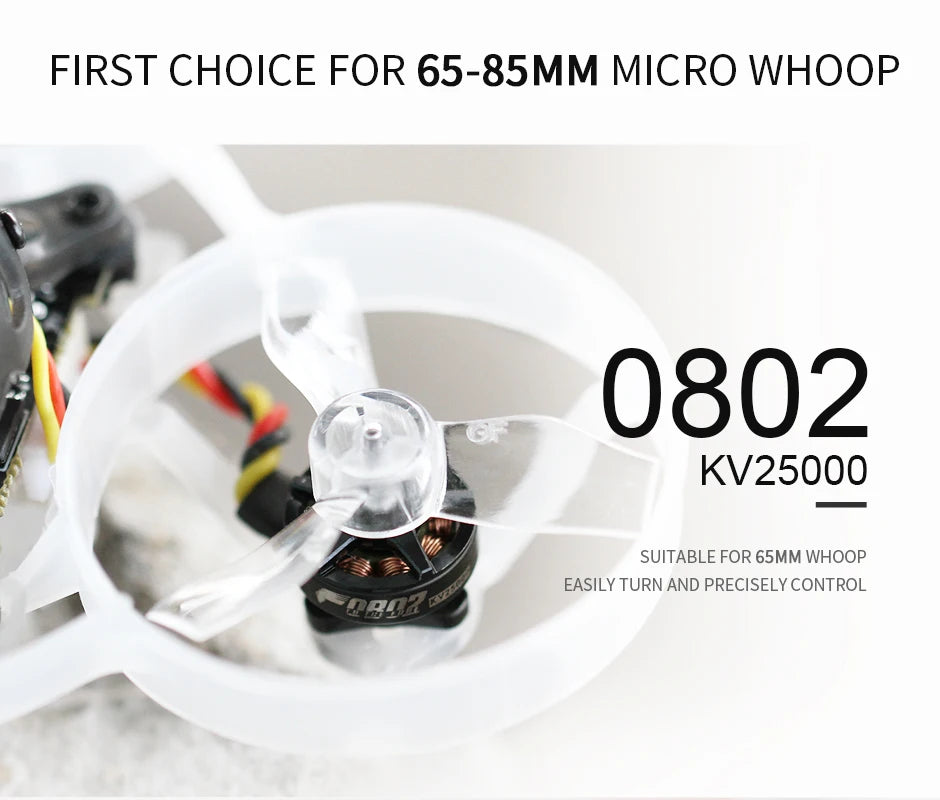

FIRST CHOICE FOR 65-85MM MICRO WHOOP 0802 KV25000 SUITABLE FOR G5MM WHOOP EASILY TURN AND PRECISELY CONTROL 0802 L

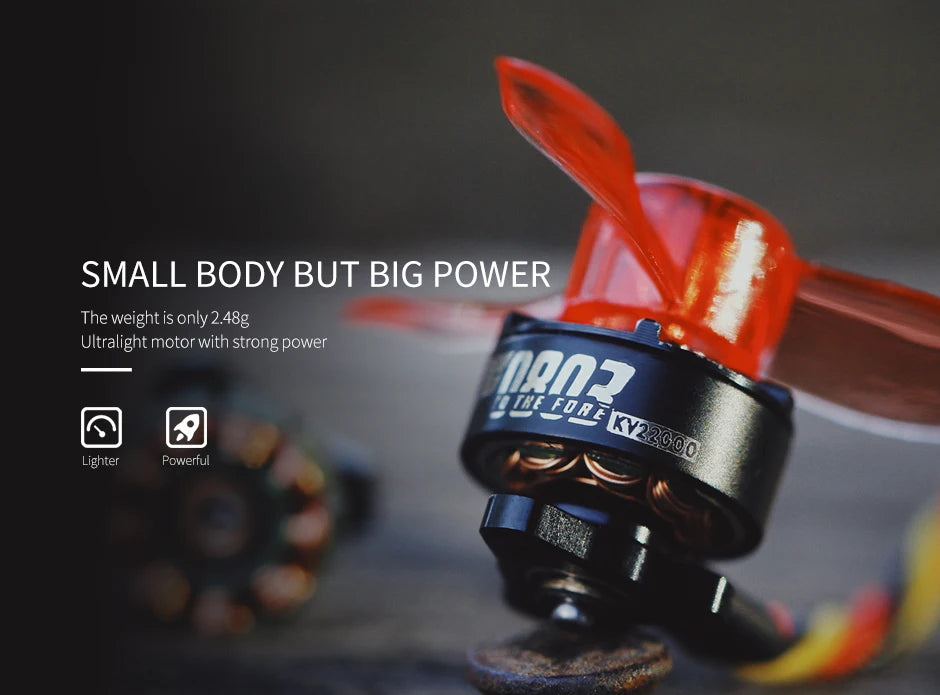

The T-motor F0802 KV25000 is a powerful brushless motor that weighs only 2.48 grams, offering strong performance in a remarkably lightweight package.

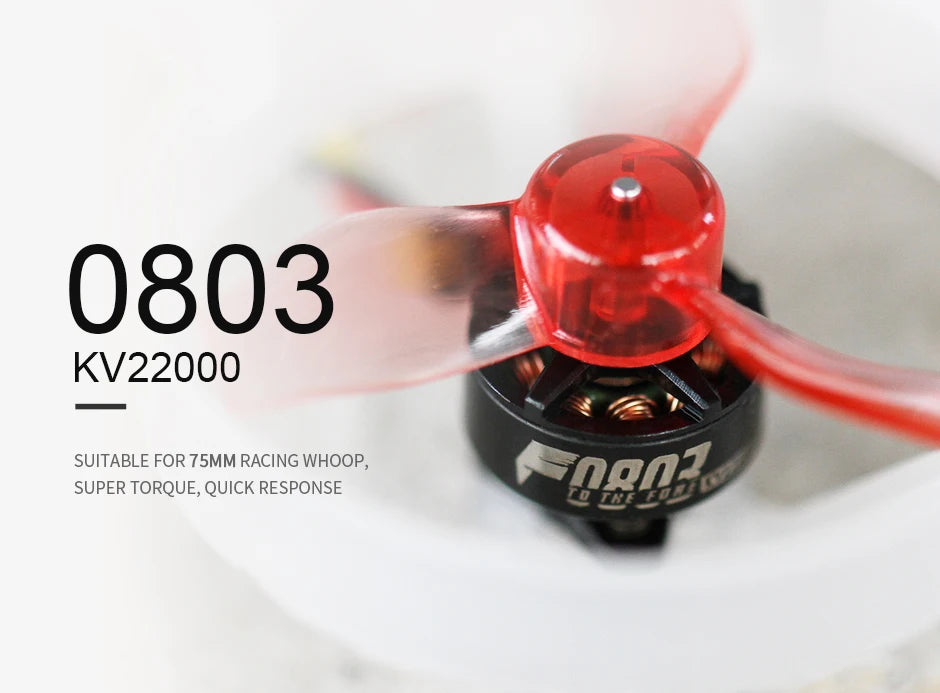

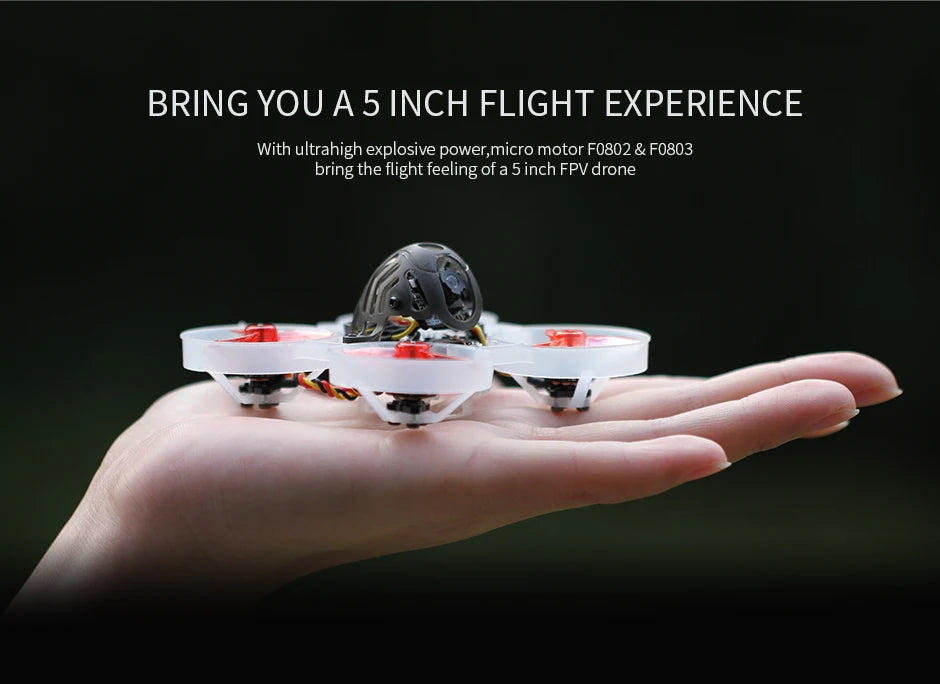

The T-motor F0802 KV25000 micro motor, also known as the F0803, provides an exhilarating flying experience similar to that of a 5-inch FPV drone, thanks to its incredibly powerful and high-torque brushless design.

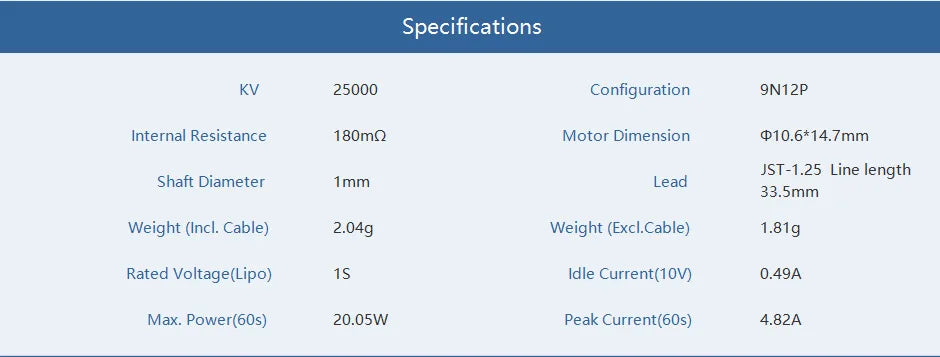

Specifications:
* Configuration: 9N1ZP
* Internal Resistance: 180mΩ

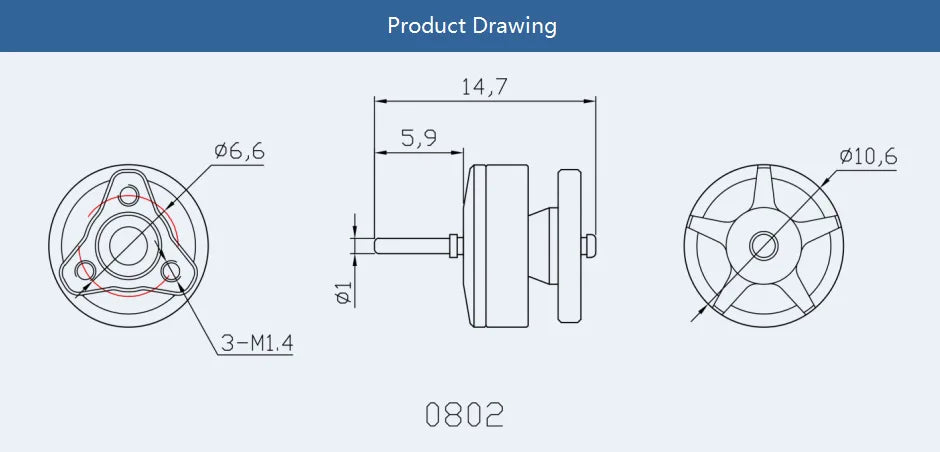

* Motor Dimension: 10.6mm x 14.7mm

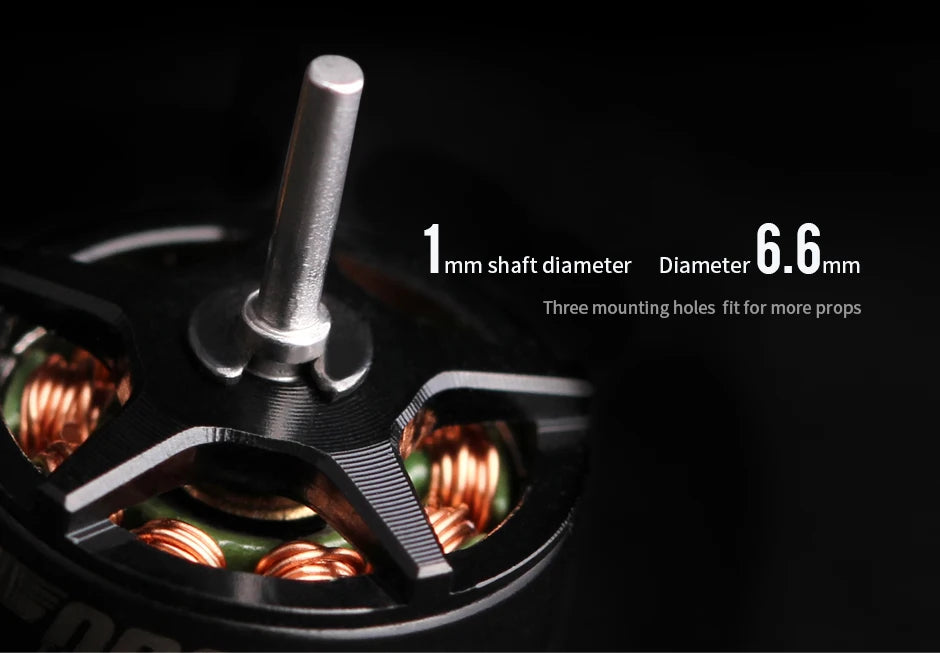

* JST-1.25 Line Length: Shaft Diameter: 3.33mm
* Weight (including cable): 2.04g
* Weight (excluding cable): 1.81g
* Rated Voltage (Lipo): 1S
* Idle Current (1V): 0.49A
* Maximum Power (6V): 20.05W
* Peak Current (60s): 4.82A

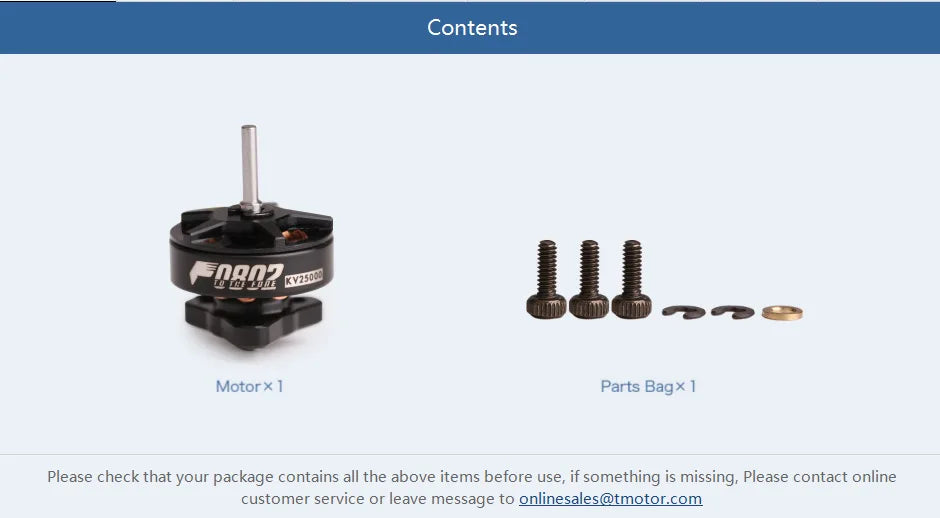

Upon receipt of your package, please verify that it includes all the necessary components. If any items are missing, kindly reach out to our online customer service team or leave a message for assistance.
