RadioMaster Zorro SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y

RC Parts & Accs: Speed Controllers

Quantity: 1 pcs

Origin: Mainland China

Material: Polyester

Brand Name: DarwinFPV

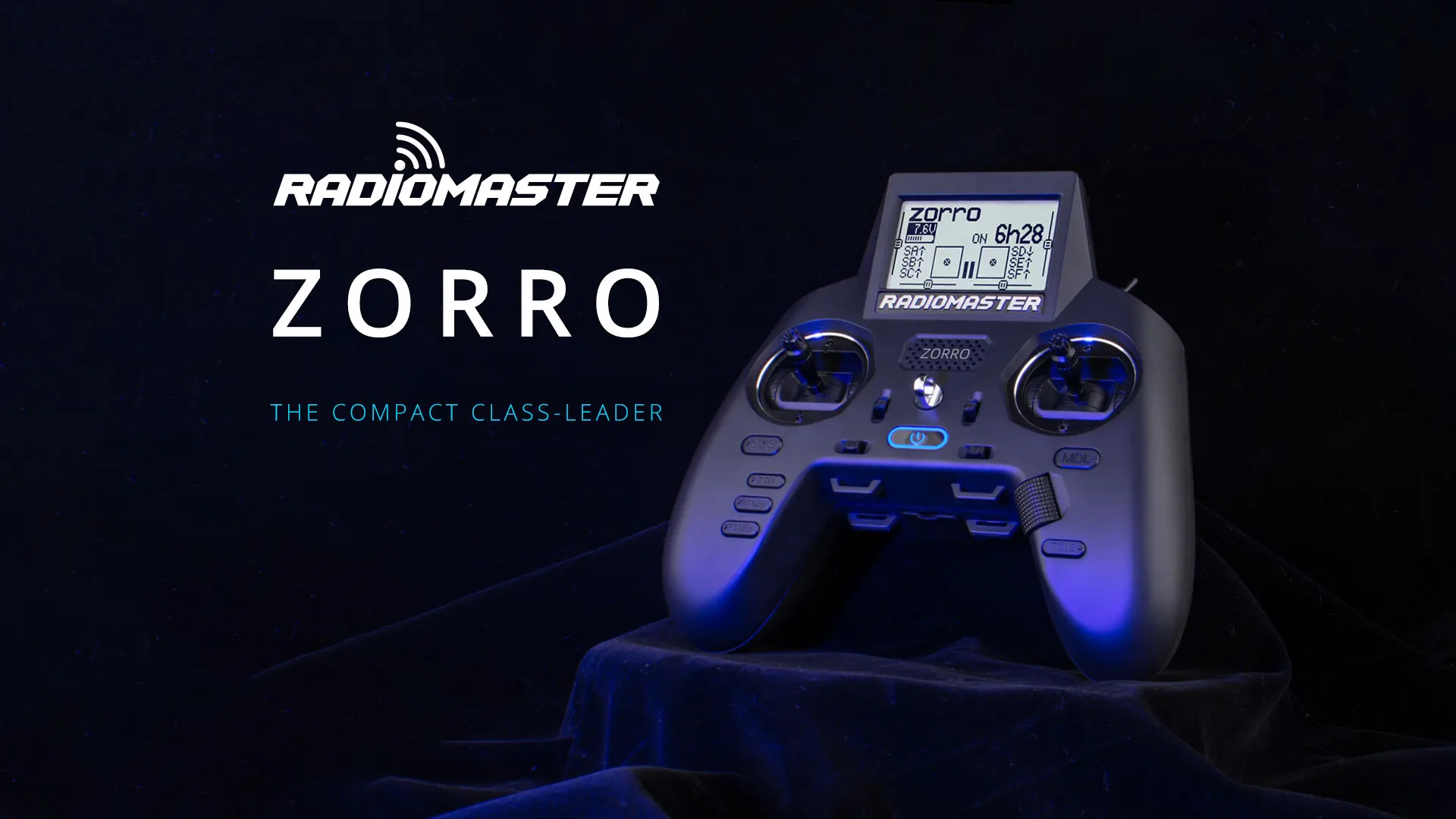

Zorro ELRS Radio Controller comes with an oversized LCD screen can give you perfect viewing experience. Travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.

Specifications:

Physical dimensions：170*159*108mm

Weight：350 grams

Operating frequency：2.400GHz-2.480GHz

Internal RF Options：CC2500 multi-protocol / 4-in-1 multi-protocol / ELRS 2.4GHz

Supported protocols ：Module dependent

RF power：CC2500 and 4-in-1: 20dBm max. / ELRS: 22dBm max.

Antenna gain：Folding 2db

Operational current：[email protected]

Operational voltage：6.6-8.4v DC

Control distance：> 2km @ 20dbm

Operating system：OpenTX / EdgeTX Compatible

Control channels：Maximum 16 (Rx dependent)

Display ：128*64 Monochrome LCD

Battery ：2 x 18350 (Not included)

Charging ：Built in USB-C Charging

Gimbal：Hall-effect

Module bay ：Nano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)

Firmware Upgrade method：Via USB or SD card (SD Not included)

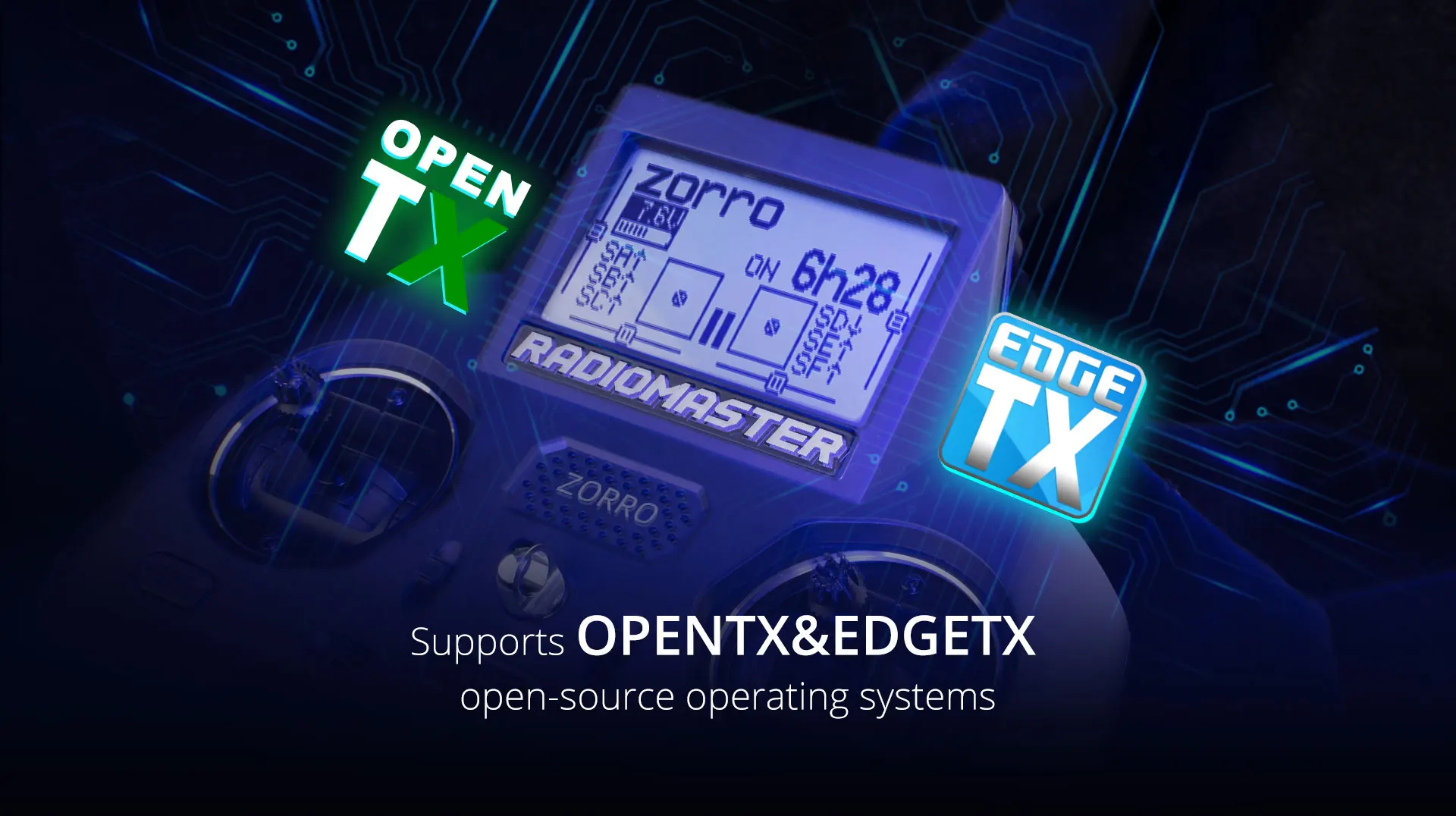

Support OPENTX & EDGETX

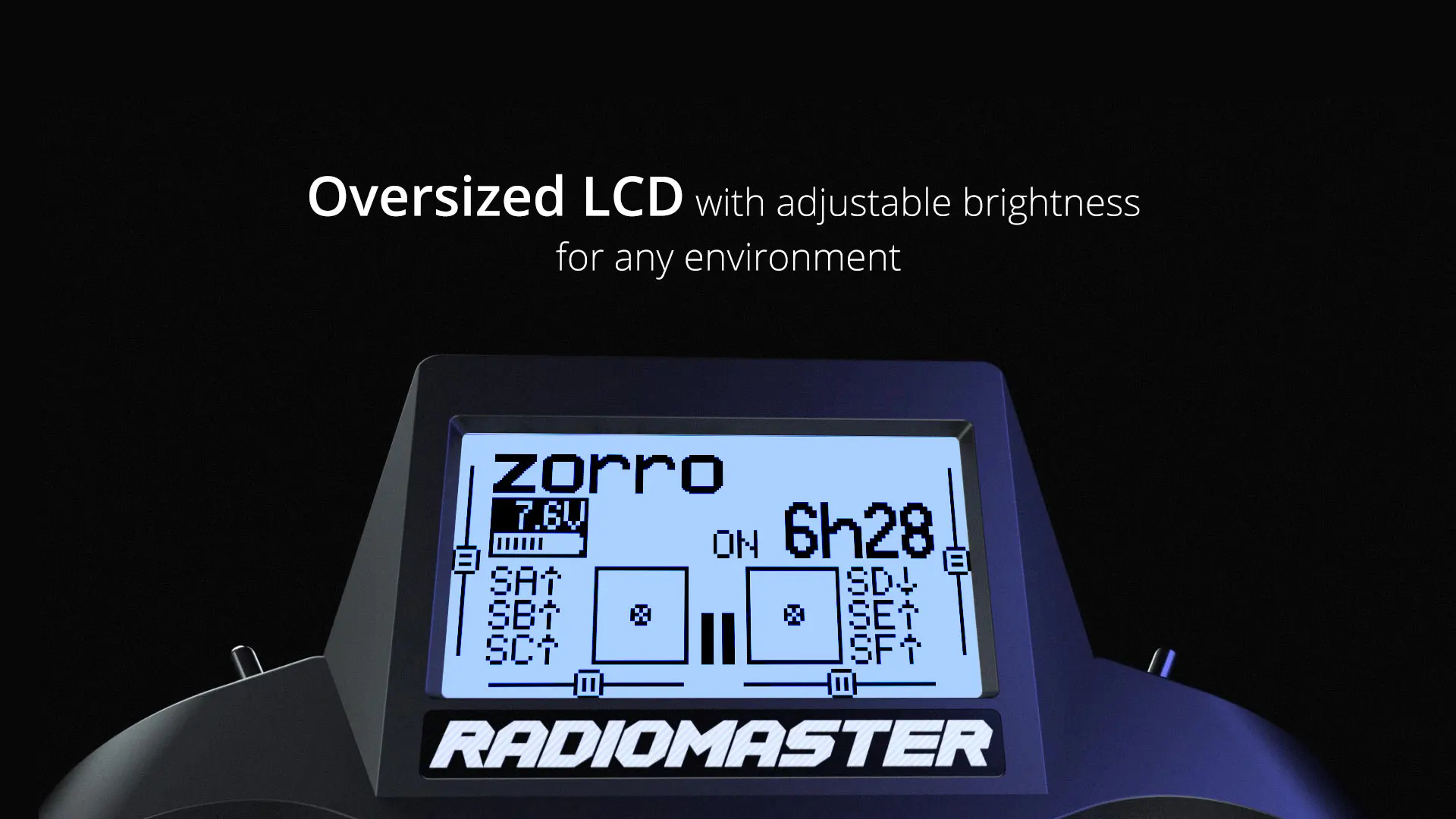

Oversized LCD & Foldable Antenna

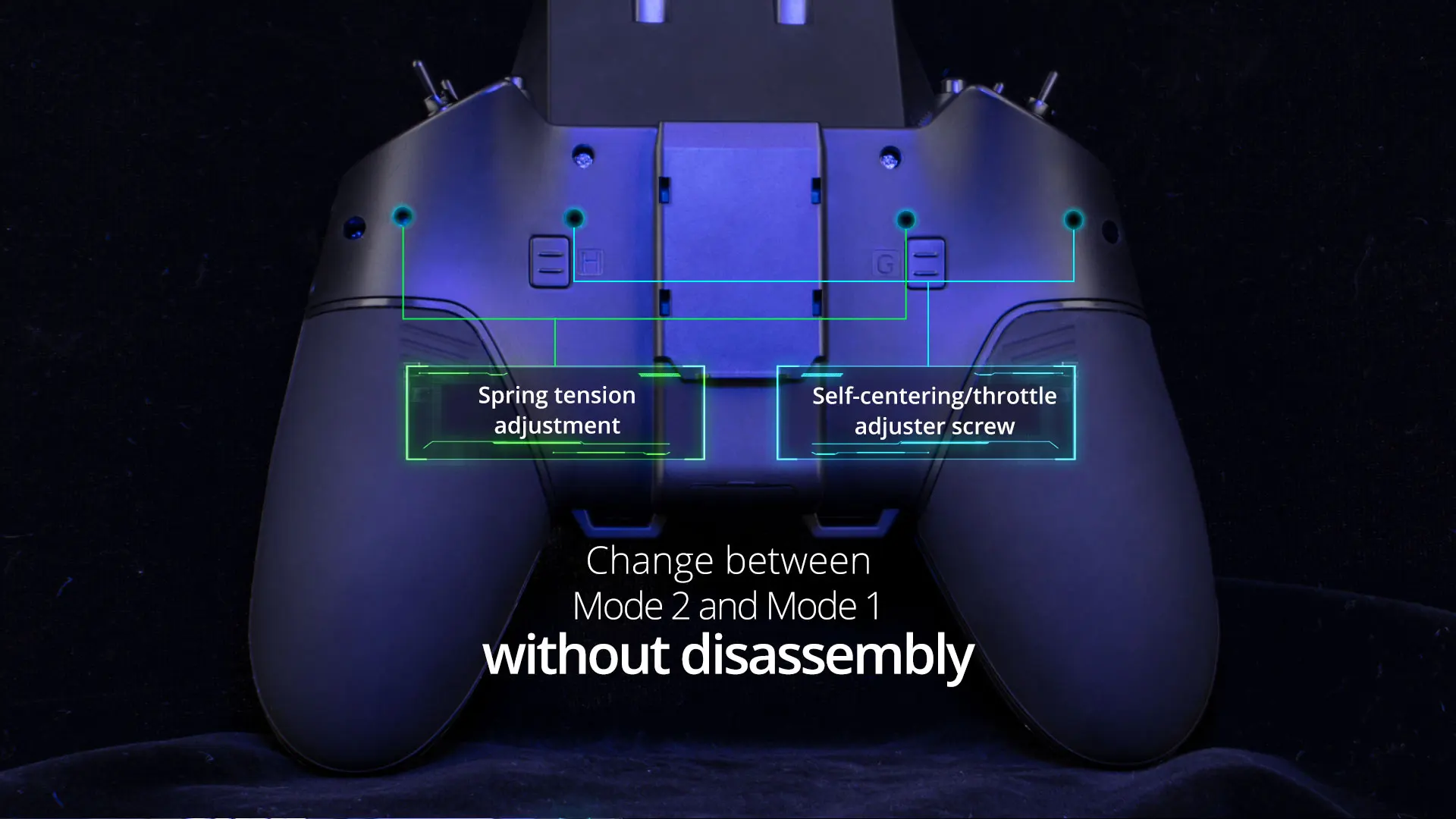

Switchable in Mode 1 and Mode 2

Adjustable Hall Gimbals

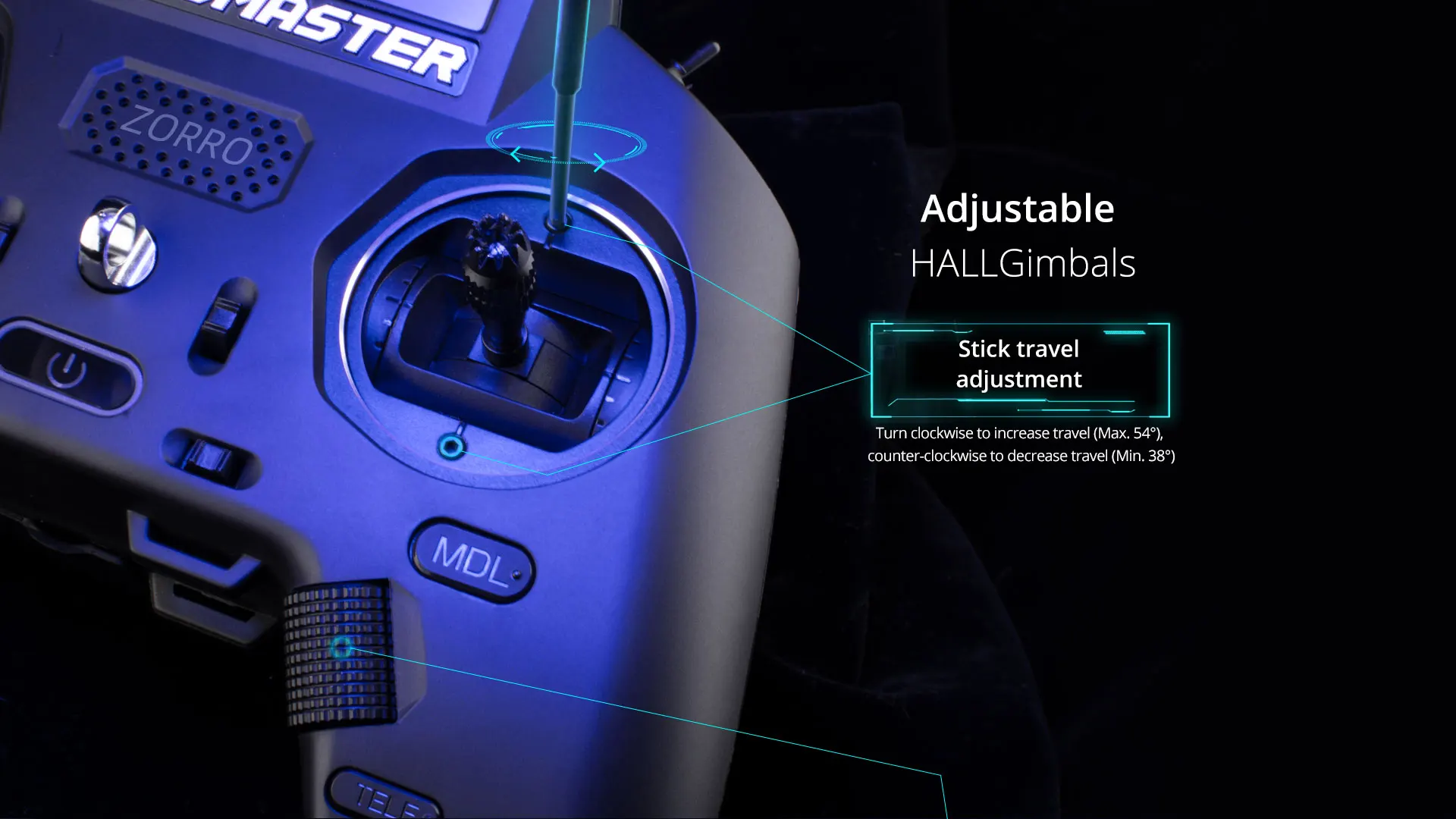

Adjustable HALLGimbals Stick travel adjustment Turn clockwise to increase travel (Max. 549, counter-clockwise to decrease travel (Min: 382) TASTER ZORRO MDL
