RadioMaster TX16S MKII MAX ELRS SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Recommend Age: 12+y
Origin: Mainland China
Material: Composite Material
Special JB edition in the Carbon and Purple JB color scheme with JB
sound pack pre-installed and V4.0 Hall Gimbals. Comes with internal
ExpressLRS module.
SPECS
Size: 287×129×184mm
Weight: 750g (without battery)
Transmission frequency: 2.400GHz-2.480GHz
Transmitter module:
Option 1: Internal 4-in-1 multi-protocol module(CC2500 CYRF6936 A7105 NRF2401)
Option 2: Internal ELRS(Sx1280)
Transmitting power:
lnternal 4-in-1 multi-protocol module : Max 100mw(protocol dependent)
lnternal ELRS : Max 250mw(transmitting power is adjustable)
Antenna gain: 2db (transmit power adjustable)
Working current: 400mA
Working voltage: 6.6-8.4v DC
Remote control distance:> 2km @ 22dbm
Radio firmware: EdgeTX
Module Firmware: Multiprotocol- Module (4IN1)-
OR-ExpressLRS(ELRS)
Channels:
Up to 16 channels (depending on the receiver)Display: 4.3-inch TFT
full-colour touch display with a resolution of 480 * 272
Up to 16 channels (depending on the receiver)Display: 4.3-inch TFT
full-colour touch display with a resolution of 480 * 272
Gimbal:
Option 1: v4.0 Hall sensor with Aluminium fascia,
Option 2: AG01 CNC Hall sensor
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / SD card offline upgrade
IMPROVEMENTS
- Improved internal circuity and optimized power supply.
- New charge circuitry with integrated reverse-polarity protection.
- Optimized charge lC, better balancing and USB-C charge current management.
- Rear mounted audio jack provides headphone output.
- V4.0 Gimbal improved centring and temperature stability(Same circuitry as AG01).
- Optional high/low rear grips included for improved ergonomics.
- Improved S1/S2 knobs with clear centre-detents.

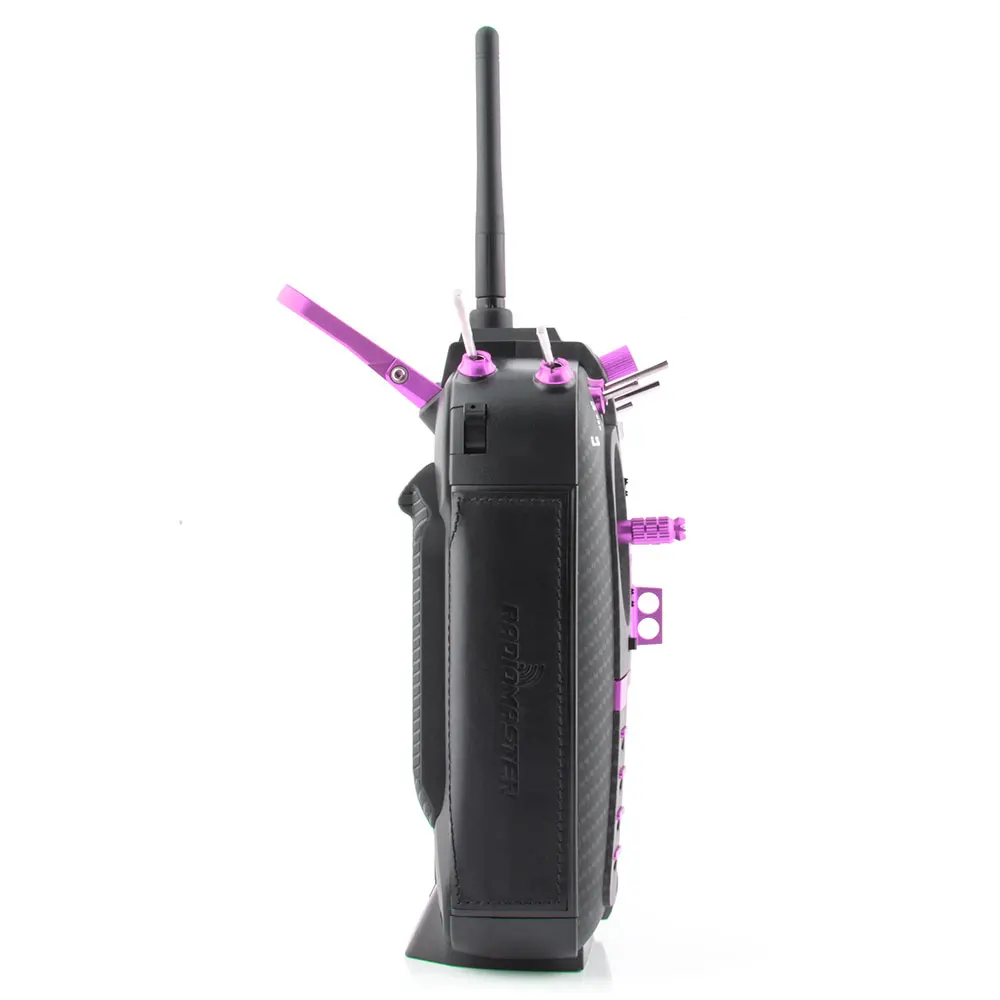

- Improved LS/RS Sliders with smoother feel and better centre-detents.
- Redesigned battery cover for improved battery access.
- Retooled body shell with improved fit and finish.
- Trainer socket changed to standard TRS 3.5mm socket.
- Rear DIY Socket added for personalised mods.
- Improved internal plastics for better longevity.
- Available ELRS and 4in1 versions.
MAX units feature carbon look face plates and CNC finishing components and buttons.
RadioMASTER TX16S Mark II ELRS 4INI ViAAO IOPEN edge TX TX SUPPORTS EDGETX AND OPENTX AVAILABLE 4ini AND ELR VERSIONS MULti 480k7 (334 Max ‘NEW V4,0 HALL GIMBALS Adiustable without disassembly’
