The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

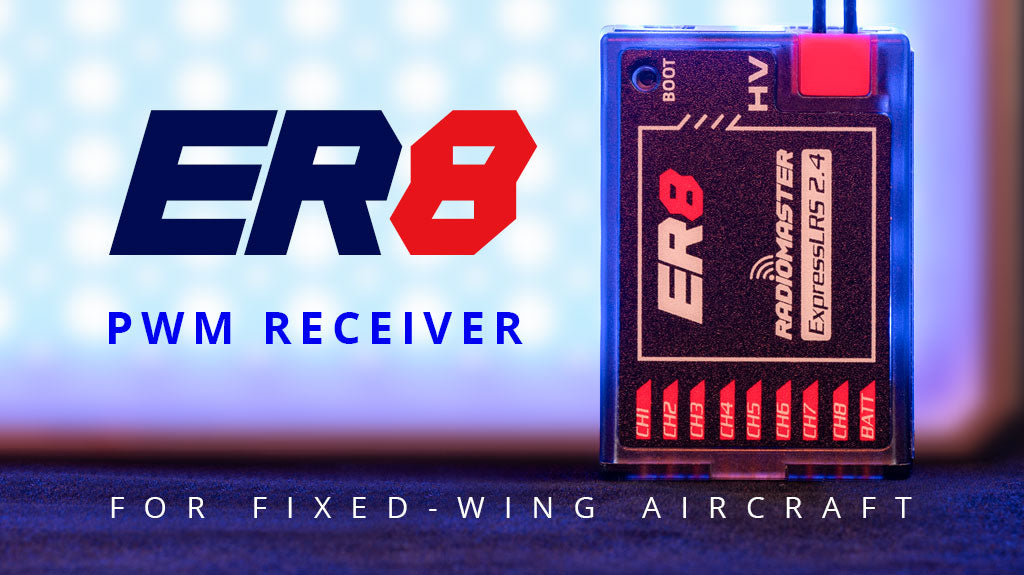

The Radiomaster ER8 receiver has been specially designed for fixed-wing users. It can drive up to 8 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is provided to facilitate later expansion of telemetry sensors. The ER8 features a dual-antenna with telemetry power up to 100mw. The receiver shell adopts one-piece molding process with high structural strength.
Launch Video
Features
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range

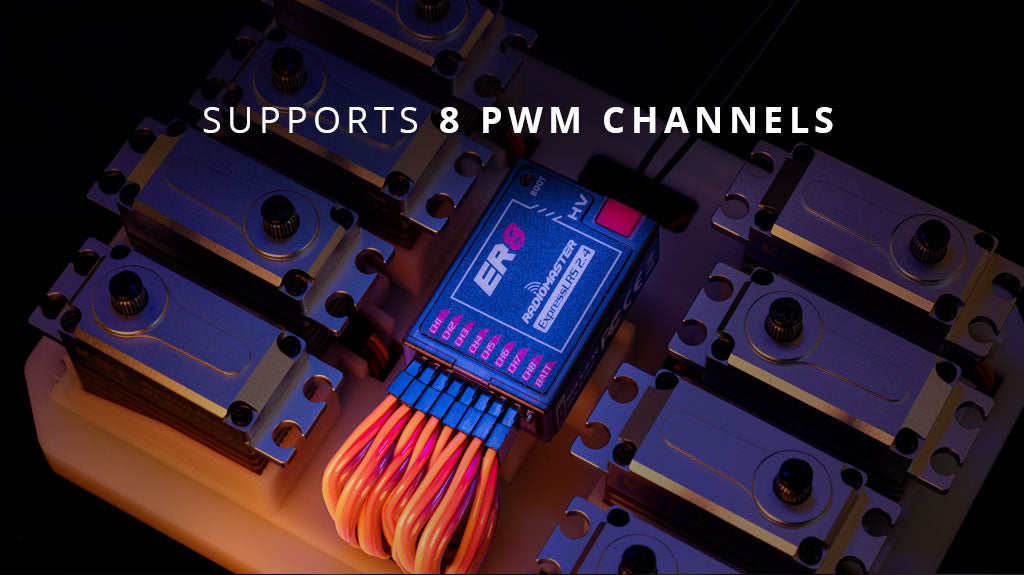

- Support 8 PWM Channels

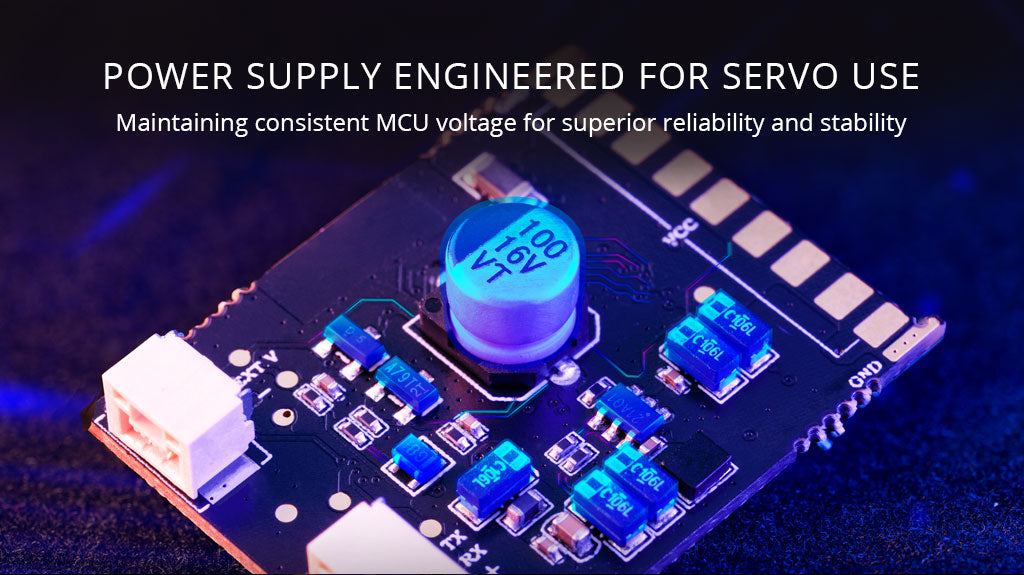

- Optimized ground up PCB design

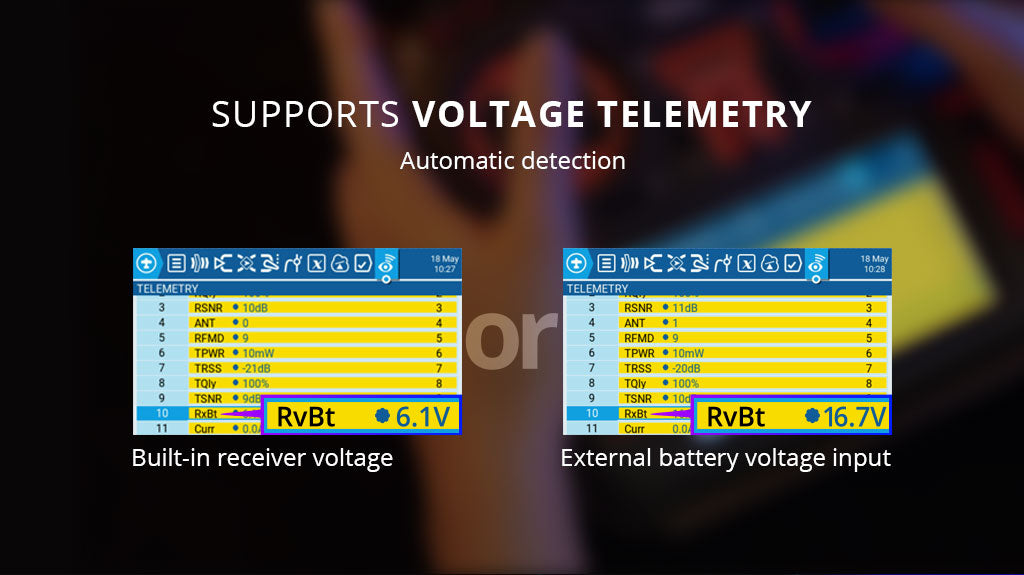

- Automatically voltage telemetry of external battery voltage or built-in receiver voltage

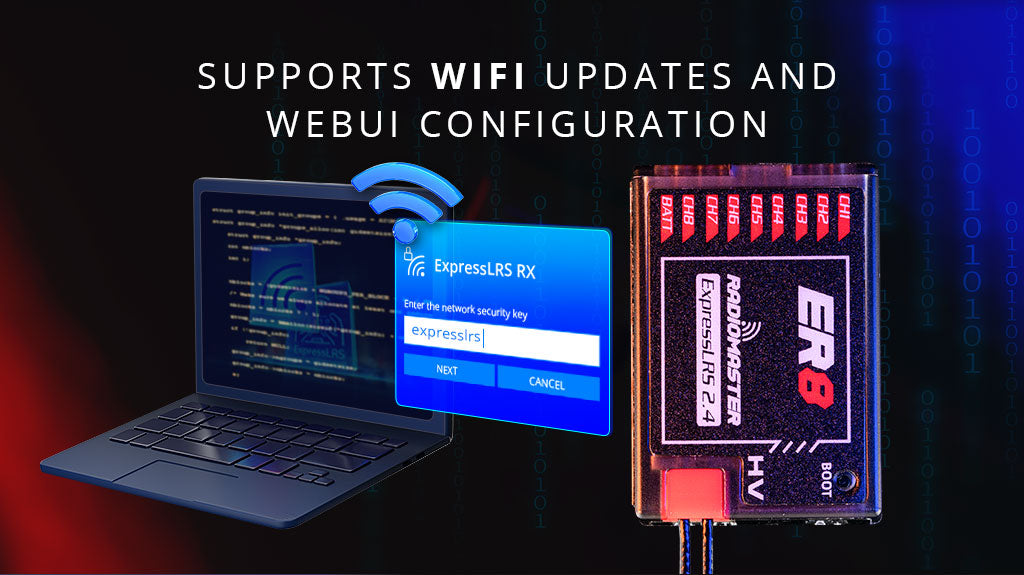

- Supports Wi-Fi updates and WEBUI configuration

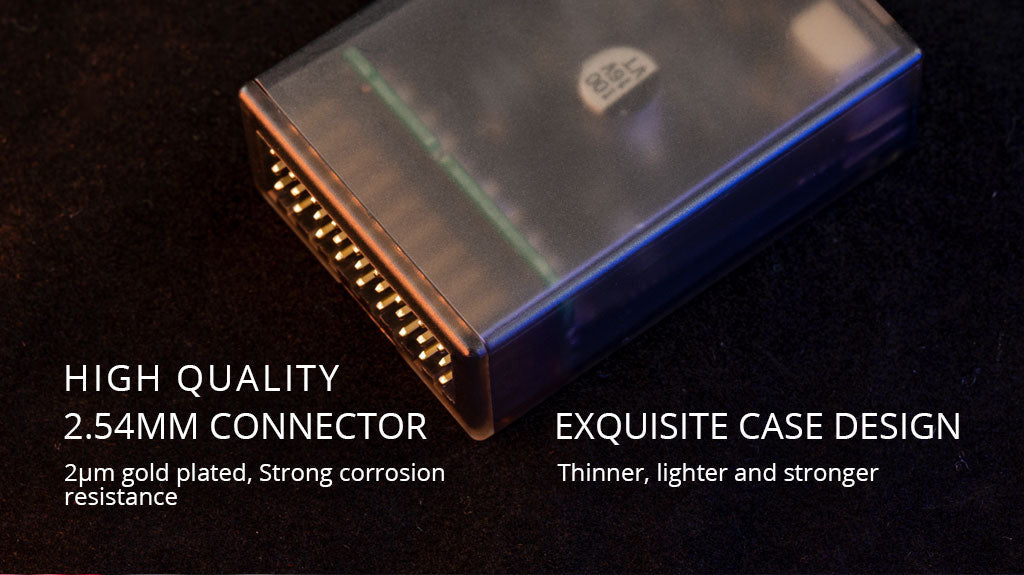

- High quality 2.54 mm connector

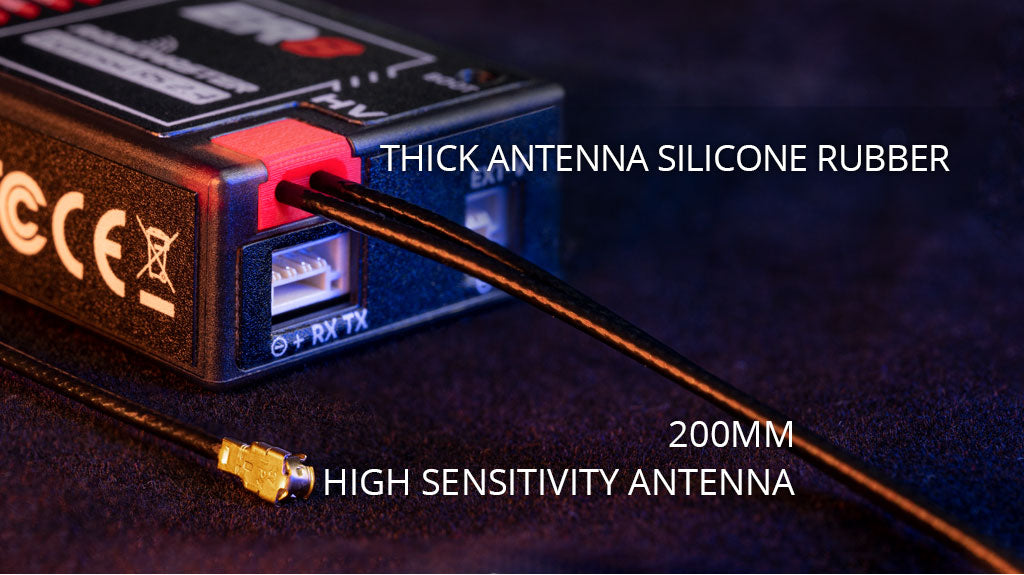

- Standard 20 cm High Sensitivity Antenna

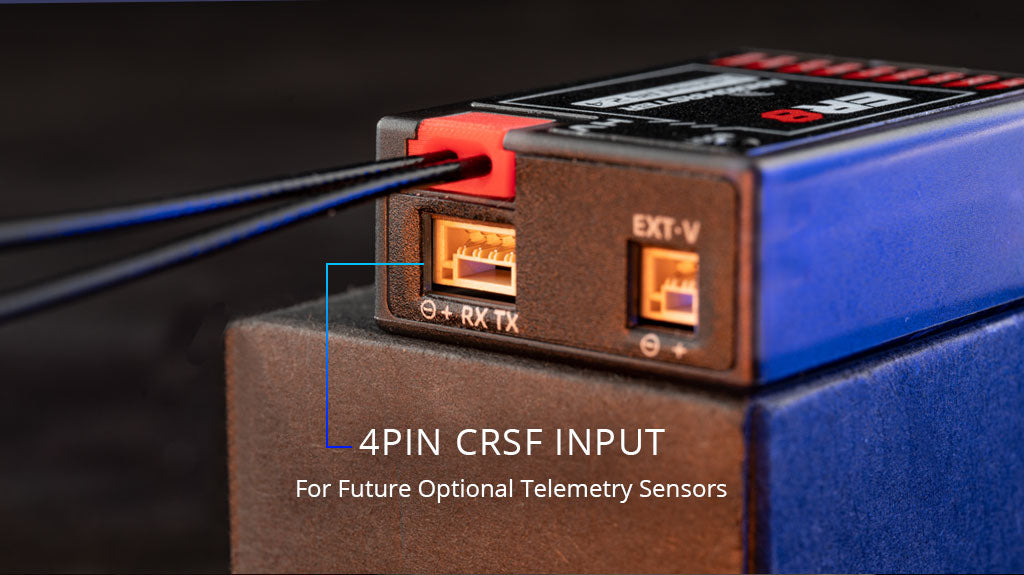

- Reserve 4pin CRSF input port
- Shell adopts one-piece molding process with high structural strength
- For fixed-wing aircraft and more
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specification
- Item: ER8 2.4GHz ELRS PWM Receiver
- Power supply: DC 4.5 – 8.4V
- Antenna type: 20cm high sensitivity antenna
- Wireless protocol: ExpressLRS 3.3.0 pre-installed
- Output channel: 8CH PWM
- Serial Output: CRSF / Sbus
- Telemetry power: maximum 100mw (LUA Adjustable)
- Battery voltage detection range: DC 4.0 – 35V
- Bus interface: CRSF
- Weight: 16.5 grams

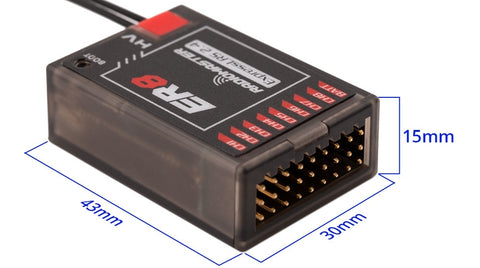

- Size: 43*30*15mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER8 2.4GHz Diversity+8xPWM RX
Size
RadioMaster ER Series Receivers
- ER4 ELRS PWM Receiver
- ER6 ELRS PWM Receiver
- ER8 ELRS PWM Receiver
- ER6G/ER6GV ELRS PWM Receiver
- ER8G/ER8GV ELRS PWM Receiver

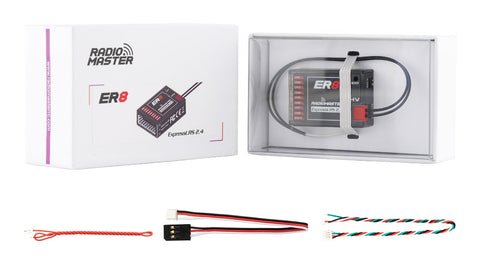

Package Includes
- 1 * ER8 2.4GHz ELRS PWM Receiver
- 1 * Voltage telemetry wire (Type-B)
- 1 * CRSF wire
- 1 * ELRS- RX- SBUS wire
- 1 * User Card
