The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

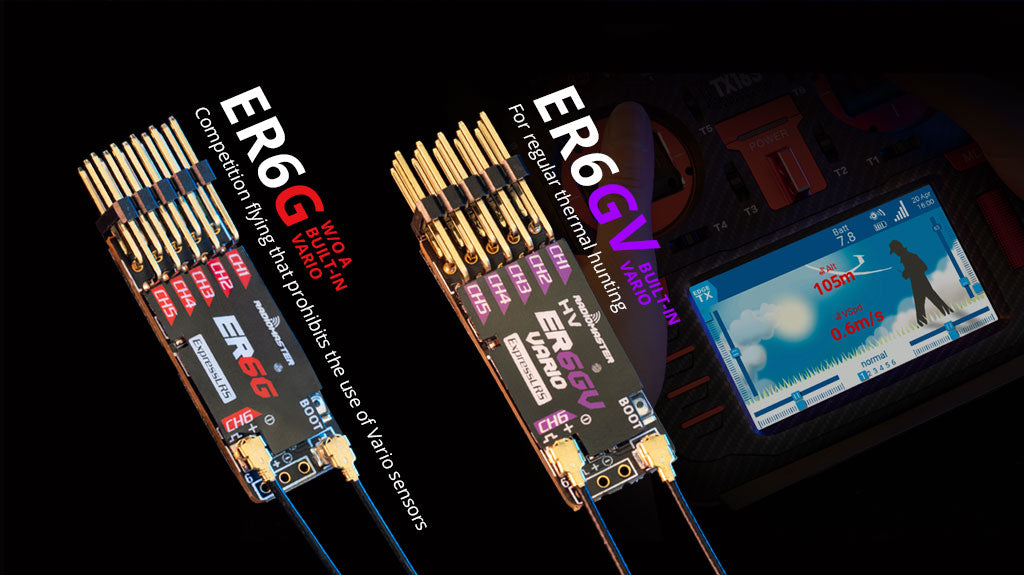

The ER6G & ER6GV receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. Both ER6G & ER6GV feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.
The ER6G Receiver has the same functionality as the ER6GV only without a built in Vario for competitions that prohibit the use of a Vario or simply for users who do not need a vario on their receiver.
Launch Video
Features
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range

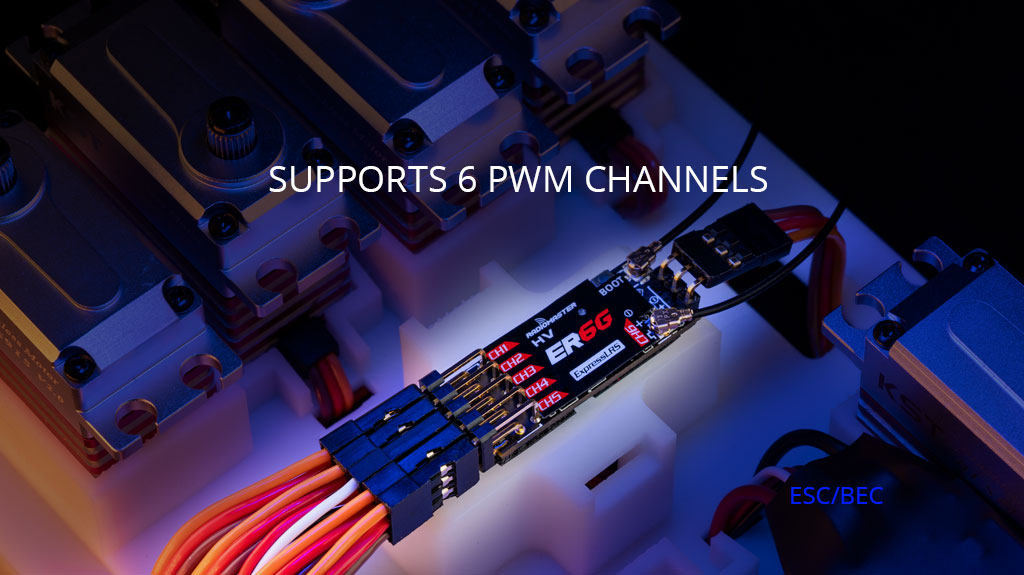

- Support 6 PWM Channels

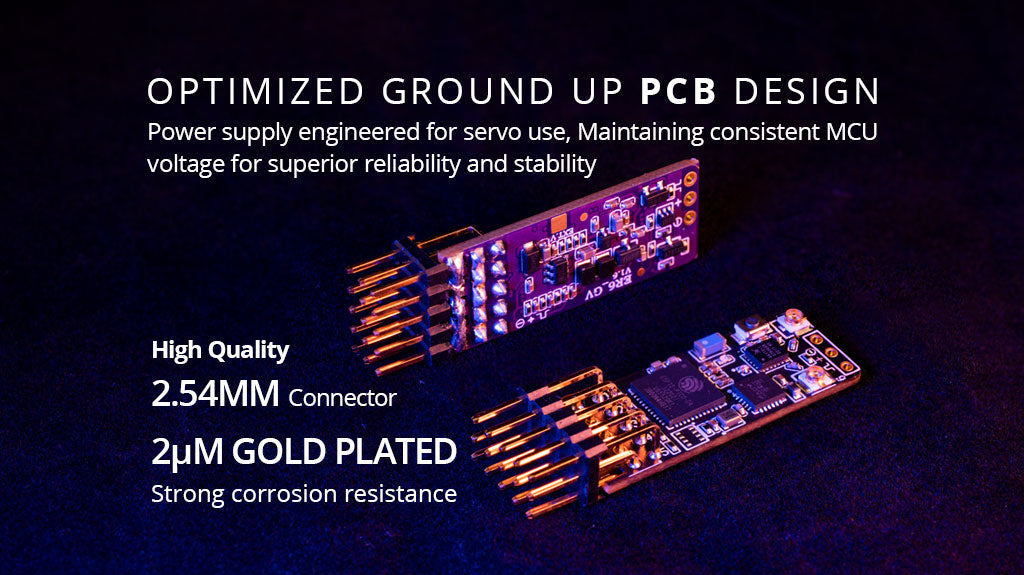

- Optimized ground up PCB design

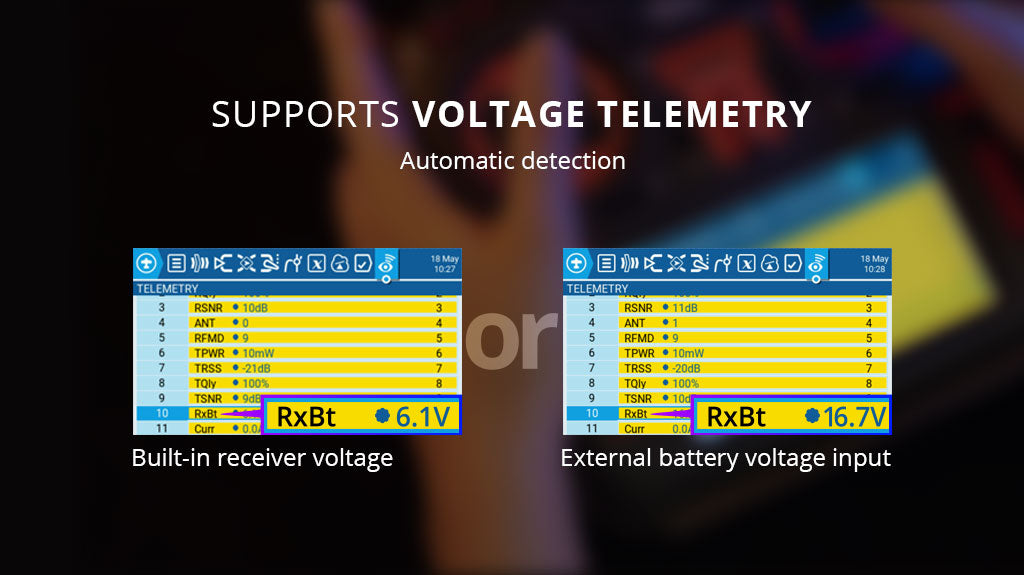

- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- ER6GV Receiver is built-in high-precision air pressure sensor (Vario)
- Supports Wi-Fi updates and WEBUI configuration
- High quality 2.54 mm connector

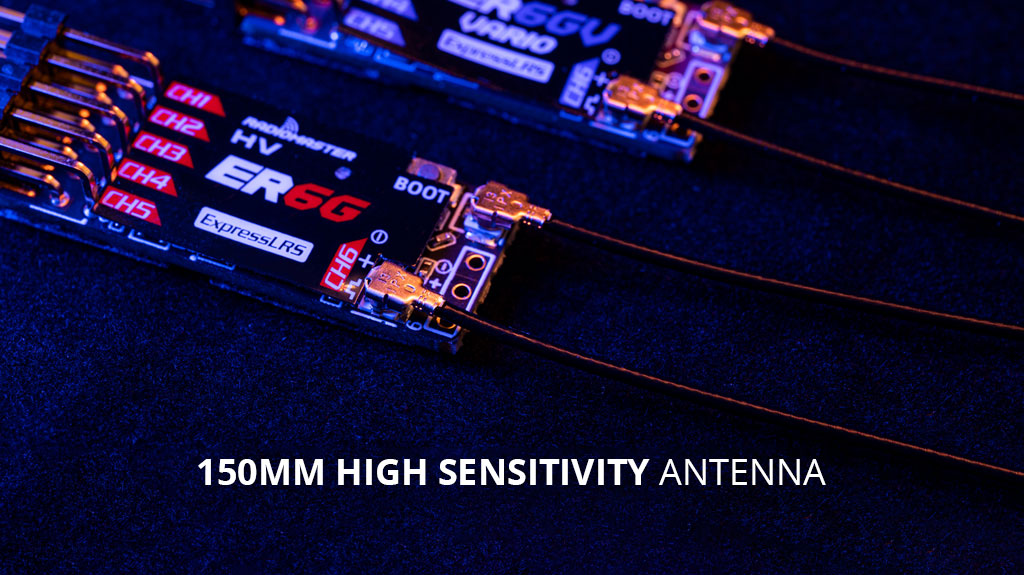

- Standard 15 cm High Sensitivity Antenna
- For fixed-wing aircraft and gliders
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specification (ER6G)
- Item: ER6G 2.4GHz ELRS PWM Receiver
- Power supply: DC 3.5 – 8.4V
- Antenna type: 15cm high sensitivity antenna
- Wireless protocol: ExpressLRS 3.3.0 pre-installed
- Output channel: 6CH PWM
- Serial Output: CRSF / Sbus
- Telemetry power: maximum 50mw (LUA Adjustable)
- Battery voltage detection range: DC 3.0 – 26V
- Weight: 5.0 grams
- Dimensions: 42*13*8mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER6-G 2.4GHz Diversity+6xPWM RX
Specification (ER6GV)
- Item: ER6GV 2.4GHz ELRS PWM Receiver
- Power supply: DC 3.5 – 8.4V
- Antenna type: 15cm high sensitivity antenna
- Wireless protocol: ExpressLRS 3.2 pre-installed
- Output channel: 6CH PWM
- Serial Output: CRSF / Sbus
- Return power: maximum 50mw (LUA Adjustable)
- Built-in high-precision air pressure sensor (Vario)
- Battery voltage detection range: DC 3.0 – 26V
- Weight: 5.0 grams
- Dimensions: 42*13*8mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER6-GV 2.4GHz Diversity+6xPWM+Vario RX

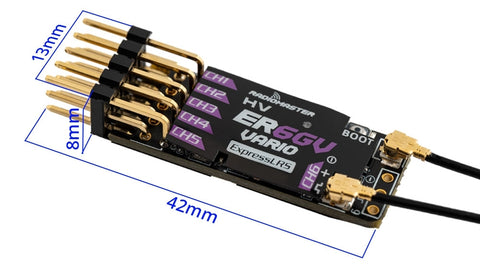

Size
RadioMaster ER Series Receivers
- ER4 ELRS PWM Receiver
- ER6 ELRS PWM Receiver
- ER8 ELRS PWM Receiver
- ER6G/ER6GV ELRS PWM Receiver
- ER8G/ER8GV ELRS PWM Receiver

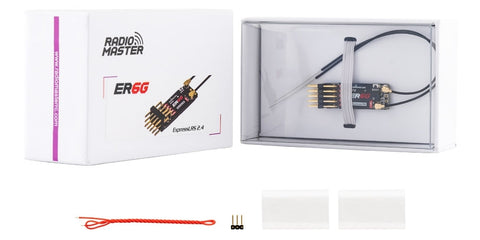

Package Includes
- 1 * ER6G or ER6GV 2.4GHz ELRS PWM Receiver
- 1 * Voltage telemetry wire (Type-A)
- 2 * Heat-shrink tube
- 1 * User Card
