Brushless Gimbal Controller SPECIFICATIONS
Upgrade Parts/Accessories: Other
Tool Supplies: Other
Technical parameters: KV1100
Size: As description
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 18+,12+y
RC Parts & Accs: Other
Origin: Mainland China
Model Number: Brushless Gimbal Controller
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: uuustore
Official genuine AlexMos 32bit ARM 3 axis Brushless Gimbal Controller & IMU BaseCam BGC
32Bit ARM AlexMos Brushless Gimbal Controller + IMU
Latest firmware version: 2.5
The Features:
32-bit MCU — ARM Cortex M4. Effectively calculates the complex tasks for 3-axis stabilization.
Allows camera control with the RC or analog joystick.
Use several switchable profiles for different modes of operation
Supports variety of RC protocols: PWM, Sum-PPM, spektrum and s-bus.
Battery voltage monitoring, compensating voltage drop in the PID-regulator.
Low battery alarm (output to 5V active buzzer).
Increased number of inputs for controlling signals + 3 additional reserved input/output AUX1-AUX3.
Can supply up to 1A current for external devices on the 5V power line.
Reverse-polarity protection, overheat and overcurrent protection
Graphical user interface to manage the settings. Windows / OS X / Linux versions.
Improved attitude estimation algorythms
Optional second IMU, that will increase the short-term precision of the stabilization 10x-30x times and will make stable work in any frame position.
Specifications:
Weight: 17g (including sensor and wire)
Main board size: 50 x 50mm
Distance between the mounting holes: 45 mm
Power supply voltage: 8-25 V (3s-5s LiPo)
Maximum motor current: 1.5 A- 5V output current to power external devices: up to 1 A
More details pls see link
Package included: ( Tested and Ready to use )

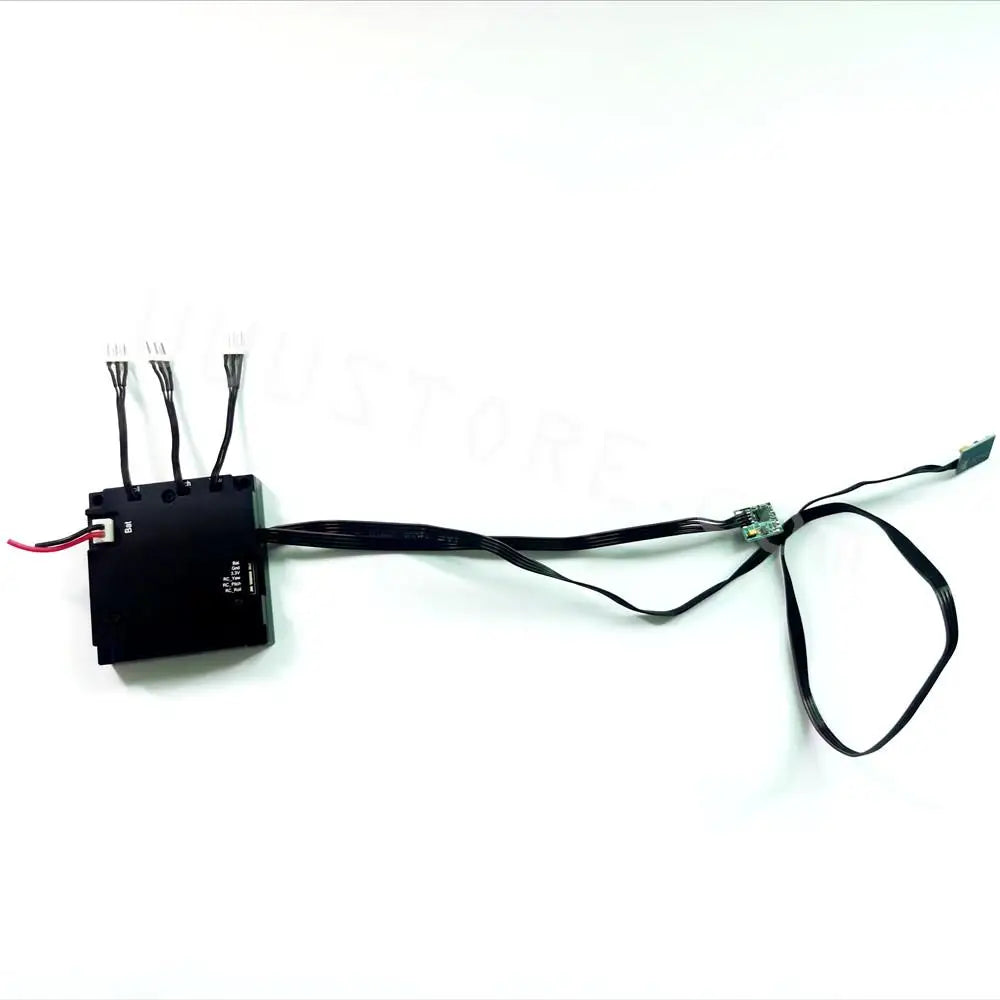

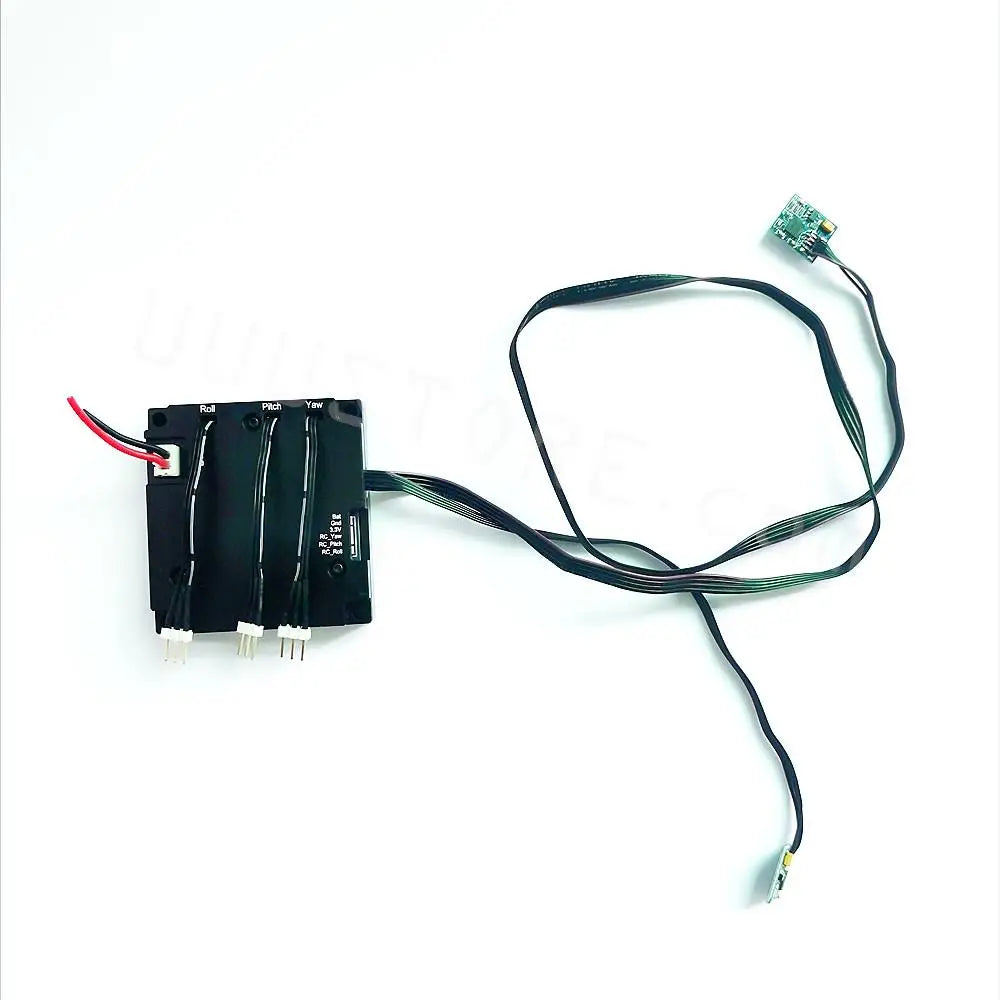

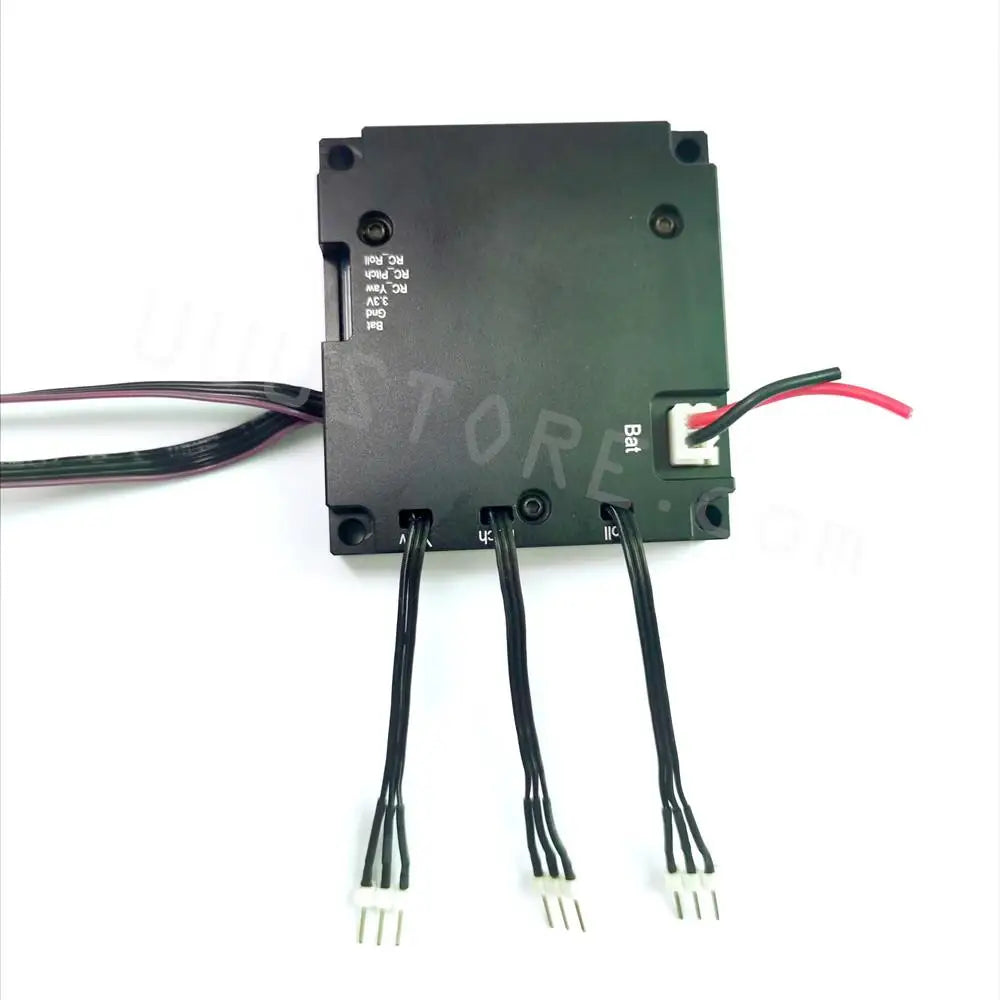

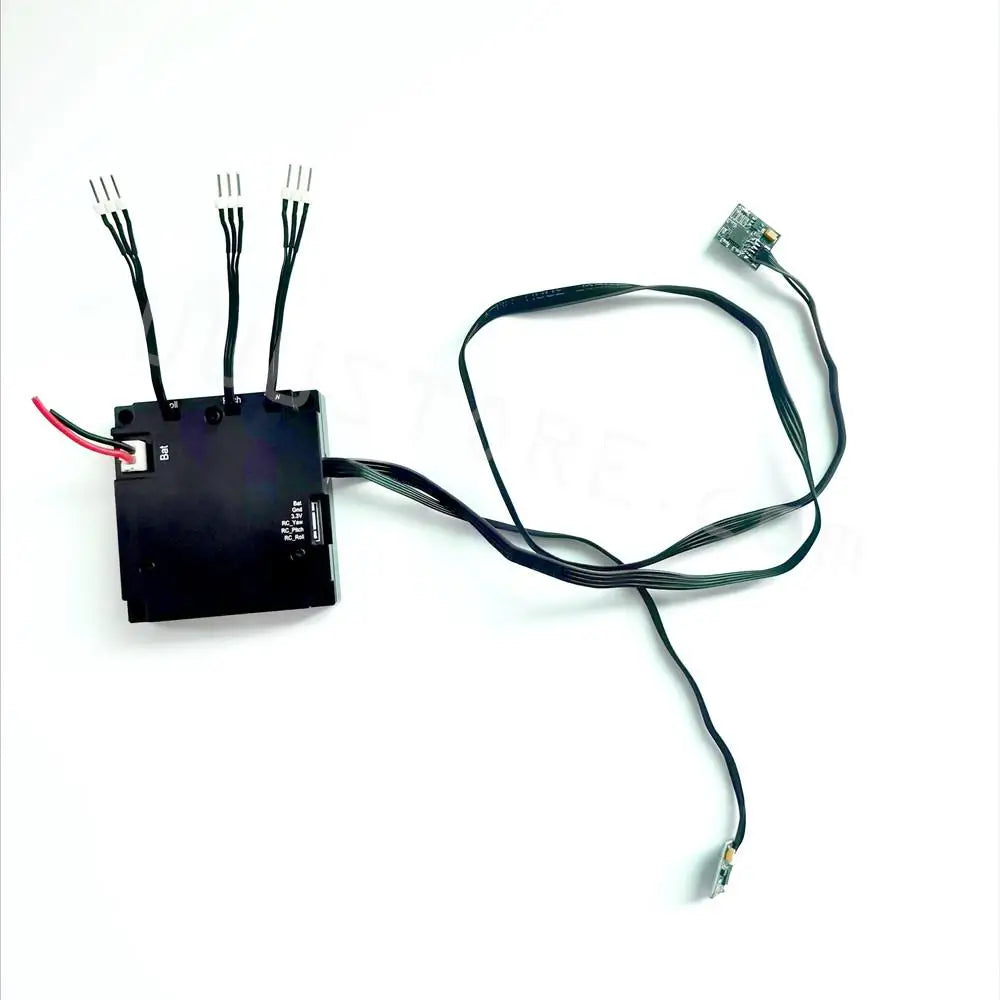

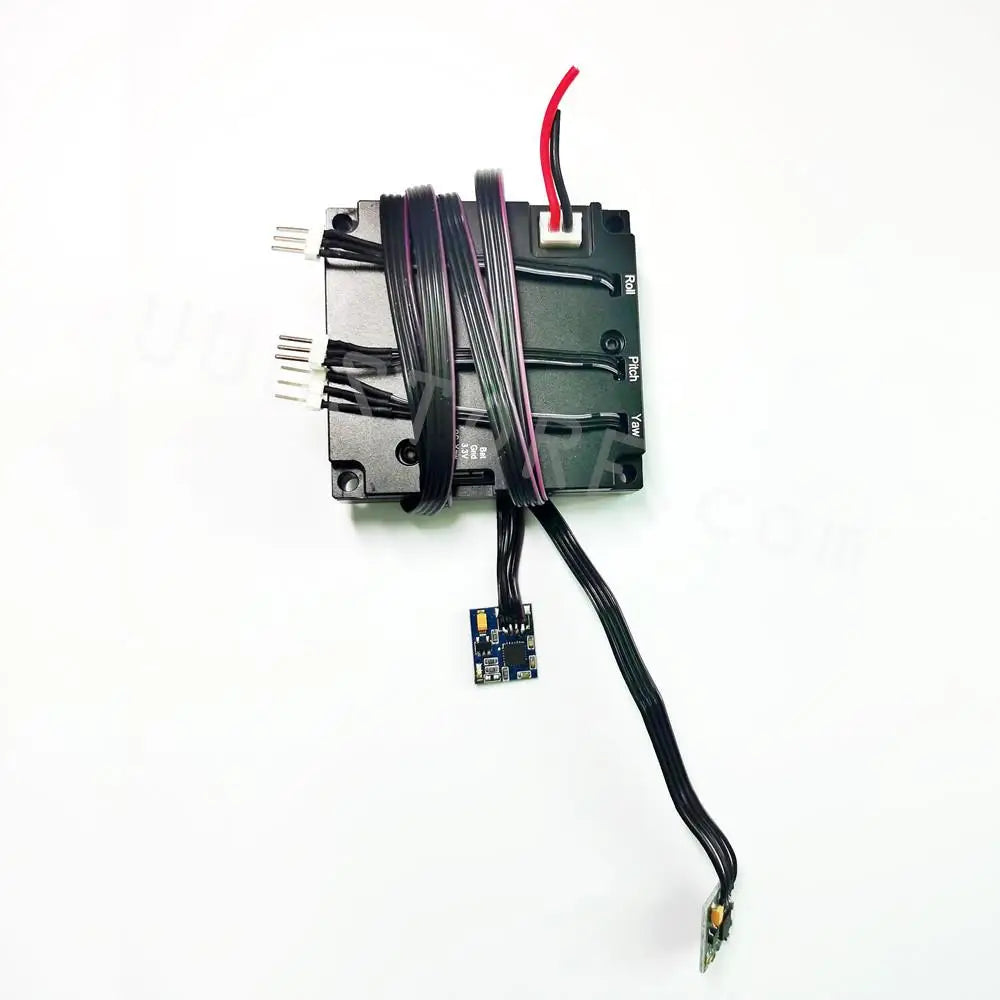

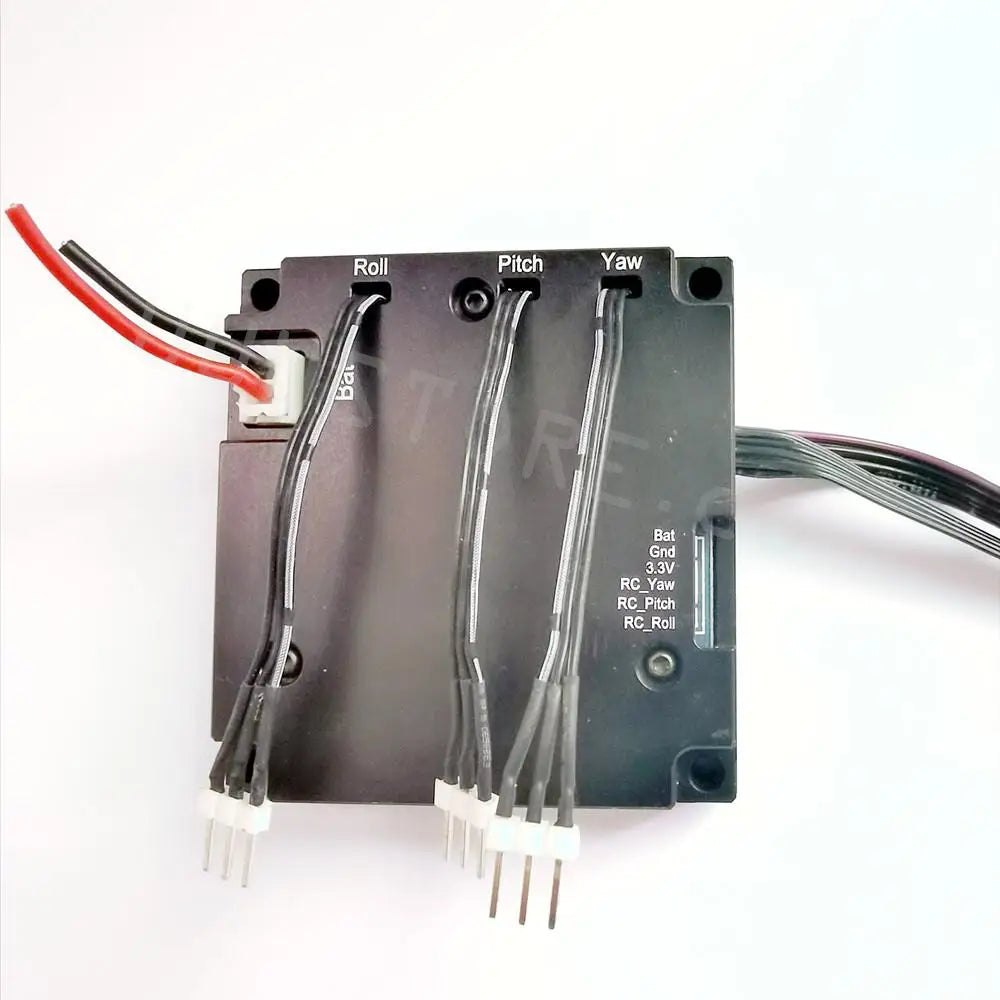

1 x 32bit AlexMos Controller Board + Firmware Version 2.5 version Load completed + Black Case
You can upgrade new Firmware anytime you like
2 x IMU Sensor Board + Black Case
‘
