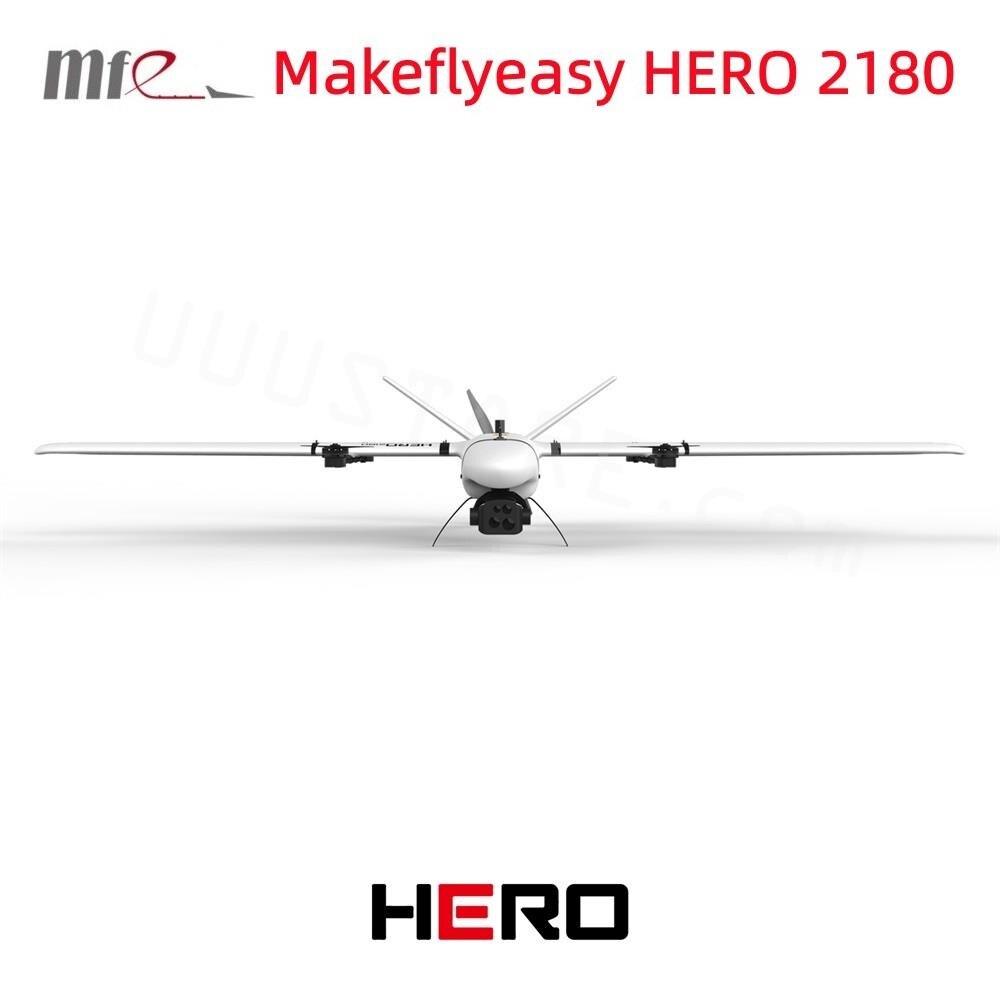

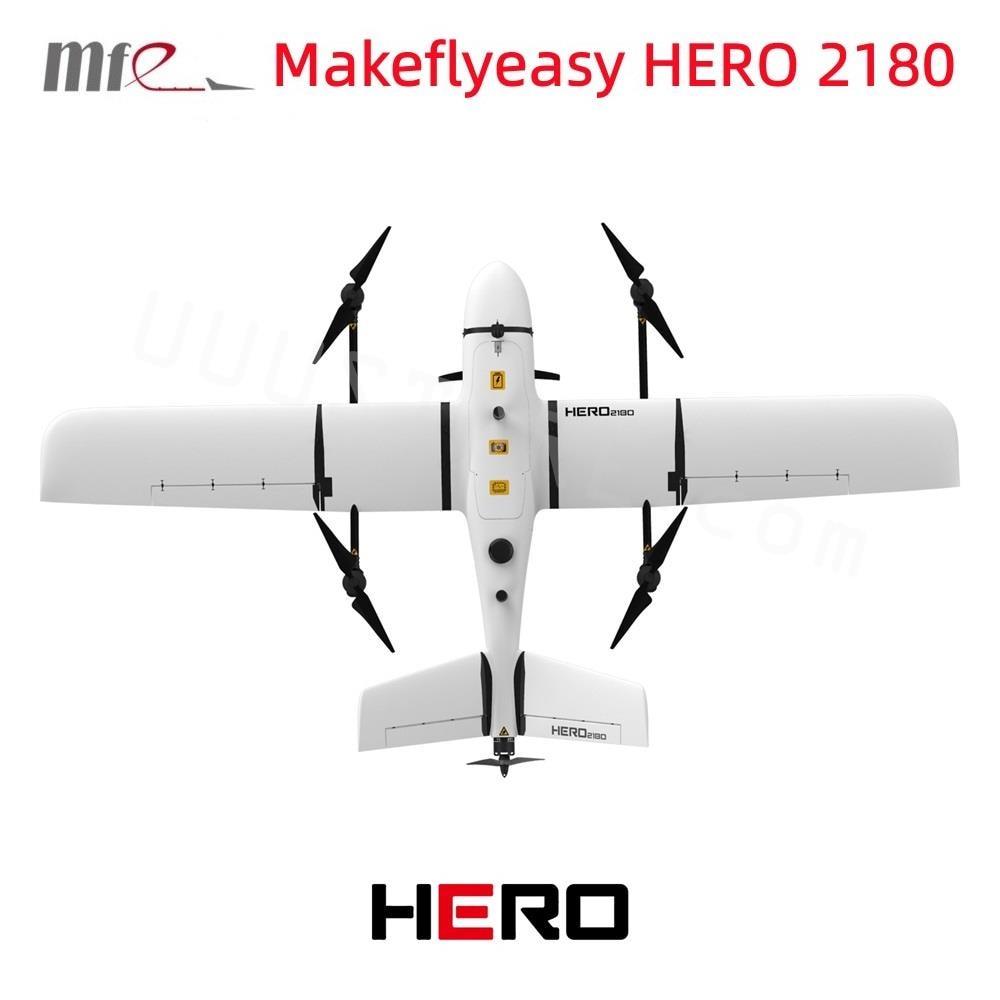

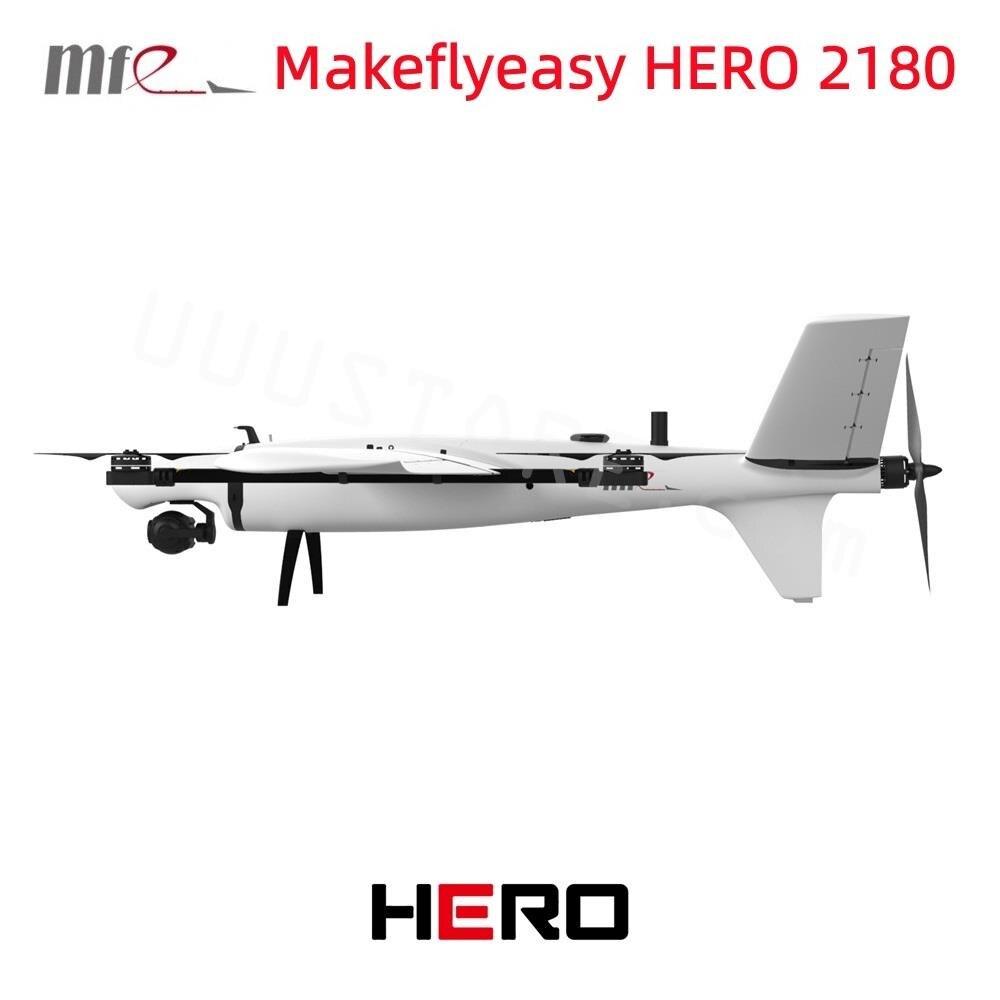

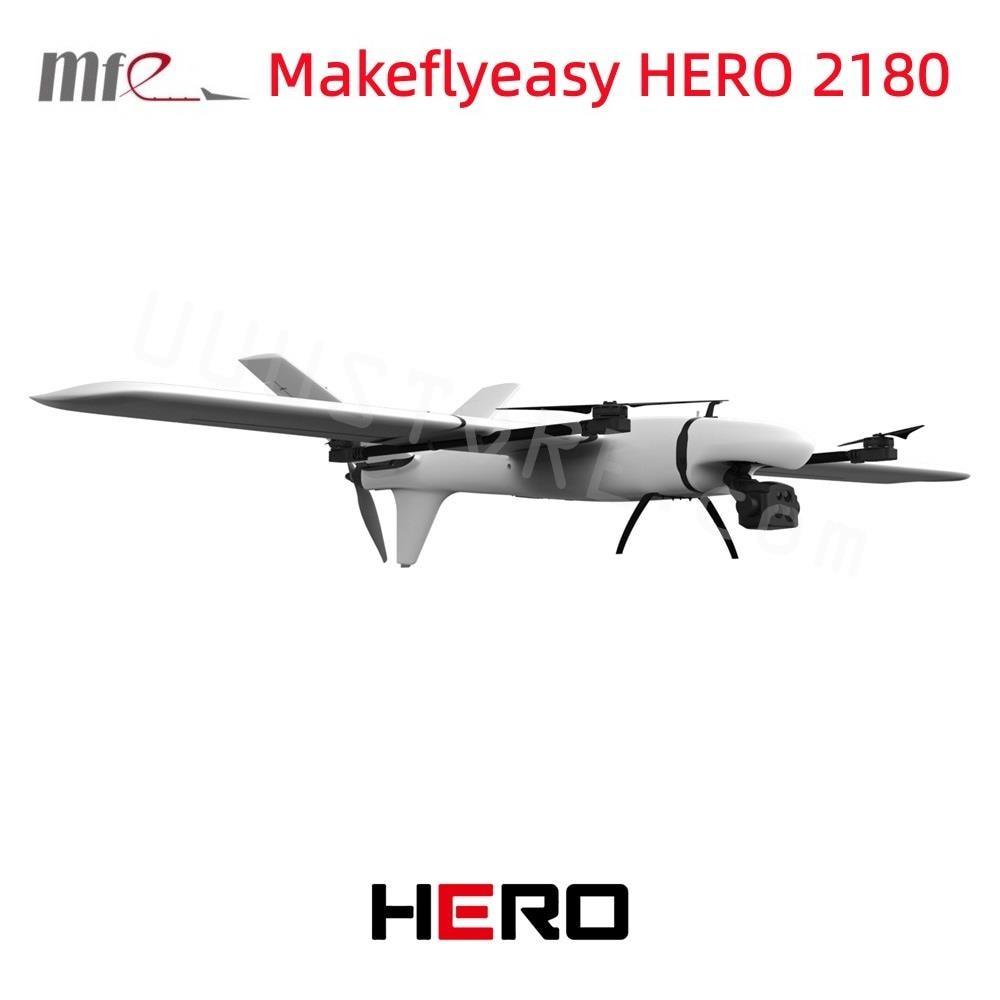

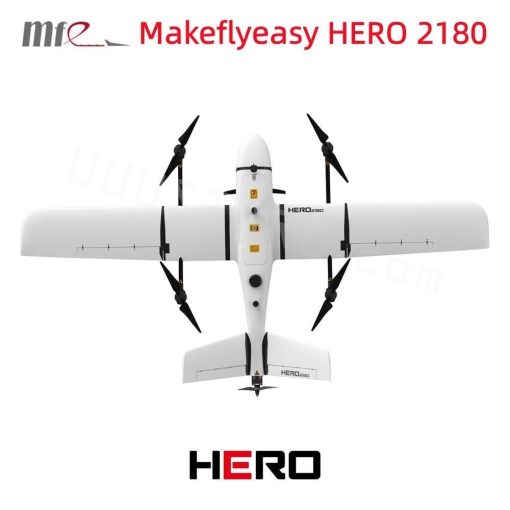

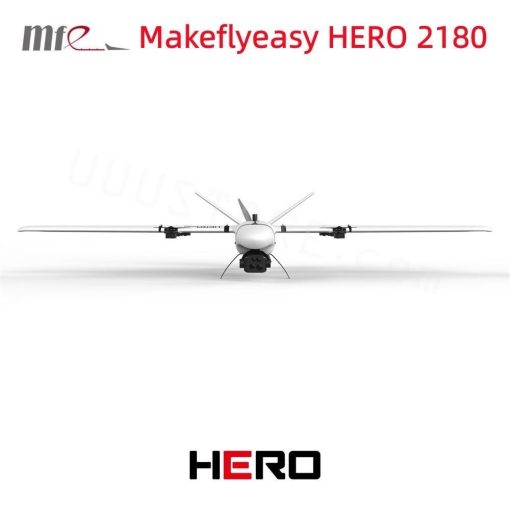

Makeflyeasy HERO VTOL HERO VTOL - حمولة 1 كجم حمولة 144 كم مدى 136 دقيقة 2180 مم، طائرة بدون طيار ذات جناحين ثابتين طائرة بدون طيار للمعاينة والمسح ورسم الخرائط والمراقبة

النطاق السعري: من $899.00 إلى $2,799.00

+ شحن مجاني
Pro VersionPNP VersionKIT Version
واضح
- +
SKU: غير متاح الفئات:
اطلب المزيد من المعلومات

Basic parameters

Material:EPO, carbon fiber, aviation aluminum alloy, engineering plastic, etc.

Wingspan: 2180mm

VTOL arm: 755mm(including motor base)

Fuselage height: 255mm (inclouding foot pads)

Fuselage length: 1140mm

Wing area: 53dm2

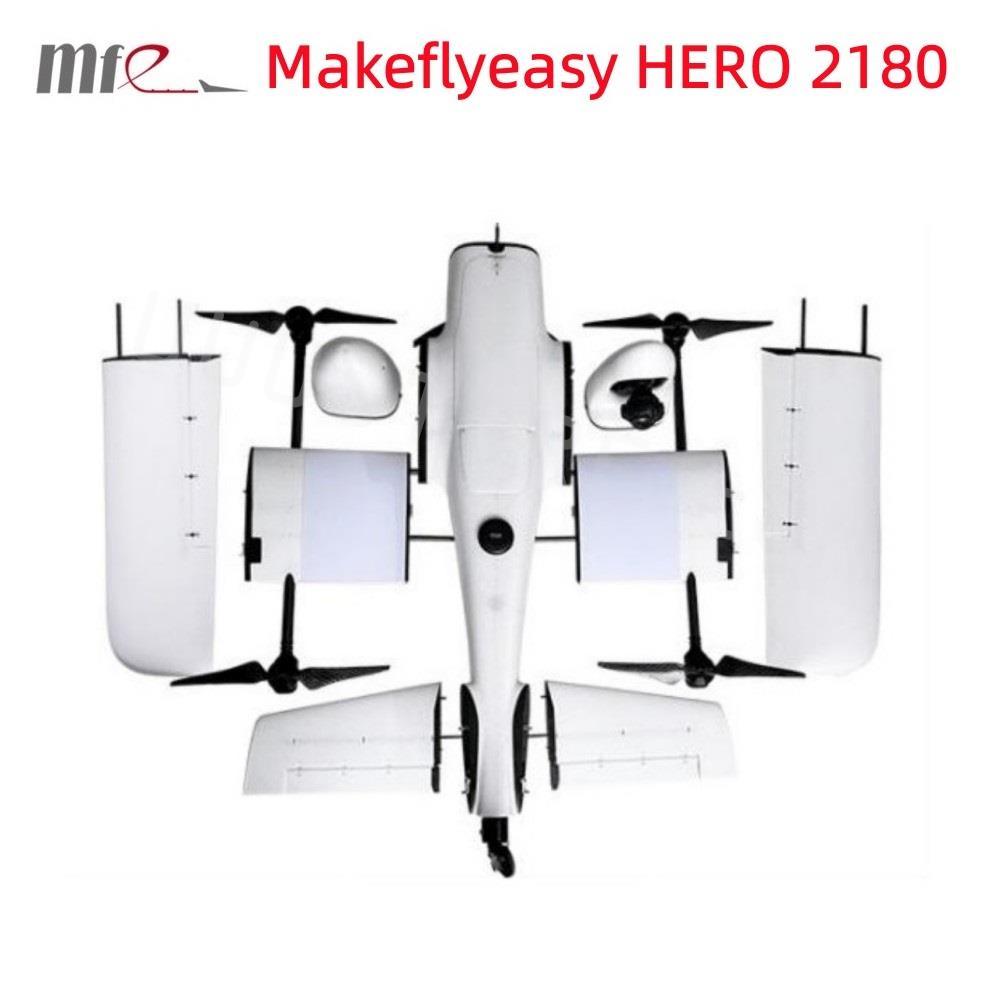

Disassembly method: tool-less quick disassembly

Transport box size: 1095×340×435mm

Payload

Max. payload: 1kg

Max. takeoff weight: 7kg

Flight

Takeoff and landing mode: VTOL

Maximum takeoff altitude: 3000m

Practical lift altitude: 6500m

Wind resistance: Class 5 (normal operation)

Cruising speed: 17-22m/s

Stall speed: 12m/s

Mapping endurance: 136min/144km (speed 19m/s, load 600g, battery 6S@22000mah, take-off weight 6.65kg)

Monitoring endurance: 125min/126km (speed 18m/s, load 450g, battery 6S@22000mah, take-off weight 6.5kg)



Makeflyeasy HERO  SPECIFICATIONS

الضمان: AS Description

تحذير: AS Description

دقة التقاط الفيديو: أخرى

النوع: الطائرة

حالة التجمع: Unassembled Kit

المسافة البعيدة: 2km

جهاز التحكم عن بُعد: نعم

العمر الموصى به: 14+y,12+y

مصدر الطاقة: كهربائي

نوع المقابس: AS Description

تتضمن العبوة: الصندوق الأصلي

المنشأ: البر الرئيسي للصين

مستوى مهارة المشغل: خبير

رقم الموديل: AS Description

المواد: بلاستيك

استخدام داخلي/خارجي: داخلي-خارجي

وقت الرحلة: AS Description

الميزات: نظام تحديد المواقع العالمي (GPS)

الأبعاد: 31 سم - 50 سم

وضع وحدة التحكم: الوضع 1، الوضع 2

بطارية وحدة التحكم: 2-4S

قنوات التحكم: 8 قنوات

جهد الشحن: AS Description

وقت الشحن: AS Description

نوع حامل الكاميرا: أخرى

سي إن إن: Sichuan

اسم العلامة التجارية: يوستور

التصوير الجوي: لا يوجد

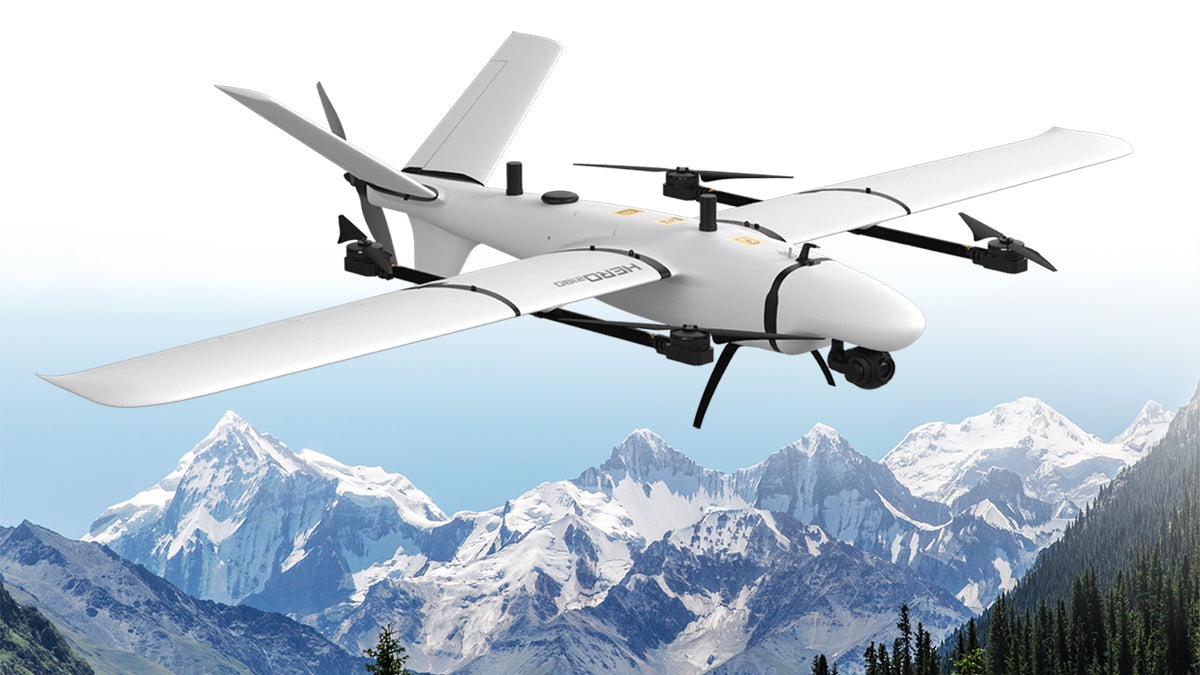

The Hero VTOL is a multi-purpose vertical take-off and landing fixed wing. The nose can be replaced, and it can be equipped with an orthophoto camera or a tilt camera for surveying and mapping, and an optoelectronic pod for monitoring.



Makeflyeasy HERO VTOL inspection drone Aerial survey carrier Vertical take-off landing fixed wing Surveying mapping Monitoring

Makeflyeasy HERO VTOL, A4 Rear right motor Left aileron M1 A1- Left

ESC ESC BEC 6V 10A 6S 50A 6s 50A A3 6V A1 Camera shutter cable A5(11) (9) A1 Right front motor Rear left motor A2(10) (12) A4 Rear right motor Left aileron M1 A1- Left ace servo Left tail M2 M6| Right tail serv o 3054 ArduPilot 3054 Accelerator |M3 M8 M4 PPM ‘SBUS’ Left

Makeflyeasy HERO VTOL, Makeflyeasy aerial survey series products are sensitive items . it is prohibited to use it

Makeflyeasy aerial survey series products are sensitive items . it is prohibited to use it for military purposes . keep the aircraft out of the reach of children .



APPLICATION AREAS

With small storage volume, flexible and convenient use, it can be widely used in topographic mapping, land survey, engineering survey, digital city, planning and construction, landscape planning, precision agriculture, environmental protection monitoring, ecological monitoring and other fields.

Makeflyeasy HERO VTOL, VTOL arm: 755mm(including motor base) Wing area: 53dm
